    Well with much effort and lots of phone calls/planning and I have my big turbo setup. This manifold from Full Race is perfect. Fitment was spot on, quality is 10 out of 10, and all the transitions were smooth with no interruptions.

    Everything is bolted on so I can make custom lines/fittings and once that is done I will weld up my downpipe and wastegate re-circs. I still have a lot of work to do but it is coming together nicely!

    I will be machining some custom pieces to convert the OEM Oil/Water fittings to AN. I will end up doing some production runs on these parts if anyone is interested.

    Enjoy the pics!

    Borg Warner EFR 9280 Twin Scroll
    Twin 44mm Wastegates

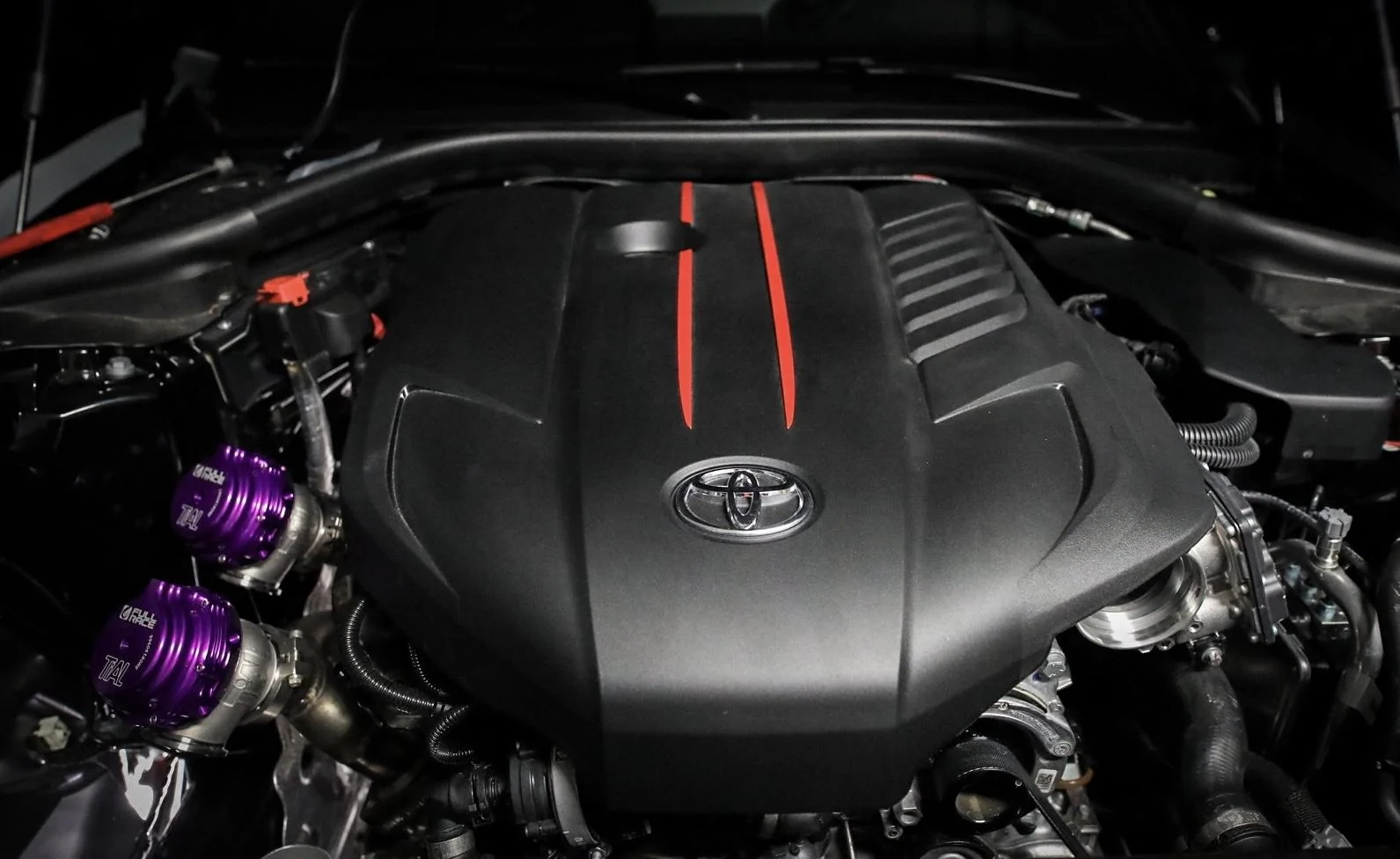

    Supra Turbo1.jpg

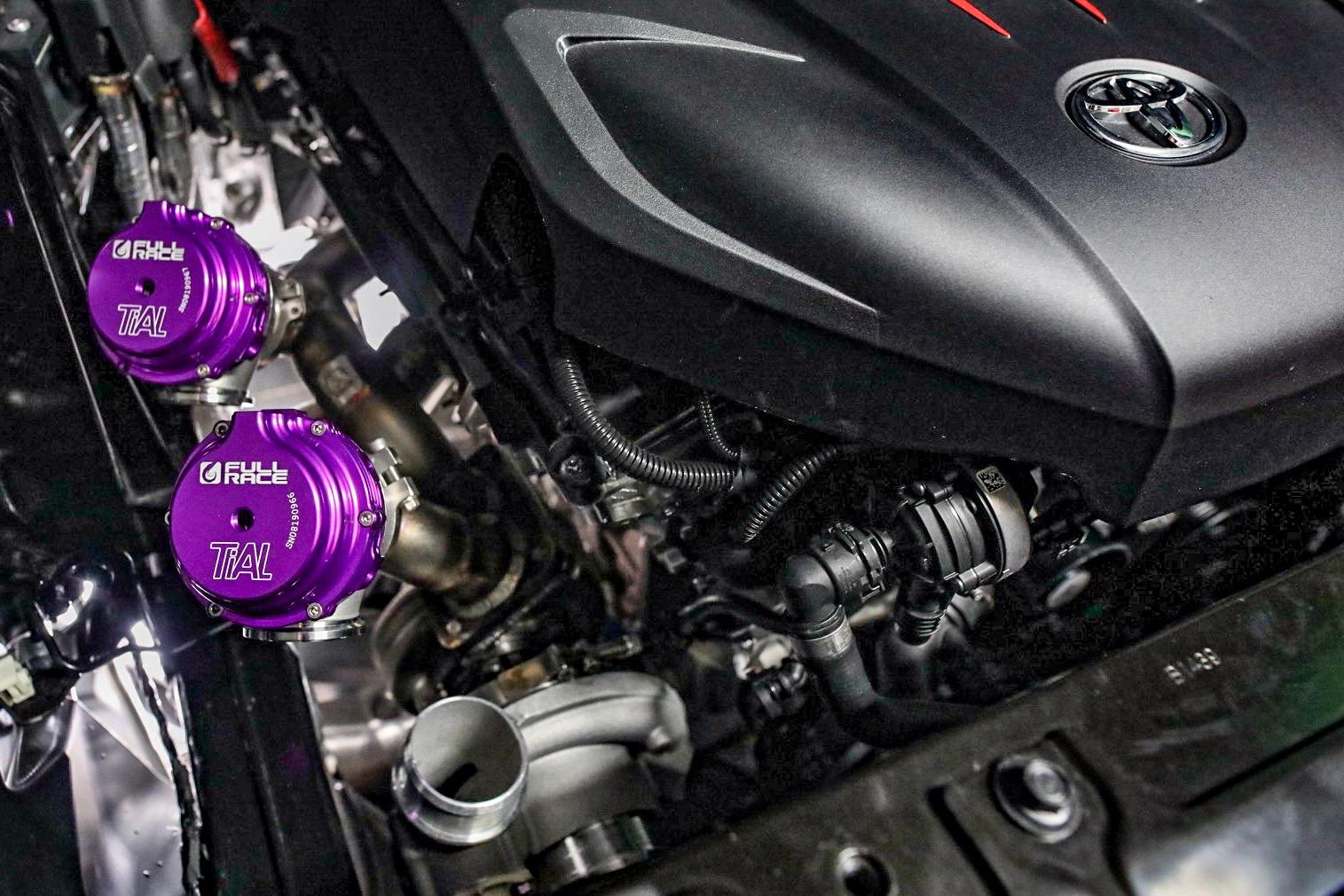

    Supra Turbo2.JPEG

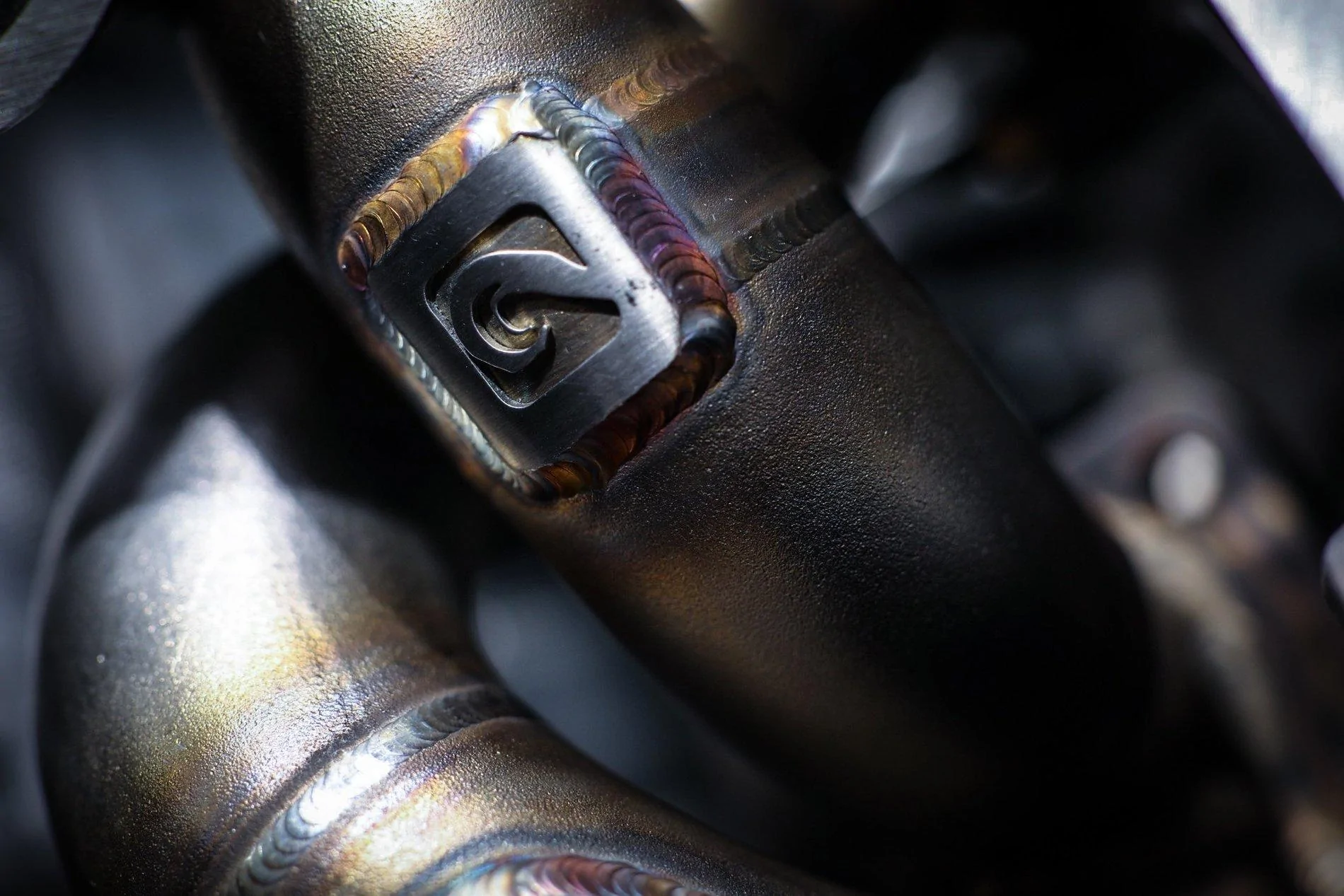

    Supra Turbo3.JPEG

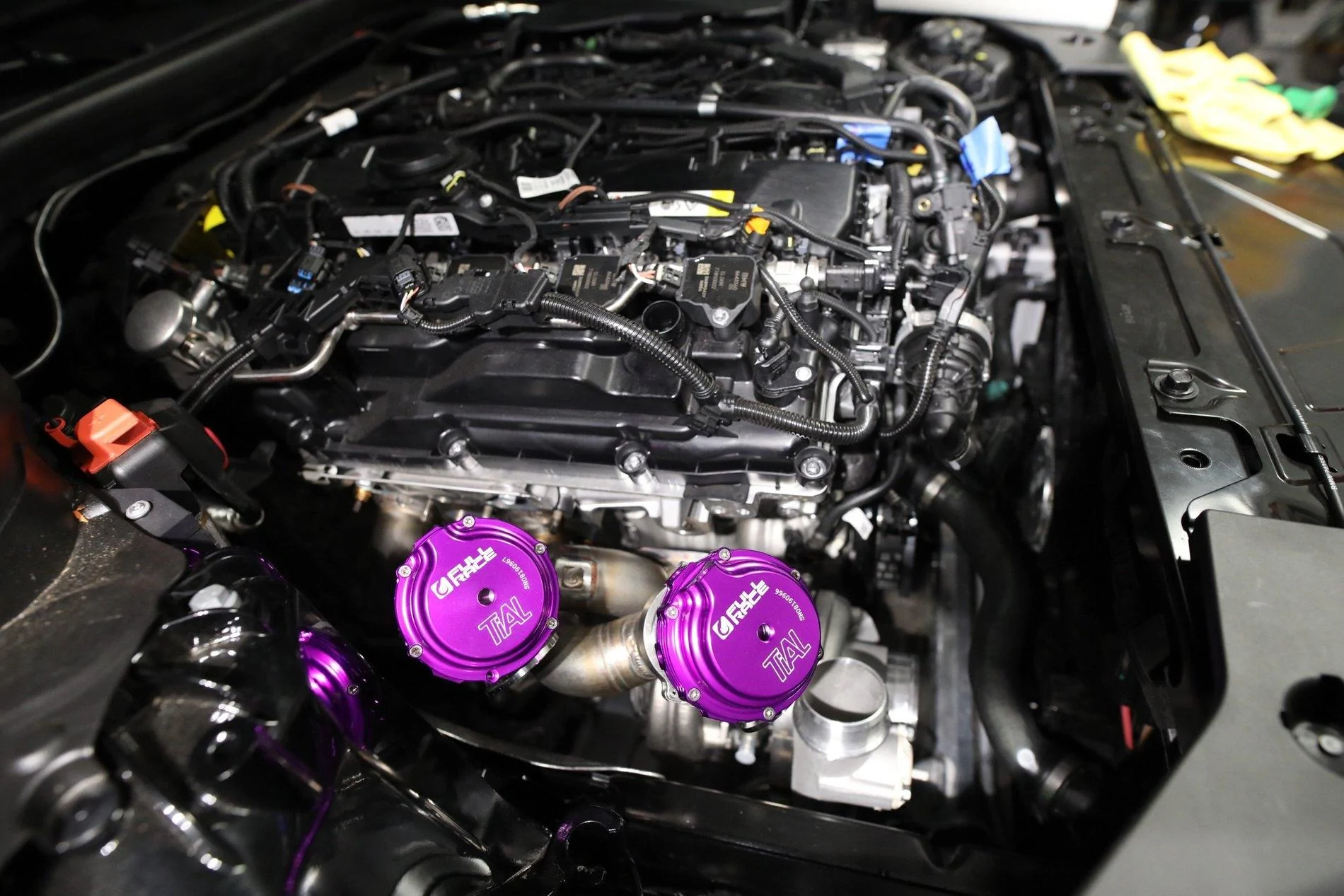

    Supra Turbo4.JPG

    Vaevictum, KahnBB6, Ghostop and 12 others like this.
  2. Apliiqq

    Apliiqq Active Member

    Car(s):
    Bagged E30, Supra MKV, Drift BRZ, Daily E30
    Joined:
    Aug 20, 2019
    Location:
    montreal
    Posts:
    43
    Liked:
    44
    Home Page:
    very nice i'll be going this route after the winter

  3. Thelostrican

    Thelostrican Active Member

    Car(s):
    Supra a90, gtr
    Joined:
    Sep 25, 2019
    Location:
    Puerto rico
    Posts:
    34
    Liked:
    24
    Boom, subscribed!

    Vaevictum likes this.
  4. OP
    OP
    LS3Twins

    LS3Twins Well-Known Member

    First Name:
    Ryan
    Car(s):
    2020 Supra 1998 E36M3 LS3 Twin Turbo
    Joined:
    Aug 22, 2019
    Location:
    Charlotte
    Posts:
    275
    Liked:
    399
    #4 Oct 10, 2019
    Last edited: Oct 21, 2019
    So the first hurdle was converting the Supra block fittings over to AN lines.

    The adapter fittings will be:

    Oil Supply: -4AN Male to OEM block adapter fitting
    Oil Return: -10AN Male to OEM block adapter fitting
    Water Supply: (Will need to make a BMW style quick disconnect female fitting to AN adapter) Not finished
    Water Return: -6AN Male to OEM block adapter fitting

    I will be using part of the water supply hardline to convert to AN.

    I had custom hoses using all black hardware and PTFE high pressure hosing made and they really look great. This hosing will be available as a kit for future purchase.

    Stay tuned for more later tonight. I should be cranking it up before the end of the weekend and will post a video.

    Apliiqq and kona61 like this.
  5. OP
    OP
    LS3Twins

    LS3Twins Well-Known Member

    First Name:
    Ryan
    Car(s):
    2020 Supra 1998 E36M3 LS3 Twin Turbo
    Joined:
    Aug 22, 2019
    Location:
    Charlotte
    Posts:
    275
    Liked:
    399
    #5 Oct 21, 2019
    Last edited: Oct 21, 2019
    Lots of updates.......

    Big turbo on the 2020 Supra fully installed and running with no leaks. She is currently on the dyno and they are working through some torque limiter issues at 4k rpm. I can tell you that she already made 470 ft/lbs at 3700rpm on the EFR9280 without aggressive timing. I am super impressed with the spool on this big turbo. I welded and worked from Thursday to Saturday non-stop (went to bed around 3am each night) to get her finished and drove it to the dyno 45 minutes away.

    I did all of the welding myself on a Dynasty 280

    2020 Supra CNC Fittings to adapt to AN lines
    www.Litheus.com

    Custom Water and Oil PTFE Lines
    www.bmrs.net

    FLUIDYNE Upgraded Heat Exchanger
    www.fluidyne.com

    Tubing to build wastegate dumps
    www.aceraceparts.com

    Supra Big Turbo1.JPG

    Supra Big Turbo2.JPG

    Supra Big Turbo3.jpg

    Supra Big Turbo4.jpg

    Supra Big Turbo5.jpg

    Supra Big Turbo6.jpg

  6. Titan Motorsports

    Titan Motorsports Well-Known Member
    Silver Sponsor


    First Name:
    Ashley
    Car(s):
    2020 MKV Premium White, 2020 MKV Premium Black, MK4 Supras. Among others.
    Joined:
    Jul 31, 2019
    Location:
    Orlando, FL
    Posts:
    175
    Liked:
    233
    Home Page:
    Garage Profiles:
    3
    Keep the updates coming, looking great!

    PerformanceSound likes this.
  7. OP
    OP
    LS3Twins

    LS3Twins Well-Known Member

    First Name:
    Ryan
    Car(s):
    2020 Supra 1998 E36M3 LS3 Twin Turbo
    Joined:
    Aug 22, 2019
    Location:
    Charlotte
    Posts:
    275
    Liked:
    399
    Thanks and I should have some great updates coming soon.

  8. OP
    OP
    LS3Twins

    LS3Twins Well-Known Member

    First Name:
    Ryan
    Car(s):
    2020 Supra 1998 E36M3 LS3 Twin Turbo
    Joined:
    Aug 22, 2019
    Location:
    Charlotte
    Posts:
    275
    Liked:
    399
    #8 Oct 21, 2019
    Last edited: Oct 21, 2019
    Sound Up! A quick little dyno pull to 4k rpm sound clip so you can hear the big turbo. More coming soon!

    No I don't have numbers yet but will post them as soon as I have them. The DME is trying to prevent the boost at 4k and they are working through it.


    yfeghhi, KahnBB6, Axix23 and 4 others like this.
  9. Thelostrican

    Thelostrican Active Member

    Car(s):
    Supra a90, gtr
    Joined:
    Sep 25, 2019
    Location:
    Puerto rico
    Posts:
    34
    Liked:
    24
    Awesome buddy, at 4k the Tb closes?

  10. Twisted Tuning

    Twisted Tuning Well-Known Member
    Gold Sponsor


    First Name:
    Justin
    Car(s):
    Supra MKV, BMW 135i, BMW 335xi, Mazda 6 Twin Turbo,
    Joined:
    Mar 10, 2019
    Location:
    New York
    Posts:
    484
    Liked:
    555
    Occupation:
    calibration specialist
    Home Page:
    Just spoke to your tuner a little earlier. gave him some insight on what the issue could be. he should get back with you with some stuff.

    Supra Man, sedanlova and MA617M like this.
  11. MA617M

    MA617M Well-Known Member

    Car(s):
    lots
    Joined:
    Aug 27, 2017
    Location:
    Australia
    Posts:
    1,898
    Liked:
    4,506
    Occupation:
    Engineer
    that sounds phenomenal. How do you control the external gates with the factory ECU?

  12. OP
    OP
    LS3Twins

    LS3Twins Well-Known Member

    First Name:
    Ryan
    Car(s):
    2020 Supra 1998 E36M3 LS3 Twin Turbo
    Joined:
    Aug 22, 2019
    Location:
    Charlotte
    Posts:
    275
    Liked:
    399
    Yes at 4k it is preventing us from making any more boost and with external gates it's just shutting the throttle.

  13. OP
    OP
    LS3Twins

    LS3Twins Well-Known Member

    First Name:
    Ryan
    Car(s):
    2020 Supra 1998 E36M3 LS3 Twin Turbo
    Joined:
    Aug 22, 2019
    Location:
    Charlotte
    Posts:
    275
    Liked:
    399
    Thanks man, I appreciate that. I'm really impressed so far with how many companies are working together on my build. It's pretty cool that this new chassis is bringing people together.

    Anyway, thanks for doing that and we should hopefully have some progress today. We had another company reach out too with some info. We just got a new revision like 15 minutes ago and should get a pull on the dyno shortly.

    I will keep everyone posted on the progress:thumbsup:

  14. OP
    OP
    LS3Twins

    LS3Twins Well-Known Member

    First Name:
    Ryan
    Car(s):
    2020 Supra 1998 E36M3 LS3 Twin Turbo
    Joined:
    Aug 22, 2019
    Location:
    Charlotte
    Posts:
    275
    Liked:
    399
    They have tuned out the internal gate code so I can run my twin 44 externals. The are currently controlled with spring pressure and boost controller but we will move to a better solution in the near future. Working on the best solution that works with the DME to control the externals for a permanent fix.

    sedanlova likes this.
  15. OP
    OP
    LS3Twins

    LS3Twins Well-Known Member

    First Name:
    Ryan
    Car(s):
    2020 Supra 1998 E36M3 LS3 Twin Turbo
    Joined:
    Aug 22, 2019
    Location:
    Charlotte
    Posts:
    275
    Liked:
    399
    #15 Oct 22, 2019
    Last edited: Oct 22, 2019
    We got past 4k but still getting closures. Getting closer but still not quite there. I hope by end of day I can provide some good results.

    Update: It's 6pm in Germany for MHD so I think we are out of luck until tomorrow morning for another revision unfortunately.
