Featured A90 Supra engines and parts diagrams (all) revealed!

Discussion in 'General Supra Topics' started by JT, Oct 4, 2018.

  1. JT

    JT Administrator
    Staff Member

    Car(s):
    Supra
    Joined:
    Oct 25, 2013
    Location:
    MA
    Posts:
    100
    Liked:
    307
    Garage Profiles:
    1
    #1 Oct 4, 2018
    Last edited by a moderator: Oct 5, 2018

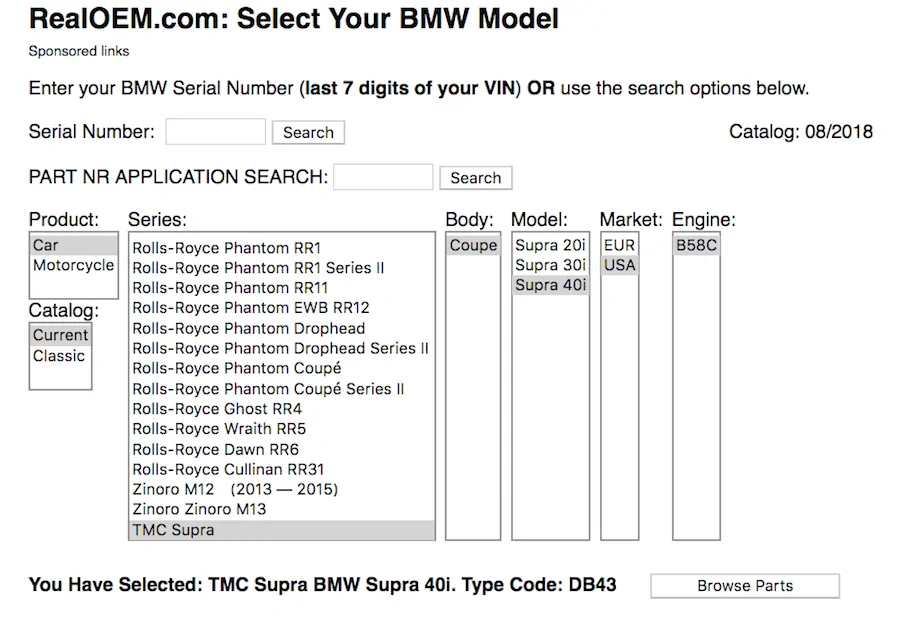

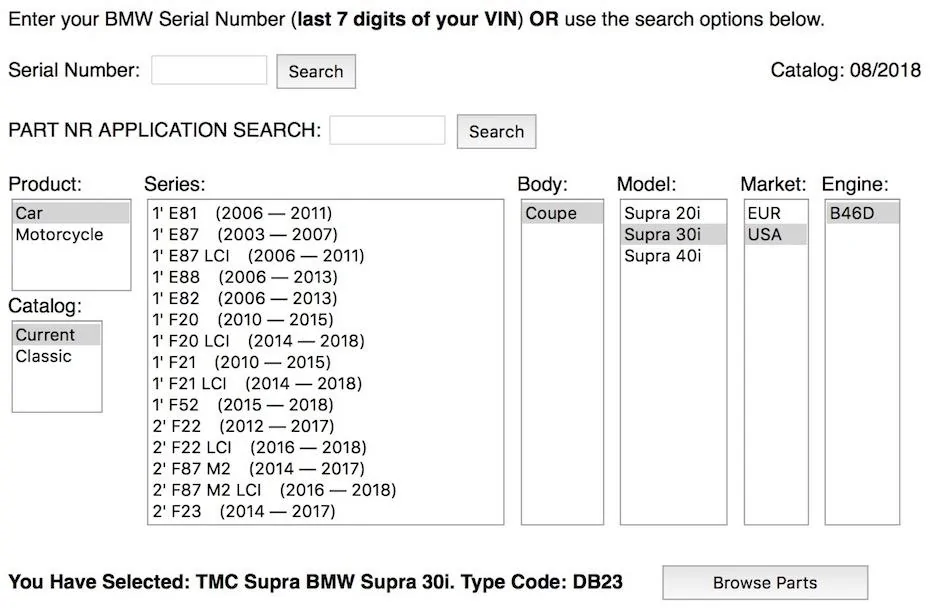

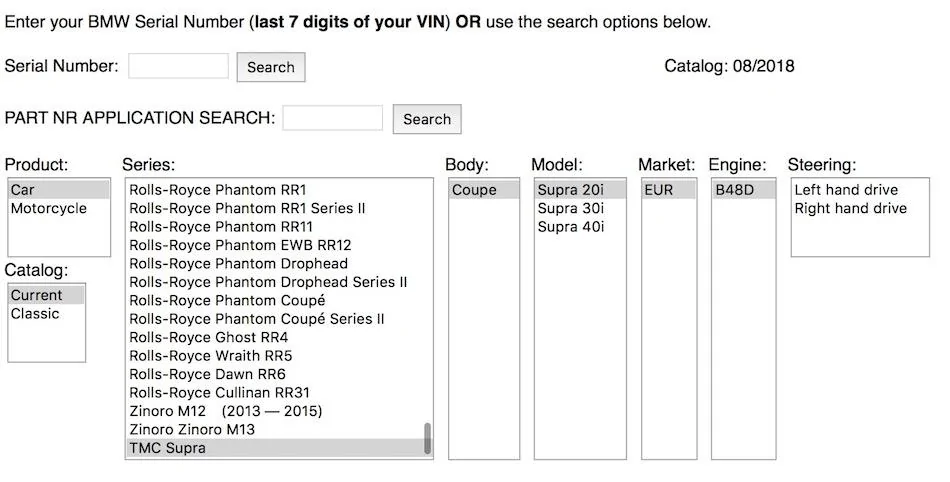

    We've discovered the full catalog of A90 Supra part diagrams on Realoem.com and this is what they reveal!

    MODELS / ENGINES / TRANSMISSION / SUSPENSION
    The models shown are 20i, 30i, and 40i which correspond to their BMW engine equivalents. The 40i equates to the Z4 M40i, but the A90 Supra’s engine is designated as B58C (turbo 6 cylinder). The 20i engine is the B48D (turbo 4 cylinder) and the 30i engine is the B46D (turbo 4 cylinder).

    The 40i and 30i models are listed for the US and European markets, while the 20i is only listed for Europe.

    Eight-speed automatic transmission. No manual transmission listed.

    M Sport limited slip differential

    Front McPherson struts

    Subframe mounted with rubber bushings


    COLORS:
    Grau metallic matt (Matte Grey Metallic)
    mediterran-blau metallic (Mediterranean Blue Metallic)
    atacama-gelb (Atacama Yellow)
    karmesin-rot (Karmesin Red)
    glacier-silber metallic (Glacier Silver Metallic)
    black-sapphire metallic (Black Sapphire Metallic)
    mineral-weiss metallic (Mineral White Metallic)
    blue-stone metallic (Blue Stone Metallic)


    WHEELS:
    3 Wheel Designs - in 17, 18 and 19" diameters
    19" Wheels specs: Front: 9JX19 ET32 / Rear: 10JX19 ET40 (basically same fitment as the BMW M4)


    INTERIOR/TECHNOLOGY

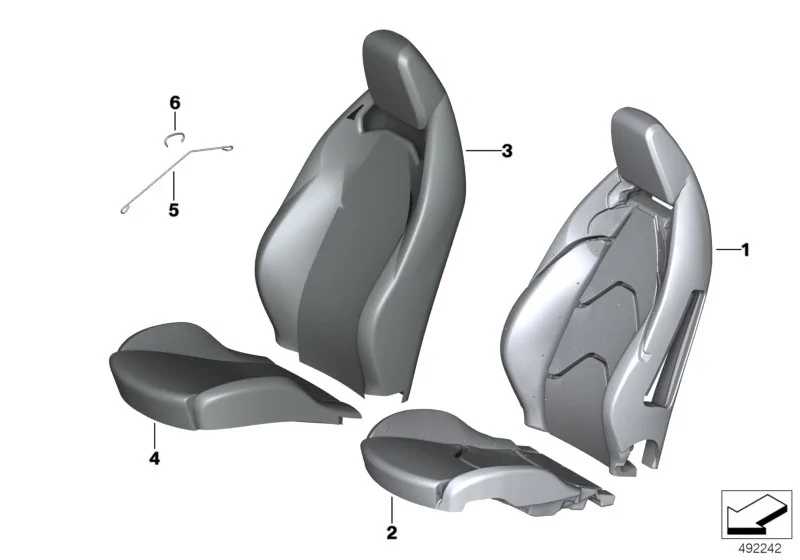

    Manual seats for 4 Cylinder models

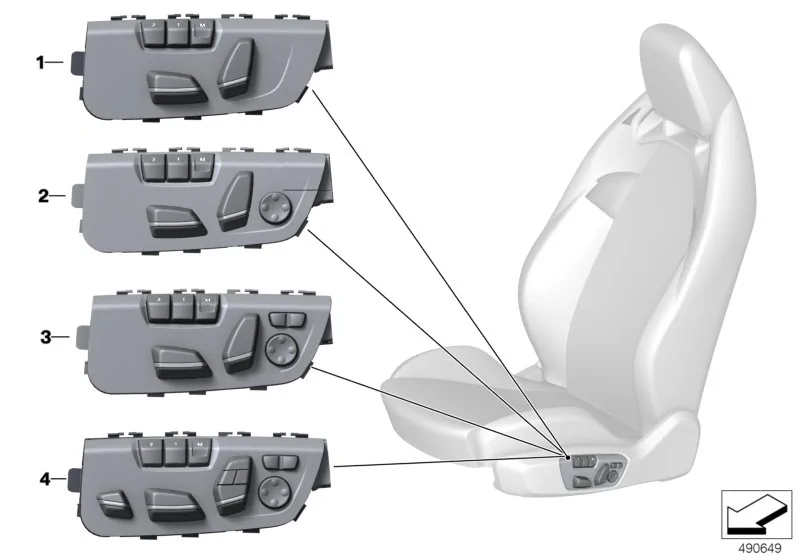

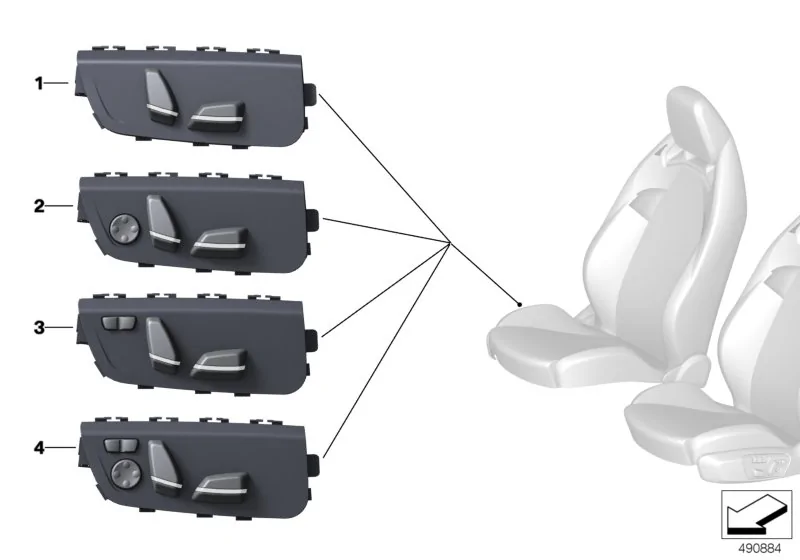

    Sports seats with electric adjustment and memory for 6 Cylinder model
    Shift paddles
    Head-up display
    Active cruise control+Stop&Go function
    Front and rear parking sensors
    Wireless charging, Bluetooth, sat-nav


    ACCESSORIES / OPTIONS:
    Carbon fiber dashboard trim

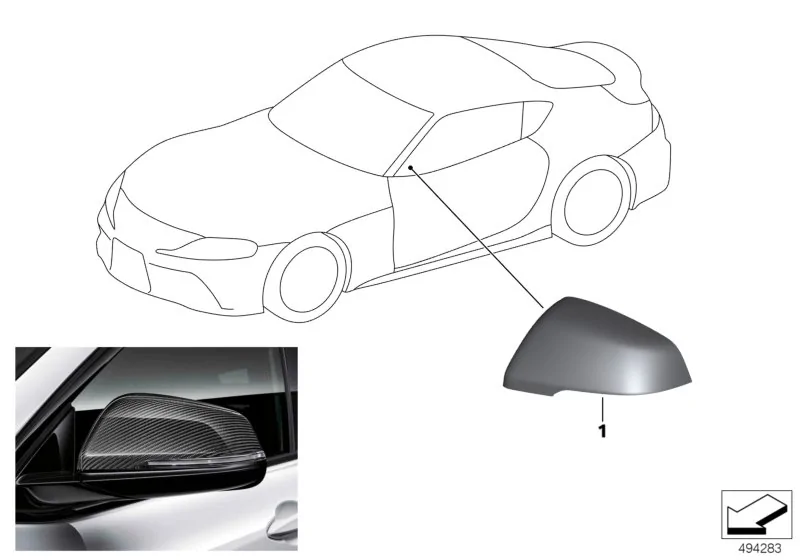

    Carbon fiber mirror caps
    Alcantara headliner

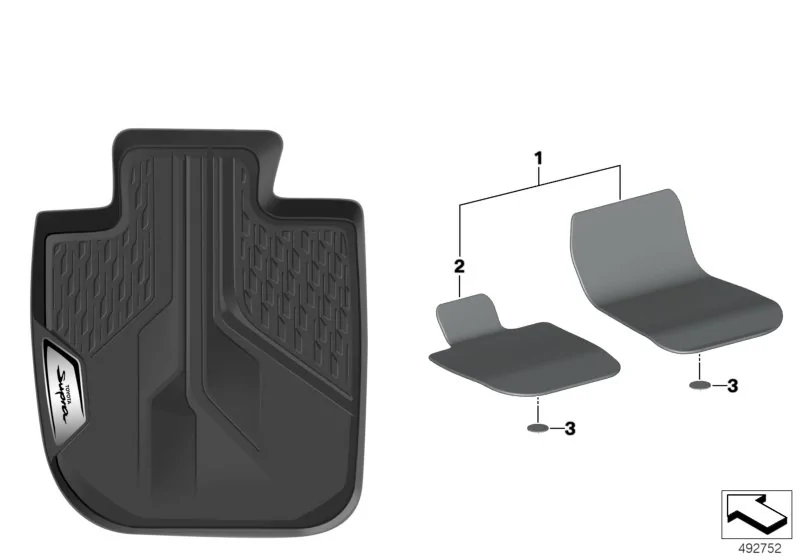

    All-weather mats


    DIAGRAMS

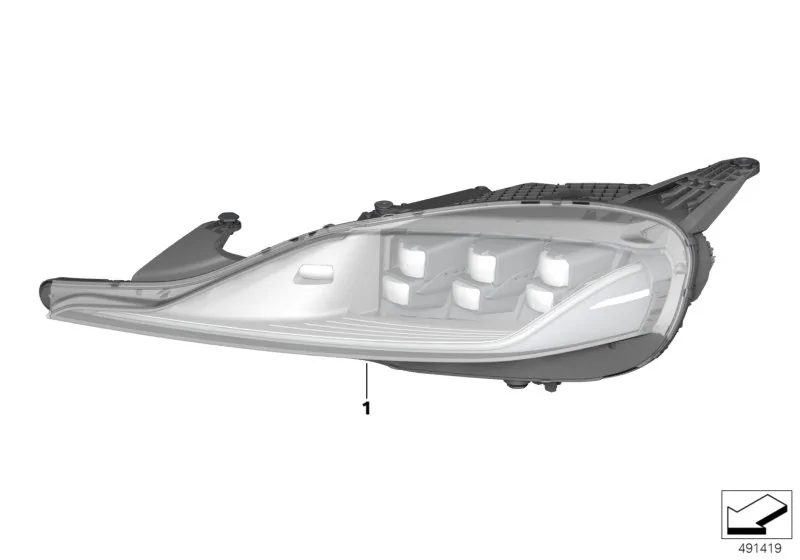

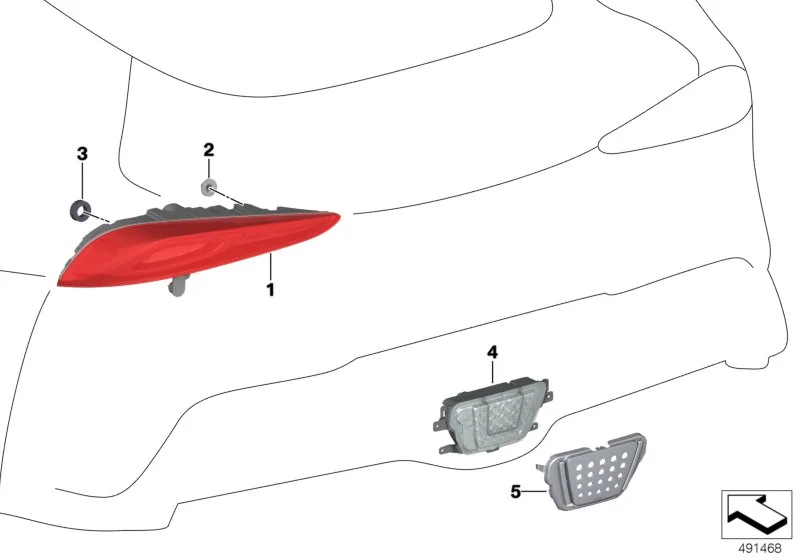

    Lighting

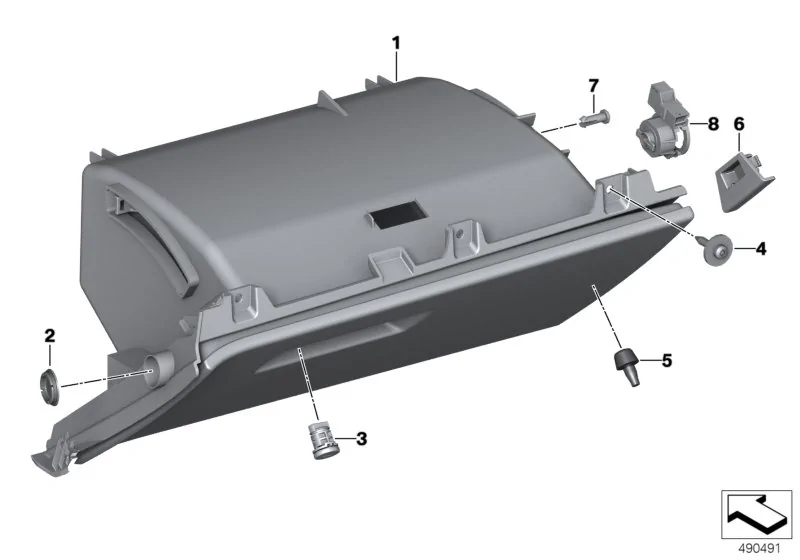

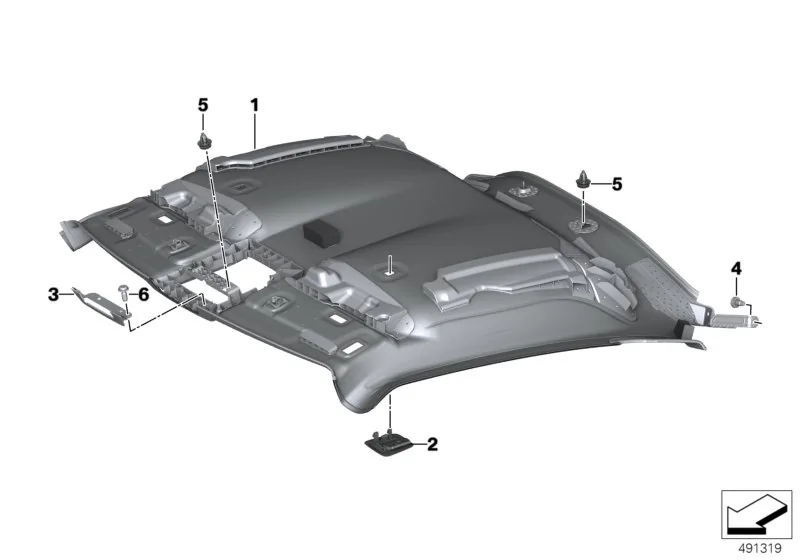

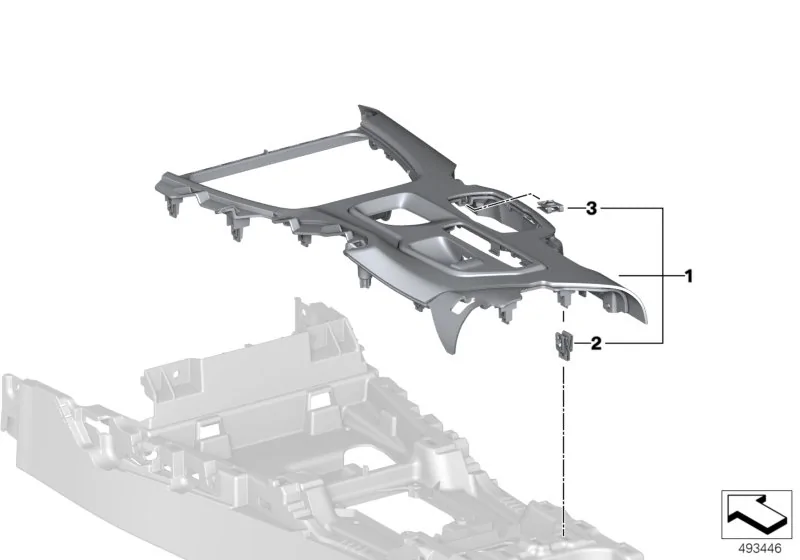

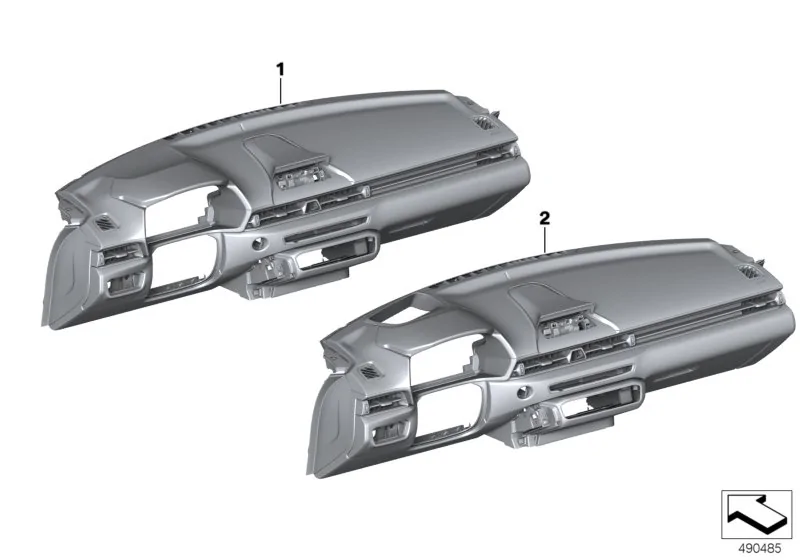

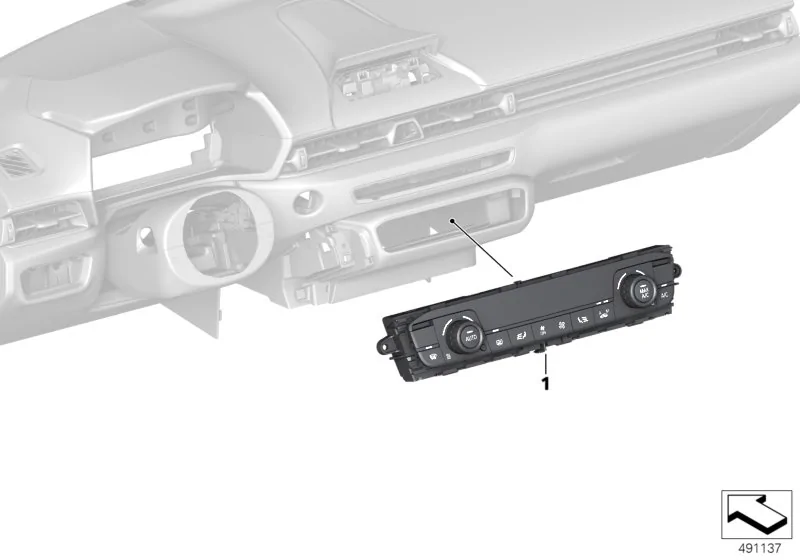

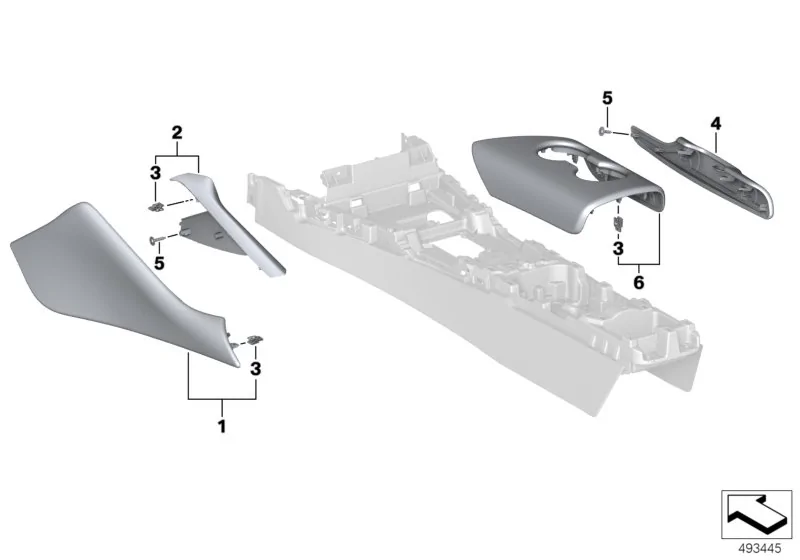

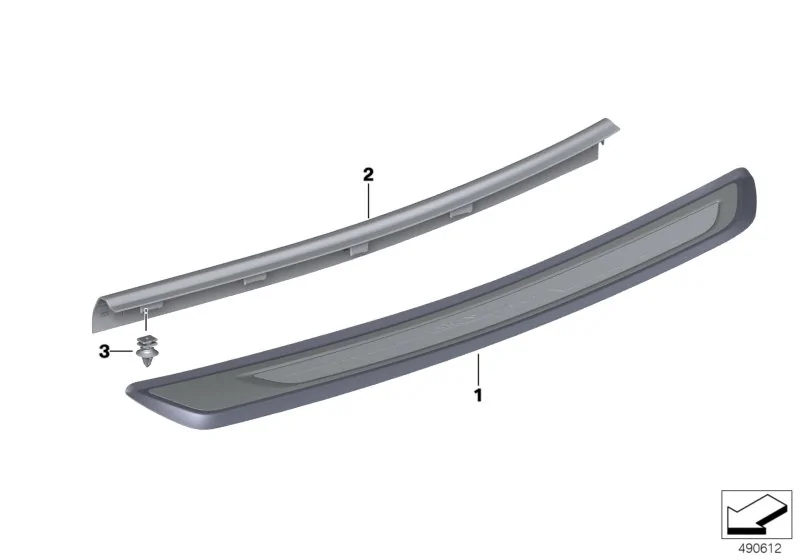

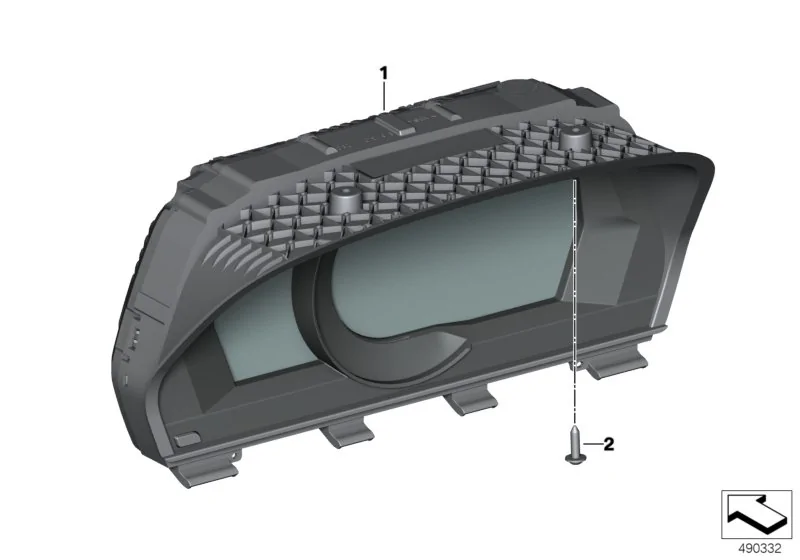

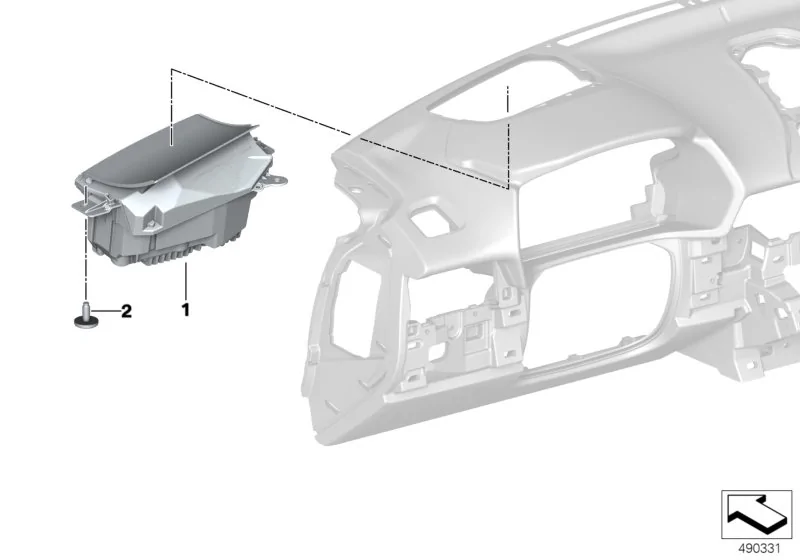

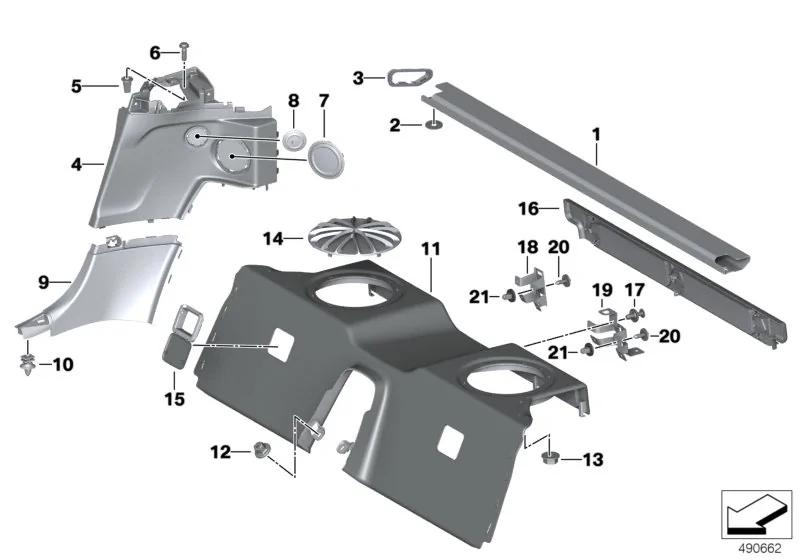

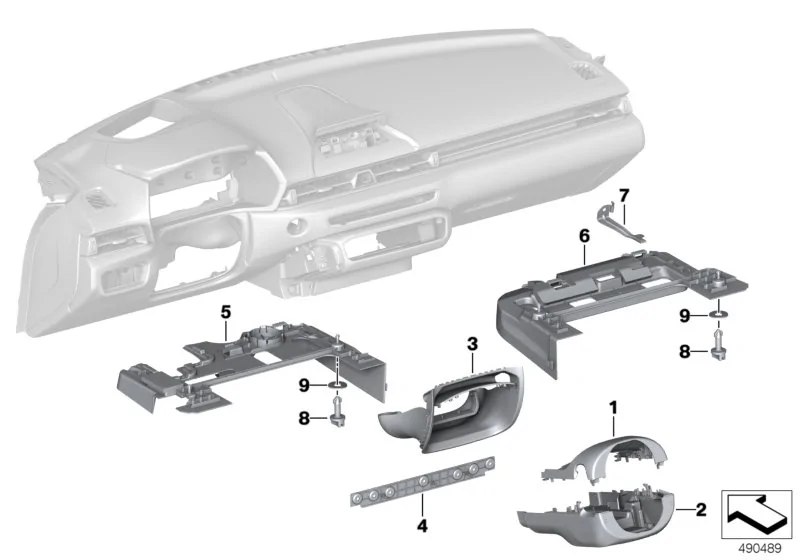

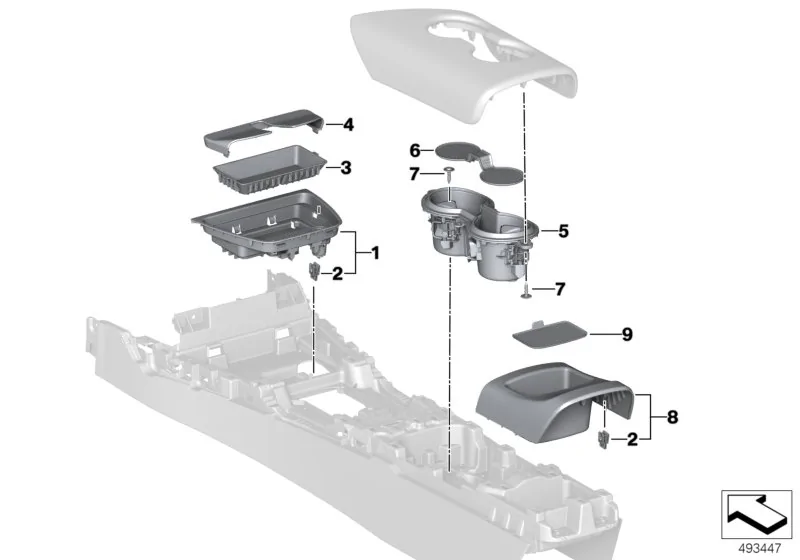

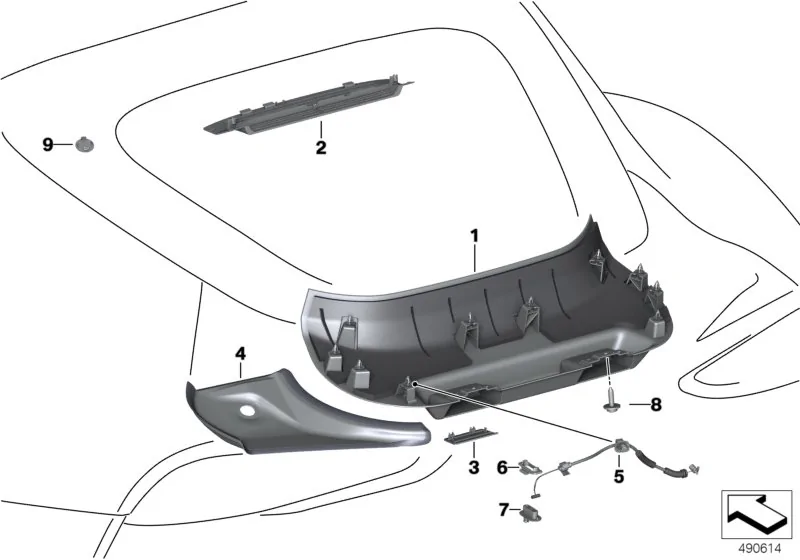

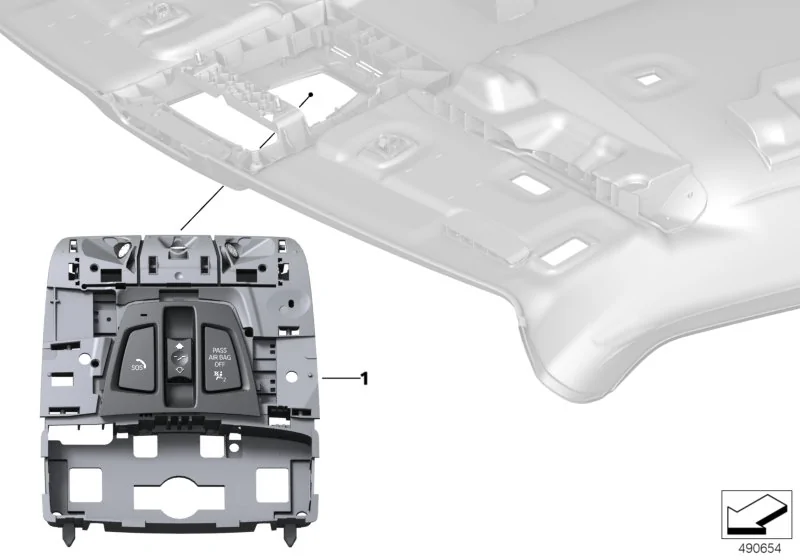

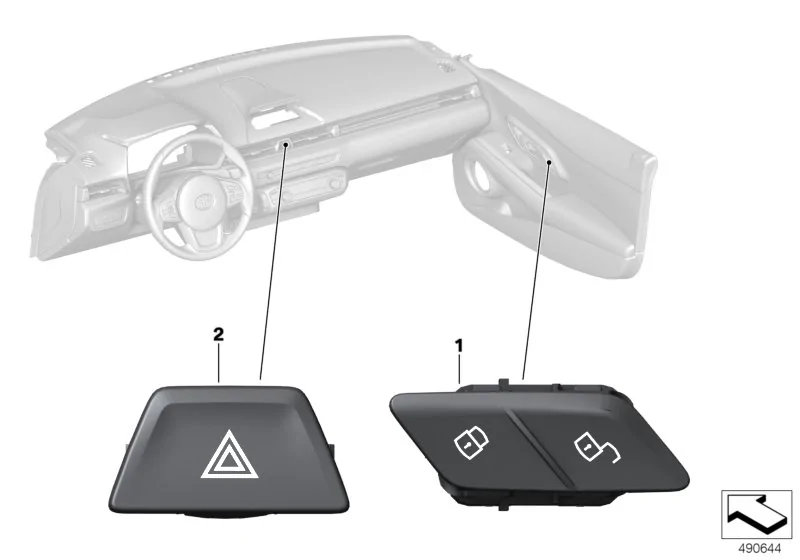

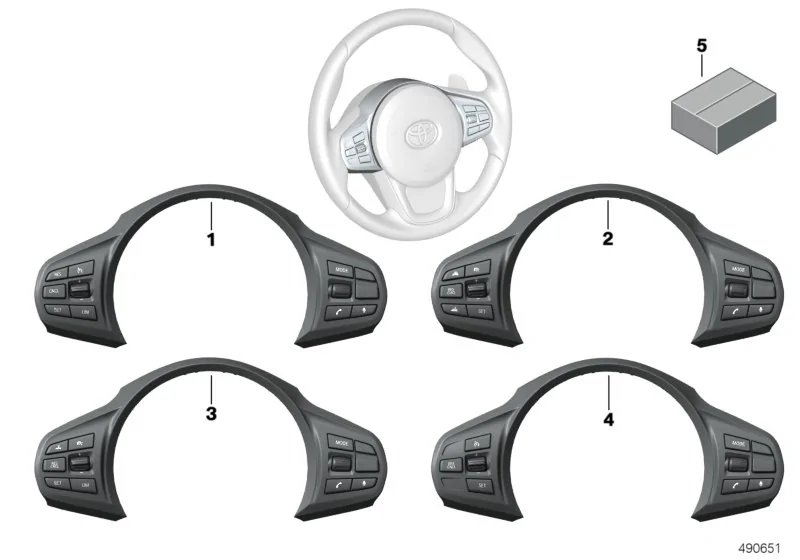

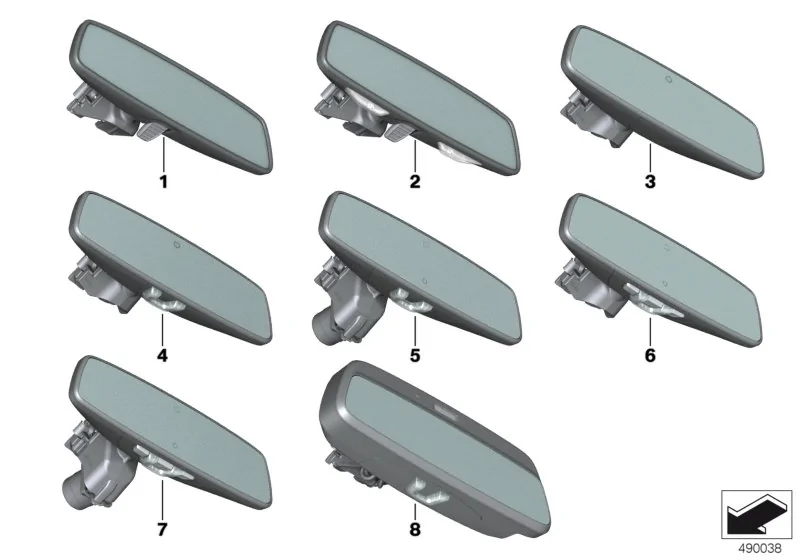

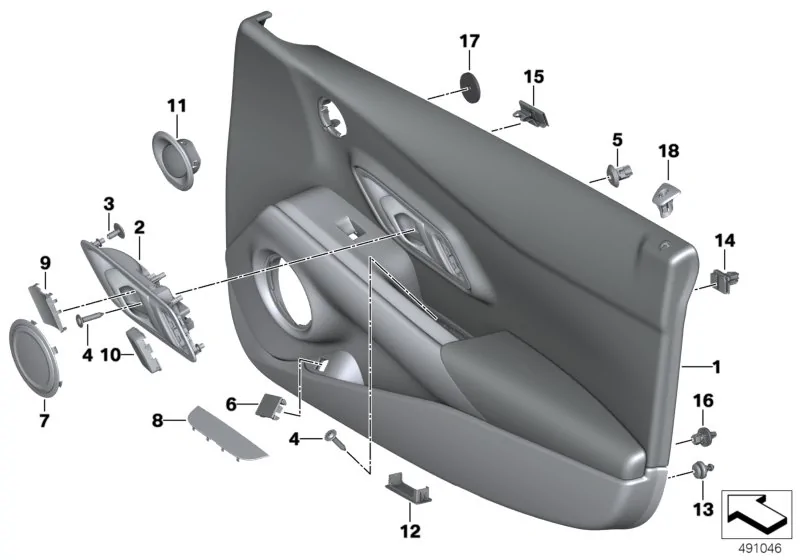

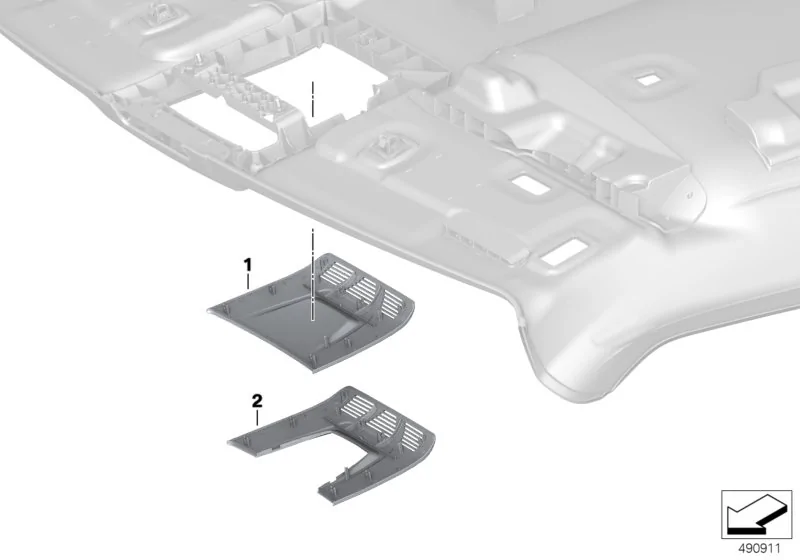

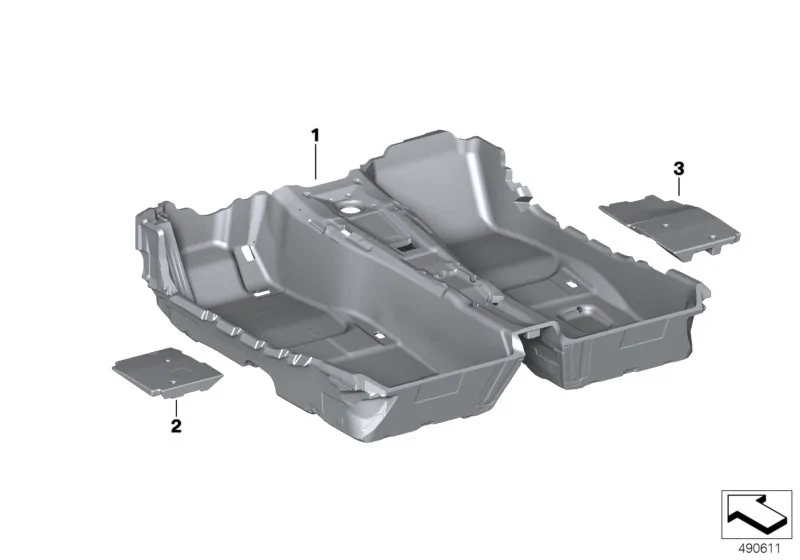

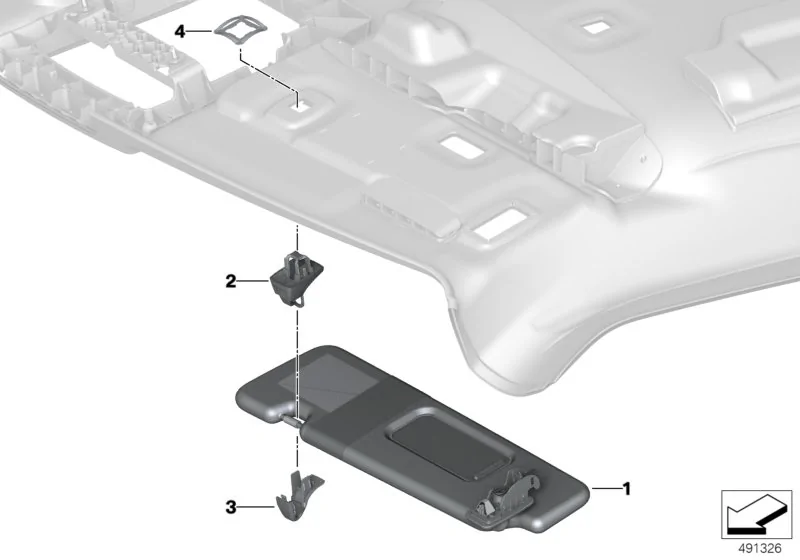

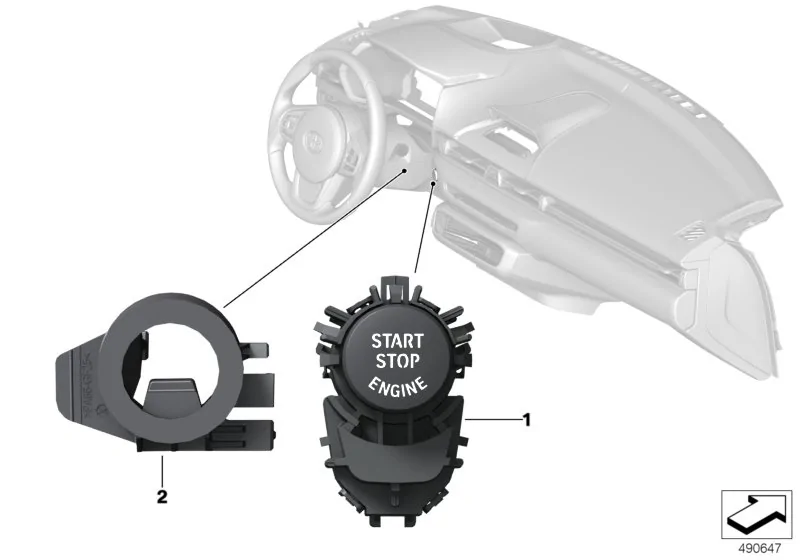

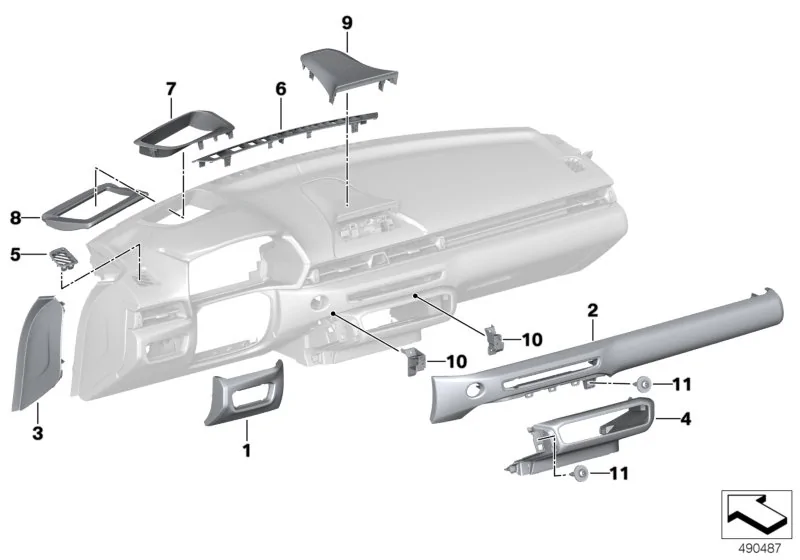

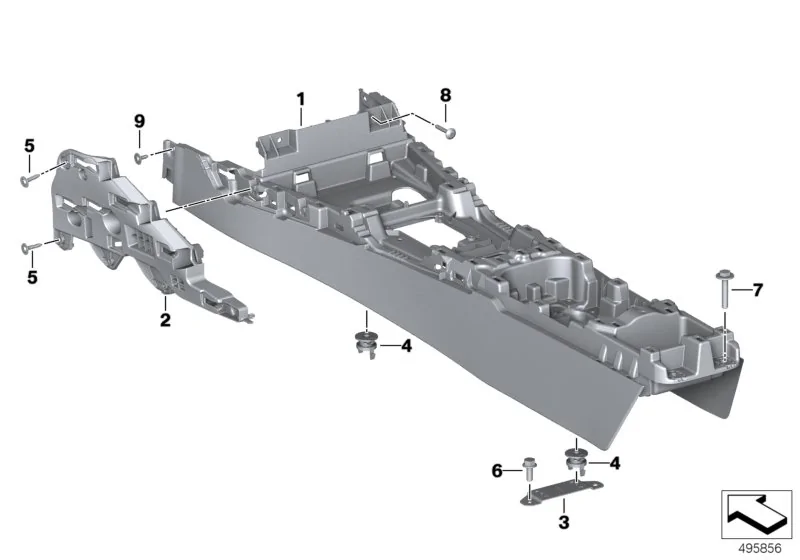

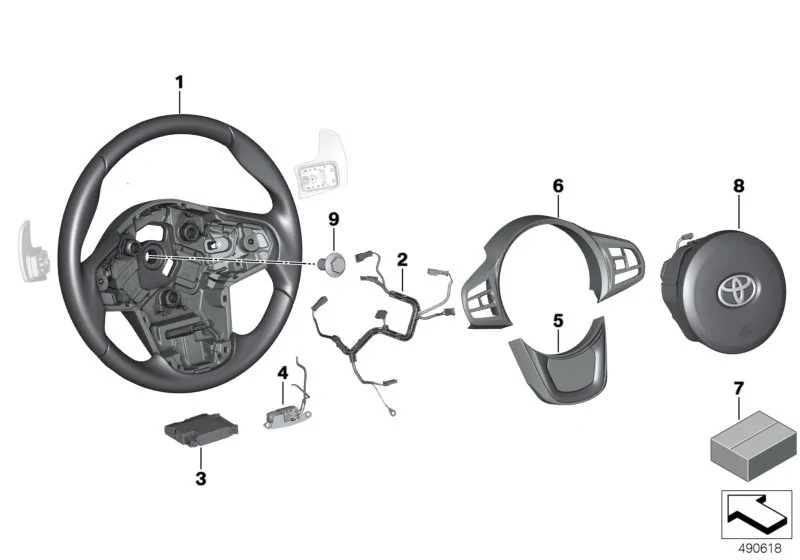

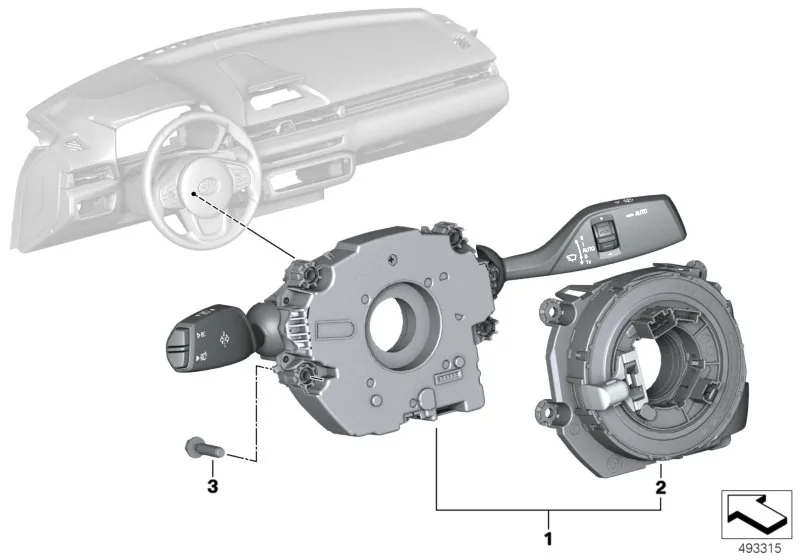

    Interior & Trim Pieces

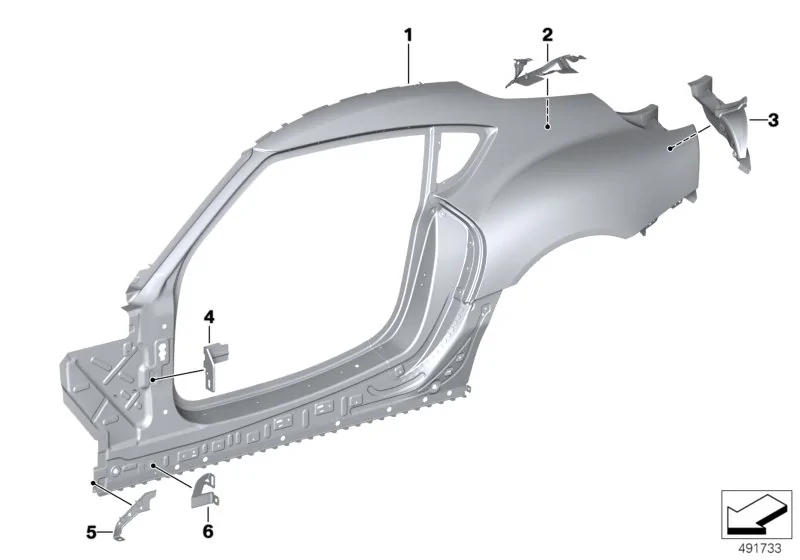

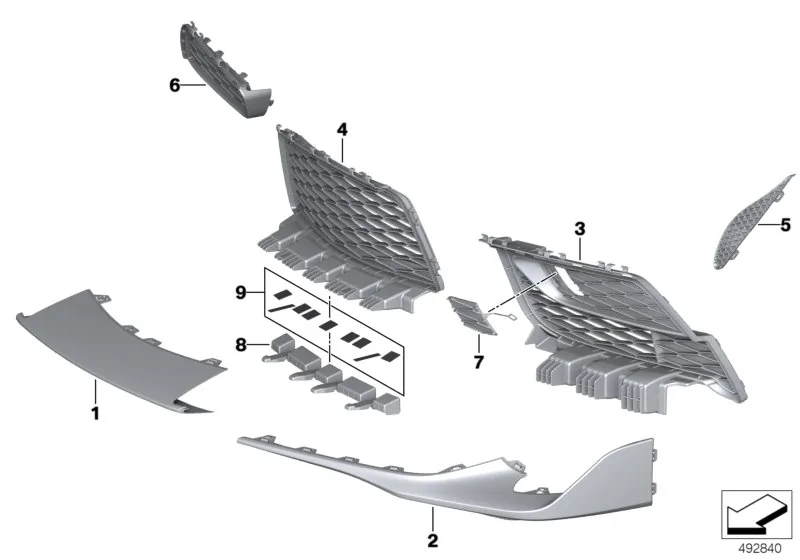

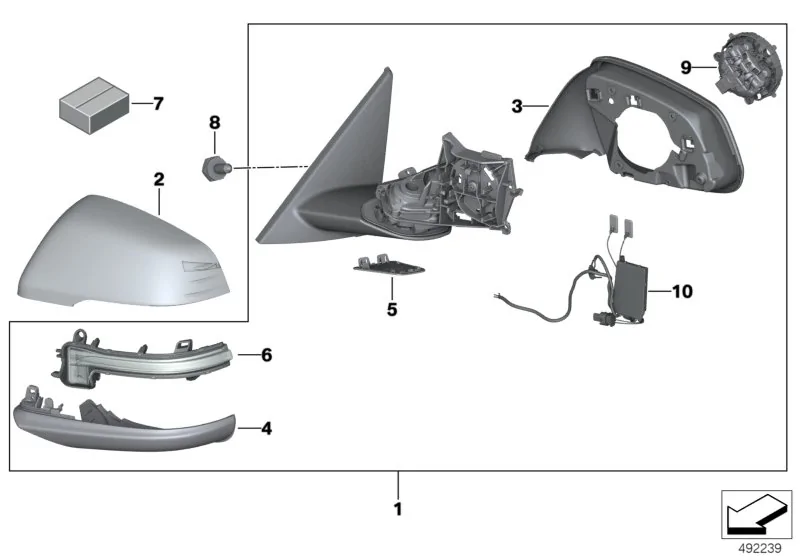

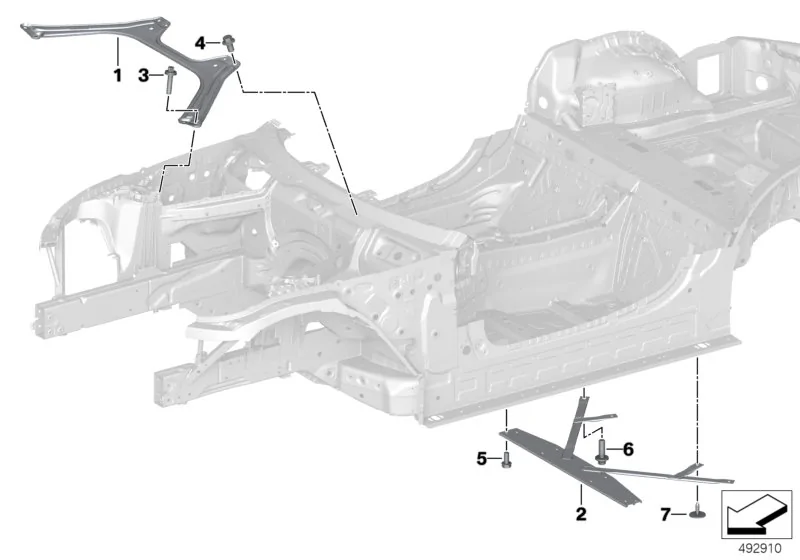

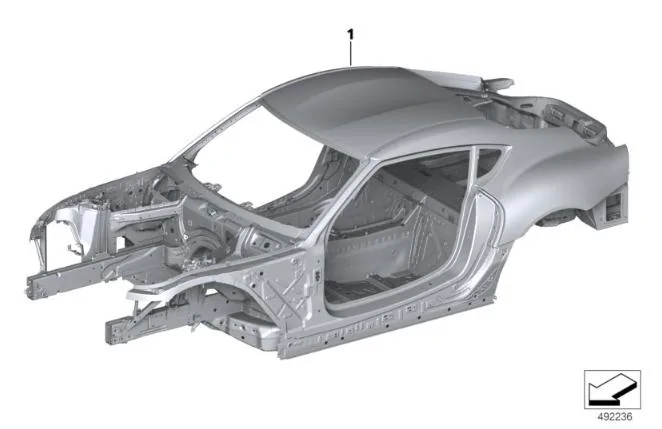

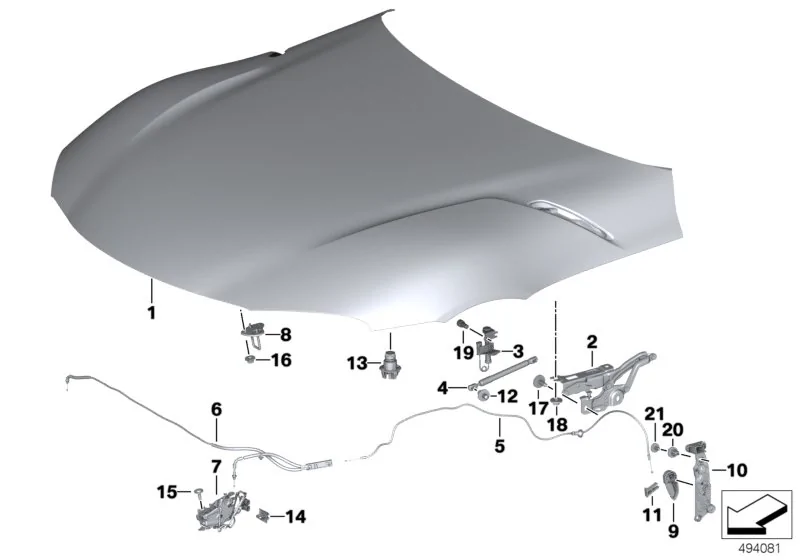

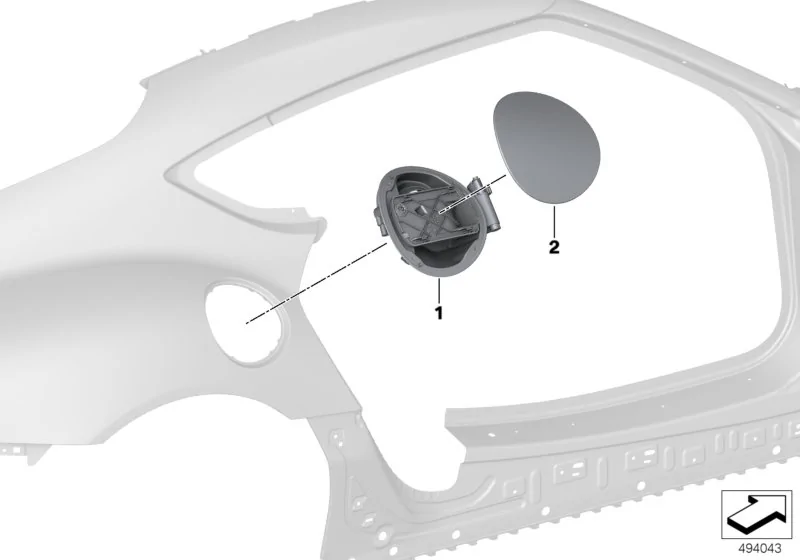

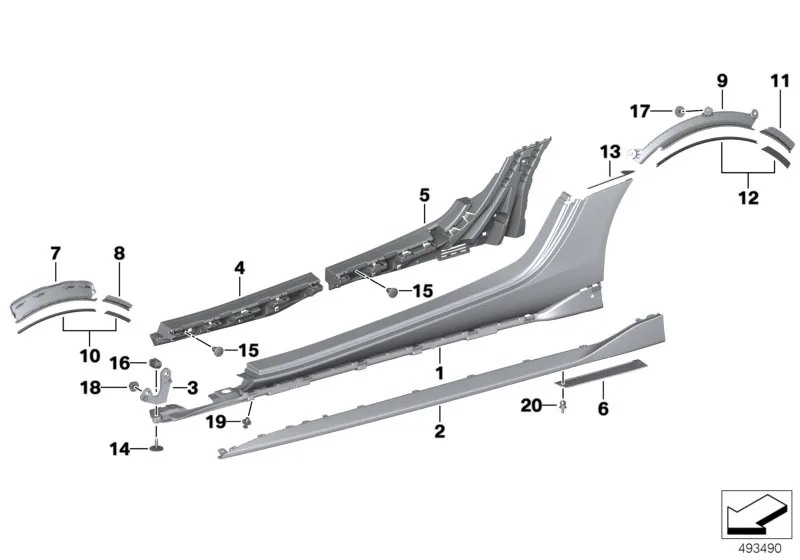

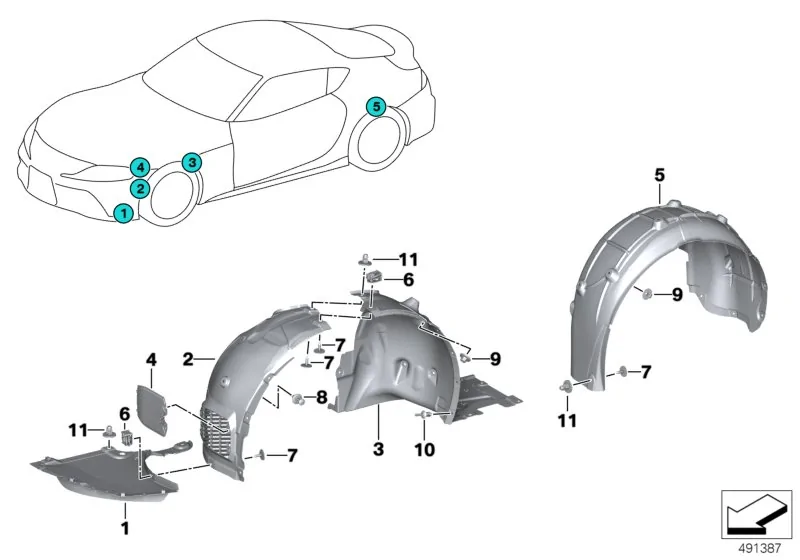

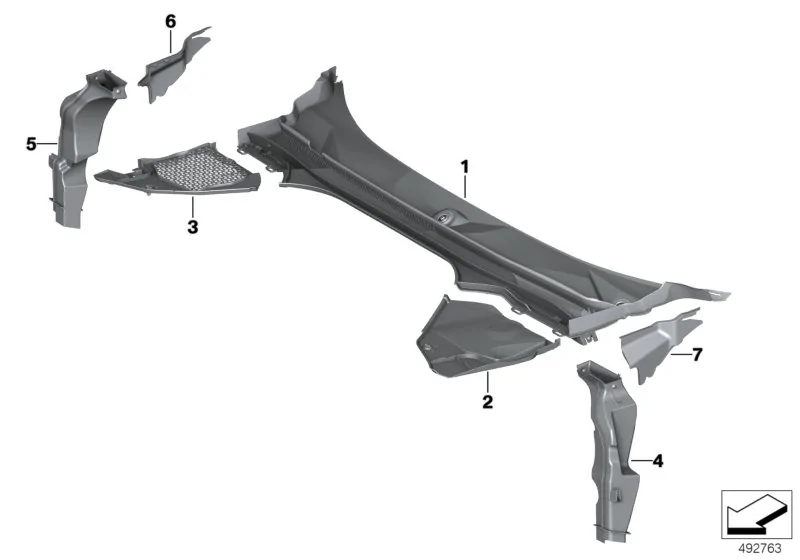

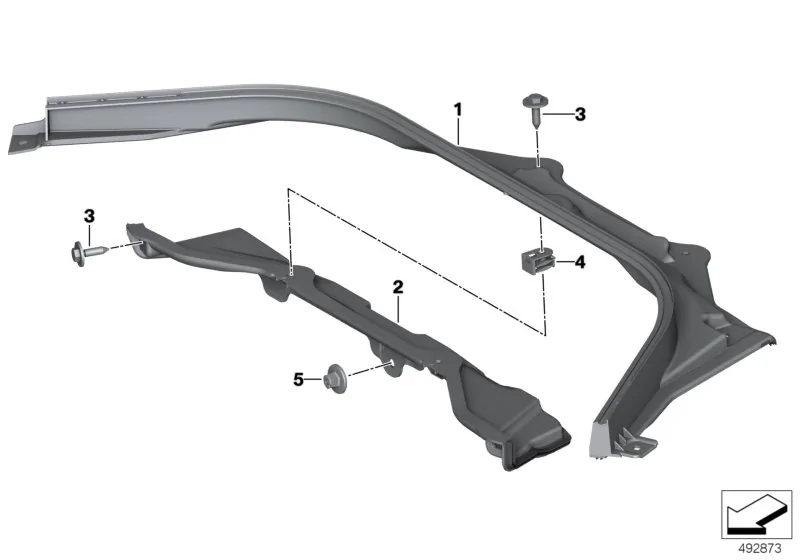

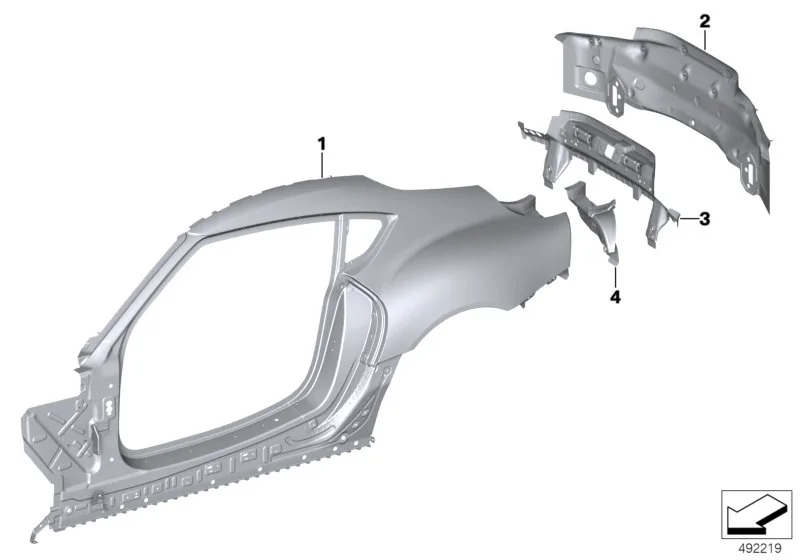

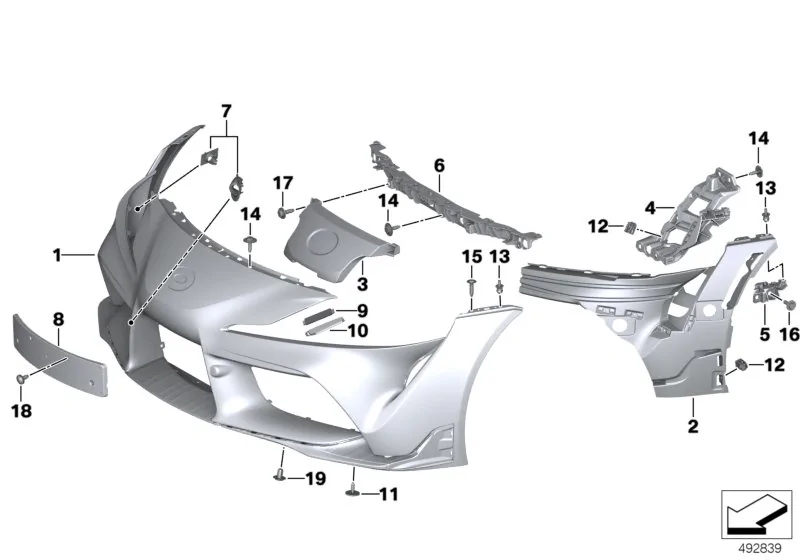

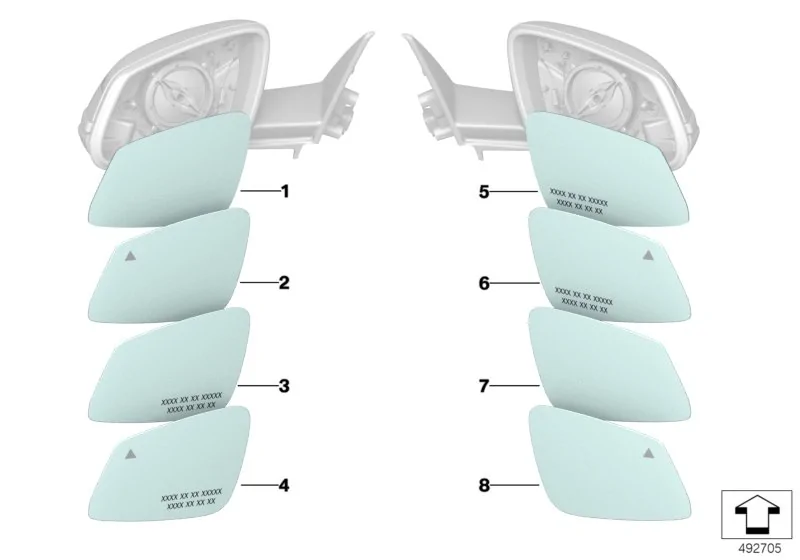

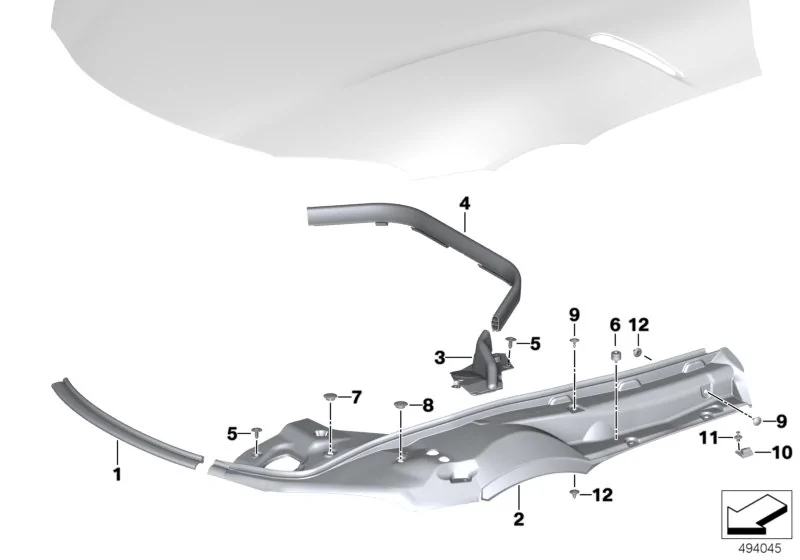

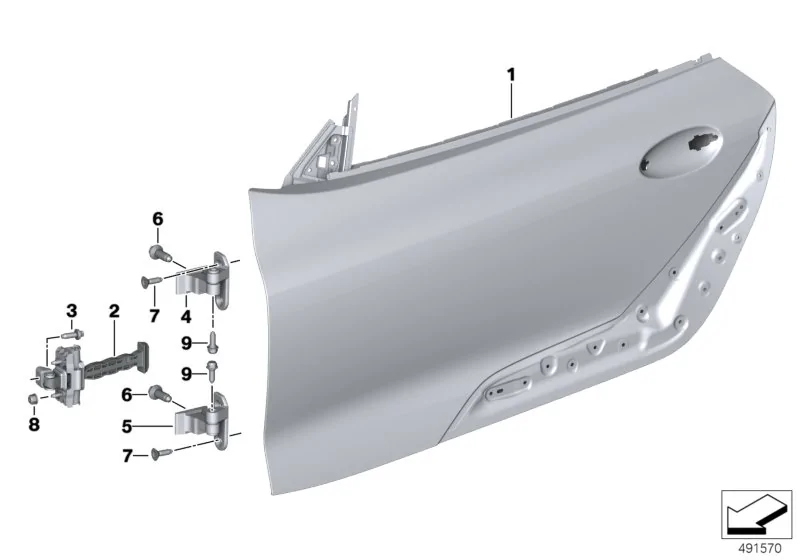

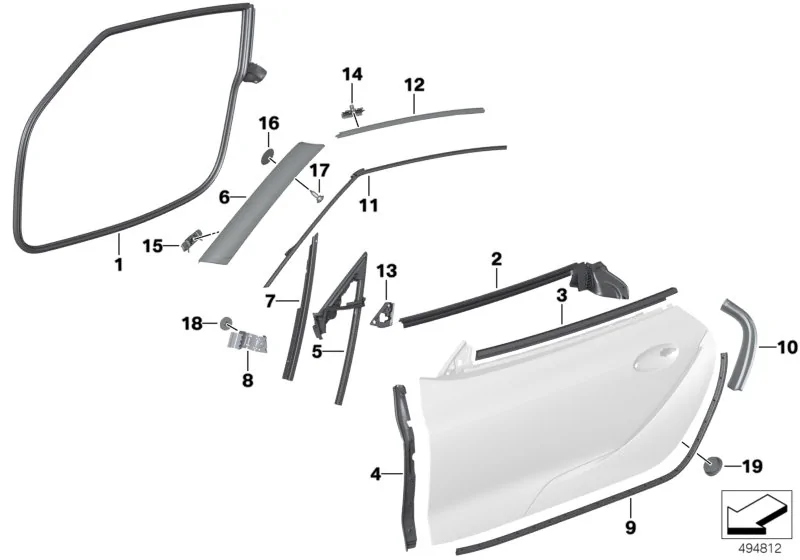

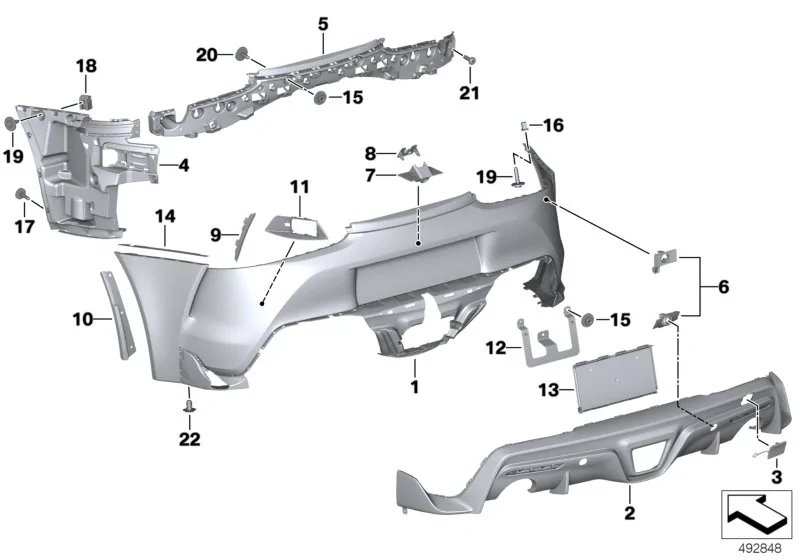

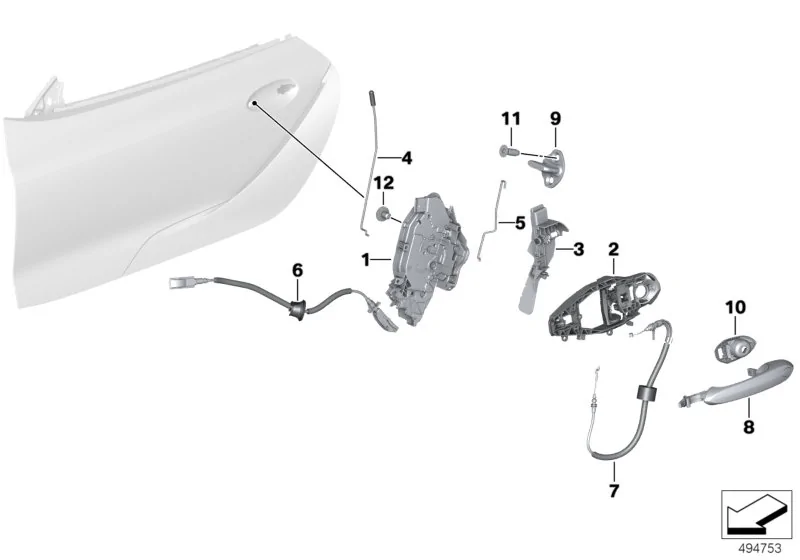

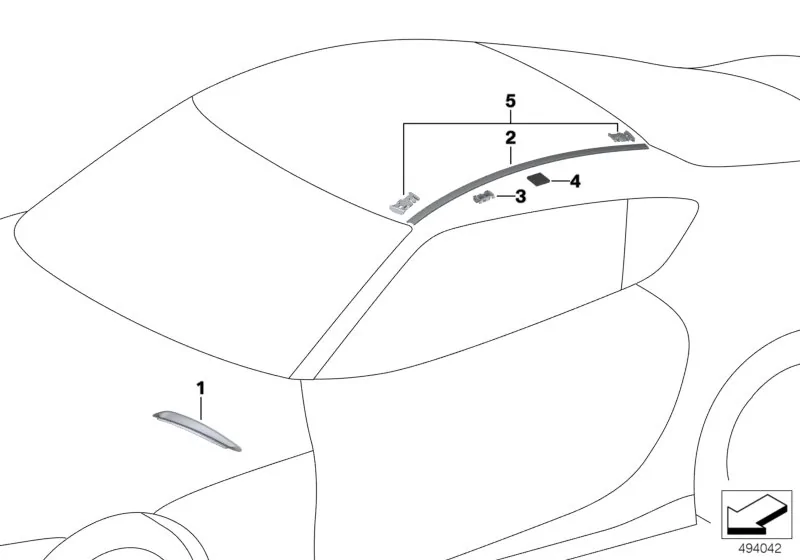

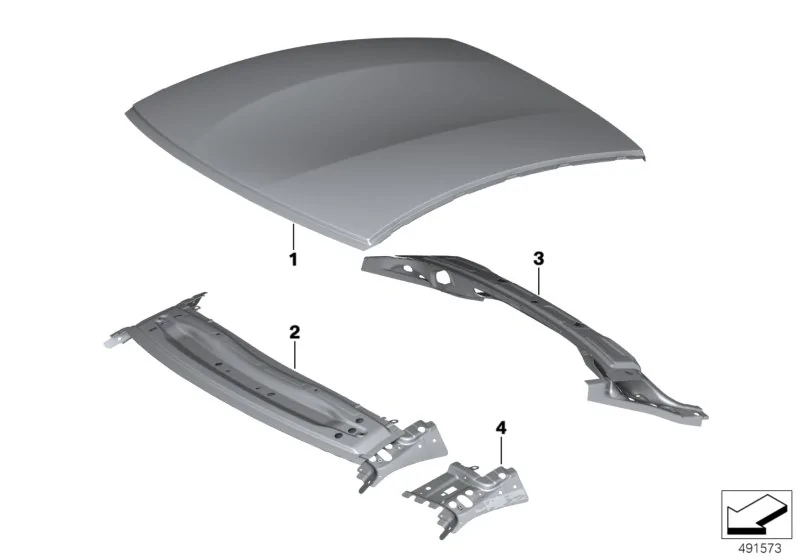

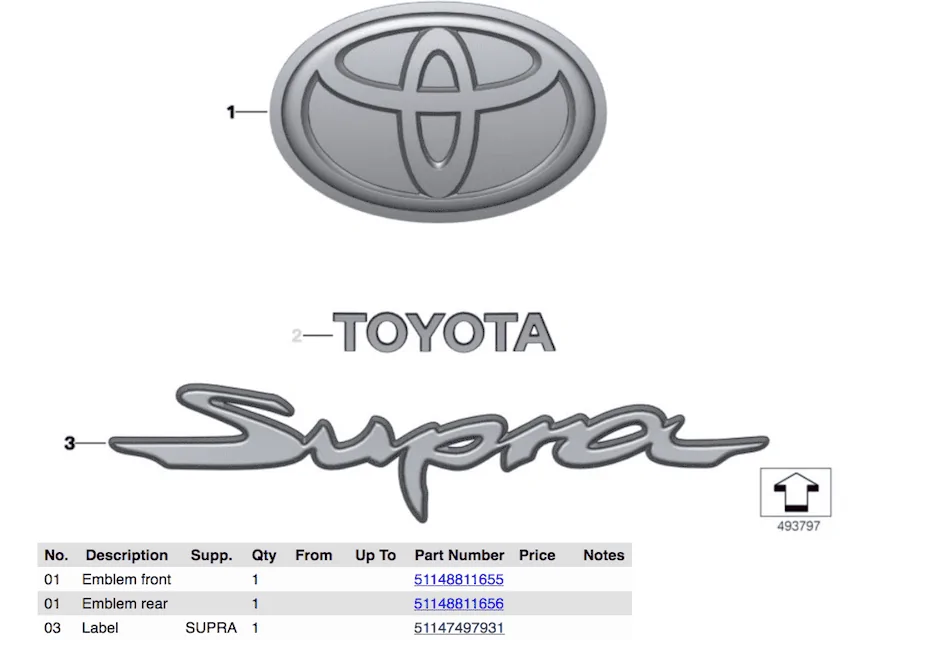

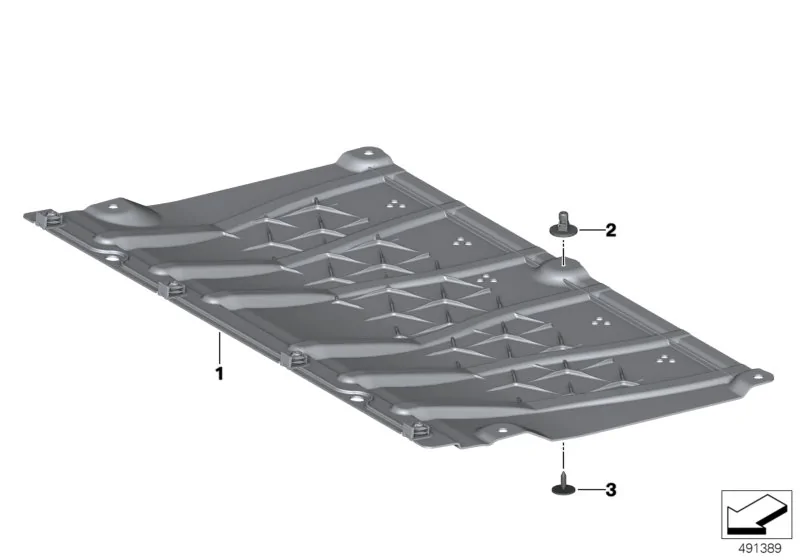

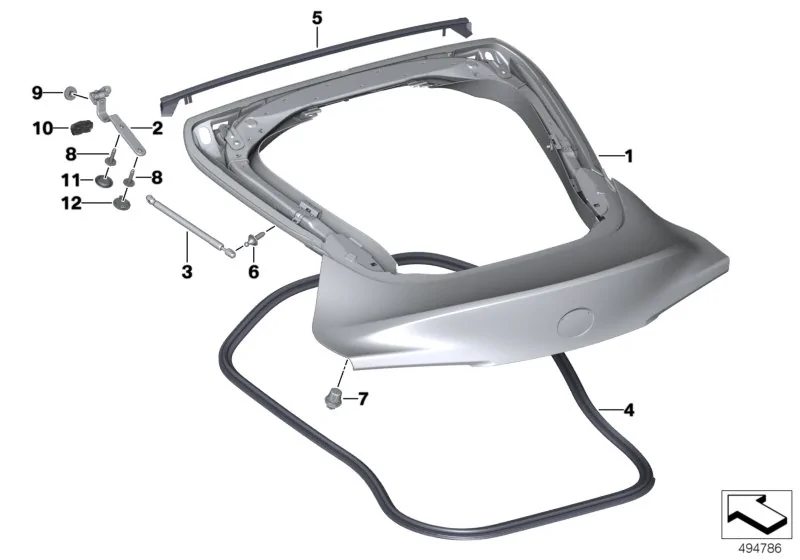

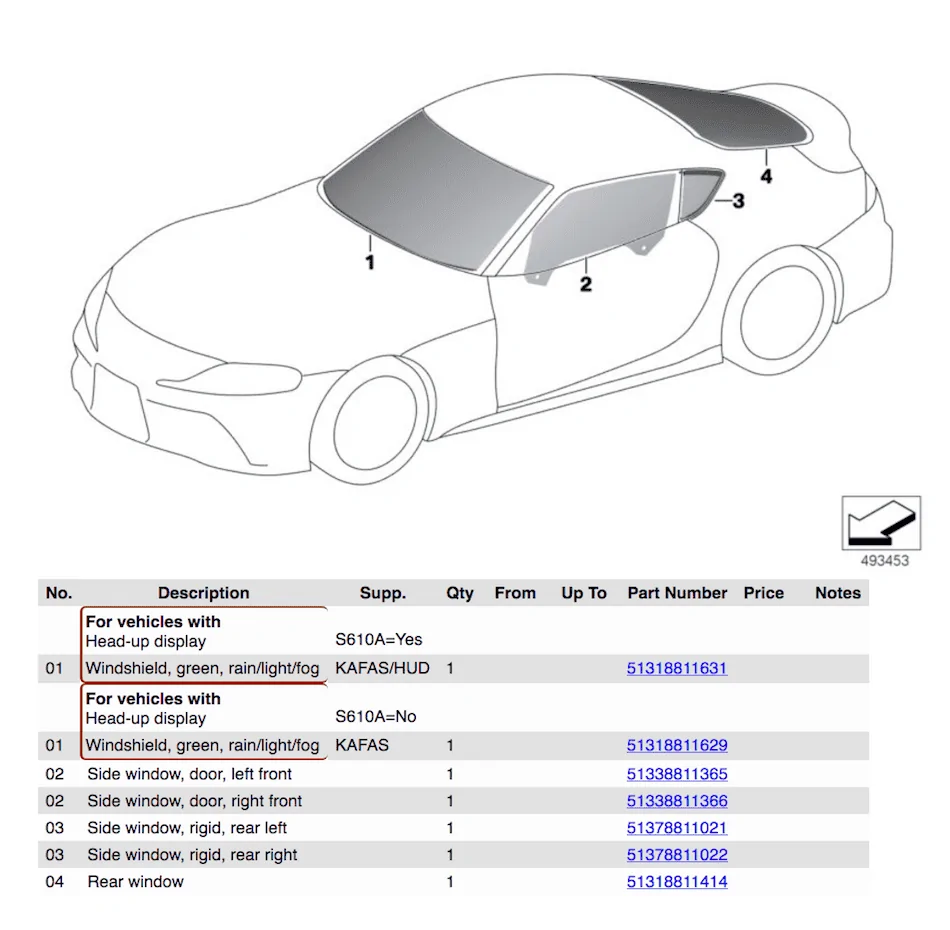

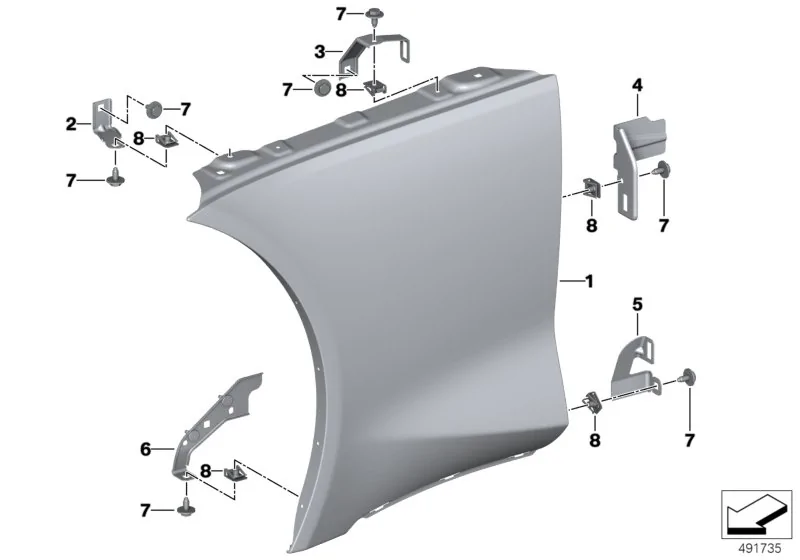

    Exterior / Body Work

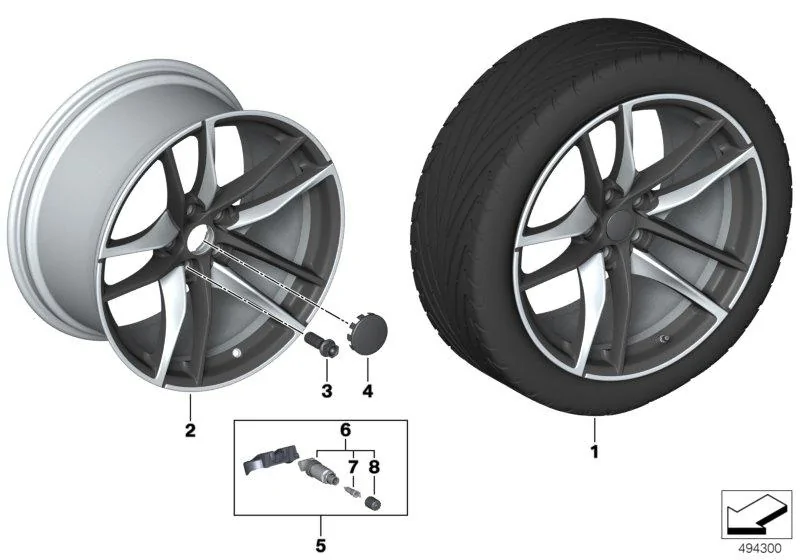

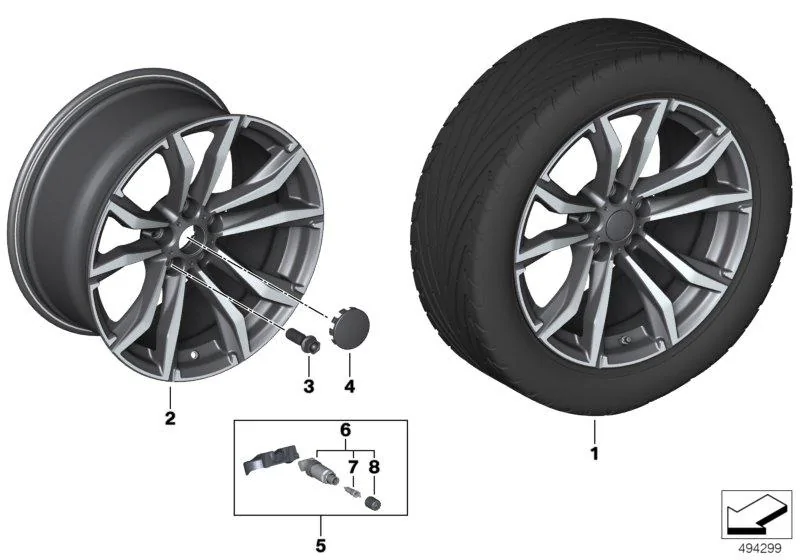

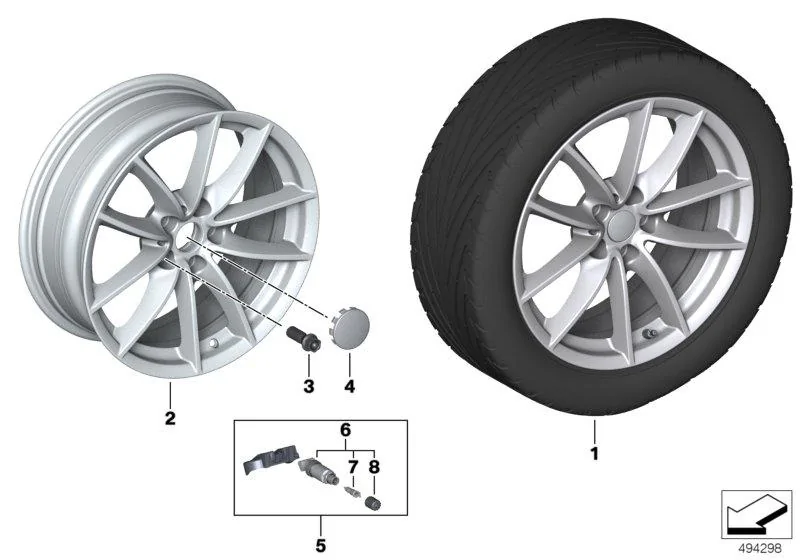

    Wheels

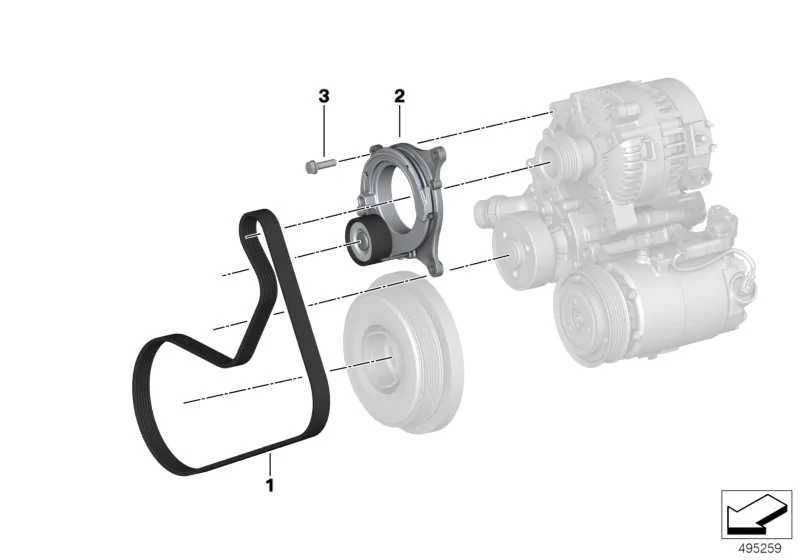

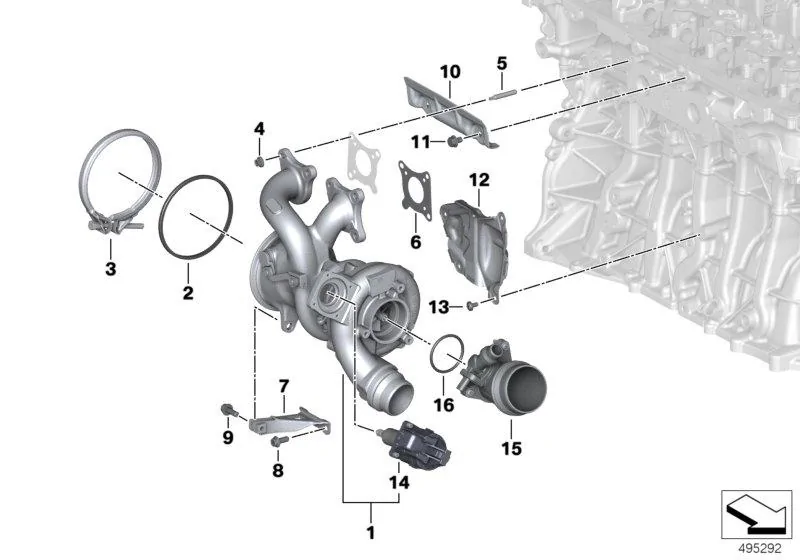

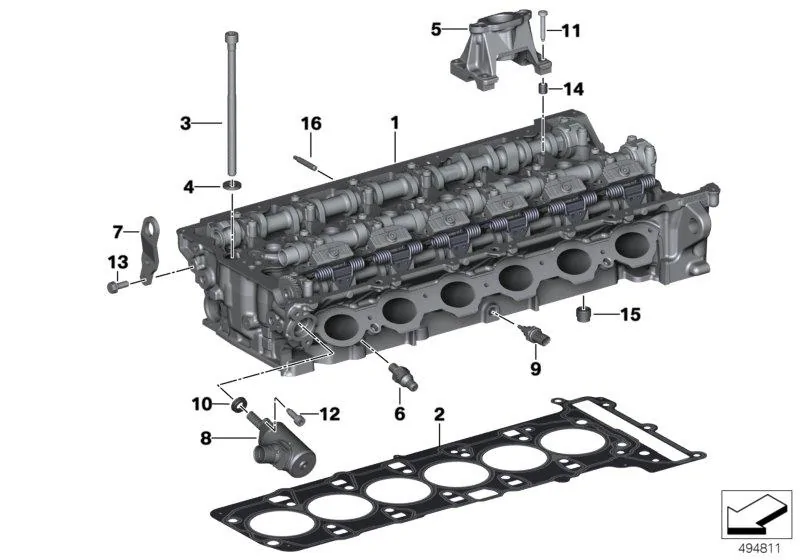

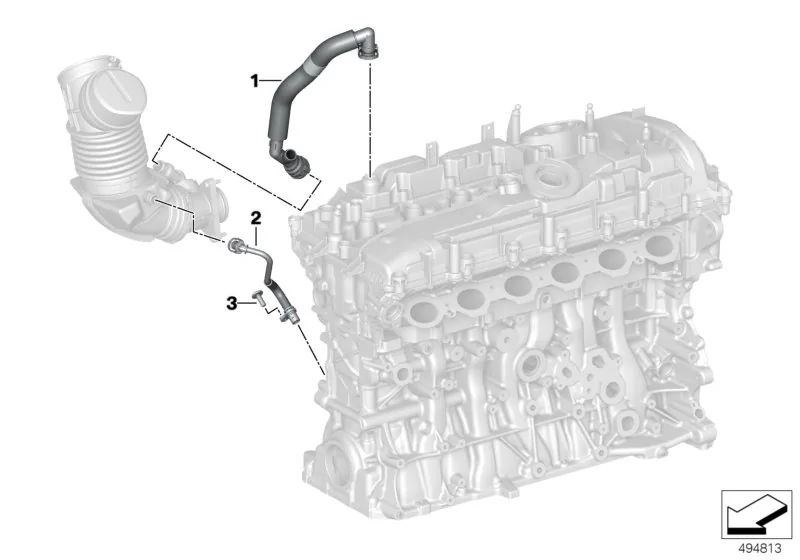

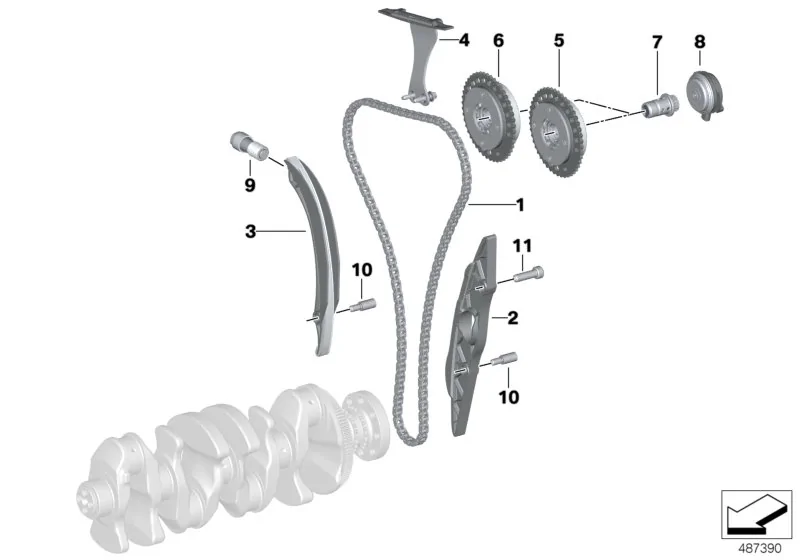

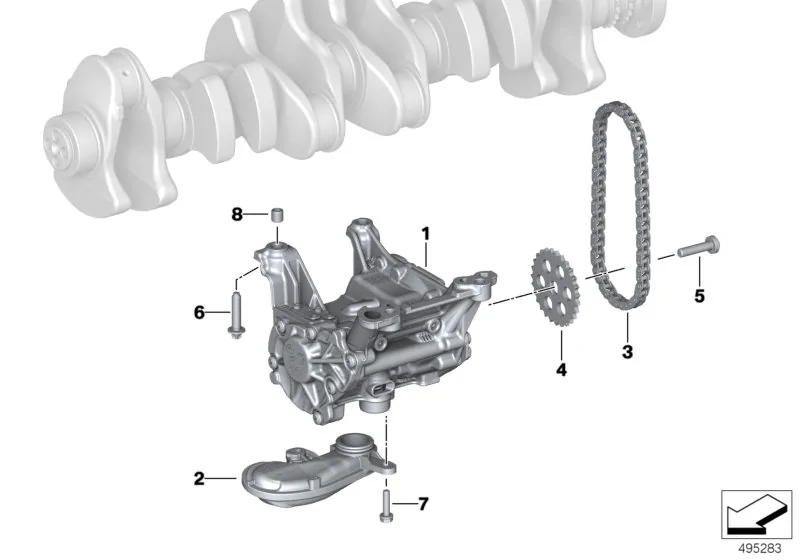

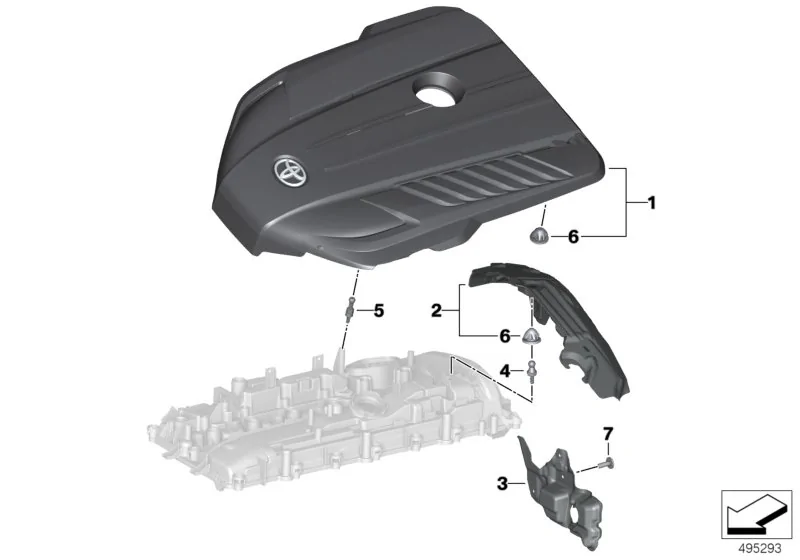

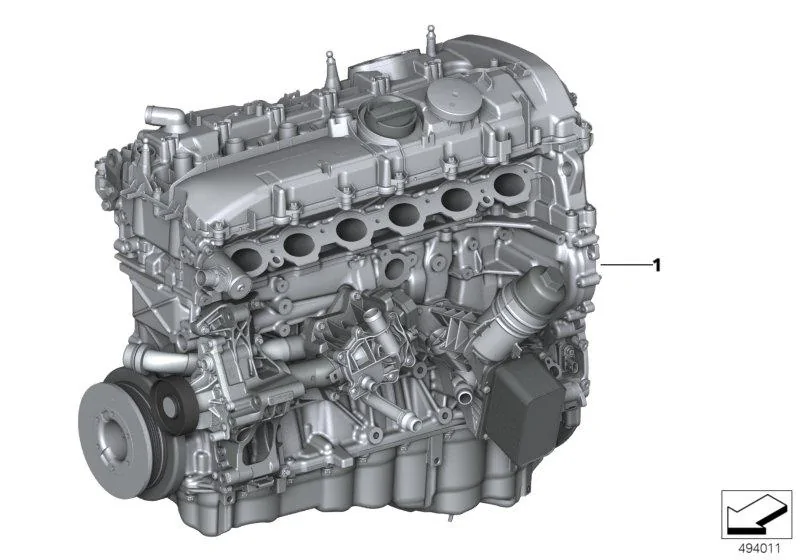

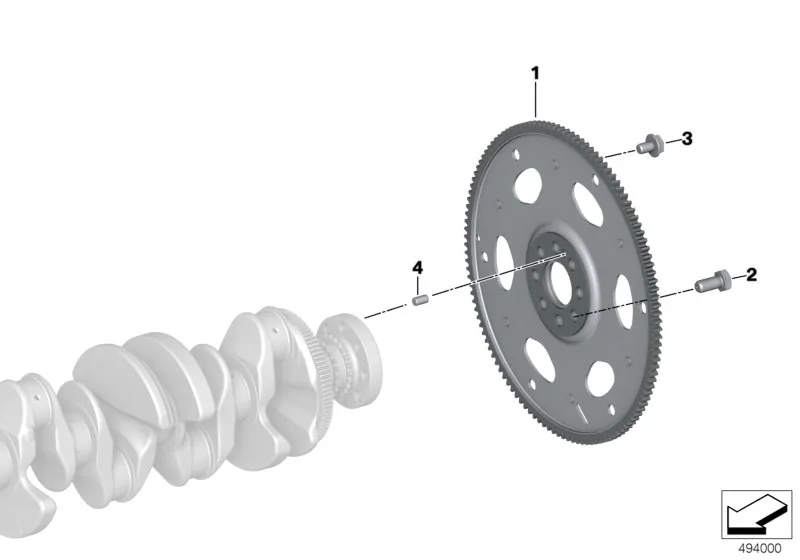

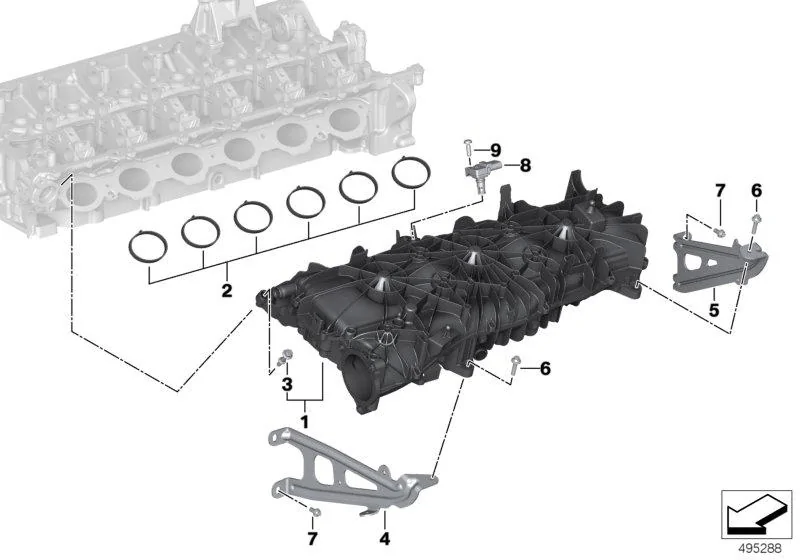

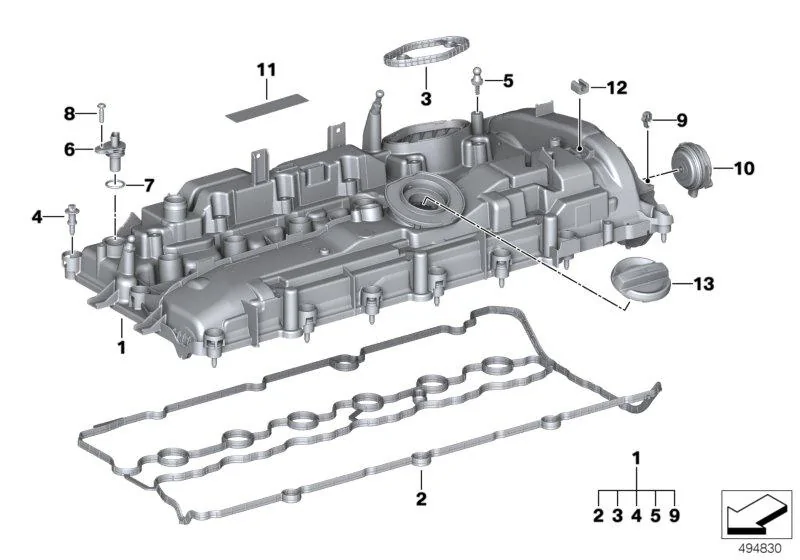

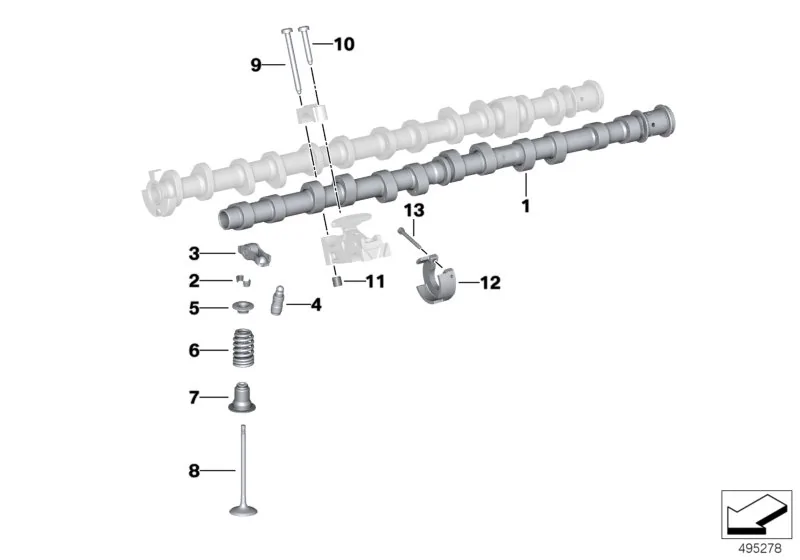

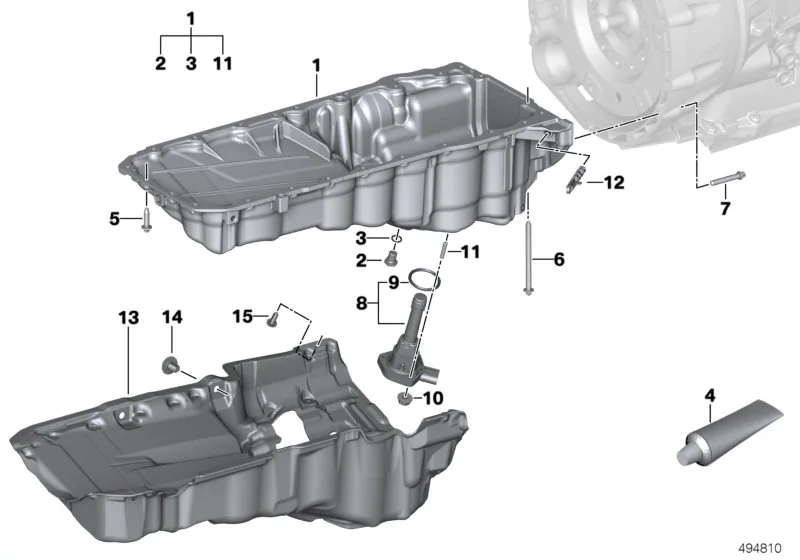

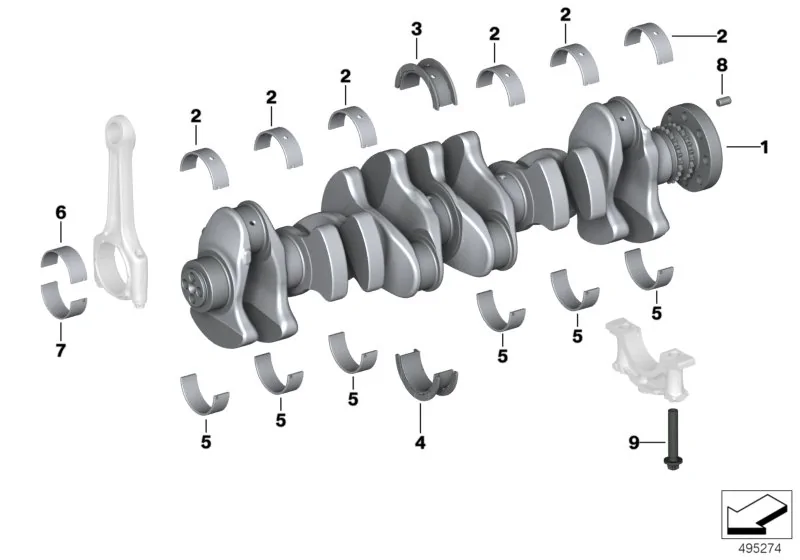

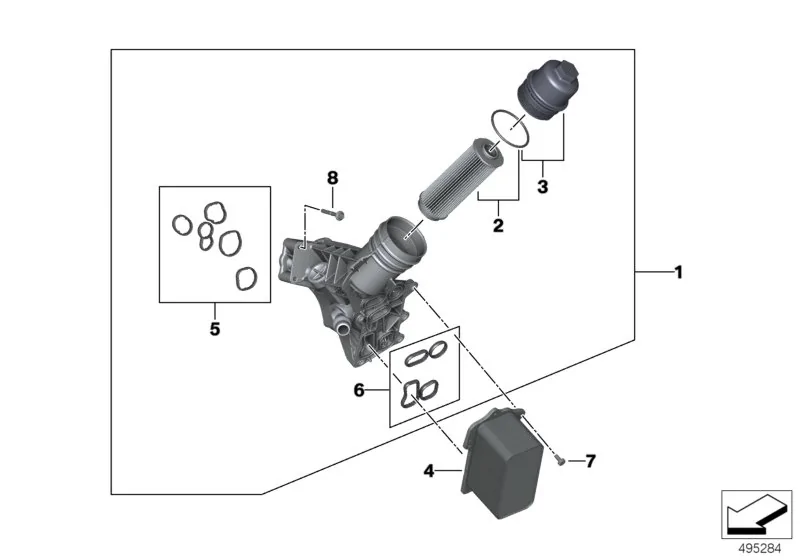

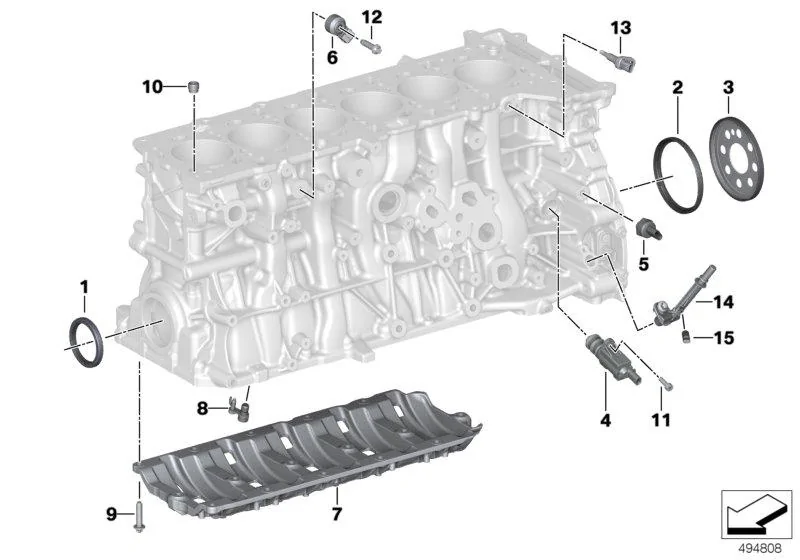

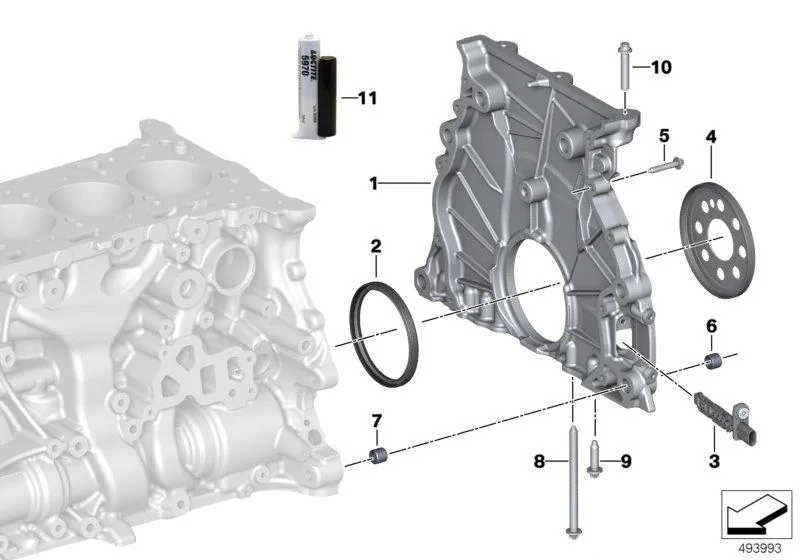

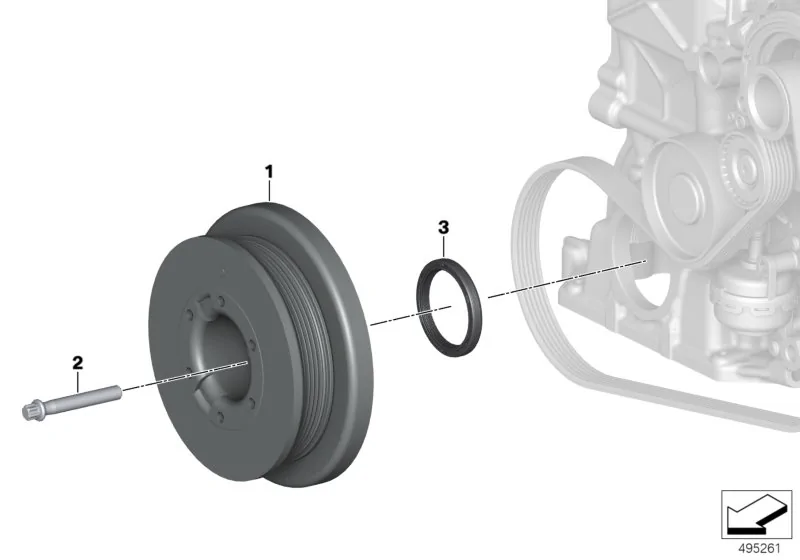

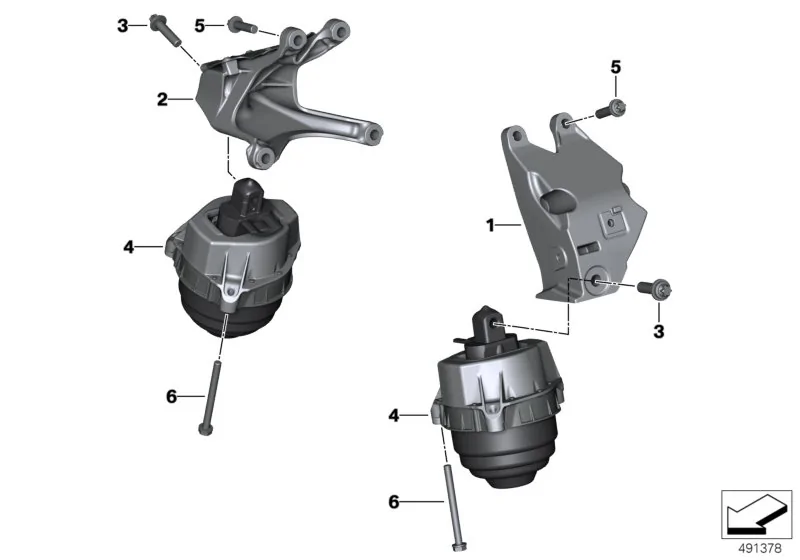

    Engine

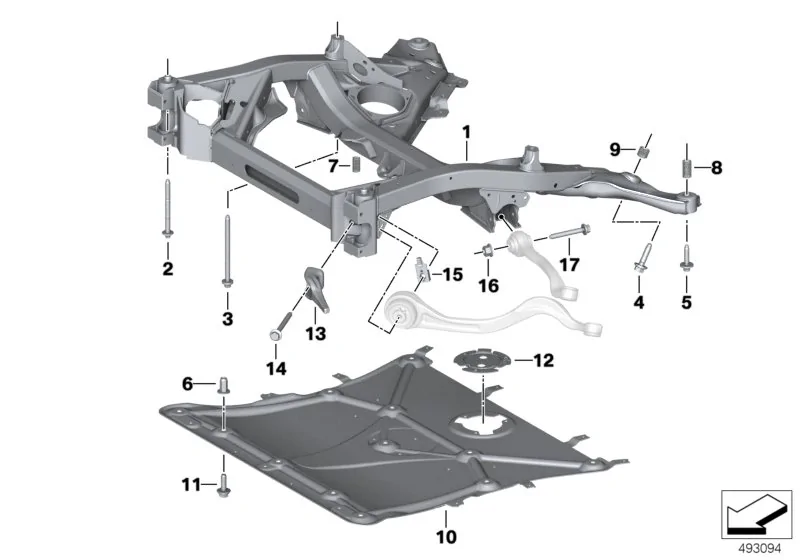

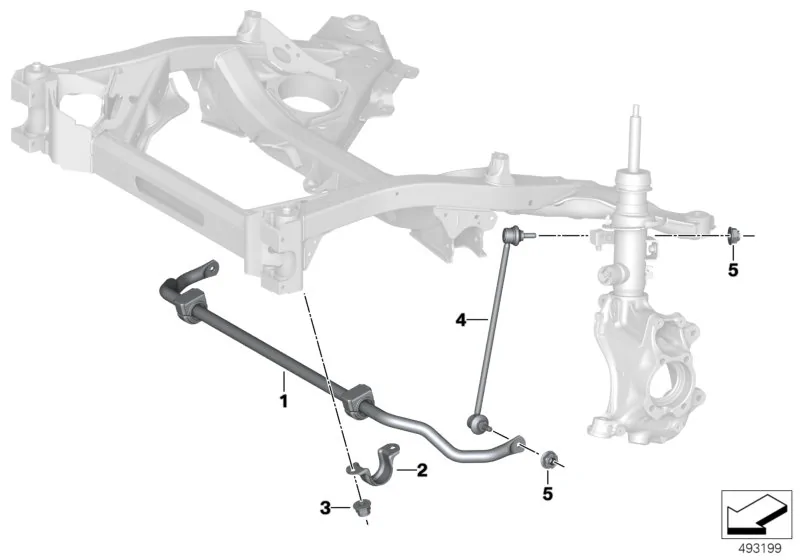

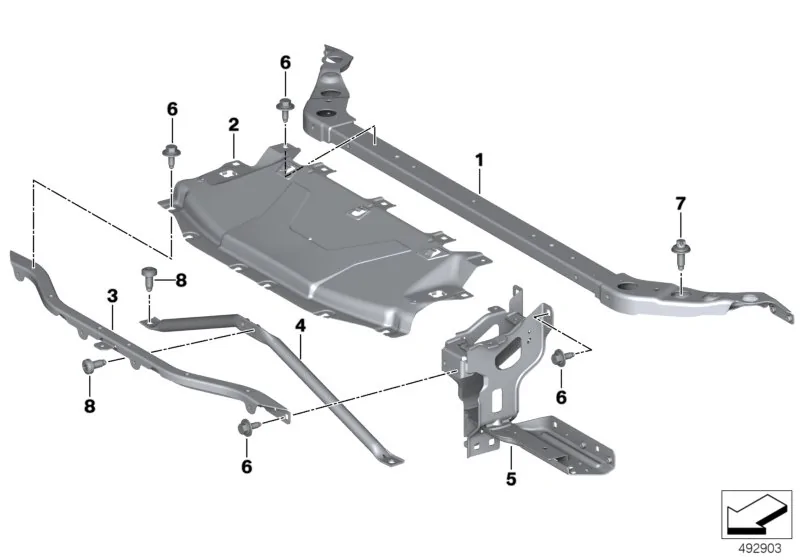

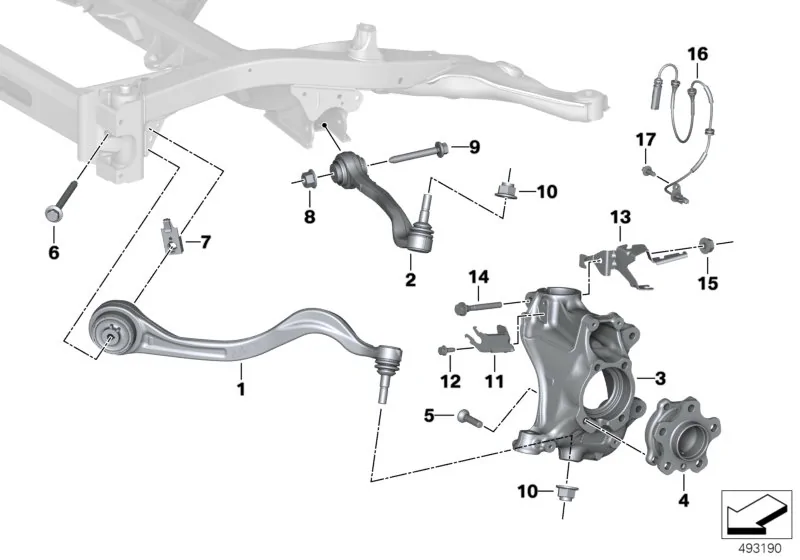

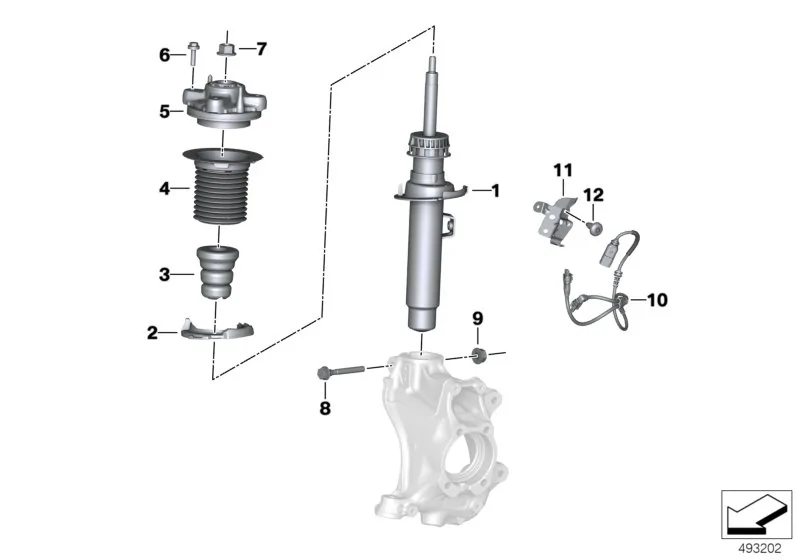

    Front Axle Suspension

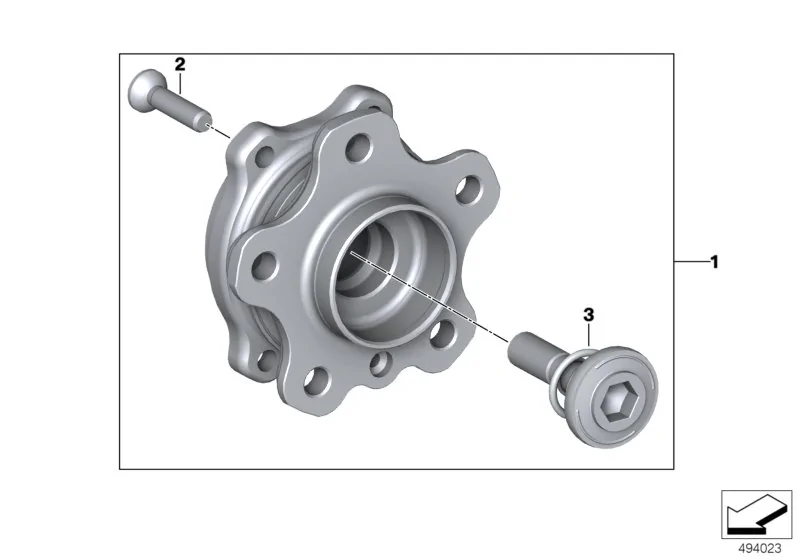

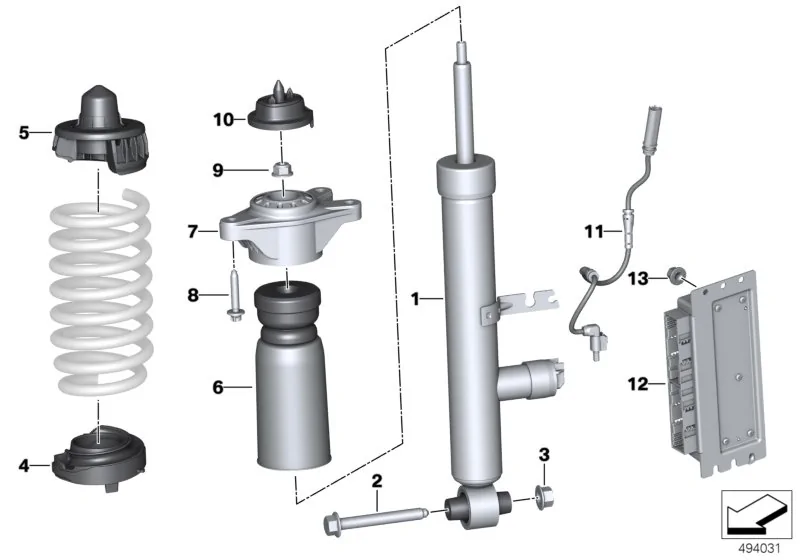

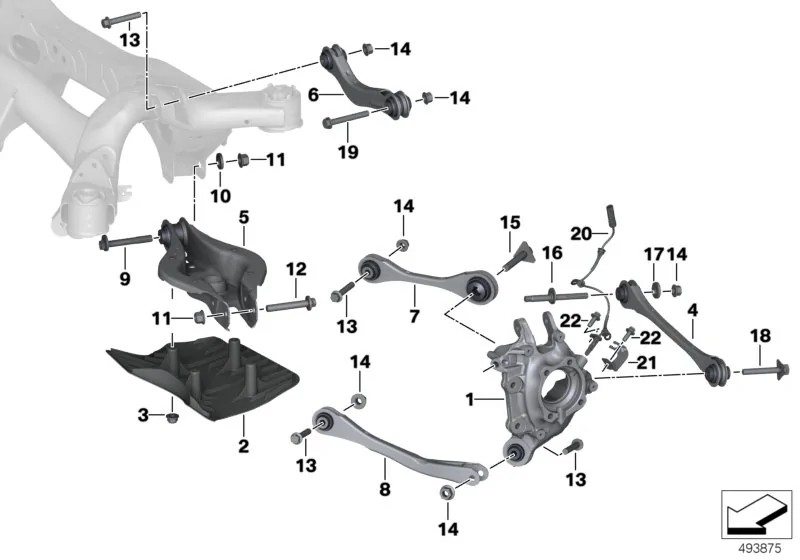

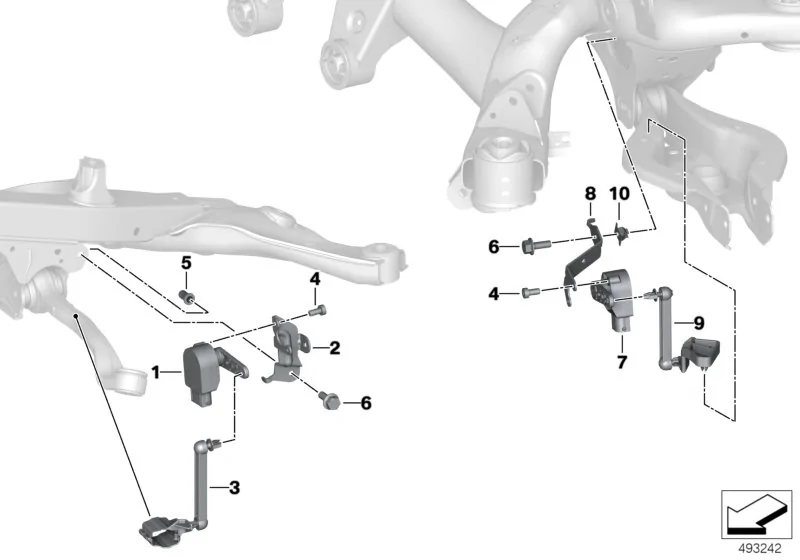

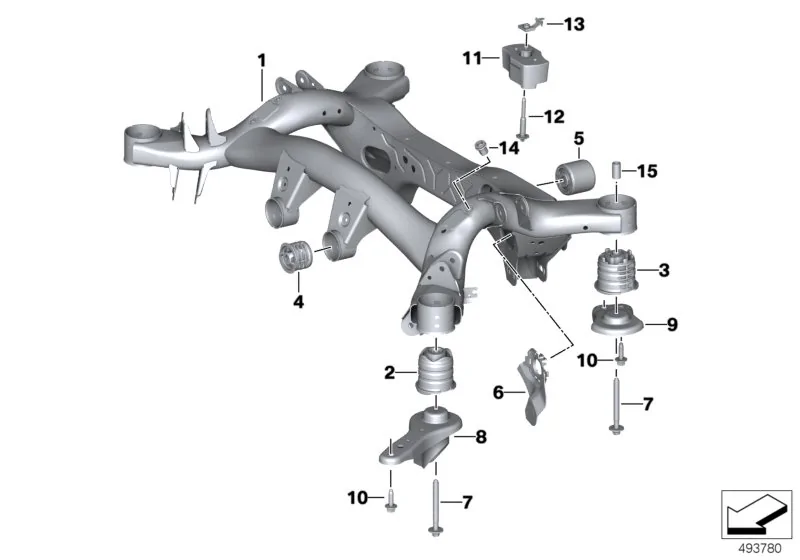

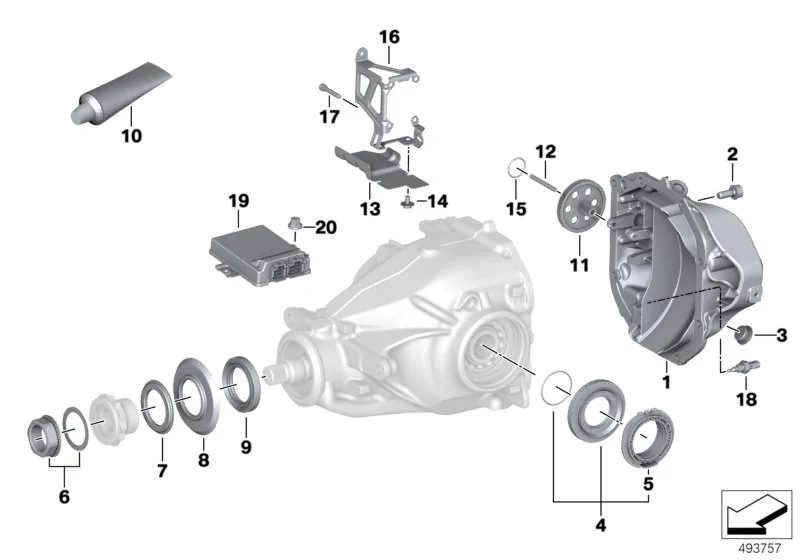

    Rear Axle Suspension

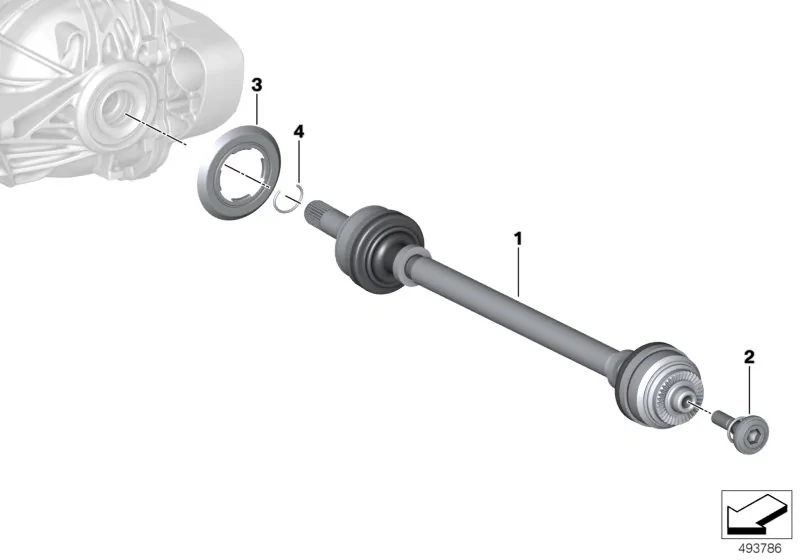

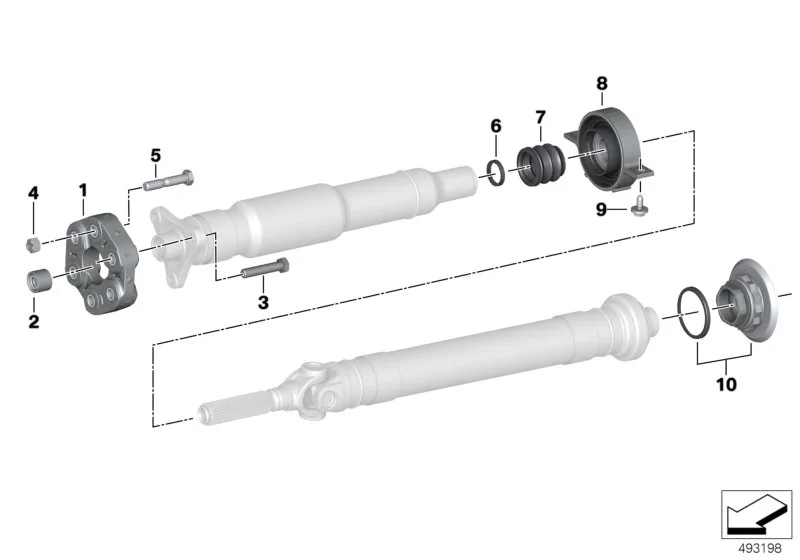

    Drive Shaft

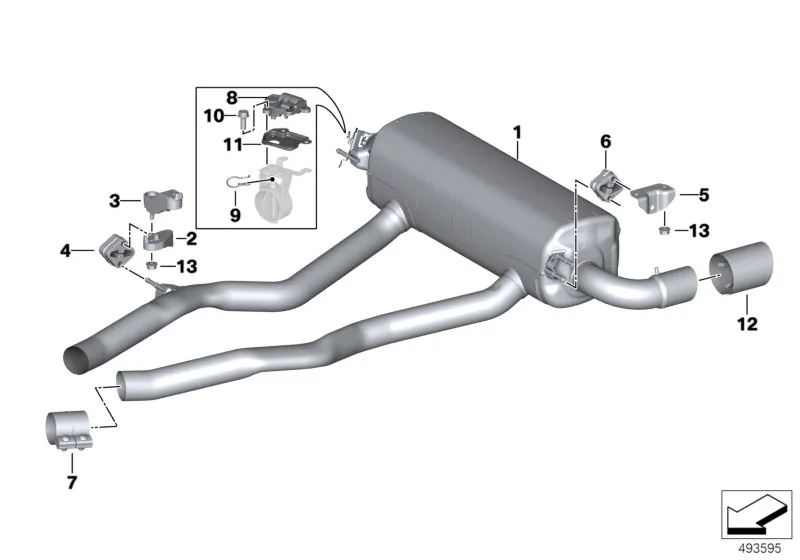

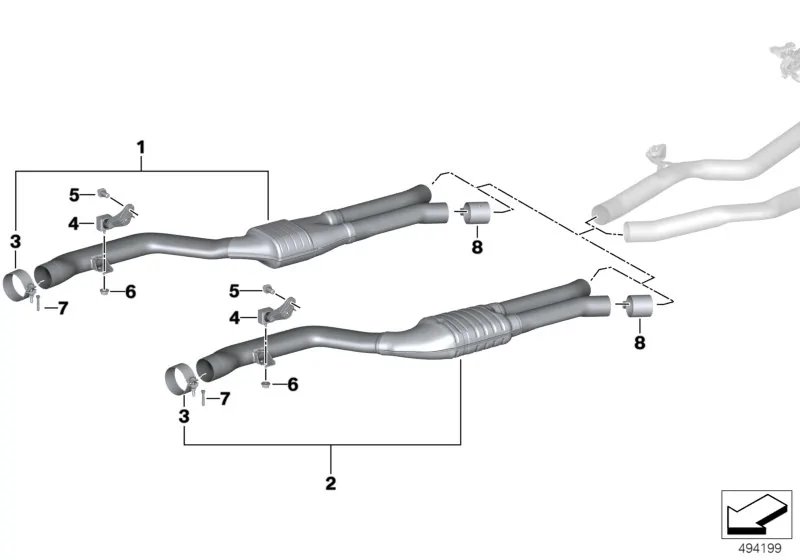

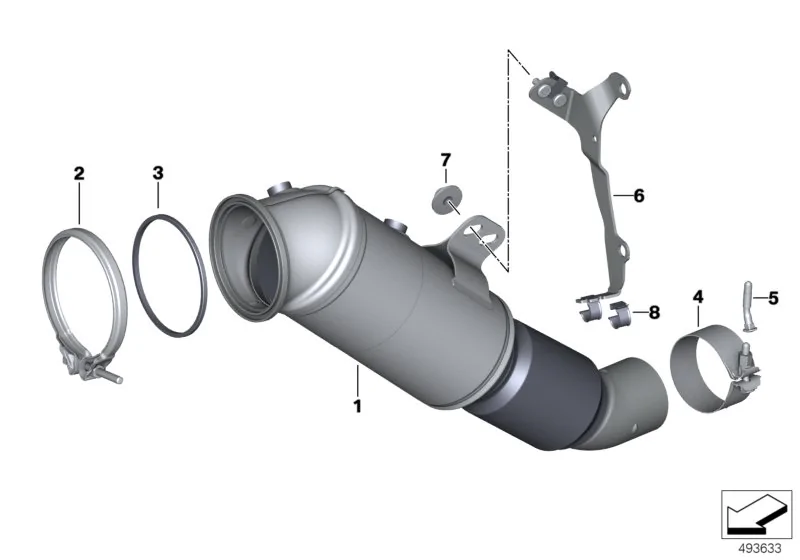

    Exhaust System

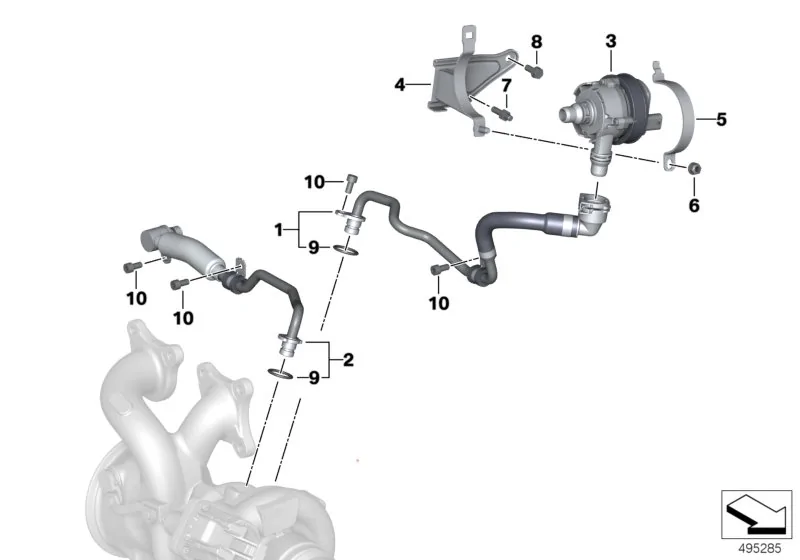

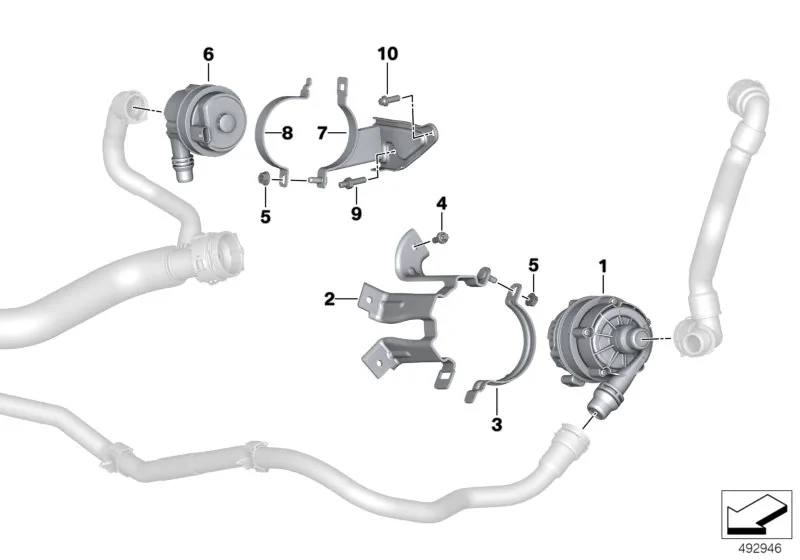

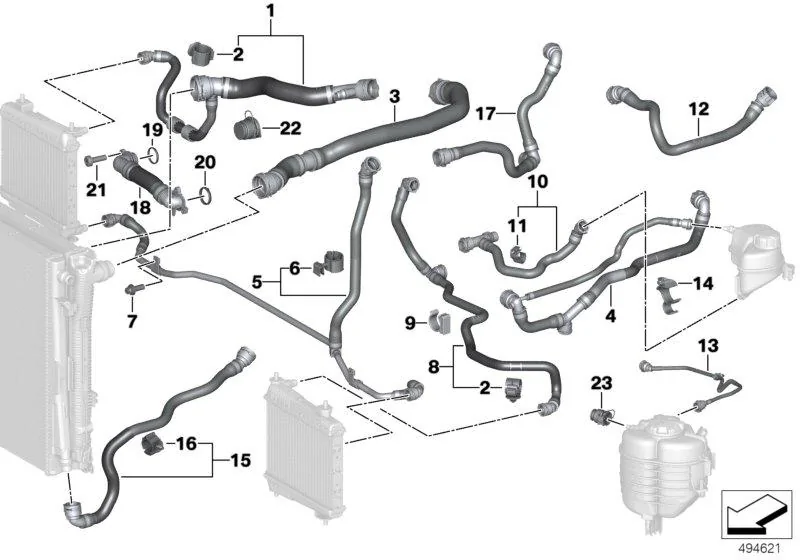

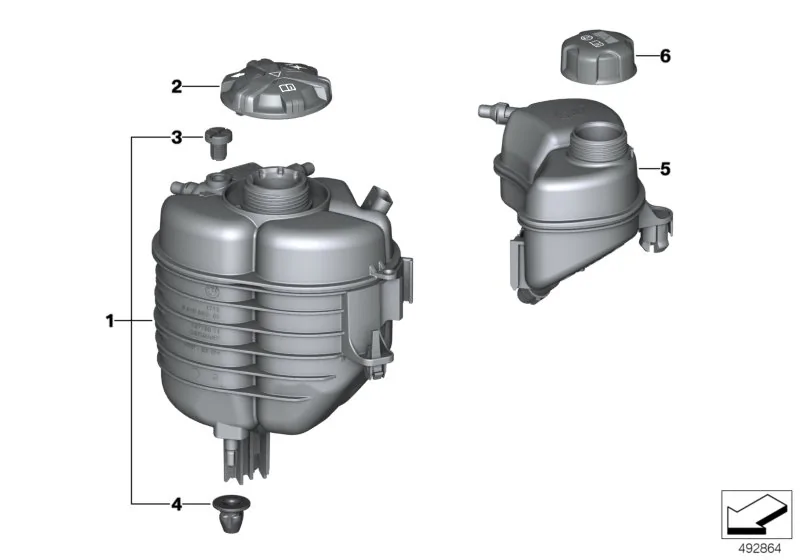

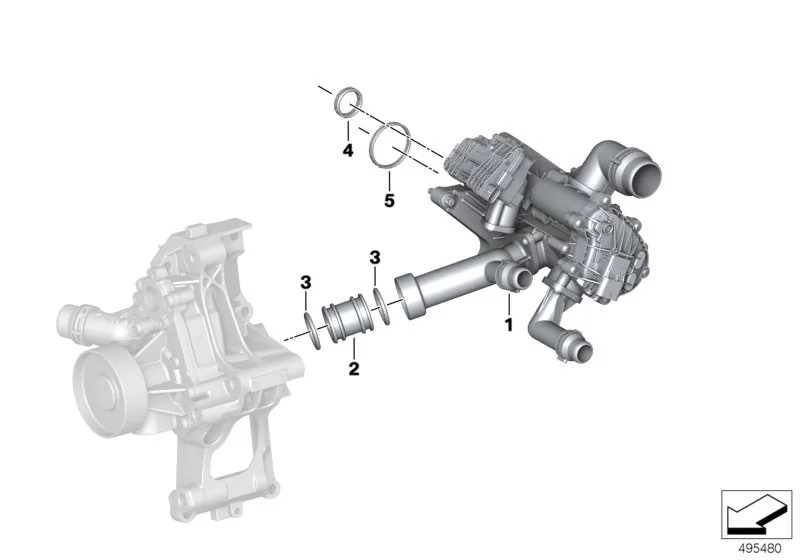

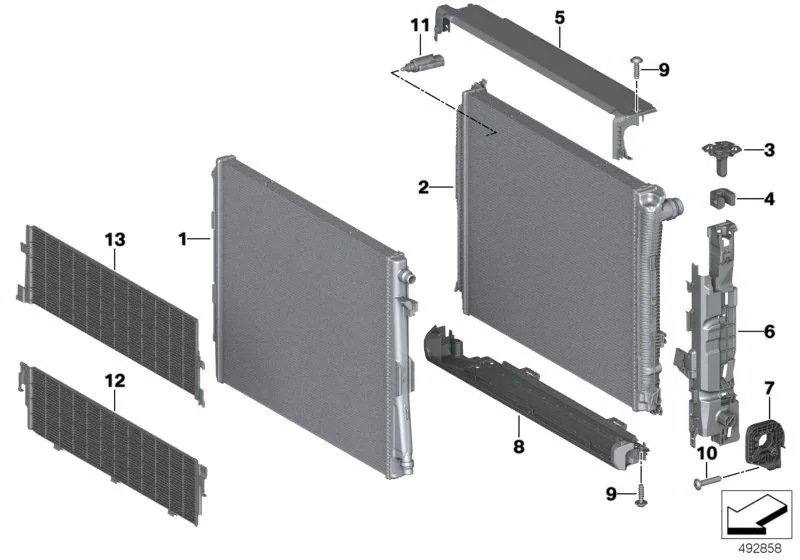

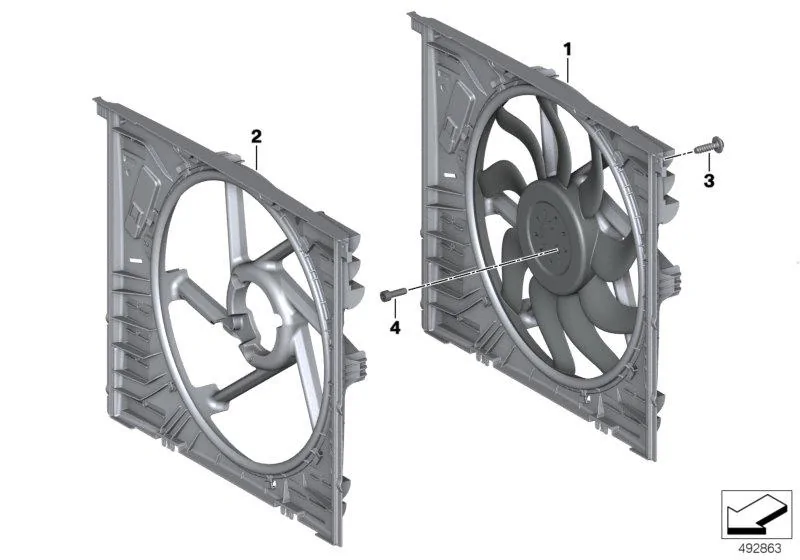

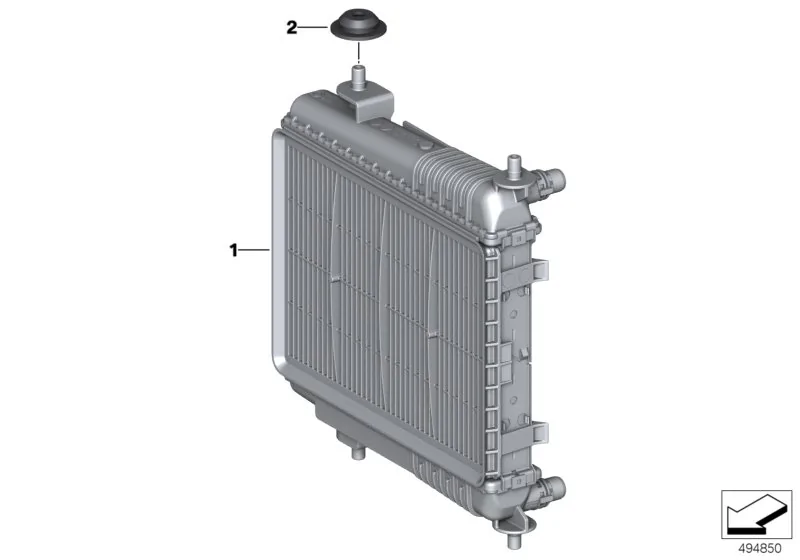

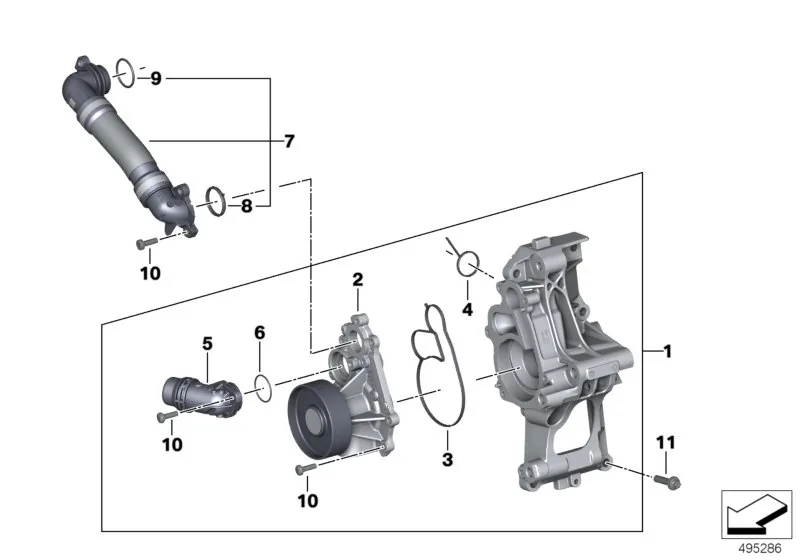

    Radiator / Cooling

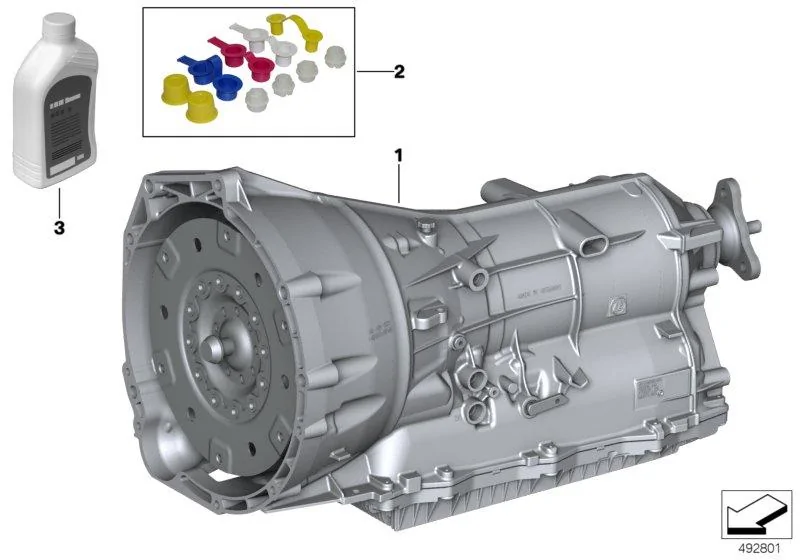

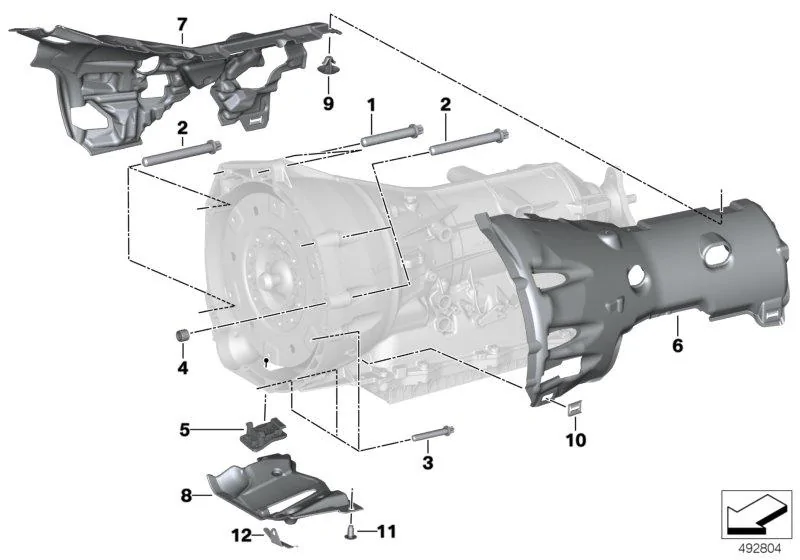

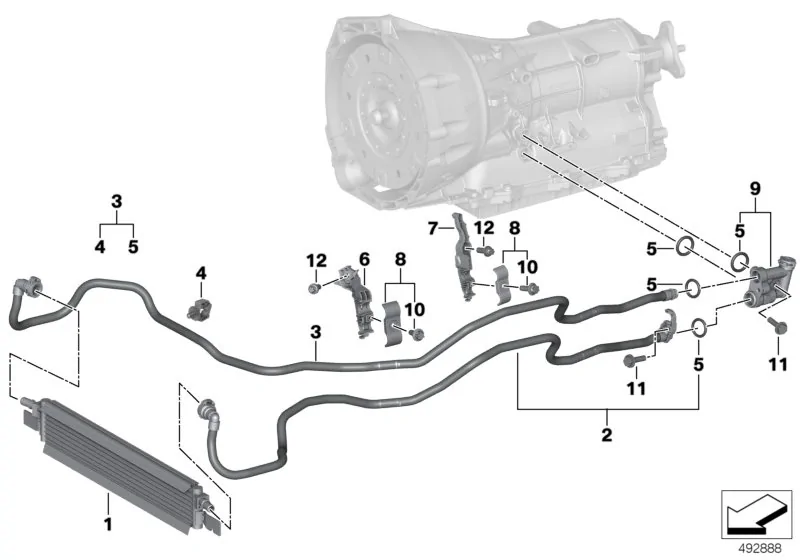

    Transmission



    Accessories






    LINKS:

    http://www.realoem.com/bmw/enUS/sel...eries=J29&body=Cou&model=Supra+40i&market=USA

    http://www.realoem.com/bmw/enUS/partgrp?id=DB43-USA---J29-BMW-Supra+40i

  2. justbake

    justbake Well-Known Member

    First Name:
    Justin
    Car(s):
    G37s, 325e
    Joined:
    Apr 19, 2018
    Location:
    Indy
    Posts:
    270
    Liked:
    365
    B58C engine eh?

    Searchneverend likes this.
  3. Searchneverend

    Searchneverend New Member

    Car(s):
    Camaro, Camry, Corolla, Accord, Z350, Alfa Romeo 4C
    Joined:
    Jun 13, 2018
    Location:
    virginia
    Posts:
    4
    Liked:
    7
    Does it mean Supra will have the same engine as Z4 M40i? or the GR SS. If not does it mean we're getting a new engine for GR SS in 2021? :D

  4. LEG1T

    LEG1T Well-Known Member

    First Name:
    Mike
    Car(s):
    91' Nsx
    Joined:
    Feb 6, 2018
    Location:
    Californiaaa
    Posts:
    260
    Liked:
    680
    Basic cockpit with no driver focus or style

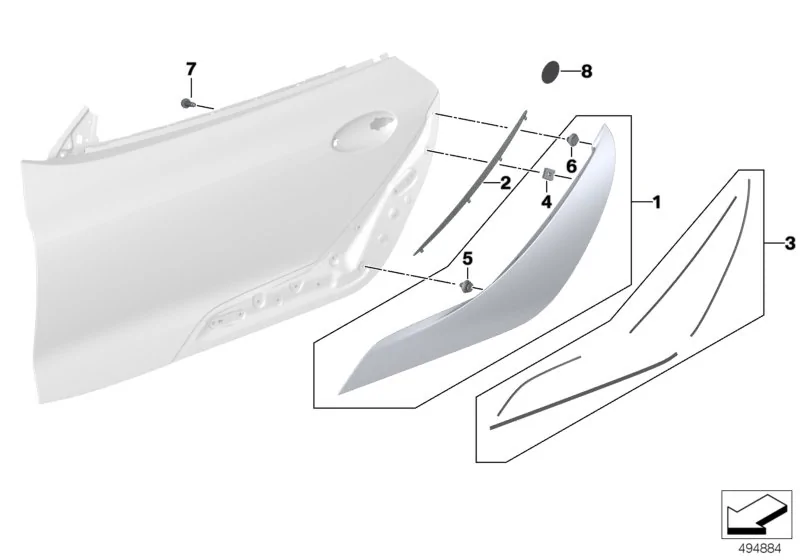

    Side vent door extension appears to be a useless snap in plastic piece

    SupraStew85 and tha7osavage like this.
  5. tha7osavage

    tha7osavage Well-Known Member

    Car(s):
    2015 Subaru WRX
    Joined:
    Feb 20, 2018
    Location:
    The Bay
    Posts:
    208
    Liked:
    274
    the interior doesn't look very "bespoke"!

    LEG1T likes this.
  6. BrettS

    BrettS Well-Known Member

    Car(s):
    2011 gti
    Joined:
    Nov 28, 2016
    Location:
    Alberta
    Posts:
    401
    Liked:
    958
  7. justbake

    justbake Well-Known Member

    First Name:
    Justin
    Car(s):
    G37s, 325e
    Joined:
    Apr 19, 2018
    Location:
    Indy
    Posts:
    270
    Liked:
    365
    Bespoke means different than z4

  8. Bimyota

    Bimyota Member

    Car(s):
    1994 Toyota Supra Turbo, 1999 BMW Z3 M Roadster
    Joined:
    Dec 20, 2017
    Location:
    Upstate NY
    Posts:
    23
    Liked:
    59
    The turbo manifold cast into the head as a single piece is problematic.

  9. tha7osavage

    tha7osavage Well-Known Member

    Car(s):
    2015 Subaru WRX
    Joined:
    Feb 20, 2018
    Location:
    The Bay
    Posts:
    208
    Liked:
    274
    I guess Tada wasn't lying when he said even the shifters are different lmao. Now I find it hilarious that they continue to cover things up in the interior.

    SupraStew85, A70TTR and justbake like this.
  10. justbake

    justbake Well-Known Member

    First Name:
    Justin
    Car(s):
    G37s, 325e
    Joined:
    Apr 19, 2018
    Location:
    Indy
    Posts:
    270
    Liked:
    365
    I dont know why people thought he was, it actually baffles me to think about

  11. BrettS

    BrettS Well-Known Member

    Car(s):
    2011 gti
    Joined:
    Nov 28, 2016
    Location:
    Alberta
    Posts:
    401
    Liked:
    958
    So is there any differences between the supra engine and z4 engine?

    Edit: Also those seats look heavy as f**k. Who needs 1000000 way adjustable seats in a sports car?!

  12. justbake

    justbake Well-Known Member

    First Name:
    Justin
    Car(s):
    G37s, 325e
    Joined:
    Apr 19, 2018
    Location:
    Indy
    Posts:
    270
    Liked:
    365
    The part numbers for the interior does not cross reference with z4 parts at all

  13. tha7osavage

    tha7osavage Well-Known Member

    Car(s):
    2015 Subaru WRX
    Joined:
    Feb 20, 2018
    Location:
    The Bay
    Posts:
    208
    Liked:
    274
    To me, he was trying to reinforce the separation of both the Z4 and Supra by implying that the Supra would have a "Bespoke" interior. Yeah, the interior is technically bespoke, and different than that of the Z4, but it's using older BMW parts? That's just how i interpreted it. They continue to cover the interior up, saying it's not fully completed. Well, I think they're full of shit haha.

    SupraStew85, Supraman and LEG1T like this.
  14. justbake

    justbake Well-Known Member

    First Name:
    Justin
    Car(s):
    G37s, 325e
    Joined:
    Apr 19, 2018
    Location:
    Indy
    Posts:
    270
    Liked:
    365
    Find me a cross reference of parts that match. Been clicking around this whole time with zero, zip, zilch cross reference

  15. masahiro

    masahiro Member

    Car(s):
    MR2
    Joined:
    Mar 23, 2017
    Location:
    Austin
    Posts:
    20
    Liked:
    32
    3 wheel options. I'm guessing for 20i, 30i, and 40i?
