Alignment issues after installing H&R spring+new wheel/tire

Maztaspawn

Member
First Name
Justin
Joined
Feb 3, 2021
Messages
10
Reaction score
0
Location
Buena Park, CA
Car(s)
2011 A90 Supra MKV
Hello is anyone also having an alignment issue after installing h&r springs?
I did an alignment after installation but was still pulling right. So I thought it was because the spring is still settling. So I did another alignment after a month and it is still pulling to the right.
I need to hold my steering wheel slight left to go straight. And when I let go it pulls to the right. And whenever i hold my steering wheel center it just goes to the right.
I don’t know what is wrong with it and my track day is coming up.

Advertisement


Last edited:

Pej1282

Well-Known Member
First Name
Pete
Joined
Apr 21, 2021
Messages
54
Reaction score
102
Location
Miami, FL
Car(s)
2021 GR Supra, 2020 Avalon TRD, 2015 Lexus RC350

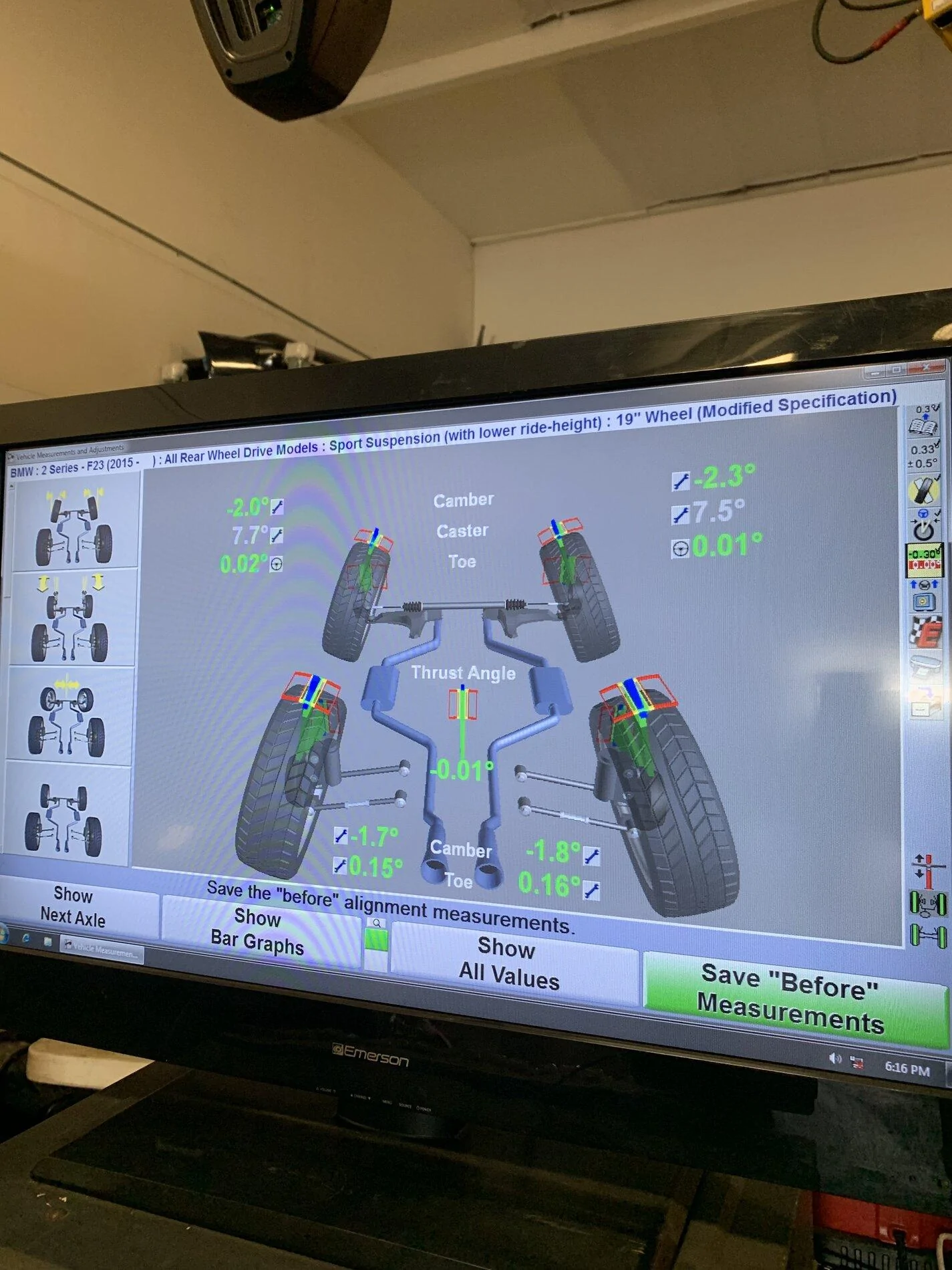

Same thing happens to me, seems to be a normal occurrence according to what I’ve seen on other threads. I was told to take it to the dealership and have them reset the steering module so and that should center the steering wheel but I haven’t done so yet. Was also told I should swap my tires left to right and right to left and that should also help. My readings are almost exactly like yours

OP
OP

Maztaspawn

Member
First Name
Justin
Joined
Feb 3, 2021
Messages
10
Reaction score
0
Location
Buena Park, CA
Car(s)
2011 A90 Supra MKV
Same thing happens to me, seems to be a normal occurrence according to what I’ve seen on other threads. I was told to take it to the dealership and have them reset the steering module so and that should center the steering wheel but I haven’t done so yet. Was also told I should swap my tires left to right and right to left and that should also help. My readings are almost exactly like yours
Really? Dang the factory really is shit lol.. i am going to try one last time to the shop i did my installs+alignment. If they can’t fix it im going toyota. Hopefully toyota don’t charge me anything because of the new setup lol


spooky156

Member
First Name
Dan
Joined
Sep 2, 2020
Messages
11
Reaction score
7
Location
San Antonio TX
Car(s)
2020 Toyota Supra Launch Edition - 2014 Scion FR-S
Same thing happens to me, seems to be a normal occurrence according to what I’ve seen on other threads. I was told to take it to the dealership and have them reset the steering module so and that should center the steering wheel but I haven’t done so yet. Was also told I should swap my tires left to right and right to left and that should also help. My readings are almost exactly like yours
I'm having this issue. Was it ever resolved?


spooky156

Member
First Name
Dan
Joined
Sep 2, 2020
Messages
11
Reaction score
7
Location
San Antonio TX
Car(s)
2020 Toyota Supra Launch Edition - 2014 Scion FR-S
Really? Dang the factory really is shit lol.. i am going to try one last time to the shop i did my installs+alignment. If they can’t fix it im going toyota. Hopefully toyota don’t charge me anything because of the new setup lol
Was this resolved?


Msoupe

Well-Known Member
First Name
Aaron
Joined
Feb 10, 2021
Messages
79
Reaction score
71
Location
California
Car(s)
'21 Supra 3.0, Civic Hatch, C10 Pickup

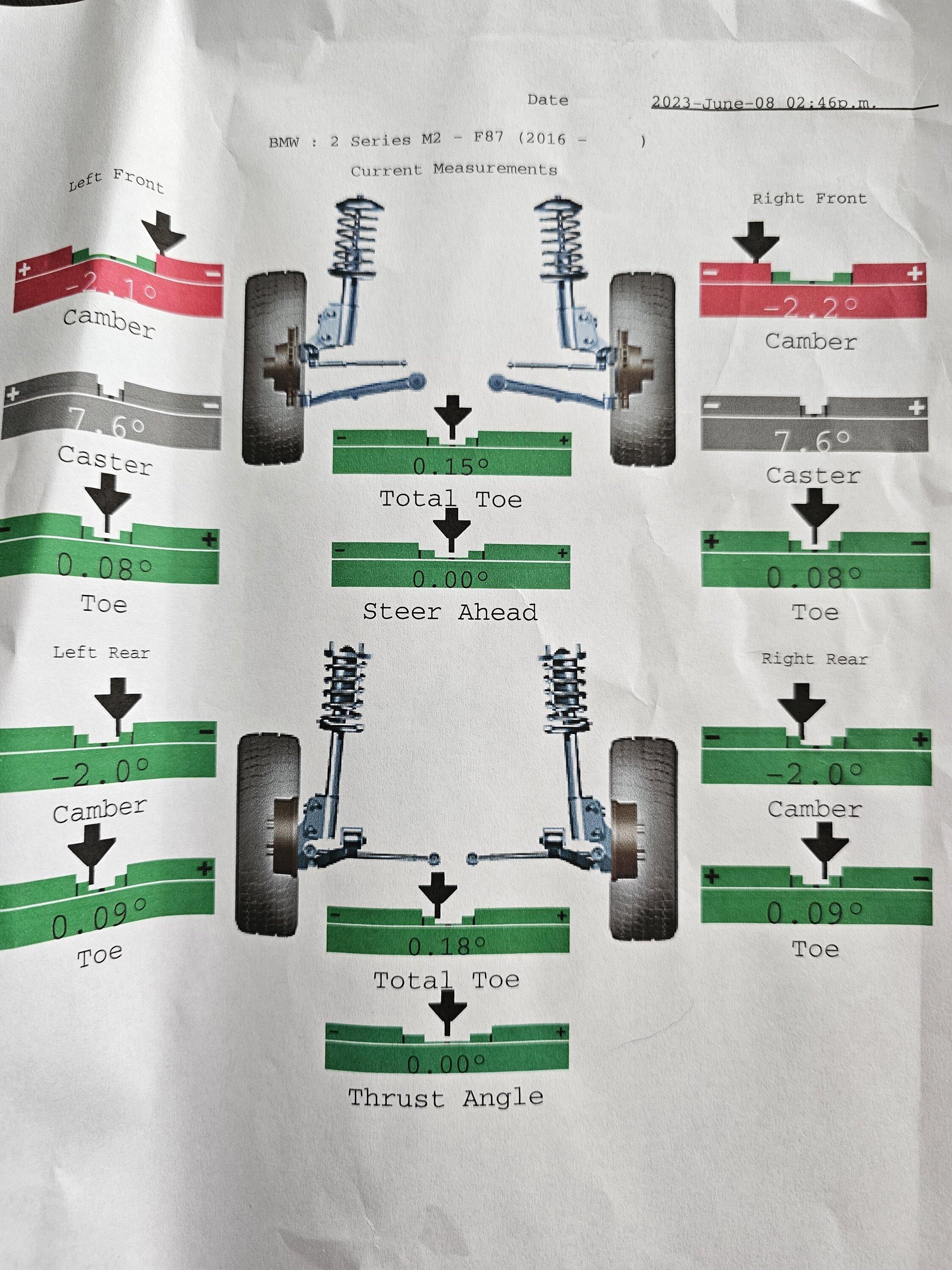

Nope. He just did a better job with the alignment. Try this specs

@Maztaspawn

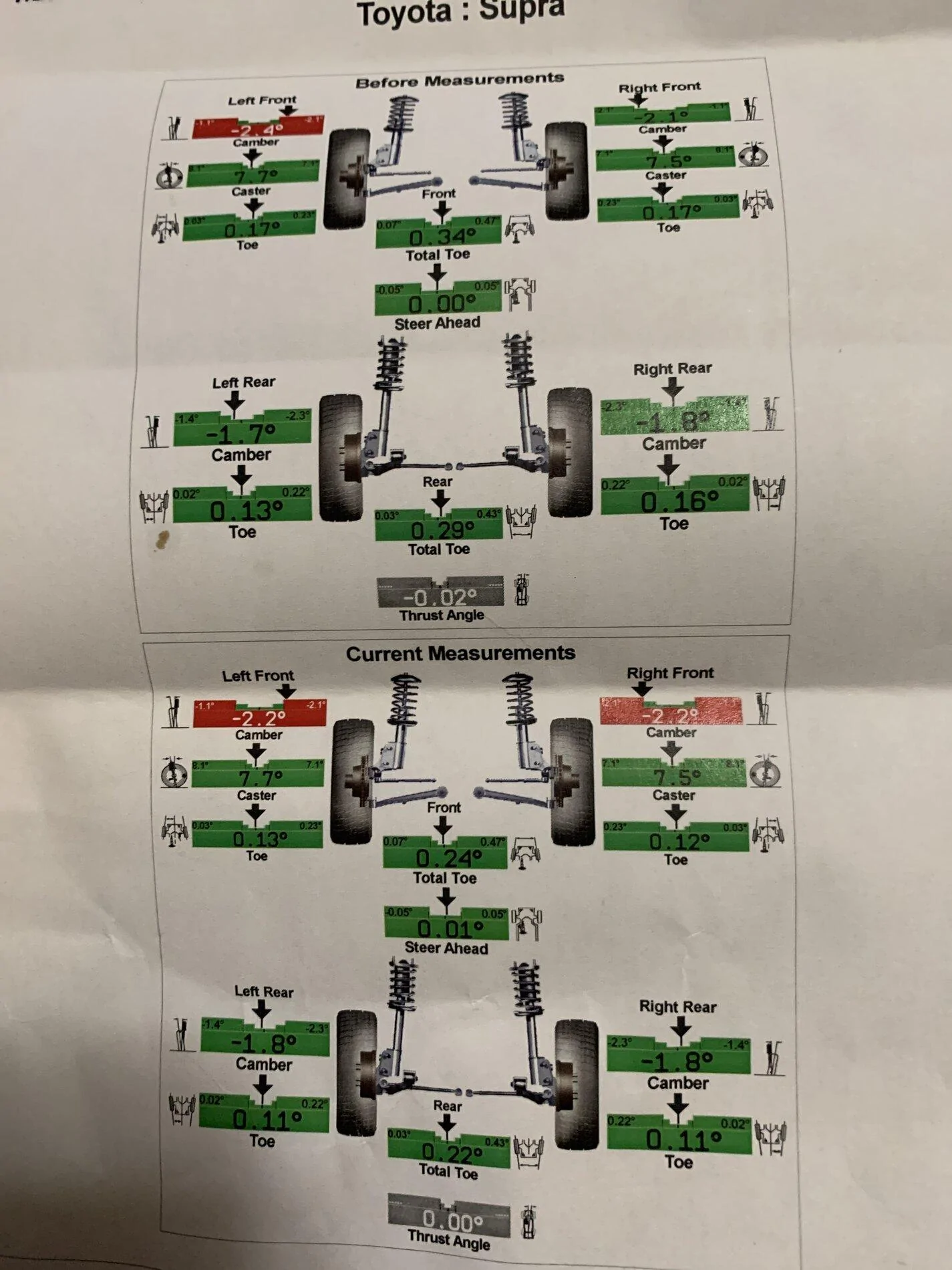

Are these "Before" or "After". Do you have a screen shot for both? It would be informative to see what value was off and how they corrected it. The screen shot above looks fairly decent so I'm assuming these are the "after" numbers.

OP
OP

Maztaspawn

Member
First Name
Justin
Joined
Feb 3, 2021
Messages
10
Reaction score
0
Location
Buena Park, CA
Car(s)
2011 A90 Supra MKV
@Maztaspawn
Are these "Before" or "After". Do you have a screen shot for both? It would be informative to see what value was off and how they corrected it. The screen shot above looks fairly decent so I'm assuming these are the "after" numbers.
After
