Black MKV from Qatar Track/Street

Darth

Well-Known Member
Joined
Aug 19, 2019
Messages
138
Reaction score
201
Location
Losail, Qatar
Car(s)
AP1 S2000 Racecar, Westfield Aerorace, Evo 8, C6 ZO6, 370Z, Zupra
Vehicle Showcase
4

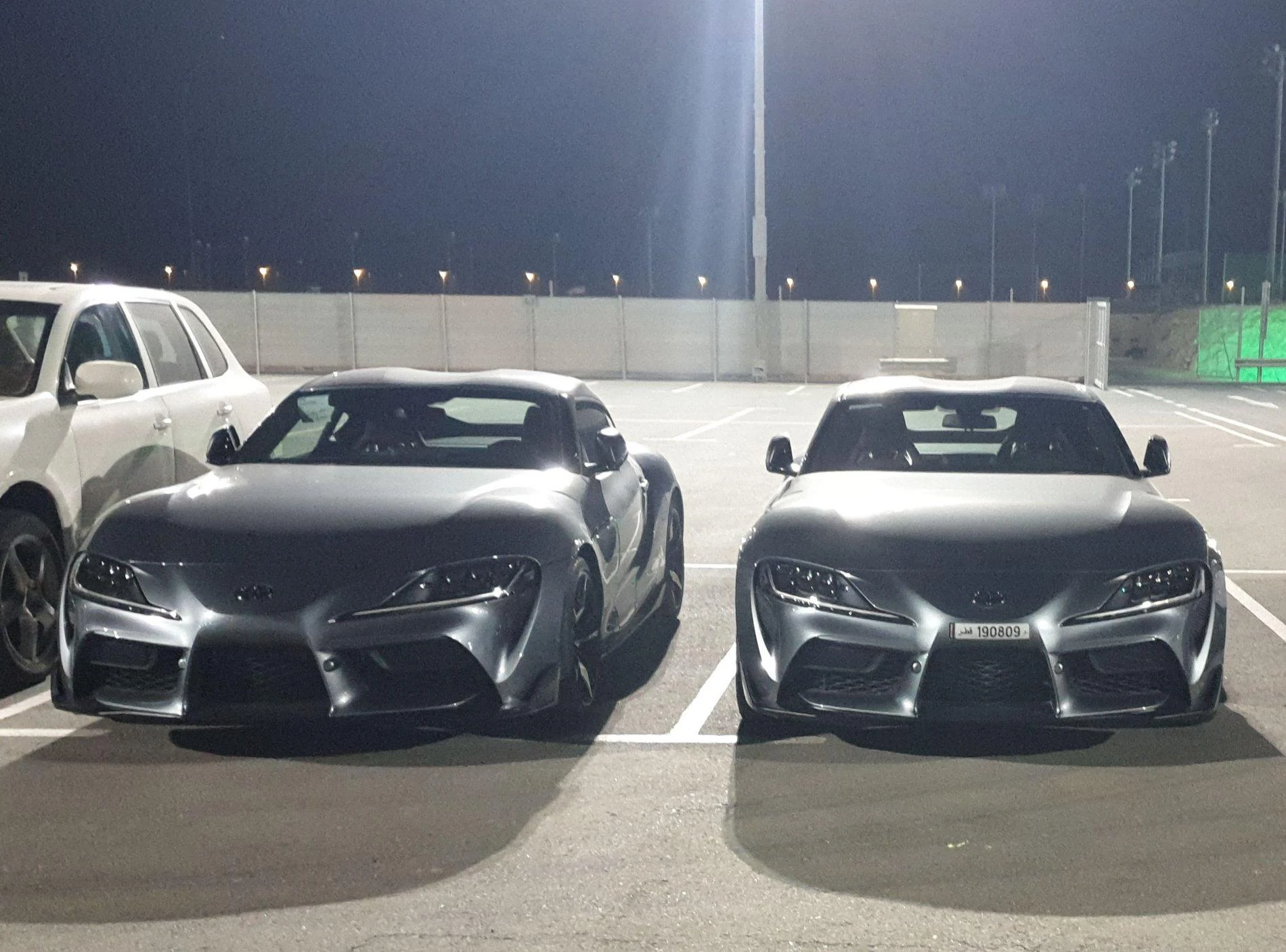

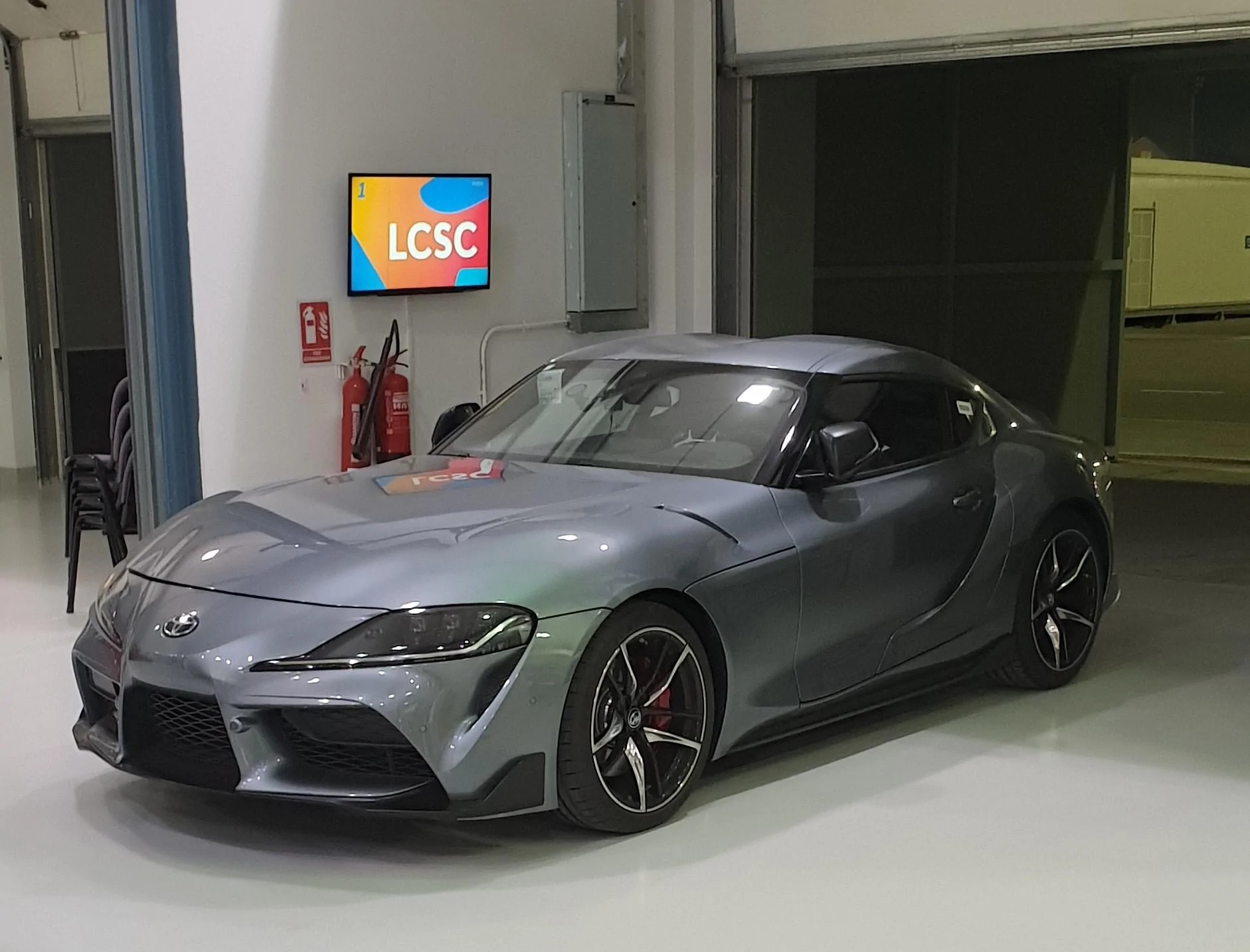

Ok so two days ago I received my new Supra and I could't wait to see what it can do at my home track (Losail International Circuit)

View attachment 16960

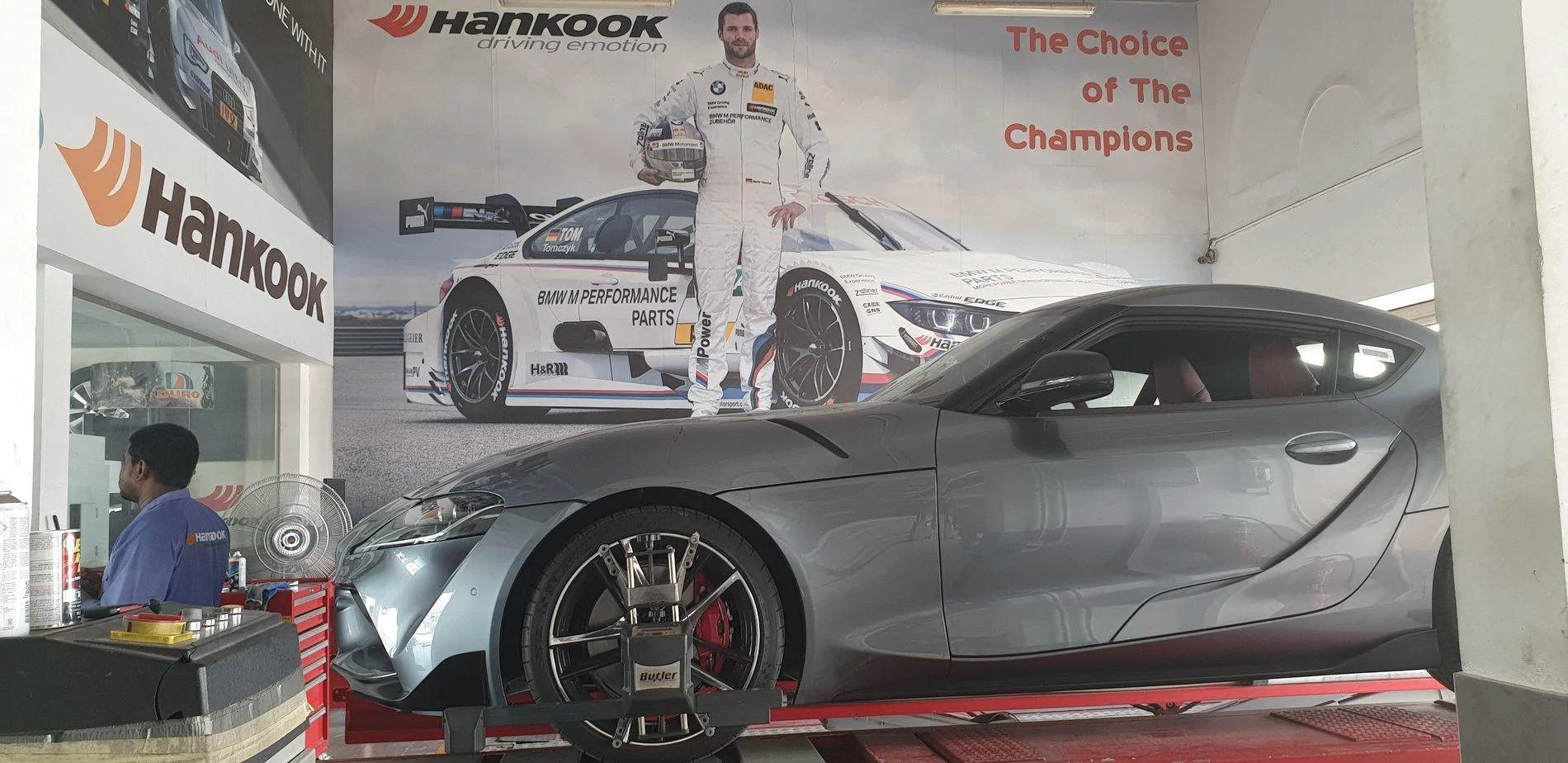

I really enjoyed using it as a daily, but I had to do track alignment since the first track of the season was on the same week.

View attachment 16961


Ended up at -1.6 front camber and -0.05 front toe. while I had 1.6 rear camber with +0.03 rear toe.

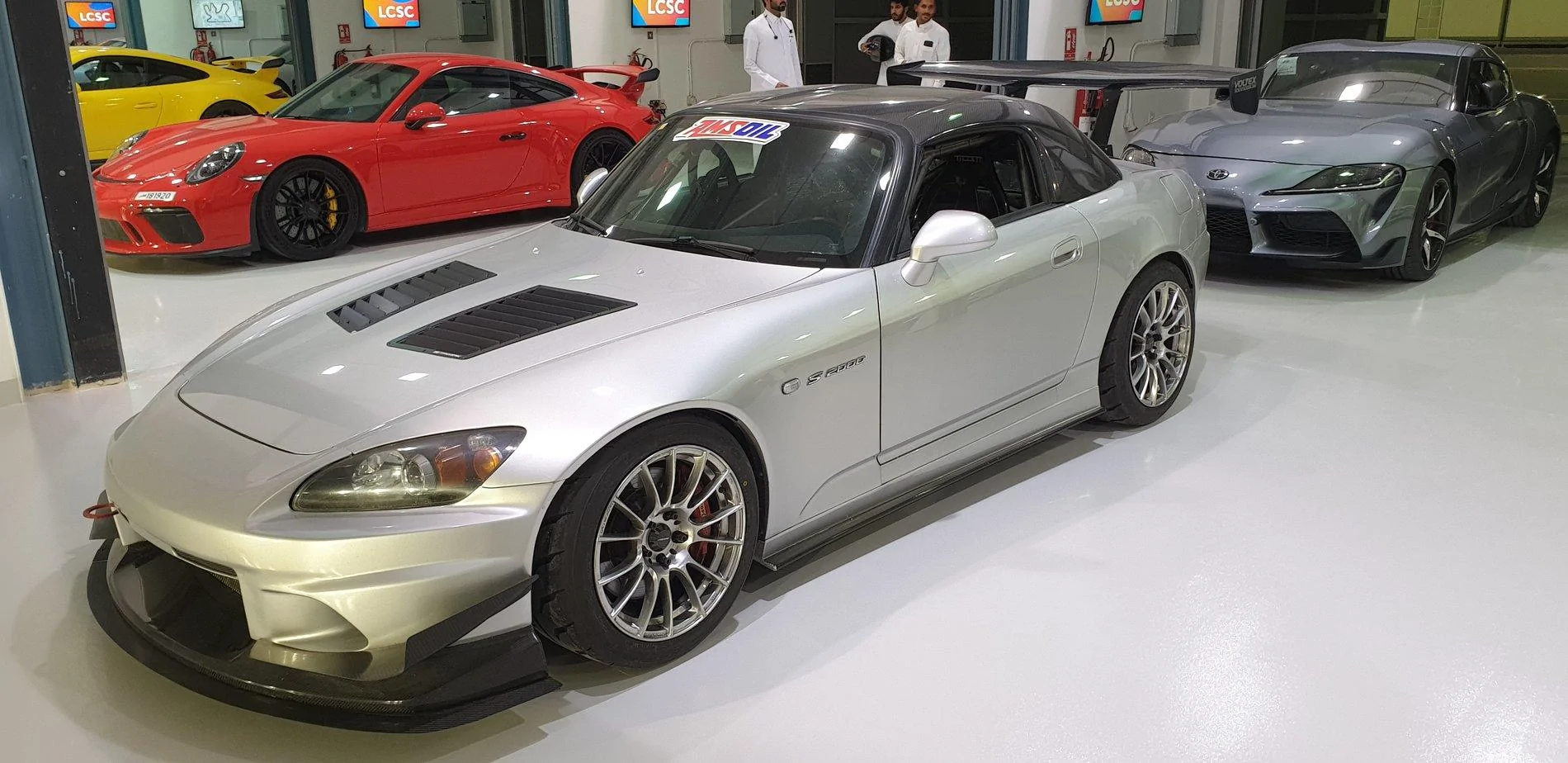

Some photos of my S2000 with the Supra at the trackday.

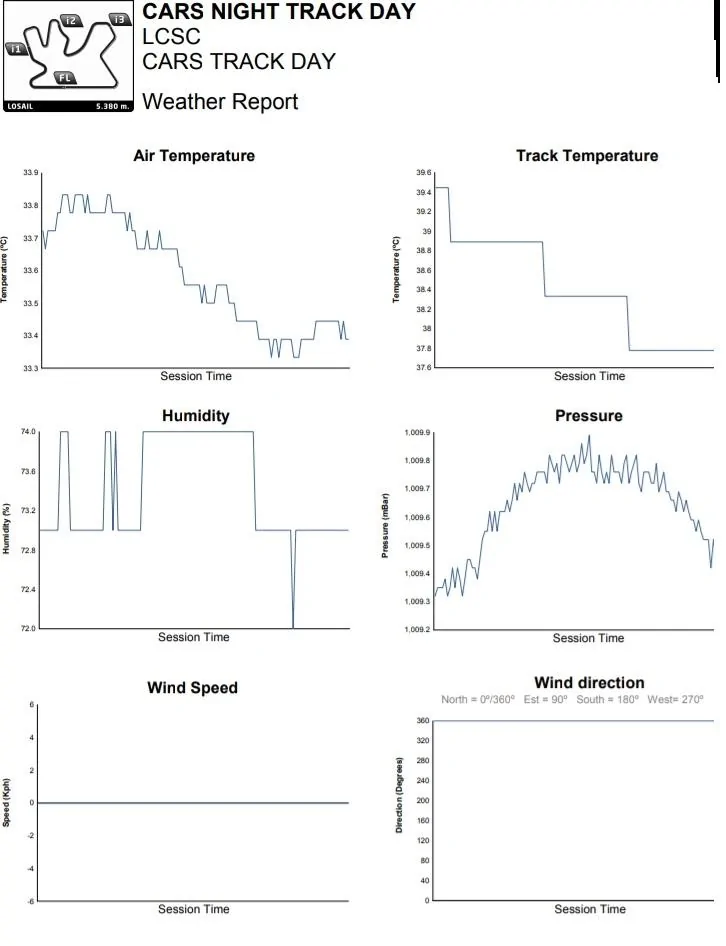

Now the weather these days in Qatar is extremely hot and humid, however it was at night so I thought how bad could it be? Well it was really bad. I had the secret menu opened to monitor the oil temperatures and was surprised that it idles at 110 C. Anyway I went out and did one hot lap only and the oil temperature jumped from 110 to 146 C as can be seen in the video below.


Personal best lap times

Porche 991 GT3 CUP -Slicks (2:03.3)
Porche 991 GT2 RS (2:07.4)
Mclaren 675LT (2:14.6)
Porche 991.2 GT3 Touring MT (2:15.3)
Porche 991.1 GT3 (2:16.0)
Nissan 370Z Track car RE71R (2:20.3)
Toyota GT86 CUP - Slicks (2:20.9)
BMW M2 - RE71R (2:21.5)
Honda S2000 AP1 Racecar (2:22.2)
Toyota GT86 CUP Racecar (2:23.5)
Toyota Supra 2020 (2:24.9)
Westfield Aerorace (2:25.4)
Lotus Evora 400 (2:26.8)
Lexus ISF (2:27.6)
Lexus RCF (2:28.1)
Mitsubishi EVO 8 (2:29.1)
Porche Singer (2:30.4)
Kia Stinger (2:33.2)
Honda FN2 (2:33.2)
BMW 135i (2:34.7)
Mazda Miata RF 2019 (2:36.7)
Lexus IS350F (2:38.6)
Ford Focus (2:39.7)
Lexus LC500h (2:41.7)



For the guys who are using the secret menu at the track, how high does oil temperature goes during one season or one lap?

I know that our weather was not ideal as many cars struggled in the heat, however the Supra seemed to be the fastest to reach extreme oil temperatures. Could it be from the oil itself?

Anyway I am really confused right now as I love the car as a daily and even as a track car, however I am a bit disappointed that I can't finish a lap without oil temperature hitting 147 C.





Advertisement



Attachments

  • 0 bytes Views: 0
  • 0 bytes Views: 0
Last edited:

kona61

Well-Known Member
First Name
Josh
Joined
Mar 25, 2018
Messages
1,021
Reaction score
1,383
Location
San Bernardino-ish, CA
Car(s)
5G 4Runner, MK7 Golf, AZW LE Supra
Vehicle Showcase
1
Ok so two days ago I got my Supra and I could't wait to see what it can do at our track (Losail International Circuit)

View attachment 16960
I really enjoyed using it as a daily, but I had to do track alignment since the first track of the season was on the same week.

View attachment 16961


Ended up at -1.6 front camber and -0.05 front toe. while I had 1.6 rear camber with +0.03 rear toe.


Some photos of my S2000 with the Supra at the trackday.



Now the weather these days in Qatar is extremely hot and humid, however it was at night so I thought how bad could it be? Well it was really bad. I had the secret menu opened to check the oil temperatures and was surprised to the the idle at 110 C. Anyway I moved on and did one hot lap only and the oil temperatures jumped from 110 to 146 C as can be seen in the video below.


For the guys who are using the secret menu at the track, how high does oil temperature goes during one season?

I know that our weather was not ideal as many cars struggle in the heat, however the Supra seems to be the fastest to reach extreme oil temperatures. Could it be from the oil itself? The car only had 150 miles before so I am assuming this is the break in oil?

Anyway I am really confused right now as I love the car as a daily and even as a track car, however I would really like it if I can do more than one hot lap without hitting 137 C oil temperature.
That's really odd, I heard from others that the Supra maintained very steady temps while on track. It seems the conditions in Qatar were really hard on the car.


MMR

Active Member
First Name
Matt
Joined
Sep 6, 2019
Messages
37
Reaction score
63
Location
Southern California
Car(s)
2006 Honda S2000 (Time Attack), 2020 Toyota Supra A90
Ok so two days ago I got my Supra and I could't wait to see what it can do at our track (Losail International Circuit)

View attachment 16960
I really enjoyed using it as a daily, but I had to do track alignment since the first track of the season was on the same week.

View attachment 16961


Ended up at -1.6 front camber and -0.05 front toe. while I had 1.6 rear camber with +0.03 rear toe.


Some photos of my S2000 with the Supra at the trackday.



Now the weather these days in Qatar is extremely hot and humid, however it was at night so I thought how bad could it be? Well it was really bad. I had the secret menu opened to check the oil temperatures and was surprised to the the idle at 110 C. Anyway I moved on and did one hot lap only and the oil temperatures jumped from 110 to 146 C as can be seen in the video below.


For the guys who are using the secret menu at the track, how high does oil temperature goes during one season?

I know that our weather was not ideal as many cars struggle in the heat, however the Supra seems to be the fastest to reach extreme oil temperatures. Could it be from the oil itself? The car only had 150 miles before so I am assuming this is the break in oil?

Anyway I am really confused right now as I love the car as a daily and even as a track car, however I would really like it if I can do more than one hot lap without hitting 137 C oil temperature.
Two track events on ours an no issues with temperature whatsoever. Good car control btw.


anajri

Well-Known Member
First Name
Alfredo
Joined
Sep 23, 2019
Messages
53
Reaction score
30
Location
Dom. Rep
Car(s)
supra A90, Toyota Sequoia '10, Toyota starlet AWD 5sgte (800whp)
maybe open up some of those closed vents in the front bumper , that go too the oil radiadors .... read somewhere that during testing the engine ran too cold so that why they are blocked


kona61

Well-Known Member
First Name
Josh
Joined
Mar 25, 2018
Messages
1,021
Reaction score
1,383
Location
San Bernardino-ish, CA
Car(s)
5G 4Runner, MK7 Golf, AZW LE Supra
Vehicle Showcase
1
maybe open up some of those closed vents in the front bumper , that go too the oil radiadors .... read somewhere that during testing the engine ran too cold so that why they are blocked
That reminds me, in U.S. Supras, the front of the grill has a mini blanking plate at the bottom edge. It may be better for you to either dremel it out or remove the grill entirely.


Kaizen

Well-Known Member
First Name
Jim
Joined
Jan 16, 2019
Messages
166
Reaction score
385
Location
Florida
Car(s)
2020 GR Supra
Maybe you should try a heavier engine oil. If it's 0-20w that's too thin imo especially for track sessions and harsh climates.


ayau

Well-Known Member
First Name
ayau
Joined
Dec 28, 2017
Messages
90
Reaction score
54
Location
Cornfields
Car(s)
F1 fitty
Maybe you should try a heavier engine oil. If it's 0-20w that's too thin imo especially for track sessions and harsh climates.
Using heavier engine oil will only increase the temps though. Also have to monitor oil pressure, which I don't believe you can read from a normal data logger.

Doesn't the car with the factory with an air to water heat exchanger? Like all track cars, it'll need a dedicated engine oil cooler if you're going to track the car a lot.

OP
Darth

Darth

Well-Known Member
Joined
Aug 19, 2019
Messages
138
Reaction score
201
Location
Losail, Qatar
Car(s)
AP1 S2000 Racecar, Westfield Aerorace, Evo 8, C6 ZO6, 370Z, Zupra
Vehicle Showcase
4
  • Thread starter
  • Thread Starter
  • #8
More updates on the MKV supra!

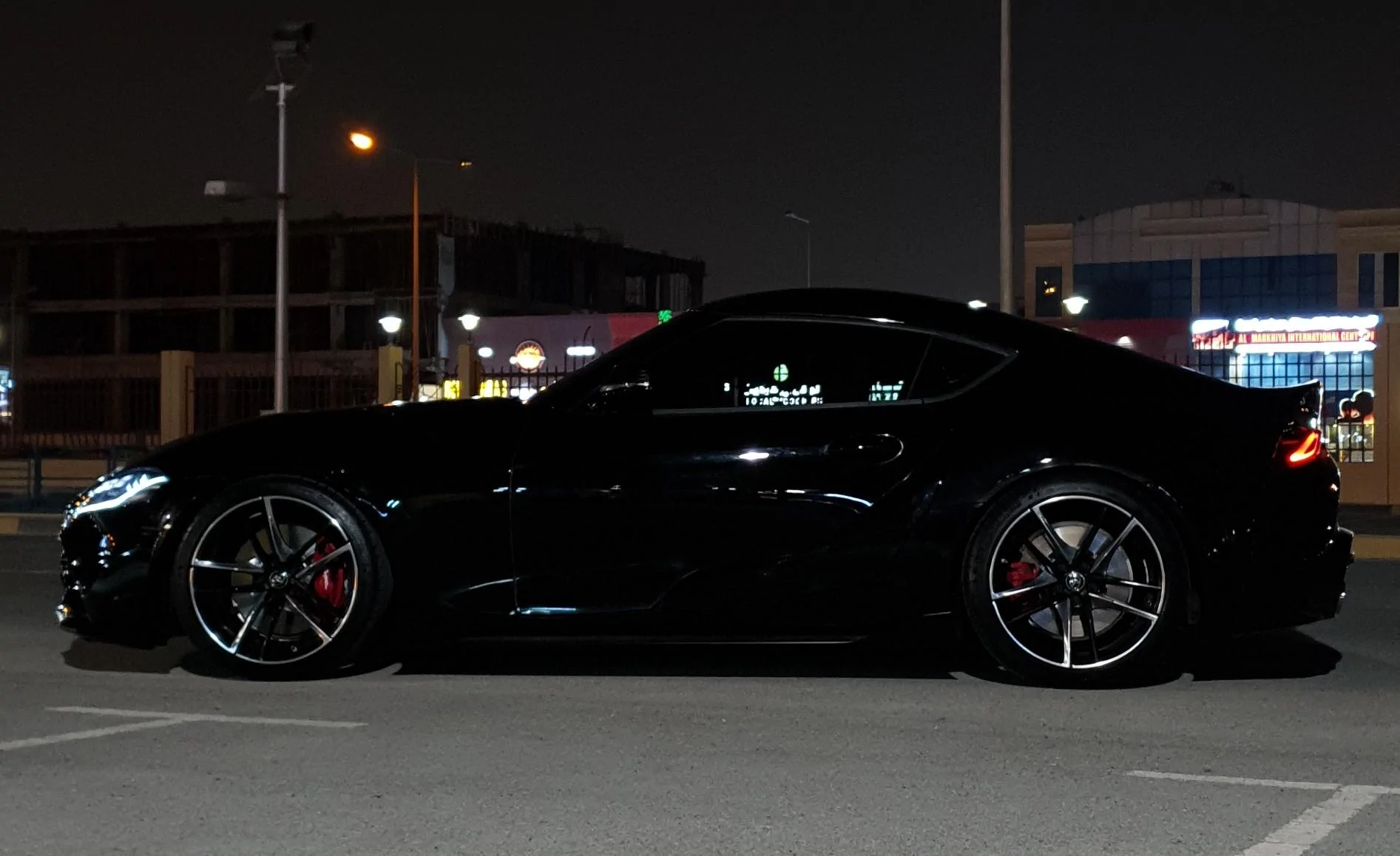

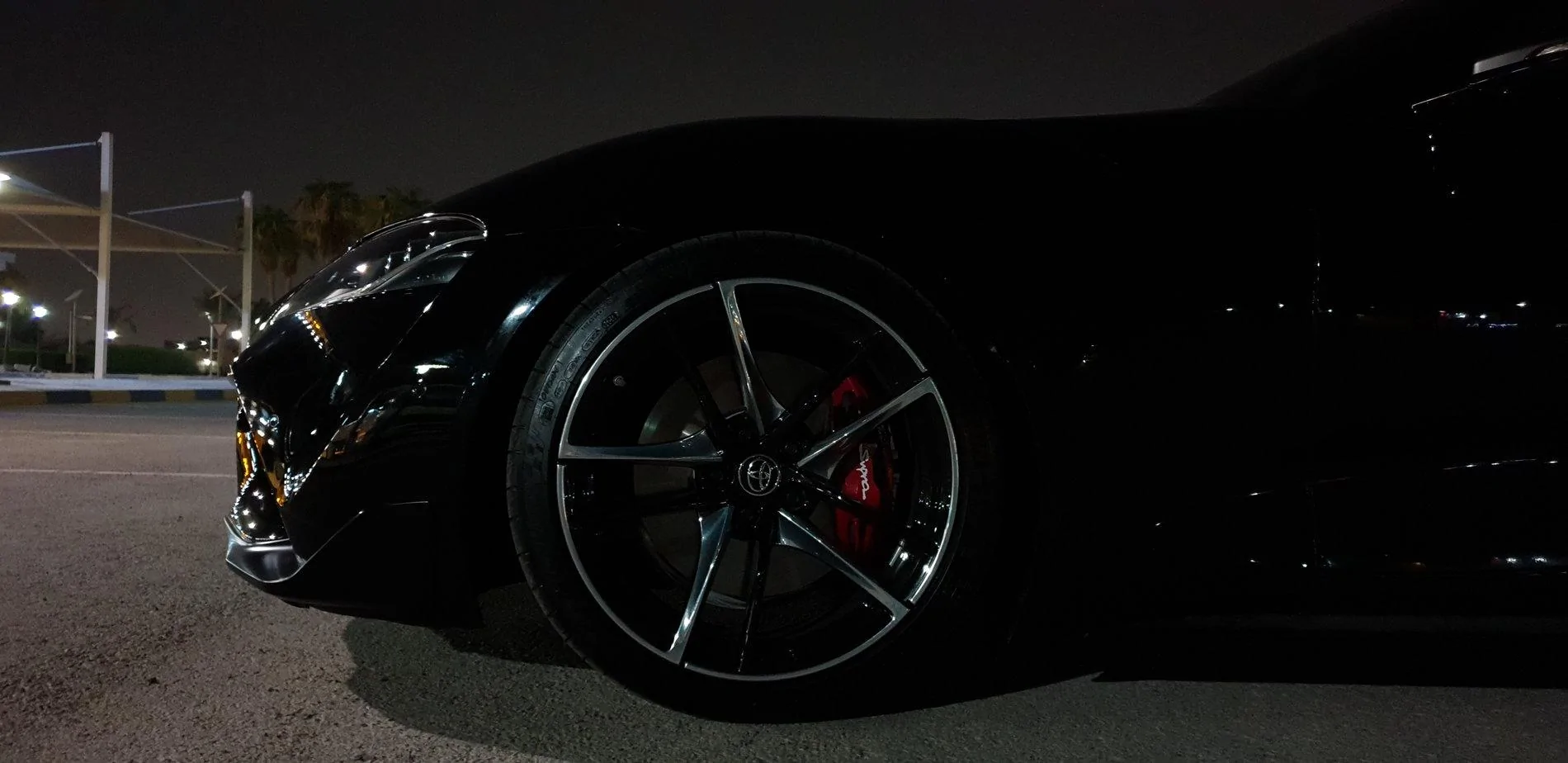

Started with basic/simple parts (H&R springs with spacers) and Supra brake caliper decals.

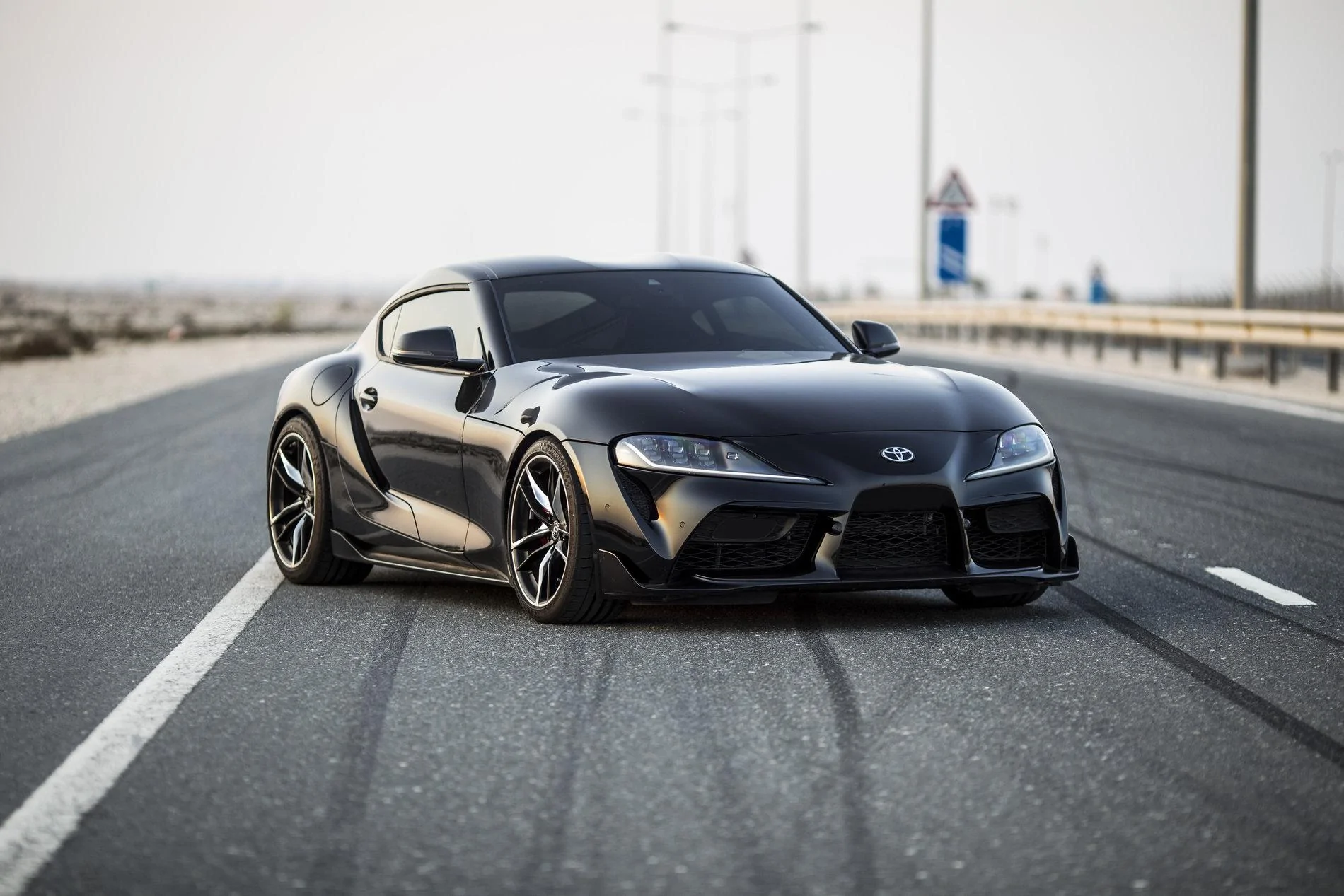

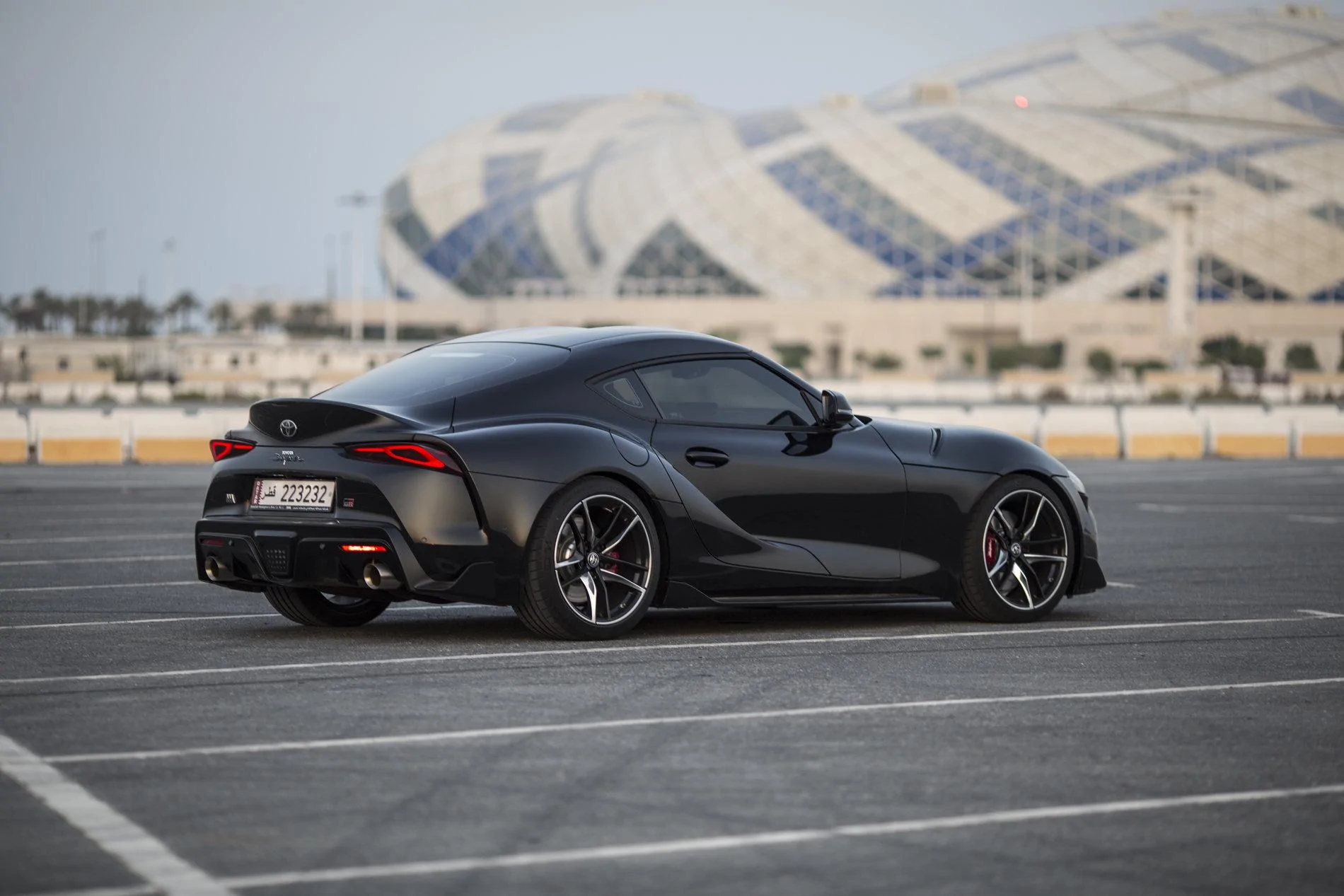

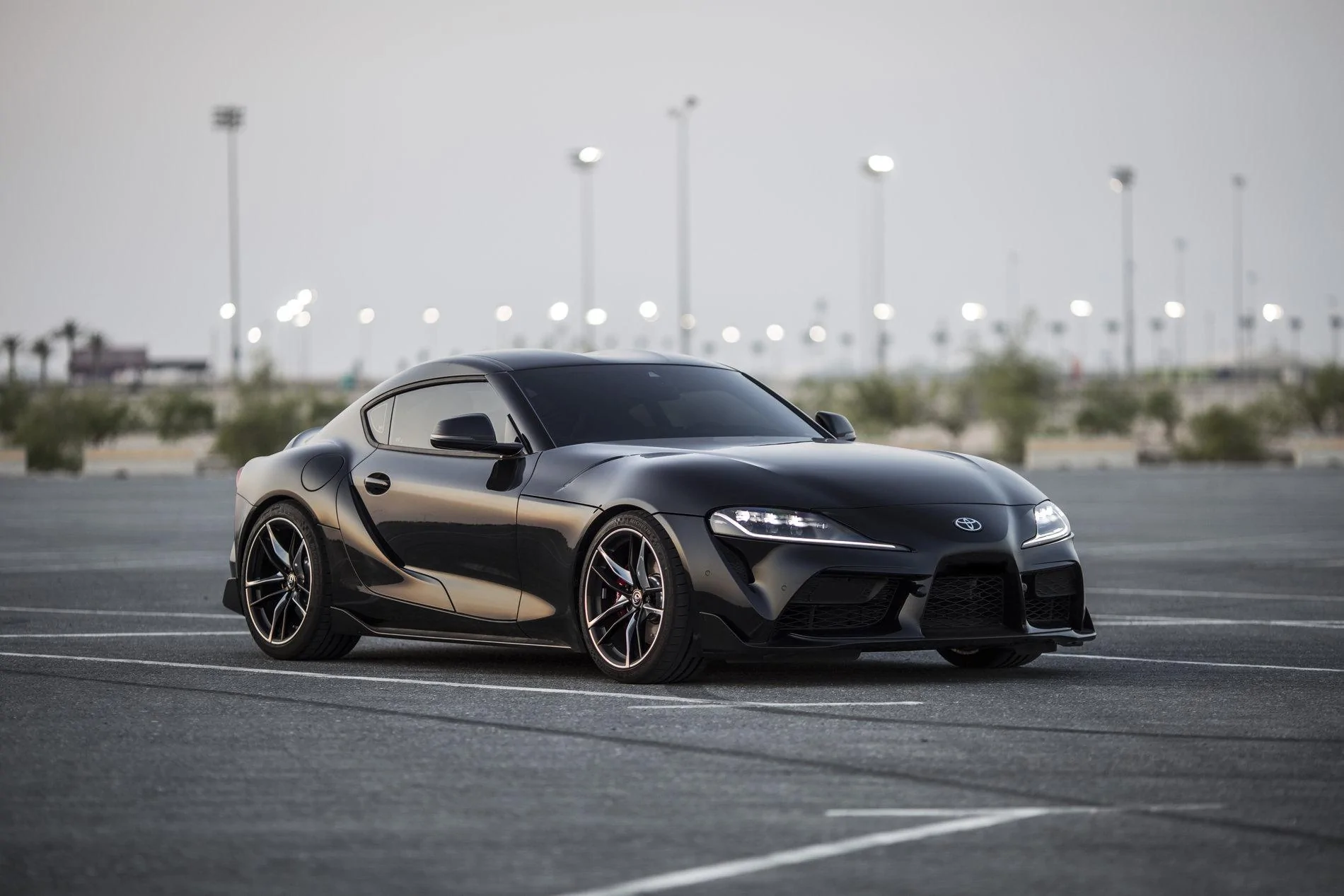

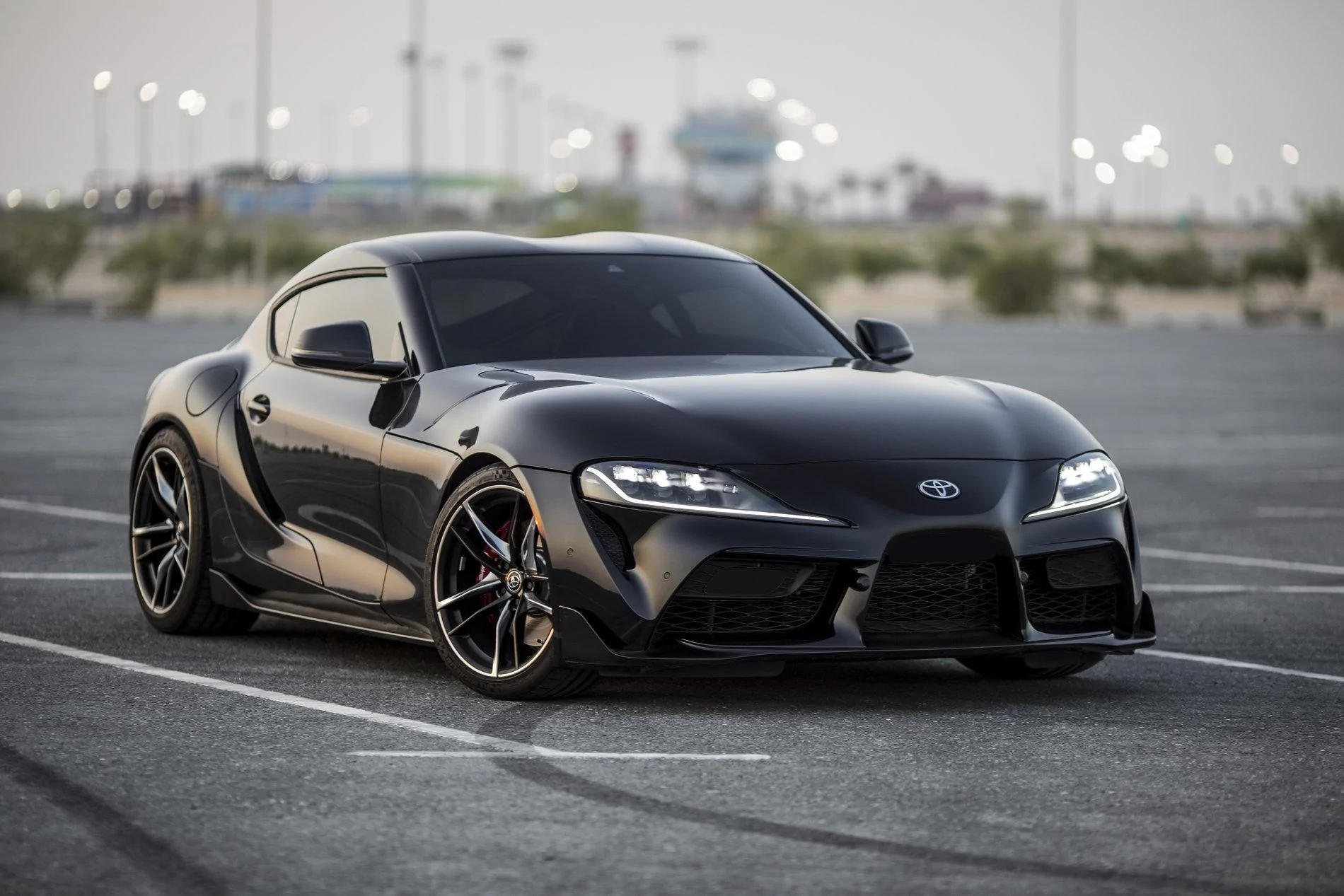

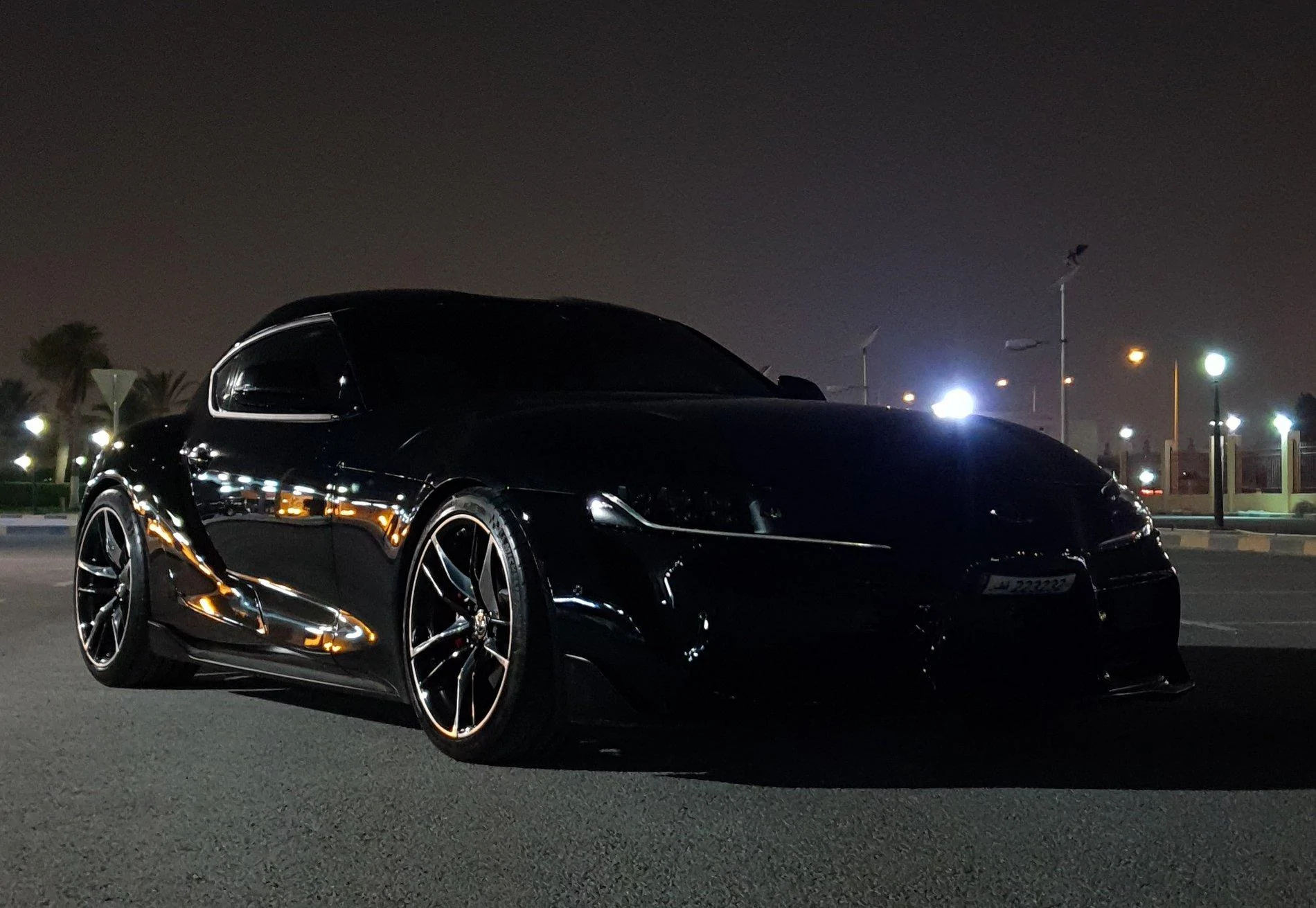

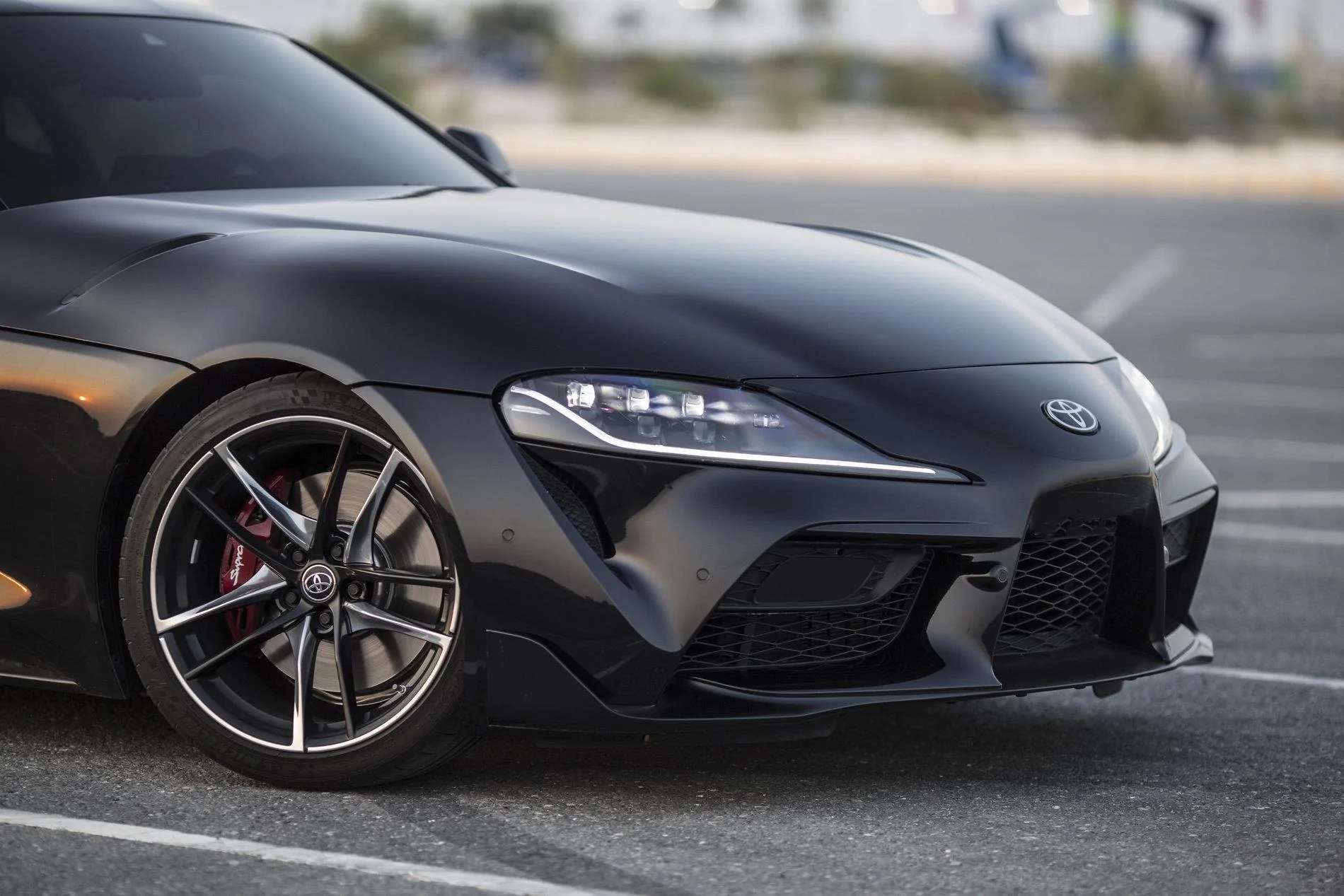

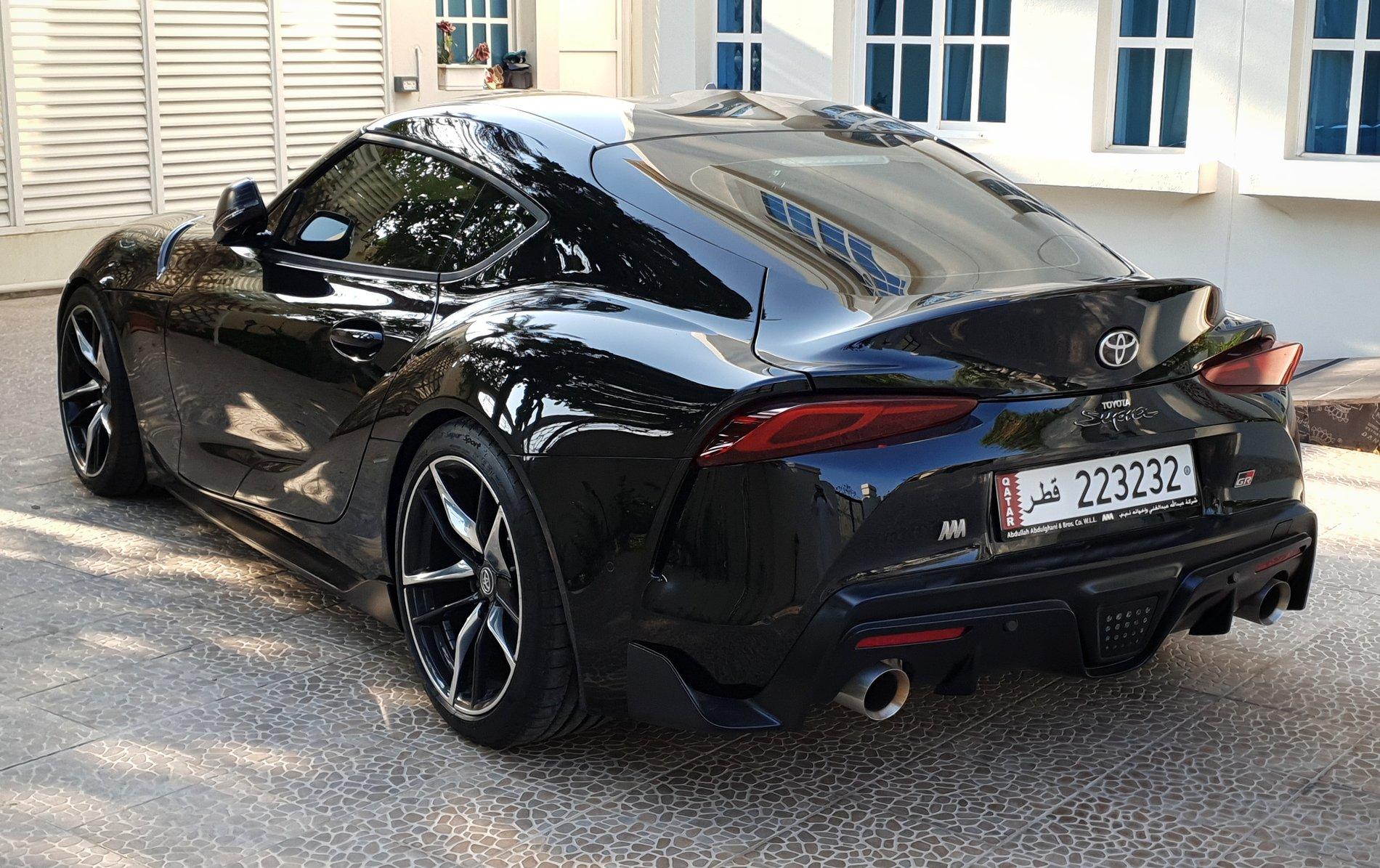

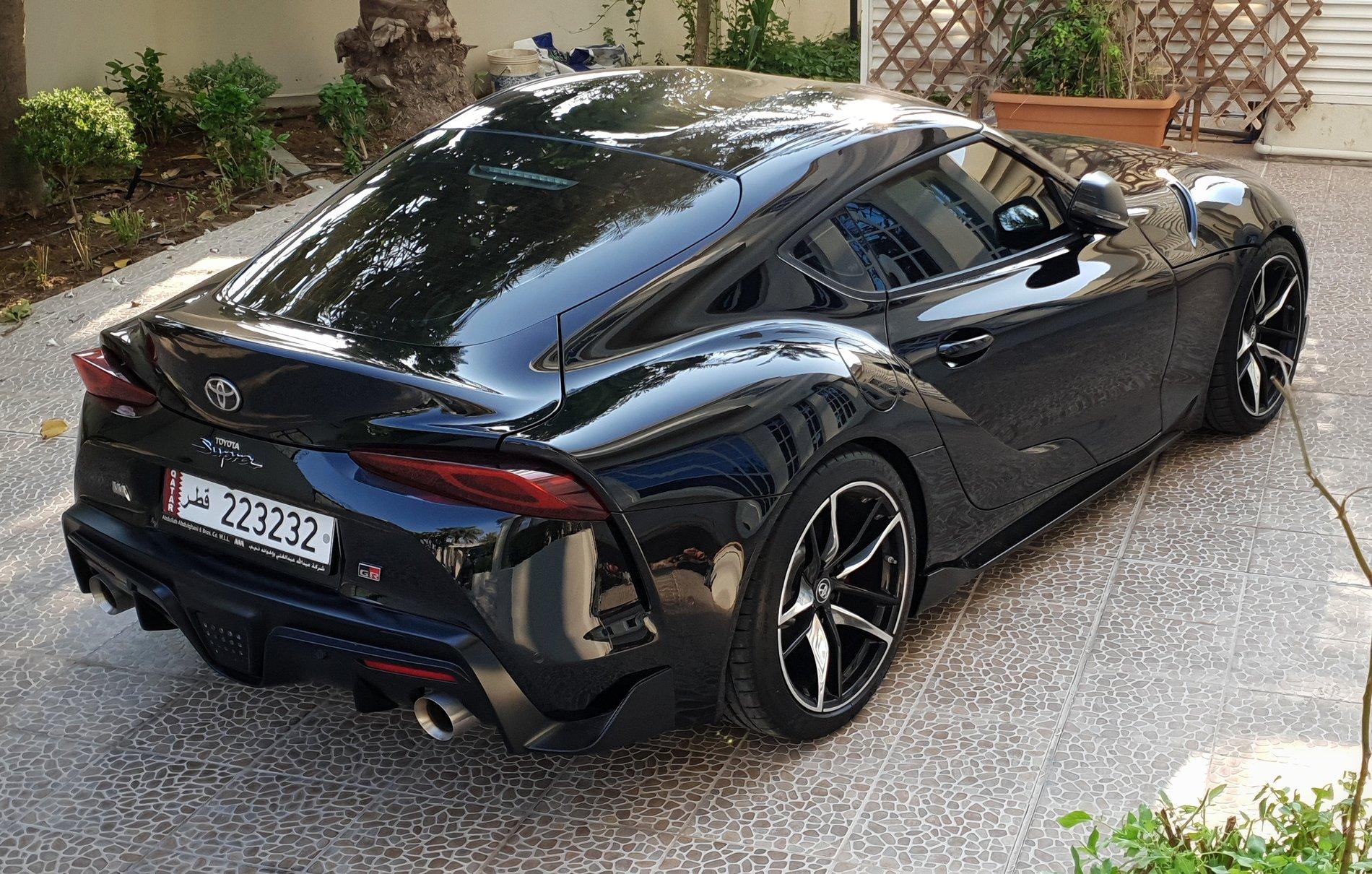

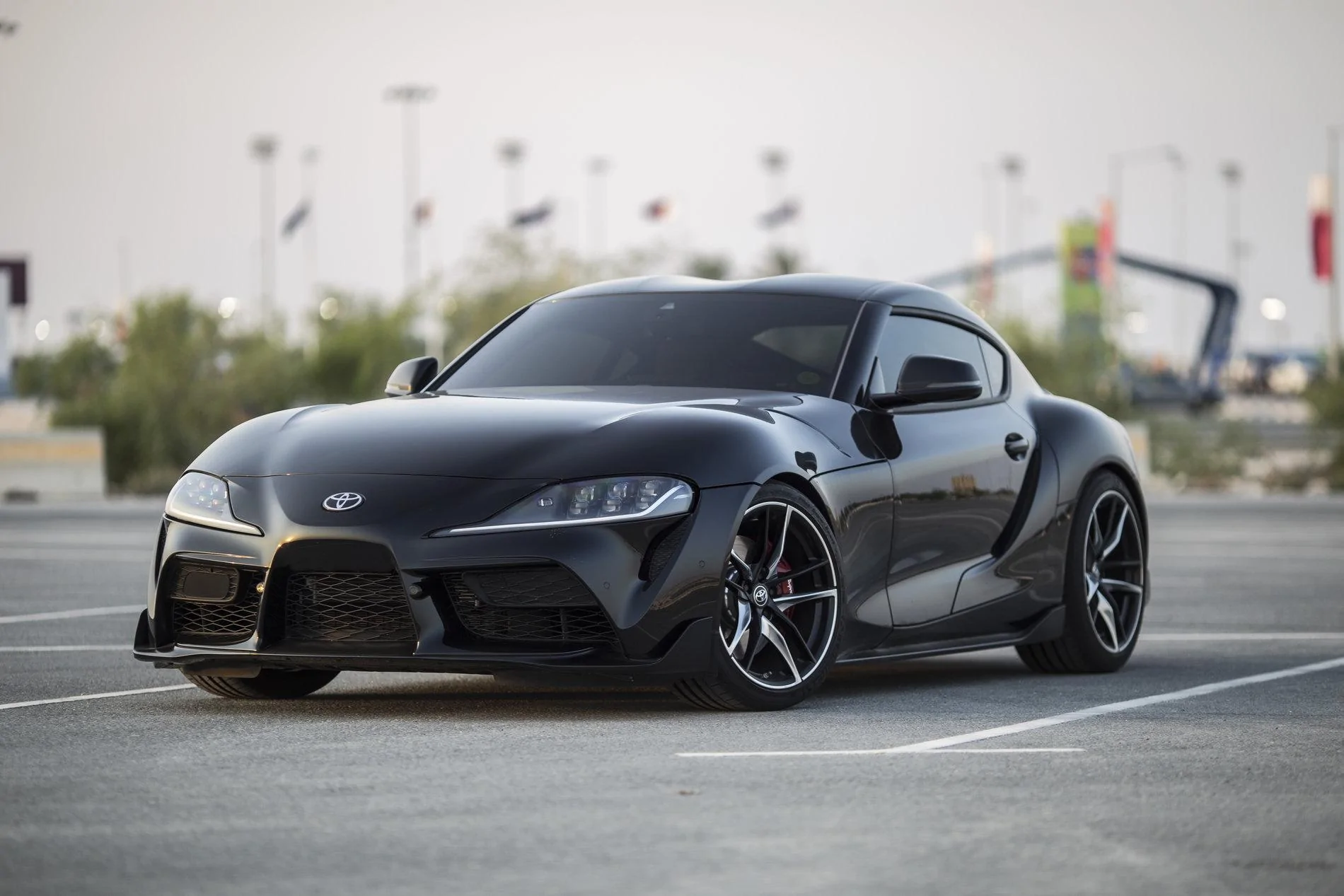

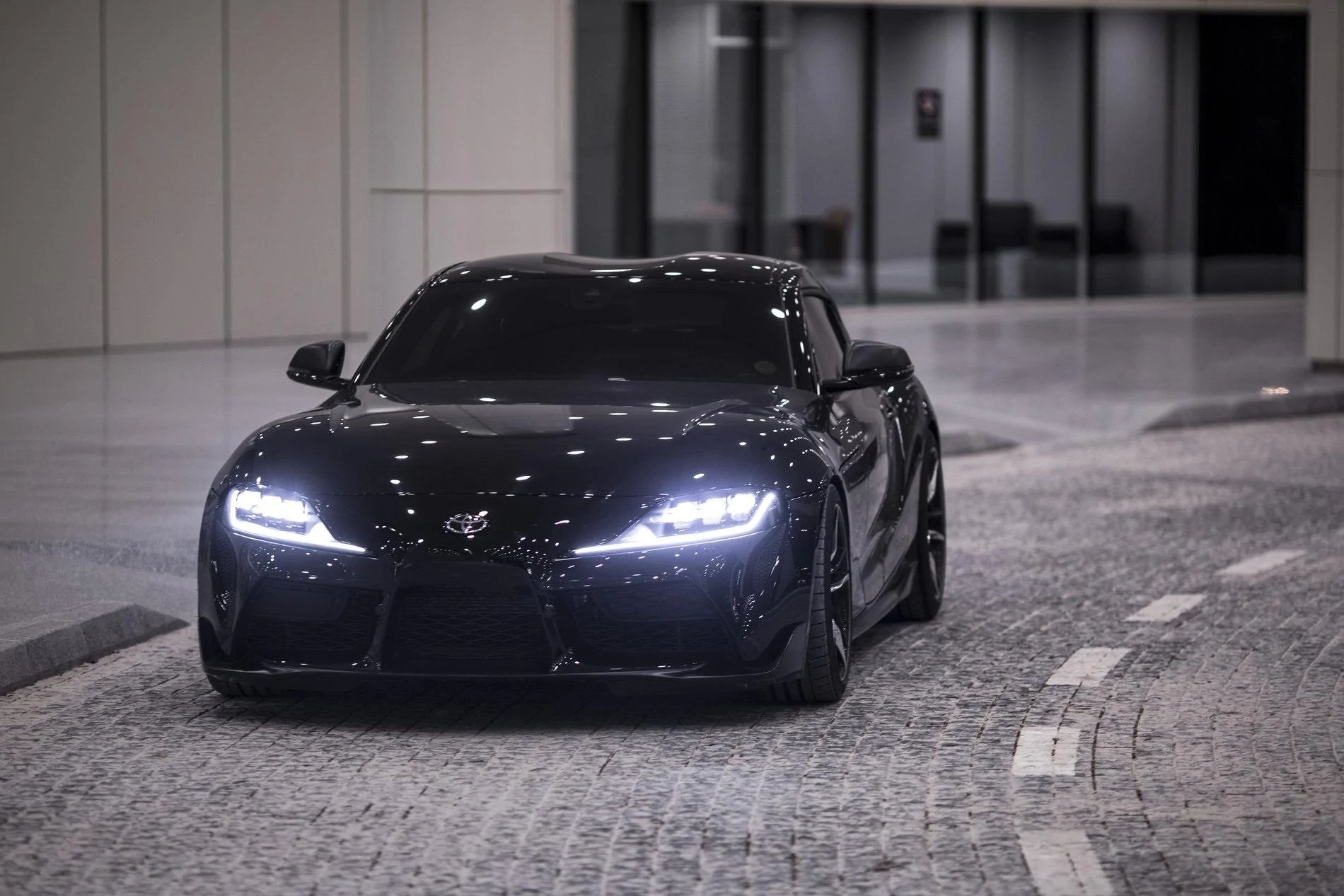

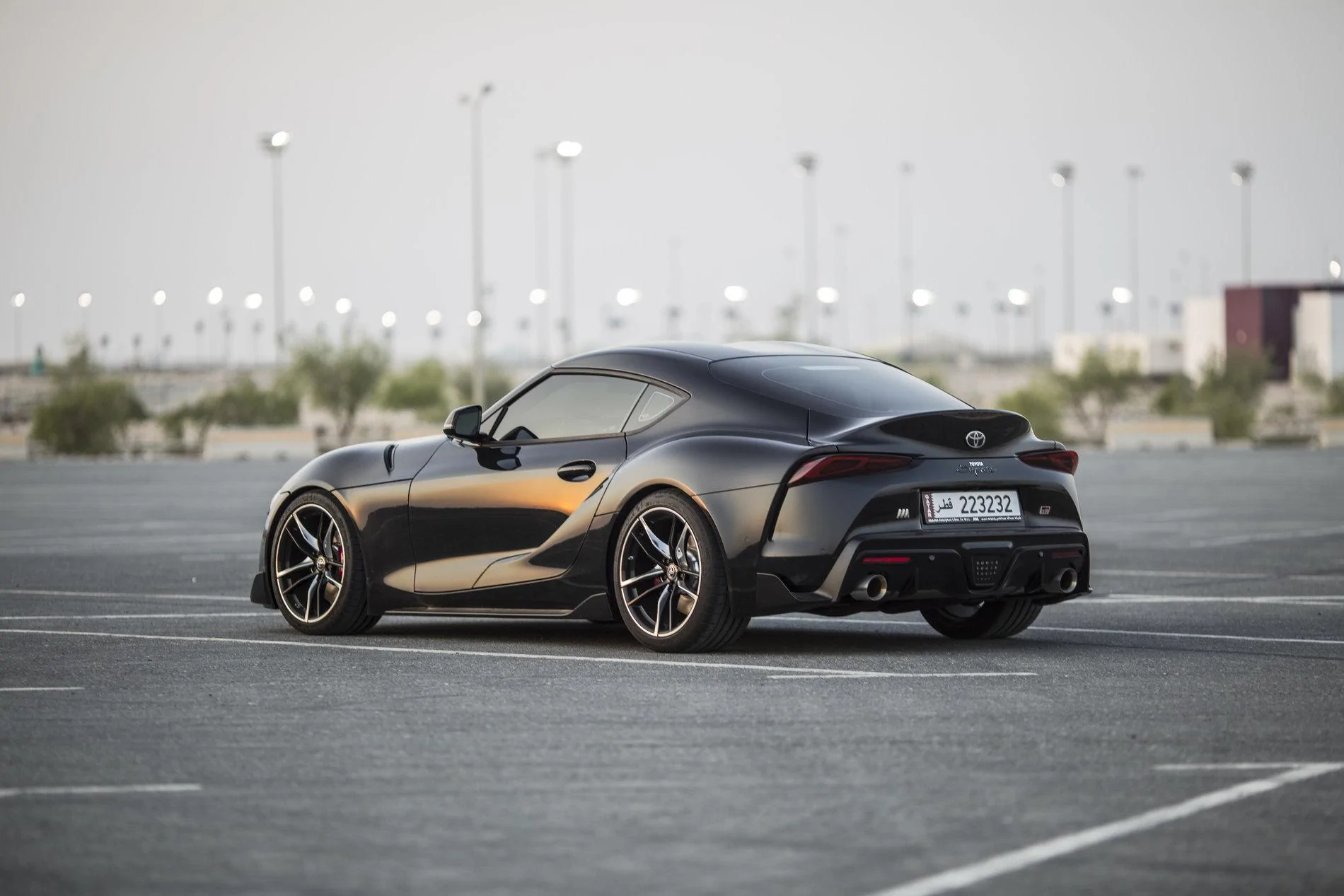

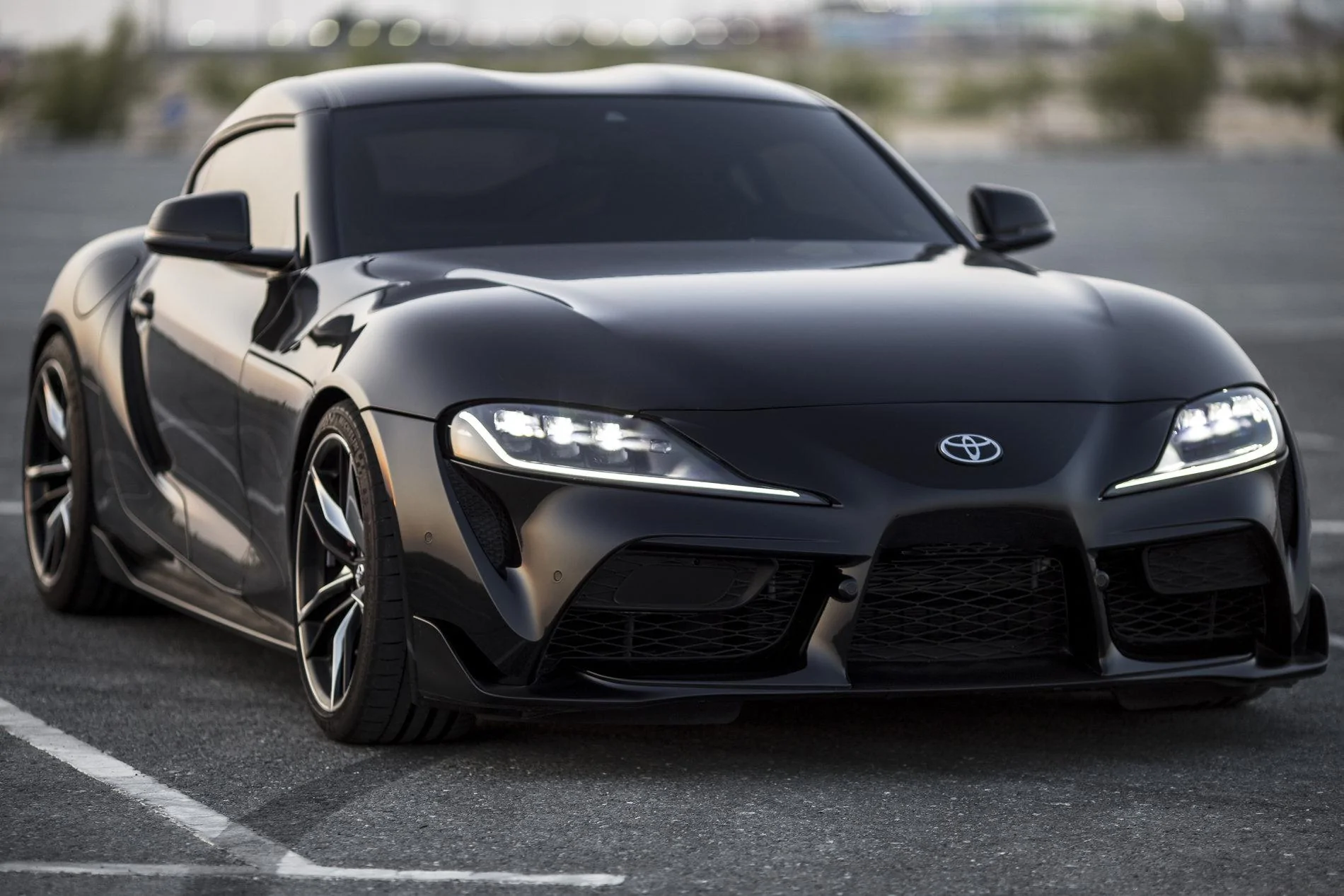

Also had a chance from a friend to paint the Supra (removable paint) and decided to go with solid black which I really liked on dodge vipers.



Supra Dupra

Well-Known Member
Joined
Jul 23, 2019
Messages
393
Reaction score
527
Location
United States
Car(s)
Supra MKV LE (Nocturnal Black)
Vehicle Showcase
1
It almost looks like it’s coated in Vantablack, which looks awesome, but is much more suited when the car itself doesn’t look that great. For example:


Although it’s cool, completely blacking out the Supra loses a lot of its sexy lines, especially with glossy black. Either way, it looks nice, though. ;-)


Gearbangin

Well-Known Member
First Name
Larry
Joined
Jan 18, 2019
Messages
291
Reaction score
426
Location
Gods Country
Car(s)
2020 Supra 175/1500 2007 TRD Edition FJ Cruiser/Lifted/Murdered out 2016 NT 200T F Sport 2019 RCF Anniversary Edition Matte Nebula Gray
Very good post. I too have tracked and ISF/86/RCF/Supra at the same track. The Supra bone stock was the fastest of all four car. I have run 20-30 minutes sessions with my Supra on 88 degree day with no temp lights or warnings. (I didnt engage the secret menu)

OP
Darth

Darth

Well-Known Member
Joined
Aug 19, 2019
Messages
138
Reaction score
201
Location
Losail, Qatar
Car(s)
AP1 S2000 Racecar, Westfield Aerorace, Evo 8, C6 ZO6, 370Z, Zupra
Vehicle Showcase
4
  • Thread starter
  • Thread Starter
  • #12
Very good post. I too have tracked and ISF/86/RCF/Supra at the same track. The Supra bone stock was the fastest of all four car. I have run 20-30 minutes sessions with my Supra on 88 degree day with no temp lights or warnings. (I didnt engage the secret menu)

I guess it was just too hot and humid when I was out.

Note that there will be no warning if it overheats and it will just reduce power (you can notice it in 5th and 6th gear in my video) so I recommend anyone tracking the Supra to use the secret menu and monitor the oil temps. I want to make my self believe that the temp sensors are over exaggerating as the car idles at + 210 F and start to reduce power at + 295 F
