bootmod3: v0.10.100 system update is now available!

Discussion in 'DME / ECU Software Tuning' started by protuningfreaks, Mar 13, 2020.

  1. protuningfreaks

    protuningfreaks Active Member
    Gold Sponsor


    First Name:
    protuningfreaks
    Car(s):
    2020 A90 Supra
    Joined:
    Oct 9, 2019
    Location:
    www.protuningfreaks.com www.bootmod3.com
    Posts:
    26
    Liked:
    43
    Home Page:
    Hey everyone,
    Wanted to share an update on our recent update. Release 0.10.100 is now out and the changes include:

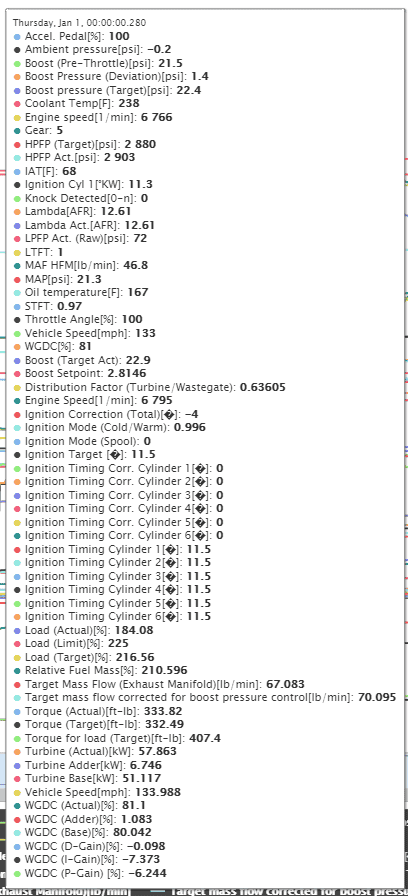

    • New Logging Support: Expanded datalogging abilities through RAM channels on MG1 and MG1 Aurix DME cars (e.g. all variants of the B58 engine including the A90 Supra, S58 in the X3M. See pic of a sample bm3 datalog from an M140i B58 test car attached.
    • In combination with non-RAM channels you're able to concurrently capture over 70 channels at over 20 samples per second!
    • Google Chrome is now our officially supported browser. Those using Safari will see a not-supported message displayed.
    • Maps download and save right inside the browser for in-browser map management. When flashing a map for the very first time you'll see a popup asking to 'Accept' using browser storage. This feature is the first in a series of upcoming features to allow richer offline user experience (already works with mobile apps).
    • Fix for mobile browsers, tapping on input fields (e.g. tap on username field on login or anywhere inside the app) would zoom-in the screen throwing off the UI until a user would refresh.
    • N20-EWG Startup Roar added
    • N55-PWG Selective DTC Code Removal
    • Fix for OBD Agent detection and Download Now Flash Later button (affected by latest changes)
    • Updated OBD Agent to 0.10.099
    NOTE: To use the new channels, go to the About screen and click on Reset Settings.

    MG1/MG1 Aurix New RAM Channels listing:

    === Boost Category ====
    Boost Setpoint
    Distribution Factor (Turbine/Wastegate)
    WGDC (Base)
    WGDC (Adder)
    WGDC (Actual)
    Turbine Base
    Turbine Adder
    Turbine (Actual)
    WGDC (I-Gain)
    WGDC (D-Gain)
    WGDC (P-Gain)
    Boost Target (Intake Manifold)
    Airmass for Boost Control

    === Load Category ===
    Load (Limit)
    Load (Target)
    Load (Actual)

    === Turbo / Wastegate Category ===
    Target Mass Flow (Corrected for Boost Control)
    Target Mass Flow (Exhaust Manifold)

    === Ignition Category ===
    Ignition Timing (per Cylinder) (Target Corr.)
    Ignition Timing Corr. (per Cylinder)
    Ignition Timing (per Cylinder)
    Ignition Mode (Cold/Warm)
    Ignition Mode (Spool)
    Ignition Correction (Total)
    Ignition Target

    === Fuel Injection Category ===
    Relative Fuel Mass

    === Torque Category ===
    Torque for Load (Target)
    Torque (Actual)
    Torque (Target)


    XtremeMaC likes this.
