Bump stops?

Import111

Member
Joined
Sep 17, 2020
Messages
8
Reaction score
6
Location
Arizona
Car(s)
2020 Supra 3.0 Premium
What is the cutting bump stops when installing lowering springs situation? I see some springs come with shorter bump stops and some do not. Do we know if left Un cut how close stock bump stops would be to hitting under load?





Advertisement


OP
Import111

Import111

Member
Joined
Sep 17, 2020
Messages
8
Reaction score
6
Location
Arizona
Car(s)
2020 Supra 3.0 Premium
  • Thread starter
  • Thread Starter
  • #2
No replys in a while. Any info on this? I am leaning towards cutting the bump stops to the length that Tein and Eibach offer their aftermarket solution to...looks like about 1/3 cut off.


Ultimateone

Well-Known Member
Joined
Feb 13, 2020
Messages
661
Reaction score
533
Location
Boston
Car(s)
AW A90
Do the springs come with instructions, most tell you how much or where to cut if needed

OP
Import111

Import111

Member
Joined
Sep 17, 2020
Messages
8
Reaction score
6
Location
Arizona
Car(s)
2020 Supra 3.0 Premium
  • Thread starter
  • Thread Starter
  • #4
That's the problem. Eibach and Tein come with shorter bumpstops, Swift and H & R do not. They all lower about the same. Hoping someone has measured how much travel there is on a lowered Supra from static to stock bumpstops.


Illsic_Design

Well-Known Member
First Name
Josh
Joined
Jun 8, 2018
Messages
166
Reaction score
230
Location
Nor-Cal
Car(s)
E92 335i N54, 4G63T Mighty Max
I would just shorten the bump stop by about the same amount as the drop the coils will give


Andrew4Supra

Well-Known Member
First Name
Andrew
Joined
Jan 20, 2021
Messages
244
Reaction score
304
Location
Powell, Ohio
Car(s)
2021 Supra 3.0 / 2018 Mercedes GLC43 / 2016 VW GTI

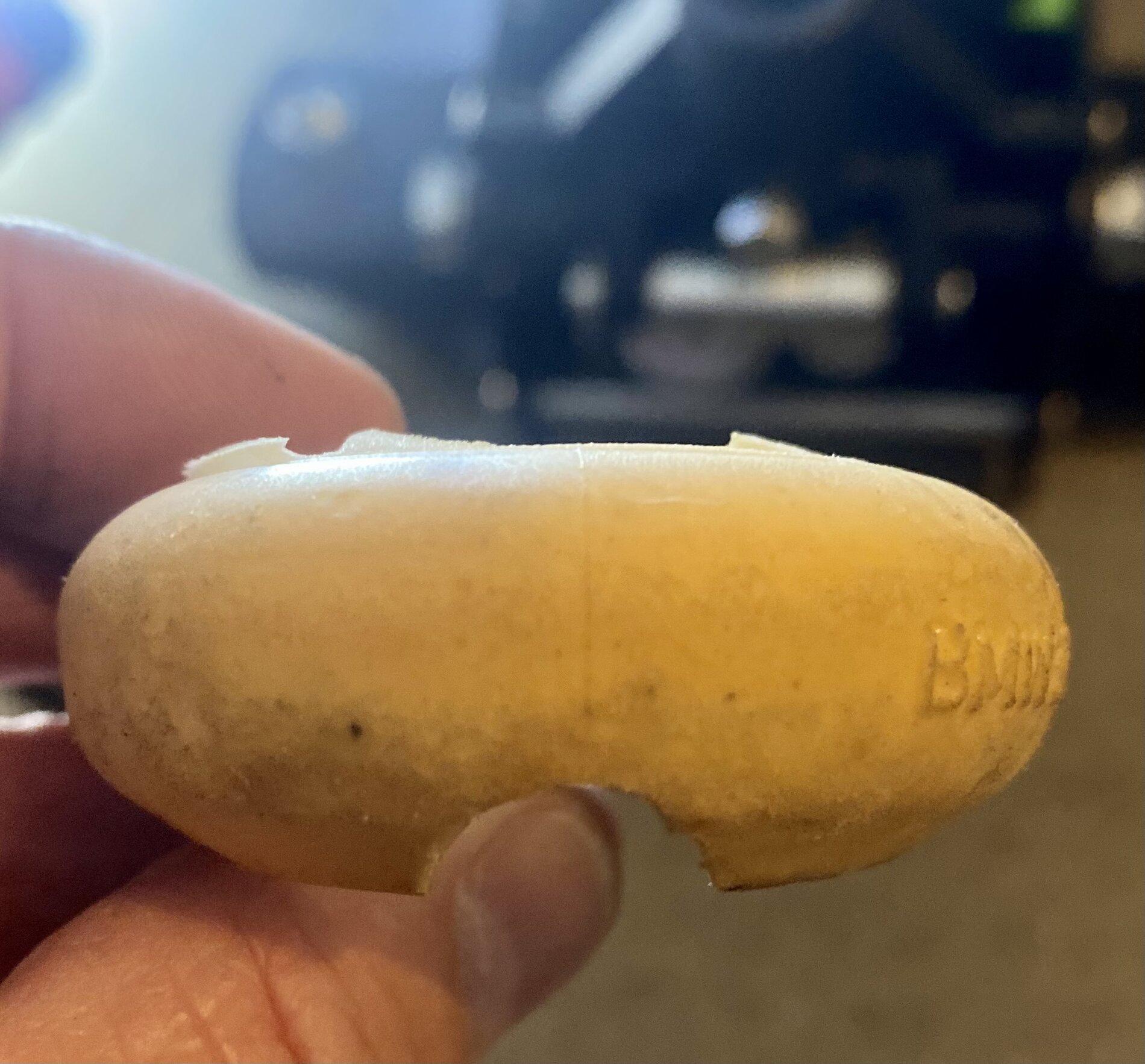

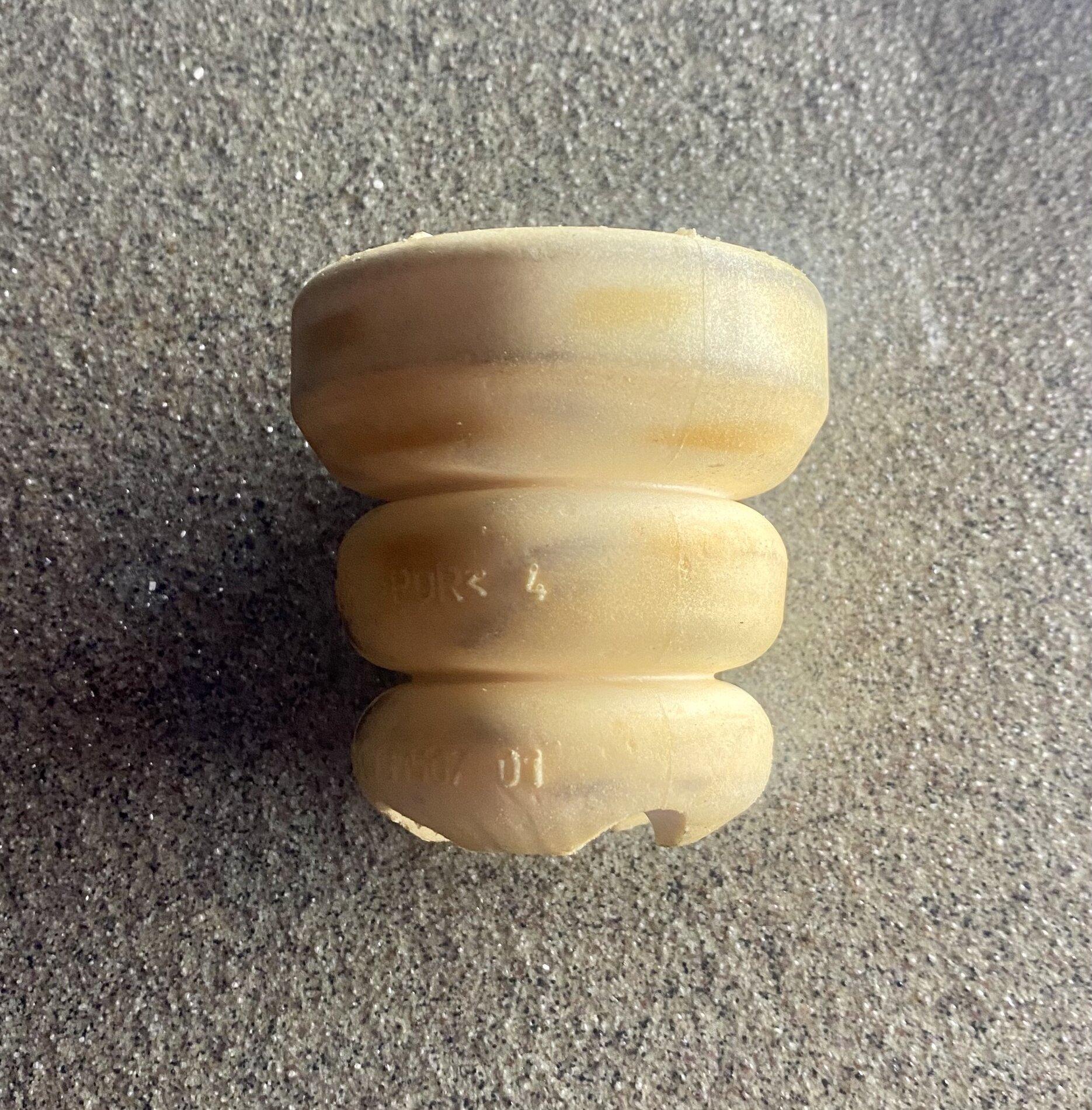

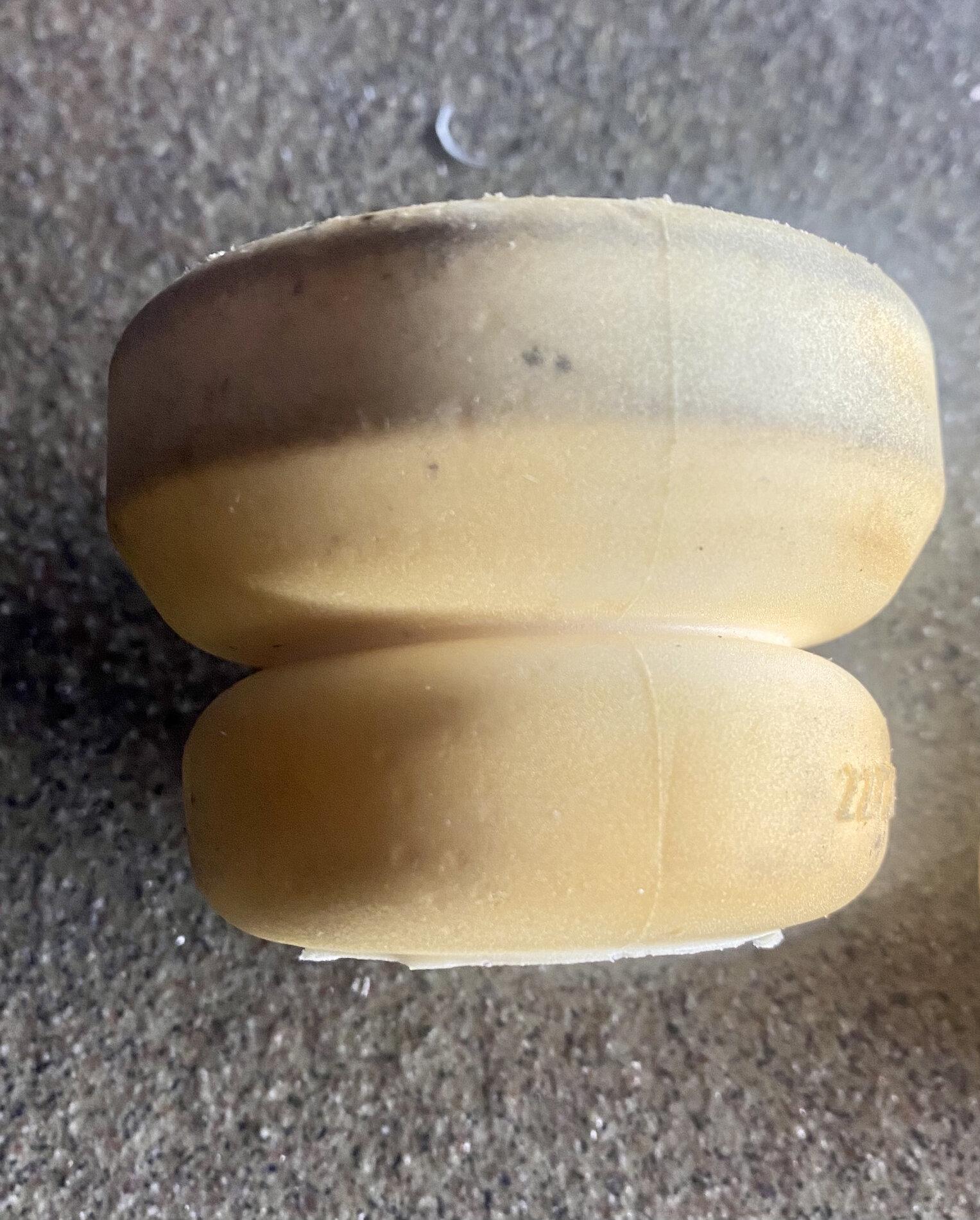

I cut one donut (round circle) off each of the bump stops when changing to lowering springs. Cut the rounded end - not the flat surfaces side.

See below:
