Crankcase breather hose. Help me identify.

Toyotawild

Well-Known Member
First Name
Zach
Joined
Apr 27, 2019
Messages
379
Reaction score
260
Location
Richland wa
Car(s)
07 Toyota Tundra supercharged, 03 Acura cls-6

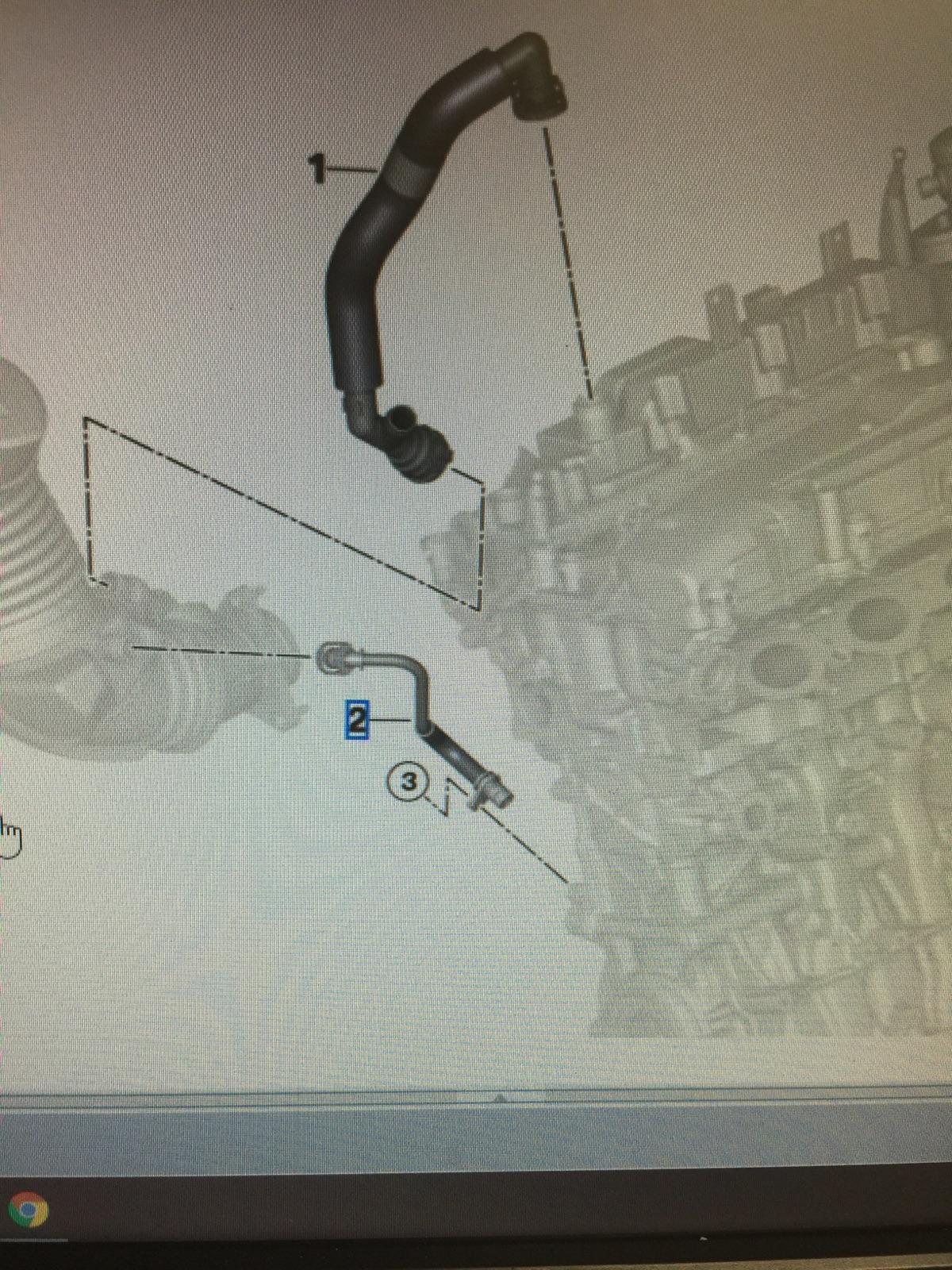

I'm trying to figure out what this hose is or does. It appears to be vacuum only. It is #2 in the diagram and connected from the intake pipe to the side of the block.

BMW has a valve that opens when under boost only to return crankcase pressure back to intake at least on the n55

Advertisement



JasonO

Well-Known Member
First Name
Jason
Joined
Oct 30, 2019
Messages
453
Reaction score
542
Location
Lake Charles, LA
Car(s)
Supra LE
I believe it is to provide an intake into the crankcase to provide fresh air to flush blow-by through the PCV valve. This is for emissions and to keep crankcase pressure at desired levels.

OP
OP

Toyotawild

Well-Known Member
First Name
Zach
Joined
Apr 27, 2019
Messages
379
Reaction score
260
Location
Richland wa
Car(s)
07 Toyota Tundra supercharged, 03 Acura cls-6
Its actually listed as the pcv valve. I had to replace mine. Broke it installing turbo. I didnt see the connection under the intake hose and id snapped with very little pressure.
Its actually listed as the pcv valve. I had to replace mine. Broke it installing turbo. I didnt see the connection under the intake hose and id snapped with very little pressure.
This sits on the side of the intake hose correct. #2 in the picture. It bolts to the side of the block. What is in that part that bolts to the side of the block?

OP
OP

Toyotawild

Well-Known Member
First Name
Zach
Joined
Apr 27, 2019
Messages
379
Reaction score
260
Location
Richland wa
Car(s)
07 Toyota Tundra supercharged, 03 Acura cls-6
I believe it is to provide an intake into the crankcase to provide fresh air to flush blow-by through the PCV valve. This is for emissions and to keep crankcase pressure at desired levels.
What do ya think about putting a breather on this?


JasonO

Well-Known Member
First Name
Jason
Joined
Oct 30, 2019
Messages
453
Reaction score
542
Location
Lake Charles, LA
Car(s)
Supra LE
What do ya think about putting a breather on this?
I don’t know. Every engine is different and I don’t know enough on the B58 to have an opinion on dicking around with the crankcase ventilation.

The farthest I’d go is installing a catch can which cleans the crankcase exhaust vapors before passing back through the engine.

OP
OP

Toyotawild

Well-Known Member
First Name
Zach
Joined
Apr 27, 2019
Messages
379
Reaction score
260
Location
Richland wa
Car(s)
07 Toyota Tundra supercharged, 03 Acura cls-6
I don’t know. Every engine is different and I don’t know enough on the B58 to have an opinion on dicking around with the crankcase ventilation.

The farthest I’d go is installing a catch can which cleans the crankcase exhaust vapors before passing back through the engine.

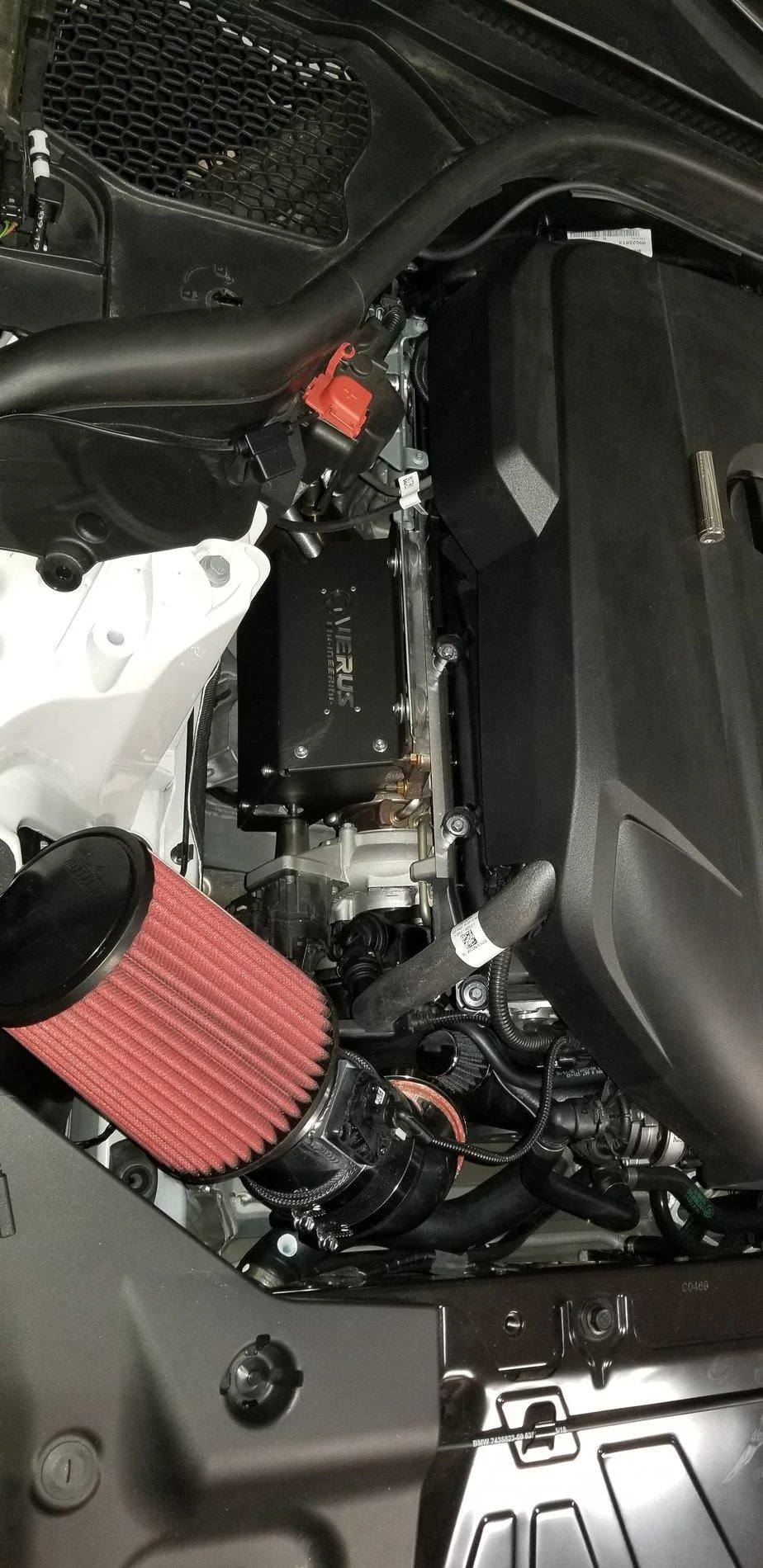

Well I've got a breather on it and havent any issues. It is only pulling a vacuum. This is a temporary setup for now



JasonO

Well-Known Member
First Name
Jason
Joined
Oct 30, 2019
Messages
453
Reaction score
542
Location
Lake Charles, LA
Car(s)
Supra LE
Well I've got a breather on it and havent any issues. It is only pulling a vacuum. This is a temporary setup for now

I initially was thinking you meant a full PCV delete from your earlier comment. You still have most of the system in place, just one breather tube is now a direct vent. From what I recall, the abundance of breathers is the issue in releasing a catch can for the Supra.

If it works, it works. My only concern would be the aftermaket filter on the intake manifold. Someone else has one similar (Burger?) that did not perform well (~5 hp loss) as the CAI aspect of the stock system was removed to use a high flow filter. The additional air flow did not make up for the loss in air density. This was with no tune or downpipe at the time.


Eromsdal

New Member
First Name
Ethan
Joined
Jan 30, 2020
Messages
1
Reaction score
0
Location
Staunton, VA
Car(s)
2020 Toyota Supra Premium, 2019 Honda Civic Type R
Does anyone have a part number on hand for that #2 in diagram PCV hose? TIA


Twisted Tuning

Well-Known Member
Gold Sponsor
First Name
Justin
Joined
Mar 10, 2019
Messages
886
Reaction score
1,071
Location
New York
Website
www.twistedtuning.com
Car(s)
Supra MKV, BMW 135i, BMW 335xi, Mazda 6 Twin Turbo,
Well I've got a breather on it and havent any issues. It is only pulling a vacuum. This is a temporary setup for now

so you mean to tell me people are selling stuff without the stock provisions for case and pcv? smh. i recommend you fux that and add vac to it


IS2000

Well-Known Member
First Name
Mark
Joined
Jul 8, 2018
Messages
45
Reaction score
48
Location
Bangkok, Thailand
Car(s)
2010 Porsche Cayman, 2003 Mitsubishi EVO8, 2020 GR Supra

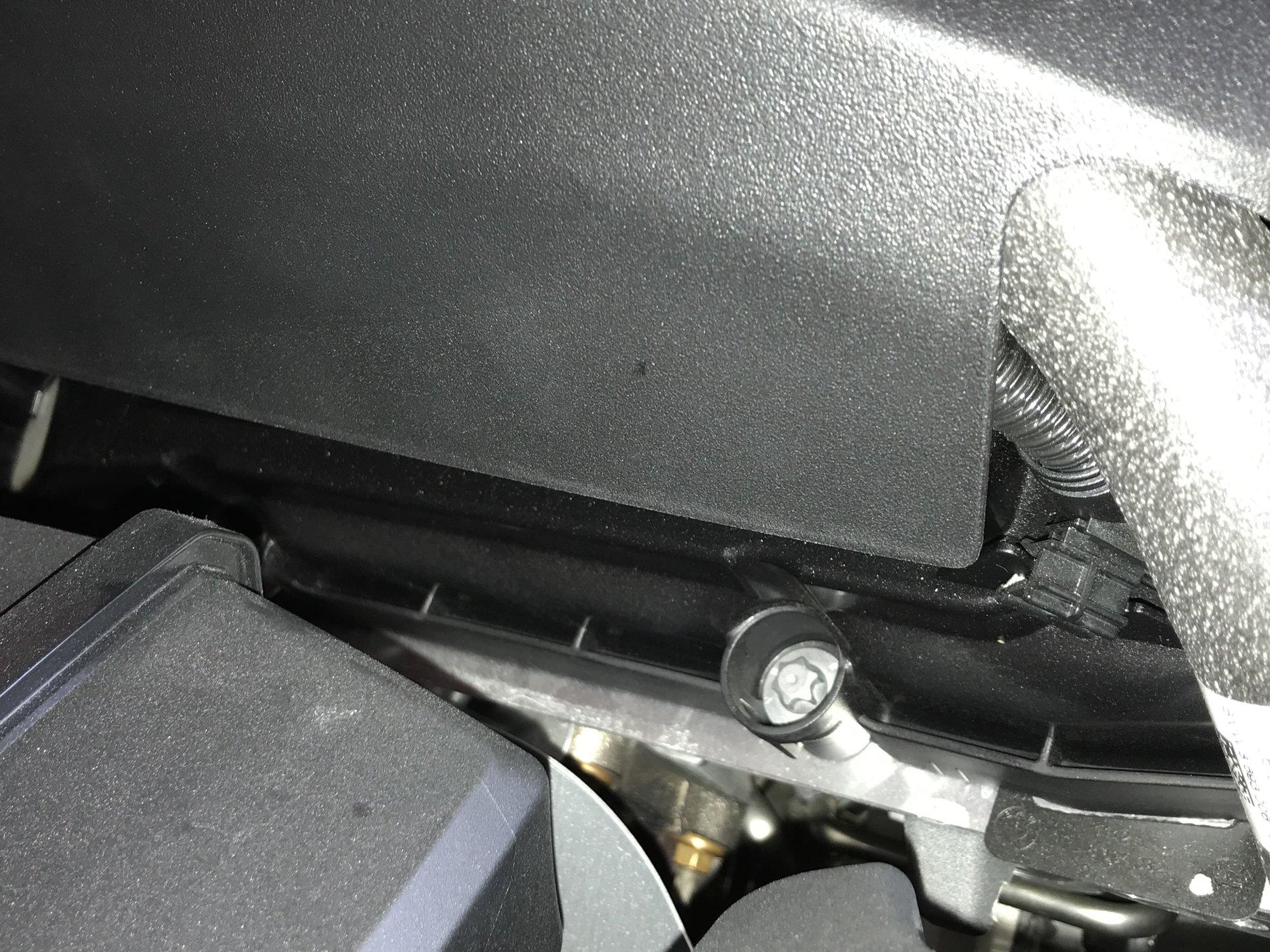

And is yours have a little oil residue coming out like mine? Lol. Seems to be common.
Mine seems to be doing that as well. I can actually see residuals dripping out of that area. Is this normal?





HATED1

Well-Known Member
First Name
Bernie
Joined
Feb 13, 2019
Messages
93
Reaction score
65
Location
Washington State
Car(s)
86, 370z, 350z, 240sx

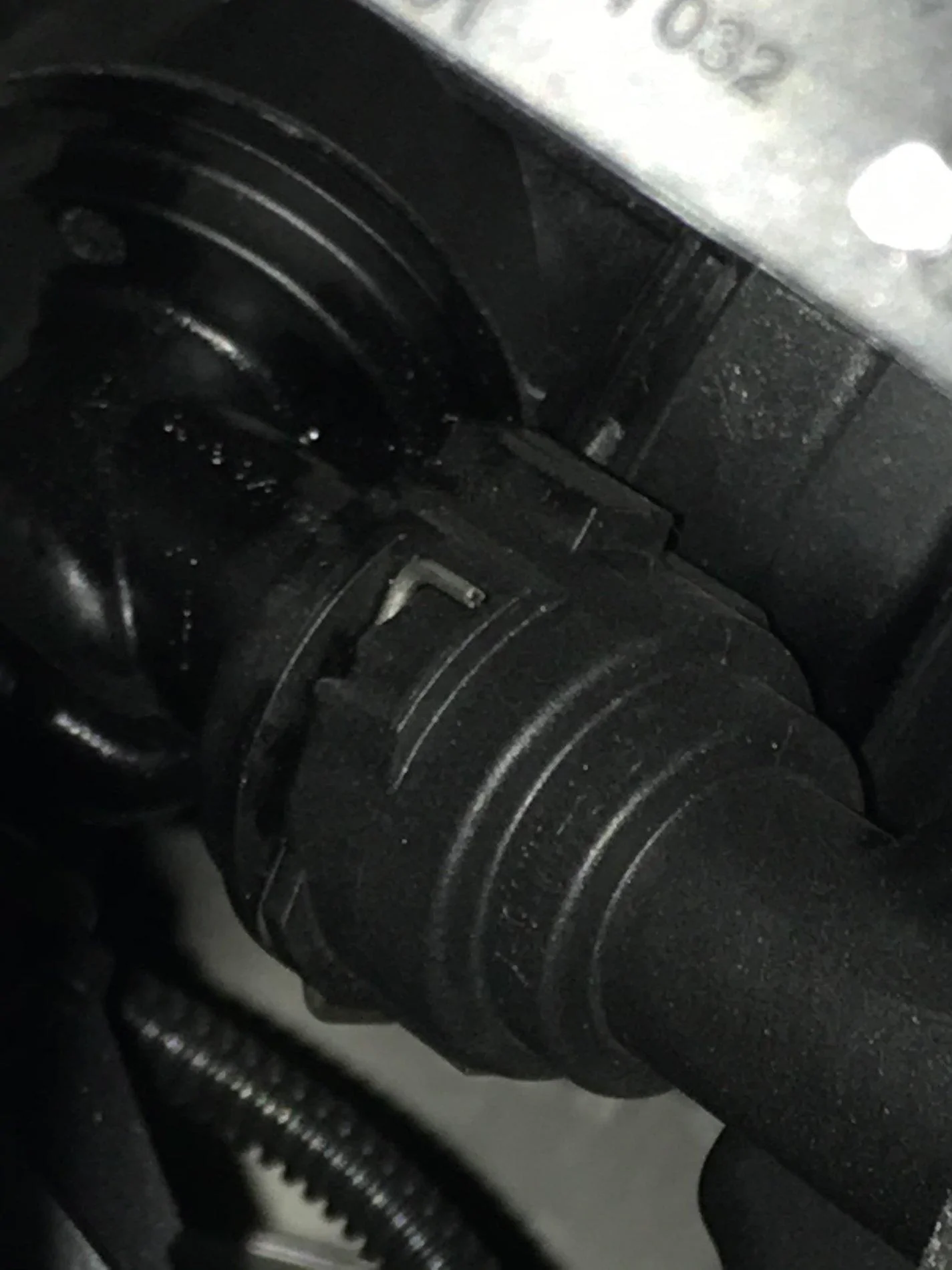

Hello everyone, so in installing my MST intake part #2 in the listed diagram above broke off as well. The portion that connects into the crankcase has snapped clean off of piece #3.

Will this cause majors issues? Can I run my car for the time being? Is it a simple fix of just replacing part #2 & #3? Do I need to bring it to the dealer to have it fixed?

Thanks for any information guys.





Natek

Well-Known Member
First Name
Nate
Joined
Aug 14, 2019
Messages
289
Reaction score
198
Location
USA
Car(s)
2020 launch
Does the mst intake has the same flaw as the op intake where previsions are not made to account for this connect, or is the mst intake more “complete” but the hose was just broke in the install process?
