Cusco Strut Brace

EastCoastSupra

Well-Known Member
First Name
Justin
Joined
Sep 20, 2019
Threads
4
Messages
77
Reaction score
107
Location
Boston
Car(s)
2016 Harley Lowrider S, 2016 Ducati Monster 1200R, 2018 Shelby Raptor, 2020 Toyota Supra Launch Edition #1019
Vehicle Showcase
1
I went to install my Cusco strut brace and noticed the mounting points on the top of the strut have not been tapped. Anyone else install these yet?
Sponsored


OP
OP
EastCoastSupra

EastCoastSupra

Well-Known Member
First Name
Justin
Joined
Sep 20, 2019
Threads
4
Messages
77
Reaction score
107
Location
Boston
Car(s)
2016 Harley Lowrider S, 2016 Ducati Monster 1200R, 2018 Shelby Raptor, 2020 Toyota Supra Launch Edition #1019
Vehicle Showcase
1
I figured it out Iā€™m missing some serrated flange nuts for the m8 bolts

Last edited:
OP
OP
EastCoastSupra

EastCoastSupra

Well-Known Member
First Name
Justin
Joined
Sep 20, 2019
Threads
4
Messages
77
Reaction score
107
Location
Boston
Car(s)
2016 Harley Lowrider S, 2016 Ducati Monster 1200R, 2018 Shelby Raptor, 2020 Toyota Supra Launch Edition #1019
Vehicle Showcase
1
Www.instagram.com/east_coast_supra

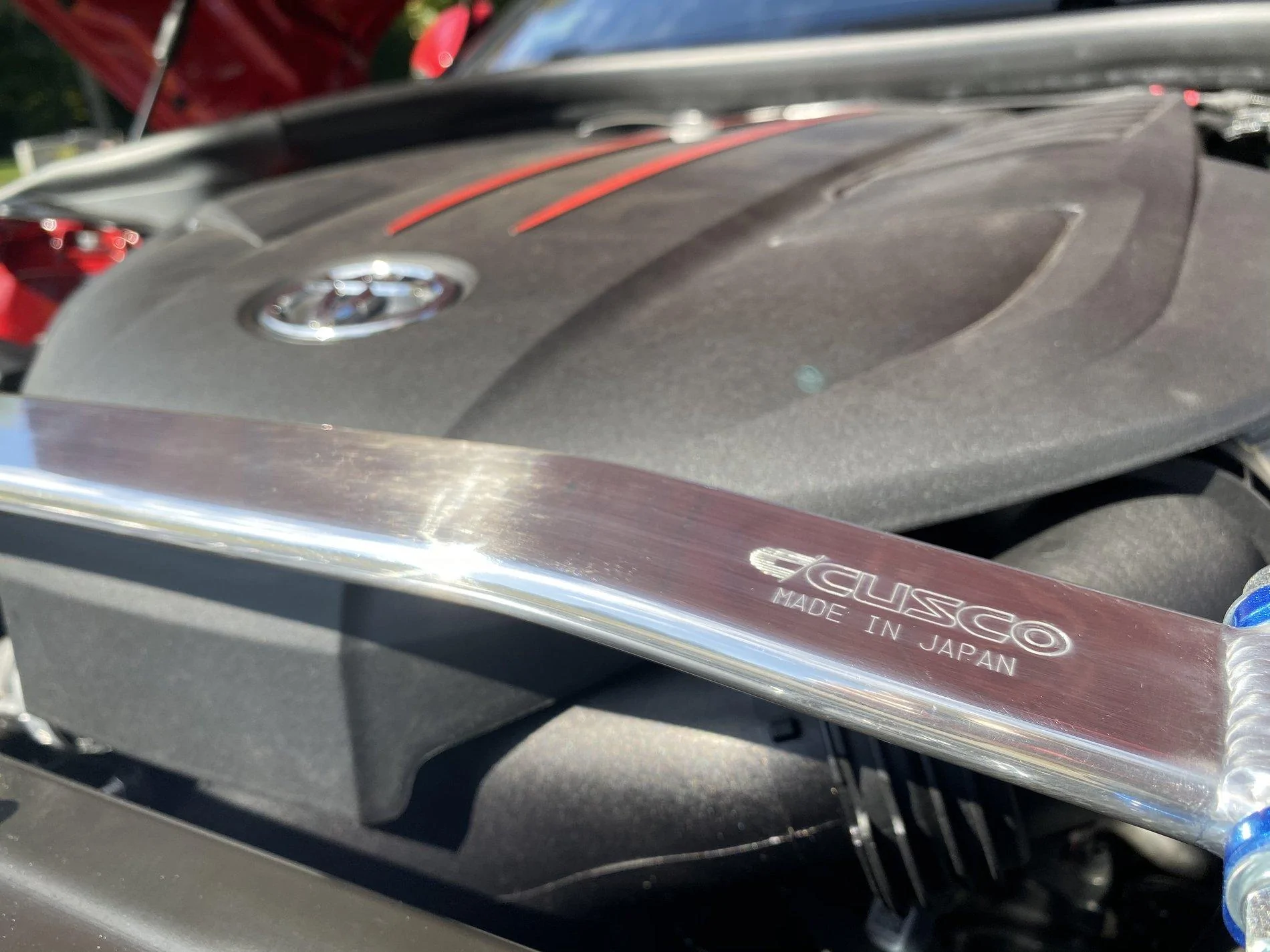

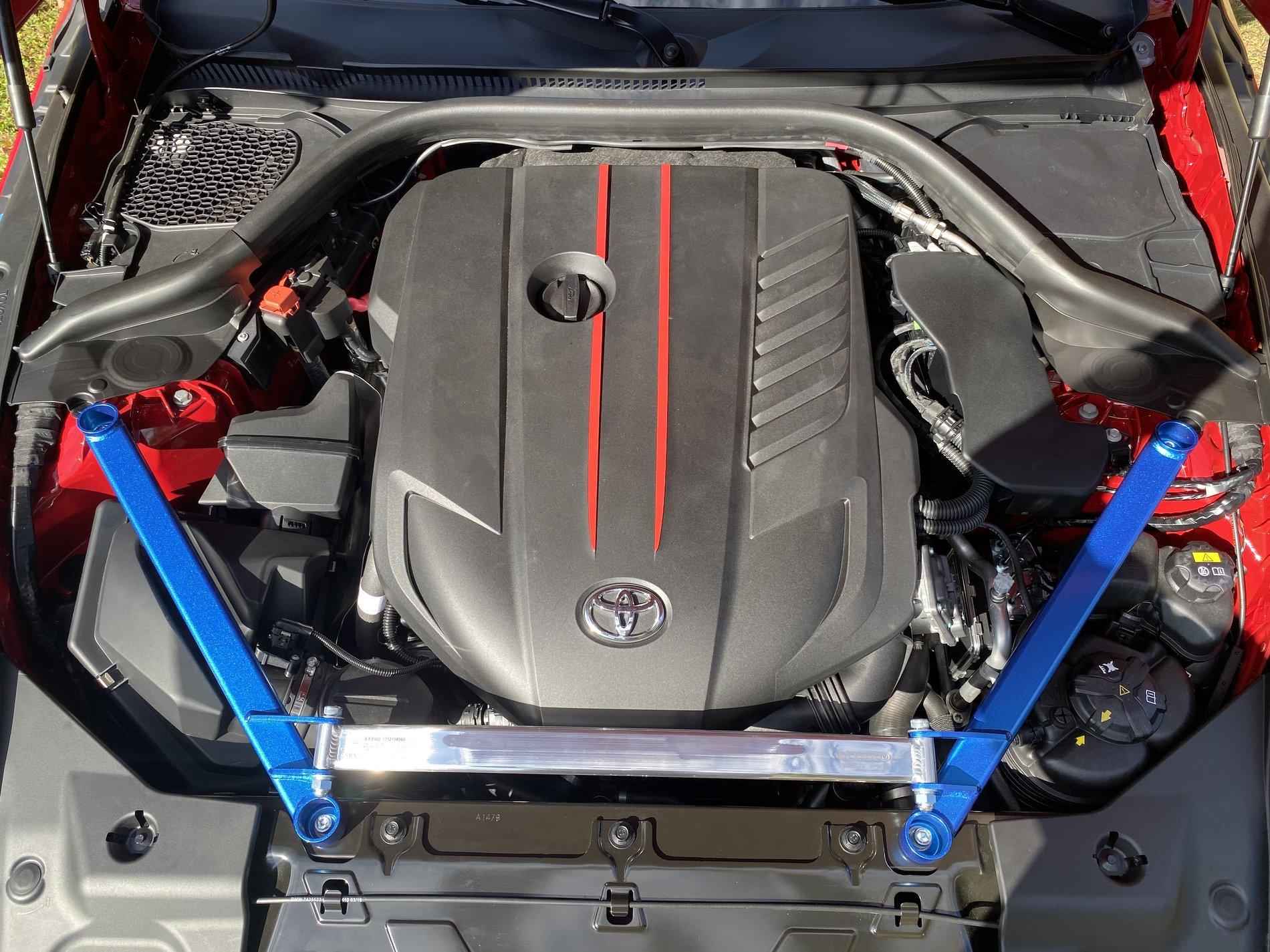

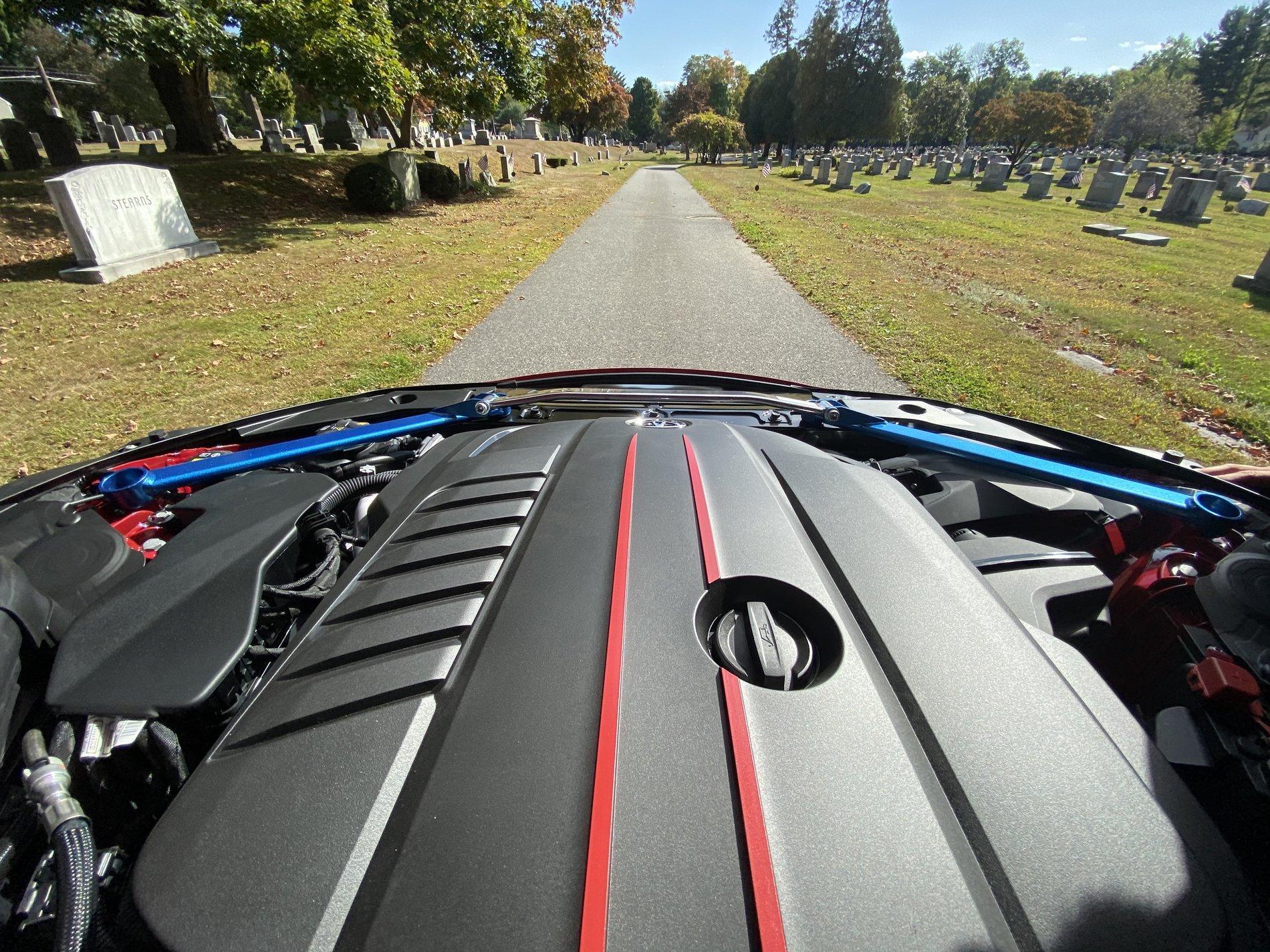

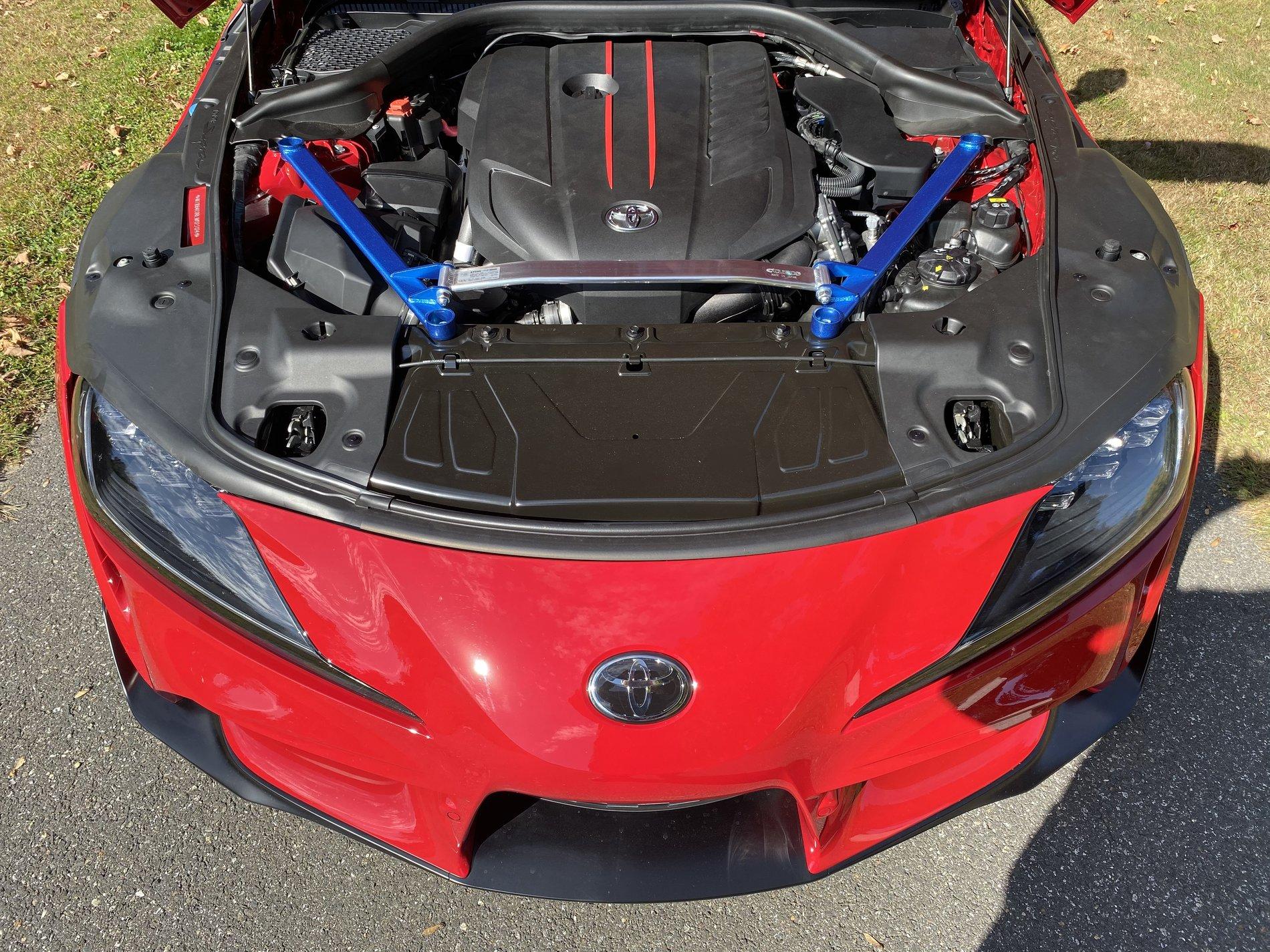

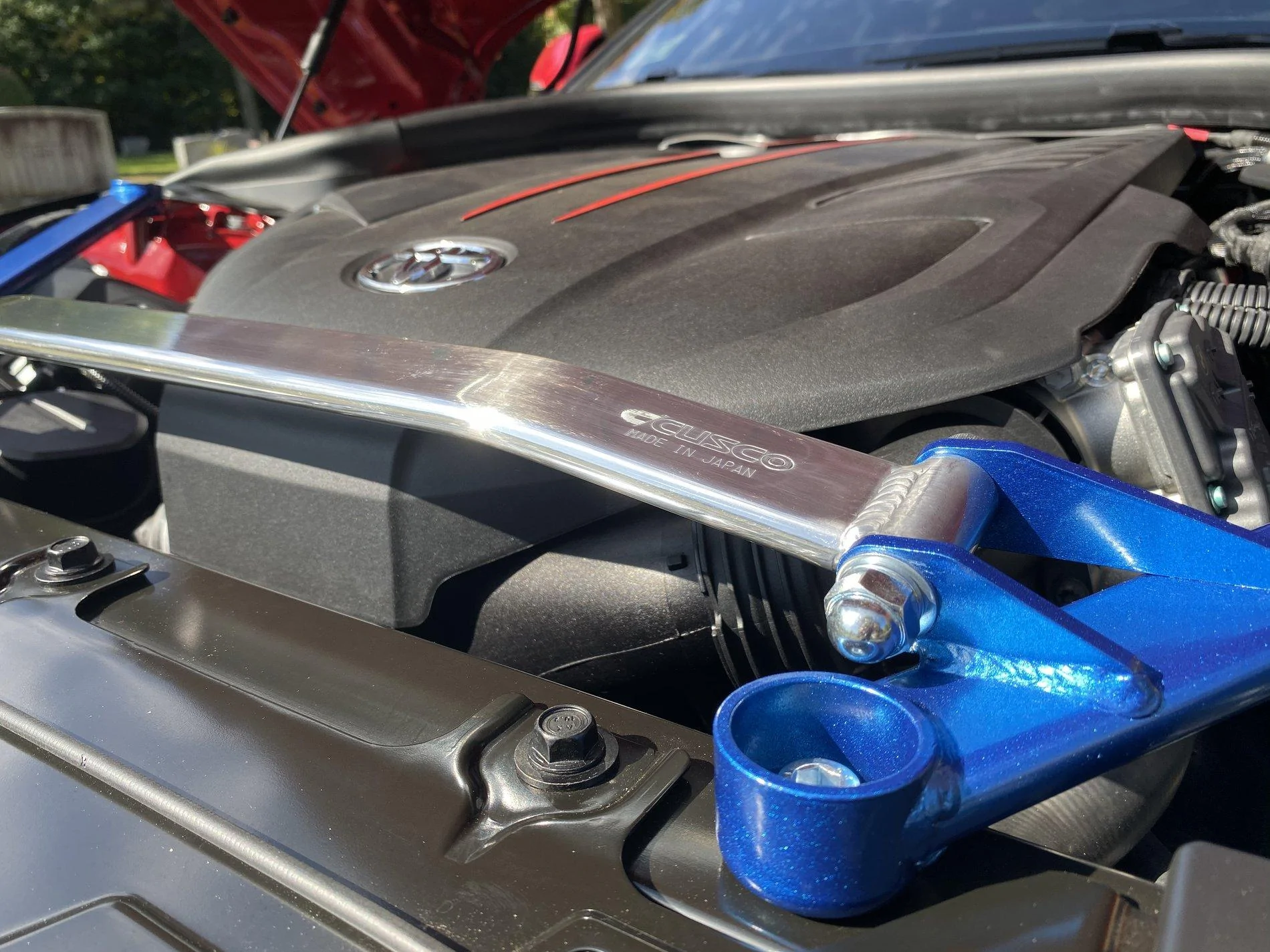

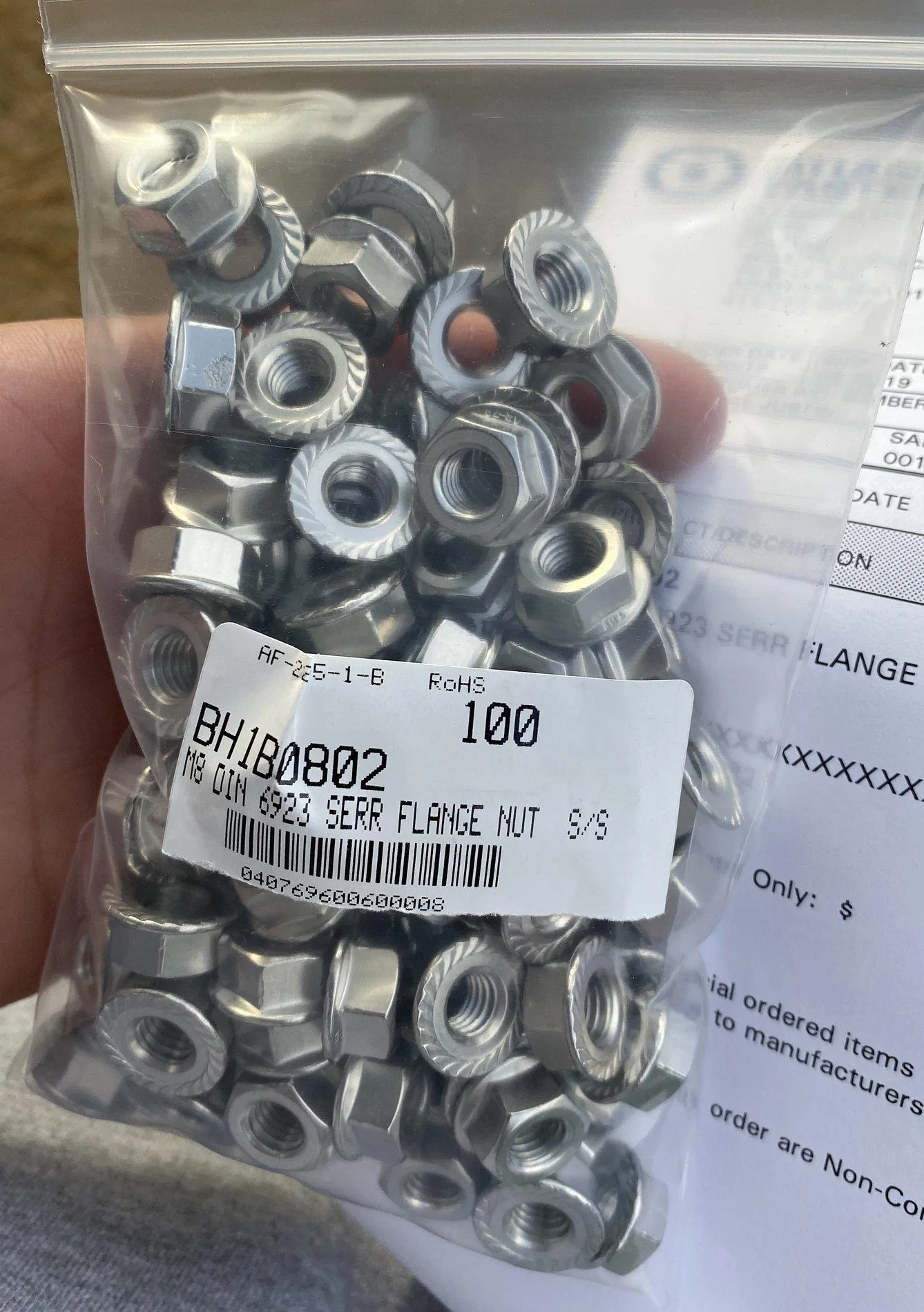

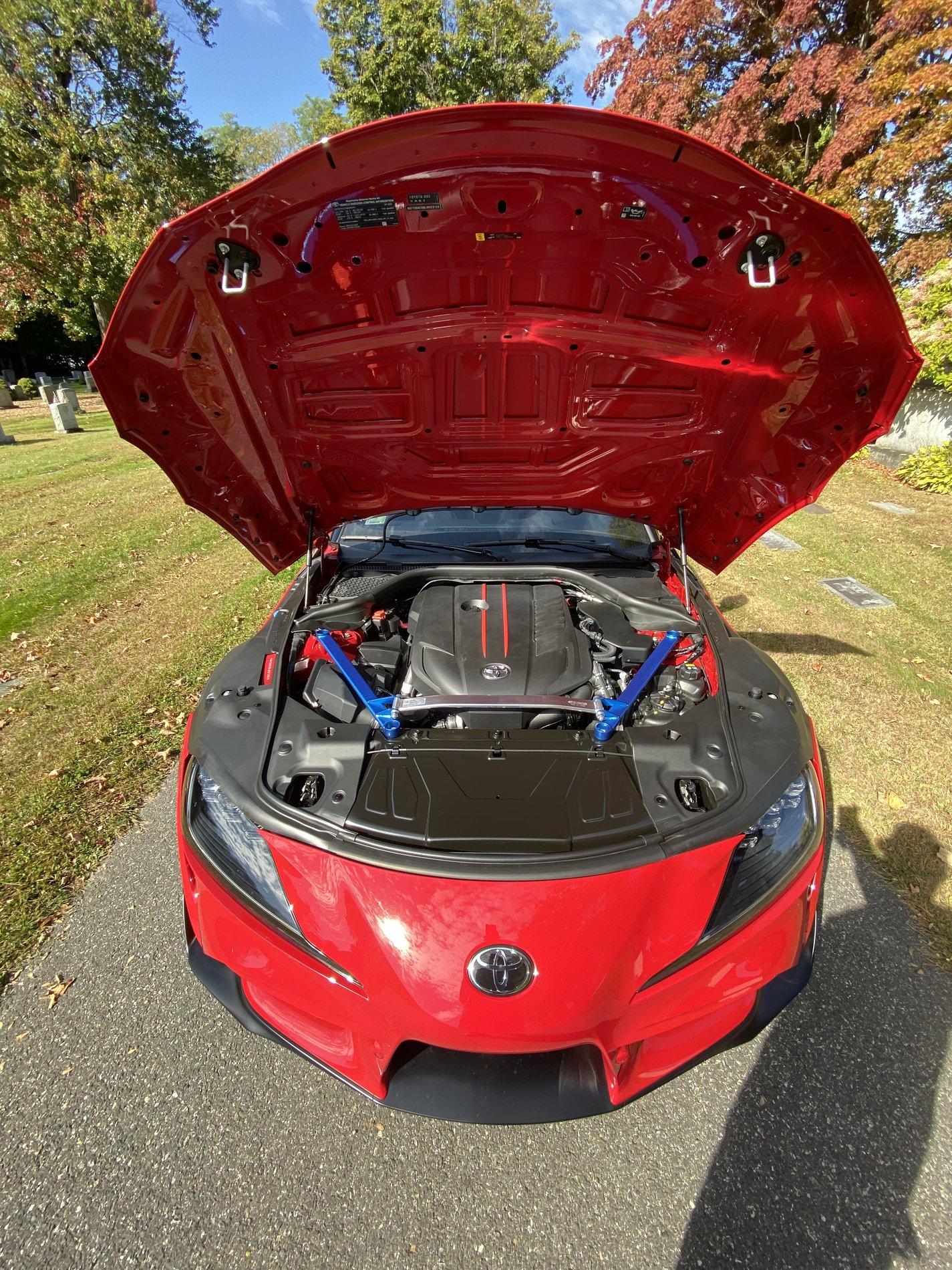

Finished product. I ended up purchasing 100 M8 stainless steel serrated flange nuts. The hardware stores did not carry any in SS.

If anyone has any issues please contact me.


I can also provide these flange nuts to other enthusiasts for free. Iā€™ll never end up using all of these.

*Update* I spoke with Cusco and my distributor. Kit was missing the nuts. They have went ahead and sent me out replacement hardware without even asking.

Kenji at Cusco as well as Jasper at Options Auto Salon have been solid guys from the first call. Highly recommend both the product and the people involved.
Thanks guys! Canā€™t wait to get the next shipment in on Friday.













View attachment 17139



Attachments

  • 0 bytes Views: 0
Last edited:

Webweasel

Well-Known Member
First Name
Stefan
Joined
Nov 7, 2018
Threads
6
Messages
201
Reaction score
230
Location
UK
Car(s)
Celica GT4 ST205, A90 Supra
Vehicle Showcase
1
Do you feel much difference when driving the car? I have the top and bottom ones on my GT4 and it was a noticeable improvement.

OP
OP
EastCoastSupra

EastCoastSupra

Well-Known Member
First Name
Justin
Joined
Sep 20, 2019
Threads
4
Messages
77
Reaction score
107
Location
Boston
Car(s)
2016 Harley Lowrider S, 2016 Ducati Monster 1200R, 2018 Shelby Raptor, 2020 Toyota Supra Launch Edition #1019
Vehicle Showcase
1
Do you feel much difference when driving the car? I have the top and bottom ones on my GT4 and it was a noticeable improvement.
Yes. You can almost feel the brace inside the engine bay. Feels stiff and ā€œsquareā€ so to say. Tighter more precise cornering as well.


whostorm05

Well-Known Member
First Name
Ryan
Joined
May 18, 2019
Threads
15
Messages
254
Reaction score
115
Location
Indianapolis, IN
Car(s)
2016 Subaru Outback 3.6R Limited, 1991 Pontiac TransAm
Is this the only front brace out there as of right now?


Webweasel

Well-Known Member
First Name
Stefan
Joined
Nov 7, 2018
Threads
6
Messages
201
Reaction score
230
Location
UK
Car(s)
Celica GT4 ST205, A90 Supra
Vehicle Showcase
1
Is this the only front brace out there as of right now?
No, there is a rear too. Fensport in the UK carry the lot, plus a whole bunch of other parts too.

OP
OP
EastCoastSupra

EastCoastSupra

Well-Known Member
First Name
Justin
Joined
Sep 20, 2019
Threads
4
Messages
77
Reaction score
107
Location
Boston
Car(s)
2016 Harley Lowrider S, 2016 Ducati Monster 1200R, 2018 Shelby Raptor, 2020 Toyota Supra Launch Edition #1019
Vehicle Showcase
1

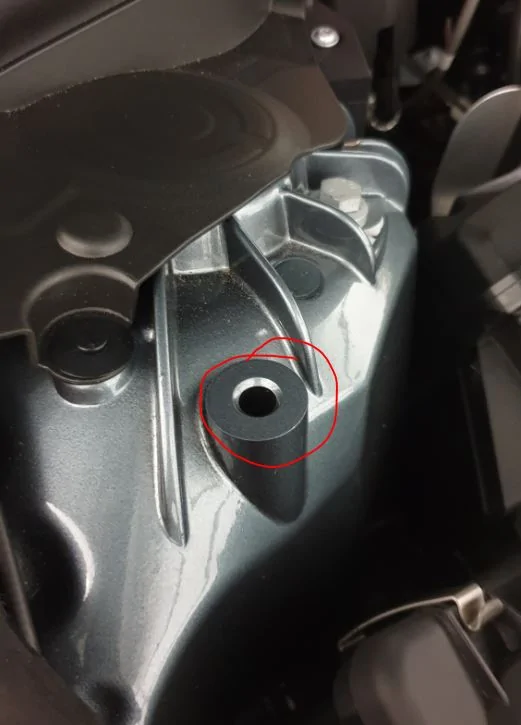

So you just poked a bolt down through here:

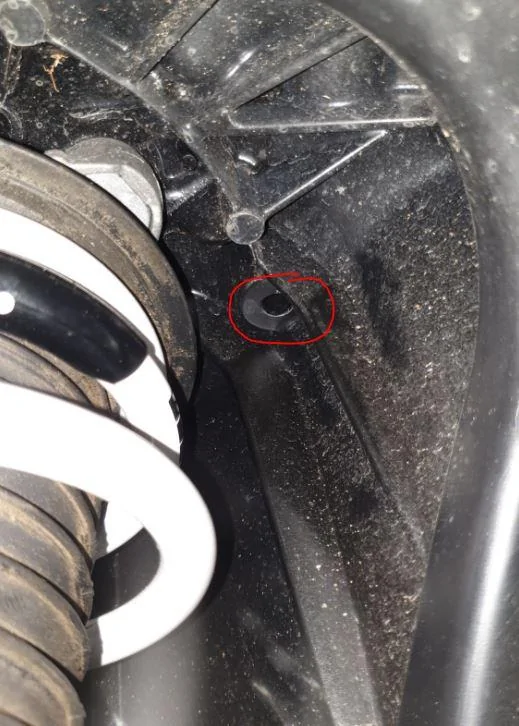

and put a nut on the underside here?

Yes the 50mm m8 bolt will go through that hole and a m8 serrated flange nut will go on the bottom.


supramk5

Banned
Banned
Banned
Joined
Dec 6, 2017
Threads
14
Messages
39
Reaction score
62
Location
USA
Car(s)
Supra
I went to install my Cusco strut brace and noticed the mounting points on the top of the strut have not been tapped. Anyone else install these yet?
Just got them installed too!


OP
OP
EastCoastSupra

EastCoastSupra

Well-Known Member
First Name
Justin
Joined
Sep 20, 2019
Threads
4
Messages
77
Reaction score
107
Location
Boston
Car(s)
2016 Harley Lowrider S, 2016 Ducati Monster 1200R, 2018 Shelby Raptor, 2020 Toyota Supra Launch Edition #1019
Vehicle Showcase
1
Looks great! I also have the rear, sway bars and tow hooks. Iā€™ll have to get some good videos/pictures when itā€™s up on the rack.


GirlRepellent

Well-Known Member
Joined
Aug 28, 2019
Threads
1
Messages
72
Reaction score
78
Location
Philly
Car(s)
A90 Supra
I like the Cusco blue but I think I'll powder coat mine and try to match Renaissance Red 2.0. Waiting on Cusco Front and Rear sway bars to get here and then I'll do all the suspension stuff at the same time.


Bosstee

Well-Known Member
First Name
Bastian
Joined
Dec 12, 2018
Threads
0
Messages
118
Reaction score
176
Location
Germany
Car(s)
A90 Supra
Anyone install the rear harness bar? I'm looking for something less bulky than the OEM aluminum one...
