Does anyone know how easy these are to remove/take off?

Ultimateone

Well-Known Member
Joined
Feb 13, 2020
Threads
20
Messages
659
Reaction score
568
Location
Boston
Car(s)
AW A90

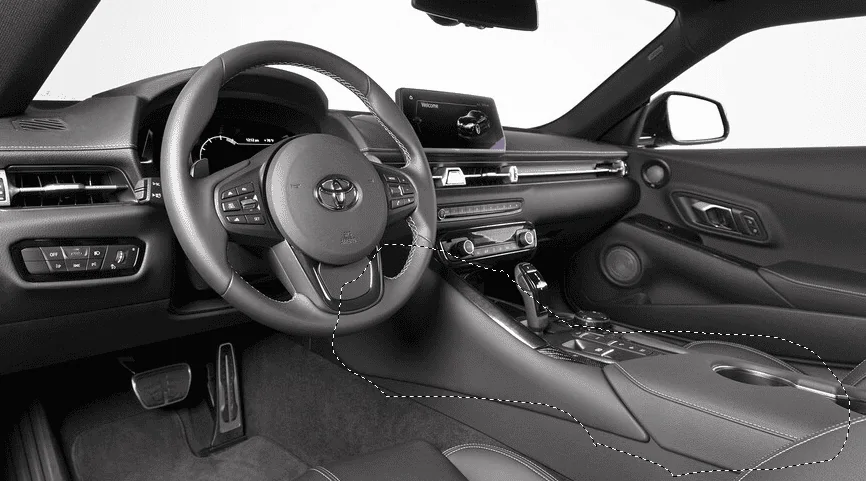

The pieces that are highlighted in the picture below, just the pad and the leather top for the center console
Sponsored


Last edited:

diablo2112

Well-Known Member
Joined
Nov 24, 2020
Threads
8
Messages
176
Reaction score
292
Location
Southwest USA
Car(s)
2022 BMW M3 Competition
Center console removes dead-easy. Pull up the rubber liner from the cupholders, remove the 2 screws you'll see underneath (T20 torx if I recall), then pull the whole leather cover straight up. It's attached with several clips.


KingTai

Well-Known Member
First Name
Gianni
Joined
Sep 28, 2019
Threads
0
Messages
115
Reaction score
103
Location
Massachusetts
Car(s)
2020 Supra
Knee pad area can just be pulled out. It's held on by a ton of clips and no screws


dazza

Well-Known Member
First Name
Darren
Joined
Jul 18, 2020
Threads
9
Messages
109
Reaction score
54
Location
Sydney
Car(s)
VW Golf R Mk7.5 & Toyota Supra MkV
The pieces that are highlighted in the picture below, just the pad and the leather top for the center console

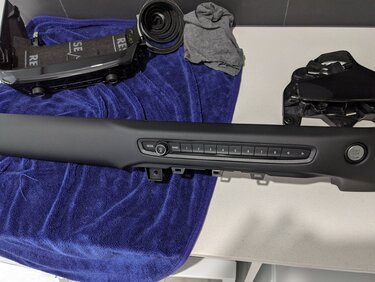

Leather/rubber side panel pulls off there are 10 or so torx screws the whole plastic panel pulls off

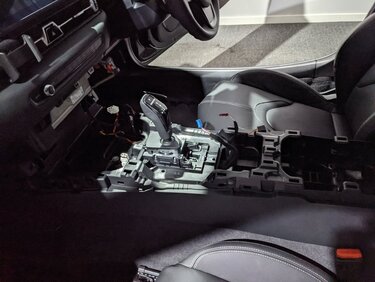

There are two Torx screws under the rubber cub holder liner and the whole head rest pulls up easily.

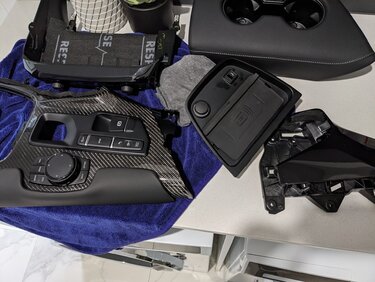

When thats off you can pull up on the carbon fibre piece unlplug the connectors (about three) and lift the entire panel out. The wireless charging matt lifts out unlplugging about three connectors.

Interested as to why you want to dismantle?

If you have creaks - I got rid rid of all my creaks 100% - zero noise over any surface.

I am amazed how easy it is to pull this car apart.

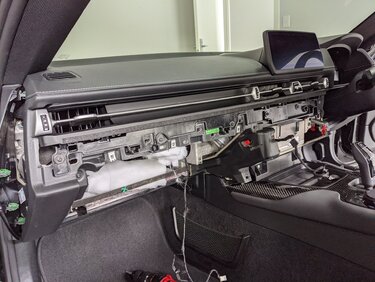

The front panel was the worse at creaking you push on it it creaks, in hot weather it creaked all the time and going over uneven surfaces.

I lined the entire inside of the panel with sound deadening and foam tape.

I did the same with the aircon control housing.

Its really easy and hard to break anything.


Attachments

OP
OP
Ultimateone

Ultimateone

Well-Known Member
Joined
Feb 13, 2020
Threads
20
Messages
659
Reaction score
568
Location
Boston
Car(s)
AW A90
Thank you all!

@dazza I might be getting a red pad and center part to better match my new wheel.


diablo2112

Well-Known Member
Joined
Nov 24, 2020
Threads
8
Messages
176
Reaction score
292
Location
Southwest USA
Car(s)
2022 BMW M3 Competition
Thanks for the disassembly pics. Have you considered doing a hydrodip on your parts for a Carbon Fiber finish? That appears to be what Toyota has done with the center piece, it's clearly not real Carbon Fiber.


sssushi

Member
First Name
Sascha
Joined
Dec 30, 2020
Threads
0
Messages
7
Reaction score
4
Location
Germany
Car(s)
A90 3.0

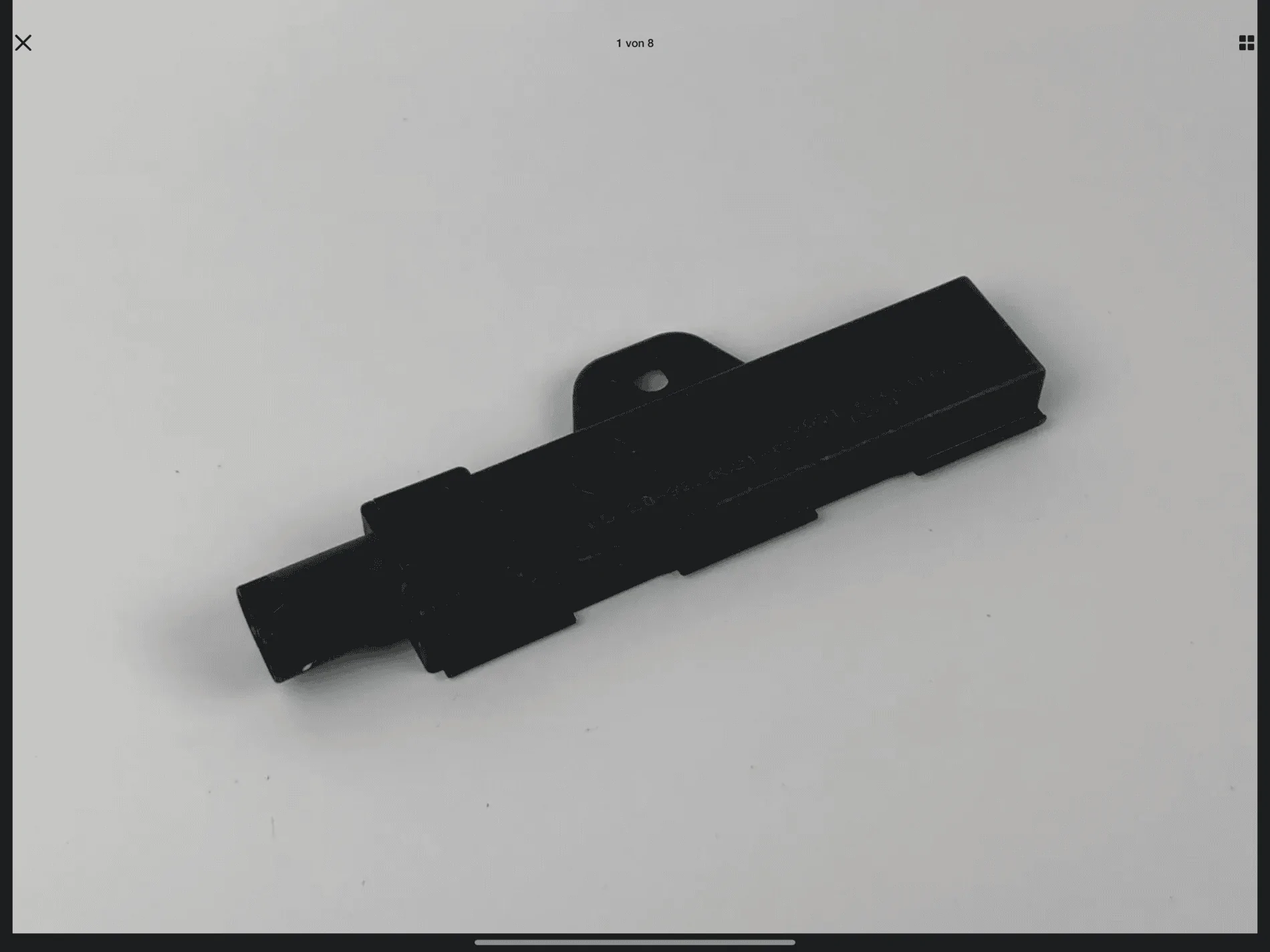

Did you see the antenna for the keyless go beneath this tunnel ? Its not below the armrest.... where is it located ?


dazza

Well-Known Member
First Name
Darren
Joined
Jul 18, 2020
Threads
9
Messages
109
Reaction score
54
Location
Sydney
Car(s)
VW Golf R Mk7.5 & Toyota Supra MkV
Did you see the antenna for the keyless go beneath this tunnel ? Its not below the armrest.... where is it located ?
I'm not sure what it looks like but if you lift the wireless charging Pad there is Purple antenna connector wire not sure where the wire runs to.


Motorknut

Well-Known Member
Joined
Jul 26, 2020
Threads
3
Messages
212
Reaction score
102
Location
NA
Car(s)
2020 GR Supra RZ, BMW G20 gone:BMW F30, E85, E46
There are two Torx screws under the rubber cub holder liner and the whole head rest pulls up easily.

When thats off you can pull up on the carbon fibre piece unlplug the connectors (about three) and lift the entire panel out. The wireless charging matt lifts out unlplugging about three connectors.
Knee pad area can just be pulled out. It's held on by a ton of clips and no screws
Could anyone advise if the passenger side knee pad also pulls right off? Borrowing @dazzaā€™s pic, Iā€™m referring to the below


from the Realoem diagram captures, it appears to be attached by a bolt/screw... if so, itā€™s attached to the carbon fiber trim?


f22bub

Well-Known Member
Joined
Jan 17, 2021
Threads
7
Messages
84
Reaction score
166
Location
Germany
Car(s)
2021 GR Supra Jarama Racetrack Edition
Could anyone advise if the passenger side knee pad also pulls right off? Borrowing @dazzaā€™s pic, Iā€™m referring to the below


from the Realoem diagram captures, it appears to be attached by a bolt/screw... if so, itā€™s attached to the carbon fiber trim?
Can you share a link to that diagram? Thanks


sssushi

Member
First Name
Sascha
Joined
Dec 30, 2020
Threads
0
Messages
7
Reaction score
4
Location
Germany
Car(s)
A90 3.0

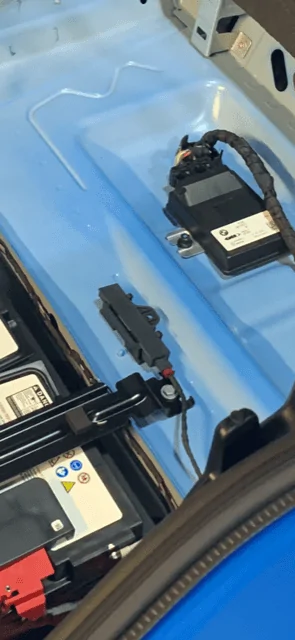

Yes I found this one. But there seems to be another one below the middle tunnel......


GatoRay

New Member
First Name
Ray
Joined
May 15, 2021
Threads
1
Messages
4
Reaction score
0
Location
Miami
Car(s)
335i
Leather/rubber side panel pulls off there are 10 or so torx screws the whole plastic panel pulls off

There are two Torx screws under the rubber cub holder liner and the whole head rest pulls up easily.

When thats off you can pull up on the carbon fibre piece unlplug the connectors (about three) and lift the entire panel out. The wireless charging matt lifts out unlplugging about three connectors.

Interested as to why you want to dismantle?

If you have creaks - I got rid rid of all my creaks 100% - zero noise over any surface.

I am amazed how easy it is to pull this car apart.

The front panel was the worse at creaking you push on it it creaks, in hot weather it creaked all the time and going over uneven surfaces.

I lined the entire inside of the panel with sound deadening and foam tape.

I did the same with the aircon control housing.

Its really easy and hard to break anything.
Did you happen to record a video?
