Dyno comparison between stock, ETS Catless Downpipe/Exhaust system and MHD OTS Stage 2 93 pump Map

Discussion in 'DME / ECU Software Tuning' started by LG_SUPRA, Mar 31, 2020.

  1. LG_SUPRA

    LG_SUPRA Member

    First Name:
    Luis
    Car(s):
    2020 Supra
    Joined:
    Mar 25, 2020
    Location:
    Raleigh NC
    Posts:
    5
    Liked:
    10

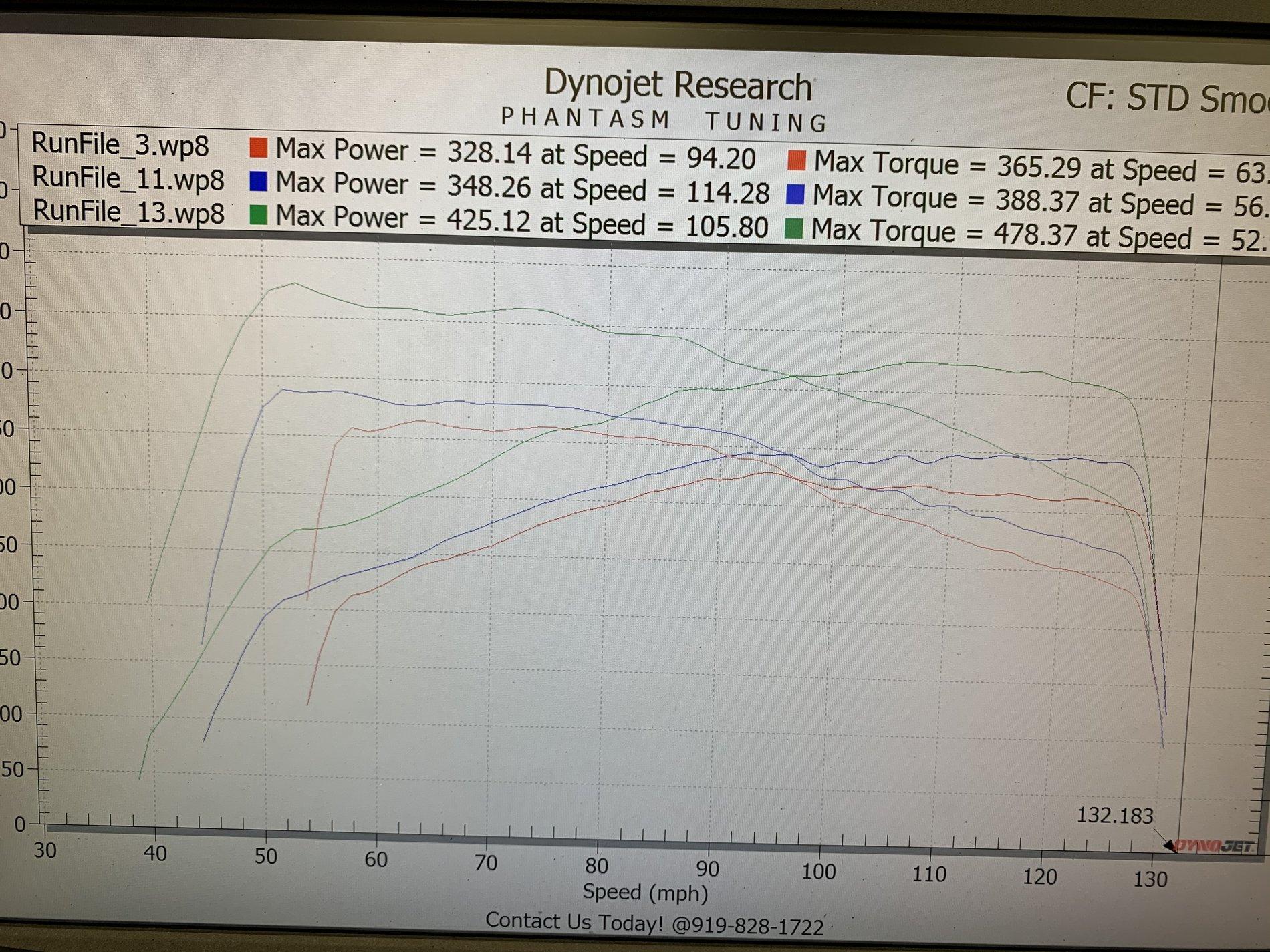

    Hey everyone, my first post here hope is helpful to some. Here is a great comparison from stock making 328whp to the 348whp with ETS Catless Downpipe and Exhaust system no tuning, then did MHD OTS Stage 2 93 pump map putting down 425WHP. Stock the car felt great and it ran a 12.3 at 114mp. with just the upgrades of the Catless Downpipe and exhaust system it sound amazing but I felt the performance was not what I was hoping for lol but I was happy. After the MHD map and my first street ride I was the happiest Supra owner in the world the difference was night and day! Now moving on to more upgrades, pure turbo, meth kit, intake, forge boost pipe and having Mickey (Michael Botti) Tune the car with ECUTEK next week. I will post the dyno numbers to have all four comparison.


    Rapheal, Axix23, TURBOlence and 6 others like this.
  2. XtremeMaC

    XtremeMaC Well-Known Member

    First Name:
    MaC
    Car(s):
    2013 GT86 ________2020 Supra
    Joined:
    Aug 8, 2018
    Location:
    _________ SE Michigan, USA
    Posts:
    787
    Liked:
    727
    Occupation:
    _______ Mechanical Engineer
    for the lazies :)

    would have rather preferred vs engine speed, but wth.

    Rapheal, Guff, tadda and 3 others like this.
  3. OP
    OP
    LG_SUPRA

    LG_SUPRA Member

    First Name:
    Luis
    Car(s):
    2020 Supra
    Joined:
    Mar 25, 2020
    Location:
    Raleigh NC
    Posts:
    5
    Liked:
    10
    Lol thanks, definitely a lot easier to the eyes this way

    XtremeMaC likes this.
  4. 65sohc

    65sohc Well-Known Member

    First Name:
    Ken
    Car(s):
    2020 Supra, 65 GTO restomod, 66 Mustang restomod
    Joined:
    Mar 9, 2020
    Location:
    Fresno, CA
    Posts:
    292
    Liked:
    131
    Actually the MHD is vs parts, right? No e85 where you live?

  5. OP
    OP
    LG_SUPRA

    LG_SUPRA Member

    First Name:
    Luis
    Car(s):
    2020 Supra
    Joined:
    Mar 25, 2020
    Location:
    Raleigh NC
    Posts:
    5
    Liked:
    10
    MHD with parts no E85 just 93 pump. I dynod the car with just the parts first before doing the MHD so I can compare.

  6. 65sohc

    65sohc Well-Known Member

    First Name:
    Ken
    Car(s):
    2020 Supra, 65 GTO restomod, 66 Mustang restomod
    Joined:
    Mar 9, 2020
    Location:
    Fresno, CA
    Posts:
    292
    Liked:
    131
    Yeh. I got the 93 part. You mention you're planning meth injection so I was just wondering if e85 is an option where you live.

  7. OP
    OP
    LG_SUPRA

    LG_SUPRA Member

    First Name:
    Luis
    Car(s):
    2020 Supra
    Joined:
    Mar 25, 2020
    Location:
    Raleigh NC
    Posts:
    5
    Liked:
    10
    Yes E85 Is available in my area probably in the future will add it

  8. Stuhagen

    Stuhagen Member

    Car(s):
    SupraMKiV-R35GTR
    Joined:
    Mar 13, 2018
    Location:
    USA
    Posts:
    24
    Liked:
    18
    So what is the consensus here on what might be the max HP this stock engine can handle?

  9. jtsang25

    jtsang25 Well-Known Member

    Car(s):
    2009 BMW 135i, 2020 Toyota GR Supra
    Joined:
    May 29, 2019
    Location:
    Canada
    Posts:
    666
    Liked:
    517
    @Twisted Tuning says they've gotten around 700 or so if I'm not mistaken.

    Twisted Tuning likes this.
  10. Twisted Tuning

    Twisted Tuning Well-Known Member
    Gold Sponsor


    First Name:
    Justin
    Car(s):
    Supra MKV, BMW 135i, BMW 335xi, Mazda 6 Twin Turbo,
    Joined:
    Mar 10, 2019
    Location:
    New York
    Posts:
    744
    Liked:
    873
    Occupation:
    calibration specialist
    Home Page:
    we are up around 800whp right now, just gotta throgh back on the dyno for the 800whp verification. keeping torque around 700ft/lbs As above that around 760tq or so, the trans clutches (with stock TCM tune) cant hold anymore.

    EDIT:

    will i tell customers to run as much power as we are? probably not without them understanding what can happen. for the general masses, i would tell them to leave torque around 625-650ft/lb and power around 650whp for some kind of longevity

    LG_SUPRA likes this.
  11. 65sohc

    65sohc Well-Known Member

    First Name:
    Ken
    Car(s):
    2020 Supra, 65 GTO restomod, 66 Mustang restomod
    Joined:
    Mar 9, 2020
    Location:
    Fresno, CA
    Posts:
    292
    Liked:
    131
    How much power can I expect to gain when I switch from your 91 octane tune that I am presently running to your E85 tune that I am awaiting? Stock downpipe.

  12. Nocturnal LE

    Nocturnal LE Well-Known Member

    First Name:
    Daniel
    Car(s):
    2020 Supra LE
    Joined:
    Aug 9, 2019
    Location:
    Cleveland, OH
    Posts:
    134
    Liked:
    74
    Any idea how much the full exhaust increases #s vs downpipe only?

  13. OP
    OP
    LG_SUPRA

    LG_SUPRA Member

    First Name:
    Luis
    Car(s):
    2020 Supra
    Joined:
    Mar 25, 2020
    Location:
    Raleigh NC
    Posts:
    5
    Liked:
    10
    No, they were installed at the same time
