I'm thinking about doing some foot well lighting. I saw that I already have some already installed by Toyota. The problem is the control. They turn on and off by the door. Is there a possible way to control them by the lock and unlock status of the car?

I kinda like the lights. They are not really bright, but they are so well integrated, and I like that.




Advertisement



OP

Don Alex

Member
Joined
Aug 19, 2020
Posts
7
Reaction score
1
Location
Germany
Car(s)
Supra MKV Legend
  • Thread starter
  • Thread Starter
  • #3
I dont have a link. They are preinstalled by Toyota. I havent bought or installed them.

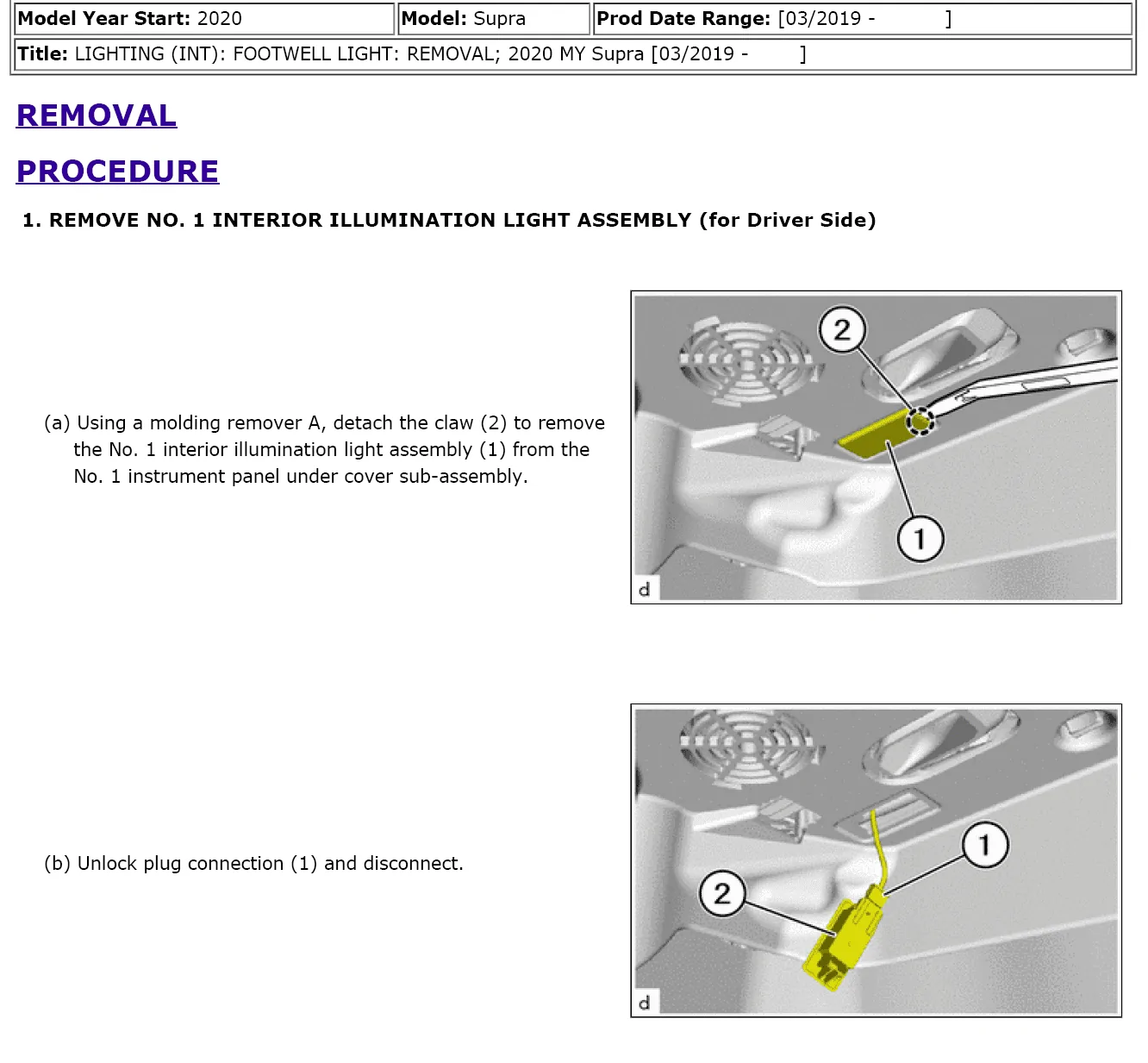

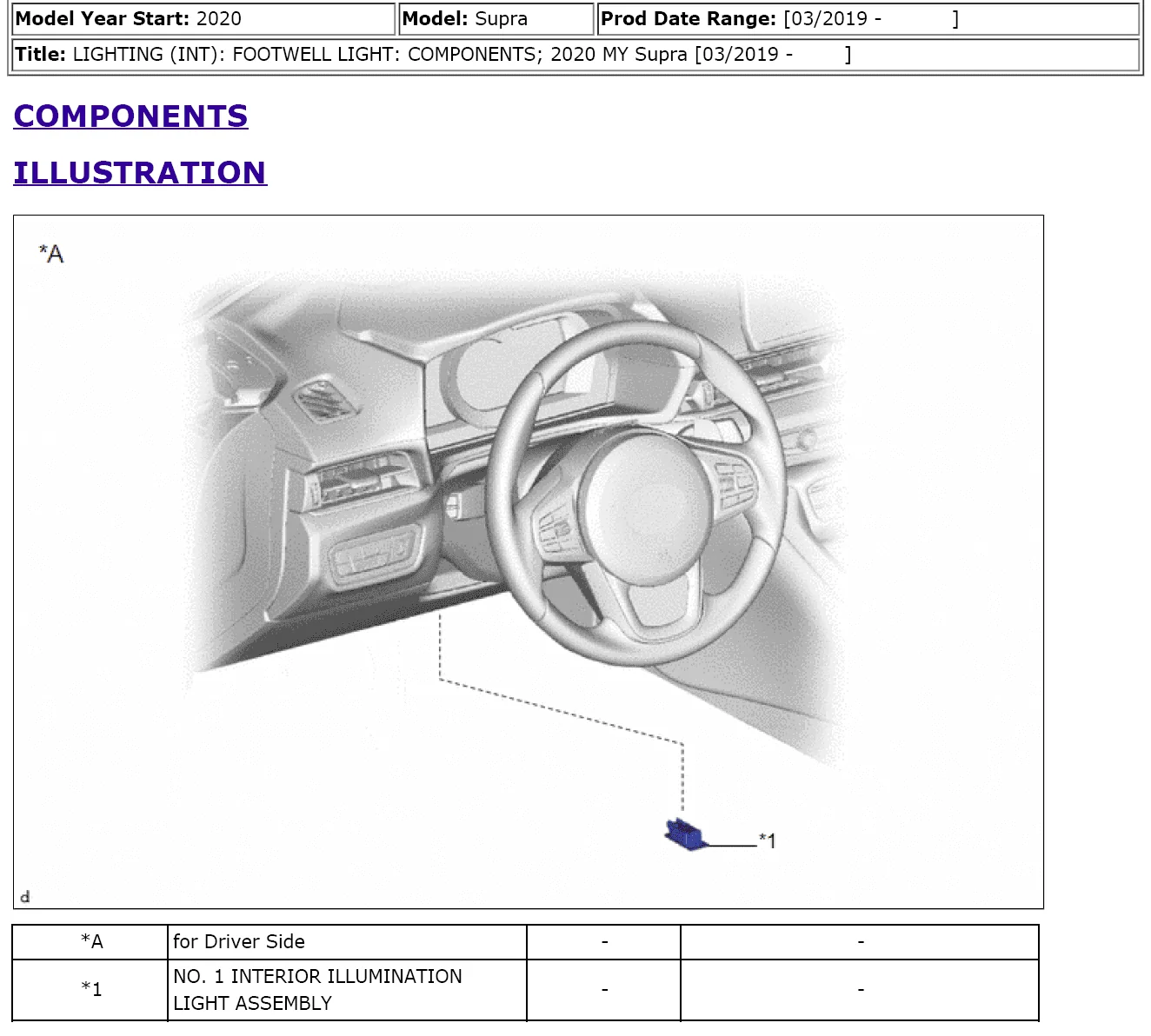

I'm talking about these:





If needed I make a photo of the lights.


BA9092

Well-Known Member
First Name
Christian
Joined
Aug 1, 2020
Posts
184
Reaction score
231
Location
Dallas/Fort Worth
Car(s)
2020 GR Supra Absolute Zero Premium
Ah, ok. Yeah, I think we're missing the entire wiring for it in the US. I installed the OPT7 Aura bluetooth kit from Amazon. Works great.

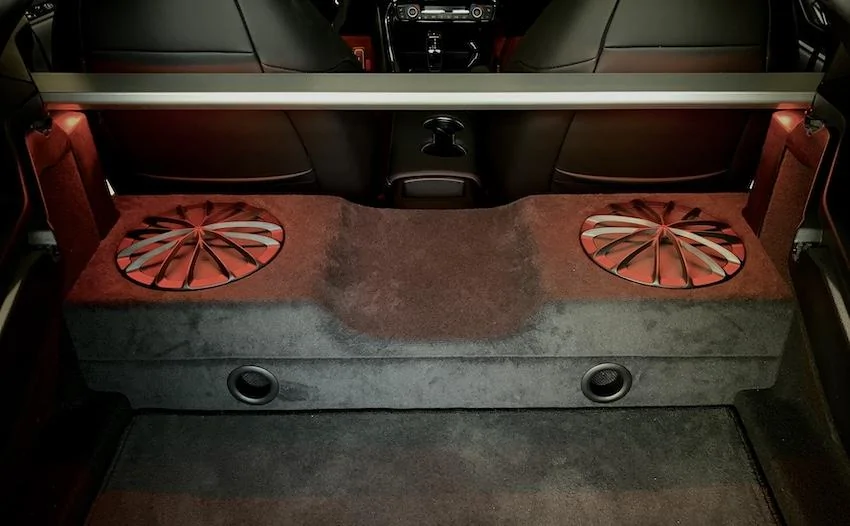

Used the OEM light fixture holes as pass-through for the wires and installed the remaining two strips under the rear metal brace bar.

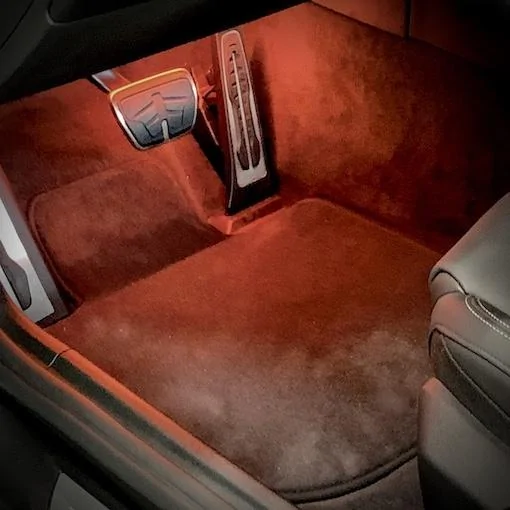

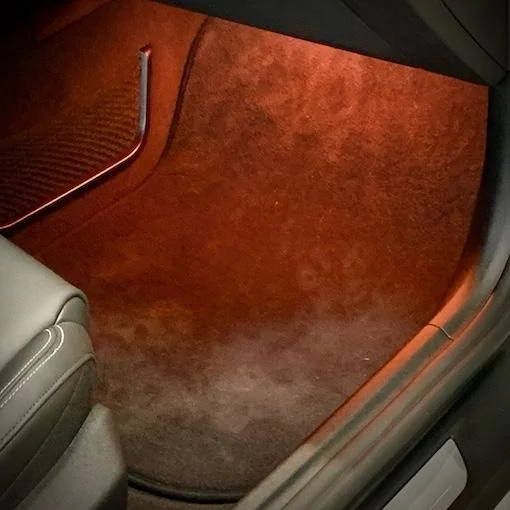

I have it set to a low/dim orange setting (like the rest of the interior lights) and it's always on once the door is opened and turns off 6 minutes after exiting.

OP

Don Alex

Member
Joined
Aug 19, 2020
Posts
7
Reaction score
1
Location
Germany
Car(s)
Supra MKV Legend
  • Thread starter
  • Thread Starter
  • #7
Any part numbers?

I think those are pre-wired and installed on non-US cars only.
Maybe its 81080WAA01 but im not sure.
Yeah I think I have heard something like that.

Ah, ok. Yeah, I think we're missing the entire wiring for it in the US. I installed the OPT7 Aura bluetooth kit from Amazon. Works great.

Used the OEM light fixture holes as pass-through for the wires and installed the remaining two strips under the rear metal brace bar.

I have it set to a low/dim orange setting (like the rest of the interior lights) and it's always on once the door is opened and turns off 6 minutes after exiting.
Looks great! Can you tell me how exactly you connected it. Where did you get the electricity? What Supra cable did you tap, to connect your kit?

I'm pretty new to that kind of things... Would appreciate some help on that.


BA9092

Well-Known Member
First Name
Christian
Joined
Aug 1, 2020
Posts
184
Reaction score
231
Location
Dallas/Fort Worth
Car(s)
2020 GR Supra Absolute Zero Premium
Looks great! Can you tell me how exactly you connected it. Where did you get the electricity? What Supra cable did you tap, to connect your kit?

I'm pretty new to that kind of things... Would appreciate some help on that.
Sorry for the late reply.

Been helping my mom with a house purchase and moving, so I haven't had the chance to look as I don't remember which fuse I tapped into.

I'll have to get back under there to remove that panel and see...

OP

Don Alex

Member
Joined
Aug 19, 2020
Posts
7
Reaction score
1
Location
Germany
Car(s)
Supra MKV Legend
  • Thread starter
  • Thread Starter
  • #9

MannyC224

Active Member
First Name
Manuel
Joined
Jun 17, 2020
Posts
25
Reaction score
15
Location
Fullerton, CA
Car(s)
2020 Toyota Supra 3.0 Premium Turbulence Grey "Supra35"
I used F46 for power and F62 for the door assist (white light when you get in)


BA9092

Well-Known Member
First Name
Christian
Joined
Aug 1, 2020
Posts
184
Reaction score
231
Location
Dallas/Fort Worth
Car(s)
2020 GR Supra Absolute Zero Premium
Yup, F62. The wires can be zip tied and tucked in along the back edge of the carpeting. I used a trim removal tool to poke the wires and hide them throughout the installation.
