Front Bumper/Hood Fitment Gap Issue (after Heat Exchanger Install)

stefastn

Member
First Name
James
Joined
Apr 23, 2022
Threads
2
Messages
21
Reaction score
6
Location
FL
Car(s)
****

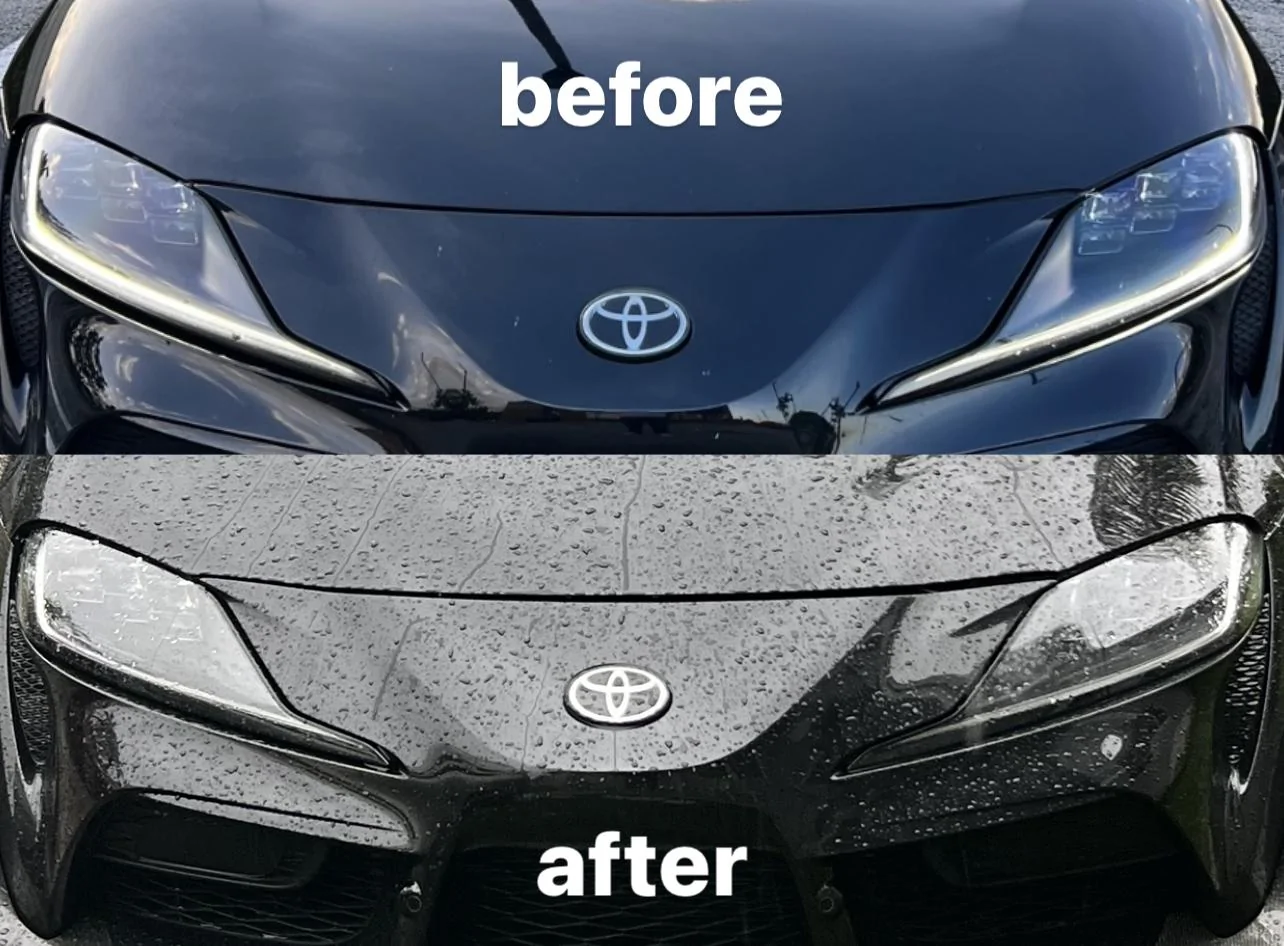

Got a mishimoto heat exchanger installed and noticed next day after my fitment was way off, took it back to the shop and they tried all sorts of things to get it aligned properly but no success. The car was in a front end collision with the last owner but was fixed back perfectly with no bad gaps as can be seen in the before photo. But the shop says since it was in a front end collision messing with bumpers is always a risk. I’ve been quoted $300 to fix it by a body shop. I paid $250 to get the heat exchanger installed Should I just pay the $300 and get it over with or is there something I’m missing to fix it myself?

Sponsored



freeform911

Well-Known Member
First Name
Steve
Joined
Nov 21, 2020
Threads
14
Messages
849
Reaction score
837
Location
Beaufort South Carolina
Car(s)
2021 a91 edition Supra 2016 Lexus rc f BMW 435I
Pop the hood n look under the rubber seal on the bumper.. you’ll see a few bolts ( think maybe 8mm)..
Loosen a few up and try pushing the top of the bumper forward..

when I replaced my hood with a carbon hood I needed to do a little bit of adjusting..

Steve


razorlab

Well-Known Member
First Name
Bryan / Briana
Joined
Oct 2, 2021
Threads
19
Messages
3,737
Reaction score
7,080
Location
Your moms bedsheets
Car(s)
2020 Supra LE, 2015 GTI, 2018 Alltrack, Your Mom
Is the hood closed all the way? It looks like the hood is off one of the latches. Drop it from like a foot up.


Fuji808

Well-Known Member
Joined
Feb 4, 2022
Threads
2
Messages
77
Reaction score
54
Location
Honolulu
Car(s)
2022 Nocturnal Supra Premium

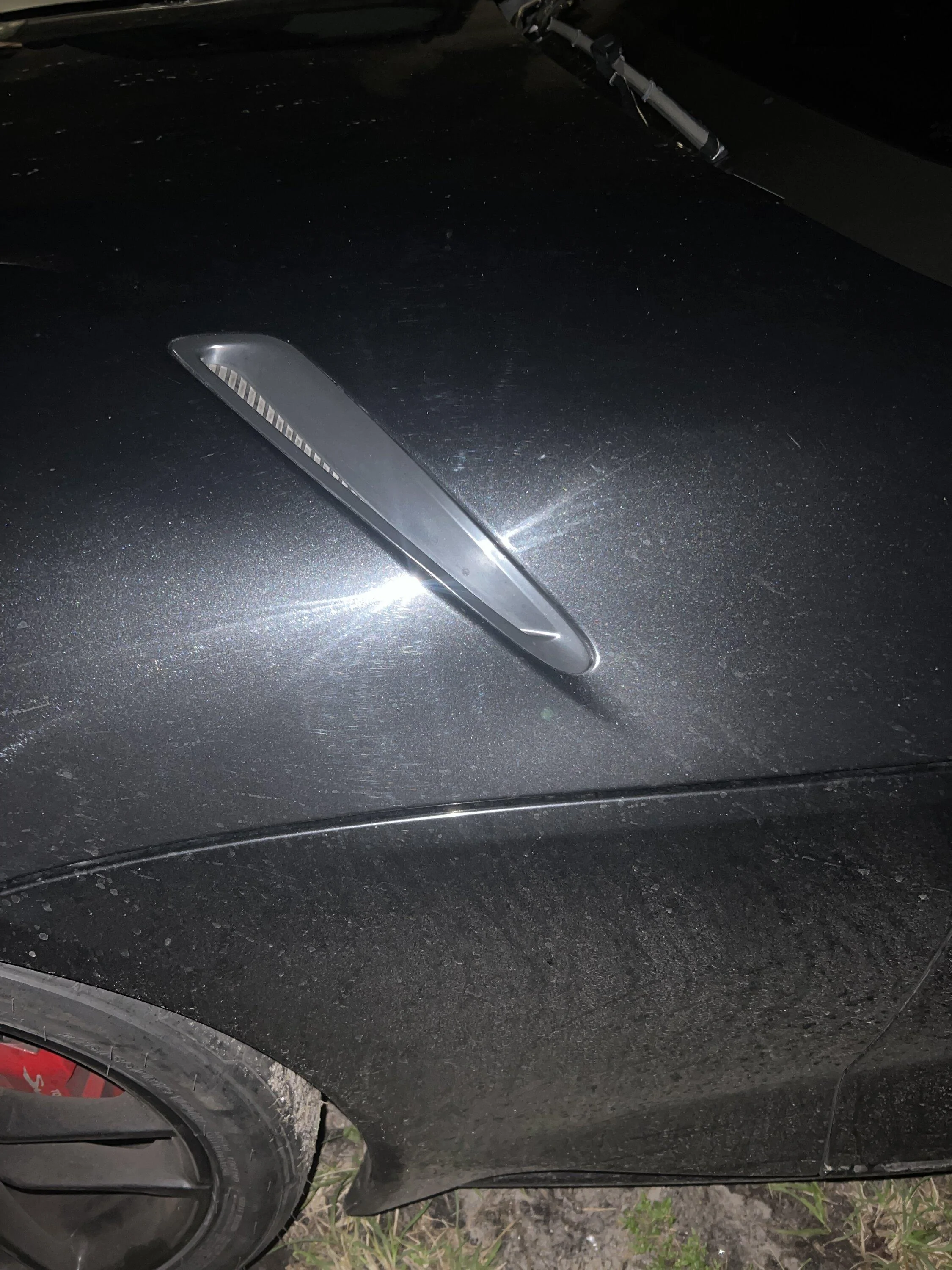

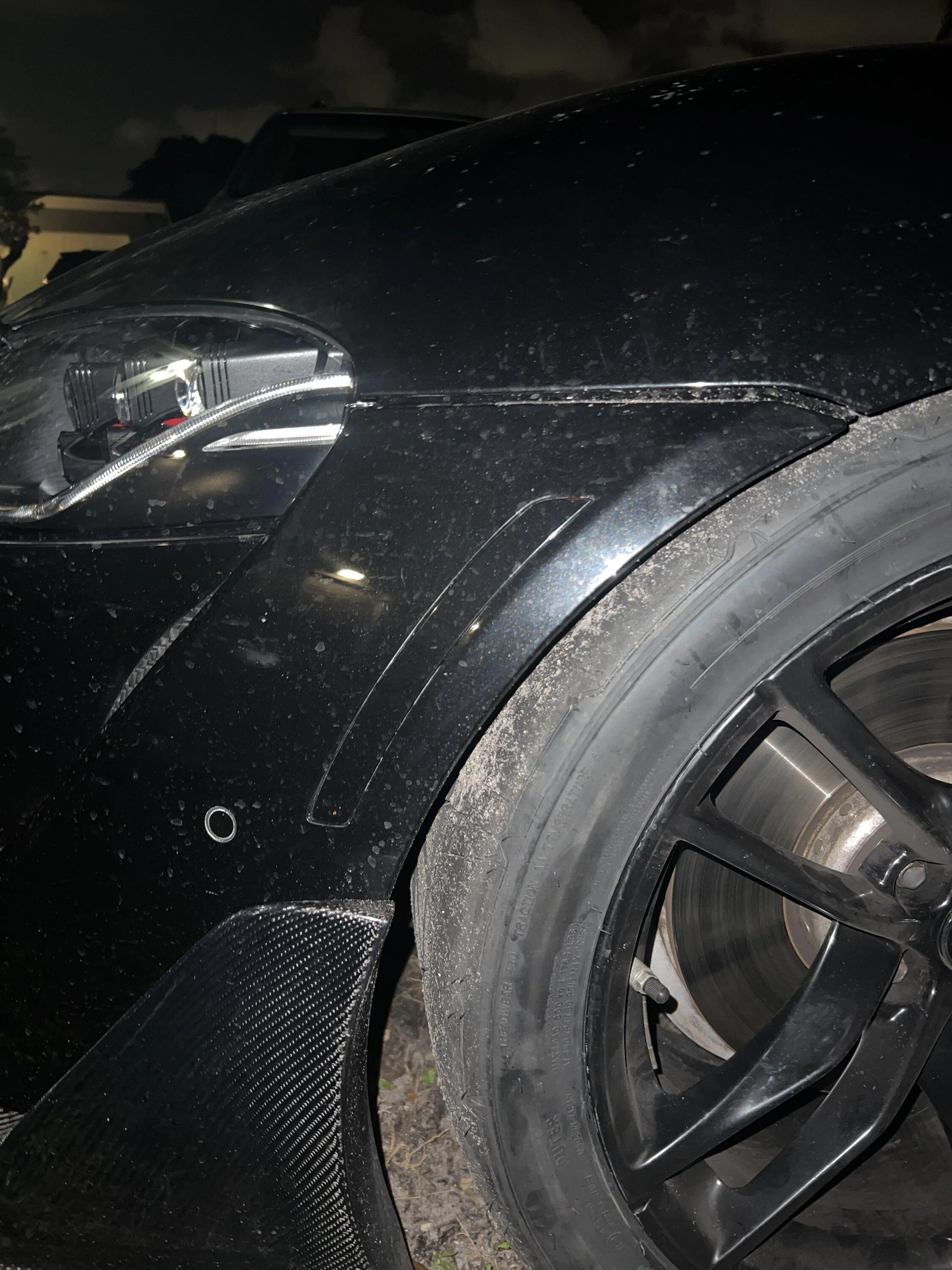

You got a pic of the side bumper/hood gap?

OP
OP
stefastn

stefastn

Member
First Name
James
Joined
Apr 23, 2022
Threads
2
Messages
21
Reaction score
6
Location
FL
Car(s)
****
Is the hood closed all the way? It looks like the hood is off one of the latches. Drop it from like a foot up.

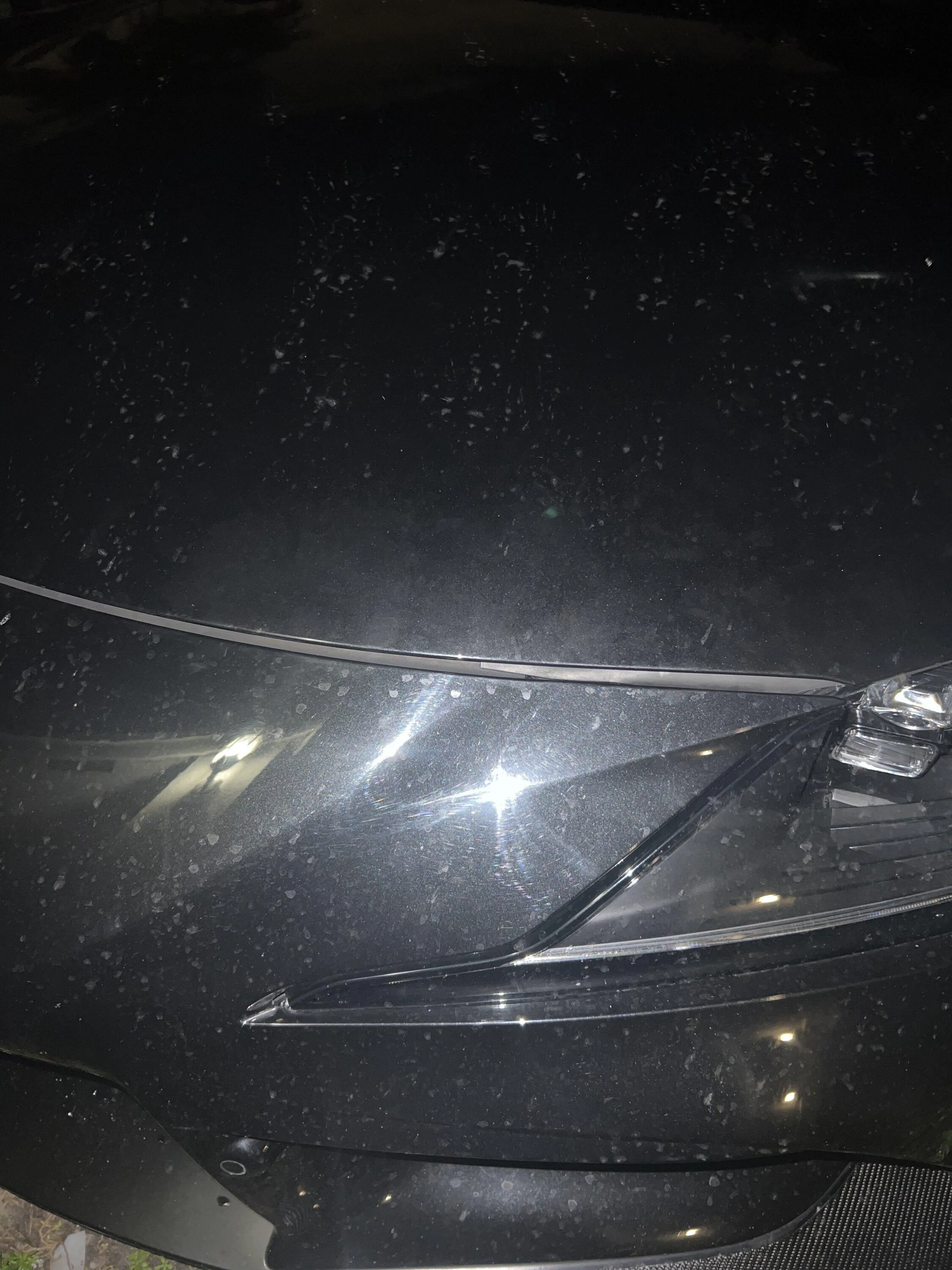

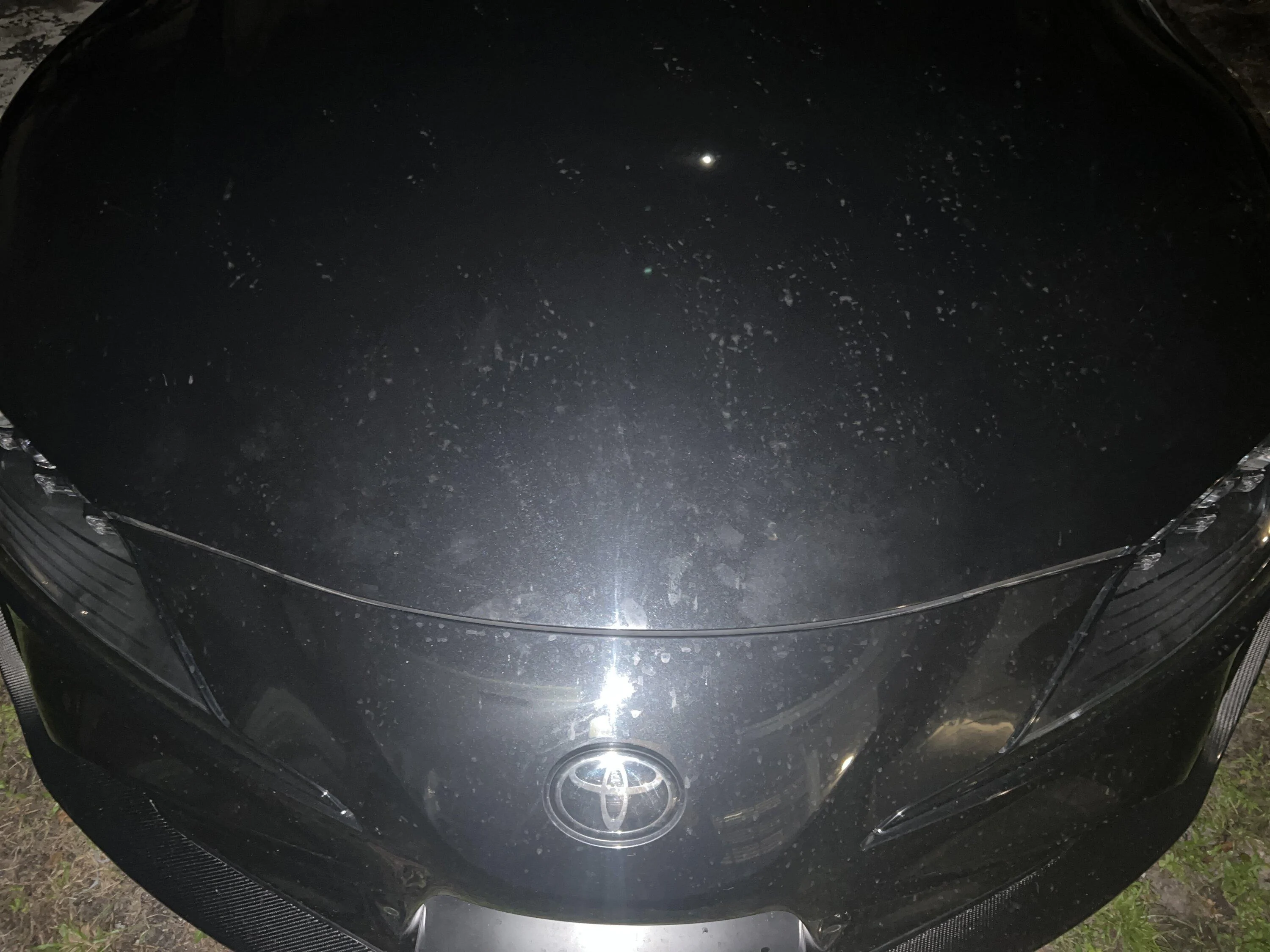

yes it’s closed all the way i’ve tried dropping it and slamming it and the drivers side (bad hood gap side) just isn’t closed down all the way like passenger side (good fitment side)


B58_ hwAyaq

Well-Known Member
Joined
Dec 12, 2021
Threads
21
Messages
612
Reaction score
716
Location
Tampa, FL
Car(s)
2020 Supra, 2023 F150 Tremor
You don’t need to remove the bumper, just loosen bolts and align to your desires.

There’s a weather strip (remove) on the top front with (I believe 6 bolts) and two bolts under the weatherstrips on the side (just lift up).

Loosen bolts, adjust, tighten bolts, close hood, check for alignment…repeat until you’re happy. Replace weather strip, and you’re done. Car can stay on the ground.

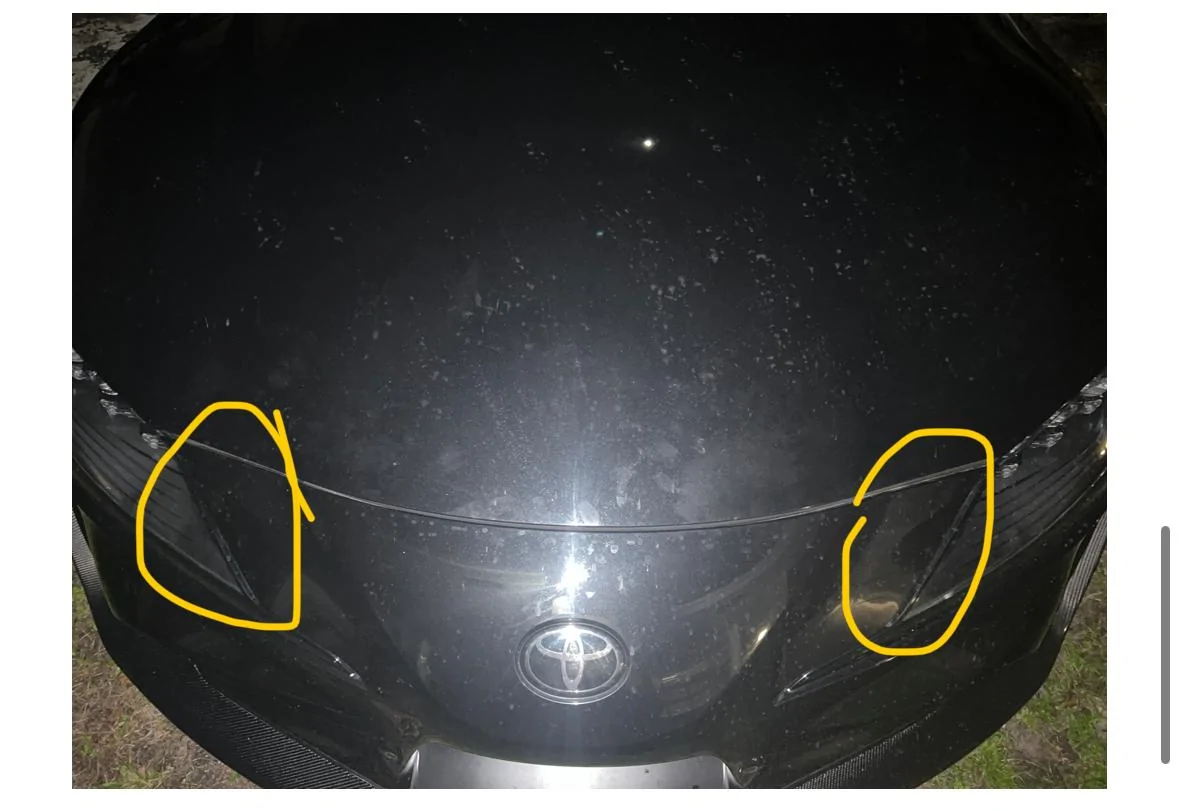

There are Velcro strips under these (circled in yellow) that you will need to pull on firmly to loosen and push firmly to re-seat. It will sound like a command strip “clicking” as you press hard enough.

Spend your $300 elsewhere.




Dannyvandelft

Well-Known Member
First Name
Danny
Joined
Jan 15, 2019
Threads
15
Messages
2,735
Reaction score
3,896
Location
44133
Car(s)
Ordered A91 edition Supra
Instead of the hood, the bumper might need to be adjusted.
