Featured H&R Lowering Spring Review at Streets of Willow Springs Track Event

Discussion in 'Suspension | Chassis | Brakes' started by MMR, Sep 24, 2019.

  1. MMR

    MMR Active Member

    First Name:
    Matt
    Car(s):
    2006 Honda S2000 (Time Attack), 2020 Toyota Supra A90
    Joined:
    Sep 6, 2019
    Location:
    Southern California
    Posts:
    37
    Liked:
    51
    #1 Sep 24, 2019
    Last edited: Sep 25, 2019

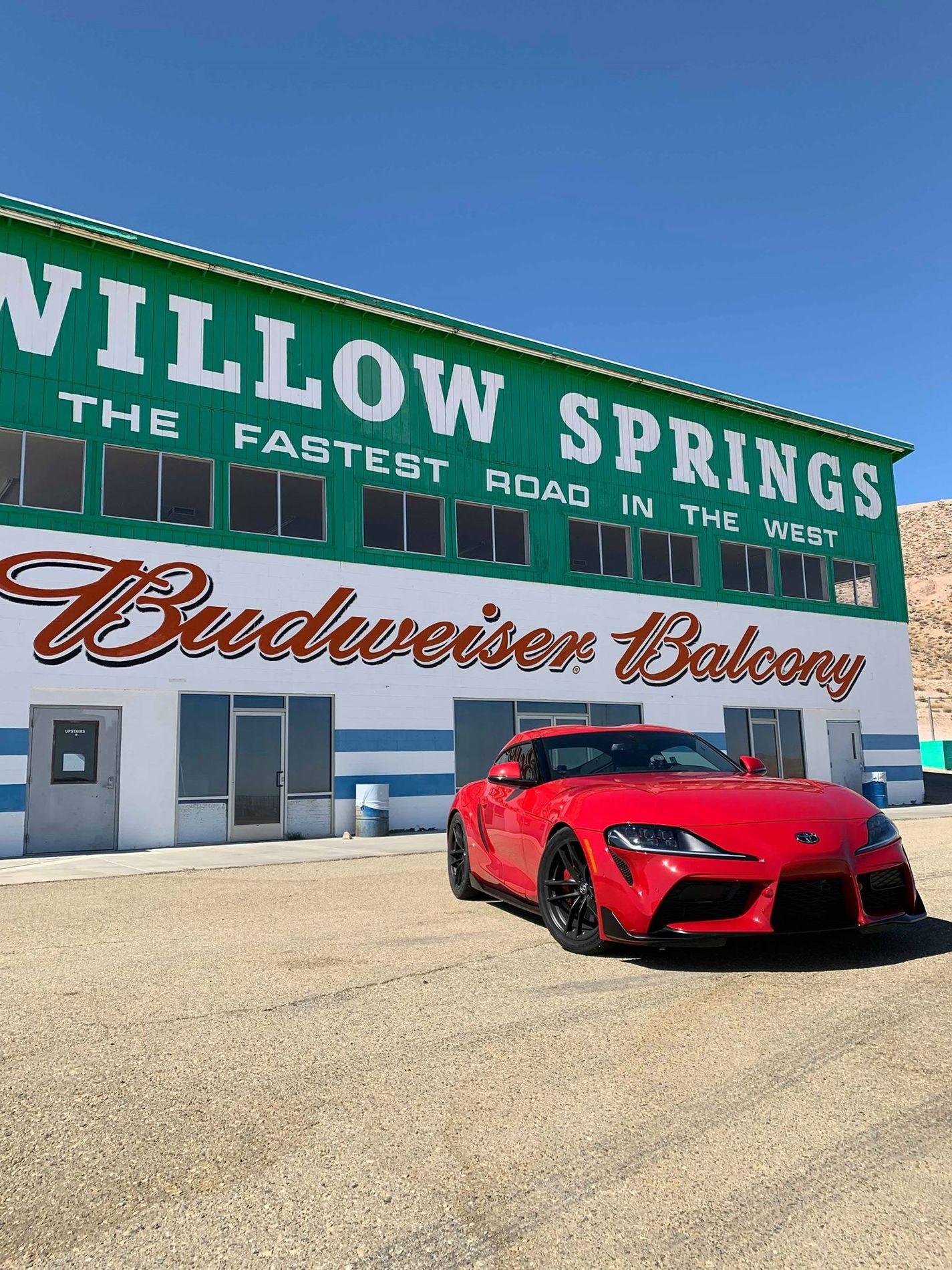

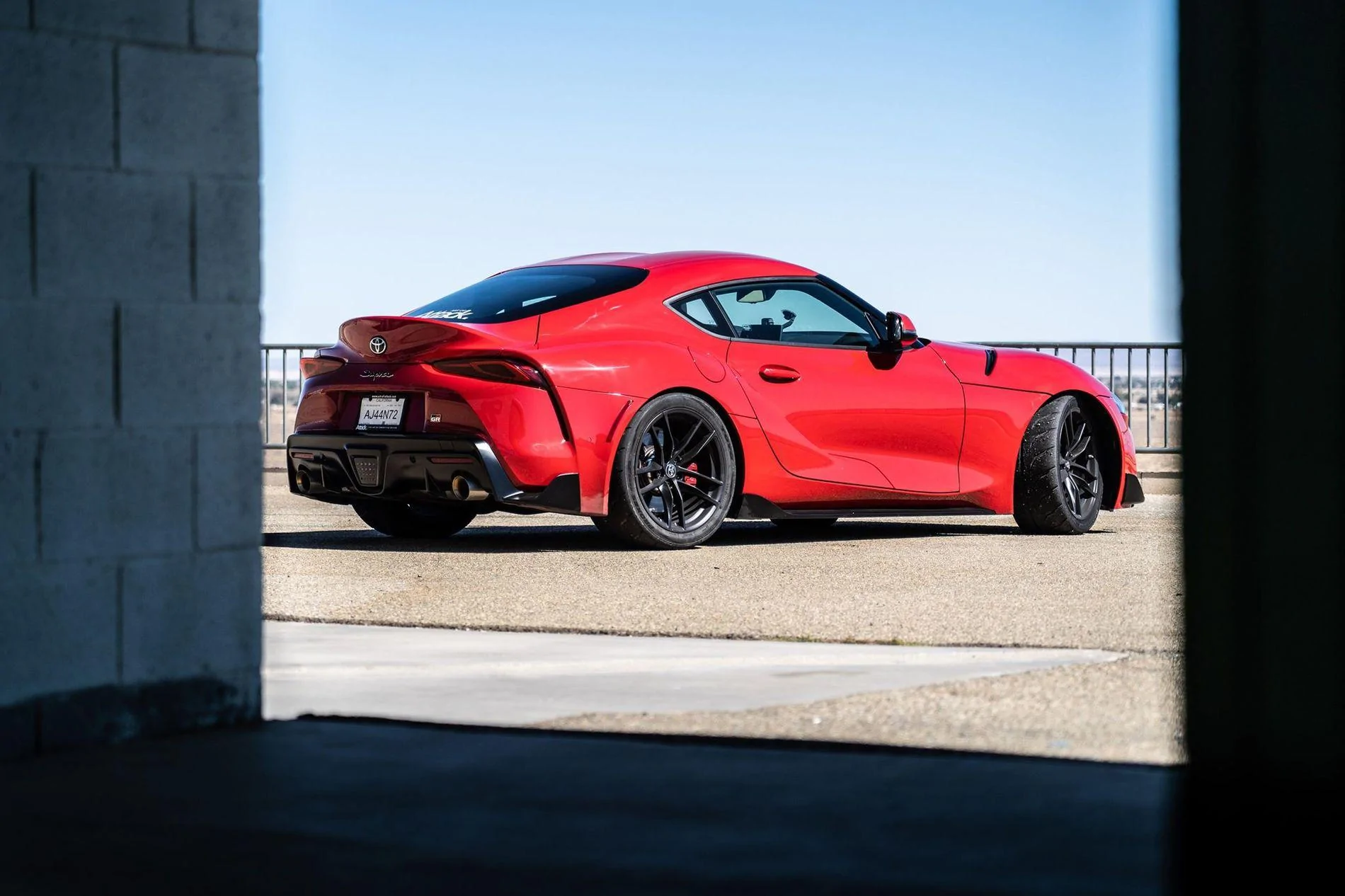

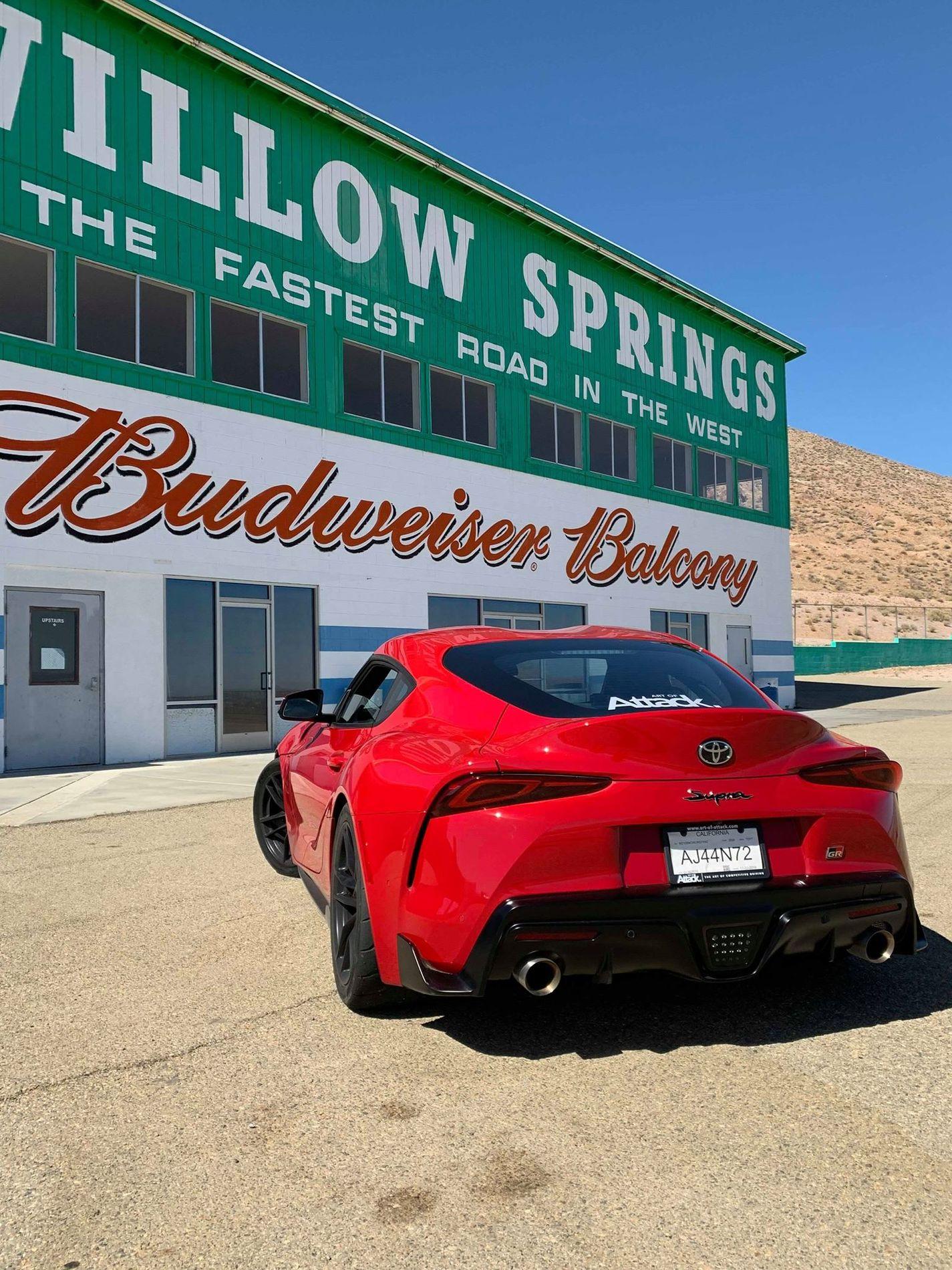

    2020 Toyota Supra Track Day 2

    nc_oc=AQnRwUE5t1iwgpaRziIBD0iaM25CtSdmBSHSmZwARxXCuwU3bWQX0H3qetZtfpePU-g&_nc_ht=scontent-lax3-2.jpg

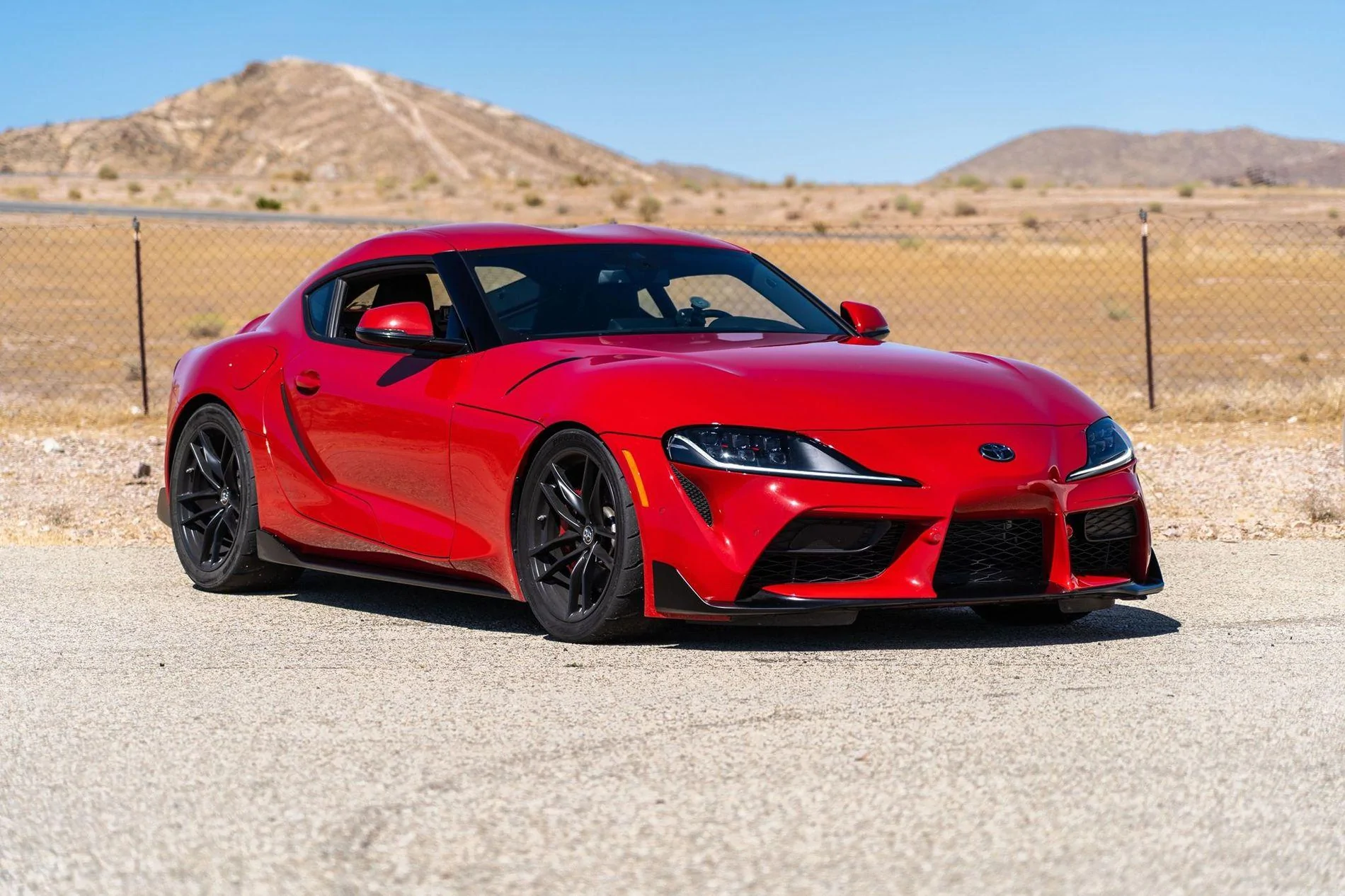

    nc_oc=AQngniJcE0HQqr3WERyhn7Al0k_ymyNkvBhKvczVRzB2iZyoWkyOB-7RVy-AyHEz1Bg&_nc_ht=scontent-lax3-2.jpg
    [​IMG]
    [​IMG]

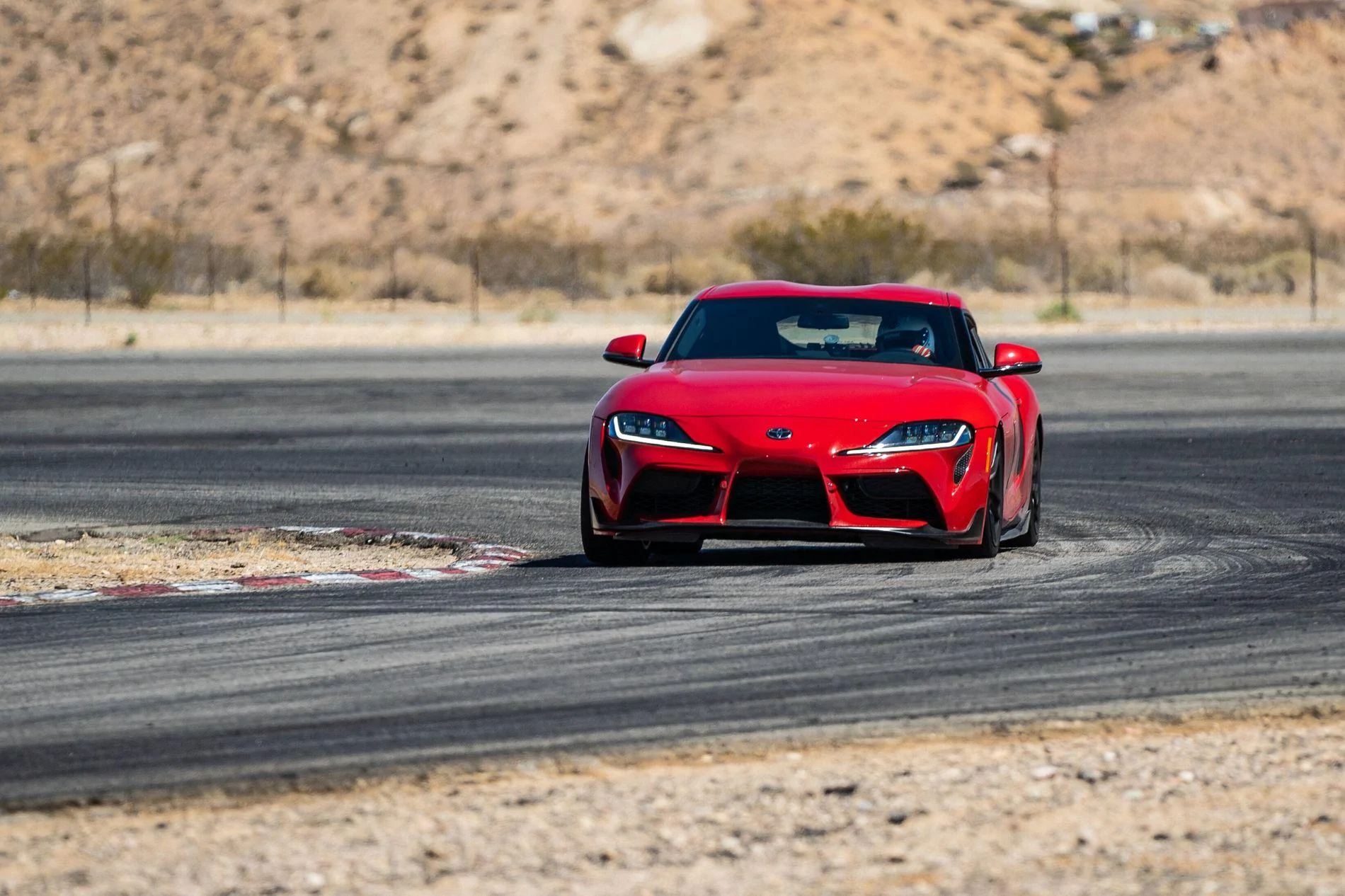

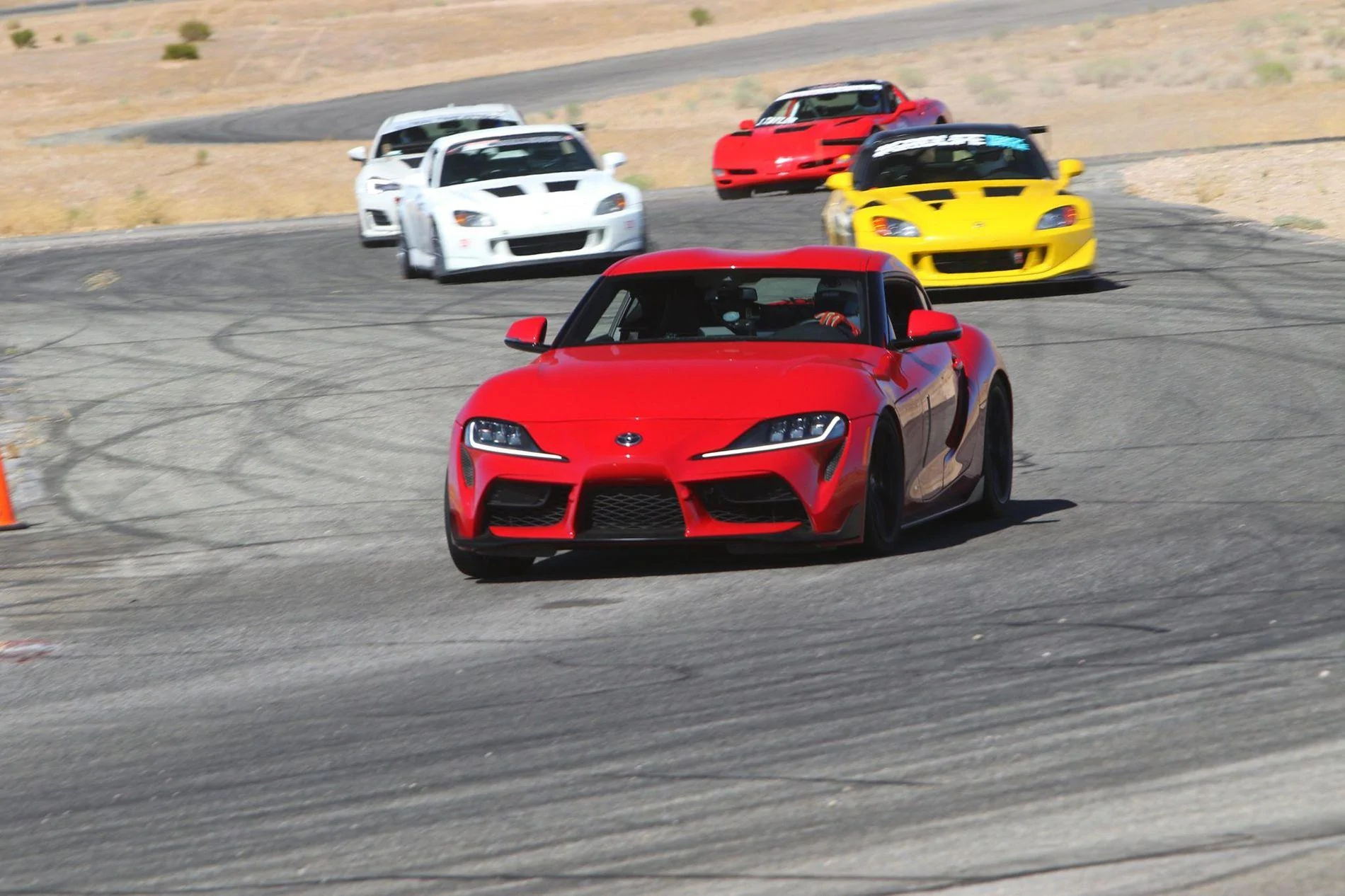

    Streets of Willow Springs - Fastest lap time: 1:25.36
    (Reference time: 1:22.43 in my S2K naturally aspirated with aero)

    Modifications:
    H&R Lowering Springs
    Toyo Proxes R888R 265/35R19 & 295/30R19
    (Stock engine and brakes)

    Streets of Willow is a fairly tight and technical track requiring finesse and smooth applications all around (steering, throttle, brake) to tie together a decently fast lap time. There are a few high speed sections and transitions that will definitely test your courage. The Supra seemed to be a perfect fit for the track as it shares the sharp steering qualities similar to a S2000 (well not quite, keyword similar) and a healthy amount of power even in stock form. We didn't have time to upgrade the pads from stock, but we did install a set of H&R lowering springs as I was general curious as to whether or not lowering springs would actually provide a noticeable improvement in roll, especially in mid to high speed sweeping corners. To my surprise, the H&Rs did a fantastic job both on track and on the public streets/highways.

    On Track Performance:

    A few noticeable improvements the springs gave us were:
    1. Lower ride height (very important)
    2. More camber. Fronts were able to achieve -2.2 to -2.3 deg camber (matched rears), which translated in improved turn in/mid corner grip, as well as better tire wear (as the tire was not rolling over the sidewall nearly as much as it did with -1.8 deg camber).
    3. A notable decrease in body roll. The stock suspension caused the Supra to roll more than ideally, giving a slight "floaty" feeling in high speed sweepers and transitions. While the overall car was still planted thanks to its' great chassis, the softness was definitely not what you'd call confidence inspiring in certain sectors of the track.

    Streetability/Comfort

    I drove the car to and from the track approximately 120 miles each way and can honestly say that the springs did not add much, if any, harshness or discomfort on the road. In comfort mode, both the H&R and factory springs felt nearly identical in my opinion, whereas. Lowering springs are definitely not the end all solution if you are looking to maximize lap times. However for the daily driver or average weekend track day goer who still uses their Supra as a daily driver and wants to maintain the electronic suspension options, the H&R's won't disappoint. The next step for our Supra will be KW V3 (or Clubsport) coilovers with the Electronic Suspension Cancellation kit in a few weeks to come.

    Before leaving this on a note of spring "praise" lol, it is very fair to mention that upgrading the stock brake pads should be at the top of the list when going about track preparation. Brake fade is apparent after a few laps, and progressively worsens as it gets hotter (Especially on the second track day, even with Motul RBF600 fluid). The next pad upgrade will likely be the CSG C2 (Race) pads.



    [​IMG]

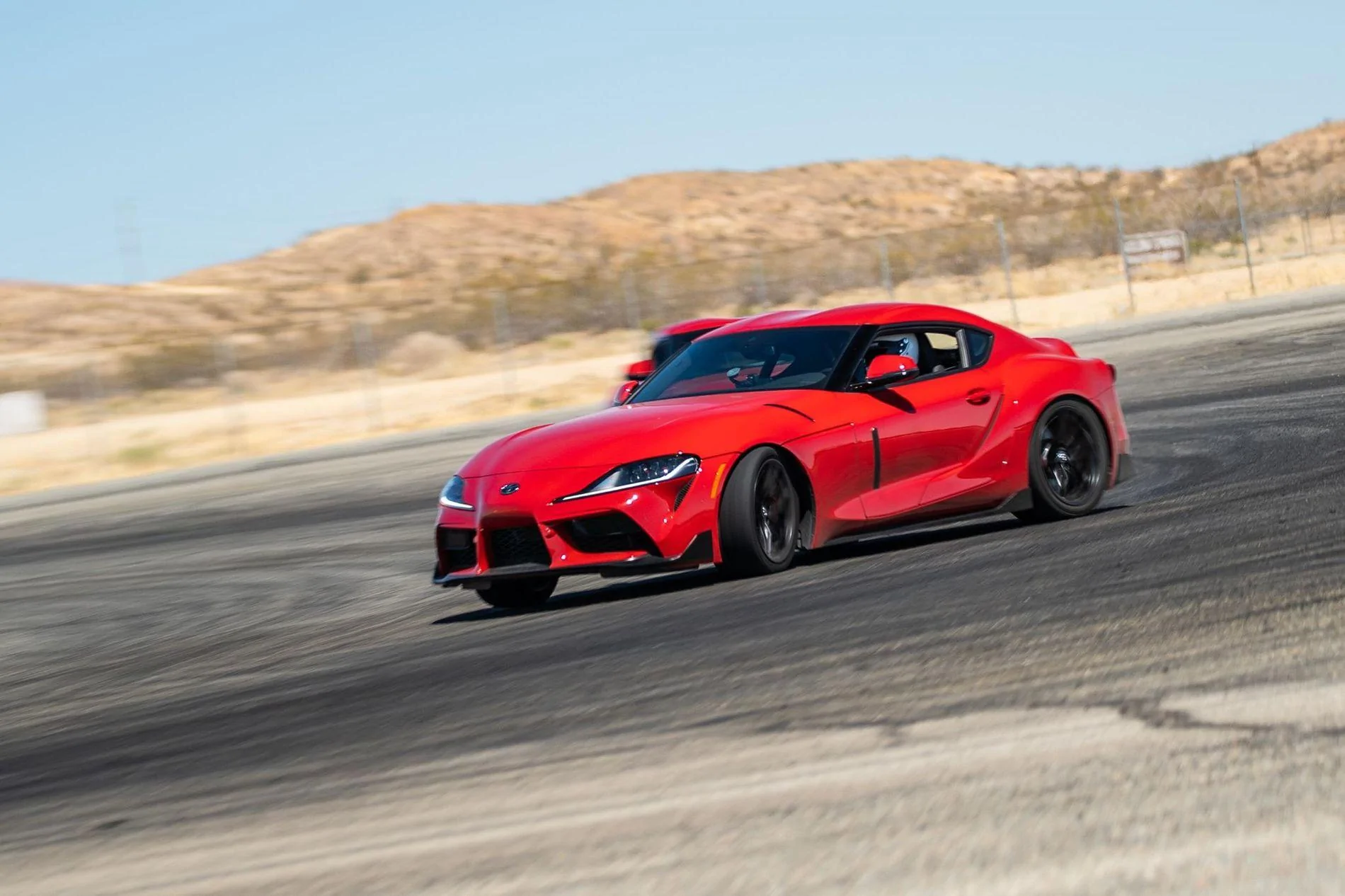

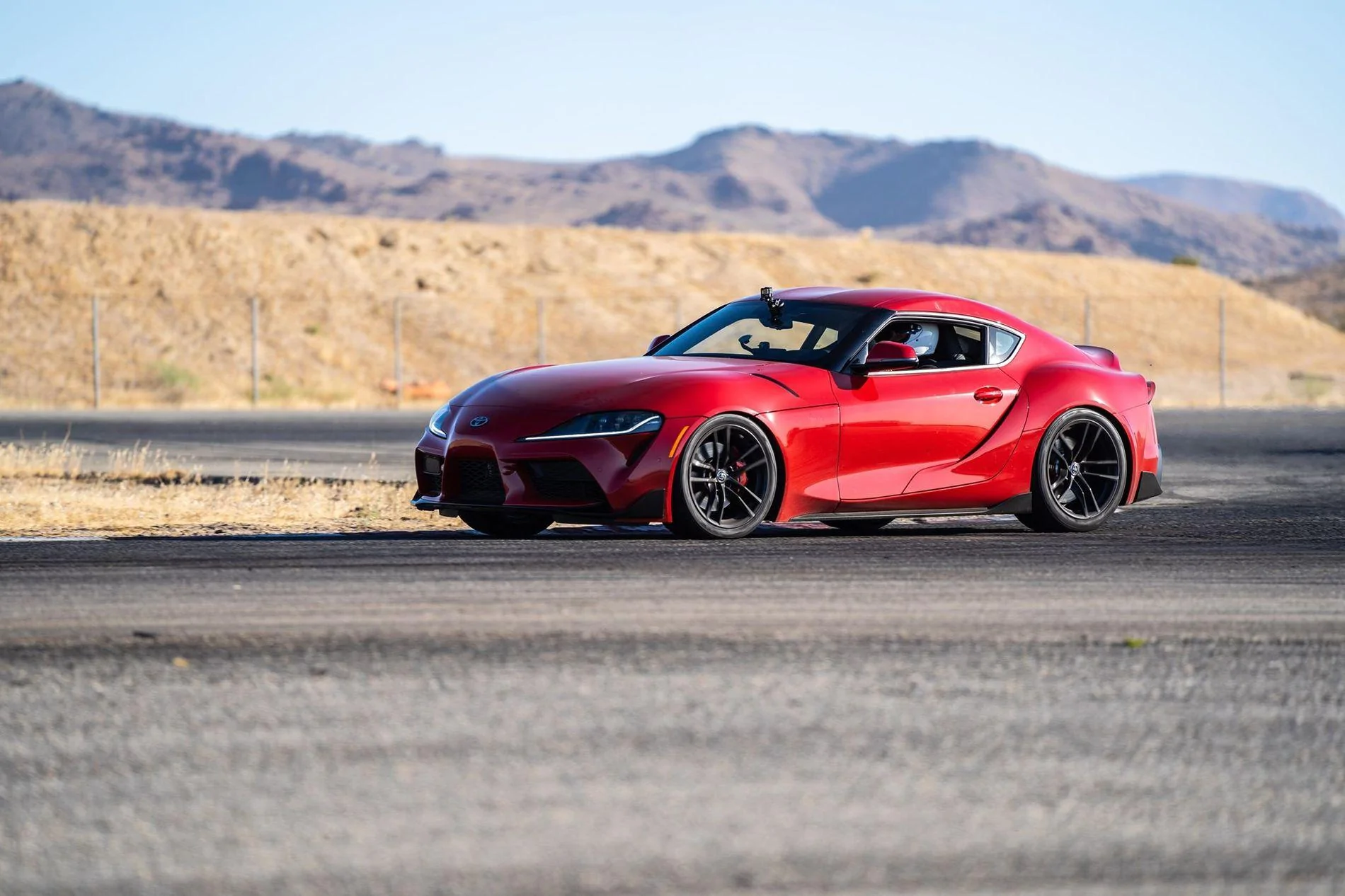

    nc_oc=AQnTV-P-Sk8lssDedQQ_RJBq1IujapiMpY2cZ3j630w5SgY74oKIPVjaC9o8SXOgMv8&_nc_ht=scontent-lax3-2.jpg
    nc_oc=AQmL1_Hkqh3tEzVDKTx2AMcHQAdUxw6EjFKvBlAeGBcC2j1zhHK5Jfd97Yr_Ckk6x14&_nc_ht=scontent-lax3-2.jpg

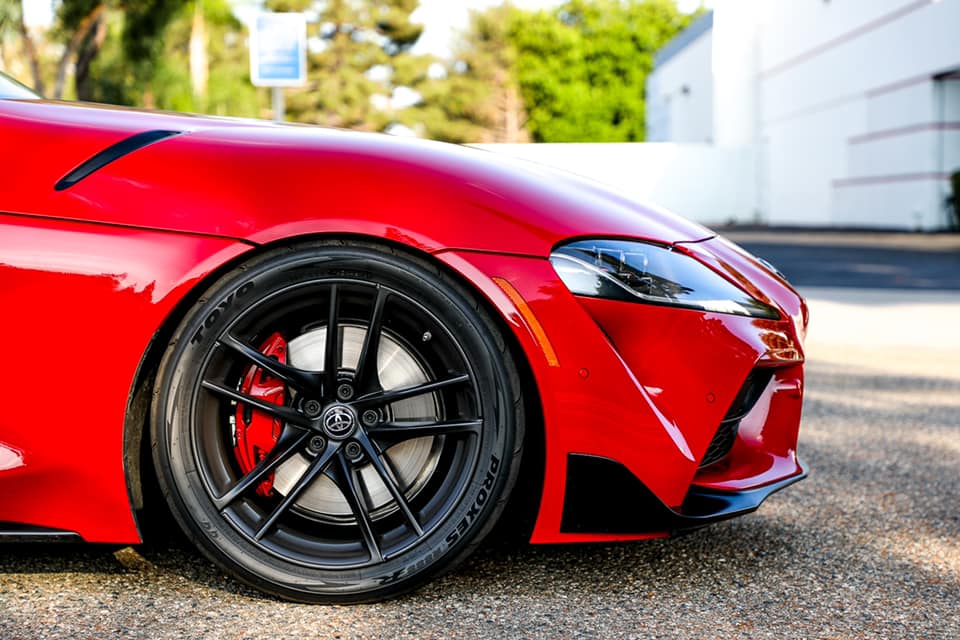

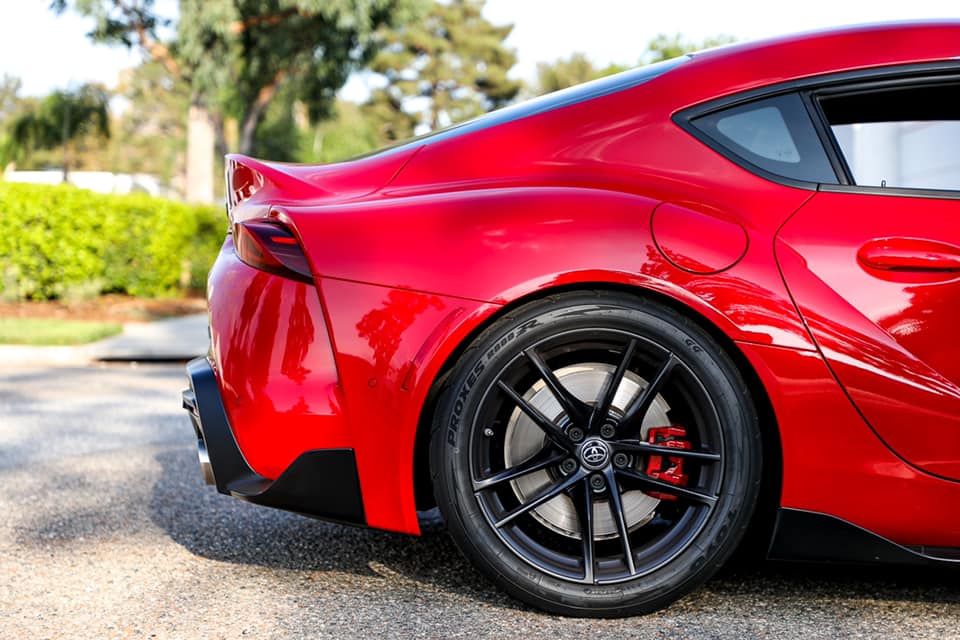

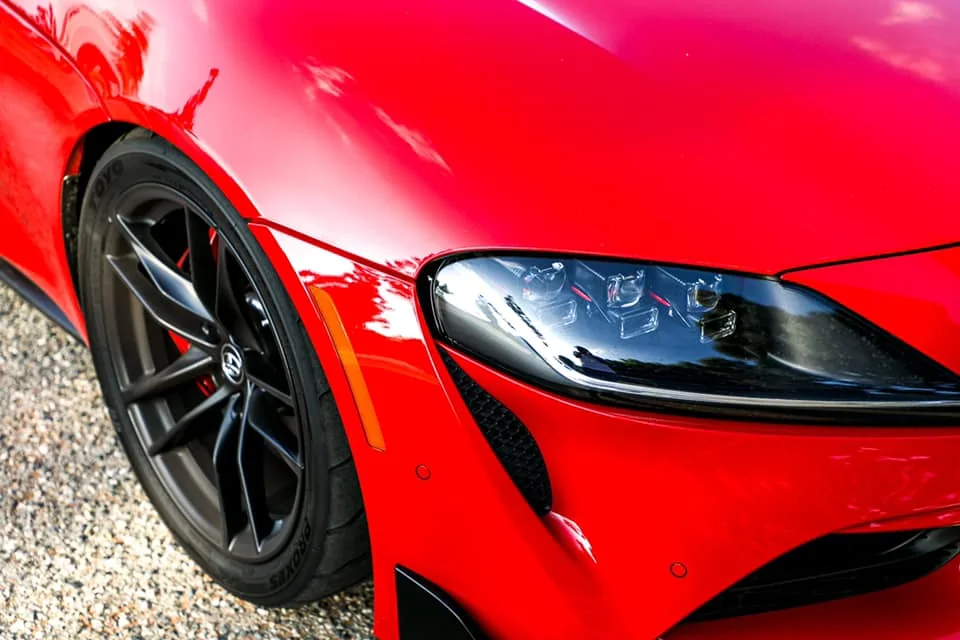

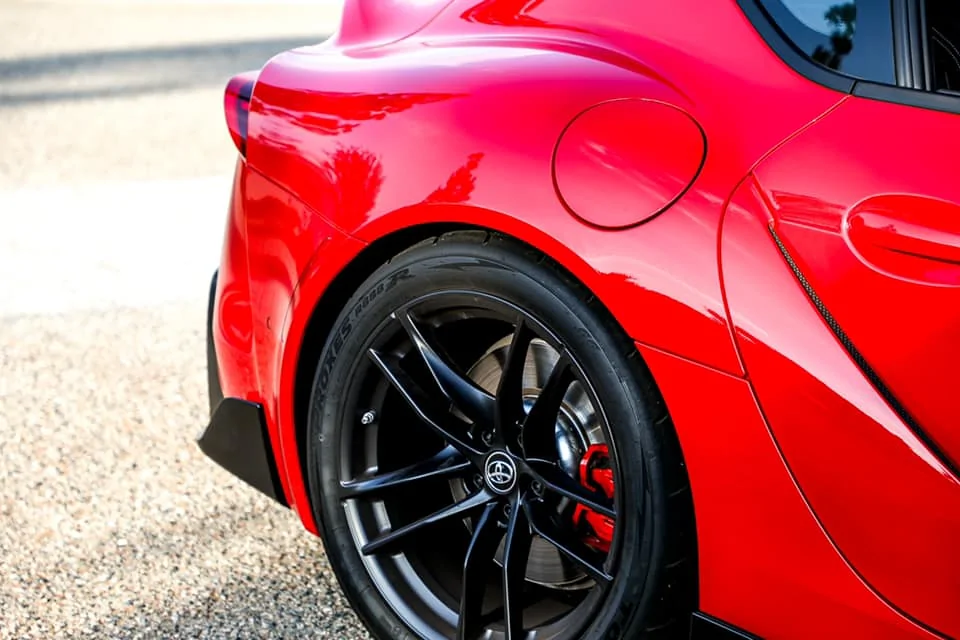

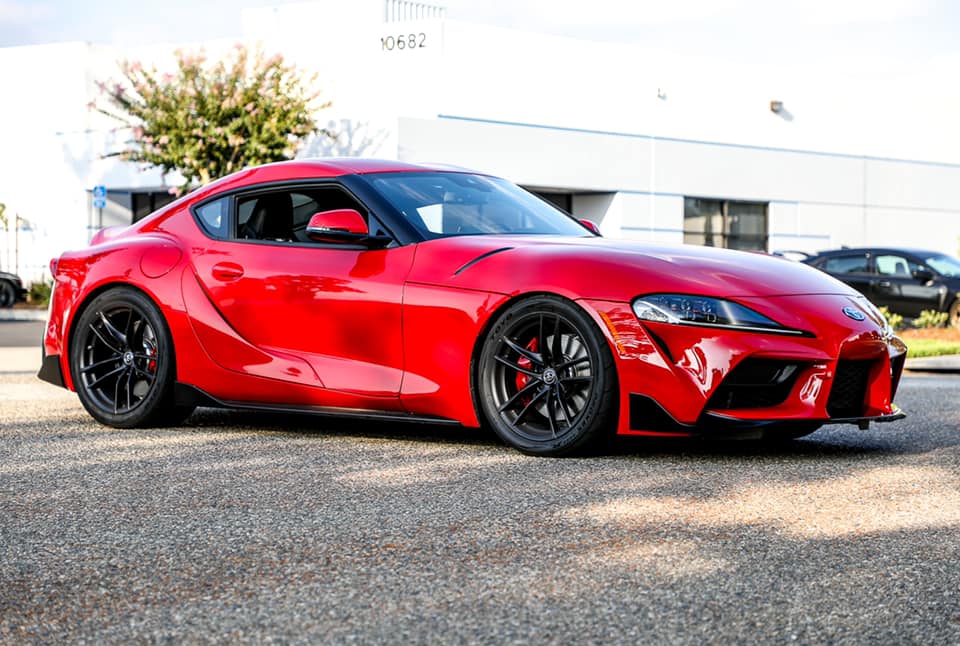

    Post installation Photos:

    c-aqkdhcdqbwfr_jiorpxl5swdlex2wzozc5bi6xn69bg62z25ou3utx2xdjnruqzpwru-_nc_ht-scontent-lax3-1-jpg.jpg
    c-aqnq0m4p6lbkgkqvrsonp5hcz30vxyk7s2dtsjt9bfojiv8oqpcnccolftjxjokcfpi-_nc_ht-scontent-lax3-1-jpg.jpg
    c-aqlle7lti02w-xmyro9te3fp7misqf235l62oycqfs4dhhsyiml90beemgb-nkjwhpw-_nc_ht-scontent-lax3-1-jpg.jpg
    c-aqkqjy6kg3ap5uuzkaakmufxhit9xo9lnx1ti_qmpfka8sqx98-uamhxphtwu-nomdi-_nc_ht-scontent-lax3-1-jpg.jpg
    c-aqllcsk9uw70cnocchinkw1px3gd3ujec9sn0w5jzfqjwhsm_nofzrpsxlkxeimbpxa-_nc_ht-scontent-lax3-1-jpg.jpg
    c-aqnvhoge1garard3plq5rshye-9i2ozidlcm9pn6brd-zn3cwk8-nxj9qmrzsh2ysts-_nc_ht-scontent-lax3-1-jpg.jpg


    Parked and Action Side by Side Comparison photos:


    [​IMG]
    [​IMG]




  2. MA617M

    MA617M Well-Known Member

    Car(s):
    lots
    Joined:
    Aug 27, 2017
    Location:
    Australia
    Posts:
    1,800
    Liked:
    4,328
    Occupation:
    Engineer
    Awesome thank you. I assume no rubbing either?

  3. OP
    OP
    MMR

    MMR Active Member

    First Name:
    Matt
    Car(s):
    2006 Honda S2000 (Time Attack), 2020 Toyota Supra A90
    Joined:
    Sep 6, 2019
    Location:
    Southern California
    Posts:
    37
    Liked:
    51
    No rubbing whatsoever.

    MA617M likes this.
  4. ayau

    ayau Member

    First Name:
    ayau
    Car(s):
    F1 fitty
    Joined:
    Dec 28, 2017
    Location:
    Cornfields
    Posts:
    21
    Liked:
    9
    Any thoughts on why Toyota included such soft springs consider the car’s cornering abilities?

  5. Dannyvandelft

    Dannyvandelft Well-Known Member

    First Name:
    Danny
    Car(s):
    2010 Mazda RX-8 R3 2018 Volkswagen Golf GTI
    Joined:
    Jan 15, 2019
    Location:
    44133
    Posts:
    91
    Liked:
    135
    It's supposed to be a car you can daily. If it was super stiff and jarring you would hate to drive it every day. It's a compromise.

    Bryster likes this.
  6. Dannyvandelft

    Dannyvandelft Well-Known Member

    First Name:
    Danny
    Car(s):
    2010 Mazda RX-8 R3 2018 Volkswagen Golf GTI
    Joined:
    Jan 15, 2019
    Location:
    44133
    Posts:
    91
    Liked:
    135

    Sits perfect. Love it. How was the install? Pretty straightforward?

  7. PerformanceSound

    PerformanceSound Well-Known Member

    Car(s):
    2019 Subaru STI; 2000 4Runner Ltd.
    Joined:
    Aug 18, 2017
    Location:
    Chicago, IL.
    Posts:
    1,256
    Liked:
    2,237
    Garage Profiles:
    2
    Awesome shot!!! :cool::thumbsup:

  8. OP
    OP
    MMR

    MMR Active Member

    First Name:
    Matt
    Car(s):
    2006 Honda S2000 (Time Attack), 2020 Toyota Supra A90
    Joined:
    Sep 6, 2019
    Location:
    Southern California
    Posts:
    37
    Liked:
    51
    Street comfort is my best guess. Although Jackie Ding posted a video when he removed his factory suspension and tested the spring rate and damper on a shock dyno. Some pretty interesting insight with the shock valving and how the rear suspension was engineered with the struts placed further inboard in comparison with the fronts giving requiring a higher spring rate in the rear (3k/9k iirc). I'll post the link so you can check it out, definitely some cool info.



    Install was super straight forward for the most part. If you've installed springs or coilovers before you can install these.

    Thank you, more to come!

  9. OP
    OP
    MMR

    MMR Active Member

    First Name:
    Matt
    Car(s):
    2006 Honda S2000 (Time Attack), 2020 Toyota Supra A90
    Joined:
    Sep 6, 2019
    Location:
    Southern California
    Posts:
    37
    Liked:
    51
    #9 Sep 25, 2019
    Last edited: Sep 25, 2019
    *Updating original post with new photos and info*

    The springs should now be fully "settled in" after 300 miles of street driving and 3 sessions at the track. It may also be helpful to note that there was zero rubbing with the springs installed, and Toyo R888R F: 265/35R19 R: 285/30R19 under the factory fenders.

    [​IMG]

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

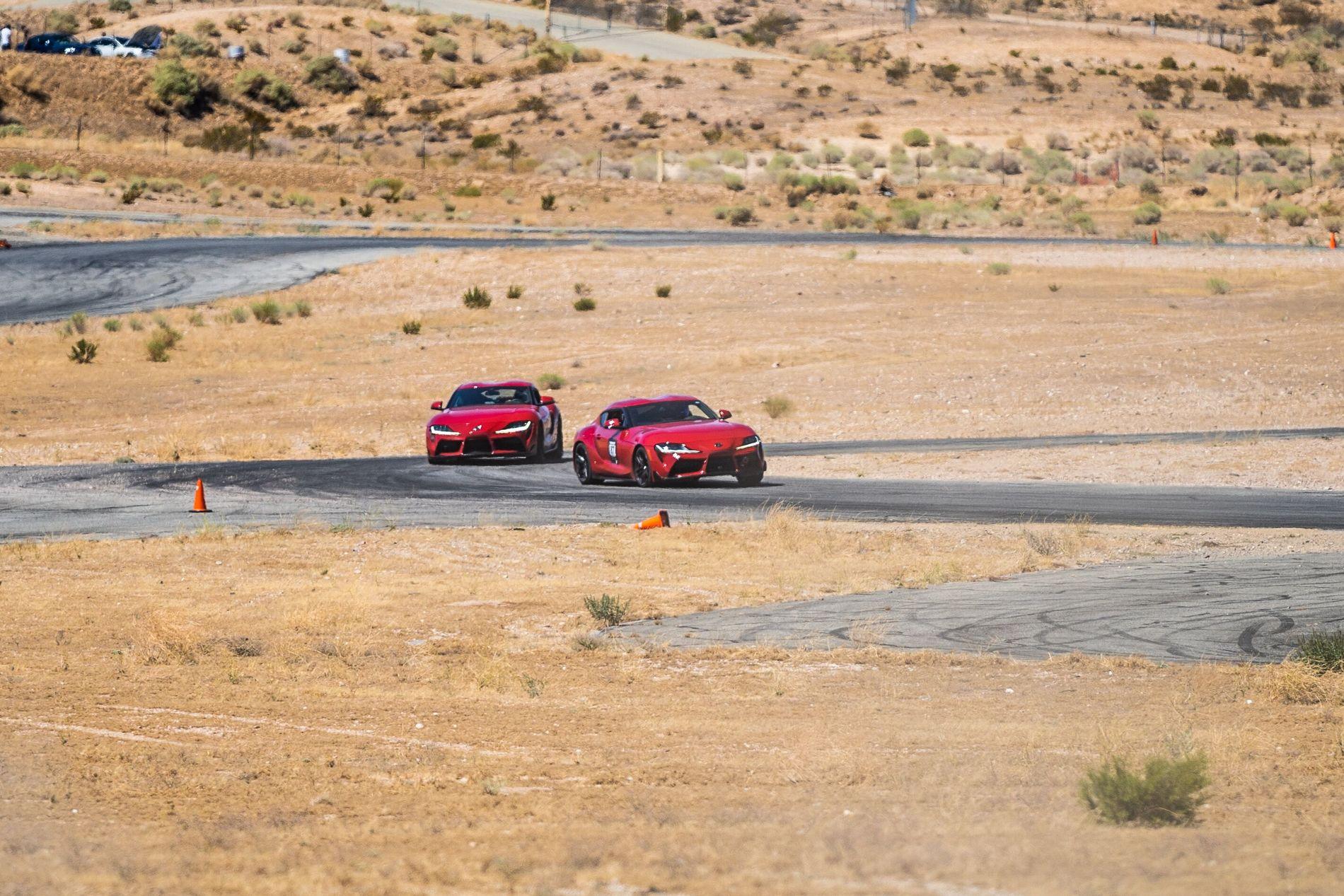

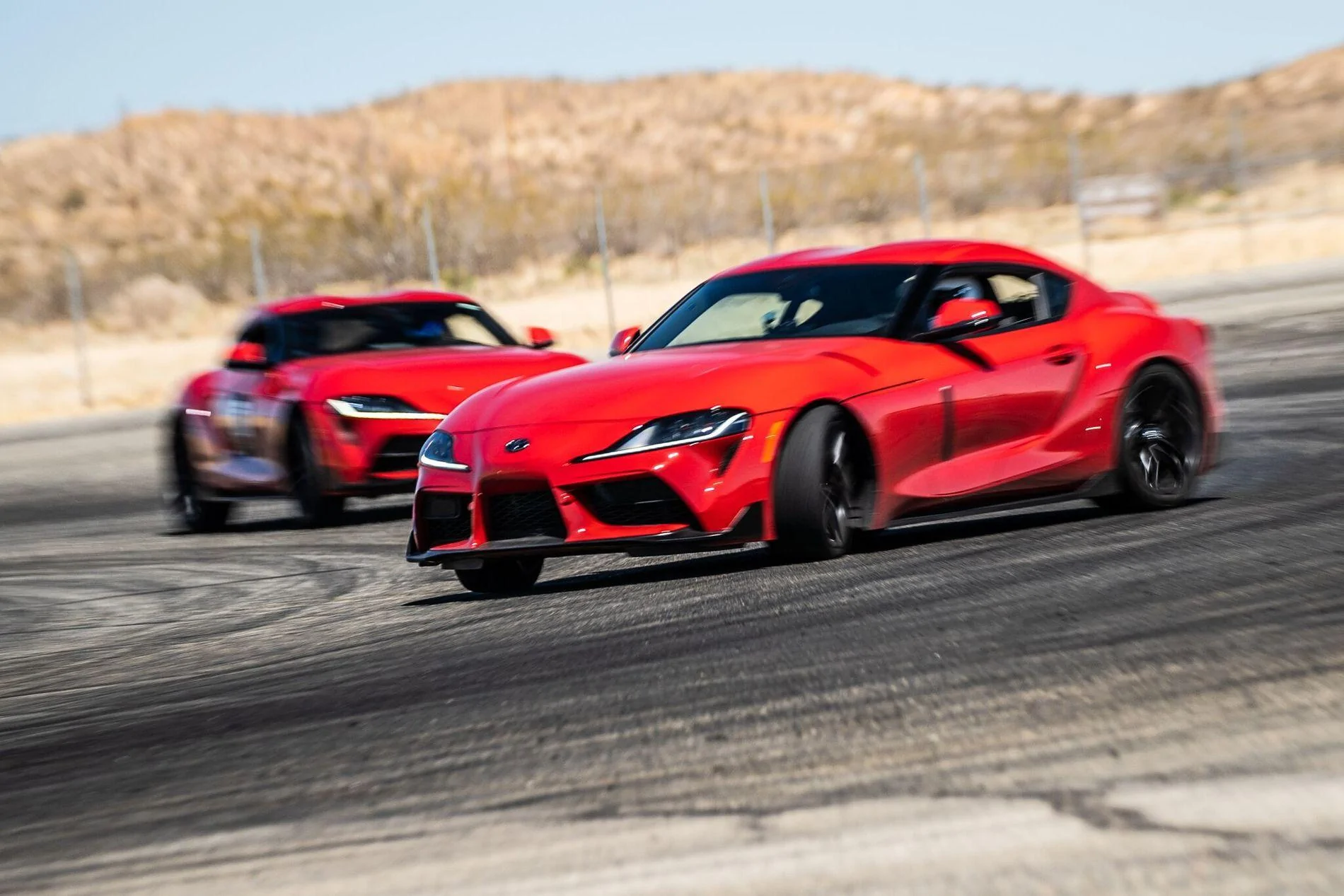

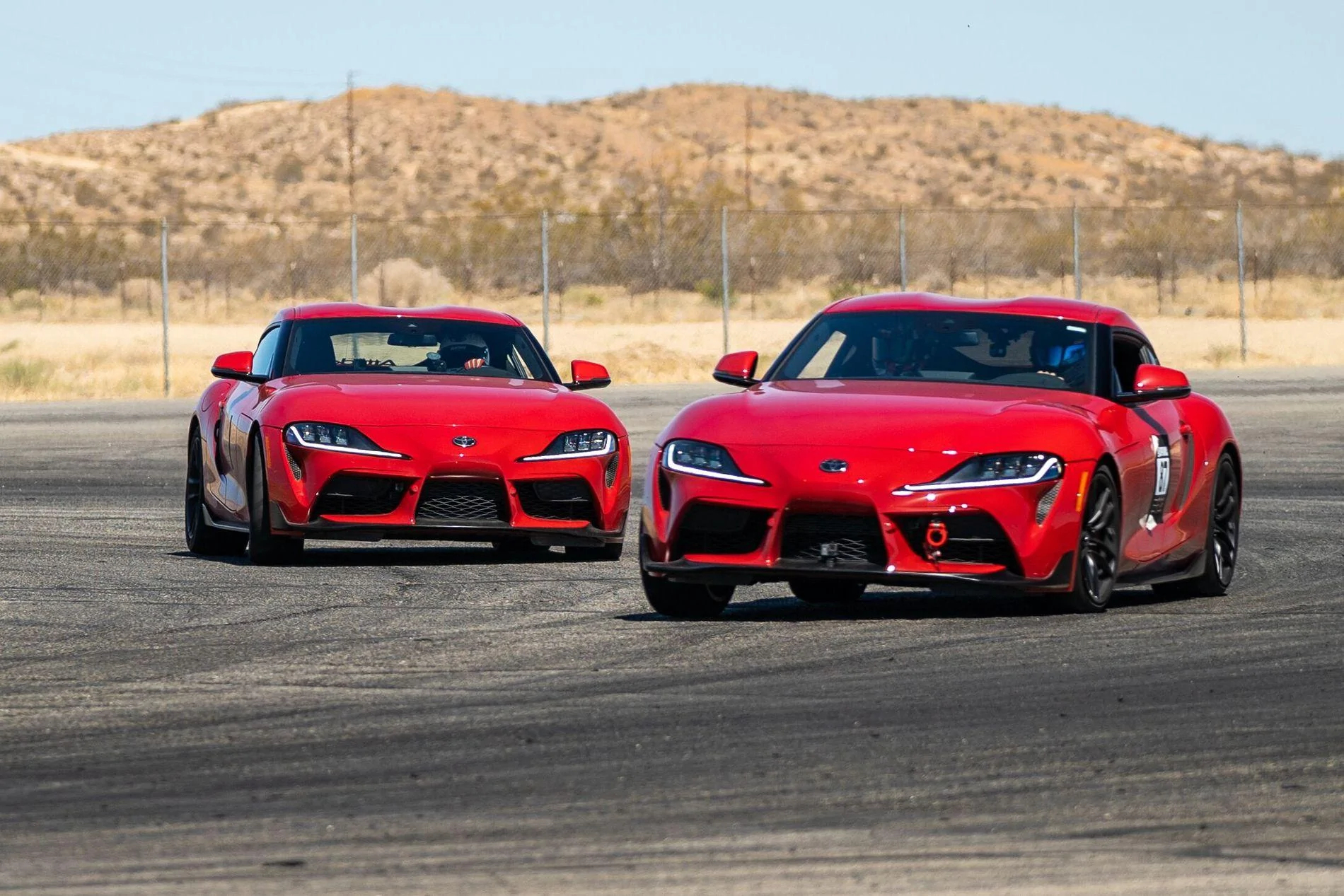

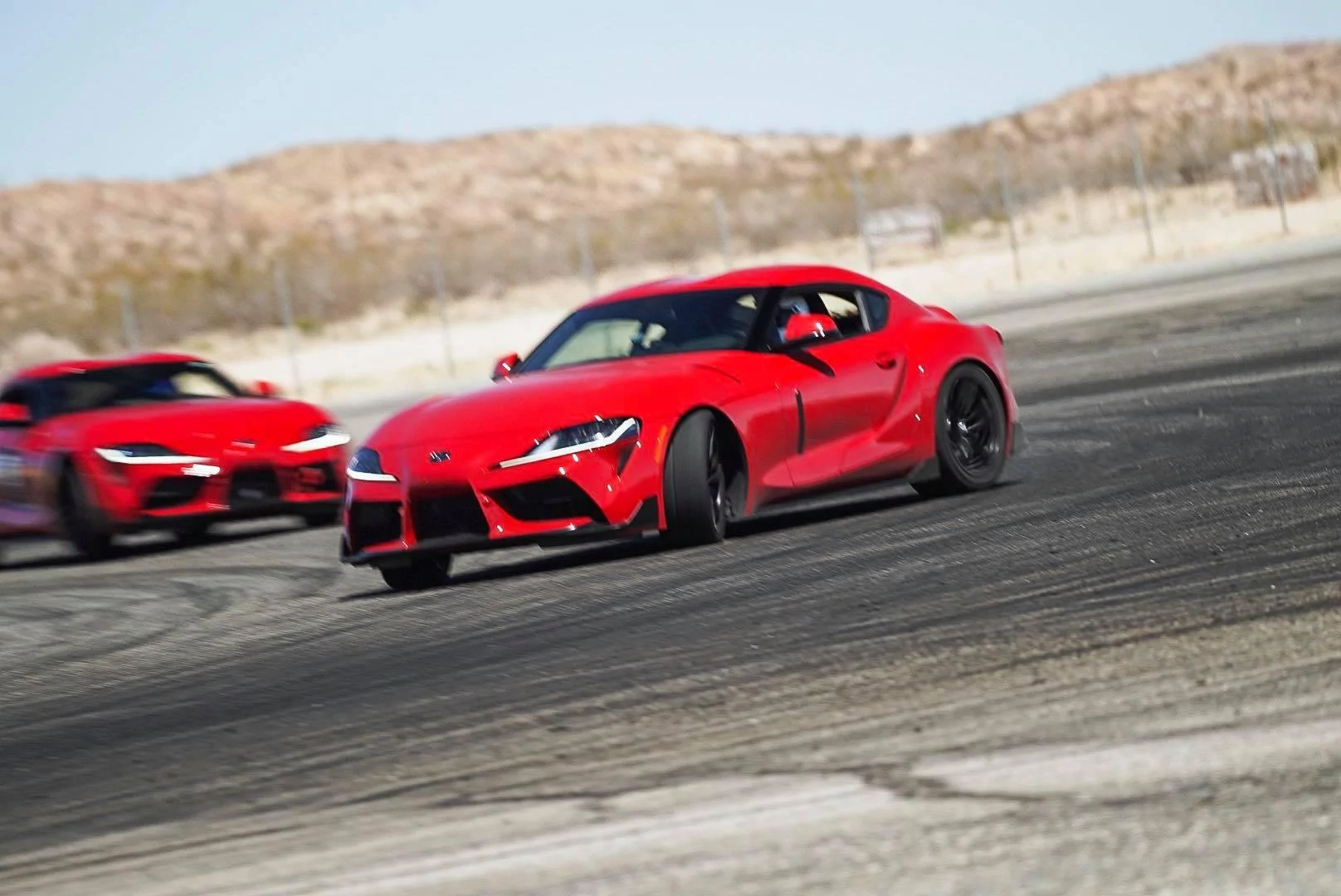

    It was also interesting to see a close comparison between one MKV on springs and one on stock suspension, both in the same corner. Ours (with springs installed) and Jerel's Supra (factory springs)!



    Guff likes this.
  10. Thatguyw_stat

    Thatguyw_stat Active Member

    First Name:
    Bryan
    Car(s):
    GR Supra 650whp, GTR 1500whp, BMW X5 F15 Daily
    Joined:
    Aug 18, 2019
    Location:
    New Jersey
    Posts:
    36
    Liked:
    10
    Occupation:
    Transportation
    Garage Profiles:
    1
    Planted, and gorgeous.. I’ve got a stock pile of parts waiting for my car to come back from final tuning...

    PerformanceSound likes this.
  11. Gearbangin

    Gearbangin Well-Known Member

    First Name:
    Larry
    Car(s):
    2020 Supra 175/1500 2007 TRD Edition FJ Cruiser/Lifted/Murdered out 2016 NT 200T F Sport 2019 RCF Anniversary Edition Matte Nebula Gray
    Joined:
    Jan 18, 2019
    Location:
    Pittsburgh
    Posts:
    124
    Liked:
    189
    How’d the lap times compare stock car vs springs and upgraded rubber?

  12. OP
    OP
    MMR

    MMR Active Member

    First Name:
    Matt
    Car(s):
    2006 Honda S2000 (Time Attack), 2020 Toyota Supra A90
    Joined:
    Sep 6, 2019
    Location:
    Southern California
    Posts:
    37
    Liked:
    51
    Nice.. what do you have on the way?

  13. OP
    OP
    MMR

    MMR Active Member

    First Name:
    Matt
    Car(s):
    2006 Honda S2000 (Time Attack), 2020 Toyota Supra A90
    Joined:
    Sep 6, 2019
    Location:
    Southern California
    Posts:
    37
    Liked:
    51
    That was my first visit to there in the Supra, but I've frequented that track about 30-40 times in my S2K. The prior week I drove it at a different track on stock suspension (same rubber), and I would estimate 1-1.5 seconds with both.

  14. Thatguyw_stat

    Thatguyw_stat Active Member

    First Name:
    Bryan
    Car(s):
    GR Supra 650whp, GTR 1500whp, BMW X5 F15 Daily
    Joined:
    Aug 18, 2019
    Location:
    New Jersey
    Posts:
    36
    Liked:
    10
    Occupation:
    Transportation
    Garage Profiles:
    1
    What is already here lol.
    R888R (rear only )
    H&R Springs
    Wheel Studs and lug nuts
    ECS Spacers

    waiting for LabWorx to finish tuning the car.. I went with the pure upgrade and some water meth. Debating front tires still since I won’t make any track days before it gets cold so I can wait for those. I might make a drag strip Visit and see what it can do

    Powaup and MMR like this.
  15. Powaup

    Powaup Well-Known Member

    First Name:
    Clyde
    Car(s):
    BMW M235i
    Joined:
    Jan 21, 2019
    Location:
    San Francisco, CA
    Posts:
    56
    Liked:
    35
    That fitment... perfection
