Help! JB4 is stuck in the OBD port

Benjilis

Well-Known Member
First Name
Ben
Joined
Feb 1, 2021
Threads
64
Messages
661
Reaction score
449
Location
St. Louis
Car(s)
Supra MKV, VW CC R-Line
I’ve tried using a lot of force with my hand to pull the JB4 connector out of the OBD port but don’t want to risk breaking either connectors.
has anyone had this issue and know how I can safely remove it?
Sponsored



Sigg

Well-Known Member
First Name
Dee
Joined
Jan 31, 2021
Threads
10
Messages
320
Reaction score
321
Location
MINNESOTA
Car(s)
2021 Mk5,Supra 2018 KTM SuperDuke, 21 sienna plat
Theyre a little sticky especially new, I just try to get a good purchase on the jb4 plug in and try to hold the obd port from moving, it should come out tho.


puzzled

Well-Known Member
First Name
Calvin
Joined
Jun 4, 2020
Threads
0
Messages
1,813
Reaction score
2,323
Location
USA
Car(s)
2020 Supra Premium; VA STI; MK7 GOLF-R; etc..

2Cool

Well-Known Member
First Name
Ian
Joined
Sep 8, 2020
Threads
6
Messages
112
Reaction score
113
Location
Pittsburgh, PA
Car(s)
2021 GR Supra Premium 3.0

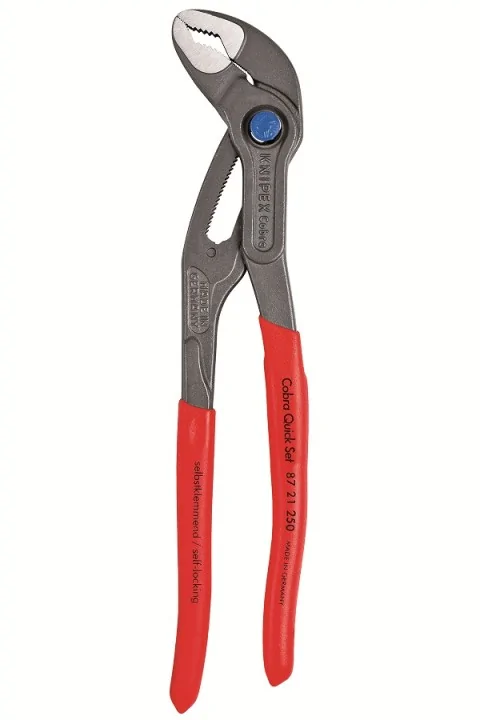

Yes, it does stick and I couldn't pull it off by hand. So I use a set of Knipex pliers to "gently" pull it off. Doesn't hurt anything if you don't try and crush it.


Attachments

XtremeMaC

Well-Known Member
Joined
Aug 8, 2018
Threads
41
Messages
2,958
Reaction score
3,207
Location
_________ SE Michigan, USA
Car(s)
2020 Supra
If it's stuck you need to call on step jb4.


Lil Grey Supra

Well-Known Member
First Name
Michael
Joined
Aug 31, 2020
Threads
2
Messages
47
Reaction score
45
Location
Missouri
Car(s)
94 Camaro - 427ci LSX turbo'd, 2016 RAM 2500, 2021 GR Supra 3.0 Prem
It isn't stuck and you should stop trying to force it. There is a clip that faces the inside of the car that needs to be pressed towards the outside of the car in order to remove it. I use a medium sized flat head screw drive to push it is so it can be removed.
