Help me identify this part number
- Thread starter Torquem
- Start date
XtremeMaC
Well-Known Member
- First Name
- MaC
- Joined
- Aug 8, 2018
- Posts
- 1,071
- Reaction score
- 957
- Location
- _________ SE Michigan, USA
- Car(s)
- 2013 GT86 _____2020 Supra
supraboi
Well-Known Member

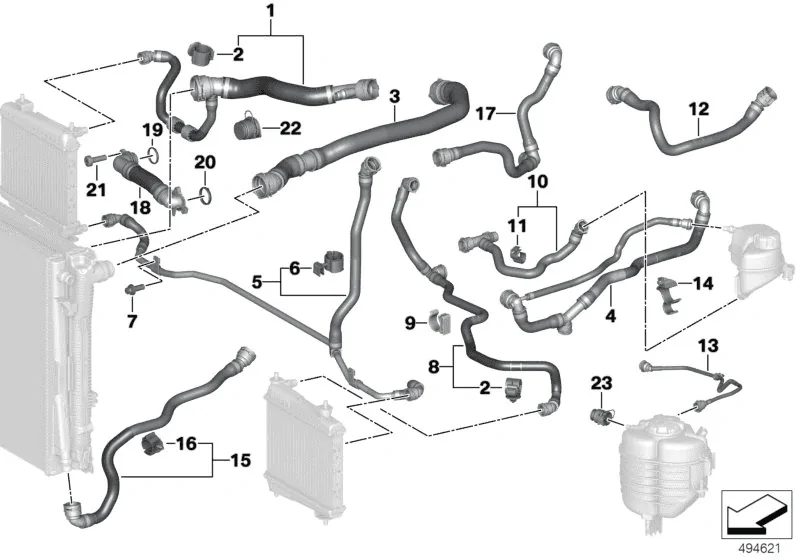

Have you tired using realoem?
https://www.supramkv.com/threads/a90-supra-engines-and-parts-diagrams-all-revealed.1404/
https://www.supramkv.com/threads/a90-supra-engines-and-parts-diagrams-all-revealed.1404/
Here you go! Just ordered these a month ago.
-Exhaust Hangar, Rear, 17565WAA03 $20.97
-Exhaust Hangar Bracket, Rear, 90118WA547 $35.89
The first is the rubber piece, the second is the metal bracket that bolts into the chassis. These are the ones that go into the muffler section. If you need the midpipe hangar, those #s are:
- Exhaust Hangar Bracket, Mid 17572WAA01 $36.43
- Exhaust Hangar Bracket Support, Mid 17571WAA01 $36.43
- Exhaust Hangar, Mid 17565WAA01 $21.49
Also, if you need the nuts that all of the exhaust hangar brackets use:
- Nut, 90118-WA063
-Exhaust Hangar, Rear, 17565WAA03 $20.97
-Exhaust Hangar Bracket, Rear, 90118WA547 $35.89
The first is the rubber piece, the second is the metal bracket that bolts into the chassis. These are the ones that go into the muffler section. If you need the midpipe hangar, those #s are:
- Exhaust Hangar Bracket, Mid 17572WAA01 $36.43
- Exhaust Hangar Bracket Support, Mid 17571WAA01 $36.43
- Exhaust Hangar, Mid 17565WAA01 $21.49
Also, if you need the nuts that all of the exhaust hangar brackets use:
- Nut, 90118-WA063
1slow_mk5
Member

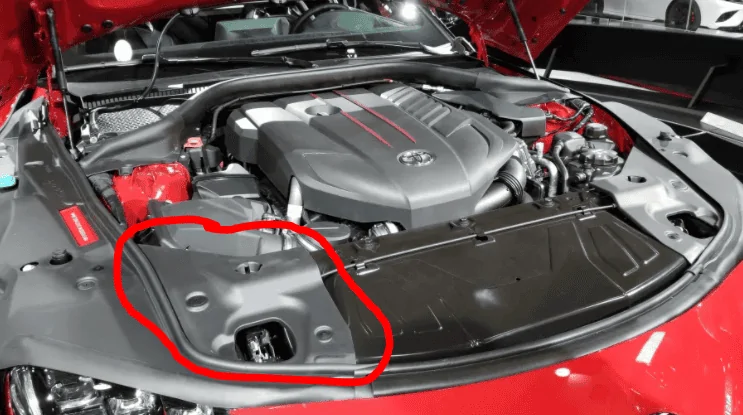

ah I see, so its one huge piece? not just that arear around the latch?
1slow_mk5
Member
XtremeMaC
Well-Known Member
- First Name
- MaC
- Joined
- Aug 8, 2018
- Posts
- 1,071
- Reaction score
- 957
- Location
- _________ SE Michigan, USA
- Car(s)
- 2013 GT86 _____2020 Supra

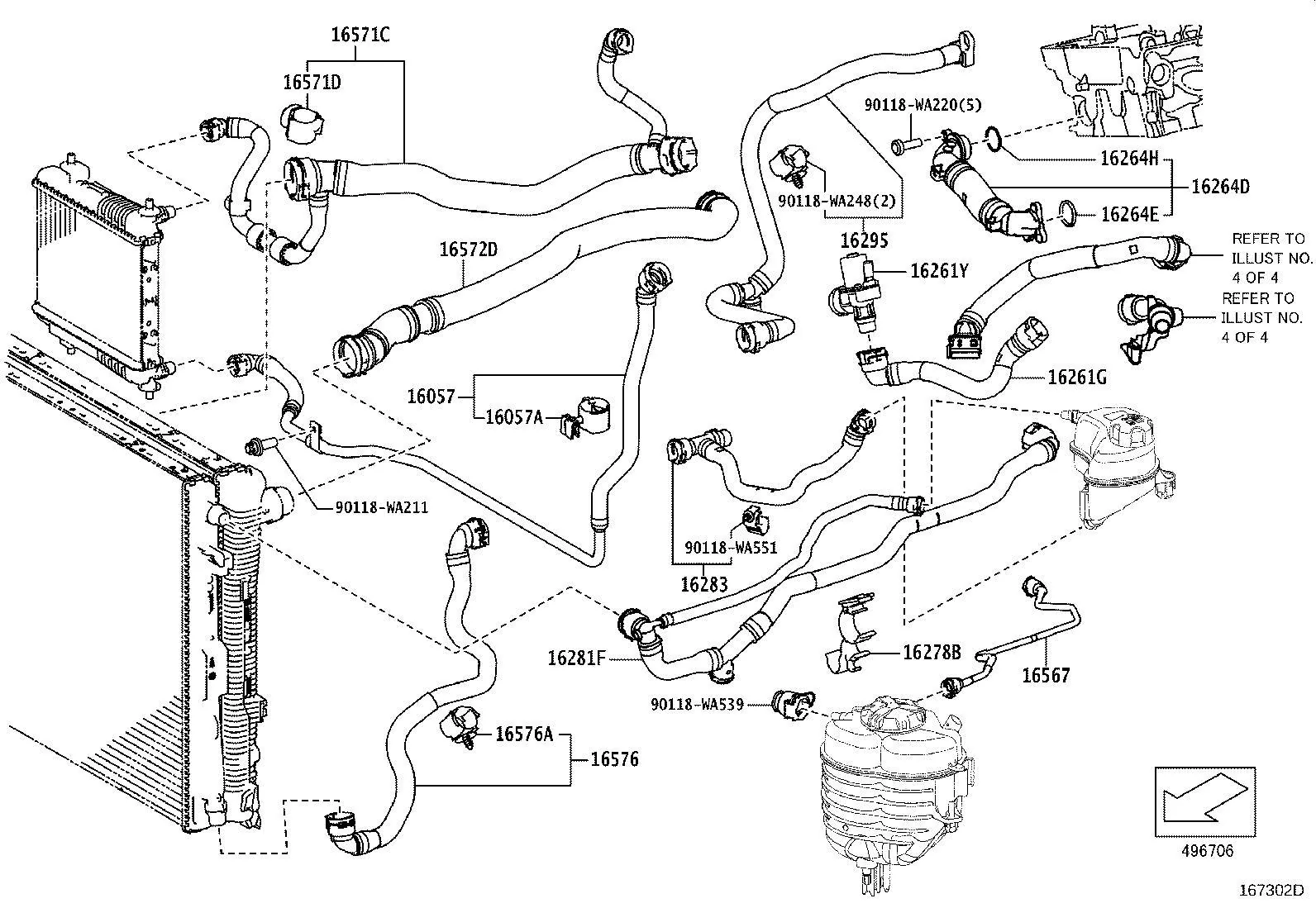

16057-WAA02 Hose Radiator Coolant Hose $91.11
90118-WA645 Clip : Radiator Coolant Hose Hold Down $3.76
90118-WA645 Clip : Radiator Coolant Hose Hold Down $3.76
wolf_kyle
Well-Known Member
Thank you so much!16057-WAA02 Hose Radiator Coolant Hose $91.11
90118-WA645 Clip : Radiator Coolant Hose Hold Down $3.76
but just wondering, why does it seem a little different? at the bottom it seems as if it Tees off, but the one you sent only goes to one line.
Cant really compare with mines at the moment, (at the office, Car is at home)
XtremeMaC
Well-Known Member
- First Name
- MaC
- Joined
- Aug 8, 2018
- Posts
- 1,071
- Reaction score
- 957
- Location
- _________ SE Michigan, USA
- Car(s)
- 2013 GT86 _____2020 Supra

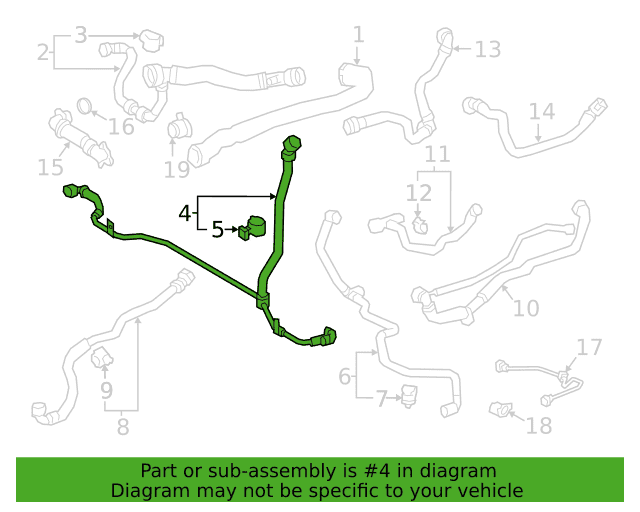

I've no idea, when I just searched for 16057-WAA02 this came up:
https://toyotaparts.mcgeorgetoyota.com/oem-parts/toyota-water-hose-16057waa02

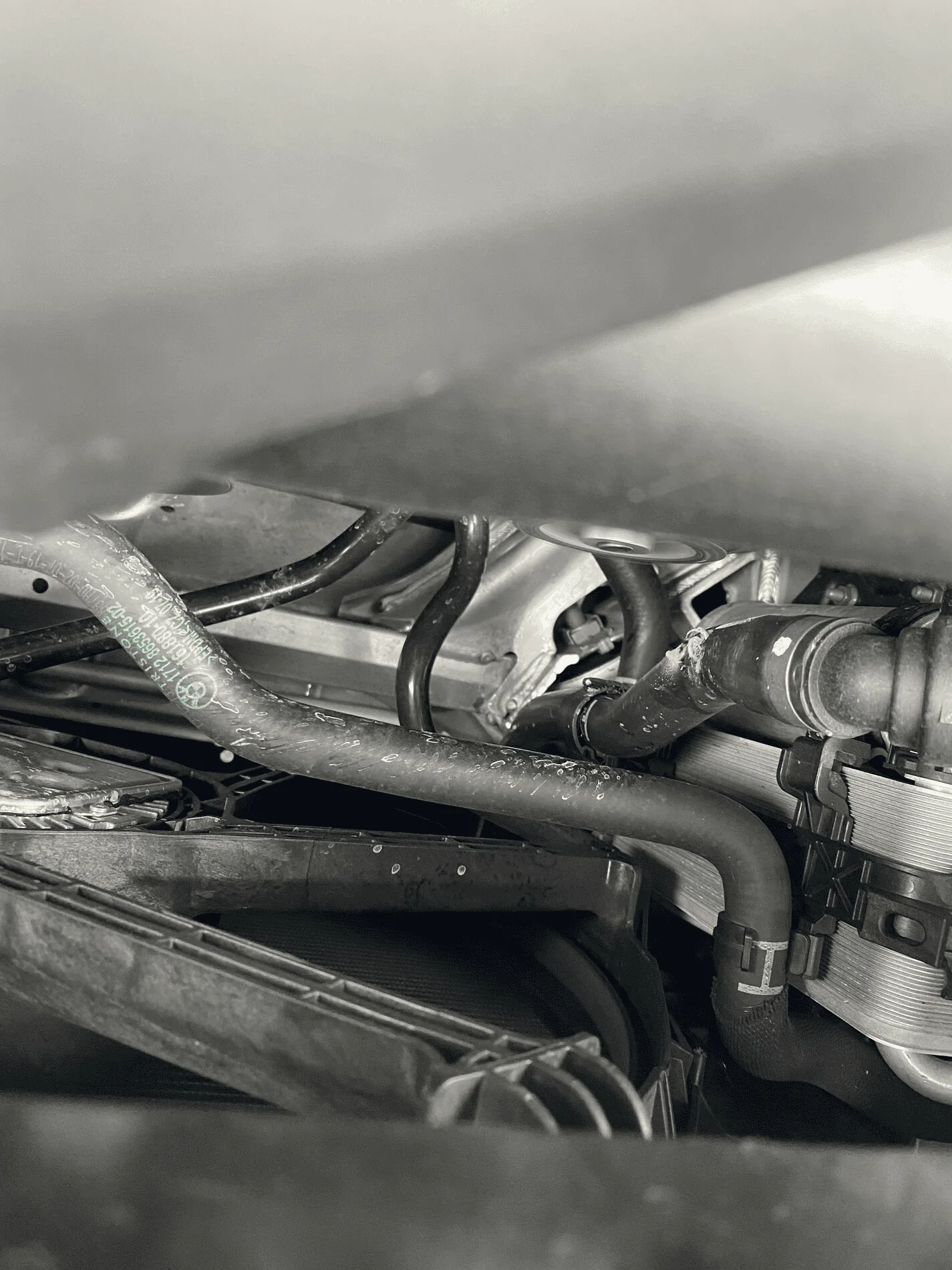

Your picture seems to suggest, the hose is going to the remote radiator on driver side.
Perhaps little more search is needed... sorry for sloppy work here, didn't even realize this before you pointed out!
https://toyotaparts.mcgeorgetoyota.com/oem-parts/toyota-water-hose-16057waa02
Your picture seems to suggest, the hose is going to the remote radiator on driver side.
Perhaps little more search is needed... sorry for sloppy work here, didn't even realize this before you pointed out!
wolf_kyle
Well-Known Member
Honestly, I truly appreciate the help anyways! I've ordered the part, hopefully the "right" one comes. Apparently some "rodent" walked in to my engine bay and decided to chew on the top portion of the hose and caused a leak. - (Toyota)I've no idea, when I just searched for 16057-WAA02 this came up:
https://toyotaparts.mcgeorgetoyota.com/oem-parts/toyota-water-hose-16057waa02
Your picture seems to suggest, the hose is going to the remote radiator on driver side.
Perhaps little more search is needed... sorry for sloppy work here, didn't even realize this before you pointed out!
It might be different for other trims? 2.0 or LHD?
