Update for all - I think the Rockford Fosgate P3SD4-8 Shallow Mount 8” subwoofers
Whats your budget?
Budget is ideally $1500 or less. I think I’m going to proceed with the two RF subs mentioned before with a 500W amp. I’ll keep the forum posted on results either way.
Advertisement



METAL

Well-Known Member
First Name
K2
Joined
May 26, 2020
Messages
344
Reaction score
156
Location
Peoria, AZ
Website
www.instagram.com
Car(s)
2021 GR Supra 3.0 Premium (Tungsten Silver)
Update for all - I think the Rockford Fosgate P3SD4-8 Shallow Mount 8” subwoofers

Budget is ideally $1500 or less. I think I’m going to proceed with the two RF subs mentioned before with a 500W amp. I’ll keep the forum posted on results either way.
What do you plan to run those subs at Frequency wise? Keep in mind the oem subs are playing mid bass and sub bass.


foywilliamd

Active Member
First Name
Will
Joined
Aug 25, 2021
Messages
29
Reaction score
9
Location
Houston
Car(s)
2021 Supra 3.0
What do you plan to run those subs at Frequency wise? Keep in mind the oem subs are playing mid bass and sub bass.
Honestly I’m not sure. There are some highly rated audio shops in town, I was planning to have them do the majority of the work. Do you have recommendations?


METAL

Well-Known Member
First Name
K2
Joined
May 26, 2020
Messages
344
Reaction score
156
Location
Peoria, AZ
Website
www.instagram.com
Car(s)
2021 GR Supra 3.0 Premium (Tungsten Silver)
Honestly I’m not sure. There are some highly rated audio shops in town, I was planning to have them do the majority of the work. Do you have recommendations?
The concern here is by deleting the oem subs you are removing a chunk of the frequency band that the cabin speakers do not play. Asking an aftermarket sub to replace those frequencies is a tall ask and will not sound good. Best option is to leave those oem subs alone and add a sub in the trunk.


nosavingthrow

Well-Known Member
First Name
John
Joined
May 1, 2021
Messages
145
Reaction score
191
Location
Seattle, WA
Car(s)
2021 Supra 3.0 Premium
For the speaker wadding, cut with the template: which side goes up/down? Like it gets folded into a box shape, do you leave the top open, or bottom open once you get it into the enclosure?

OP
OP
tadda

tadda

Well-Known Member
First Name
Tom
Joined
Dec 14, 2019
Messages
1,043
Reaction score
1,473
Location
Arizona
Car(s)
2020 Supra 3.0 Premium
Vehicle Showcase
1
For the speaker wadding, cut with the template: which side goes up/down? Like it gets folded into a box shape, do you leave the top open, or bottom open once you get it into the enclosure?
fold such that top is open....


spta97

Well-Known Member
Joined
Mar 19, 2021
Messages
200
Reaction score
118
Location
New York
Car(s)
GF Shopping a Supra, BMW X3MC
fold such that top is open....
Doh! Me and g/f did this mod today and put the wadding in the wrong way! :nono:

It didn't make sense to me as I figured the port from the sub would be blocked but guess I read the directions wrong.

I wish I had read this post or further back as I just now read through every page.

We'll fix tomorrow, but in the mean time it made a huge improvement!

Wanted to say thanks Tadda! Awesome job and awesome write up!

OP
OP
tadda

tadda

Well-Known Member
First Name
Tom
Joined
Dec 14, 2019
Messages
1,043
Reaction score
1,473
Location
Arizona
Car(s)
2020 Supra 3.0 Premium
Vehicle Showcase
1
Doh! Me and g/f did this mod today and put the wadding in the wrong way! :nono:

It didn't make sense to me as I figured the port from the sub would be blocked but guess I read the directions wrong.

I wish I had read this post or further back as I just now read through every page.

We'll fix tomorrow, but in the mean time it made a huge improvement!

Wanted to say thanks Tadda! Awesome job and awesome write up!

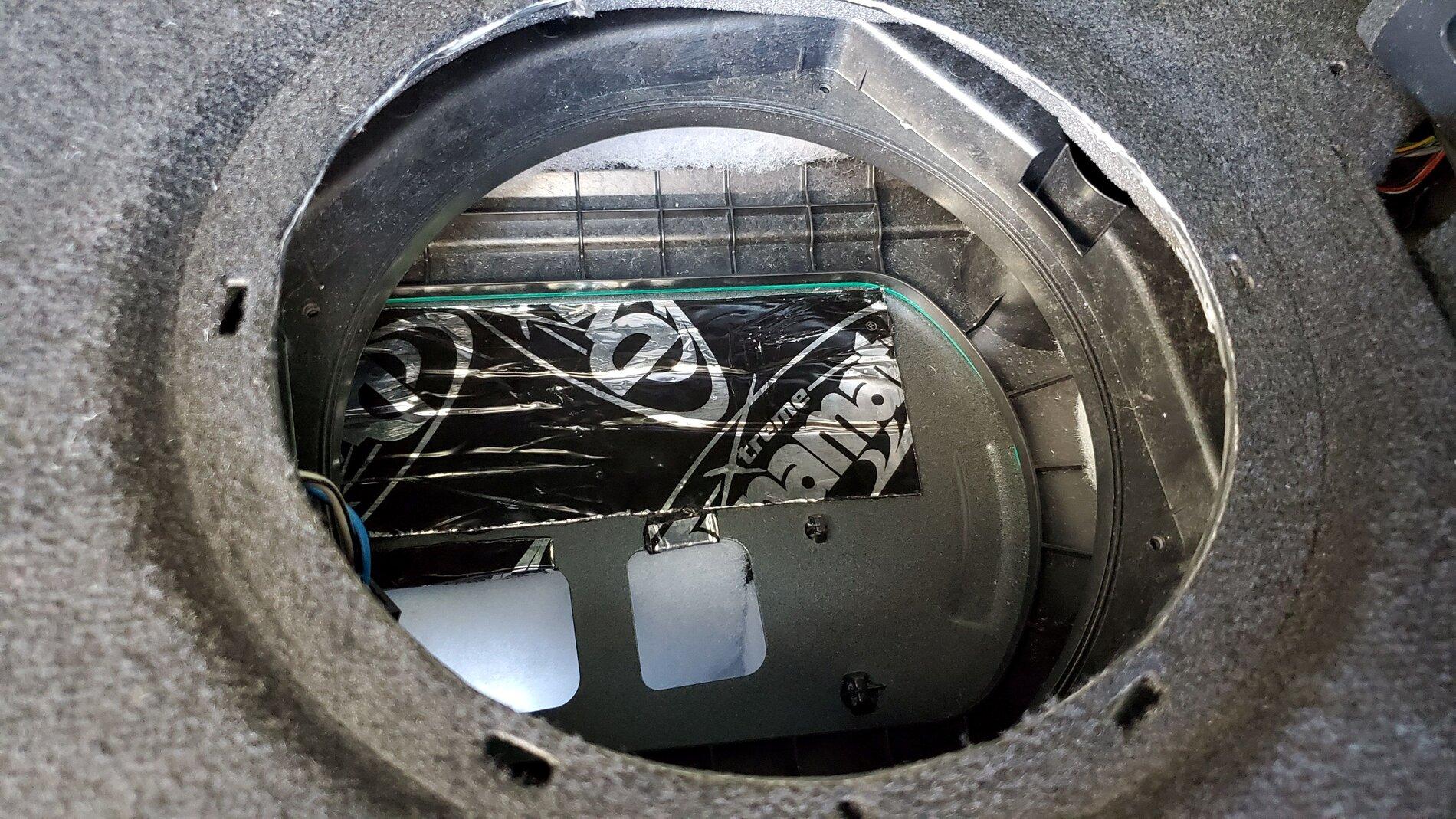

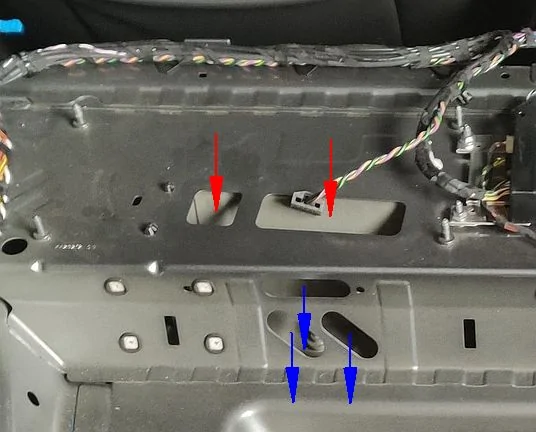

This pic might help clarify things...As you can see with the sub removed there is actually a top port and a side port ..you don't want to block either with the wadding.....

Sub enclosure padding 2.jpg


ported subs air flow.jpg


spta97

Well-Known Member
Joined
Mar 19, 2021
Messages
200
Reaction score
118
Location
New York
Car(s)
GF Shopping a Supra, BMW X3MC
This pic might help clarify things...As you can see with the sub removed there is actually a top port and a side port ..you don't want to block either with the wadding.....
Thanks Tom - yes, that is how I figured it should be done (after doing it incorrectly lol).

Today we'll switch around the batting and tackle some of the other sound deadening (like the back piece).

Only part I'm missing is the self adhesive foam to block the underside of the (now ported) trim piece.

2 other questions if you don't mind:
1. Did you stick the foam strips to the trunk or to the trim piece?
2. I recall reading you used 1/4" thick (high) foam, would 1/2" or larger be too much? I have 3/16" at home and need to get thicker but would have more use for the 1/2" - 3/4".

2 other thing to add to the thread:

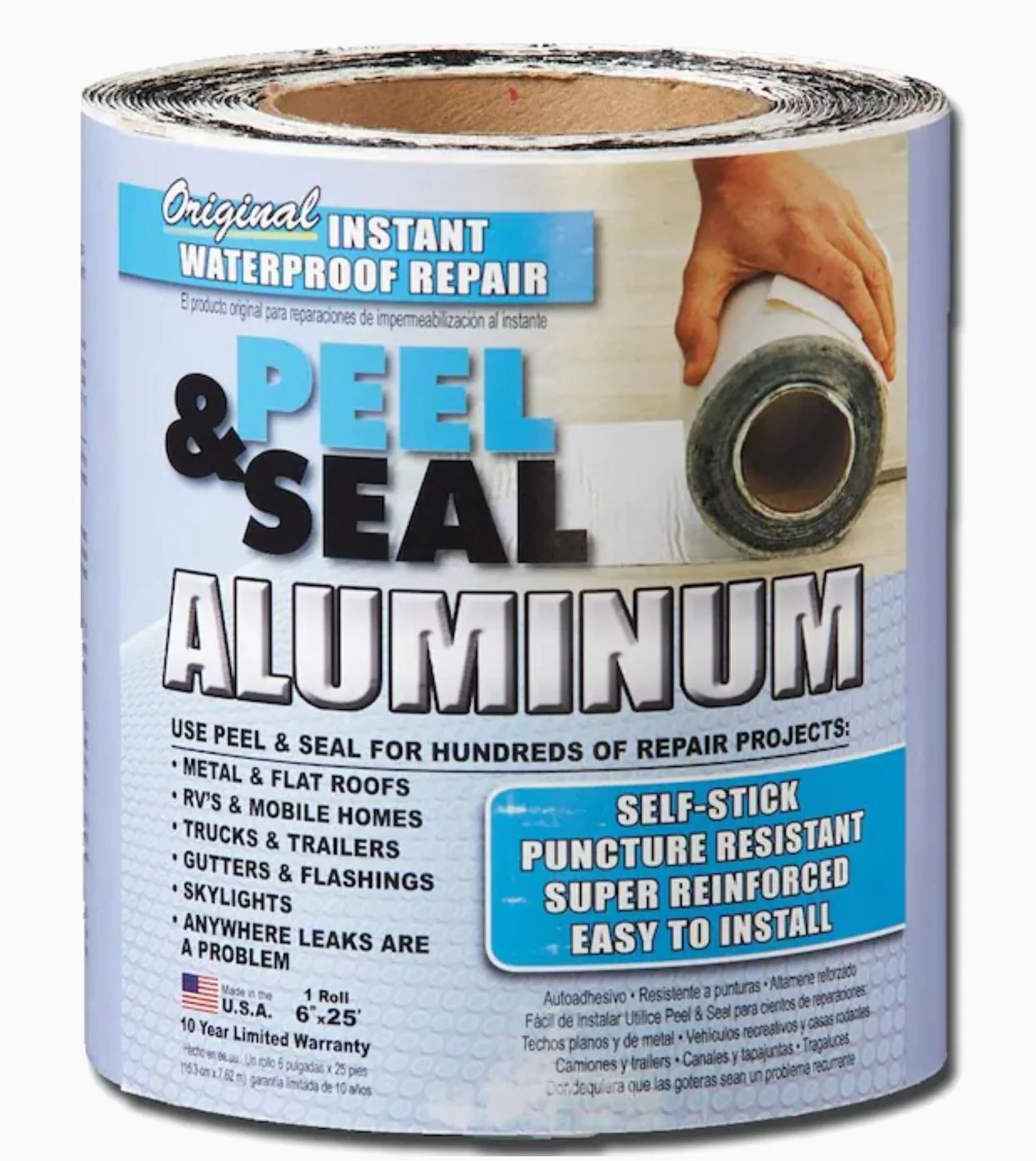

- I know a lot of people use Dynomat, but I have had extremely good luck with Peal and Seal for sound deadening (I have done my share of car audio) - it's about $20 for the roll.

It is a roofing material with foil on one side and tar on the other. When using, I clean the panel with denatured alcohol, stick on the Peal and Seal, then heat it up with a heat gun and press it down with leather gloved hands.

It works wonders (just as well as any sound deadening from what I have read) and will not peal off if applied with a heat gun (even without a heat gun it is very difficult).

It also works well for it's intended use ;)



- Although not the same vehicle, my X3MC has ID6 and the HK Audio. Below is my thread on adding an amp/sub which may help some people get pointed in the right direction if looking to add a sub: My Sub/Amp Install on my BMW X3MC

OP
OP
tadda

tadda

Well-Known Member
First Name
Tom
Joined
Dec 14, 2019
Messages
1,043
Reaction score
1,473
Location
Arizona
Car(s)
2020 Supra 3.0 Premium
Vehicle Showcase
1
@spta97

My concern with using the "peal and seal" would be with respect to odor and outgassing...This may be fine to use in a sealed trunk area, but the Supra has an open hatch area and the odor will be much more noticeable...

Last edited:

spta97

Well-Known Member
Joined
Mar 19, 2021
Messages
200
Reaction score
118
Location
New York
Car(s)
GF Shopping a Supra, BMW X3MC
@spta97

My concern with using the "peal and seal" would be with respect to odor and outgassing...This may be fine to use in a sealed trunk area, but the Supra has an open hatch area and the odor will be much more noticeable...
I used it in my X3MC (hatch, not trunk) and have not ever experienced any odor.

Initially I was concerned it would smell like a freshly paved driveway on hot summer days when used in my previous E46 M3 (trunk) but there is no odor at all which I could smell. Same is true for the X3MC which has a hatch as stated.

That's not to say there isn't something there at a chemical level, just nothing I have ever noticed or experienced.

OP
OP
tadda

tadda

Well-Known Member
First Name
Tom
Joined
Dec 14, 2019
Messages
1,043
Reaction score
1,473
Location
Arizona
Car(s)
2020 Supra 3.0 Premium
Vehicle Showcase
1
FYI...

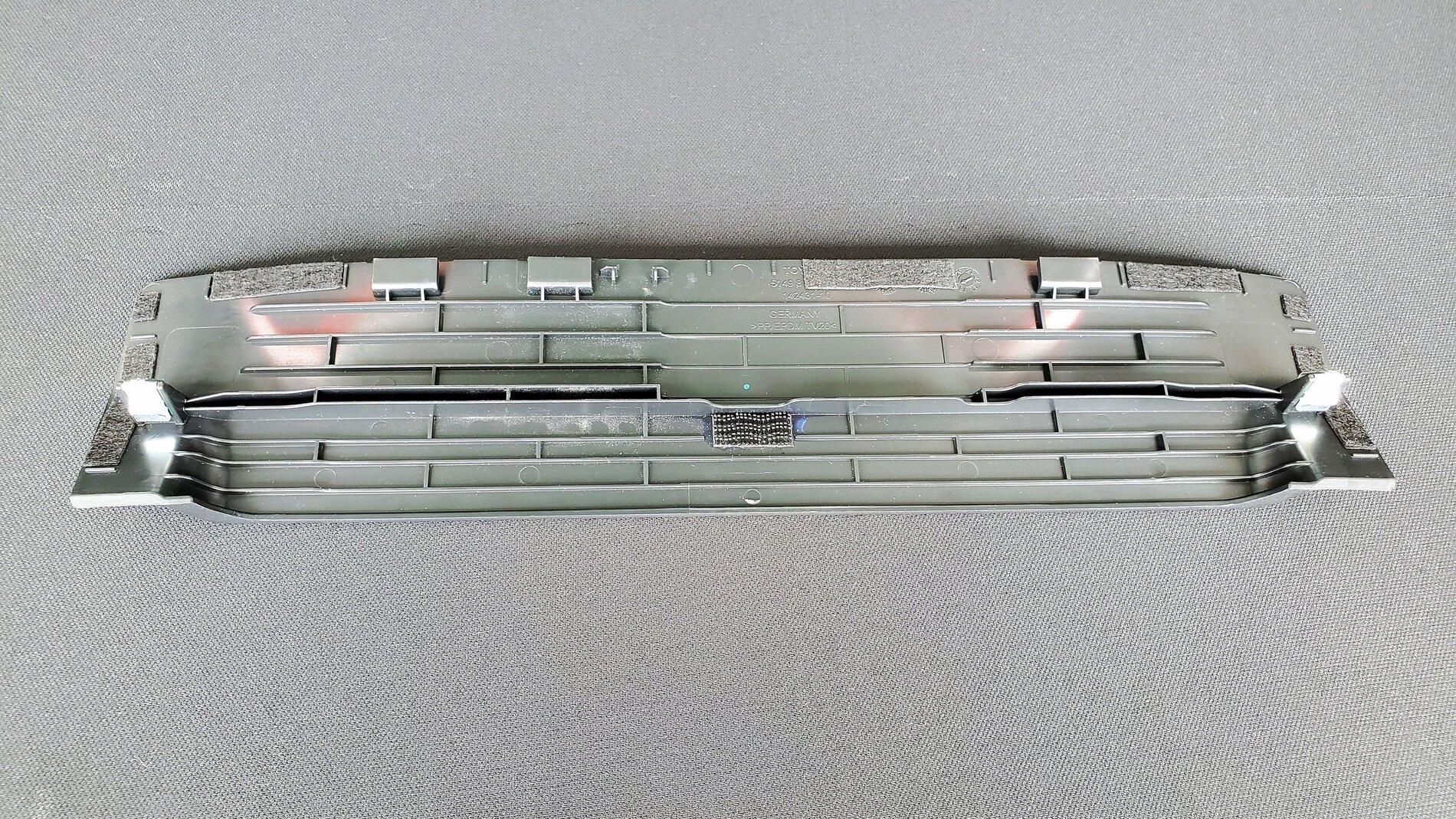

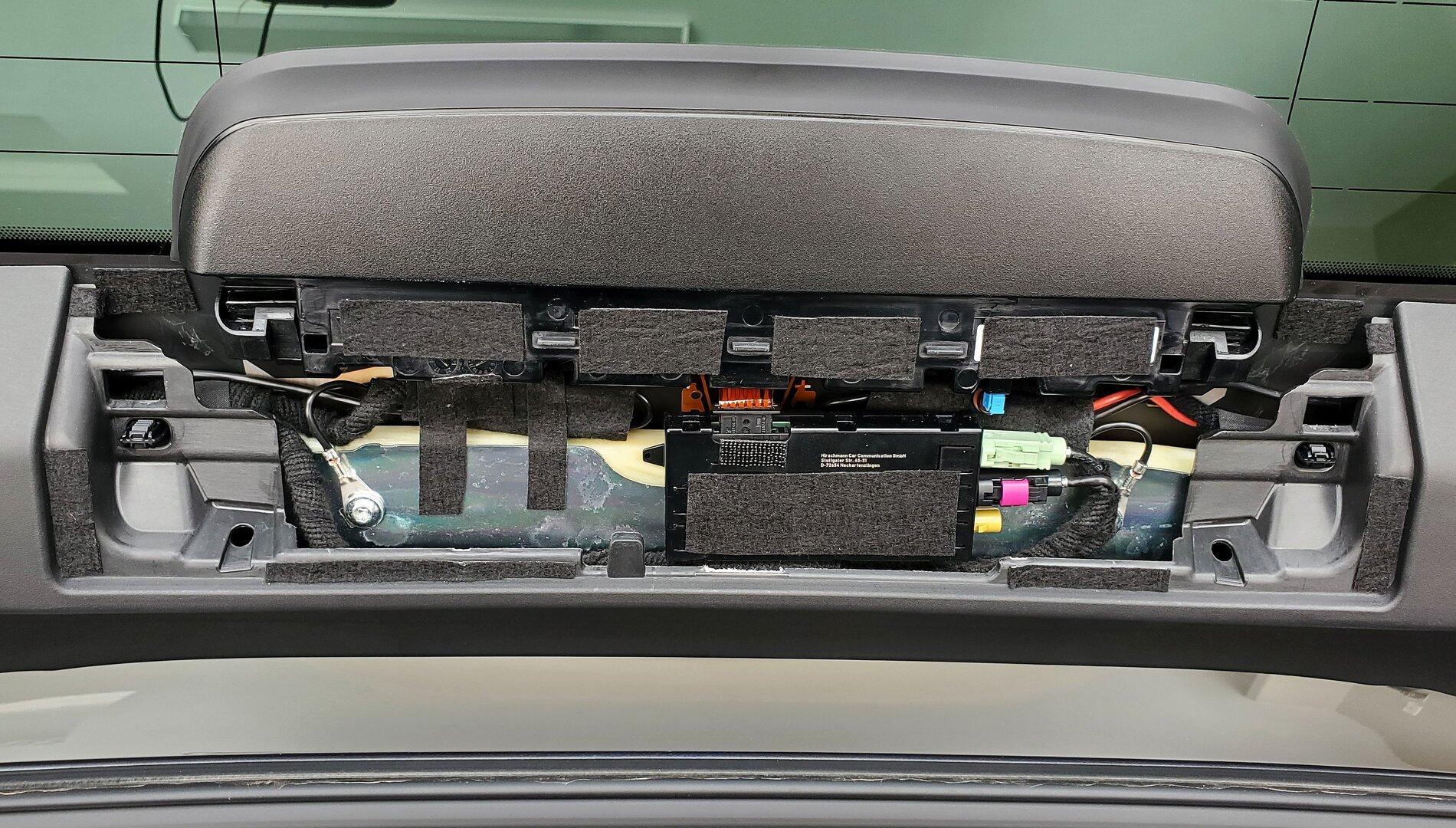

Just applied adhesive backed felt tape to a number of places around the edges of the plastic rear hatch brake light cover and contacting hatch surfaces....There was a good amount of vibration coming from this plastic cover, particularly obvious during very low bass notes...Vibration from this area has been eliminated...

Felt Tape in Self Adhesive

Hatch Cover 1.jpg


Hatch Cover 2.jpg

Last edited:

spta97

Well-Known Member
Joined
Mar 19, 2021
Messages
200
Reaction score
118
Location
New York
Car(s)
GF Shopping a Supra, BMW X3MC
FYI...

Just applied adhesive backed felt tape to a number of places around the edges of the plastic rear hatch brake light cover and contacting hatch surfaces....There was a good amount of vibration coming from this plastic cover, particularly obvious during very low bass notes...Vibration from this area has been eliminated...

Felt Tape in Self Adhesive
Thanks for posting! Very timely as I am getting some vibration from this area as well.

I also seem to be getting a vibration from inside the woofer enclosure itself. At first I thought it was the ports, but I removed the entire piece and it persisted.

There also seems to be some sort of resonance behind the passenger seat.

More work to do on this...

OP
OP
tadda

tadda

Well-Known Member
First Name
Tom
Joined
Dec 14, 2019
Messages
1,043
Reaction score
1,473
Location
Arizona
Car(s)
2020 Supra 3.0 Premium
Vehicle Showcase
1
Thanks for posting! Very timely as I am getting some vibration from this area as well.

I also seem to be getting a vibration from inside the woofer enclosure itself. At first I thought it was the ports, but I removed the entire piece and it persisted.

There also seems to be some sort of resonance behind the passenger seat.

More work to do on this...
Did you also apply silicone adhesive between the woofer grill and cover plate as I mention in my 1st post? ..Those had quite a bit of vibration until the 2 plates were isolated from one another using that adhesive....

I also stuffed quite a bit of foam in the empty cavities within the subwoofer cover itself...
