Jacking / Lifting Points

nibble

Well-Known Member
Joined
May 21, 2020
Messages
813
Reaction score
669
Location
NJ
Car(s)
BMW, Honda, Toyota
Meant to ask.... is the BL-5000SLX wide enough to allow you to actually place the lifting blocks on the lifting points of the Supra? Just watched an assembly video of a guy who has Subaru FRS and his lifting points were wider then the QuickJack could go. Not sure what model QuickJack her got though. Thanks!
Like most BMWs, Supra has plastic protruding part under the car for lift point and these are about 1.5 x 3 inches. block supplied by QJ is wide enough and I use large block. this will be just enough to lift car. so here are my workflow to lift supra up.

1. pull supra out of garage.
2. pull QJ out to side. |QJ| <--CAR-->|QJ|
3. Drive Supra in between QJs.
4. Put Large Blocks on QJ and roughly align it with lifting point.
5. push QJ into place and align large block right below lifting point.
6. lift QJ little by pushing "UP" button and see large blocks are firmly with lifting point.
7. if it's all good, lift to the height you need. (while you can use any height, i'd recommend to lift it at least to 1st locking point for safety.)

It sounds like a lot of steps but once you get in the rhythm, it only take about 10~15 min before you can start working on the car.
Advertisement



nibble

Well-Known Member
Joined
May 21, 2020
Messages
813
Reaction score
669
Location
NJ
Car(s)
BMW, Honda, Toyota
I’m not a fan of these as it limits areas of the car to work on.
Not sure what you mean by not enough work space but it gives me plenty of room than if I had to work with jack and jack stand.

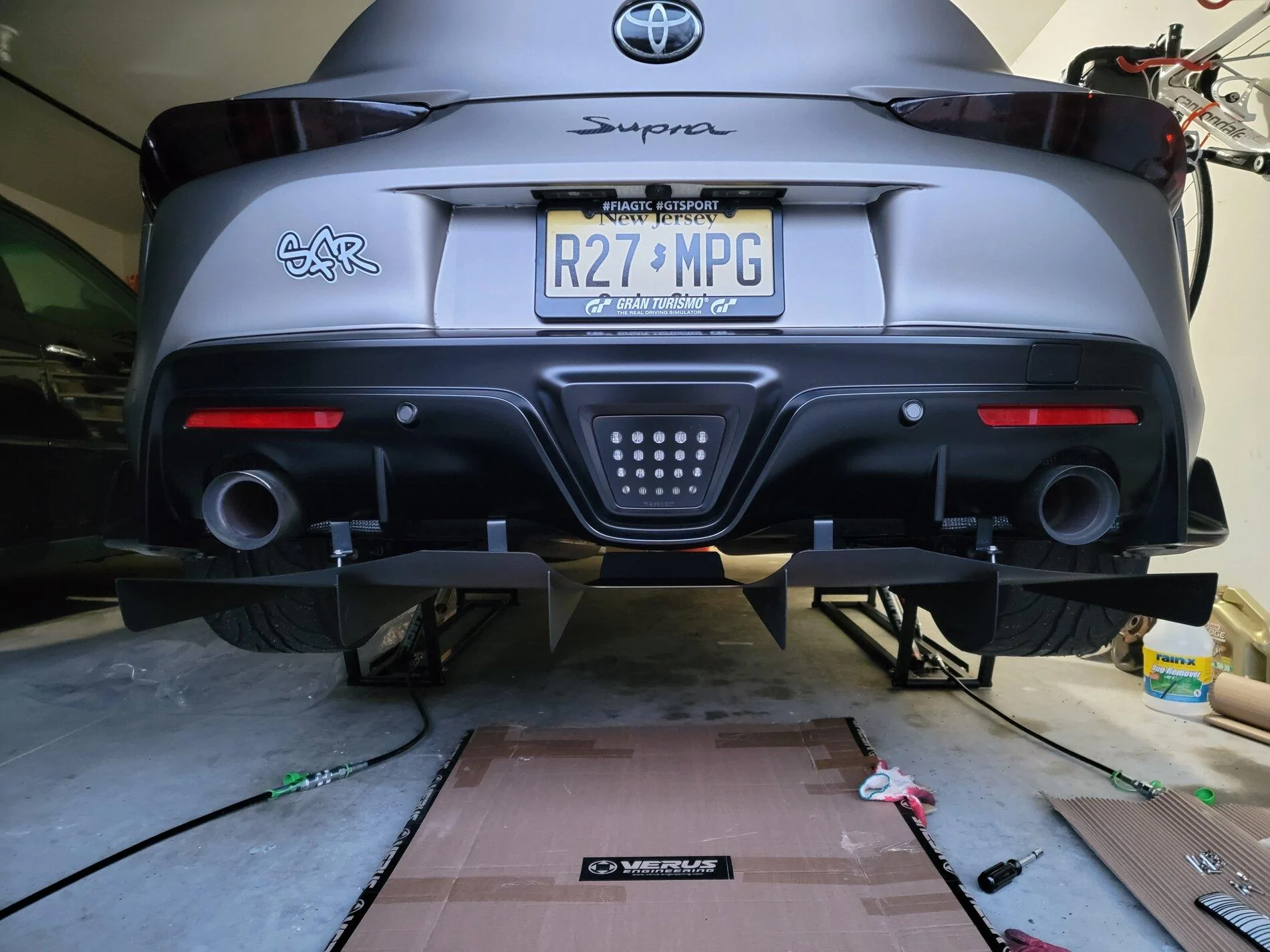

This was yesterday when I was adding weight to my supra. No space issue at all. Perhaps if I had 2 story garage, 4 post lift would be better but for garage I have, I think it's best for the money.


SupaSupra

Member
First Name
Fernando
Joined
Apr 5, 2021
Messages
23
Reaction score
18
Location
SoCal
Car(s)
2020 Supra
So e
Like most BMWs, Supra has plastic protruding part under the car for lift point and these are about 1.5 x 3 inches. block supplied by QJ is wide enough and I use large block. this will be just enough to lift car. so here are my workflow to lift supra up.

1. pull supra out of garage.
2. pull QJ out to side. |QJ| <--CAR-->|QJ|
3. Drive Supra in between QJs.
4. Put Large Blocks on QJ and roughly align it with lifting point.
5. push QJ into place and align large block right below lifting point.
6. lift QJ little by pushing "UP" button and see large blocks are firmly with lifting point.
7. if it's all good, lift to the height you need. (while you can use any height, i'd recommend to lift it at least to 1st locking point for safety.)

It sounds like a lot of steps but once you get in the rhythm, it only take about 10~15 min before you can start working on the car.
So everything other than the fluid, and air compressor comes included with the quickjack ? Are the rubber lifting mounts included? Does the rubber boot go over the 1.5x3 lifting point or does it go inside? Thank you all.


nibble

Well-Known Member
Joined
May 21, 2020
Messages
813
Reaction score
669
Location
NJ
Car(s)
BMW, Honda, Toyota
So e

So everything other than the fluid, and air compressor comes included with the quickjack ? Are the rubber lifting mounts included? Does the rubber boot go over the 1.5x3 lifting point or does it go inside? Thank you all.
that's correct. but if you don't have Schrader valve tool, I recommend getting one as valves were not tight from factory. rubber blocks comes in 2 sizes, large and small. its foot prints are same so if you want, you can stack them. these blocks are universal so it will not be fitting inside the lift point. you can get bmw specific lift point "hocky puck" from amazon. something like this.

https://www.amazon.com/imUfer-Alumi...id=1626956836&sprefix=bmw+lift,aps,175&sr=8-2


KellyJoe

Well-Known Member
First Name
Kelly
Joined
Aug 6, 2020
Messages
167
Reaction score
273
Location
Victoria, TX
Car(s)
2021 Supra
So e

So everything other than the fluid, and air compressor comes included with the quickjack ? Are the rubber lifting mounts included? Does the rubber boot go over the 1.5x3 lifting point or does it go inside? Thank you all.

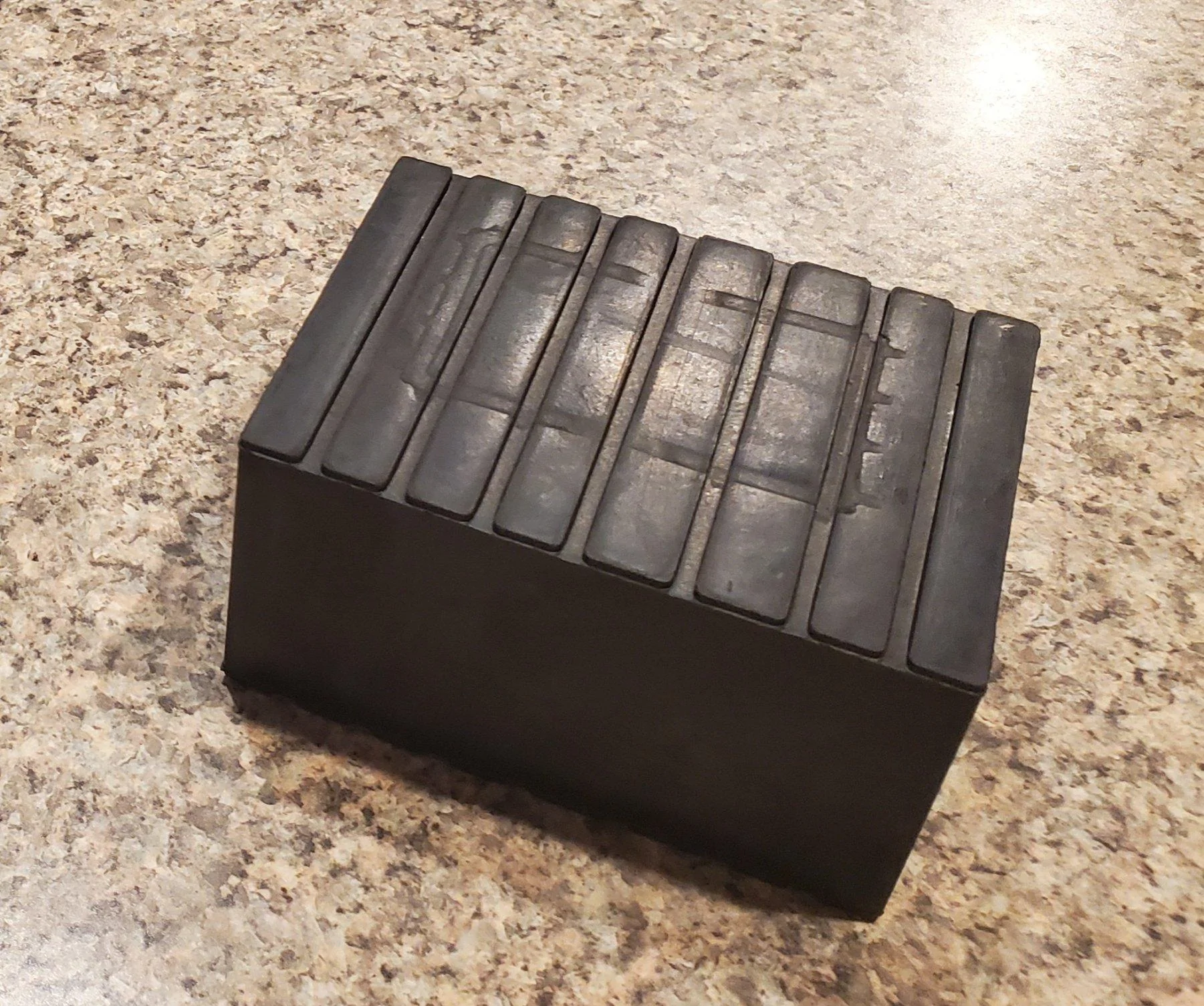

The QJ blocks are all you need. No damage done as you can see the impression of the lifting points here. :thumbsup:


SupaSupra

Member
First Name
Fernando
Joined
Apr 5, 2021
Messages
23
Reaction score
18
Location
SoCal
Car(s)
2020 Supra
that's correct. but if you don't have Schrader valve tool, I recommend getting one as valves were not tight from factory. rubber blocks comes in 2 sizes, large and small. its foot prints are same so if you want, you can stack them. these blocks are universal so it will not be fitting inside the lift point. you can get bmw specific lift point "hocky puck" from amazon. something like this.

https://www.amazon.com/imUfer-Aluminum-adapter-Anodized-Durable/dp/B071H7H8YB/ref=sr_1_2?crid=3V6Z54QZ6HYF&dchild=1&keywords=bmw+lift+puck&qid=1626956836&sprefix=bmw+lift,aps,175&sr=8-2

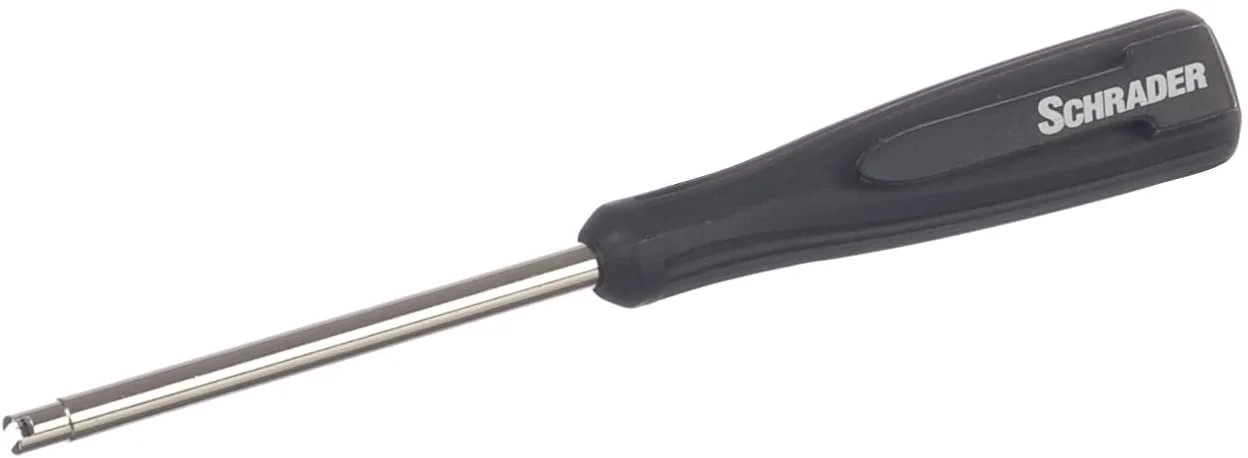

Awesome! Thank you. Can you give me a link to the Schrader valve tool you use for your setup? thank you again.


spta97

Well-Known Member
Joined
Mar 19, 2021
Messages
192
Reaction score
113
Location
New York
Car(s)
GF Shopping a Supra, BMW X3MC
Wanted to say thanks to ChrisD for posting this as it was very helpful.

I have a "low-ish" profile HF jack and had to drive up the fronts on 2x12"s to clear so I could jack the front.

Once I got that on stands, the back was a serious PITA. I had to line up the jack just so at and angle so the handle would be to the side of the reverse light in the bumper.

It's been a while since I worked on a low car and I forgot how you can barely see anything so getting the jack point in the rear was a 15 minute ordeal of lining up the jack and then moving to the side so I could ensure I was in the right spot on the diff.

Nevertheless, possible with the help of the OP.

Thanks!


spta97

Well-Known Member
Joined
Mar 19, 2021
Messages
192
Reaction score
113
Location
New York
Car(s)
GF Shopping a Supra, BMW X3MC
I’m at stock suspension with a Pitssburg Low profile jack and there’s no way it’ll reach. The edge of the jack is still only at the black plastic guard and about a foot away from the indented area with the bolt.



Same issue with mine - had to drive the front tires up on 2x12s which gave an extra 1.5" of clearance. That did the trick.


yellowman

New Member
First Name
evan
Joined
Nov 24, 2021
Messages
2
Reaction score
1
Location
bucks county pa
Car(s)
2021 supra 2.0 2021 jeep
put some cut up 2x4s down drive up on them and you should be able to get the jack under. It works for me


spta97

Well-Known Member
Joined
Mar 19, 2021
Messages
192
Reaction score
113
Location
New York
Car(s)
GF Shopping a Supra, BMW X3MC
put some cut up 2x4s down drive up on them and you should be able to get the jack under. It works for me
Good idea. That’s what I had to do but I prefer to use 2x10s or 2x12s. I got an 8 foot board and cut it into 4 - 2 foot pieces back when I hand my E46 M3 (had to drive on all 4).

With the Supra I was able to get away with just the front but it would have been easier to have the back up as well. Car is low even stock and not a lot of room to see.
