Featured KW V3 Coilovers for the 2020 Supra MKV (A90)!

Discussion in 'Suspension | Chassis | Brakes' started by TkTk, Jul 23, 2019.

  1. TkTk

    TkTk New Member

    Car(s):
    S2000 Race car, EVO 8,C6 ZO6, Westfield Aerorace
    Joined:
    Jul 4, 2019
    Location:
    Doha, Qatar
    Posts:
    3
    Liked:
    6

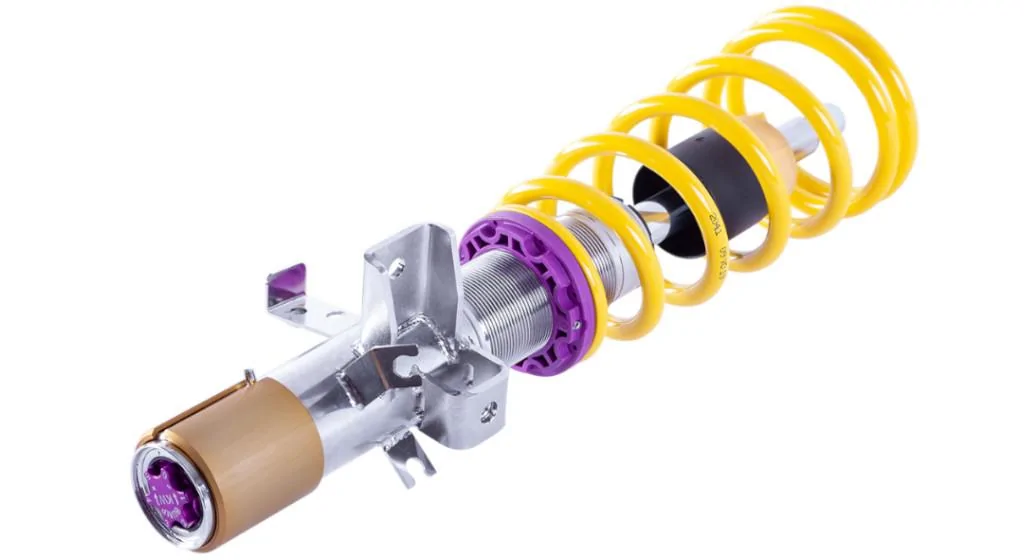

    KW Variant 3 Coilover Suspension for latest Toyota GR Supra


    KW automotive, the suspension manufacturer, has already developed the first in the market full adjustable coilover suspension kit for the latest Toyota GR Supra (JTSC). With the KW Variant 3 coilover suspension, the Japanese sports car dynamics of lateral motion will improve without sacrificing tire comfort in daily life. On undulating asphalt surfaces, the KW suspension dampens harmoniously and prevents bumpy driving behavior. The pitch and roll movements of the bodywork are noticeably reduced. Thanks to the KW multi-valve damper technology the separate adjustment of compression (16 clicks) and rebound (12 clicks) settings the driving dynamics of the new Supra is improved. The stepless and approved lowering is 40 millimeters.


    With a weight distribution of almost 50:50, rear-wheel drive and a turbocharged 340 hp three-liter six-cylinder in-line engine, the new Toyota GR Supra (JTSC) is a worthy successor of the legendary Toyota Supra Mk4. The long wait for fans of Japanese sports cars is now over and the Coupe is a blast. So, as soon as the sporty Toyota is available, the suspension manufacturer KW automotive already offers a coilover suspension kit. "Despite the low center of gravity of the GR Supra", says KW product manager Johannes Wacker, "our KW Variant 3 Coilover allows a stepless lowering of 15 - 35 millimeters on the front axle and 20 - 40 millimeters on the drive axle".
    Intelligent multi-valve technology for sporty driving pleasure in everyday life


    The KW Coilover suspensions provide a significant performance gain and are appreciated by car enthusiasts worldwide. "This is mainly due to our multi-valve technology used in the dampers with preconfigured high-speed valves and adjustable low-speed valves for the compression and rebound forces," says KW Product Manager Johannes Wacker. "This enables us to achieve driving behavior as tight as necessary and as comfortable as possible." This damper technology is based on KW motorsport developments. For example, at the Nurburgring 2019 24-hour race, the Toyota Supra Gazoo Racing Team also used KW motorsport suspension with separately adjustable compression and rebound dampers. The factory preconfigured high-speed valves enable harmonious suspension travel even with a stiff adjusted damper setup. These high-speed valves open in a flash even at maximum lowering and fast driving over transverse joints or bumps. The Coupe does not get bumpy on motorway bridges with transverse joints and remains safely controllable at the limits of driving dynamics in daily life. The adjustable dampers make it possible to adjust the already preset and recommended suspension setup for the Toyota GR Supra further for a personal driving experience for everyday use. With 16 clicks, the cross-section in the low-speed valve can be reduced or enlarged to precisely adjust the damping with every click. If the rebound valve is opened, driving comfort increases. If it is closed, the pitch and roll movements of the body structure are significantly reduced and handling becomes even more dynamic. "Simply put, the task of the rebound stage is to connect the body to the road, while the compression stage influences the compression and supports the chassis," explains KW Product Manager Johannes Wacker. In addition, the adjustable low-speed pressure stage can be closed or opened with twelve clicks to further influence the steering behavior and grip level of the tires.


  2. orvillesd

    orvillesd Member

    First Name:
    Orville
    Car(s):
    Scion FRS, 1997 Toyota 4runner 4WD SR5
    Joined:
    Oct 23, 2018
    Location:
    San Diego
    Posts:
    11
    Liked:
    12
    Gender:
    Male
    Oh cool, its the car from JP Performance!!

    HATED1 and nigaskiga like this.
  3. marco

    marco Active Member

    Car(s):
    ST205
    Joined:
    Sep 21, 2017
    Location:
    Bavaria
    Posts:
    44
    Liked:
    207
    Home Page:
    #3 Jul 23, 2019
    Last edited by a moderator: Jul 23, 2019
  4. jm6k

    jm6k Well-Known Member

    Car(s):
    4C
    Joined:
    Oct 25, 2016
    Location:
    WA
    Posts:
    299
    Liked:
    551
    That really helps the looks of the car.

    PerformanceSound likes this.
  5. RotaryShinka

    RotaryShinka Active Member

    First Name:
    Ralph
    Car(s):
    FD RX7 and RX8
    Joined:
    Feb 20, 2019
    Location:
    Texas
    Posts:
    25
    Liked:
    55
    Is the car running spacers?

    Turbro likes this.
  6. tedan628

    tedan628 Well-Known Member

    First Name:
    Andy
    Car(s):
    2015 Sti, 2005 Forester XT
    Joined:
    Jun 16, 2019
    Location:
    New jersey
    Posts:
    115
    Liked:
    91
    love the turbuence grey color...

  7. tisdrew

    tisdrew Well-Known Member

    Car(s):
    BMW 335i, Kouki s14
    Joined:
    Feb 13, 2018
    Location:
    Florida
    Posts:
    69
    Liked:
    100
    Garage Profiles:
    2
    Have the KWv3's on my e90, love 'em.

  8. imoj1

    imoj1 Well-Known Member

    First Name:
    Omran
    Car(s):
    95' Supra, '15 Maserati, '98 Skyline, '15 Mustang, M5
    Joined:
    Jan 20, 2019
    Location:
    dubai
    Posts:
    91
    Liked:
    116
    This is not the turbuence grey

  9. Turbro

    Turbro Well-Known Member

    Car(s):
    94 Supra TT 6 Speed, 91 180sx 5 Speed, 15 FoST, 13 FoST
    Joined:
    Jun 6, 2018
    Location:
    Somewhere USA
    Posts:
    175
    Liked:
    317
    Now were talking! This looks killer.

  10. PerformanceSound

    PerformanceSound Well-Known Member

    Car(s):
    Subaru STI
    Joined:
    Aug 18, 2017
    Location:
    Chicago, IL.
    Posts:
    1,189
    Liked:
    2,135
    Garage Profiles:
    2
    Yeah it does. I can't wait to see these cars with some nice "FT-1 inspired" body kits in the future.

  11. SupraFiend

    SupraFiend Well-Known Member

    Car(s):
    5 Supras currently
    Joined:
    Nov 2, 2017
    Location:
    Vancouver
    Posts:
    483
    Liked:
    708
    Comes with camber plates I assume? Have you guys developed any RCAs or corrective ball joints/tie rod ends yet?

  12. Powaup

    Powaup Well-Known Member

    First Name:
    Clyde
    Car(s):
    BMW M235i
    Joined:
    Jan 21, 2019
    Location:
    San Francisco, CA
    Posts:
    47
    Liked:
    30
    Does it delete adaptive suspension?

  13. kona61

    kona61 Well-Known Member

    First Name:
    J
    Car(s):
    5G 4Runner, Mk7 Golf, AZW Supra
    Joined:
    Mar 25, 2018
    Location:
    Redlands, CA
    Posts:
    687
    Liked:
    1,055
    Garage Profiles:
    1
    Yes.

    Powaup likes this.
  14. ArtEmortal

    ArtEmortal Member

    First Name:
    Art
    Car(s):
    2002 GTI 1.8T, 2013 VW CC R-Line
    Joined:
    May 28, 2019
    Location:
    Carlsbad, CA
    Posts:
    9
    Liked:
    11
    oh my...

  15. sooopruh

    sooopruh New Member

    First Name:
    Danh
    Car(s):
    GS300
    Joined:
    Aug 15, 2019
    Location:
    Los Angeles
    Posts:
    2
    Liked:
    0
    Looks great at that height
