Let's Talk About CGI (Compacted Graphite Iron)

Discussion in 'General Supra Topics' started by Guff, Jul 18, 2018.

  1. Guff

    Guff Moderator
    Staff Member

    Car(s):
    FR-S, BRZ, Supra, Mini Cooper
    Joined:
    Sep 8, 2016
    Location:
    USA
    Posts:
    1,006
    Liked:
    4,021
    Garage Profiles:
    1
    Okay, so its learning time here at SupraMKV forums! I wanted to touch on CGI Engine Blocks, a materials technology that many people might not be too familiar with. Why, you may ask? Well, there have been leaks and rumors of the MKV Supra adopting an "Iron" engine block, but I've heard whispers that it's not the "Iron" of yesteryear, but rather, a type of Compacted Graphite Iron, a material that has made significant advances over the old days of heavy cast Iron. I'll try to simplify things as much as I can, as I know materials science can get confusing.

    What is CGI?

    CGI is a type of cast iron developed in the 1950s-60s to be a middle ground between Gray Iron and Ductile/Nodular Iron. Any Cast Iron is made of both Iron and Graphite, and the difference in the makeup and structure of those two elements are what determine the material properties of a given cast iron type. CGI has tightly interconnected graphite molecules that are short and thick in shape. This results in a variety of material qualities that are hugely beneficial in an automotive application:

    -Roughly 400-500% greater fatigue resistance than Aluminum, and ~200% more than Gray Iron.
    -Higher thermal conductivity than other cast irons
    -Great internal damping properties
    -Roughly 50-75% stronger in shear strength than Gray Iron, and can be machined down to match Gray Iron shear strength at significant weight savings.
    -Far more fatigue resistant than Aluminum in higher temperatures.
    -Due to CGI's high strength, it can technically be machined to be lighter than aluminum while maintaining the same strength levels (although generally, CGI blocks are not machined this far in order to keep strength levels high).

    Who uses CGI?

    CGI is used by a number of OEMs, namely Ford and, of course, BMW. Their exact material compositions are generally different, but they are generally comparable in strength. Toyota also uses CGI in their Nascar program, with their V8s being cast from CGI.

    The disadvantages of CGI are generally in machining and manufacturing, which is where having access to OEM levels of tooling is hugely important, and can both streamline the manufacturing process and reduce costs.

    So, is the MKV Supra using CGI in its motor?

    Idk, ask Tada-San. :p

    From what I know, we're not getting a plain jane B58. What exactly is this new motor? I don't know, but as more information trickles in, the BMW-Toyota partnership starts to make more sense. CGI is one of those factors that could really shed some light on the nature of the Toyota-BMW relationship, and also shows that there's a lot more than meets the eye when it comes to orchestrating the millions of moving parts in a collaboration as big as this.


  2. ginsuown

    ginsuown Active Member

    First Name:
    Ethan
    Car(s):
    2005 Nissan 350z, 2007 Honda Civic
    Joined:
    Feb 20, 2018
    Location:
    California
    Posts:
    30
    Liked:
    106
    So the new supra's engine is going to be more substantial than just some movie magic..

    But actually though, I'd been seeing mentions of this CGI in the new engine and been wondering exactly what it was. Thanks for the post and the good info Guff :)

    gymratter and Guff like this.
  3. RyleyMA61

    RyleyMA61 Well-Known Member

    Car(s):
    lots
    Joined:
    Aug 28, 2017
    Location:
    Australia
    Posts:
    1,024
    Liked:
    2,409
    Occupation:
    Engineer
    My understanding is that it's the medium ground between grey cast iron and ductile cast iron.

    I'm assuming that the JZ blocks were cast grey iron?

    Also more science!!!

    Spilner and Guff like this.
  4. Matador

    Matador Well-Known Member

    Car(s):
    '87 E30, '95 Mk4 Supra, '03 Legacy GT
    Joined:
    Jun 6, 2018
    Location:
    W.I.
    Posts:
    117
    Liked:
    260
    Toyota's newer diesel V8s are also cast with CGI.

    gymratter, Guff and A70TTR like this.
  5. Chikane

    Chikane Well-Known Member

    Car(s):
    Hmm What AM I driving?
    Joined:
    Aug 5, 2017
    Location:
    USA
    Posts:
    262
    Liked:
    568
    Man I turn on Adobe creative cloud and everything. I want my money back. Jest aside thanks for the lesson Guff this was enlightening.

    ginsuown and Guff like this.
  6. A70TTR

    A70TTR Well-Known Member

    Car(s):
    Tundra TRD Pro, ST205 GT4, JZA70 TT-R, Q50-RS
    Joined:
    Sep 9, 2017
    Location:
    Japan/EU/USA
    Posts:
    1,587
    Liked:
    5,370
    #6 Jul 18, 2018
    Last edited: Jul 18, 2018
    JZ blocks are gray cast iron iirc

    ^ was not aware of that and could not find any information on it? Any links for some good reading?


    EDIT: found, Toyota 1VD-FTV. neat!

  7. Jeff Lange

    Jeff Lange Well-Known Member

    First Name:
    Jeff
    Car(s):
    AE86, GSE21
    Joined:
    Feb 16, 2018
    Location:
    Canada
    Posts:
    198
    Liked:
    732
    Occupation:
    Engineering Student
    Love the Toyota VD diesels. One day...

    Jeff

    EDub, A70TTR and Guff like this.
  8. OP
    OP
    Guff

    Guff Moderator
    Staff Member

    Car(s):
    FR-S, BRZ, Supra, Mini Cooper
    Joined:
    Sep 8, 2016
    Location:
    USA
    Posts:
    1,006
    Liked:
    4,021
    Garage Profiles:
    1

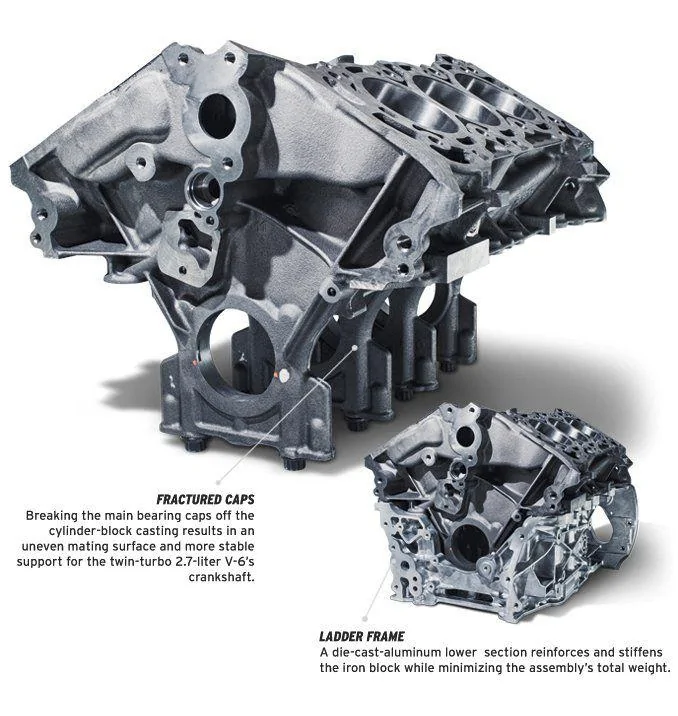

    Yup, CGI is generally used in diesel applications for its higher strength to handle the higher cylinder pressures. Ford also uses CGI in some of their TT V6s, but in a far more clever way than one might imagine. The main section of the block is casted from CGI (Cylinders, core structure, main caps, etc) but everything underneath that is cast aluminum. This allows for high strength CGI exactly where its needed, and lighter aluminum where something less strong can do the job. It's an interesting way to do it, but does present potential assembly/manufacturing issues, as well as potential reliability/longevity concerns, due to the mating of two different materials in such a critical location. That's why Ford pays the big bucks to its engineering department though!


    gymratter, mrarm, Jeff Lange and 2 others like this.
  9. A70TTR

    A70TTR Well-Known Member

    Car(s):
    Tundra TRD Pro, ST205 GT4, JZA70 TT-R, Q50-RS
    Joined:
    Sep 9, 2017
    Location:
    Japan/EU/USA
    Posts:
    1,587
    Liked:
    5,370
    yeah, ford said that they felt aluminum was not a sufficient material by itself when using forced induction.

    I actually like Ford quite a bit, at least WAY more than GM and FCA.

    gymratter, Jeff Lange, Guff and 2 others like this.
  10. Matador

    Matador Well-Known Member

    Car(s):
    '87 E30, '95 Mk4 Supra, '03 Legacy GT
    Joined:
    Jun 6, 2018
    Location:
    W.I.
    Posts:
    117
    Liked:
    260
    Didn't realize this. That's quite an awesome bit of engineering there. Hats off to Ford.

  11. OP
    OP
    Guff

    Guff Moderator
    Staff Member

    Car(s):
    FR-S, BRZ, Supra, Mini Cooper
    Joined:
    Sep 8, 2016
    Location:
    USA
    Posts:
    1,006
    Liked:
    4,021
    Garage Profiles:
    1
    Doing some more research onto Toyota's 1VD-FTV diesel engine, I found that Toyota claimed that the CGI block was "75% stronger and 30% lighter" than the previous iron casting. Here's a direct quote from the press release for that gen of Land Cruiser:

    "CGI is light, withstands wear and corrosion, and is very resistant to heat and shock. By using it for the cast iron cylinder block, Toyota has reduced noise and saved significant weight when compared with equivalent engines."

    gymratter, Modal170, Supraman and 4 others like this.
  12. Nurburgring

    Nurburgring Well-Known Member

    Car(s):
    911 Turbo, M3 E46, S2000, Mazda FC3S & FD3S, EK9 Type R, AE86, Evo7RS, F3 race car
    Joined:
    May 3, 2018
    Location:
    Chile
    Posts:
    118
    Liked:
    410
    #12 Jul 18, 2018
    Last edited: Jul 18, 2018
    A nice choice of material to cover the wildly different crowds the Supra must try to please:
    - A80 owners: "It must make at least 3000hp on stock block and rods for me to consider this car"
    - GT86/Miata/S2000 owners: "what an overweight pig! it`s only designed to go fast in a straight line?"

    For reference, Audi saved 10kg on its 3.0-liter V-6 TDI diesel engine by moving to CGI. Every kg counts.

  13. BRX

    BRX Well-Known Member

    First Name:
    Abdulla
    Car(s):
    Tundra, Celica, GT86
    Joined:
    Jul 10, 2018
    Location:
    United Arab Emirates
    Posts:
    114
    Liked:
    240
    This is usually not as important on other platforms and people have been wondering too long about the power and engine specs but not many seem to care what it will be called.

    Granted it is a "BMW" engine (Probably a B58 variant), but that didn't stop Toyota from naming the GT86 Engine when it was mainly a Subaru Flat-4.

    This will be the successor to the infamous JZ, more specifically the 2JZ. So I think the naming of this engine will play a huge roll in the future of the MKV.

    Looking through history, Toyota has an easy system to name their engines but nothing with a clear sequence (at least that I can see).

    Before we start, go to these links that explain Toyota Engine Codes:
    https://parts.olathetoyota.com/toyota-engine-codes
    https://en.wikipedia.org/wiki/List_of_Toyota_engines#Engine_codes

    Toyota seems to change the engine naming every 2 decades or so starting from the late 80s.

    - Pre Late 1980s: engine families used 1 letter. for example the M engine family as in 7M-GTE.
    - Late 1980s - Early 2000s: Toyota made the names with dual letters and used "Z" to their engine codes in this period (JZ, FZ, AZ, etc.)
    - Early 2000s until recently: Toyota replaced the "Z" with "R" (GR, UR, AR, etc.)
    - The last 3 engines Toyota made were named completely differently using the engine displacement. The three engines are V35A, A25A & M20A with a 3.5L, 2.5L and a 2.0L respectively. Note the "A" at the end is not related to the "A" that means the engine uses the Valvematic system. It most likely means the first generation of this engine.

    With that said, Toyota broke the rule with the 86 when they named the FA20 as a 4U-GSE, using an engine code we last heard of in the 70s in Toyota's own flat-2.

    First, there is a good chance it will simply be called a 3JZ, like the 4U with the 86. Which without a doubt will cause an uproar with 2JZ fans in a good or bad way depending on how it stacks up with the JZ reputation.

    If the new engine uses the new naming as the latest 3 Toyota engines, it will be called (X)30A, where (X) is an arbitrary letter Toyota chooses with a 3.0L displacement.

    It might also be attributed to the "R" engine name era but IMO that is very unlikely as the last engine with an R was the LFA's engine back in 2010. So something like 1(Y)R, where (Y) is an arbitrary letter Toyota chooses.

    The second part of the engine name will depend on what other technologies the engine uses.

    - It will definitely start with a "G" as it's a performance engine
    - We also know it's turbocharged, so the second letter is a "T".
    - Lastly, it depends whether it has direct injection or port injection only, so either an "S" or an "E".

    My conclusion is that it will be called one of the following:
    - 3JZ-GTE / 3JZ-GTS
    - (X)30A-GTE / (X)30A-GTS
    - 1(Y)R-GTE / 1(Y)R-GTS

    No body cares about the inline-4. Toyota should just sell the 4 cylinder MKVs as rolling shells instead and put the I4 in the 86 :dunno: lol jk

    Guff likes this.
  14. RyleyMA61

    RyleyMA61 Well-Known Member

    Car(s):
    lots
    Joined:
    Aug 28, 2017
    Location:
    Australia
    Posts:
    1,024
    Liked:
    2,409
    Occupation:
    Engineer
    Technically, the G series "wide angle twin cam" heads were also all Yamaha developed heads... So.... Hmm

    Spilner likes this.
  15. BRX

    BRX Well-Known Member

    First Name:
    Abdulla
    Car(s):
    Tundra, Celica, GT86
    Joined:
    Jul 10, 2018
    Location:
    United Arab Emirates
    Posts:
    114
    Liked:
    240
    I don't think that is applied anymore. Was the FA20's (4U-GSE) head developed by Yamaha?
