License Plate blocking the upper section to the heat exchanger. How bad is it really?

Nonschlont

Well-Known Member
First Name
Phil
Joined
Jul 14, 2020
Messages
76
Reaction score
59
Location
SoCal
Car(s)
2021 Supra Premium & Evo X
Has any1 done any real world testing / logging temps, to see if this is has any impact?
I found another 2021 I want to go pick up, but noticed the plate bracket is already mounted dead center, blocking the upper section.. As sensitive to temps as these cars are, I would think we want to get as much air flow thru that lil center section as possible..
I planned on using the tow hitch for the plate mount. Any thoughts on that? Where are you guys mounting your front plate?





Advertisement



Itengineer

Well-Known Member
Joined
Aug 8, 2020
Messages
88
Reaction score
61
Location
MN
Car(s)
2021 Supra 3.0
Leaning towards the tow hitch myself but at least 4-6 weeks away from getting plates so no hurry


legacy_etu

Well-Known Member
First Name
Brian
Joined
Mar 2, 2020
Messages
186
Reaction score
98
Location
RI, USA
Car(s)
20 Supra, 16 Wrangler UNLTD
I've not measured a thing. I went with the Perrin mount tow hook as this was the best looking setup to me if not a bit expensive. The other options just look cheap and/or stupid IMO. The nice thing about this mount is the adjustability. I have it slid up as high as it can go so as to limit the blockage of the right vent and it also doesn't block the parking sensor. Not posting pictures since Perrin already has them on their site.


XtremeMaC

Well-Known Member
First Name
MaC
Joined
Aug 8, 2018
Messages
1,231
Reaction score
1,130
Location
_________ SE Michigan, USA
Car(s)
2013 GT86 _____2020 Supra

ZtoSupra

Active Member
First Name
Leslie
Joined
Jul 31, 2020
Messages
35
Reaction score
12
Location
St. Louis
Car(s)
‘20 Supra, ‘08 FJ; traded ‘03 Touring Z
Has any1 done any real world testing / logging temps, to see if this is has any impact?
I found another 2021 I want to go pick up, but noticed the plate bracket is already mounted dead center, blocking the upper section.. As sensitive to temps as these cars are, I would think we want to get as much air flow thru that lil center section as possible..
I planned on using the tow hitch for the plate mount. Any thoughts on that? Where are you guys mounting your front plate?
You mean the front plate?

OP
Nonschlont

Nonschlont

Well-Known Member
First Name
Phil
Joined
Jul 14, 2020
Messages
76
Reaction score
59
Location
SoCal
Car(s)
2021 Supra Premium & Evo X
  • Thread starter
  • Thread Starter
  • #7
You mean the front plate?
yes.
There's only 1 AZ 2021 3.0 prem for sale 200 miles from me, so trying to determine if this is actually something to be concerned about and would prevent me from picking it up. Its been like 115* + last few days.
I asked if they would replace the bumper , but no.


a90moe

Well-Known Member
Joined
Nov 9, 2019
Messages
814
Reaction score
772
Location
Earth
Car(s)
MKV Supra
yes.
There's only 1 AZ 2021 3.0 prem for sale 200 miles from me, so trying to determine if this is actually something to be concerned about and would prevent me from picking it up. Its been like 115* + last few days.
I asked if they would replace the bumper , but no.
Most are on the center here where I live

Temps @ 122F


wtf

Well-Known Member
First Name
Mark
Joined
Dec 24, 2018
Messages
56
Reaction score
75
Location
Australia
Car(s)
500hp 97 TT 6sp Aero, 800hp 98 GTX3584 6sp hardtop, 1000hp 92 R32GTR, 1300hp VR41 GT86, 600hp RB26 180SX, 1000hp R35GTR, 400hp SR20 AE86...
I did tests with a portion of the front centre section blocked by a small 3 digit license plate and the results on the circuit were very noticeable.

Oil temps, transmission temps, intake temps nd coolant temps were all substantially worse with the plate partially obscuring the centre intake ducts.

(1) is with plate
(2) is without plate



Itengineer

Well-Known Member
Joined
Aug 8, 2020
Messages
88
Reaction score
61
Location
MN
Car(s)
2021 Supra 3.0
I did tests with a portion of the front centre section blocked by a small 3 digit license plate and the results on the circuit were very noticeable.

Oil temps, transmission temps, intake temps nd coolant temps were all substantially worse with the plate partially obscuring the centre intake ducts.

(1) is with plate
(2) is without plate

Excellent testing.
Much better than the QA guys do at my day job. LOL
Seeems quite clear that blocking the center is a no-no

  • Like
Reactions: wtf

pnwitasha

New Member
Joined
Sep 10, 2020
Messages
4
Reaction score
5
Location
Seattle
Car(s)
21 3.0 premium
I did tests with a portion of the front centre section blocked by a small 3 digit license plate and the results on the circuit were very noticeable.

Oil temps, transmission temps, intake temps nd coolant temps were all substantially worse with the plate partially obscuring the centre intake ducts.

(1) is with plate
(2) is without plate

Hmm, but for those of us that have to have a front plate we need to see these numbers with the plate covering the left/right vent too... Could you run those? Or tell us how to do it (I assume just an ODB2 connector needed?)


wtf

Well-Known Member
First Name
Mark
Joined
Dec 24, 2018
Messages
56
Reaction score
75
Location
Australia
Car(s)
500hp 97 TT 6sp Aero, 800hp 98 GTX3584 6sp hardtop, 1000hp 92 R32GTR, 1300hp VR41 GT86, 600hp RB26 180SX, 1000hp R35GTR, 400hp SR20 AE86...
The plate is now located on the lhs vent area but if you look in there you'll see very little intake is used at the top, it's all down the bottom half.

Also that would only impact engine coolant there and not the rest. In the middle it is blocking nearly everything important, which is why that FT1 body kit is laughable, as it would give zero flow to three major components.


pnwitasha

New Member
Joined
Sep 10, 2020
Messages
4
Reaction score
5
Location
Seattle
Car(s)
21 3.0 premium
oh awesome, thank you. was thinking this solid black plastic part was a sensor or something, why else would it be there lol




e: :doh::doh: I won't even waste a reply, thank you for pointing out my mirrored directions


wtf

Well-Known Member
First Name
Mark
Joined
Dec 24, 2018
Messages
56
Reaction score
75
Location
Australia
Car(s)
500hp 97 TT 6sp Aero, 800hp 98 GTX3584 6sp hardtop, 1000hp 92 R32GTR, 1300hp VR41 GT86, 600hp RB26 180SX, 1000hp R35GTR, 400hp SR20 AE86...

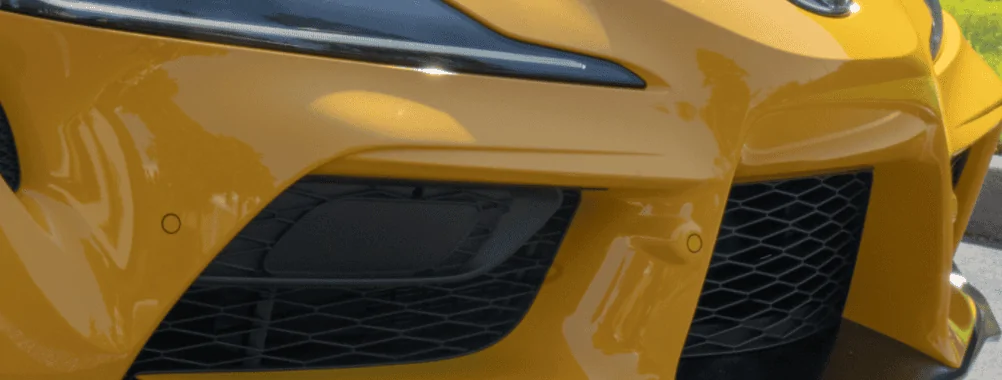

oh awesome, thank you. was thinking this solid black plastic part was a sensor or something, why else would it be there lol

That's the right vent, don't cover that it's the radar sensor.

Left side only has the tow hook attachment.


NYCDriver

Well-Known Member
Joined
Jul 30, 2020
Messages
59
Reaction score
25
Location
NY
Car(s)
2020 Toyota Supra GR
I didn't notice any differences driving but your plates WILL scratch the upper lip from wind, I highly recommend buying a plate re-locator for the lest tow hook before you even purchase the car.
