Stupid me bumped a curb whilst parking..

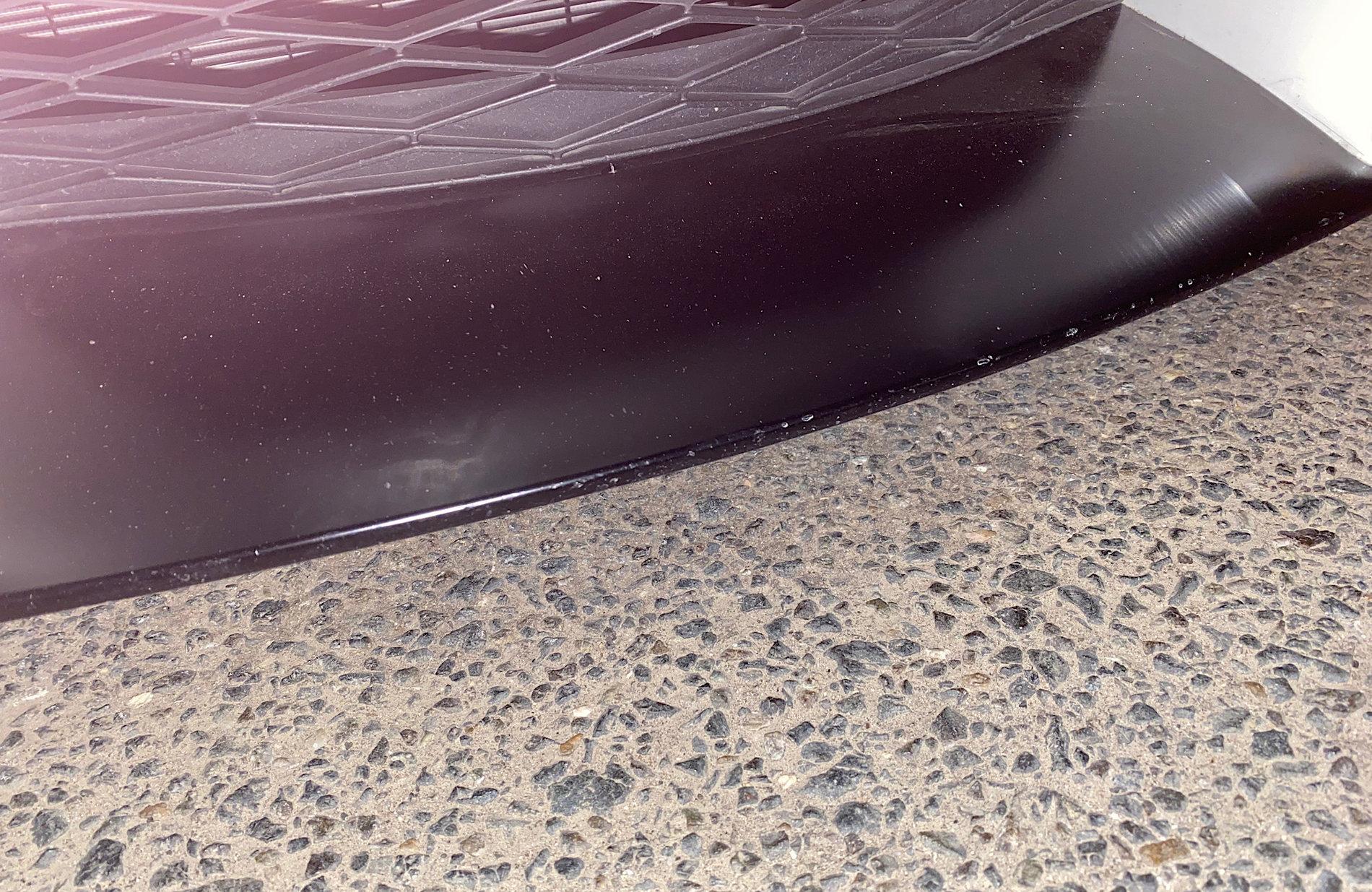

Was enough to chip of the black paint on the edges

You can see cement residue from the parking curb :cry:



Walked out feeling bumper was f*cked and was shocked at how the lip prevented any damages

Noticed the 3 piece design.. Dealer here knows nothing.

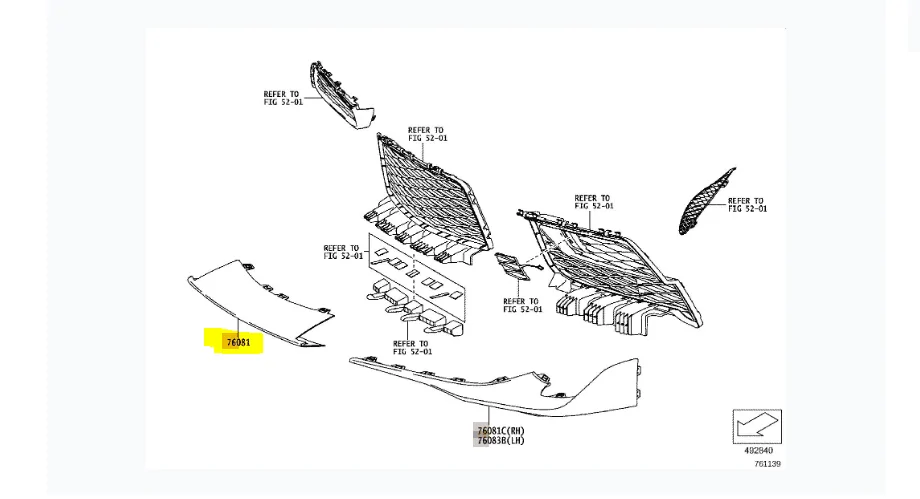

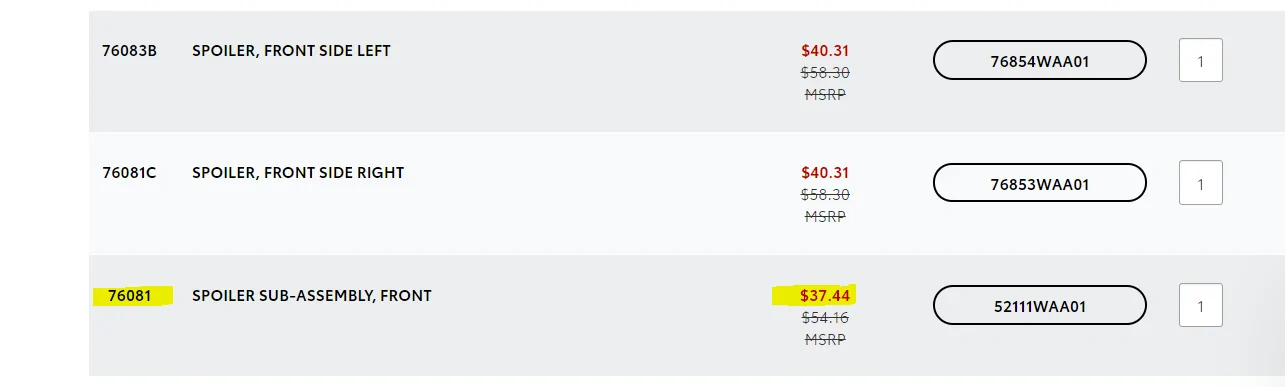

Can anyone check if centre piece is separate and what the part number is?

Google knows nothing too :/
Sponsored



Dooo

Well-Known Member
Joined
Jun 7, 2019
Threads
10
Messages
307
Reaction score
150
Location
Maryland
Car(s)
2021 A91
Stupid me bumped a curb whilst parking..

Was enough to chip of the black paint on the edges

You can see cement residue from the parking curb :cry:



Walked out feeling bumper was f*cked and was shocked at how the lip prevented any damages

Noticed the 3 piece design.. Dealer here knows nothing.

Can anyone check if centre piece is separate and what the part number is?

Google knows nothing too :/




XtremeMaC

Well-Known Member
Joined
Aug 8, 2018
Threads
41
Messages
2,957
Reaction score
3,205
Location
_________ SE Michigan, USA
Car(s)
2020 Supra
FYI, it's not depicted in the picture, but the sides are attached with push-pins (3 each I believe), whilst the mid one uses 3 bolts and hooks on to the bumper. You can use a trim tool to free those clips that hook on...
So, you can take them out without having the need to take the whole bumper out.
Also, for next time, use PPF or that company I keep on seeing on IG for scrape guards...


cutsman

Well-Known Member
Joined
Aug 8, 2017
Threads
8
Messages
86
Reaction score
95
Location
US
Car(s)
1972 Austin Mini (VTEC), 2020 Supra, 2005 Cooper S
Vehicle Showcase
1
That's good to know the middle piece can be separated. That would make a fun little DIY PPF project...

OP
OP

a90moe

Well-Known Member
Joined
Nov 9, 2019
Threads
4
Messages
814
Reaction score
805
Location
Earth
Car(s)
MKV Supra
FYI, it's not depicted in the picture, but the sides are attached with push-pins (3 each I believe), whilst the mid one uses 3 bolts and hooks on to the bumper. You can use a trim tool to free those clips that hook on...
So, you can take them out without having the need to take the whole bumper out.
Also, for next time, use PPF or that company I keep on seeing on IG for scrape guards...
Car does have PPF

Sadly this part was not covered

Edit: Will look into mentioned scrape guard

Last edited:

eyeye96

Well-Known Member
Joined
Sep 27, 2019
Threads
13
Messages
158
Reaction score
77
Location
Bay Area, CA
Car(s)
2020 GR Supra
Have some damage on my center lip as well. Was able to find the part on Toyota parts website thanks to the information here.

Can you guys help me with the removal instructions. I want to do this without removing the front bumper. I see that there are tabs holding this thing. Can this be done at home without lifting the car and without removing the bumper?


supradupra

Well-Known Member
Joined
Sep 27, 2019
Threads
4
Messages
136
Reaction score
113
Location
pa
Car(s)
2020 supra (soon)
Have some damage on my center lip as well. Was able to find the part on Toyota parts website thanks to the information here.

Can you guys help me with the removal instructions. I want to do this without removing the front bumper. I see that there are tabs holding this thing. Can this be done at home without lifting the car and without removing the bumper?
im in the same boat so if anyone has info that would help me also


BA9092

Well-Known Member
First Name
Christian
Joined
Aug 1, 2020
Threads
53
Messages
884
Reaction score
1,180
Location
Dallas/Fort Worth
Car(s)
2020 GR Supra Absolute Zero Premium

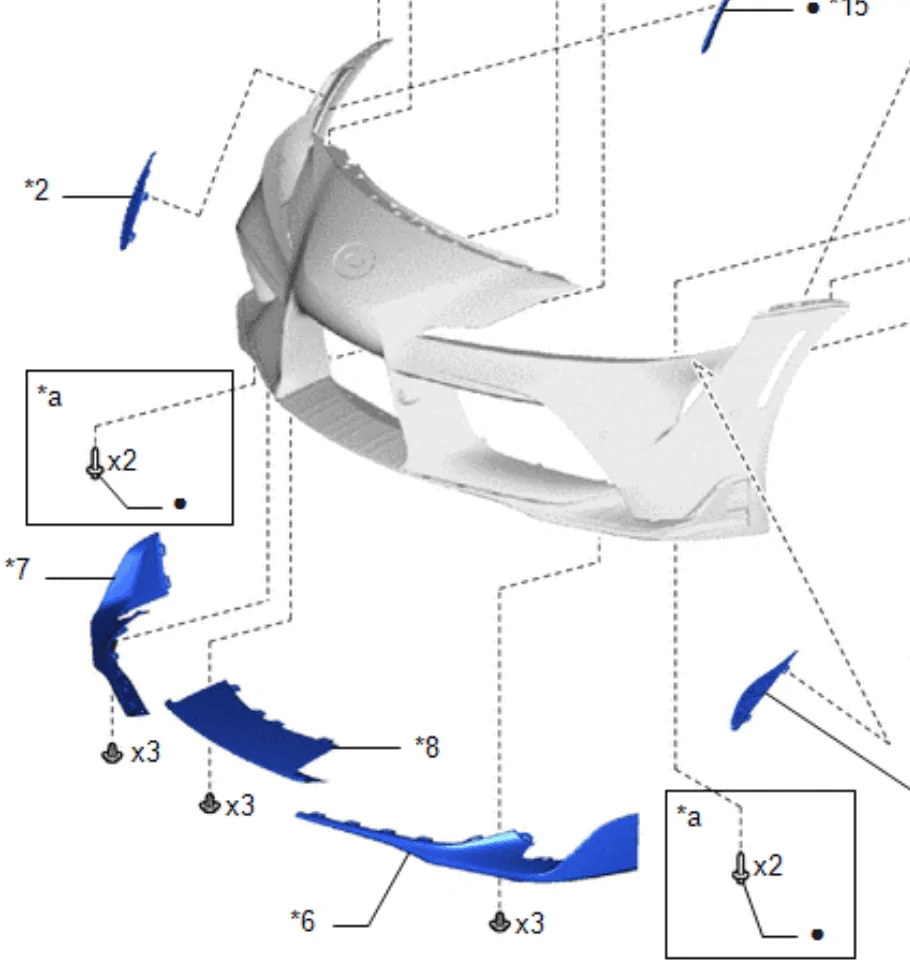

They're 3 separate pieces. It appears they're held in by an assortment of clips, tabs and 8mm screws.

I took a peek at them when I installed my Maxton front lip - doesn't seem to be too difficult to replace.

@a90moe and @Dooo listed the parts number above. Should've be that hard to remove, just take your time and use a plastic trim remover tool to avoid any scratching.

Screen Shot 2021-01-08 at 2.27.10 PM.png


focusmade

Member
Joined
Jun 6, 2021
Threads
0
Messages
15
Reaction score
2
Location
Service Center
Car(s)
2021 Supra 3.0
They're 3 separate pieces. It appears they're held in by an assortment of clips, tabs and 8mm screws.

I took a peek at them when I installed my Maxton front lip - doesn't seem to be too difficult to replace.

@a90moe and @Dooo listed the parts number above. Should've be that hard to remove, just take your time and use a plastic trim remover tool to avoid any scratching.

Screen Shot 2021-01-08 at 2.27.10 PM.png
Where is this photo from? Have any more info on removing these?


feitu232

Member
Joined
Apr 19, 2021
Threads
6
Messages
20
Reaction score
8
Location
PNW
Car(s)
None
I know this is an old thread but does anyone know the paint code for the OEM lip? I recently purchased a FRP lip and I need that painted lol
