Side Mirror Caps: How To Install, Tips, Tricks

30MilesOffshore

Well-Known Member
Joined
Jan 27, 2020
Threads
27
Messages
379
Reaction score
316
Location
Charlotte, NC
Car(s)
2020 Supra

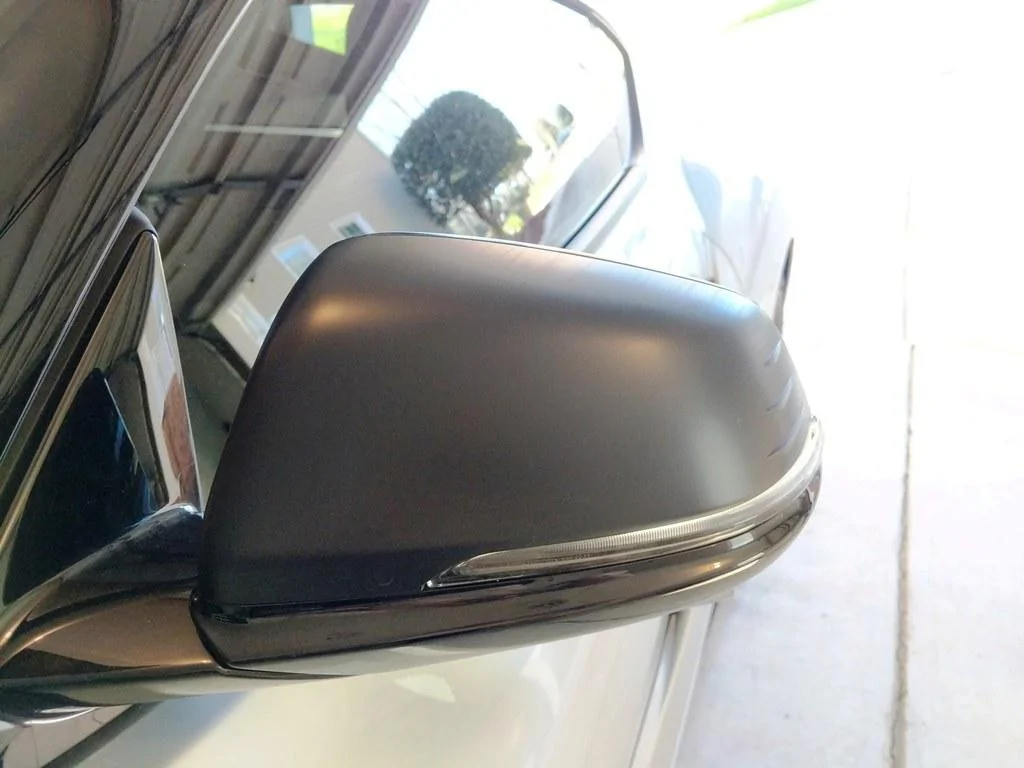

1. Push the entire mirror so it folds out away from the car.
  • Tip: This will allow the mirror to hang freely without scratching on the paint/door.

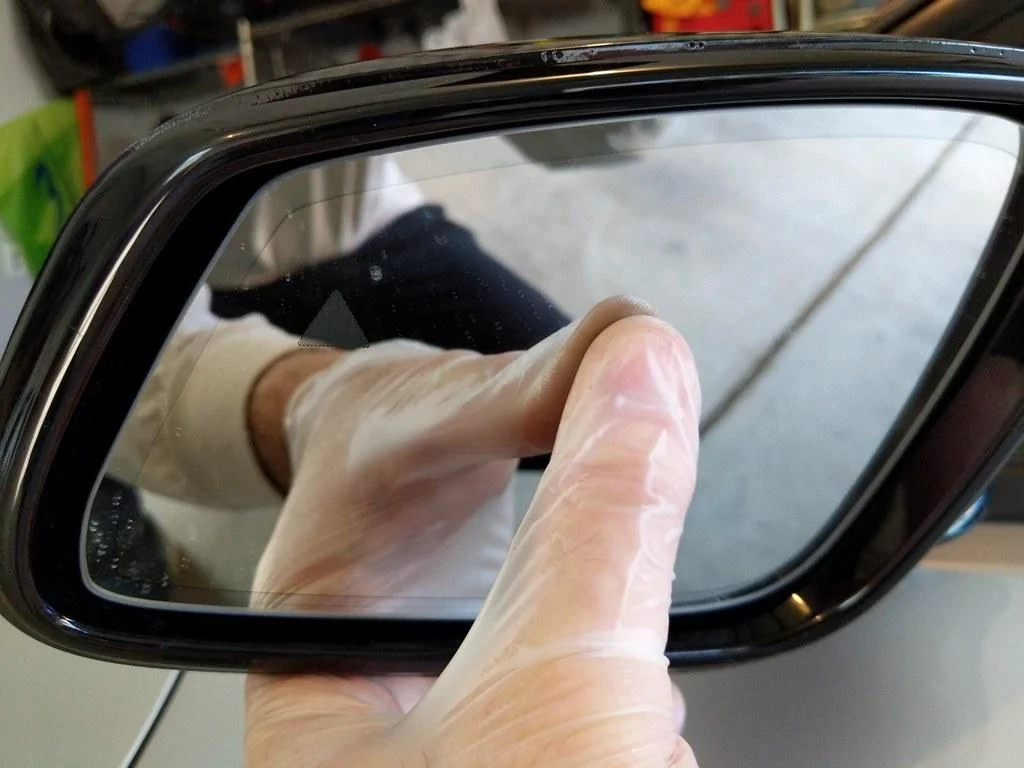

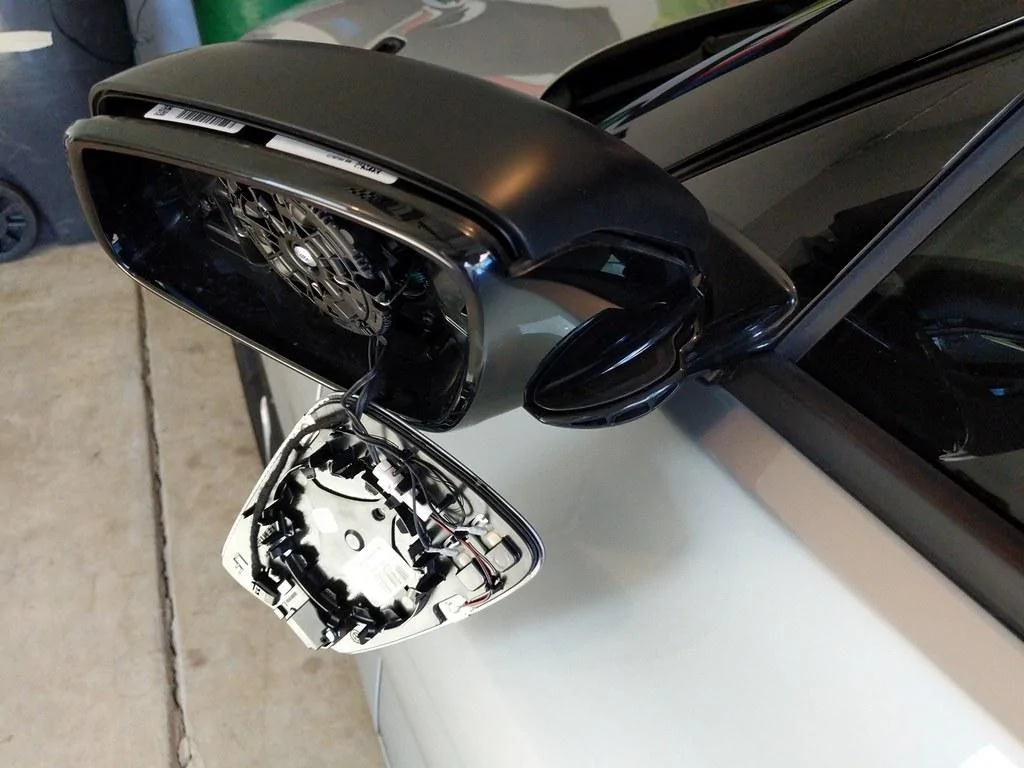

2. Push on the corner of the glass near the door. This will give you room to place your fingers behind the opposite corner so you can pry the mirror off. The lock for the glass is round and located in the center of the glass. The mirror will just pop off with proper pressure.
  • Tip: I don't recommend using pry tools as they create pressure on the glass in one specific location. This increases the chance of cracking the glass. It's better to use your hand to pry the glass.

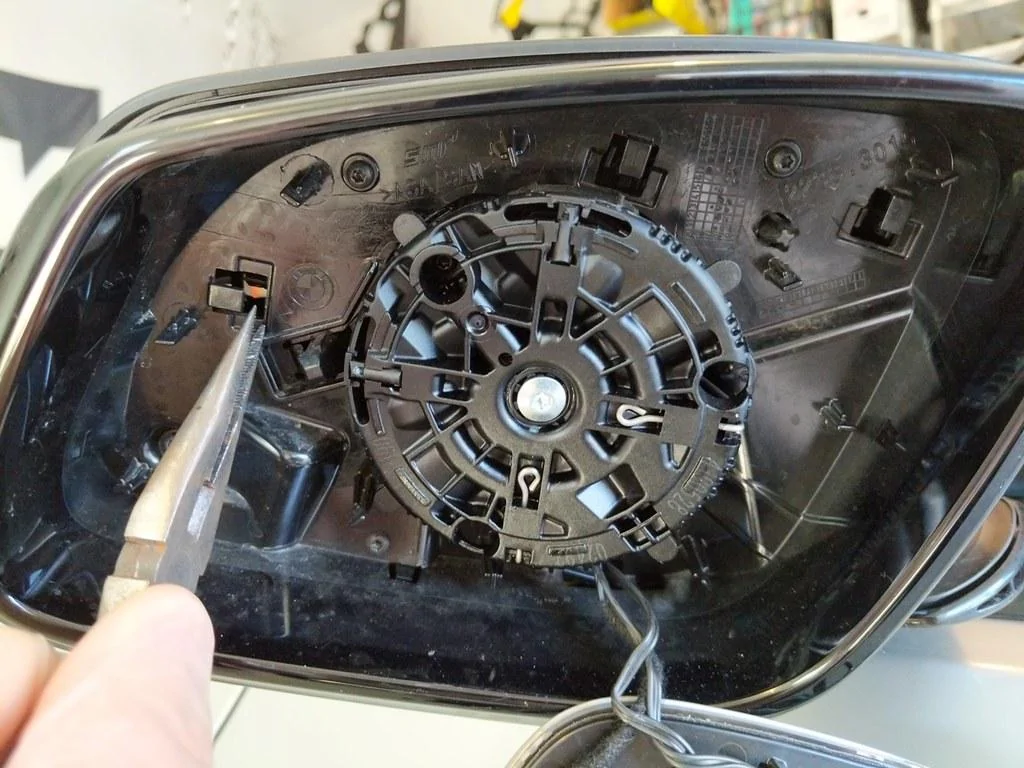

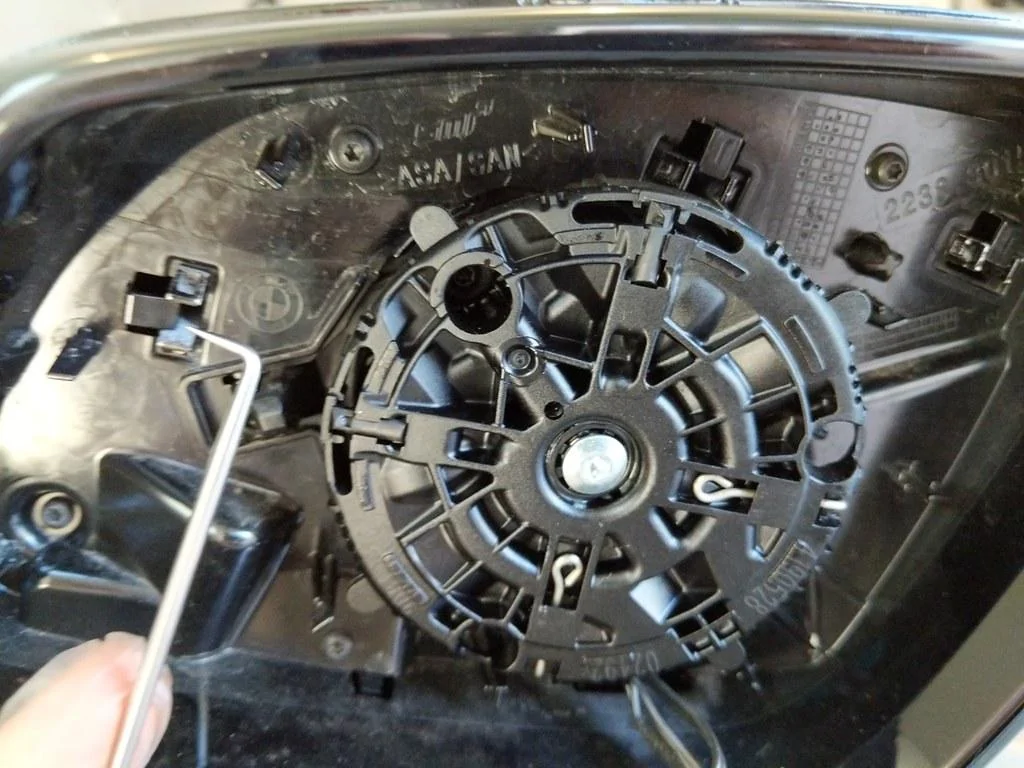

3. There are only 3 locks holding the mirror cover in place. The locks have a piece of plastic tab in the middle which will need to be moved outwards to allow the clips to come together and unlock. Now you can use needle nose pliers to squeeze the two plastic prongs together to release the clip.

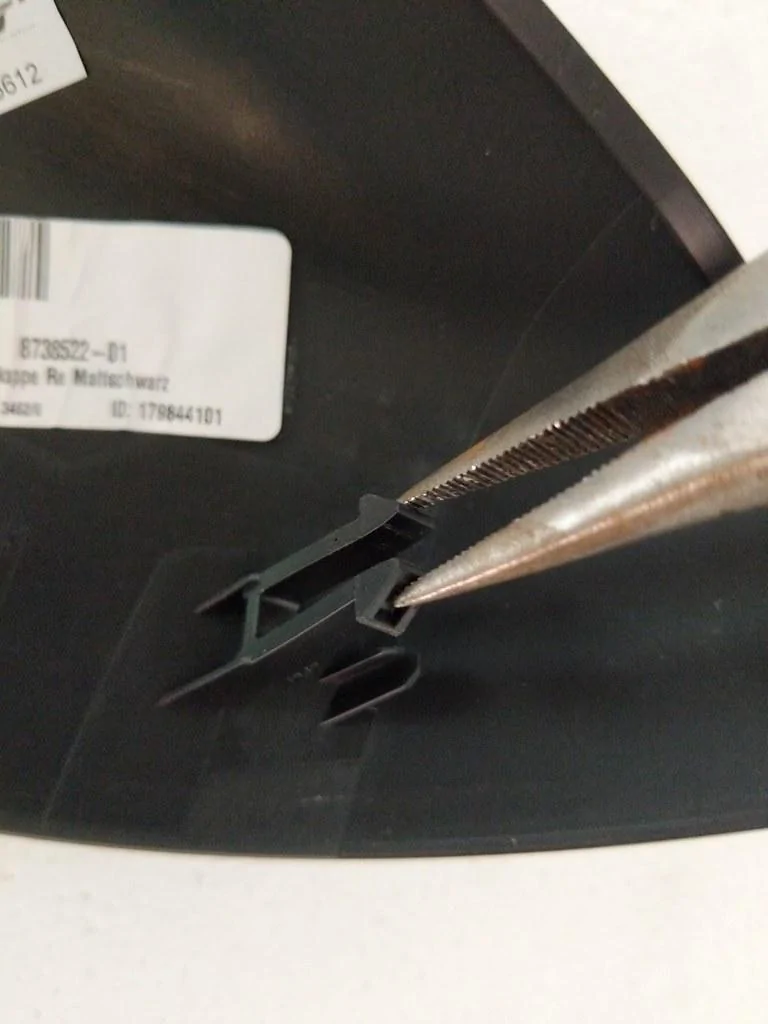

  • Trick: Needle nose pliers fit perfectly into the prongs (as seen in picture below).
  • Tip: Release the clips in this order: Far outside clip > middle clip > Inner clip near door. If you go in this order you will not have to pry on the cover. Once you unlock the third clip, it will simply come right off.

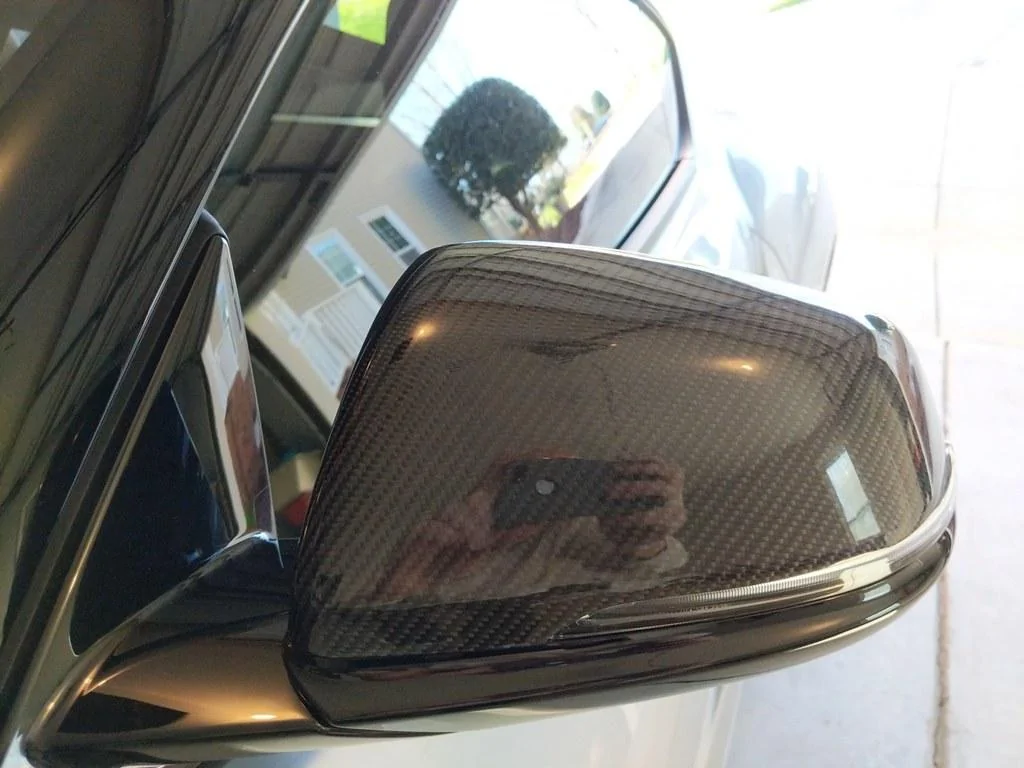

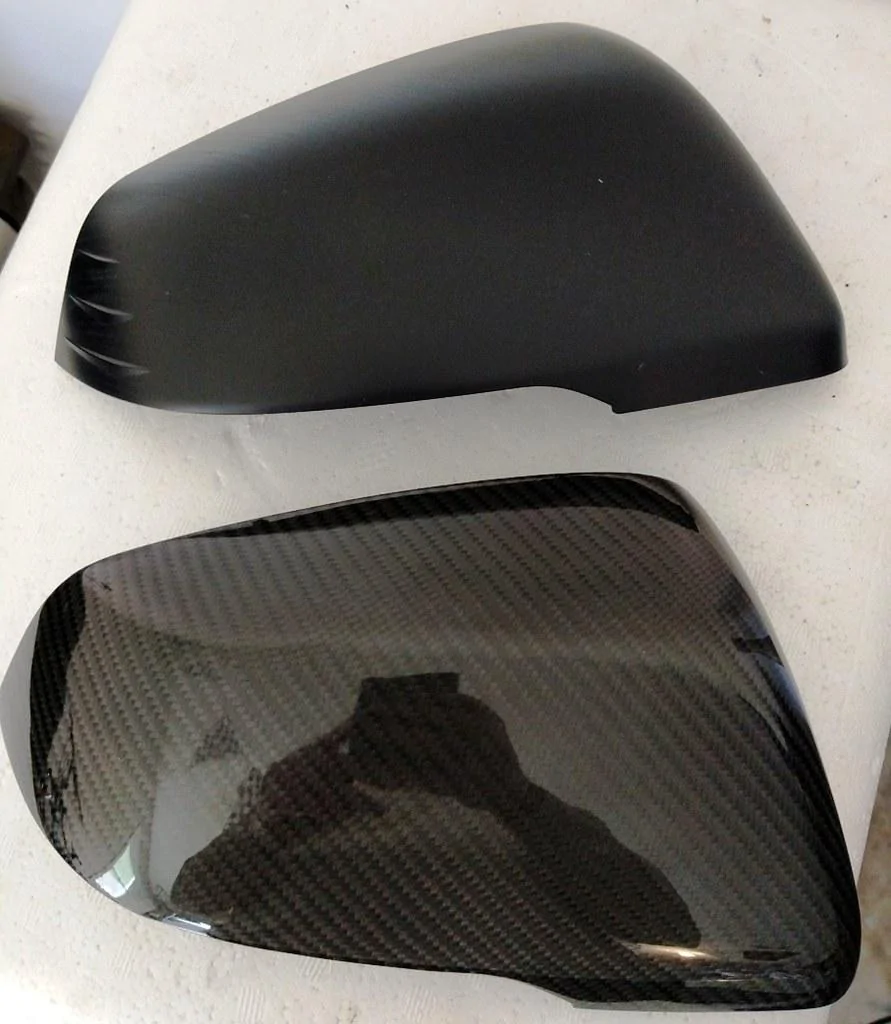

4. Install the new mirror cover. Align everything up and it will clip back into place.
  • Tip: Double check all 3 clips to ensure they locked. Also check to make sure the plastic locking tab in the middle of the clips are engaged.

5. Reinstall the glass mirror. Align the tabs up and push in the center of the mirror to lock it in place.
  • Tip: Do not push on the outside edges of the mirror. Use the center of the mirror as the locks are located in this area.




[url=https://flic.kr/p/2iuyVLC] 49550043952_e0d904b319_b.jpg

[url=https://flic.kr/p/2iuyVL2] 49550043917_7d76ac19ed_b.jpg

[url=https://flic.kr/p/2iuvc4F] 49549314953_c6087dbfae_b.jpg

[url=https://flic.kr/p/2iuvc5x] 49549315003_d01062c71d_b.jpg

[url=https://flic.kr/p/2iuvc52] 49549314973_4b89e0d5cb_b.jpg

[url=https://flic.kr/p/2iuvc4R] 49549314963_8e394320f3_b.jpg

[/url][/url][/url][/url][/url][/url]
Sponsored



Supra_UK_

Well-Known Member
Joined
Apr 6, 2022
Threads
39
Messages
665
Reaction score
789
Location
Skyrim
Car(s)
Ex-Owner '23 GR Supra 6MT

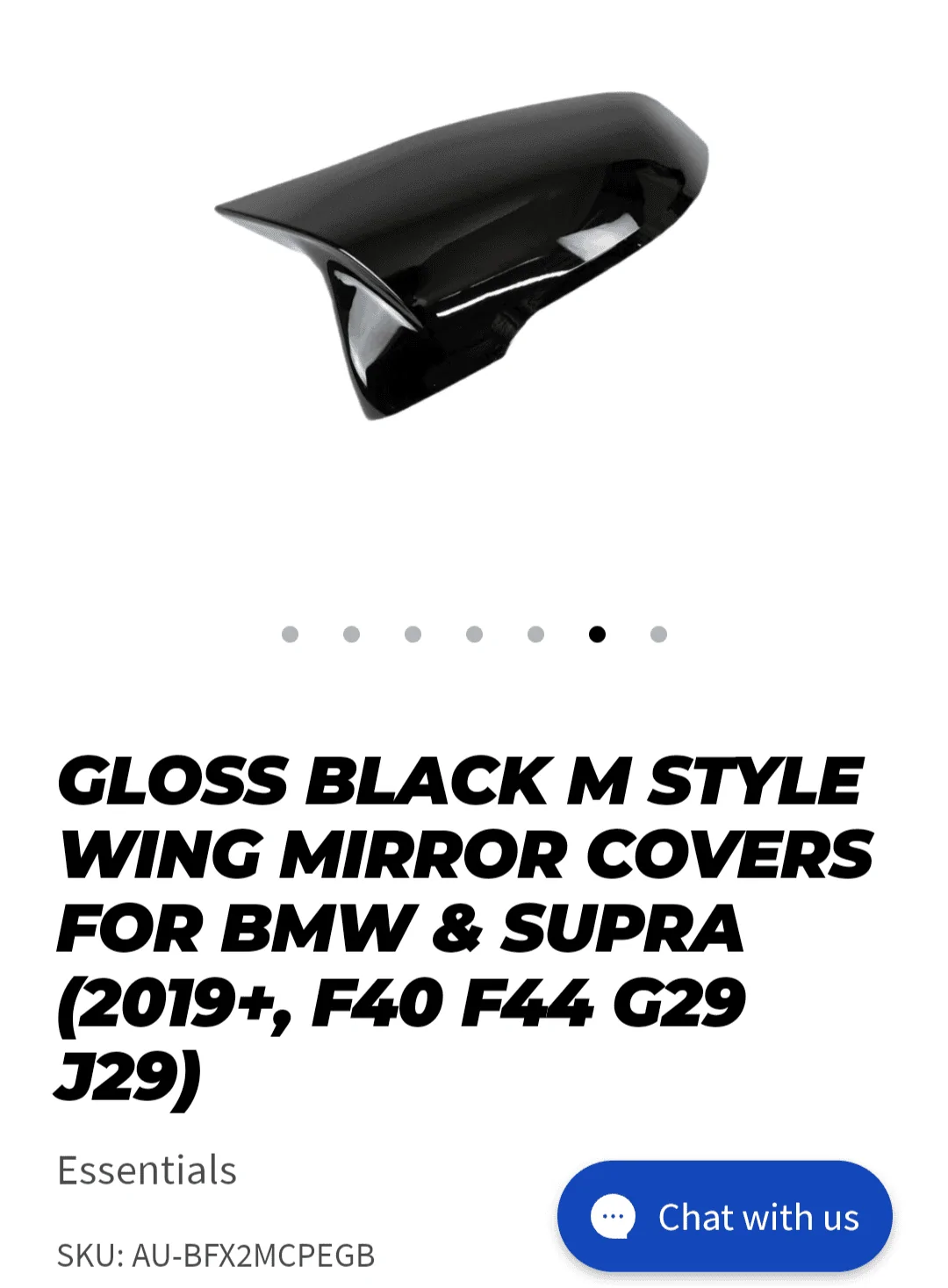

Thank you so much for this - I am completely useless at this stuff so I am afraid of breaking something but I really want to change mine to these:


Help needed:
Has anyone that has done this/sees this post, broken a clip or any part of the mirror while performing this upgrade?

Also, see below video, these are professional installers in the UK, and the only DYI mirror cap video I ever saw where they don't remove the glass mirror at all, and remove the cap directly from the "front" of the mirror rather than from the inside. What do you guys think?

I feel like the less I need to do, the less I have to damage, so if this can be done without touching the mirror at all, I'd prefer it.
Anyone got insight please?
