Supra FIREWALL locations?

tedan628

Well-Known Member
First Name
Andy
Joined
Jun 16, 2019
Threads
12
Messages
365
Reaction score
335
Location
New jersey
Car(s)
2015 Sti, 2005 Forester XT
Hi guys,

i am planning to install a few gauges inside the car this weekend and i cant locate the firewall location so i can pass through the wires from engine bay to interior.

Anyone can post picts and let me know where is the firewall hole is?

thank you
Sponsored



lowlife

Active Member
First Name
Justin
Joined
Jun 4, 2020
Threads
1
Messages
29
Reaction score
43
Location
Kenosha, WI
Car(s)
2020 Supra, 2004 VW R32
Hi guys,

i am planning to install a few gauges inside the car this weekend and i cant locate the firewall location so i can pass through the wires from engine bay to interior.

Anyone can post picts and let me know where is the firewall hole is?

thank you
Driver side behind and under the brake booster. Look up the video for the titan meth kit install and it'll show you where on the passenger side to pass thru. Drivers side is pretty much identical


puzzled

Well-Known Member
First Name
Calvin
Joined
Jun 4, 2020
Threads
0
Messages
1,788
Reaction score
2,287
Location
USA
Car(s)
2020 Supra Premium; VA STI; MK7 GOLF-R; etc..
I also had to find a through hole when I wired up my JB4 on my 2020 Premium.

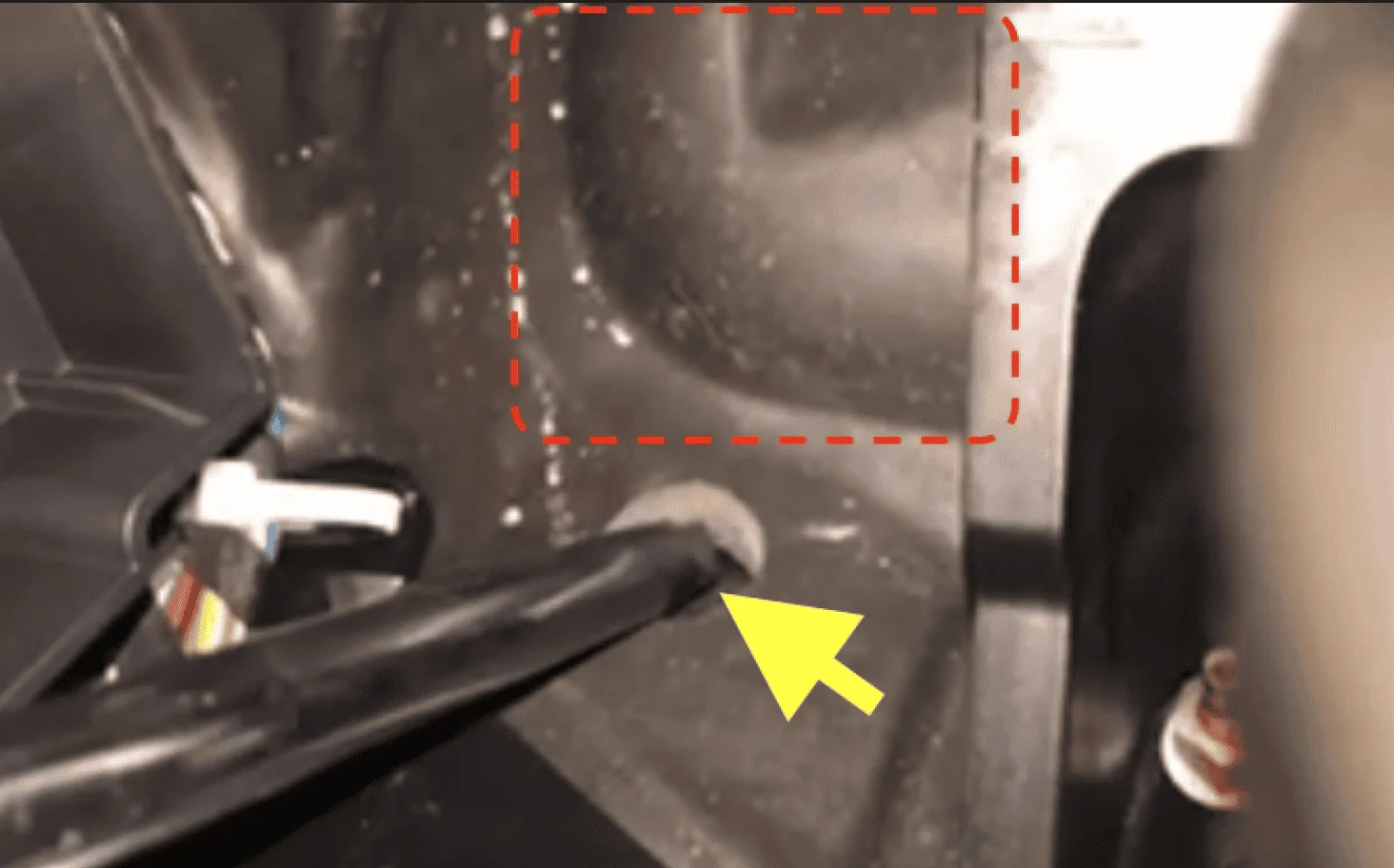

Above your dead pedal look for this L shaped (maybe it was a rectangle, don't remember) emboss inside the red dotted line. Then you will see a round plug you can push in (yellow arrow shows hole) right under it.

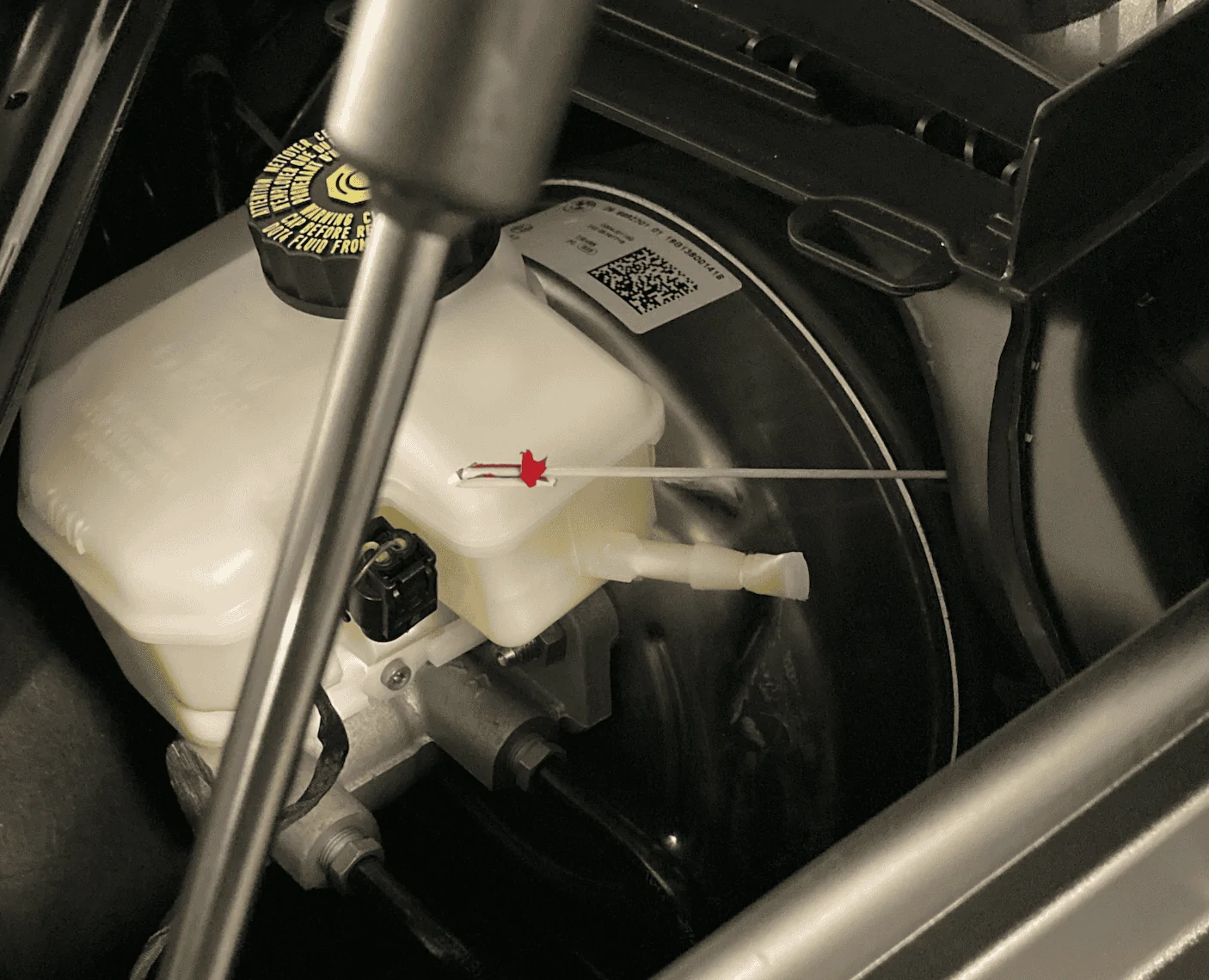

This is where it comes out.. GL with the install.
