Featured TOYOTA GAZOO Racing to commence sales of GR Supra GT4 in March 2020

Discussion in 'General Supra Topics' started by ronodoc, Oct 29, 2019.

  1. ronodoc

    ronodoc Member

    First Name:
    Ron
    Car(s):
    2014 Tundra Platinum; 2020 Supra LE
    Joined:
    Jan 25, 2019
    Location:
    ATL
    Posts:
    5
    Liked:
    8
    #1 Oct 29, 2019
    Last edited by a moderator: Oct 29, 2019
    https://global.toyota/en/newsroom/toyota/30434801.html

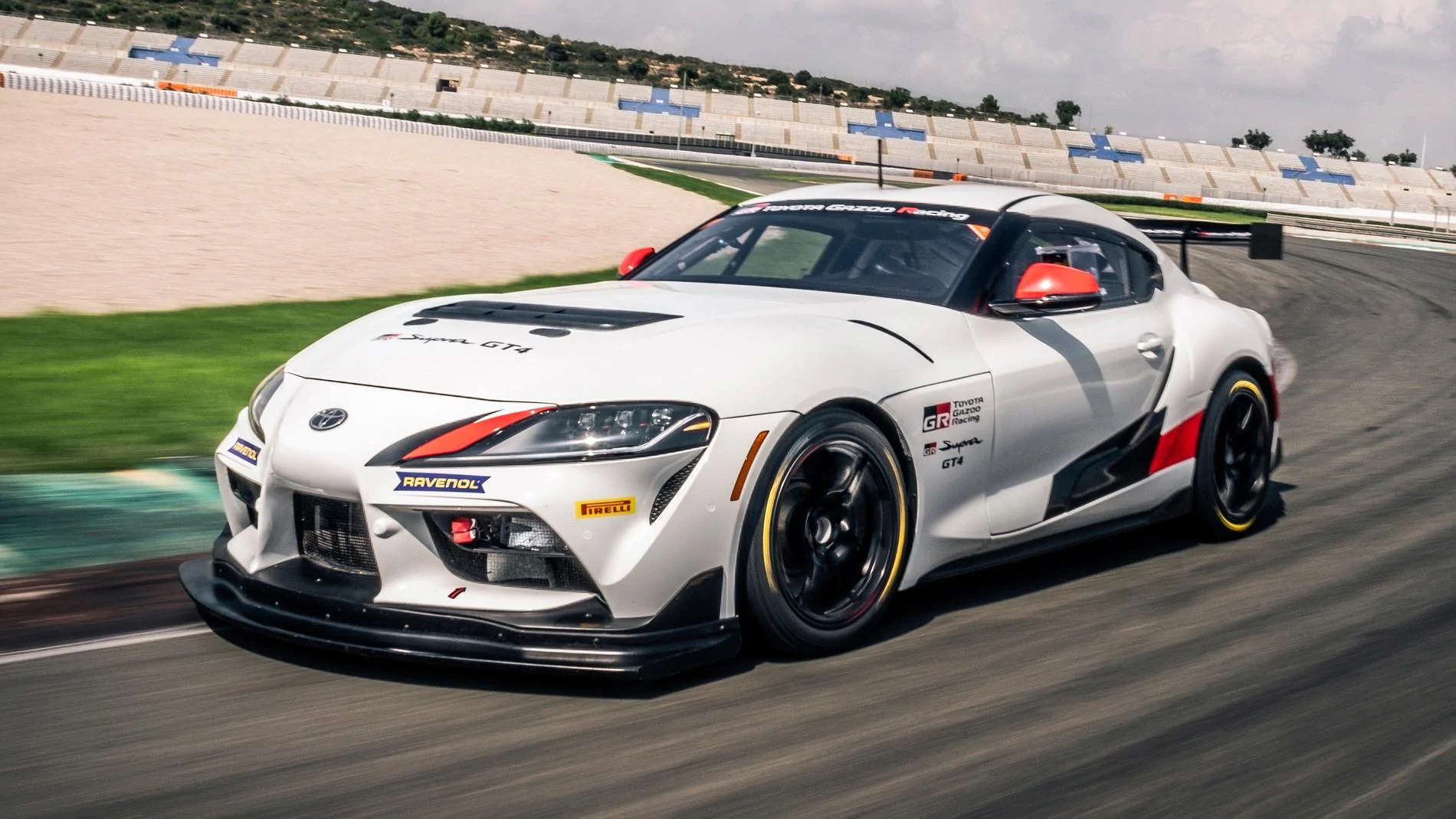

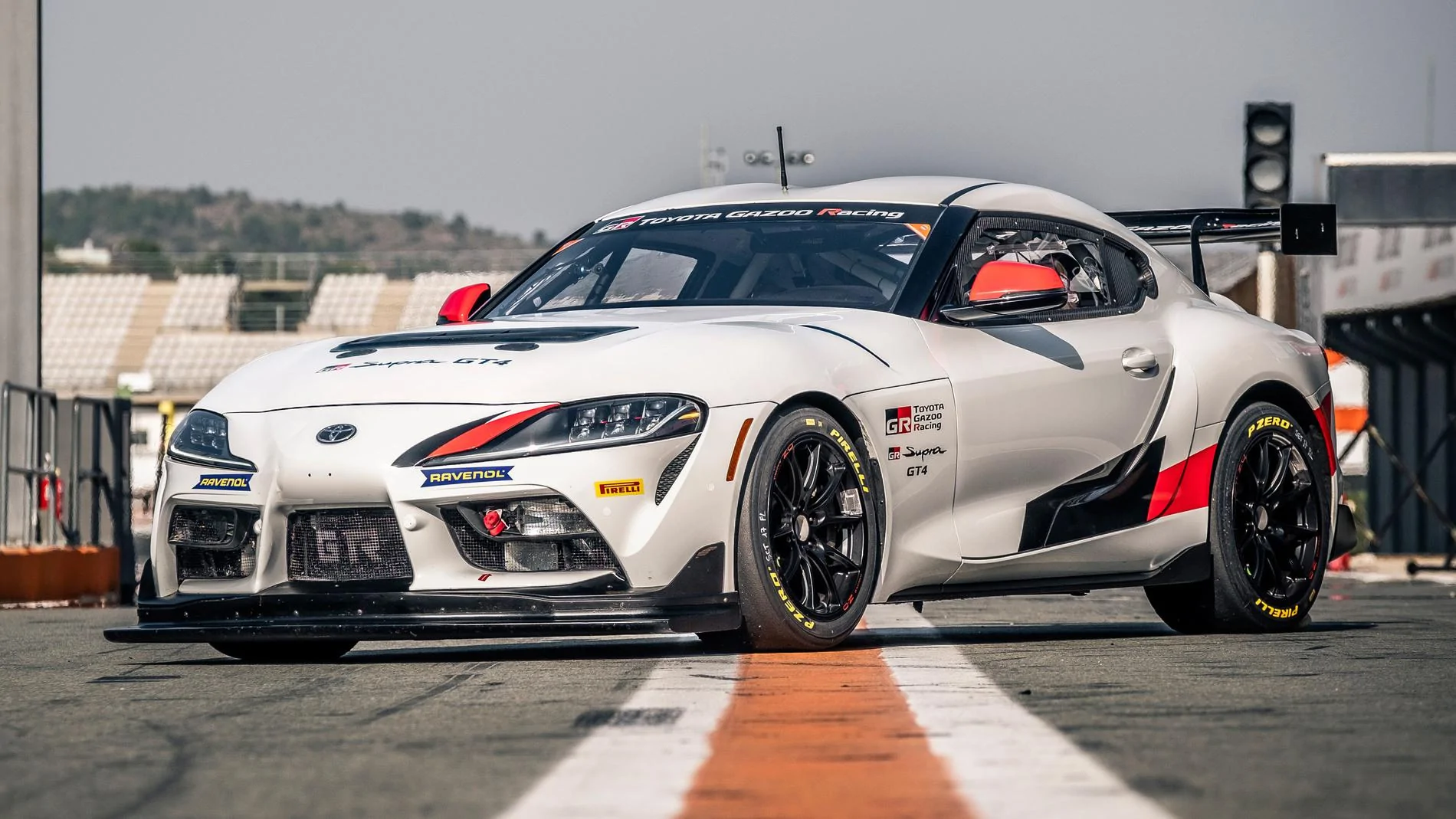

    TOYOTA GAZOO Racing to commence sales of GR Supra GT4 in March 2020 to Europe, and expand sales to North America in August, and to Japan/Asia in October

    TOYOTA GAZOO Racing confirmed today that it will start the sales of GR Supra GT4*1, a race car for customer teams, starting from March 2020 to Europe. The sales area will expand to North America in August, and to Japan/Asia in October. TOYOTA GAZOO Racing intends to strengthen its focus on customer motorsport*2 in order to enable motorsport-lovers around the world to participate in races.

    The GR Supra GT4 is based on the GR Supra―TOYOTA GAZOO Racing's first-ever global model released earlier this year―and is developed and produced by TOYOTA Motorsport GmbH ("TMG").

    A three-litre in-line six cylinder engine with single twin-scroll turbocharger has been tuned to 320 kW*3 (430 hp) with a 7-speed sports automatic transmission with paddle shift and the mechanical limited slip differential driving the rear wheels. An Akrapovič exhaust system will be fitted and Ravenol will provide first-fill lubricants.

    The front splitter and rear wing are made of natural fiber composite, contributing to an overall weight of 1,350 kg*3. Following the specification of the GR Supra road car, the front suspension will be MacPherson strut, and rear suspension will be multilink with KW dampers at the front and rear.

    The braking system is enhanced through the use of a dedicated brake calliper for racing, six-piston front and four-piston rear, while running on Pirelli tires.

    Safety will be a priority and the GR Supra GT4 will be installed with a high-strength roll cage on the lightweight steel body, and an FIA-standard racing seat with six-point harness. The interior will feature a carbon fiber instrumental panel with a display and steering wheel specifically designed for GT4 competition.

    The contact company for each region of the GT4 vehicle sales and customer support (including sales for spare parts and engineer support) will be the following; TMG for Europe, TRD U.S.A., INC. for North America, and TOYOTA CUSTOMIZING & DEVELOPMENT Co., Ltd. for Japan/Asia. Please contact the listed company for how to apply for purchase. The planned car price is 175,000€ (excluding tax, custom fee, logistic fee, etc.).

    *1 GT4 vehicles are sold to race participants and cannot be driven on public roads.
    *2 Private customer teams purchase race cars from manufacturers that are modified versions of production vehicles and enter them into races.
    *3 Subject to change depending on the SRO BOP (Balance of Performance).

    GR Supra GT4 Vehicle Sales and Customer Support Company by Regions
    Region Vehicle Sales and Customer Support Company
    Europe
    TOYOTA Motorsport GmbH Customer Motorsport
    e-mail [email protected]

    North America TRD U.S.A., INC.
    e-mail [email protected]

    Japan/Asia TOYOTA CUSTOMIZING & DEVELOPMENT Co., Ltd. TRD Business Div. Department No.1
    Motor Sports Business Unit
    e-mail [email protected]

    GR Supra GT4 Technical Specifications
    Chassis
    Length 4,460 mm
    Width 1,855 mm
    Height 1,250 mm
    Weight 1,350 kg*
    Construction Steel body with high-strength roll cage acc. to FIA regulations

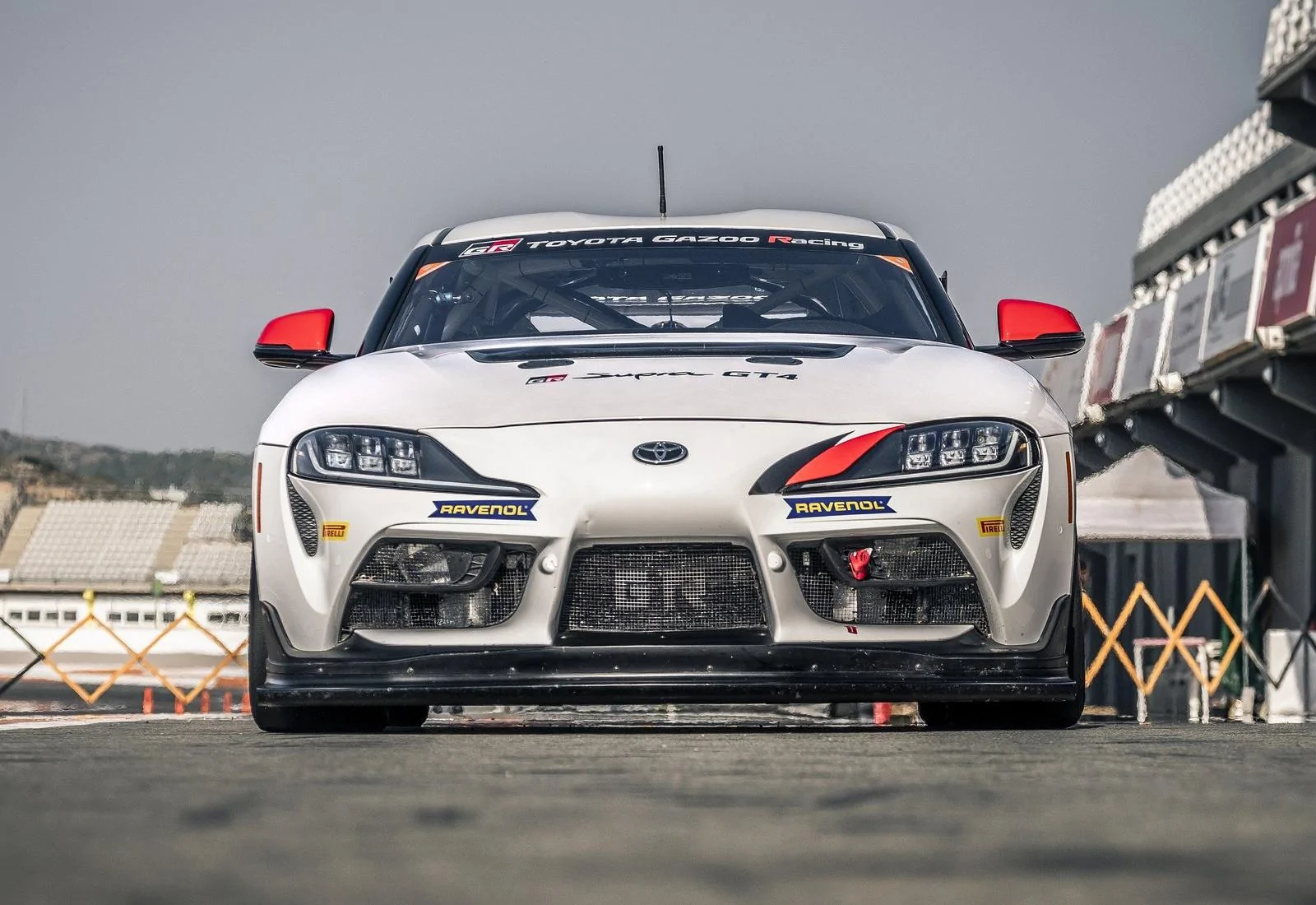

    Front splitter Natural fiber composite

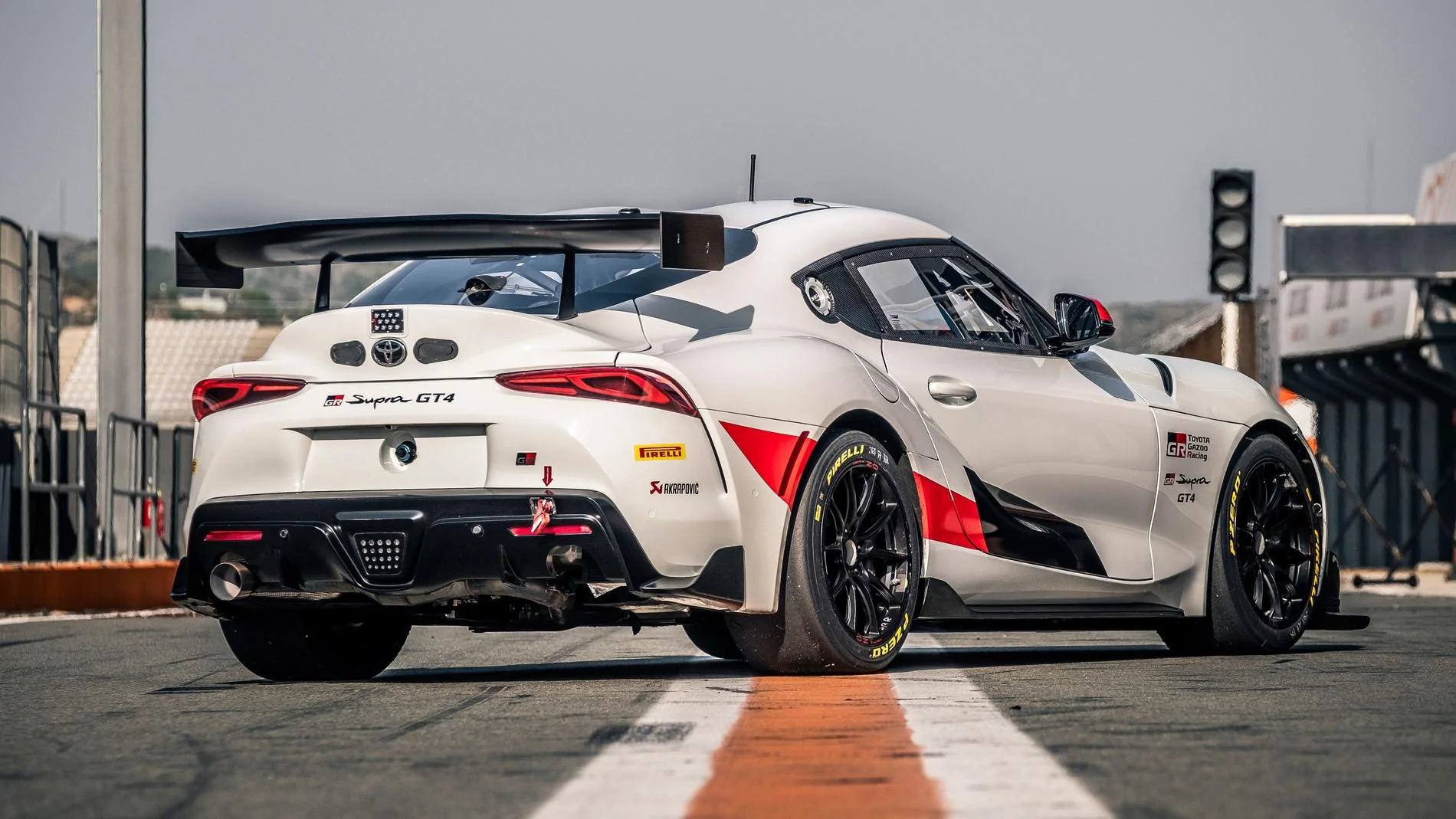

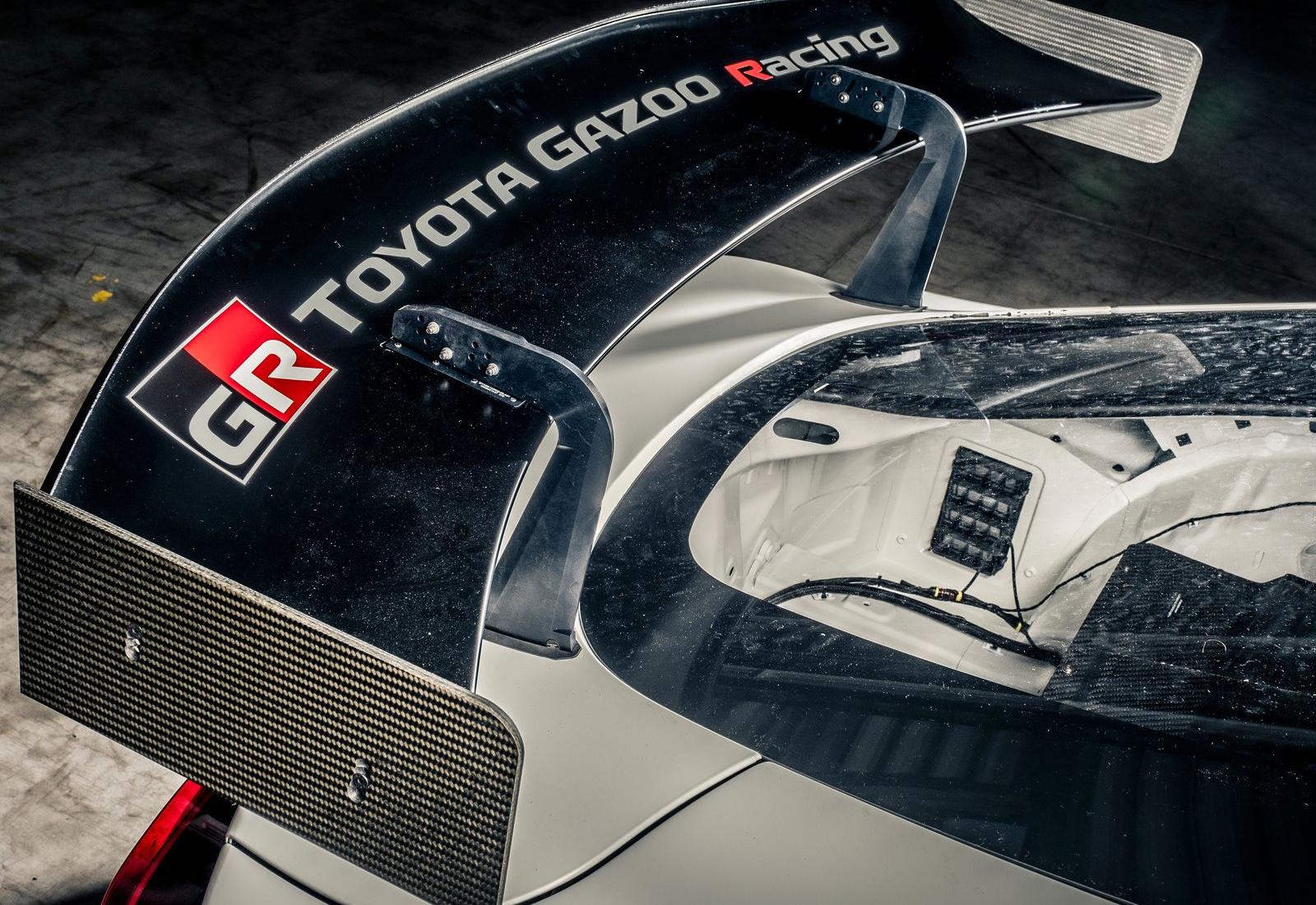

    Rear wing Natural fiber composite
    Fuel tank ATL FT3 safety fuel cell with fast refueling system (120 L)
    Driver's seat OMP racing seat with six-point safety harness (FIA 8862-2009)
    Engine & Transmission
    Type In-line six-cylinder, single twin-scroll turbocharger
    Displacement 2,998 cm3
    Max. power 320 kW (430 hp)*
    different power sticks available to comply with BOP
    Max. torque 650 Nm*
    Engine management Magneti Marelli ECU
    Exhaust system Akrapovič racing exhaust system with catalytic converter
    Lubricants Ravenol
    Transmission 7-speed automatic with paddle shift, rear-wheel drive
    Differential Motorsport-specification limited-slip differential
    Driveshaft GKN Motorsport high torque spec
    Suspension, Steering, & Brakes
    Front suspension MacPherson strut
    Rear suspension Multilink
    Shock absorbers KW adjustable racing dampers
    Steering Electric, rack and pinion
    Brakes (Front) Six-piston racing calipers (Brembo), Steel 390 mm brake discs
    Brakes (Rear) Four-piston racing calipers (Brembo), Steel 355 mm brake discs
    Tires Front / Rear 305/660-18 Front / 305/660-18 Rear (Pirelli)
    Wheels OZ five-hole 11 x 18 in
    Electronic Control System
    Traction control Standard
    Motorsport ABS Standard

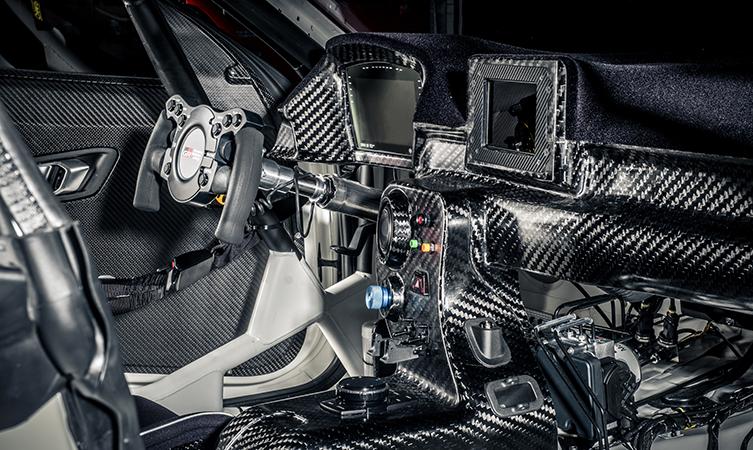

    8" Driver display Standard
    Data logger Standard
    Rear view camera Option
    Tire pressure monitoring system Option
    Suspension travel sensors Option
    Illuminated car number Option
    Equipment
    Fire extinguishing system Standard
    Air jack system Standard
    Drinking system Option
    Homologated endurance package Option


  2. Haros

    Haros Well-Known Member

    Car(s):
    Two feet
    Joined:
    Jul 16, 2017
    Location:
    Canada
    Posts:
    184
    Liked:
    243
    Yeah that’s not a road going car though.
    Think of this like the Porsche GT cup cars, or even spec Miatas.
    They can’t ever be made road legal when bought from factory as an off-road vehicle.

    They are cool though!

  3. OP
    OP
    ronodoc

    ronodoc Member

    First Name:
    Ron
    Car(s):
    2014 Tundra Platinum; 2020 Supra LE
    Joined:
    Jan 25, 2019
    Location:
    ATL
    Posts:
    5
    Liked:
    8
    Im interested in what they might do to it cosmetically, other than stripping the car of unnecessary things that might hold up its weight.

  4. Gearbangin

    Gearbangin Well-Known Member

    First Name:
    Larry
    Car(s):
    2020 Supra 175/1500 2007 TRD Edition FJ Cruiser/Lifted/Murdered out 2016 NT 200T F Sport 2019 RCF Anniversary Edition Matte Nebula Gray
    Joined:
    Jan 18, 2019
    Location:
    Pittsburgh
    Posts:
    125
    Liked:
    189
  5. mande110

    mande110 Member

    Car(s):
    Focus RS
    Joined:
    Oct 1, 2017
    Location:
    CA
    Posts:
    18
    Liked:
    45
    I think @A70TTR said this was the test bed for the grmn. So maybe we will a similar engine in the production car at some point.

    Oxytal, Mk5nut, KahnBB6 and 3 others like this.
  6. DesmoSD

    DesmoSD Well-Known Member

    Car(s):
    1993.5 Supra TT, 997.1 911 Carrera S, 1199 Panigale S
    Joined:
    Oct 16, 2018
    Location:
    San Diego
    Posts:
    761
    Liked:
    1,332
    Wow, so it's 194K after the conversion. That's unfortunate that there isn't a street version of the GT4.

    https://www.porsche.com/usa/motorsp...erracing/racingcars/718-cayman-gt4-clubsport/

    GR Supra GT4 Technical Specifications
    Chassis
    Length
    4,460 mm
    Width 1,855 mm
    Height 1,250 mm
    Weight 1,350 kg*
    Construction Steel body with high-strength roll cage acc. to FIA regulations
    Front splitter Natural fiber composite
    Rear wing Natural fiber composite
    Fuel tank ATL FT3 safety fuel cell with fast refueling system (120 L)
    Driver's seat OMP racing seat with six-point safety harness (FIA 8862-2009)
    Engine & Transmission
    Type
    In-line six-cylinder, single twin-scroll turbocharger
    Displacement 2,998 cm3
    Max. power 320 kW (430 hp)*
    different power sticks available to comply with BOP
    Max. torque 650 Nm*
    Engine management Magneti Marelli ECU
    Exhaust system Akrapovič racing exhaust system with catalytic converter
    Lubricants Ravenol
    Transmission 7-speed automatic with paddle shift, rear-wheel drive
    Differential Motorsport-specification limited-slip differential
    Driveshaft GKN Motorsport high torque spec
    Suspension, Steering, & Brakes
    Front suspension
    MacPherson strut
    Rear suspension Multilink
    Shock absorbers KW adjustable racing dampers
    Steering Electric, rack and pinion
    Brakes (Front) Six-piston racing calipers (Brembo), Steel 390 mm brake discs
    Brakes (Rear) Four-piston racing calipers (Brembo), Steel 355 mm brake discs
    Tires Front / Rear 305/660-18 Front / 305/660-18 Rear (Pirelli)
    Wheels OZ five-hole 11 x 18 in
    Electronic Control System
    Traction control
    Standard
    Motorsport ABS Standard
    8" Driver display Standard
    Data logger Standard
    Rear view camera Option
    Tire pressure monitoring system Option
    Suspension travel sensors Option
    Illuminated car number Option
    Equipment
    Fire extinguishing system
    Standard
    Air jack system Standard
    Drinking system Option
    Homologated endurance package Option


    GT4 Clubsport

    Weight/Dimensions

    Total weight 1,320 kg
    Total length 4,456 mm
    Total width 1,778 mm
    Total height 1,238 mm
    Wheelbase 2,476 mm

    Engine
    Aluminum six-cylinder mid-mounted boxer engine, rigid mounting
    3,800cc; stroke 77.5mm; bore 102mm
    Max. power: 313kW (425hp) at 7,500rpm
    Max. rpm: 7,800rpm
    Max. torque: 425Nm at 6,600rpm
    Compression ratio: 12.5 : 1
    Water cooling circuit with thermal management for engine and gearbox
    Adjustable camshaft phasing and variable valve timing VarioCam Plus
    Fuel quality: minimum 98 octane, unleaded
    Electronic engine management (Continental SDI 9)
    Integrated dry-sump lubrication
    100-cell metal catalytic converter complying with DMSB specifications
    Bodywork
    Lightweight bodywork with intelligent aluminum-steel composite construction
    Fully integrated roll-cage complying with FIA Homologation Regulations for safety cages
    Front bonnet with quick release fasteners
    Rear deck with quick release fasteners
    Recaro race seat with longitudinal adjustment and padding system for adaption to individual driver (complying FIA Standard 8862/2009 – newest FIA requirements)
    Built-in air jack system (three jacks) (‘Competition’)
    Pre-installed mounting points for built-in air jack system (three jacks) (‘Trackday’)
    Safety net mountings
    FIA certified towing loops at the front and rear
    Roof hatch complying FIA Art. 275a
    Natural fiber attachment parts Fixed rear wing with ‘swan neck’ mounts including side blades and integrated carbon fibre gurney flap
    Driver and passenger door
    Modified Cayman GT4-Cockpit Motorsport center console with expanded functionality and optimized usability
    Crash, protected, lightweight battery and optimized ECU position
    Six-point safety harness
    115 liter FT3 safety fuel cell with ‘Fuel Cut Off’ safety valve according to FIA regulations (‘Competition’)
    80 liter FT3 safety fuel cell with ‘Fuel Cut Off’ safety valve according to FIA regulations (‘Trackday’)
    Suspension
    Front axle MacPherson suspension strut, adjustable for ride height, camber and toe
    Optimized stiffness
    Double shear mounting
    High-performance spherical bearings
    5 bolt wheel hubs
    Motorsport three-way shock absorbers, independently adjustable in rebound and compression characteristics (‘Competition’)
    Racing shock absorbers, non-adjustable (‘Trackday’)
    Electrohydraulic power steering with variable steering ratio and steering impulse
    3-hole anti-roll bar
    Rear axle MacPherson suspension strut, adjustable for ride height, camber and toe
    Optimized stiffness
    Double shear mounting
    High-performance spherical bearings
    5 bolt wheel hubs
    Motorsport three-way shock absorbers, adjustable rebound and compression characteristics (‘Competition’)
    Racing shock absorbers, non-adjustable (‘Trackday’)
    Adjustable sword-type anti-roll bar
    Electrics
    COSWORTH color display ICD with integrated data logger
    Extended fault diagnose via PIWIS-Motorsport tester
    Porsche Track Precision race app with gateway
    Integrated lap trigger via GPS signal
    Electronic throttle
    Lightweight (LiFePo-) battery, 60Ah, leakproof positioned in passenger footwell (‘Competition’)
    Battery 12V, 70Ah (AGM), leakproof positioned in passenger footwell (‘Trackday’)
    Emergency switch in cockpit and exterior emergency switch at lower left of windscreen frame
    Lightning system Bi-Xenon headlamps
    LED-rear lighting system
    FIA rain light system
    Electronic dynamic stability system PSM (Porsche Stability Management) with ABS, traction control and electronic stability control to switch-off separately
    Tyre pressure monitoring system (TPMS)
    Fire extinguishing system (extinguishing agent; gas) complying latest FIA requirements (‘Competition’)
    Handheld fire extinguisher (‘Trackday’)
    Air conditioning
    Electronic outside-mirror adjustment
    Motorsport multifunctional carbon fibre steering wheel with Pit-speed and quick decoupling (‘Competition’)
    Motorsport multifunctional steering wheel with Pit-speed (‘Trackday’)
    Motorsport center console with map switch for adjustment of ABS, ESC, TC and change between preadjusted tyre circumferences
    Transmission
    Rear wheel drive
    Rigidly mounted performance-based 6-speed PDK-gearbox (DCT, dual clutch transmission)
    Dual mass flywheel
    Internal pressure-oil lubrication with active oil cooling
    Mechanical differential lock optimized for motorsports
    Brake System
    Front axle Aluminum, mono-bloc six-piston racing calipers with ‘Anti knock off’ piston springs
    Multi-piece steel 380mm brake discs, internally vented and slotted
    Motorsport brake pads
    Brake balance system with balance beam system (‘Competition’)
    Brake booster (‘Trackday’)
    Rear axle Aluminum, mono-bloc four-piston racing calipers with ‘Anti knock off’ piston springs
    Multi-piece steel 380mm brake discs, internally vented and slotted
    Motorsport brake pads
    Brake balance system with balance beam system (‘Competition’)
    Brake booster (‘Trackday’)
    Rims/Tyres
    Front axle One piece forged lightweight alloy rims, 9 J × 18, offset 28mm, 5 bolt mounting
    Delivery with treaded Michelin transportation tyres, dimensions: 25/64-18
    Michelin slick/rain tyres, dimensions: 25/64-18
    Rear axle One piece forged lightweight alloy rims, 10,5 J × 18,5, offset 53mm, 5 bolt mounting
    Delivery with treaded Michelin transportation tyres, dimensions: 27/68-18
    Michelin slick/rain tyres, dimensions: 27/68-18

  7. stevesnj

    stevesnj Active Member

    Car(s):
    GT86
    Joined:
    Aug 9, 2017
    Location:
    NJ
    Posts:
    32
    Liked:
    65
  8. PerformanceSound

    PerformanceSound Well-Known Member

    Car(s):
    2019 Subaru STI; 2000 4Runner Ltd.
    Joined:
    Aug 18, 2017
    Location:
    Chicago, IL.
    Posts:
    1,258
    Liked:
    2,239
    Garage Profiles:
    2
    2900lbs....430hp....hmmmm....that should be pretty quick no? :D

  9. A70TTR

    A70TTR Well-Known Member

    Car(s):
    LX570, ST205 GT4, JZA70, JZA70 TT-R, Q50-RS
    Joined:
    Sep 9, 2017
    Location:
    Japan/EU/USA
    Posts:
    2,470
    Liked:
    8,976
    correct.

    DrDevil87 and Jeff Lange like this.
  10. MA617M

    MA617M Well-Known Member

    Car(s):
    lots
    Joined:
    Aug 27, 2017
    Location:
    Australia
    Posts:
    1,803
    Liked:
    4,329
    Occupation:
    Engineer
    Assuming is just B58B30M1? Or O1? Maybe that's what all the VINs listed with the O1/B58D became?

  11. Haros

    Haros Well-Known Member

    Car(s):
    Two feet
    Joined:
    Jul 16, 2017
    Location:
    Canada
    Posts:
    184
    Liked:
    243
    They are cool though![/QUOTE]
    They are turn key spec race cars. So you can drop one on the track and meets all current regulations and requirements!

    lots of manufacturers actually do this, they aren’t just usually advertised publicly and often have their own websites or dealership program.
    https://hpd.honda.com/Racing-Line
    Honda Is an excellent example as you also buy spec parts piecemeal.
    You’ll often see sites like these require some form of proof you’ll be racing it, because they may not normally sell crate engines publicly from factory and the pricing is usually very good.

    I can’t say I recall seeing Toyota do this here in North America, so maybe this is a start.
    I just came from japan and there is a milder version of factory support over there, but not in the same vein as a normal grassroots enthusiast would need.

    ronodoc likes this.
  12. A70TTR

    A70TTR Well-Known Member

    Car(s):
    LX570, ST205 GT4, JZA70, JZA70 TT-R, Q50-RS
    Joined:
    Sep 9, 2017
    Location:
    Japan/EU/USA
    Posts:
    2,470
    Liked:
    8,976
    Lexus has had a program for a while ^

    You need a capable chassis for anyone to want it.

  13. geert.bieseman

    geert.bieseman Well-Known Member

    First Name:
    Geert
    Car(s):
    Nissan GT-R R33 ; Toyota Supra MKV
    Joined:
    Oct 4, 2019
    Location:
    Belgium
    Posts:
    45
    Liked:
    20
    Wondering if they would sell the big wing and diffusors seperately as street-legal 'aero-kit'.
    We need that downforce on the back tires :)

  14. Dunc

    Dunc Well-Known Member

    First Name:
    Duncan
    Car(s):
    Porsches, Mercedes, toyotas
    Joined:
    Nov 1, 2018
    Location:
    Essex, Uk
    Posts:
    110
    Liked:
    122
    Garage Profiles:
    1
    £175,000 in the UK which is cheap compared to an equivalent Porsche or Aston but obviously it's a race car only.

    GRMN sounds interesting. I hope current mkV owners are offered first dibs. I wonder how they'll compare price/spec-wise to keeping and modifying a standard car?

    F1 Silver Arrows likes this.

Share This Page

Loading...
