Evilpenguinking
Well-Known Member
Are there any exhaust systems that get in the way of the rear diff brace?
Sponsored

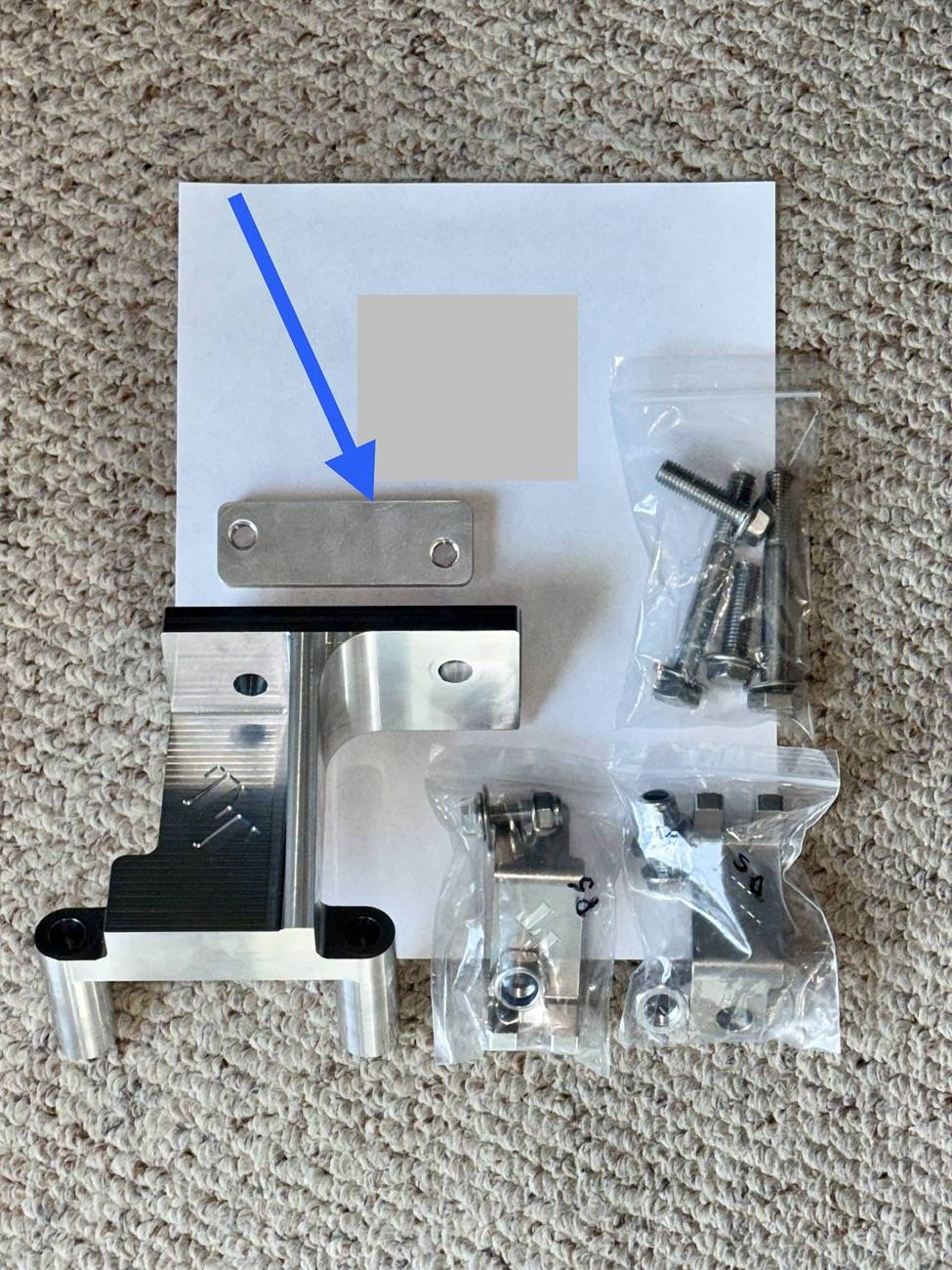

Twisted Tuning A90/A90/Z4 Differential Lockdown Brace Kit
- Thread starter Twisted Tuning
- Start date
- Watchers 20
atc5
Well-Known Member
- First Name
- A
- Joined
- May 30, 2021
- Threads
- 18
- Messages
- 79
- Reaction score
- 11
- Location
- San Francisco
- Car(s)
- A91
This kit does NOT work with solid diff bushings. Tried to install but there isn't enough (any) flex in the solid diff bushings for this to work.
If anyone wants to buy my complete Twisted tuning set DM me.
If anyone wants to buy my complete Twisted tuning set DM me.
JT2023
Member
- Joined
- Nov 25, 2024
- Threads
- 0
- Messages
- 5
- Reaction score
- 2
- Location
- California
- Car(s)
- 2023 Supra MT Nocturnal Black
Hey @Twisted Tuning are you still producing these kits? I put in an order last week and got an email that the order was cancelled "due to unforeseen circumstances." Happy to put in another order if you're still making them.
OP
OP
- First Name
- Justin
- Joined
- Mar 10, 2019
- Threads
- 28
- Messages
- 1,321
- Reaction score
- 1,651
- Location
- New York
- Website
- www.twistedtuning.com
- Car(s)
- 2020 Supra, 335xi, 135i, TwinTurbo Mazda6
- Thread starter
- #79
yes, in stock. are you Justin H? if so yes it was cancelled, the order set off our fraud detection. so when that happens we just cancel to protect ourselves. there have been a ton of chargebacks on parts lately after hey receive the part they tell their bank they never got it or something.
you can put the order through. sorry for the inconvenience
JT2023
Member
- Joined
- Nov 25, 2024
- Threads
- 0
- Messages
- 5
- Reaction score
- 2
- Location
- California
- Car(s)
- 2023 Supra MT Nocturnal Black
Thank you! Probably did something weird on my end on accident. I'll put in another order, sorry you've been dealing with chargebacks.
Loco38SUP
Well-Known Member
FYI - the Rear Diff Brace (Upper Bolts) at 70 ft/lbs seemed way too excessive. I torqued them to 40 ft/lbs and felt the aluminum threads on the sub frame bracket starting to stretch.
-RJM
OP
OP
- First Name
- Justin
- Joined
- Mar 10, 2019
- Threads
- 28
- Messages
- 1,321
- Reaction score
- 1,651
- Location
- New York
- Website
- www.twistedtuning.com
- Car(s)
- 2020 Supra, 335xi, 135i, TwinTurbo Mazda6
- Thread starter
- #82
Thanks you for the info, ill do another test. That's what mine have been at since dev and didn't have any issues. appreciate it
Thraxbert
Well-Known Member
Those look m8 hardware. If so, the prescribed torque range for M8 hardware is about 36-55 ft-lbs. Low end of the range for grade 8.8, high end of the range for zinc-coated 12.9 grade. 40 is just about right if it's m8.
OP
OP
- First Name
- Justin
- Joined
- Mar 10, 2019
- Threads
- 28
- Messages
- 1,321
- Reaction score
- 1,651
- Location
- New York
- Website
- www.twistedtuning.com
- Car(s)
- 2020 Supra, 335xi, 135i, TwinTurbo Mazda6
- Thread starter
- #84
The fasteners he is talking about are M10
OP
OP
- First Name
- Justin
- Joined
- Mar 10, 2019
- Threads
- 28
- Messages
- 1,321
- Reaction score
- 1,651
- Location
- New York
- Website
- www.twistedtuning.com
- Car(s)
- 2020 Supra, 335xi, 135i, TwinTurbo Mazda6
- Thread starter
- #86
FYI - the Rear Diff Brace (Upper Bolts) at 70 ft/lbs seemed way too excessive. I torqued them to 40 ft/lbs and felt the aluminum threads on the sub frame bracket starting to stretch.
-RJM
Update on torque specs. Thanks for the input @Loco38SUP.
Also, found that there is often crud (dirt, oils and etc) stuck above inside the subframe that can mimic the feel of threads stretching when tightening that plate down due to the crud being compressed.
But 40-45ft/lbs is enough.
TORQUE SPECS:
Rear Diff Brace Bolts
(Upper) - 43ft/lbs, 58nm
(Lower) - 70ft/lbs, 95nm
Front Diff Mount Braces Bolt (Upper) - 20ft/lbs, 27nm
Front Diff Mount Braces Nut (Lower) - 74ft/lbs, 100nm
