Twisted Tuning Stealth Ethanol Content Sensor Kit w/Gauge for 2020 Supra MKV

Discussion in 'Twisted Tuning' started by Twisted Tuning, Jan 10, 2020.

  1. Twisted Tuning

    Twisted Tuning Well-Known Member
    Gold Sponsor


    First Name:
    Justin
    Car(s):
    Supra MKV, BMW 135i, BMW 335xi, Mazda 6 Twin Turbo,
    Joined:
    Mar 10, 2019
    Location:
    New York
    Posts:
    747
    Liked:
    881
    Occupation:
    calibration specialist
    Home Page:
    #1 Jan 10, 2020
    Last edited: Jan 13, 2020
    Stop Guessing at the Pump and Get your Ethanol Mixes Right!!!




    We are proud to present our Stealth ethanol content sensor kit for the 2020 Toyota Supra/Z4 equipped with the B58. We strive to give you the best possible products on the market for these cars.

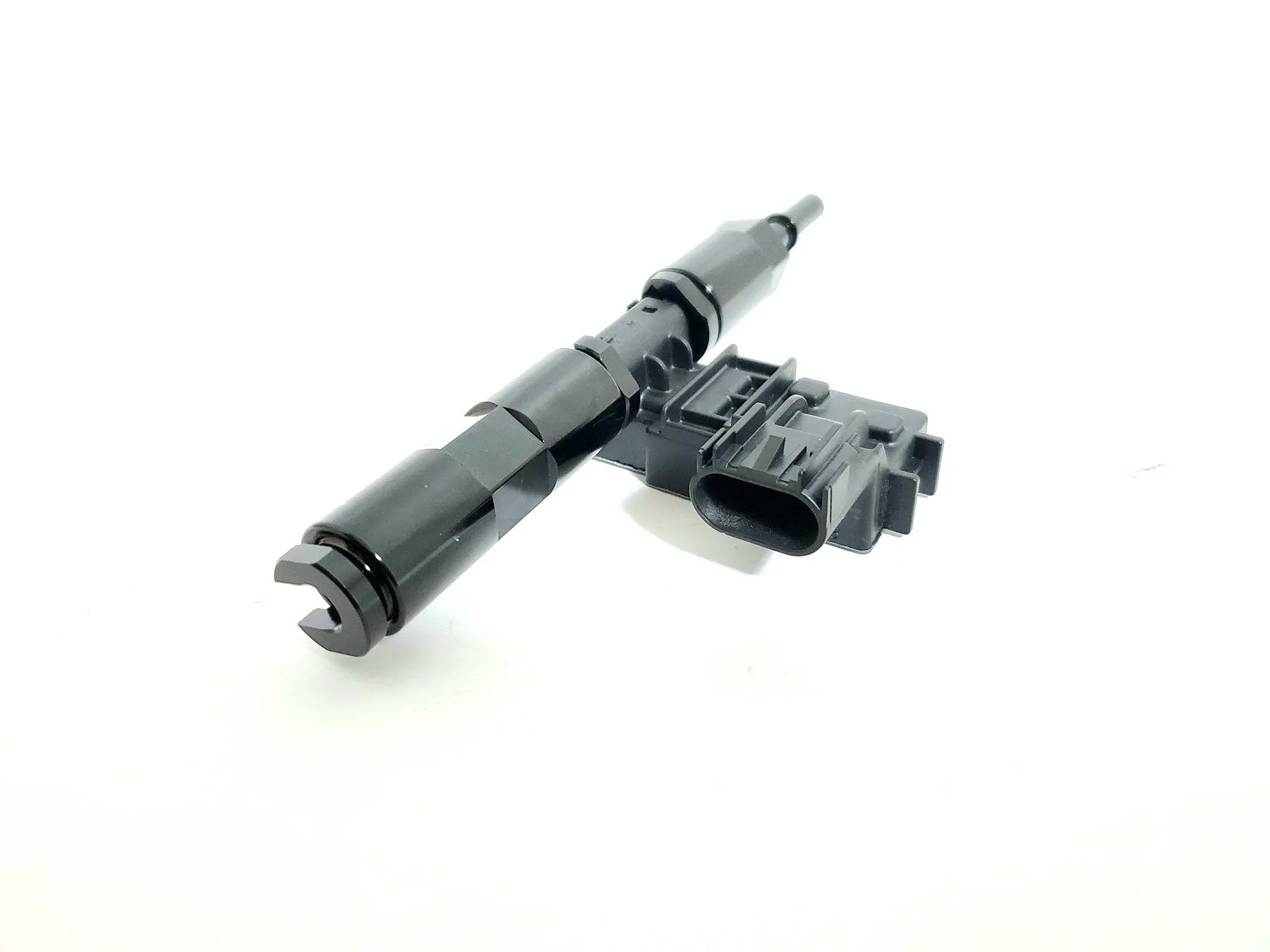

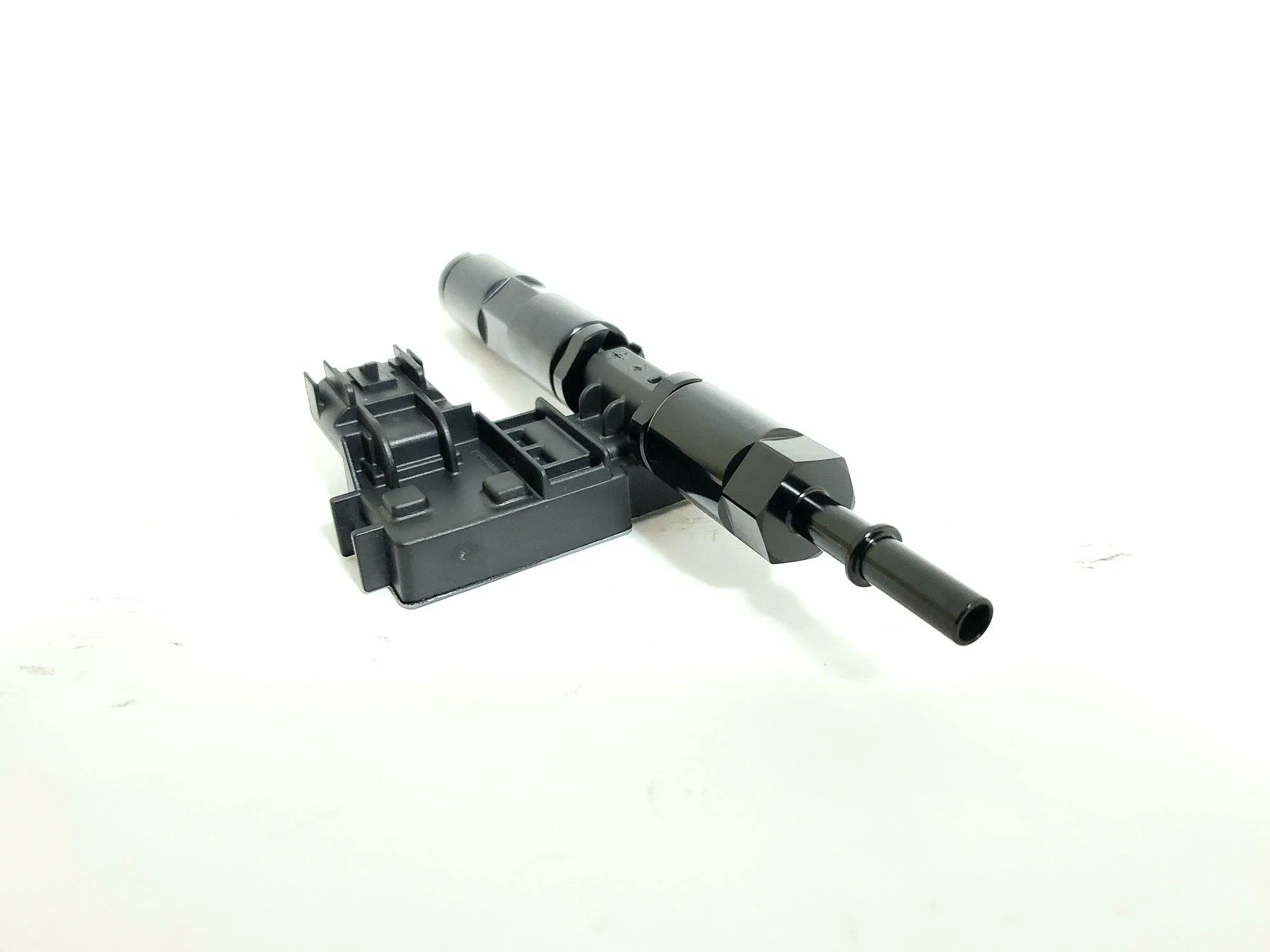

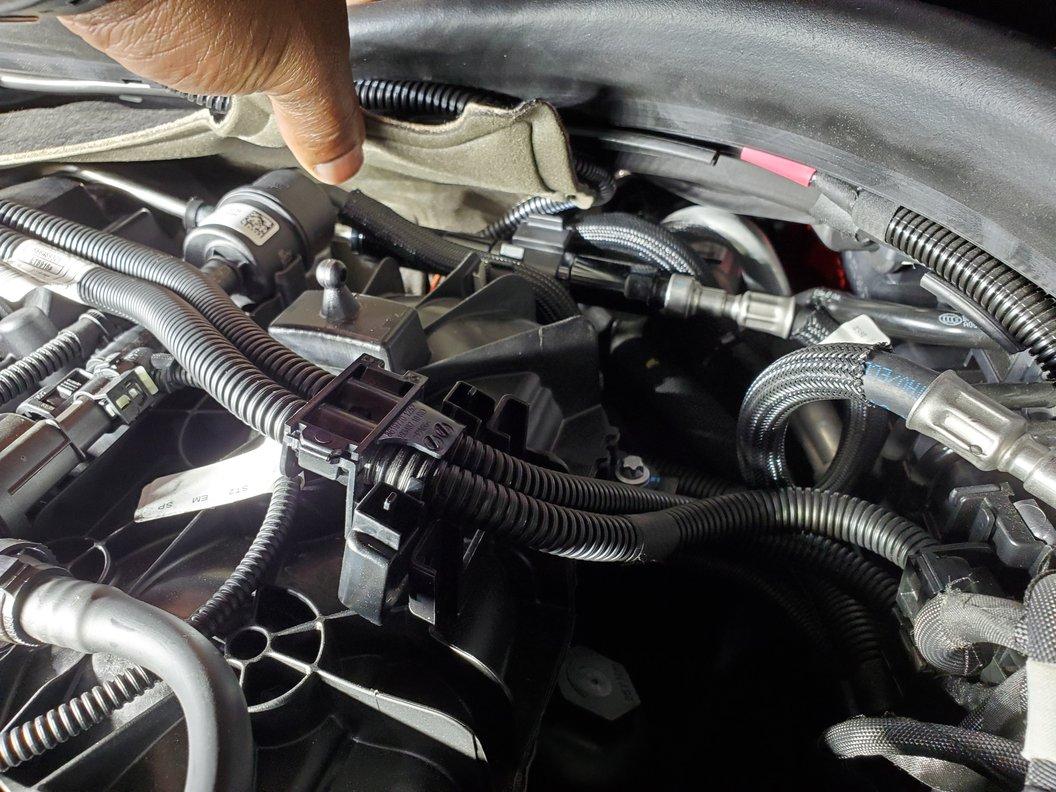

    Our Kit features an OEM looking installation with our EXCLUSIVE 5/16" and 3/8" fuel line quick connects. This makes installation a breeze and blends in perfectly with the OEM fuel System No loose or extra unnecessary hoses like other offerings on the market.


    Our Kit is Based around the Zeitronix AWARD Winning ECA-2 (CANBUS) ethanol module. This gives the following capabilities:



    • -CAN Bus communication for easy connection and logging through other CAN Bus devices.
    • -Two 0-5 V analog outputs: Ethanol % and Fuel Temperature for use with Dashes, ECUs, data loggers and engine management systems.
    • -Error indication in event of signal absence from Flex Fuel Sensor

    -Very flexible CAN Bus setup for easy connection and logging through other CAN Bus devices.

    Also included is Zeitronix Dual output gauge which displays both Celsius and Fahrenheit. Dual E % and Fuel Temperature Gauge in choices of RED digits.
    Flow Through Flex Fuel Sensor and connecting harness 8 ft (2.4m) are included.

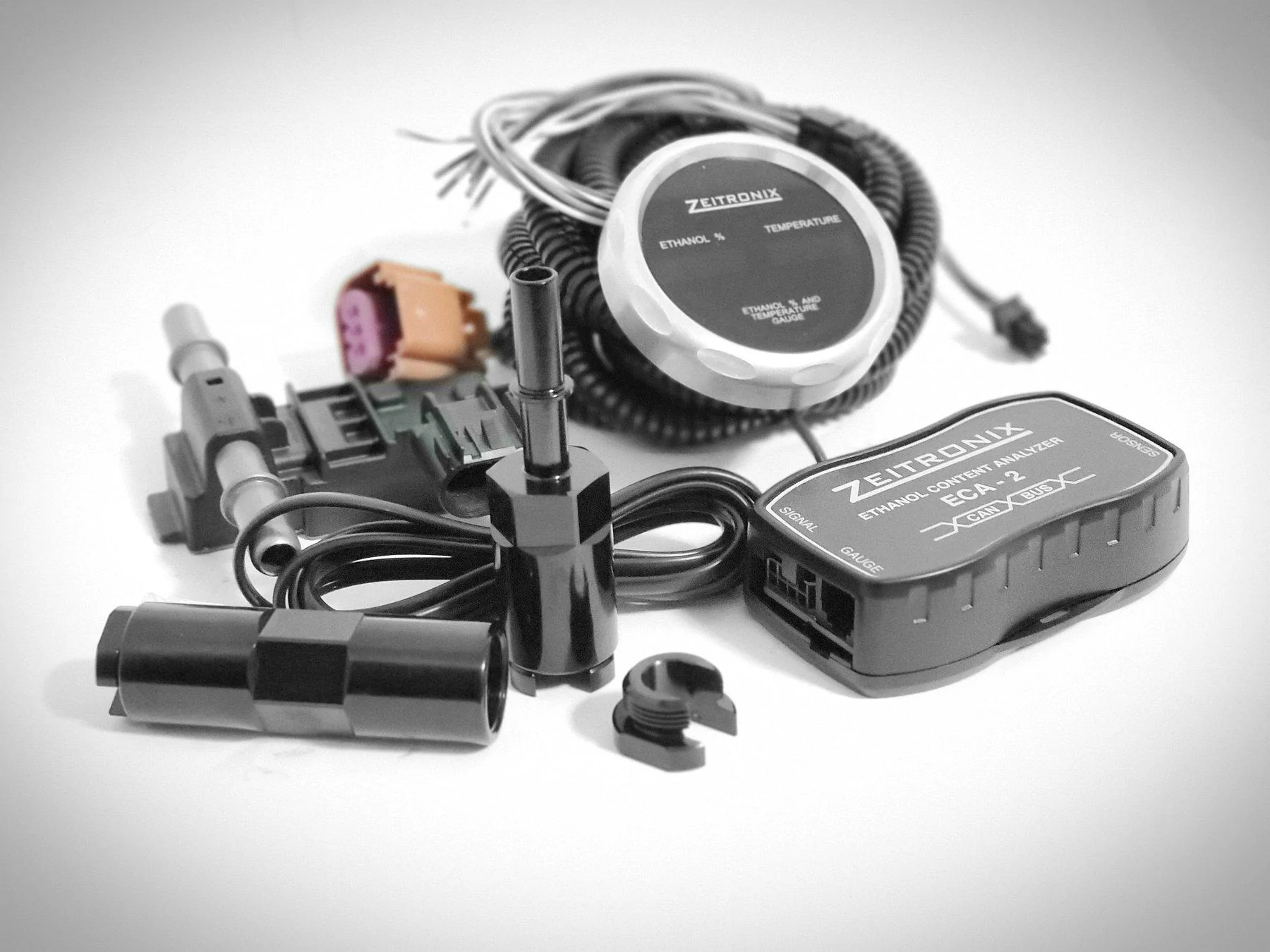

    WHAT COMES IN THE KIT:

    -Zeitronix ECA-2 CanBus Unit

    -Zeitronix Dual Output Gauge w/ Red Digits (E-content/Fuel Temp)

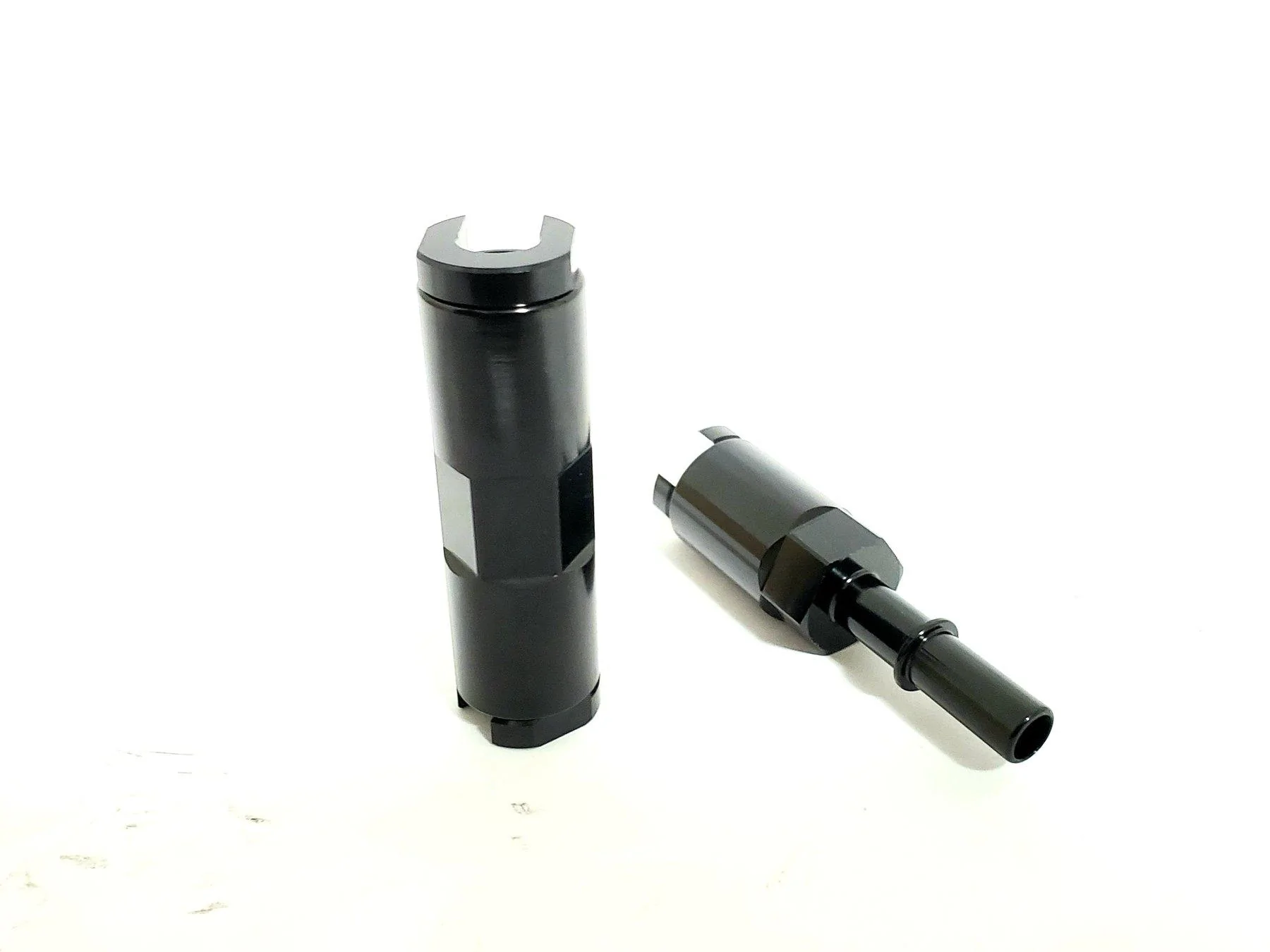

    -Twisted Tuning Exclusive 5/16" to 3/8" Fuel Line Quick Connects

    -Authentic and Tested Ethanol Sensor

    -8ft Ethanol Sensor Harness

    -Wire harness for the gauge and ECA-2 module

    All Products Made in the USA.

    ORDER LINK: https://twistedtuning.com/products/...or-2020-supra-mkv?_pos=2&_sid=aebf0c40f&_ss=r



    Flex fuel Sensor Technical Specification:

    Measuring range: 0…100% Alcohol (ethanol) in fuel mixtures
    Sensor Accuracy: 5% of the mixture ratio
    Output characteristic: Linear, Frequency, Duty Cycle
    Operating temperature: Environment -40°C… +125°C, Fuel -40°C… +90°C
    Maximum fuel pressure: 10 bar, (145 psi)
    Maximum pressure drop: 0.1 bar, (1.45 psi)
    Maximum flow: 200 l/h
    Supply voltage: 6…18 Volts DC
    Sensor Temperature error: < 1.5%
    Response time: < 250 ms after power on at any temperature
    Design: Suitable for the installation in motor vehicles, independent of position. Housing is waterproof.



    FUTURE DEVELOPMENT

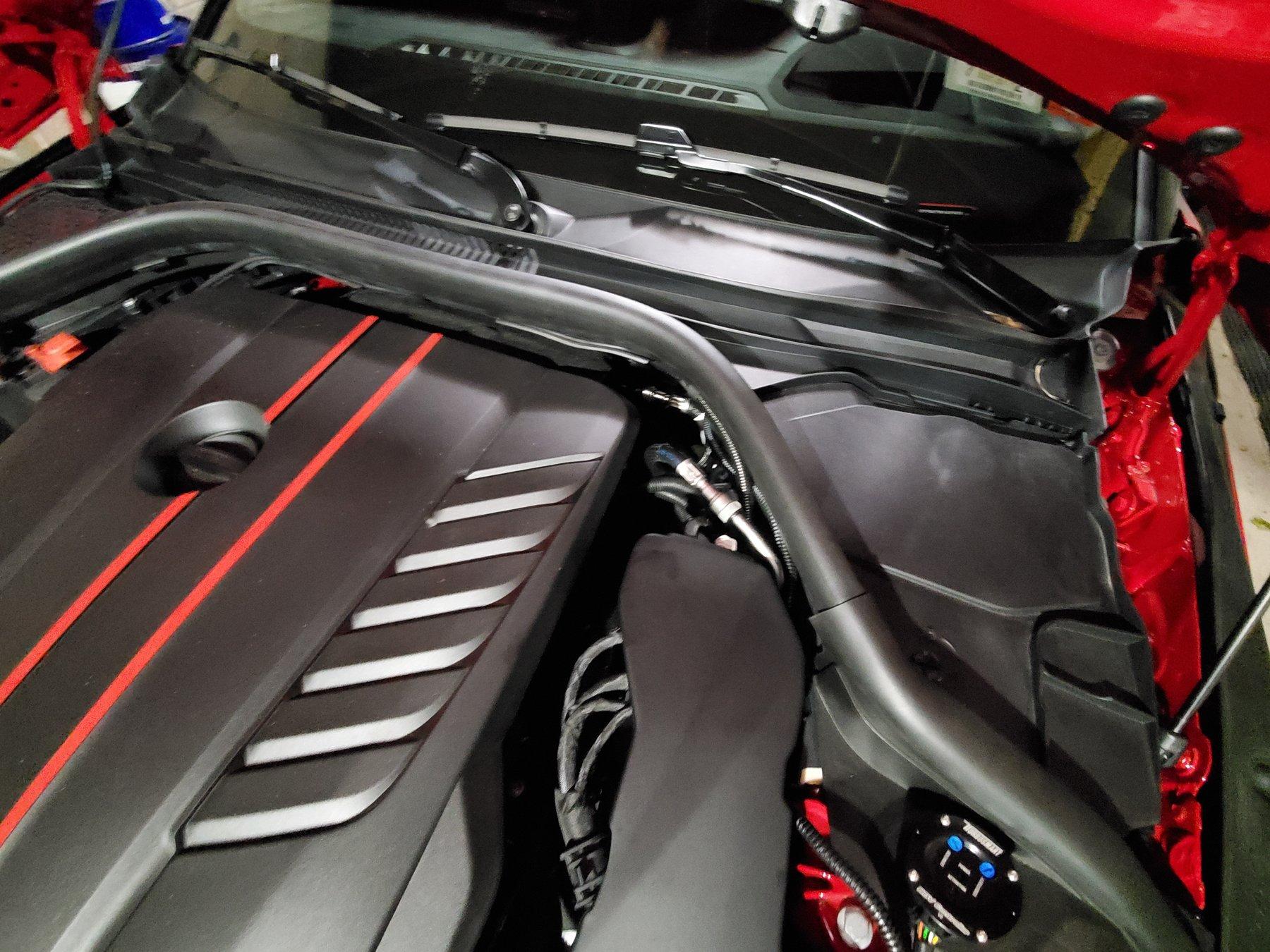

    PHASE 1: base release allowing visual display of Ethanol content and fuel temperature via low profile mounted gauge and OEM installation quality

    PHASE 2: all of Phase 1 features plus Factory ECU integration allowing high speed datalogging and monitoring via OBD2 port with ECU data.

    PHASE 3: Phase 1&2 plus full factory ECU flex fuel integration allowing automatic and dynamic tune adjustments of load, boost, fuel and timing without reflashing. Set it and forget OEM style flex fuel solution.

    Ghostop and XtremeMaC like this.
  2. OP
    OP
    Twisted Tuning

    Twisted Tuning Well-Known Member
    Gold Sponsor


    First Name:
    Justin
    Car(s):
    Supra MKV, BMW 135i, BMW 335xi, Mazda 6 Twin Turbo,
    Joined:
    Mar 10, 2019
    Location:
    New York
    Posts:
    747
    Liked:
    881
    Occupation:
    calibration specialist
    Home Page:
    More information added....


    FUTURE DEVELOPMENT

    PHASE 1: base release allowing visual display of Ethanol content and fuel temperature via low profile mounted gauge and OEM installation quality

    PHASE 2: all of Phase 1 features plus Factory ECU integration allowing high speed datalogging and monitoring via OBD2 port with ECU data.

    PHASE 3: Phase 1&2 plus full factory ECU flex fuel integration allowing automatic and dynamic tune adjustments of load, boost, fuel and timing without reflashing. Set it and forget OEM style flex fuel solution.

  3. Ghostop

    Ghostop Well-Known Member

    First Name:
    John snow
    Car(s):
    2018 Zl1 10sp 2017 civic type r
    Joined:
    Jun 4, 2019
    Location:
    New Mexico
    Posts:
    49
    Liked:
    14
    Bump . Anyone have this kit ?

  4. OP
    OP
    Twisted Tuning

    Twisted Tuning Well-Known Member
    Gold Sponsor


    First Name:
    Justin
    Car(s):
    Supra MKV, BMW 135i, BMW 335xi, Mazda 6 Twin Turbo,
    Joined:
    Mar 10, 2019
    Location:
    New York
    Posts:
    747
    Liked:
    881
    Occupation:
    calibration specialist
    Home Page:

    A handful of people ordered. Their kits are going out tomorrow. You should see some people posting soon.

    We run it in our car of course

    Ghostop likes this.
  5. OP
    OP
    Twisted Tuning

    Twisted Tuning Well-Known Member
    Gold Sponsor


    First Name:
    Justin
    Car(s):
    Supra MKV, BMW 135i, BMW 335xi, Mazda 6 Twin Turbo,
    Joined:
    Mar 10, 2019
    Location:
    New York
    Posts:
    747
    Liked:
    881
    Occupation:
    calibration specialist
    Home Page:

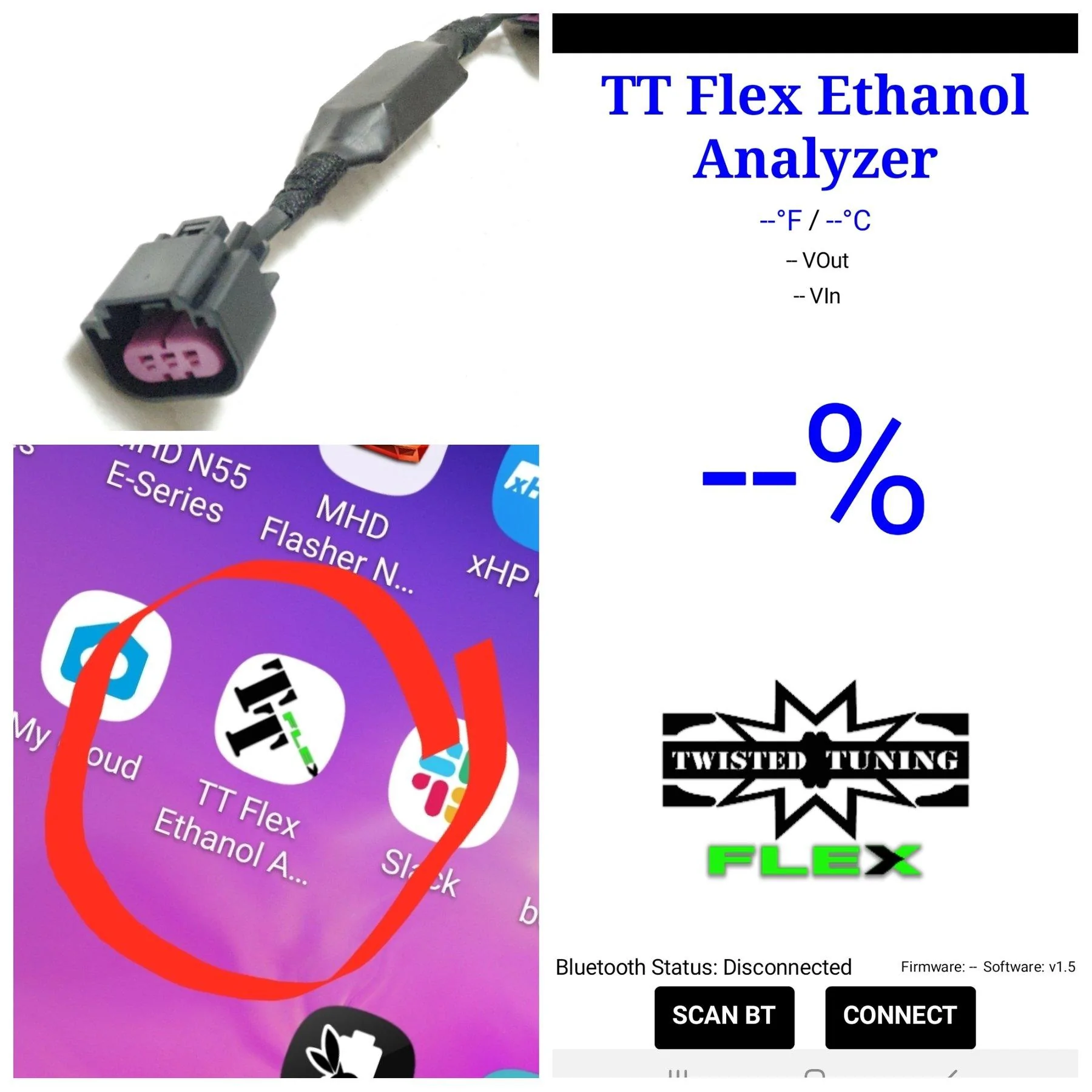

    Had a bunch of people ask for Bluetooth support of our Flex kit. You asked, we listened. Releasing soon is our first version of Bluetooth functionality with out flex kit. Its a simple add on that takes 2 minutes to install. You are able to monitor Fuel temp and Ethanol percentage via Android mobile app "TT Flex".


    Ghostop likes this.
  6. whostorm05

    whostorm05 Well-Known Member

    First Name:
    Ryan
    Car(s):
    2016 Subaru Outback 3.6R Limited, 1991 Pontiac TransAm
    Joined:
    May 18, 2019
    Location:
    Indianapolis, IN
    Posts:
    254
    Liked:
    110
    I'm curious how hard the installation is? Are the installation instructions online?

    Ghostop likes this.
  7. OP
    OP
    Twisted Tuning

    Twisted Tuning Well-Known Member
    Gold Sponsor


    First Name:
    Justin
    Car(s):
    Supra MKV, BMW 135i, BMW 335xi, Mazda 6 Twin Turbo,
    Joined:
    Mar 10, 2019
    Location:
    New York
    Posts:
    747
    Liked:
    881
    Occupation:
    calibration specialist
    Home Page:

    Install is really easy. I haven't published the install yet, but it really takes like an hour or two depending if you get the kit with gauge or the just the bluetooth kit. I should have install up on the site soon. but its pretty straightforward.

    Ghostop likes this.
  8. OP
    OP
    Twisted Tuning

    Twisted Tuning Well-Known Member
    Gold Sponsor


    First Name:
    Justin
    Car(s):
    Supra MKV, BMW 135i, BMW 335xi, Mazda 6 Twin Turbo,
    Joined:
    Mar 10, 2019
    Location:
    New York
    Posts:
    747
    Liked:
    881
    Occupation:
    calibration specialist
    Home Page:
    Ghostop likes this.
  9. OP
    OP
    Twisted Tuning

    Twisted Tuning Well-Known Member
    Gold Sponsor


    First Name:
    Justin
    Car(s):
    Supra MKV, BMW 135i, BMW 335xi, Mazda 6 Twin Turbo,
    Joined:
    Mar 10, 2019
    Location:
    New York
    Posts:
    747
    Liked:
    881
    Occupation:
    calibration specialist
    Home Page:
    Ghostop likes this.
  10. OP
    OP
    Twisted Tuning

    Twisted Tuning Well-Known Member
    Gold Sponsor


    First Name:
    Justin
    Car(s):
    Supra MKV, BMW 135i, BMW 335xi, Mazda 6 Twin Turbo,
    Joined:
    Mar 10, 2019
    Location:
    New York
    Posts:
    747
    Liked:
    881
    Occupation:
    calibration specialist
    Home Page:
    With Ecutek's initial release of racerom around the corner. Make sure you're picking up the correct flex kit for your ride. Ours is fully compatible.

  11. larrymz3

    larrymz3 Well-Known Member

    Car(s):
    2020 Supra
    Joined:
    Sep 8, 2019
    Location:
    Arkansas
    Posts:
    304
    Liked:
    127
    Will this work for MHD as well?

  12. OP
    OP
    Twisted Tuning

    Twisted Tuning Well-Known Member
    Gold Sponsor


    First Name:
    Justin
    Car(s):
    Supra MKV, BMW 135i, BMW 335xi, Mazda 6 Twin Turbo,
    Joined:
    Mar 10, 2019
    Location:
    New York
    Posts:
    747
    Liked:
    881
    Occupation:
    calibration specialist
    Home Page:
    Yes indeed. Once they release their FF solution. It will. Whether they use an analog signal like N54 or Canbus like Ecutek.

    It has outputs for both.

  13. kurumi

    kurumi Well-Known Member

    Car(s):
    2020 GR Supra, 2013 Fiat 500 Abarth
    Joined:
    Mar 1, 2020
    Location:
    Northern Virginia
    Posts:
    192
    Liked:
    95
    @Twisted Tuning, you wouldn’t happen to know the pin out for the 4 pin analog output on the ECA-2 by chance? Trying to connect a analog gauge (Innovate ECF-1) and I’d need to swap ethanol sensors out.

  14. OP
    OP
    Twisted Tuning

    Twisted Tuning Well-Known Member
    Gold Sponsor


    First Name:
    Justin
    Car(s):
    Supra MKV, BMW 135i, BMW 335xi, Mazda 6 Twin Turbo,
    Joined:
    Mar 10, 2019
    Location:
    New York
    Posts:
    747
    Liked:
    881
    Occupation:
    calibration specialist
    Home Page:
    have you looked online on the ZT site? they usually have the install instructions on the site. the install for my kit has pinout for the ECA2 canbus, maybe that will help............... https://twistedtuning.com/pages/guides-and-diys

  15. kurumi

    kurumi Well-Known Member

    Car(s):
    2020 GR Supra, 2013 Fiat 500 Abarth
    Joined:
    Mar 1, 2020
    Location:
    Northern Virginia
    Posts:
    192
    Liked:
    95
    I did. They explain the pins but not where which pin goes where.zeitronix.PNG
