Hi everyone,

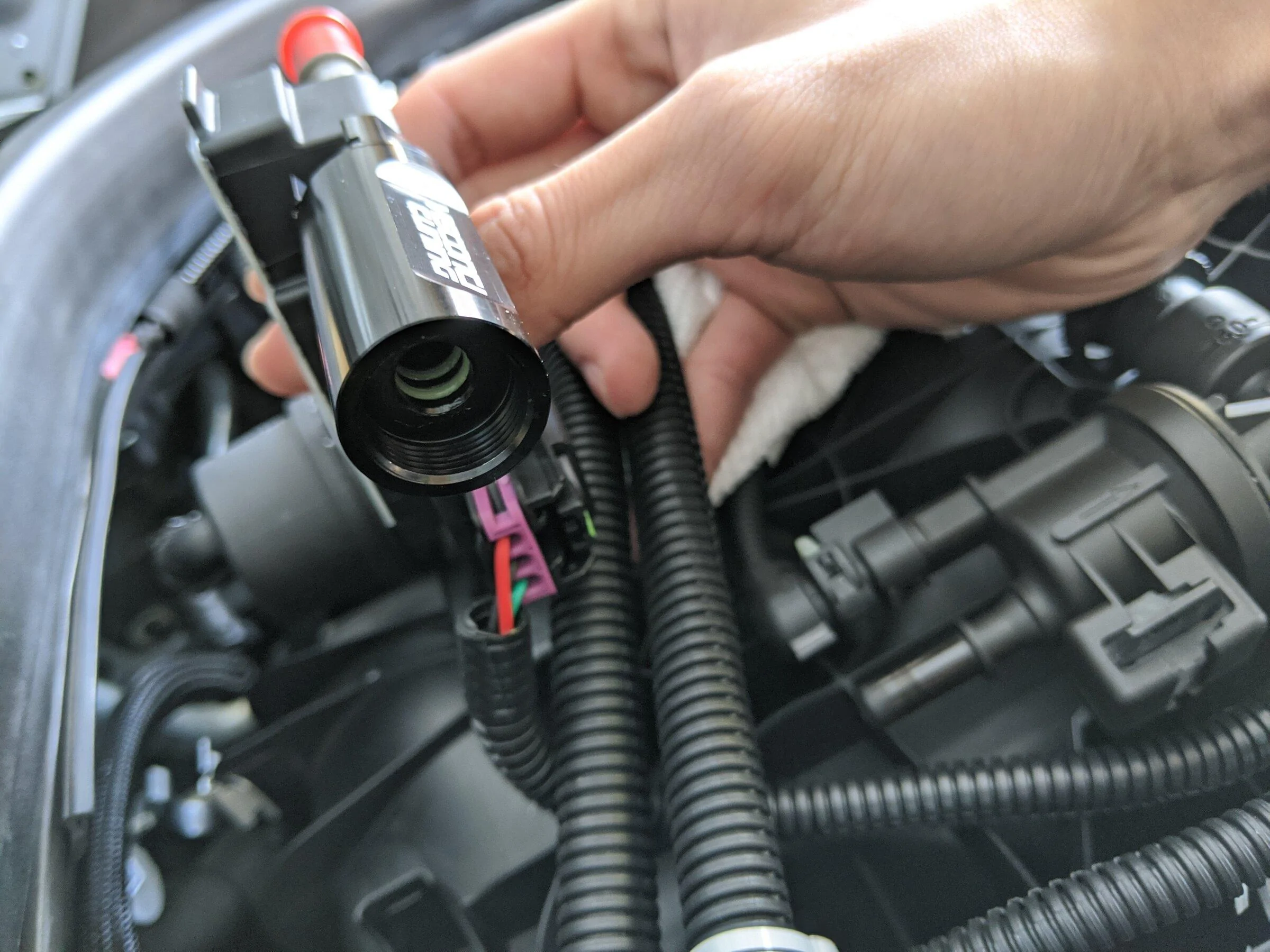

I'm currently in the middle of installing this kit from Visconti. Per the instructions, as well as a YouTube video I watched, there should be an O-ring that needs to go between the left piece that unscrews and the flex fuel sensor. However, I don't have that O-ring. It's nowhere to be found, and I'm certain I didn't accidentally lose it because I was expecting one to be there when I unscrewed the left piece. Has the installation changed or am I gonna need an O-ring?


Sponsored



zrk

Well-Known Member
First Name
Zack
Joined
Apr 20, 2021
Threads
75
Messages
7,393
Reaction score
11,696
Location
Chicago, IL
Car(s)
2021 Supra - Nocturnal Black
Hi everyone,

I'm currently in the middle of installing this kit from Visconti. Per the instructions, as well as a YouTube video I watched, there should be an O-ring that needs to go between the left piece that unscrews and the flex fuel sensor. However, I don't have that O-ring. It's nowhere to be found, and I'm certain I didn't accidentally lose it because I was expecting one to be there when I unscrewed the left piece. Has the installation changed or am I gonna need an O-ring?


You need that oring.

OP
OP

baagel

Well-Known Member
Joined
Oct 22, 2021
Threads
15
Messages
336
Reaction score
334
Location
USA
Car(s)
2021 Supra 3.0 Premium
I contacted Marshall, this is a new fitting they are using which doesn't require the O-ring. The current instructions still mention the O-ring which is why I thought I was missing one.

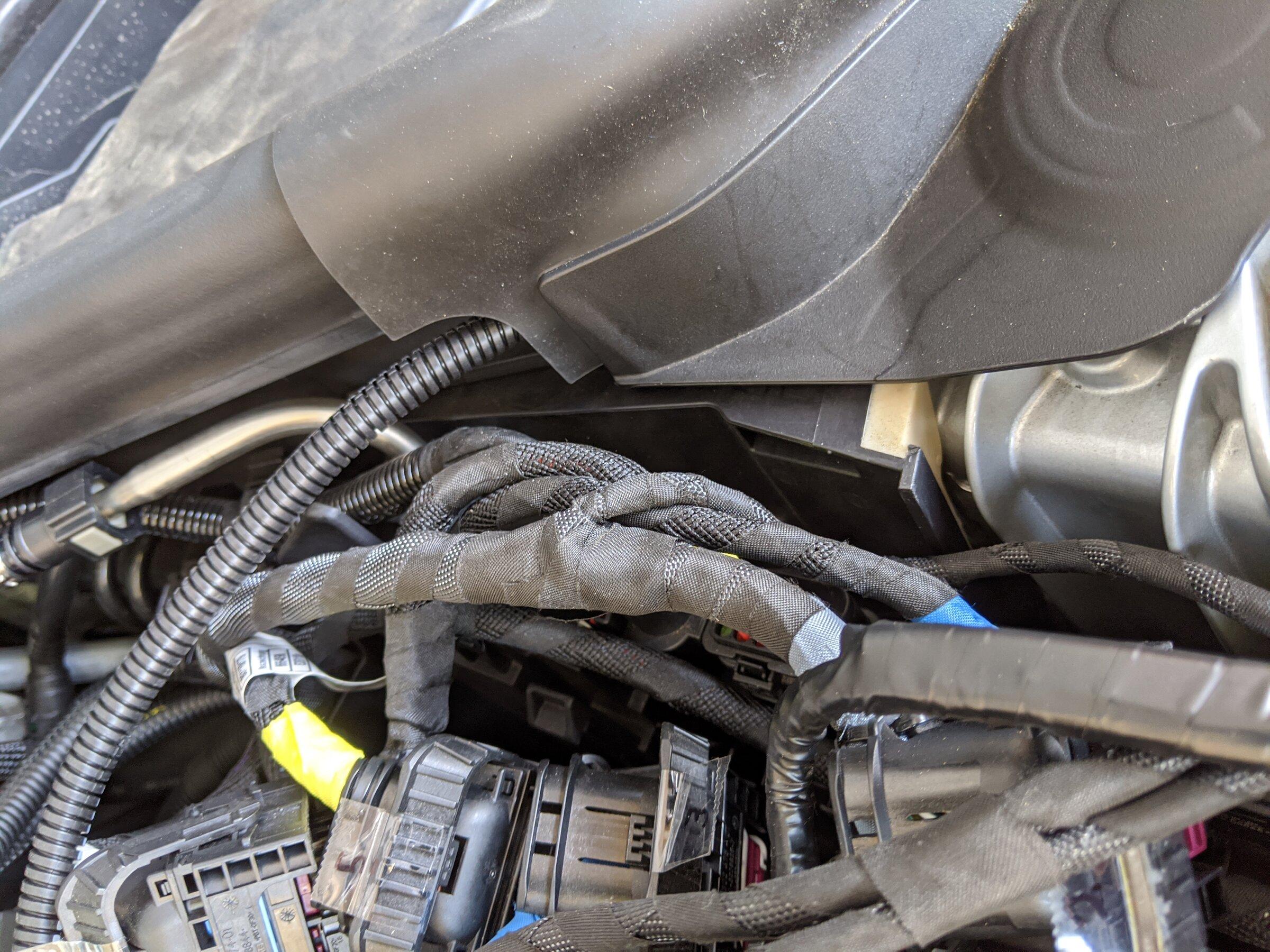

Another minor issue I ran into during installation is when routing the cable around the engine bay toward passenger-side firewall. The instructions suggest to route through a small gap which is accessible once you remove a couple pieces of plastic trim around the engine bay. The problem is, this prevents you from putting that trim back in place once you're done. To address this, I just cut off a small chunk of the plastic that would have blocked that gap which the cables are routed through.



Twisted Tuning

Well-Known Member
Gold Sponsor
First Name
Justin
Joined
Mar 10, 2019
Threads
25
Messages
1,088
Reaction score
1,360
Location
New York
Website
www.twistedtuning.com
Car(s)
2020 Supra, 335xi, 135i, TwinTurbo Mazda6
yea they moved to the fitting style like i use in my kits for a couple years now. The orings are inside the actual fitting. the fitting they using before would leak and etc. ironic


Thraxbert

Well-Known Member
First Name
Robert
Joined
May 3, 2021
Threads
22
Messages
635
Reaction score
1,128
Location
Texas
Car(s)
2020 Supra 3.0 Premium
Just to double up on what TT is saying:

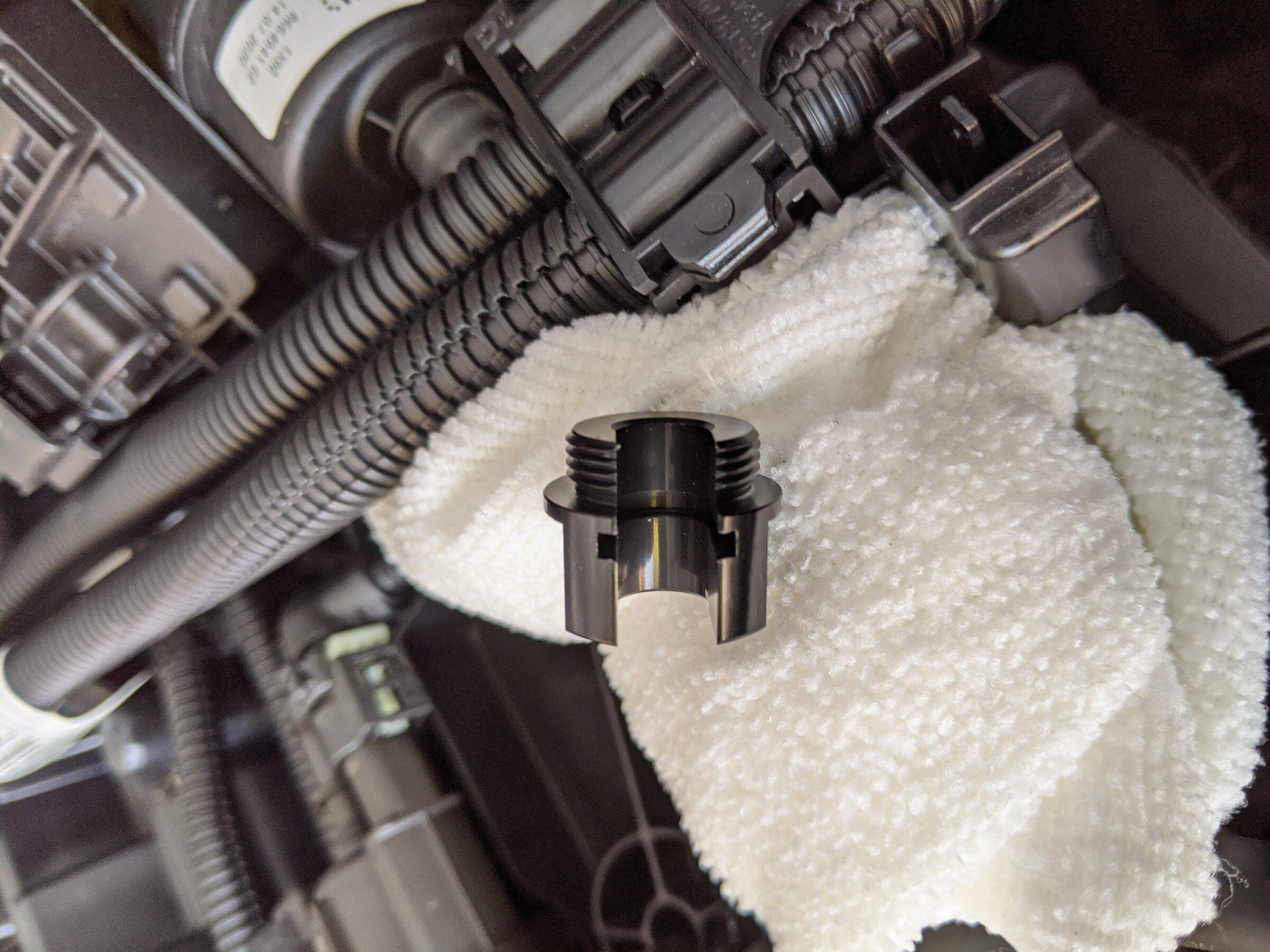

This is a different style EFI quick disconnect fitting than the one specified in the Visconti instructions. It does not use an O-ring you slip over the flange of the fuel rail. You simply slide the small open-ended cap onto the flange, slide the body of the fitting over the fuel hardline, then tighten with a wrench. THe two green O-rings provided the seal.


kt06siggm

Member
First Name
Kyle
Joined
Sep 19, 2021
Threads
0
Messages
12
Reaction score
5
Location
Melbourne, FL
Car(s)
2020 Supra 3.0 Premium
Well - I'm an idiot. Sorry.
Not an idiot, I was confused as well during my install. Fortunately I was able to get a hold of Marshall from Visconti (on a Sunday afternoon I might add) and he was able to set me straight.

  • Like
Reactions: zrk

Zack

Member
First Name
Zack
Joined
Nov 17, 2019
Threads
2
Messages
13
Reaction score
10
Location
Southern California
Car(s)
Absolute Zero White 2020 Toyota Supra
Not an idiot, I was confused as well during my install. Fortunately I was able to get a hold of Marshall from Visconti (on a Sunday afternoon I might add) and he was able to set me straight.
How long did it take you to install?

I plan on getting it soon and I want to install it myself because there are no good shops around me in an hour+ radius.


Thraxbert

Well-Known Member
First Name
Robert
Joined
May 3, 2021
Threads
22
Messages
635
Reaction score
1,128
Location
Texas
Car(s)
2020 Supra 3.0 Premium
How long did it take you to install?

I plan on getting it soon and I want to install it myself because there are no good shops around me in an hour+ radius.
It took me about 3 hours with beer breaks and f'ing around on my phone.


Mason

Well-Known Member
First Name
Mason
Joined
Jun 24, 2021
Threads
14
Messages
1,348
Reaction score
1,541
Location
Kenosha WI
Car(s)
2021 3.0
I installed one of these about a month ago. Totally forgot about the o-ring because I didnโ€™t even look. Glad I didnโ€™t need it

ร‰dit: took me about an hour to install


Loco38SUP

Well-Known Member
Joined
Feb 17, 2021
Threads
36
Messages
1,708
Reaction score
2,529
Location
Seattle
Car(s)
2021 GR Supra 3.0 (Renaissance Red)

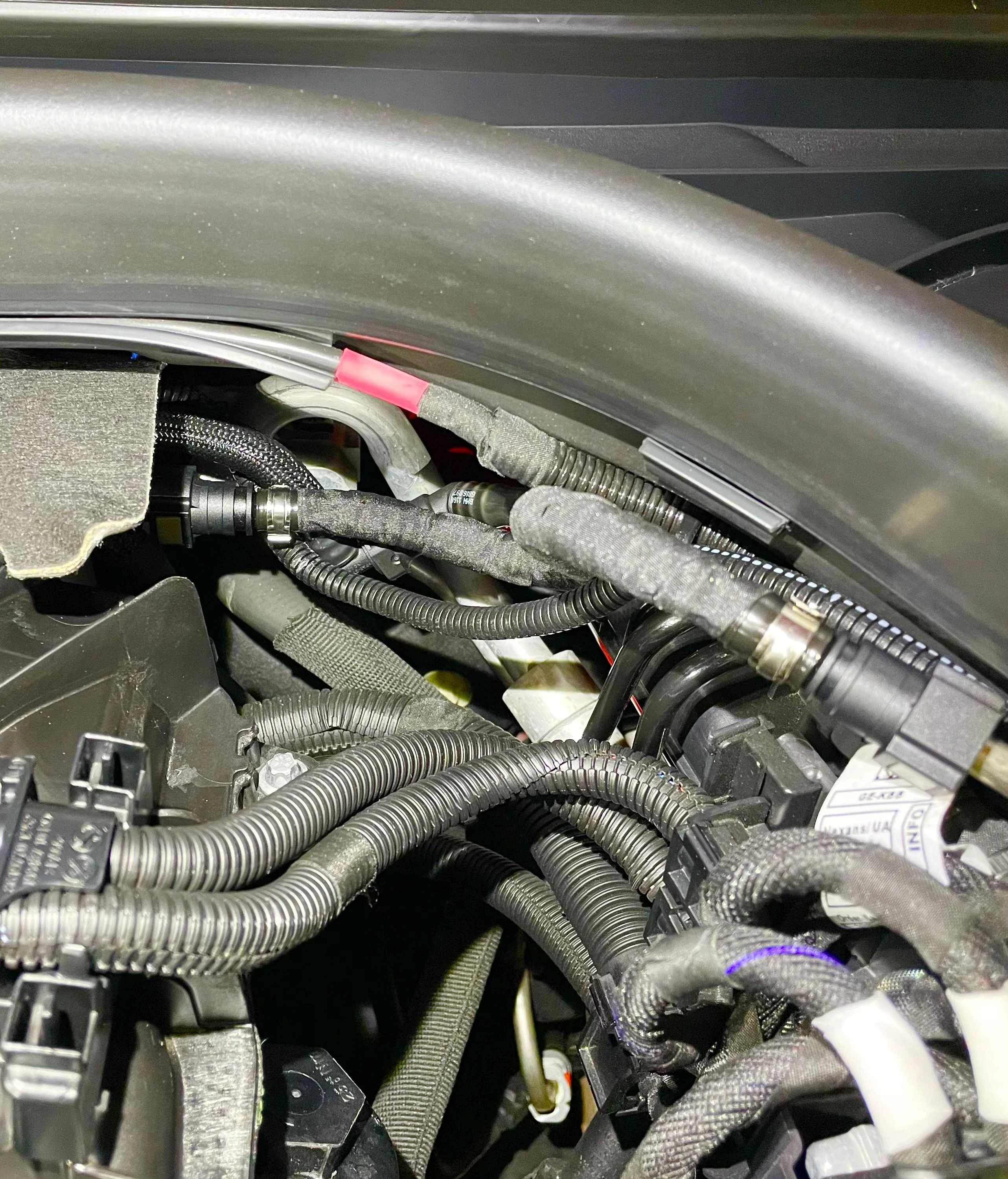

The Visconti fuel line seems to be the weakest link in this kit. I added some high temp harness tape to protect it better.

I know some people have had leaks from pin holes due to vibration and contact with other fittings in that area.

-RJM
