Evilpenguinking
Well-Known Member
So what intake manifold would you guys recommend?
racebuild
Well-Known Member
Copied their AI generated post from another forum.
CSF is pleased to announce an extremely exciting product release! The long-awaited Gen 2 B58 “Race X” Charge-Air-Cooler Manifold.
CSF is pleased to announce an extremely exciting product release! The long-awaited Gen 2 B58 “Race X” Charge-Air-Cooler Manifold.
Why Upgrade?
The Race X Manifold is designed for high level motorsports competition and racing applications. The limits of the current Super Manifold are very high and more than enough for many enthusiasts, tuners, and racers. However, those looking to push their Gen 2 B58s to the maximum have been asking for more. Race X features a 25% larger core, additional parameter ports, and an optimized water flow system. The manifold can be used in either dual or single pass configurations and features a new front port that has been optimized for ice box setups. This is the most versatile and largest manifold available on the market and has been race tested on some of the fastest B58 powered drag cars in the world.

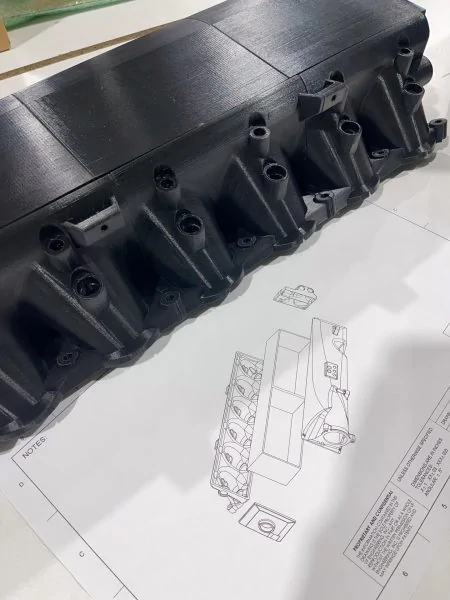

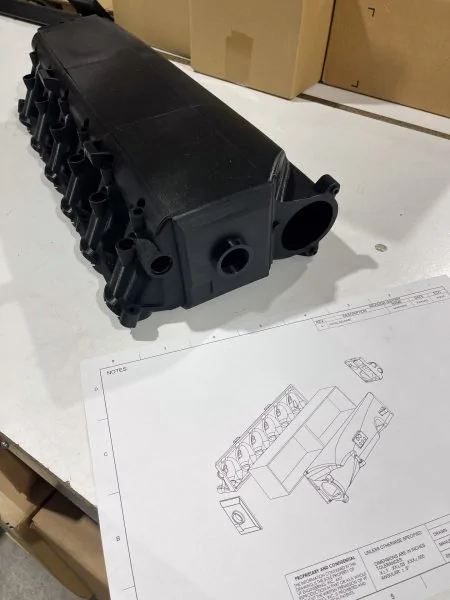

Design & Engineering
The massive amount of research and development that went into the Super Manifold paid dividends when developing the Race X Manifold. That combined with all of the real world testing performed by race teams and tuners, CSF had all the information needed to begin the process of designing this brand new manifold. The main goals when designing the new manifold were to increase air flow capacity and cooling capacity. Using Computational Fluid Dynamics (CFD) software CSF’s team of engineers worked tirelessly on producing a manifold that would meet the demands of the most serious competitive drivers while offering the most features possible.
Proven Results
Several prototype Race X Manifolds have been tested over the past year on 3 different vehicles. @peppa_aka_skull‘s A90 Supra, @mrnohesi‘s G20 M340i, and Titan Motorsports‘ A90 Supra. All 3 of these vehicles, tuned by Visconti Tuning, are purpose built drag cars that boast impressive power and 1/4 mile times. The feedback received from these B58 platform leaders has led to many improvements and refinements that CSF is proud to bring to the market with the Race X Manifold.

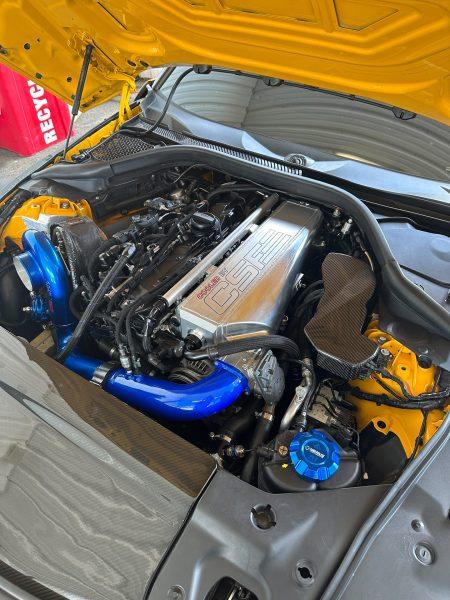

Peppa Skull’s A90 Supra
If you follow drag racing you’ve probably seen Peppa’s yellow A90 Supra in person or on social media. Peppa has been racing and upgrading his Supra for years and has broken/set several records in that time. Just last month (Nov. 2023) he set a new fastest time of 7.9 seconds at 176mph in the quarter mile.
Titan Motorsports’ Supra
One of the biggest names in Supra drag racing, Titan Motorsports has been a major player in the inline 6 world for years. They regularly compete in some of the biggest drag racing competitions in the US and know a thing or two about making a fast car. Their Supra is pushing over 1000 whp and has a personal best time of 8.18 seconds in the quarter mile.

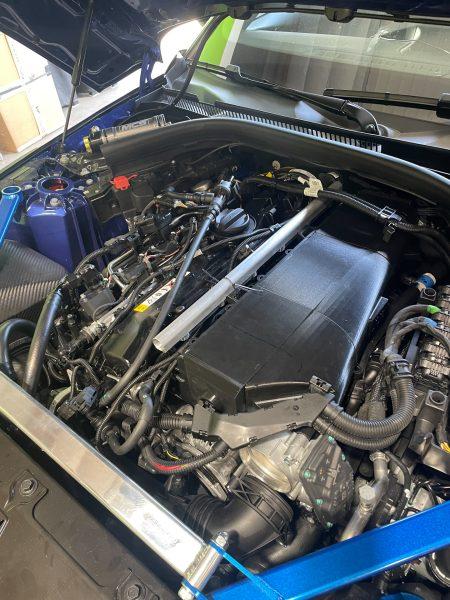

NOHESI’s BMW G20 M340i
Normally when you see a fast BMW sedan, it’s an M car. Mr. Nohesi (Andre) likes to do things a little differently and has been pushing the B58 platform extremely hard. His record breaking and holding M340 (8.8 seconds) boasts over 1000hp. Andre’s car, tuned by Visconti Tuning, has been a key partner to CSF as his vehicle has made more than 300 passes on the prototype Race X Manifold since TX2K 2023.
Features

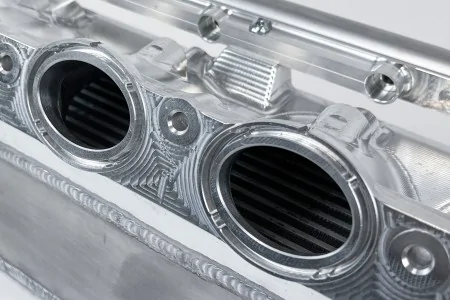

Biggest/Best Core in the Industry
Once you get into that 1000hp+ range on the B58, most aftermarket manifolds have reached their limits in terms of flow and cooling capacity. To resolve both limitations, CSF increased the size of the core by 25% over the #8200. The larger core has 15 cooling rows (vs 12 rows on the CSF #8200) and keeps up with the air flow demand while also increasing the cooling capacity.

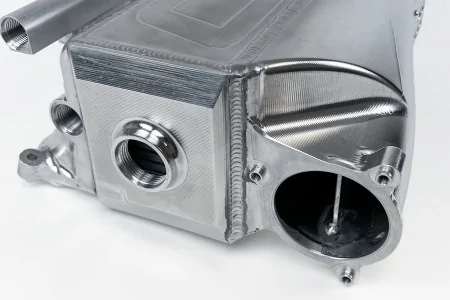

Dual or Single Pass
CSF specifically designed the front water end plate of the manifold to allow for a single pass setup or ice box setup. This -16 ORB bung found on the front water plate is the largest available on any aftermarket B58 manifold (competitor’s unit uses a -12 fitting). CSF has teamed up with industry leading fitting and hose experts Brown and Miller (BRMS) to optimize the water flow out of the front plate. CSF recommends using the following BRMS fittings with a maximum fitting angle of 120 degrees.
Top Feed Port Injection with Included Fuel Rail
The CSF Manifold includes an extruded fuel rail which attaches to the outlet side of the manifold. The AN-8 fuel rail comes with a -8 internal hex plug fitting. This allows you to run a returnless fuel system or a full loop setup.

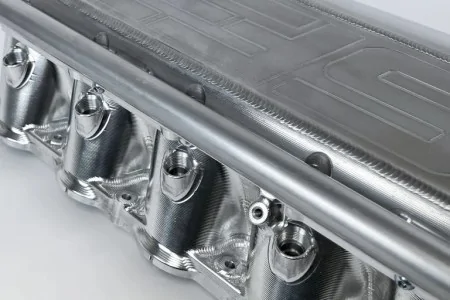

Individual Nitrous / Methanol Injector Ports
A 1/8″ NPT port on each cylinder runner can be used for nitrous or methanol injection. The CSF manifold allows for maximum spray control and even spray distribution throughout the engine.
A nitrous system set-up specifically for the CSF manifold is available from industry leaders Nitrous Express through Titan Motorsports.
Nitrous Express Kit for CSF Manifold

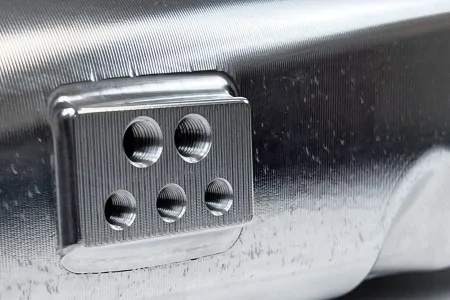

Expanded Vacuum and Parameter Pad
CSF has included a port pad into the machining of the tank on the manifold inlet side. The ports can be used to measure additional parameters or as an additional vacuum source. The Race X Manifold has two additional 1/4″ NPT ports to go along with the standard three 1/8″ NPT ports. Each port can be plugged with the included hardware kit if they are not used.
Easy Access to Spin-Off Oil Filter
CSF incorporated a recessed design towards the back of the manifold that allows easy access to the spin-off oil filter. This means you do not have to remove your manifold every time you want to change your oil.
Air Inlet Divider
The inclusion of an air divider welded into the inlet side tank of the manifold is another exclusive feature of the CSF manifold. With the length of the manifold, the engineers at VF Engineering wanted to make sure that the volume and velocity of air was consistent to all cylinders. The inlet has an air divider to ensure the best possible airflow and equal cooling performance to each cylinder. Airflow to the back of the manifold (cylinders four, five, and six) should be equal to the airflow to the front of the manifold (cylinders one, two, and three) for the best possible performance.
Breather Ports for Inlet/Outlet of Water Tanks

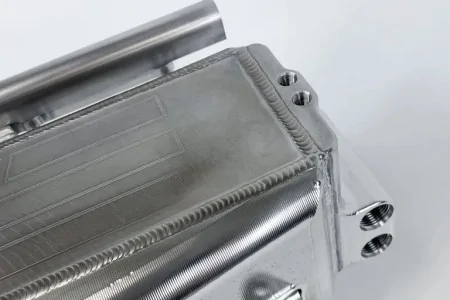

Two 1/8″ NPT ports are located on the top of the back water plate. These ports can be used to measure inlet/outlet water temps as well as used as breather ports to help in the bleeding procedure. 1/8th NPT plugs come included in the supplied hardware kit. Please follow OEM BMW or Toyota bleeding procedure which takes roughly 15 minutes to complete.
Slotted Mounting Tabs
Positioning the manifold in the engine bay is fairly straightforward. However, it can be a little frustrating to get the bolt holes on the intake side mounting tabs lined up perfectly. After doing a few test fittings CSF realized this could be resolved by slotting the mounting tabs. This allows the bolts to be installed before final positioning adjustments and makes installation a bit easier.
Thermal Rejection Competition Spacer
Made from KIYLEX®, a patented revolutionary high-performance final stage polymer. KIYLEX® is as strong as aluminum and can withstand temperatures up to 1100°F. This spacer is designed to insulate the intake manifold from conductive heat transfer from the cylinder head. This thermal barrier reduces manifold temperatures which helps lower Intake Air Temperatures (IATs), improve charge air cooler efficiency, and combats heat soak. CSF is the exclusive distributor for the KIYLEX® Intake Manifold Spacer for the B58 Motor.
The addition of the Thermal Rejection Spacer is especially useful for Drag/Roll-Racing Events where vehicles typically sit in staging lanes in-between racing. This causes extreme heat soak to the liquid-to-air manifold as there is not sufficient airflow passing over the front mount heat exchanger when the car is idling (which is responsible for cooling the charge air fluid that runs through the manifold). This causes the starting IATs on subsequent runs to be higher than on the initial run.
The CSF Manifold is made from Billet Aluminum and 100% TIG Welded for strength, which allows it to be able to withstand higher boost pressures compared to the OEM plastic manifold. Aluminum has higher thermal conductivity than plastic resulting in a higher rate of heat transfer between the cylinder head and manifold. Adding the Thermal Rejection Spacer reduces heat transfer between the two metal components (cylinder head & manifold). The spacer absorbs the heat from the cylinder head and dissipates it rather than transferring it to the manifold.
The CSF Thermal Rejection Competition Spacer was designed for vehicles competing in motorsports who demand the absolute best cooling in order to gain a competitive edge. However, including this spacer offers significant advantages to any vehicle.
Hardware Kit, Well Thought-Out Instruction Manual
The supplied hardware kit includes all of the brackets, bolts, washers, and CNC machined fittings for installation. This is an industry-exclusive feature to the CSF x VF Engineering design, and was extremely difficult to not only engineer, but to manufacture as well. An array of items come vacuum packaged with corresponding letters listed on an easy to use Bill-of-Materials List (BOM) along with exploded diagrams and a simple order of operation procedure list to follow for installation. Made with mechanics, technicians, racers and DIY enthusiasts in mind. This is a
Racing Product and intended to be installed only by a skilled and experience technician who is familiar with the B58 engine platform
CSF vs the competition
CSF was able to conduct several real world A/B tests with the new Race X Manifold vs one of our competitors. @peppa_aka_skull‘s A90 Supra vs two other A90 Supras with similar specs. These logs were given to us by R &D Partner Visconti Tuning.

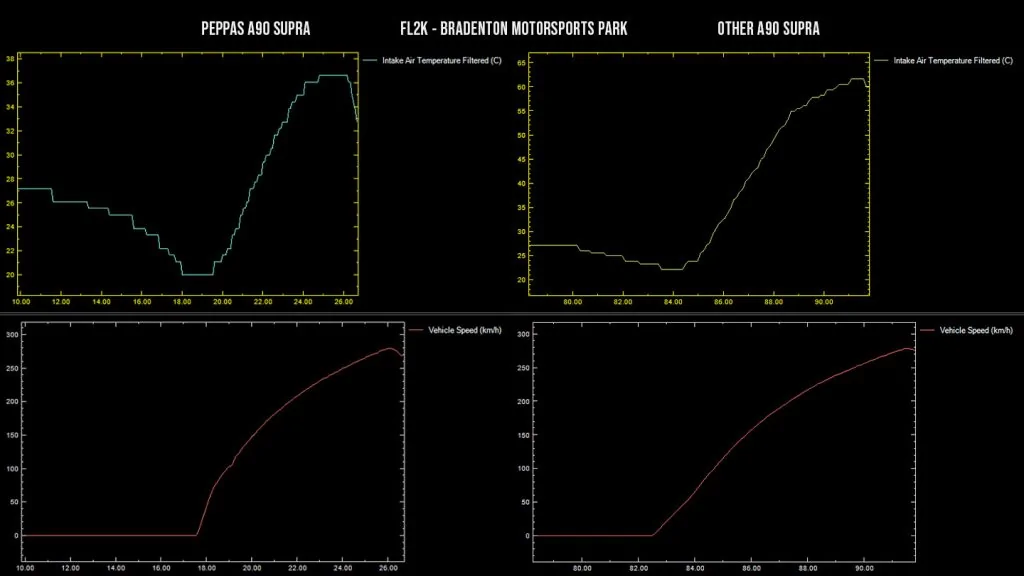

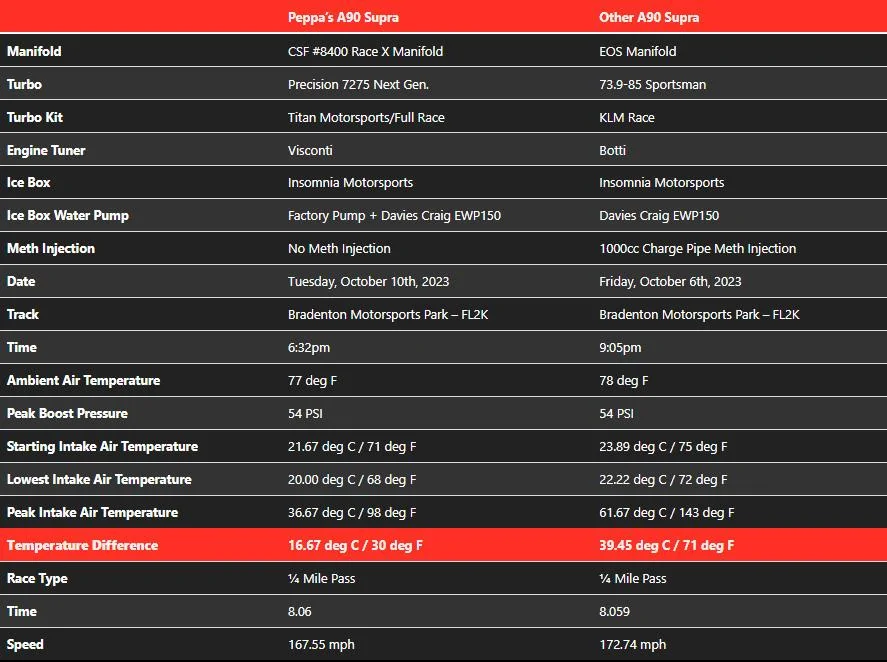

FL2K – Bradenton Motorsports Park
The data shows how much more efficient the Race X Manifold is at lowering Intake Air Temperatures (IATs). The other supra has a larger and more efficient turbo which should produce lower IATs. It also has methanol injection which should also further improve IATs. Even with these disadvantages on Peppa’s Supra, the Race X Manifold is a staggering 136% more efficient at cooling the charge air. The data above from Peppa’s car (tuned by Visconti Tuning) resulted in a 1/4 mile pass of 8.06 seconds.
Rockingham Dragway
Another example showing how efficient the Race X Manifold is compared to the competition. This test was conducted on the same day, same track, same tuner, and under almost the exact same conditions. Matt’s A90 Supra has a larger turbo and methanol injection. Even with these disadvantages on Peppa’s Supra, the Race X Manifold is 121% more efficient at cooling the charge air.

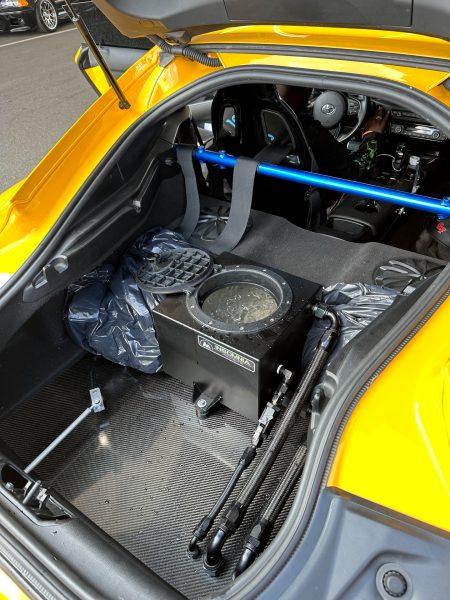

Pocono Raceway
Peppa ran an EOS manifold for a short time in 2023 and collected data during roll races at Pocono Raceway. The changes to the Supra between these tests was just the EOS to CSF Race X Manifold swap. All other modifications were exactly the same.
With just a manifold change, Peppa saw an improvement of 132% in cooling of the charge air.
Dyno Testing
Titan Motorsports was kind enough to do some testing on their A90 Supra before and after the installation of the Race X Manifold. They have been running the CSF #8200 Super Manifold for a couple years now. The 1st run (red) is the dyno sheet from the setup they have been running in competition since May of 2023. The second pull (blue) was after the installation of the Race X Manifold in early October of 2023. The ~34whp and ~82 ft-lbs gains were achieved with just swapping to the new Race X Manifold.
This was a strictly A/B test without any other hardware or tuning adjustments made to compensate for the larger volume of the Race-X Manifold.

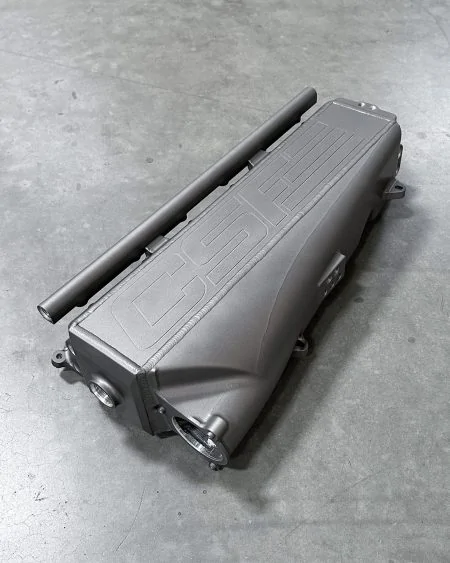

Custom Finishes
Clink Here to see the gallery of all of our custom finishes.

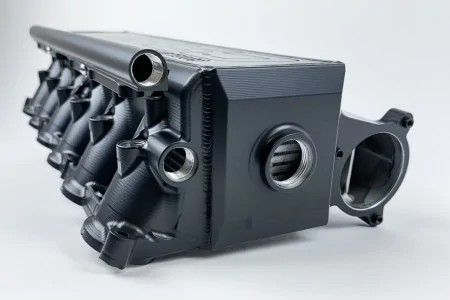

Thermal Black Heat Dispersion Cerakote – CSF #8400Bhttps://149905679.v2.pressablecdn.com/wp-content/uploads/2022/11/8233B_1-450x600.jpg
CSF’s most popular custom finish, Thermal Black Heat Dispersion Cerakote is available as a standard finish option. This offers faster turnaround time for orders and some dealers/distributors stocking this finish option.
Custom Powder-Coating & Thermal Rejection Finishes – CSF #8400C
See more Custom Finishes
https://149905679.v2.pressablecdn.com/wp-content/uploads/2022/11/8233B_1-450x600.jpg
Product Images
BMW Gen 2 B58 “Race X” Charge-Air Cooler Manifold Features (CSF #8400/8400B/8400C)
Disclaimer:
CSF pressure tests each #8400 manifold at 60-70 PSI for a period of 2-3 minutes during the Quality Control and Inspection process. The CSF manifold is not designed to operate above 60 PSI. Any users who chose to operate their vehicle with the CSF manifold over 60 PSI does so at their own risk. Operation at these pressure levels will void the CSF Limited 2 Year Warranty.
OEM Part Number:
Pricing – MSRP / MAP:
CSF is pleased to announce an extremely exciting product release! The long-awaited Gen 2 B58 “Race X” Charge-Air-Cooler Manifold.
CSF is pleased to announce an extremely exciting product release! The long-awaited Gen 2 B58 “Race X” Charge-Air-Cooler Manifold.
Why Upgrade?
The Race X Manifold is designed for high level motorsports competition and racing applications. The limits of the current Super Manifold are very high and more than enough for many enthusiasts, tuners, and racers. However, those looking to push their Gen 2 B58s to the maximum have been asking for more. Race X features a 25% larger core, additional parameter ports, and an optimized water flow system. The manifold can be used in either dual or single pass configurations and features a new front port that has been optimized for ice box setups. This is the most versatile and largest manifold available on the market and has been race tested on some of the fastest B58 powered drag cars in the world.
Design & Engineering
The massive amount of research and development that went into the Super Manifold paid dividends when developing the Race X Manifold. That combined with all of the real world testing performed by race teams and tuners, CSF had all the information needed to begin the process of designing this brand new manifold. The main goals when designing the new manifold were to increase air flow capacity and cooling capacity. Using Computational Fluid Dynamics (CFD) software CSF’s team of engineers worked tirelessly on producing a manifold that would meet the demands of the most serious competitive drivers while offering the most features possible.
Proven Results
Several prototype Race X Manifolds have been tested over the past year on 3 different vehicles. @peppa_aka_skull‘s A90 Supra, @mrnohesi‘s G20 M340i, and Titan Motorsports‘ A90 Supra. All 3 of these vehicles, tuned by Visconti Tuning, are purpose built drag cars that boast impressive power and 1/4 mile times. The feedback received from these B58 platform leaders has led to many improvements and refinements that CSF is proud to bring to the market with the Race X Manifold.

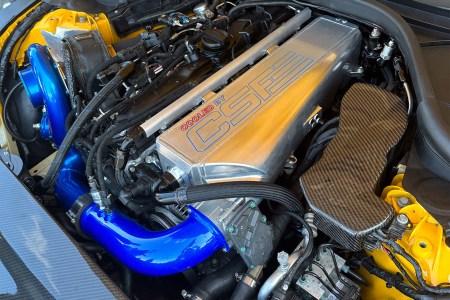

Peppa Skull’s A90 Supra
If you follow drag racing you’ve probably seen Peppa’s yellow A90 Supra in person or on social media. Peppa has been racing and upgrading his Supra for years and has broken/set several records in that time. Just last month (Nov. 2023) he set a new fastest time of 7.9 seconds at 176mph in the quarter mile.

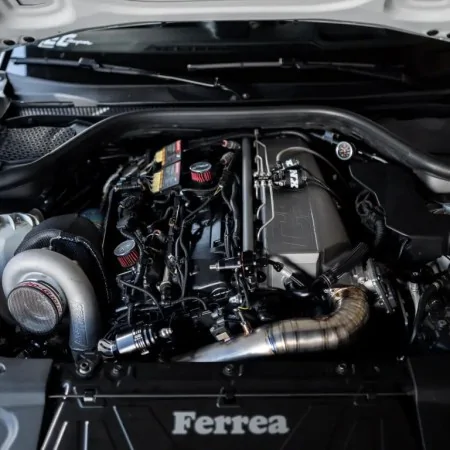

Titan Motorsports’ Supra
One of the biggest names in Supra drag racing, Titan Motorsports has been a major player in the inline 6 world for years. They regularly compete in some of the biggest drag racing competitions in the US and know a thing or two about making a fast car. Their Supra is pushing over 1000 whp and has a personal best time of 8.18 seconds in the quarter mile.
NOHESI’s BMW G20 M340i
Normally when you see a fast BMW sedan, it’s an M car. Mr. Nohesi (Andre) likes to do things a little differently and has been pushing the B58 platform extremely hard. His record breaking and holding M340 (8.8 seconds) boasts over 1000hp. Andre’s car, tuned by Visconti Tuning, has been a key partner to CSF as his vehicle has made more than 300 passes on the prototype Race X Manifold since TX2K 2023.

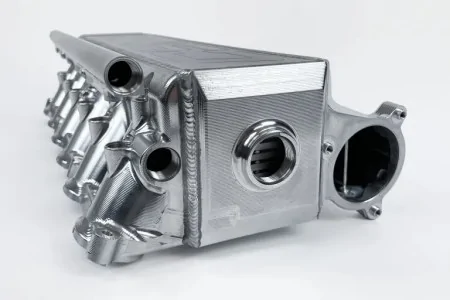

Features
Biggest/Best Core in the Industry
Once you get into that 1000hp+ range on the B58, most aftermarket manifolds have reached their limits in terms of flow and cooling capacity. To resolve both limitations, CSF increased the size of the core by 25% over the #8200. The larger core has 15 cooling rows (vs 12 rows on the CSF #8200) and keeps up with the air flow demand while also increasing the cooling capacity.

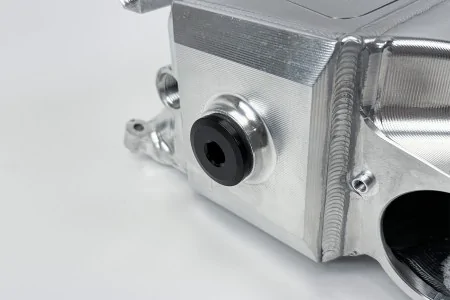

Dual or Single Pass
CSF specifically designed the front water end plate of the manifold to allow for a single pass setup or ice box setup. This -16 ORB bung found on the front water plate is the largest available on any aftermarket B58 manifold (competitor’s unit uses a -12 fitting). CSF has teamed up with industry leading fitting and hose experts Brown and Miller (BRMS) to optimize the water flow out of the front plate. CSF recommends using the following BRMS fittings with a maximum fitting angle of 120 degrees.
- BRMS: AC-16-M3-120 (Black)
- BRMS: AC-16-M4-120 (Blue)

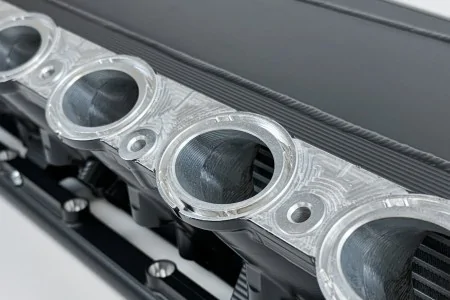

Top Feed Port Injection with Included Fuel Rail
The CSF Manifold includes an extruded fuel rail which attaches to the outlet side of the manifold. The AN-8 fuel rail comes with a -8 internal hex plug fitting. This allows you to run a returnless fuel system or a full loop setup.
- Fuel rail aperture for each cylinder is an optimized 7mm opening for compatibility with most commonly used high performance injectors
- CSF recommends using Injector Dynamics (ID) injectors for the best performance – the most commonly used injector for this engine has been ID model # 1050.34.14.14.6 (qty 6)
- Anodized CNC machined injector hats (qty 6) are included in the supplied hardware kit to accommodate short height injectors aka “shorties”

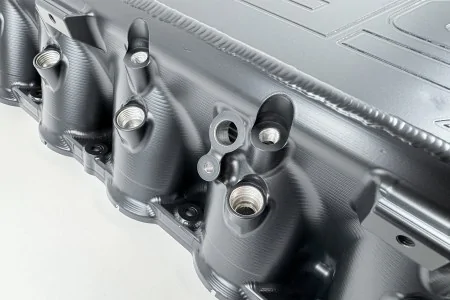

Individual Nitrous / Methanol Injector Ports
A 1/8″ NPT port on each cylinder runner can be used for nitrous or methanol injection. The CSF manifold allows for maximum spray control and even spray distribution throughout the engine.
A nitrous system set-up specifically for the CSF manifold is available from industry leaders Nitrous Express through Titan Motorsports.

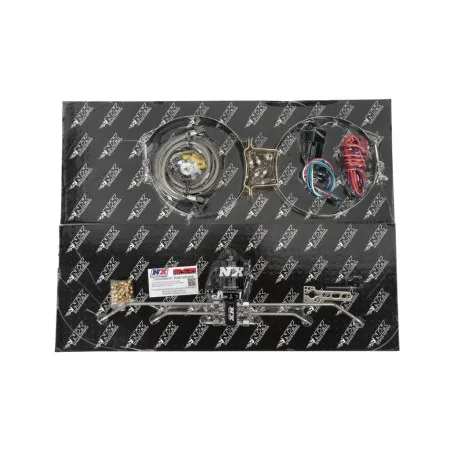

Nitrous Express Kit for CSF Manifold

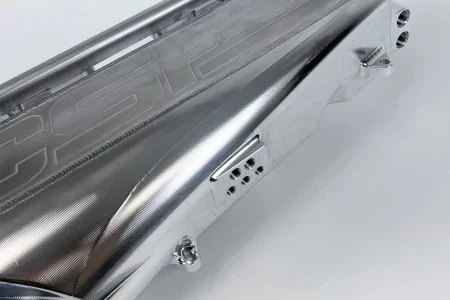

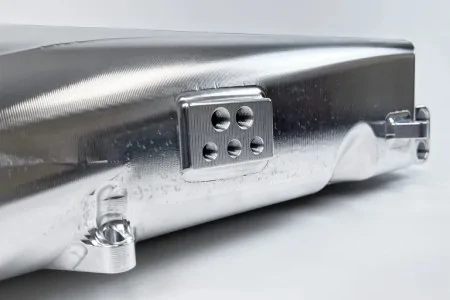

Expanded Vacuum and Parameter Pad
CSF has included a port pad into the machining of the tank on the manifold inlet side. The ports can be used to measure additional parameters or as an additional vacuum source. The Race X Manifold has two additional 1/4″ NPT ports to go along with the standard three 1/8″ NPT ports. Each port can be plugged with the included hardware kit if they are not used.
Easy Access to Spin-Off Oil Filter
CSF incorporated a recessed design towards the back of the manifold that allows easy access to the spin-off oil filter. This means you do not have to remove your manifold every time you want to change your oil.
Air Inlet Divider
The inclusion of an air divider welded into the inlet side tank of the manifold is another exclusive feature of the CSF manifold. With the length of the manifold, the engineers at VF Engineering wanted to make sure that the volume and velocity of air was consistent to all cylinders. The inlet has an air divider to ensure the best possible airflow and equal cooling performance to each cylinder. Airflow to the back of the manifold (cylinders four, five, and six) should be equal to the airflow to the front of the manifold (cylinders one, two, and three) for the best possible performance.
![](https://149905679.v2.pressablecdn.com/wp-content/uploads/2021/11/IMG_0966-X2-1024x630-450x600.jpg" aria-label=Display this image in a lightbox)
Breather Ports for Inlet/Outlet of Water Tanks
Two 1/8″ NPT ports are located on the top of the back water plate. These ports can be used to measure inlet/outlet water temps as well as used as breather ports to help in the bleeding procedure. 1/8th NPT plugs come included in the supplied hardware kit. Please follow OEM BMW or Toyota bleeding procedure which takes roughly 15 minutes to complete.
Slotted Mounting Tabs
Positioning the manifold in the engine bay is fairly straightforward. However, it can be a little frustrating to get the bolt holes on the intake side mounting tabs lined up perfectly. After doing a few test fittings CSF realized this could be resolved by slotting the mounting tabs. This allows the bolts to be installed before final positioning adjustments and makes installation a bit easier.
Thermal Rejection Competition Spacer
Made from KIYLEX®, a patented revolutionary high-performance final stage polymer. KIYLEX® is as strong as aluminum and can withstand temperatures up to 1100°F. This spacer is designed to insulate the intake manifold from conductive heat transfer from the cylinder head. This thermal barrier reduces manifold temperatures which helps lower Intake Air Temperatures (IATs), improve charge air cooler efficiency, and combats heat soak. CSF is the exclusive distributor for the KIYLEX® Intake Manifold Spacer for the B58 Motor.
The addition of the Thermal Rejection Spacer is especially useful for Drag/Roll-Racing Events where vehicles typically sit in staging lanes in-between racing. This causes extreme heat soak to the liquid-to-air manifold as there is not sufficient airflow passing over the front mount heat exchanger when the car is idling (which is responsible for cooling the charge air fluid that runs through the manifold). This causes the starting IATs on subsequent runs to be higher than on the initial run.

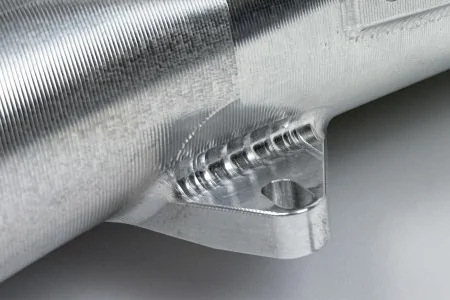

The CSF Manifold is made from Billet Aluminum and 100% TIG Welded for strength, which allows it to be able to withstand higher boost pressures compared to the OEM plastic manifold. Aluminum has higher thermal conductivity than plastic resulting in a higher rate of heat transfer between the cylinder head and manifold. Adding the Thermal Rejection Spacer reduces heat transfer between the two metal components (cylinder head & manifold). The spacer absorbs the heat from the cylinder head and dissipates it rather than transferring it to the manifold.
The CSF Thermal Rejection Competition Spacer was designed for vehicles competing in motorsports who demand the absolute best cooling in order to gain a competitive edge. However, including this spacer offers significant advantages to any vehicle.

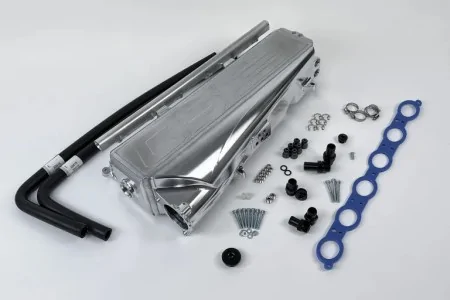

Hardware Kit, Well Thought-Out Instruction Manual
The supplied hardware kit includes all of the brackets, bolts, washers, and CNC machined fittings for installation. This is an industry-exclusive feature to the CSF x VF Engineering design, and was extremely difficult to not only engineer, but to manufacture as well. An array of items come vacuum packaged with corresponding letters listed on an easy to use Bill-of-Materials List (BOM) along with exploded diagrams and a simple order of operation procedure list to follow for installation. Made with mechanics, technicians, racers and DIY enthusiasts in mind. This is a
Racing Product and intended to be installed only by a skilled and experience technician who is familiar with the B58 engine platform
CSF vs the competition
CSF was able to conduct several real world A/B tests with the new Race X Manifold vs one of our competitors. @peppa_aka_skull‘s A90 Supra vs two other A90 Supras with similar specs. These logs were given to us by R &D Partner Visconti Tuning.
FL2K – Bradenton Motorsports Park
The data shows how much more efficient the Race X Manifold is at lowering Intake Air Temperatures (IATs). The other supra has a larger and more efficient turbo which should produce lower IATs. It also has methanol injection which should also further improve IATs. Even with these disadvantages on Peppa’s Supra, the Race X Manifold is a staggering 136% more efficient at cooling the charge air. The data above from Peppa’s car (tuned by Visconti Tuning) resulted in a 1/4 mile pass of 8.06 seconds.

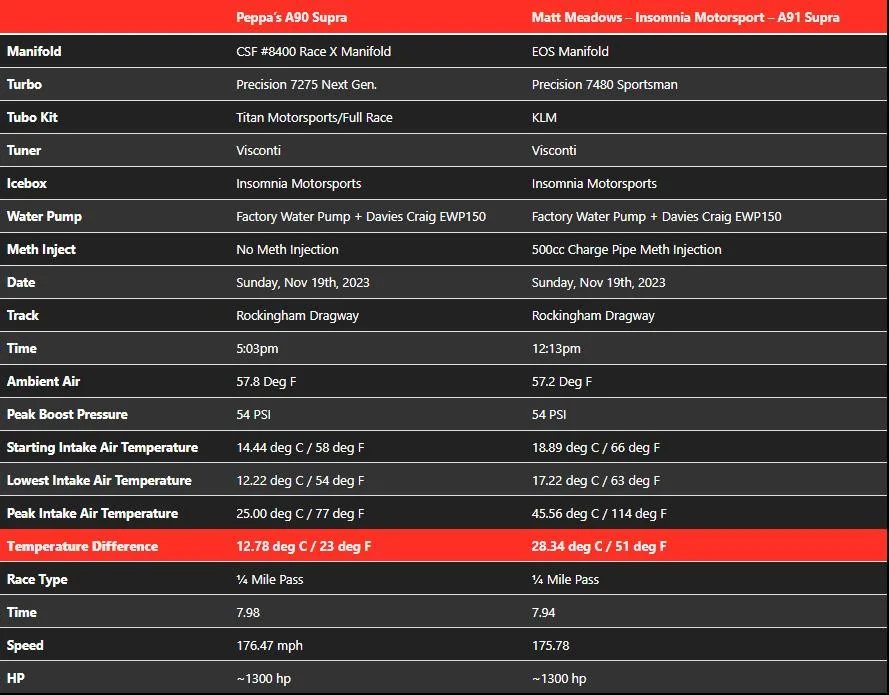

Rockingham Dragway
Another example showing how efficient the Race X Manifold is compared to the competition. This test was conducted on the same day, same track, same tuner, and under almost the exact same conditions. Matt’s A90 Supra has a larger turbo and methanol injection. Even with these disadvantages on Peppa’s Supra, the Race X Manifold is 121% more efficient at cooling the charge air.

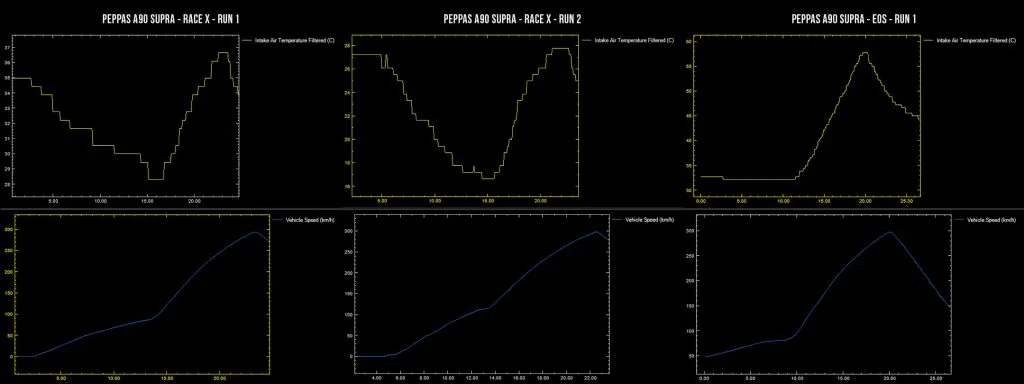

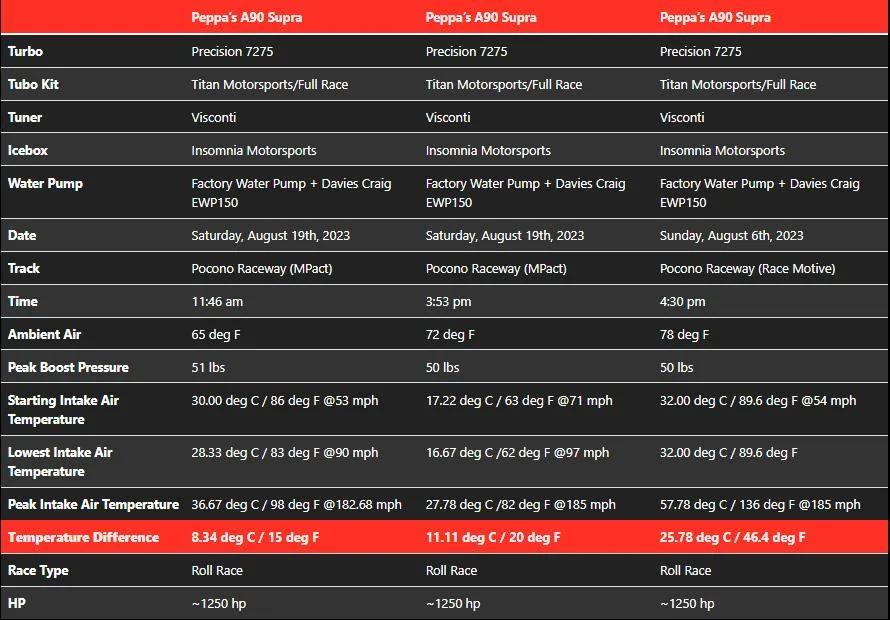

Pocono Raceway
Peppa ran an EOS manifold for a short time in 2023 and collected data during roll races at Pocono Raceway. The changes to the Supra between these tests was just the EOS to CSF Race X Manifold swap. All other modifications were exactly the same.
With just a manifold change, Peppa saw an improvement of 132% in cooling of the charge air.

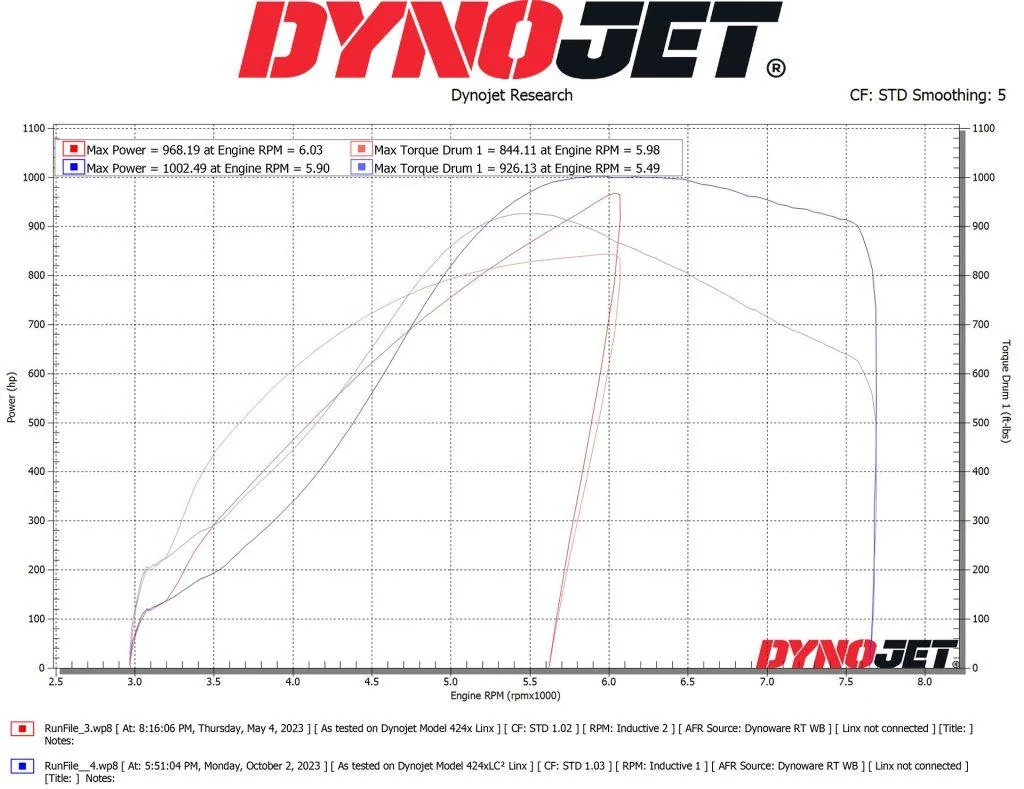

Dyno Testing
Titan Motorsports was kind enough to do some testing on their A90 Supra before and after the installation of the Race X Manifold. They have been running the CSF #8200 Super Manifold for a couple years now. The 1st run (red) is the dyno sheet from the setup they have been running in competition since May of 2023. The second pull (blue) was after the installation of the Race X Manifold in early October of 2023. The ~34whp and ~82 ft-lbs gains were achieved with just swapping to the new Race X Manifold.
This was a strictly A/B test without any other hardware or tuning adjustments made to compensate for the larger volume of the Race-X Manifold.
Custom Finishes
Clink Here to see the gallery of all of our custom finishes.

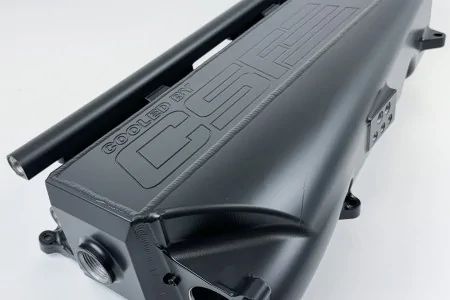

Thermal Black Heat Dispersion Cerakote – CSF #8400Bhttps://149905679.v2.pressablecdn.com/wp-content/uploads/2022/11/8233B_1-450x600.jpg
CSF’s most popular custom finish, Thermal Black Heat Dispersion Cerakote is available as a standard finish option. This offers faster turnaround time for orders and some dealers/distributors stocking this finish option.
Custom Powder-Coating & Thermal Rejection Finishes – CSF #8400C
See more Custom Finishes
https://149905679.v2.pressablecdn.com/wp-content/uploads/2022/11/8233B_1-450x600.jpg

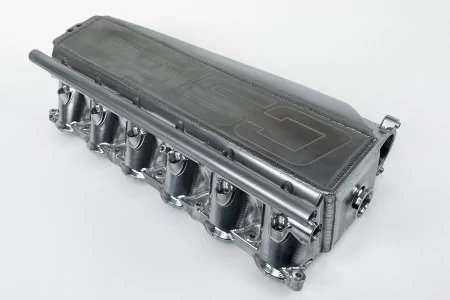

Product Images
BMW Gen 2 B58 “Race X” Charge-Air Cooler Manifold Features (CSF #8400/8400B/8400C)
- Utilizes a High Performance, Motorsports-Grade Bar/Plate Air-to-Water Intercooler Core
- 25% larger than the standard Gen-2 B58 Super Manifold (CSF#8200) – 15 Rows of Water Cooling vs. CSF #8200 12 Rows and OEM 6 Rows
- Core can be setup for dual or single pass configuration
- The -16 ORB bung on front water end plate can be used to adjust the flow configuration to single-pass and/or to be used with an ice-box setup. Comes with CNC machined plug to use in dual-pass configuration
- Designed in SolidWorks Using Computational Fluid Dynamics (CFD)
- Integrated Air Divider in Inlet Tank Evenly Distributes Airflow Throughout the Core
- Improved slotted mounting holes on throttle body side for easier installation
- Easy Access to Spin-Off Oil Filter for Quick Oil Changes
- Integrated Sensor Pad with Two 1/4″ and Three 1/8″ NPT Ports to Measure Additional Parameters or Extra Sources of Vacuum
- Included Fuel Rail for Top Feed Port Injection
- Individual 1/8″ NPT Ports on the Top of Each Cylinder Runner for Nitrous or Meth Injection
- Allows for Even Spray Distribution and Control for Maximum Performance
- Individual 1/8″ NPT Breather Ports for Both Inlet/Outlet Water Connections on Back of Manifold for Easy Bleeding
- Included KIYLEX Thermal Rejection Manifold Spacer*
- Made from KIYLEX® – A patented revolutionary high-performance final stage polymer
- Acts as a thermal barrier that dissipates heat between the cylinder head and intake manifold
- Proven to lower intake manifold temperatures by up to 15%
- Lowers Intake Air Temps (IATs)
- Some modifications to install – this product is intended to be installed only by a skilled and experience technician who is familiar with the B58 engine platform
- Includes Hardware and Installation Kit with Picture Diagrams and Instructions
- Finish: Raw Billet – Made by World-Leading Automotive Machinist Custom Plenum Creations in Australia
- Optional Powder-Coating and Thermal Rejection Finishes Available – CSF #8400C / #8400B
Disclaimer:
CSF pressure tests each #8400 manifold at 60-70 PSI for a period of 2-3 minutes during the Quality Control and Inspection process. The CSF manifold is not designed to operate above 60 PSI. Any users who chose to operate their vehicle with the CSF manifold over 60 PSI does so at their own risk. Operation at these pressure levels will void the CSF Limited 2 Year Warranty.
OEM Part Number:
- Toyota: 17101-WAA01
- BMW: 11-61-8-647-977
Pricing – MSRP / MAP:
- #8400 – $5,599.00 USD
- #8400B – $5,995.00 USD
- #8400C – $5,995.00 USD
Dont really care about the CSF vs EOS stuff, especially when its not done by a third party.
Whats important to me is how the new CSF manifold performs and its showing impressive results.
Whats important to me is how the new CSF manifold performs and its showing impressive results.
AndyK5
Well-Known Member
Why is a manifold $6000?
I mean I could ask why is an intake which is literally a metal pipe, a hose clamp and a filter is $600 but this is the manifold thread so I'll goo with that.
I mean I could ask why is an intake which is literally a metal pipe, a hose clamp and a filter is $600 but this is the manifold thread so I'll goo with that.
3literV8Eater
Well-Known Member
- First Name
- RJ
- Joined
- Jan 15, 2022
- Threads
- 0
- Messages
- 56
- Reaction score
- 33
- Location
- Reading, PA
- Car(s)
- 2020 GR Supra
$6k for an intake manifold/intercooler is beyond insane. Seems like it should be plated in 24kt gold for that kind of money.
DefinitelyNotM340i
New Member
- Joined
- Aug 22, 2023
- Threads
- 0
- Messages
- 1
- Reaction score
- 1
- Location
- Portland, OR
- Car(s)
- 2021 A90 Supra 4-door
This is what I'm saying, a Precision 6870 is like, $2400? Granted there is more actual material used in an AWIC but I just don't see how this thing can possibly cost so much to produce, the markup has to be huge. It's a core in a metal box with some fittings and no moving parts.
The marketing around CAD needs to stop too, like yes you can do some cool testing in CAD but it's a tool to make your job easier and lower production costs, not something that adds to the cost of a product IMO.
razorlab
Well-Known Member
- First Name
- Bryan / Briana
- Joined
- Oct 2, 2021
- Threads
- 23
- Messages
- 4,704
- Reaction score
- 9,413
- Location
- Your moms bedsheets
- Car(s)
- Not a Corvette.
All the manifolds are way overpriced. Wagner the only decently priced unit that works well. AMS is even worse, they charge billet pricing for a cast product. At least Wagner significantly reduced their price when they moved from billet to cast.
kyle9
Well-Known Member
- First Name
- Kyle
- Joined
- May 19, 2022
- Threads
- 19
- Messages
- 344
- Reaction score
- 443
- Location
- Chicago, IL
- Car(s)
- '22 Supra - Gridlife StreetMod #29, '23 B48 Supra
A new B58 long block is only $8k lol
