NJA90
Well-Known Member
- First Name
- Tobi
- Joined
- May 7, 2022
- Threads
- 7
- Messages
- 100
- Reaction score
- 182
- Location
- New Jersey
- Car(s)
- 2022 Toyota Supra 3.0
Bump.. anyone have any answers to help me out
Sponsored
HKS Super SQV IV Blow Off Valve
- Thread starter SlickRicATL
- Start date
- Watchers 10
JRedMKV
Well-Known Member
- Joined
- Jul 1, 2020
- Threads
- 37
- Messages
- 629
- Reaction score
- 597
- Location
- Reno, Nevada
- Car(s)
- 2020 Supra 3.0 Premium
- Vehicle Showcase
- 1

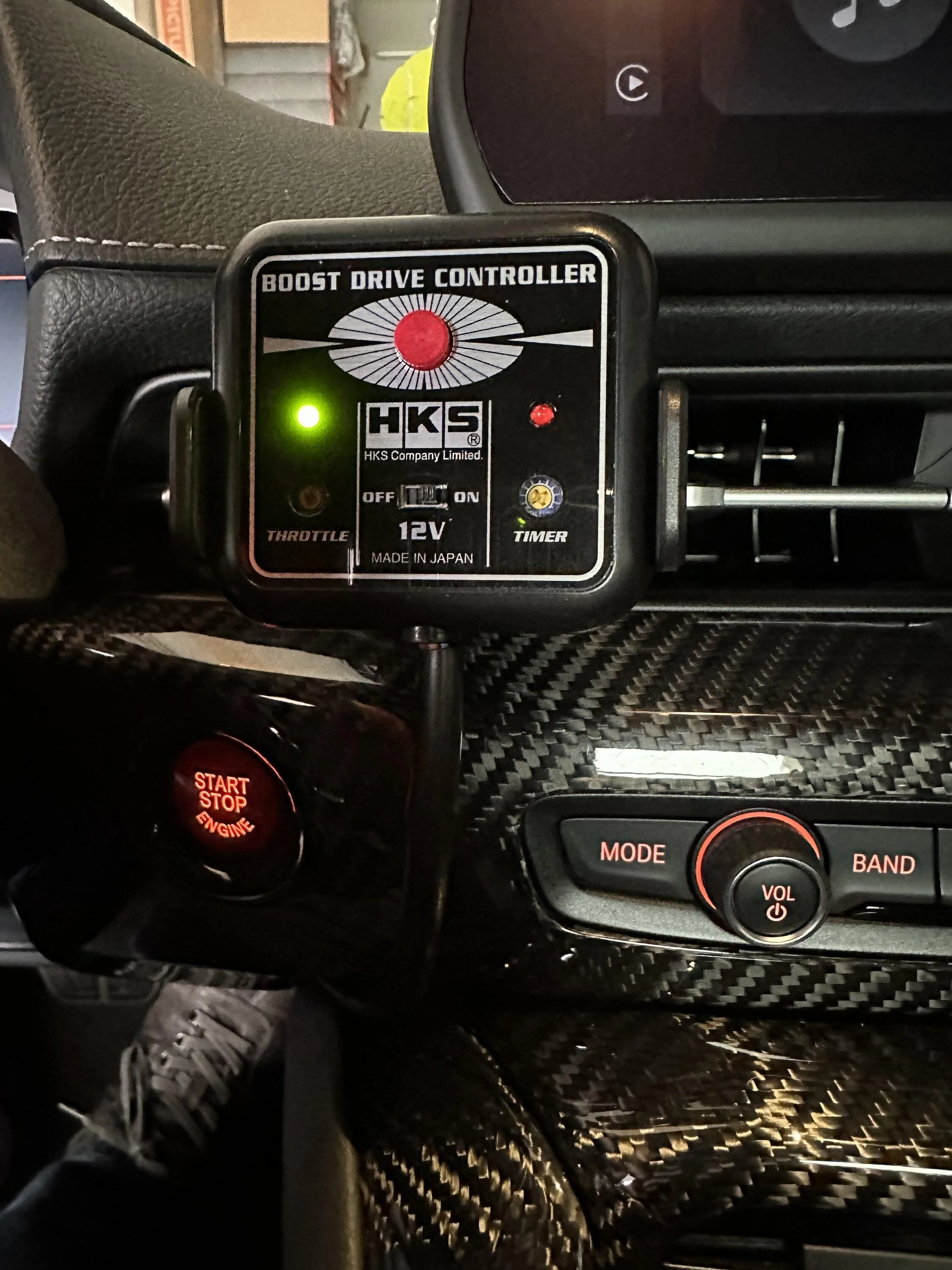

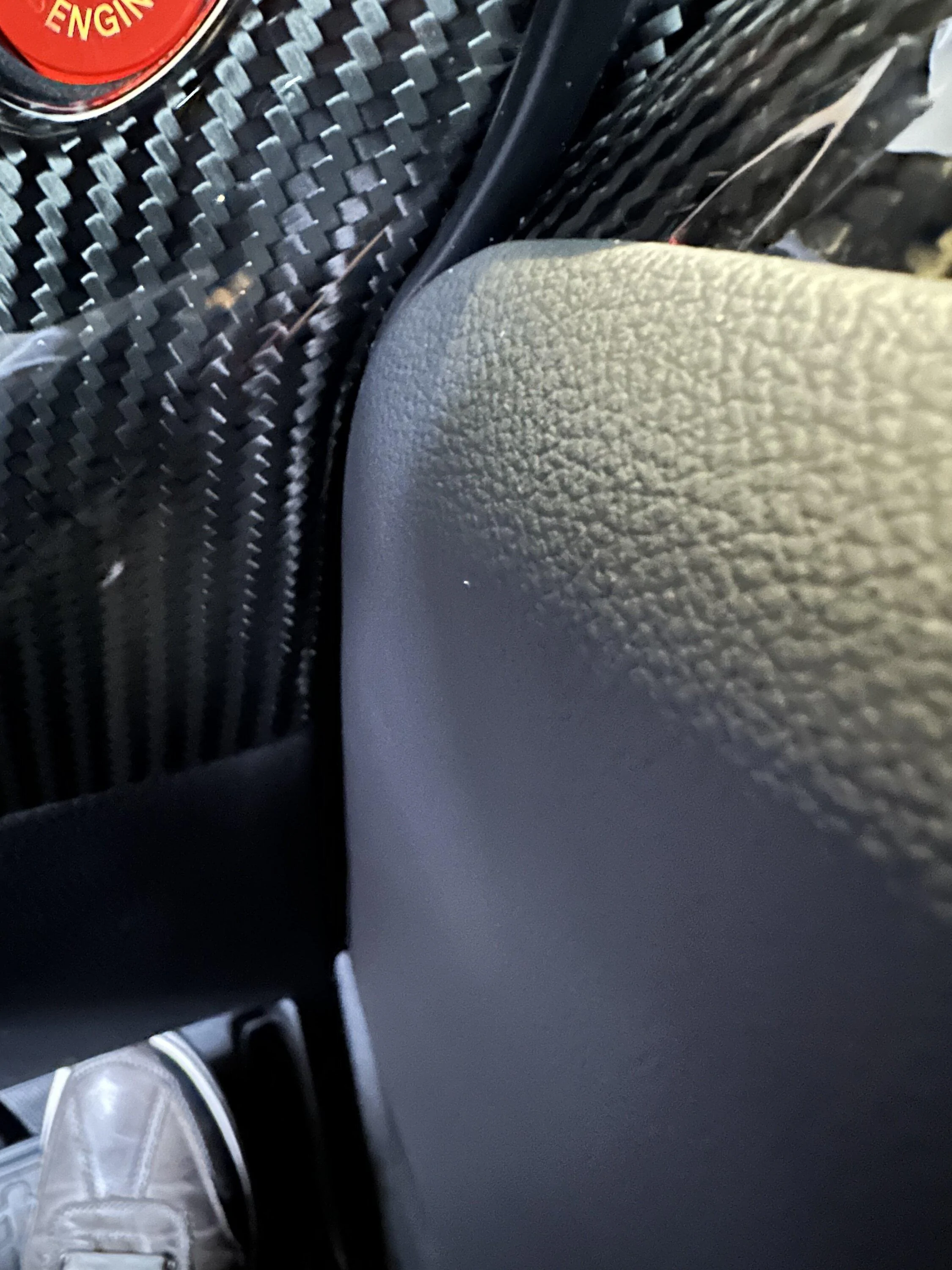

Did you remove the panel above the drivers side footwell above the pedals? If you remove that you’ll have lots of access to tuck/hide the wires from the pedal behind the carpet. Then the controller wire can just be tucked along the panel next to your right knee. Here’s a couple pics from my car.
NJA90
Well-Known Member
- First Name
- Tobi
- Joined
- May 7, 2022
- Threads
- 7
- Messages
- 100
- Reaction score
- 182
- Location
- New Jersey
- Car(s)
- 2022 Toyota Supra 3.0
Yes I did. I got everything apart. I tied into the 12v under the cell phone charger per directions. Do you remember if you have one empty port on the solenoid? It says to remove 3 caps, but only install 2 vacuum hoses.Did you remove the panel above the drivers side footwell above the pedals? If you remove that you’ll have lots of access to tuck/hide the wires from the pedal behind the carpet. Then the controller wire can just be tucked along the panel next to your right knee. Here’s a couple pics from my car.
JRedMKV
Well-Known Member
- Joined
- Jul 1, 2020
- Threads
- 37
- Messages
- 629
- Reaction score
- 597
- Location
- Reno, Nevada
- Car(s)
- 2020 Supra 3.0 Premium
- Vehicle Showcase
- 1
That is correct. Leave the one port open.
NJA90
Well-Known Member
- First Name
- Tobi
- Joined
- May 7, 2022
- Threads
- 7
- Messages
- 100
- Reaction score
- 182
- Location
- New Jersey
- Car(s)
- 2022 Toyota Supra 3.0
Thanks appreciate it. Ima mess with the controller when I get a chance this weekend maybe .. I started the car everything seemed to work. No weird codes etc.
NJA90
Well-Known Member
- First Name
- Tobi
- Joined
- May 7, 2022
- Threads
- 7
- Messages
- 100
- Reaction score
- 182
- Location
- New Jersey
- Car(s)
- 2022 Toyota Supra 3.0

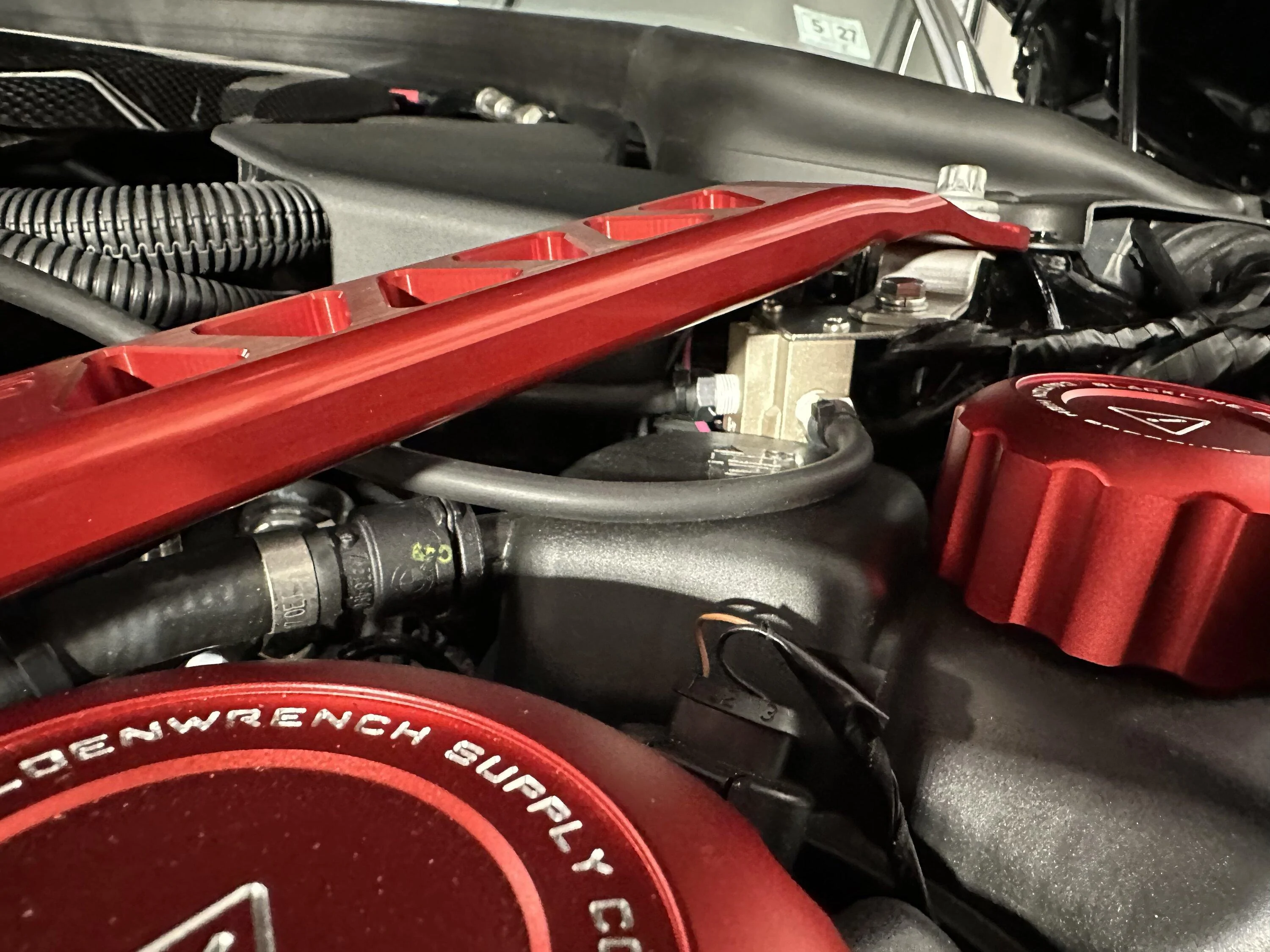

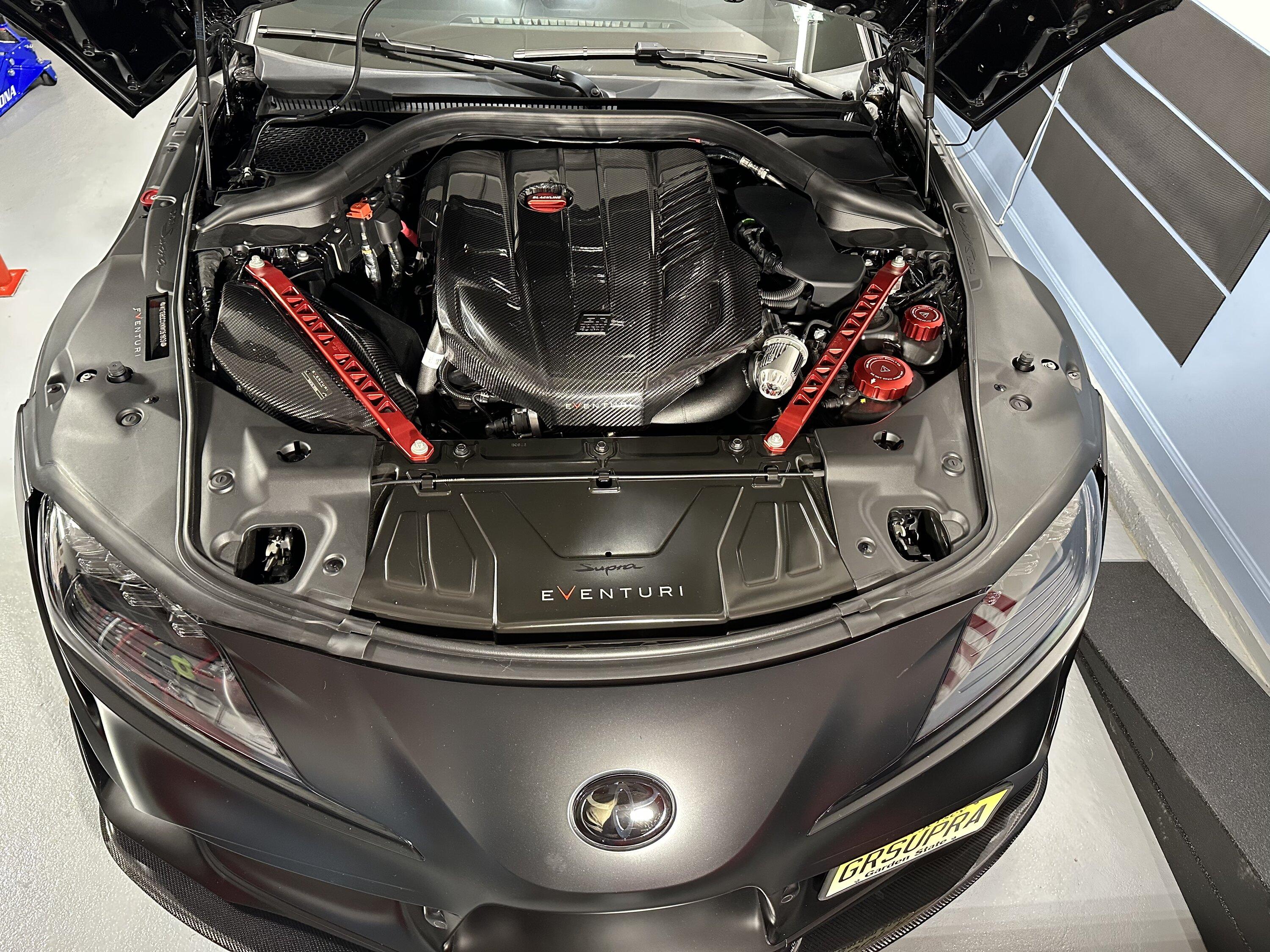

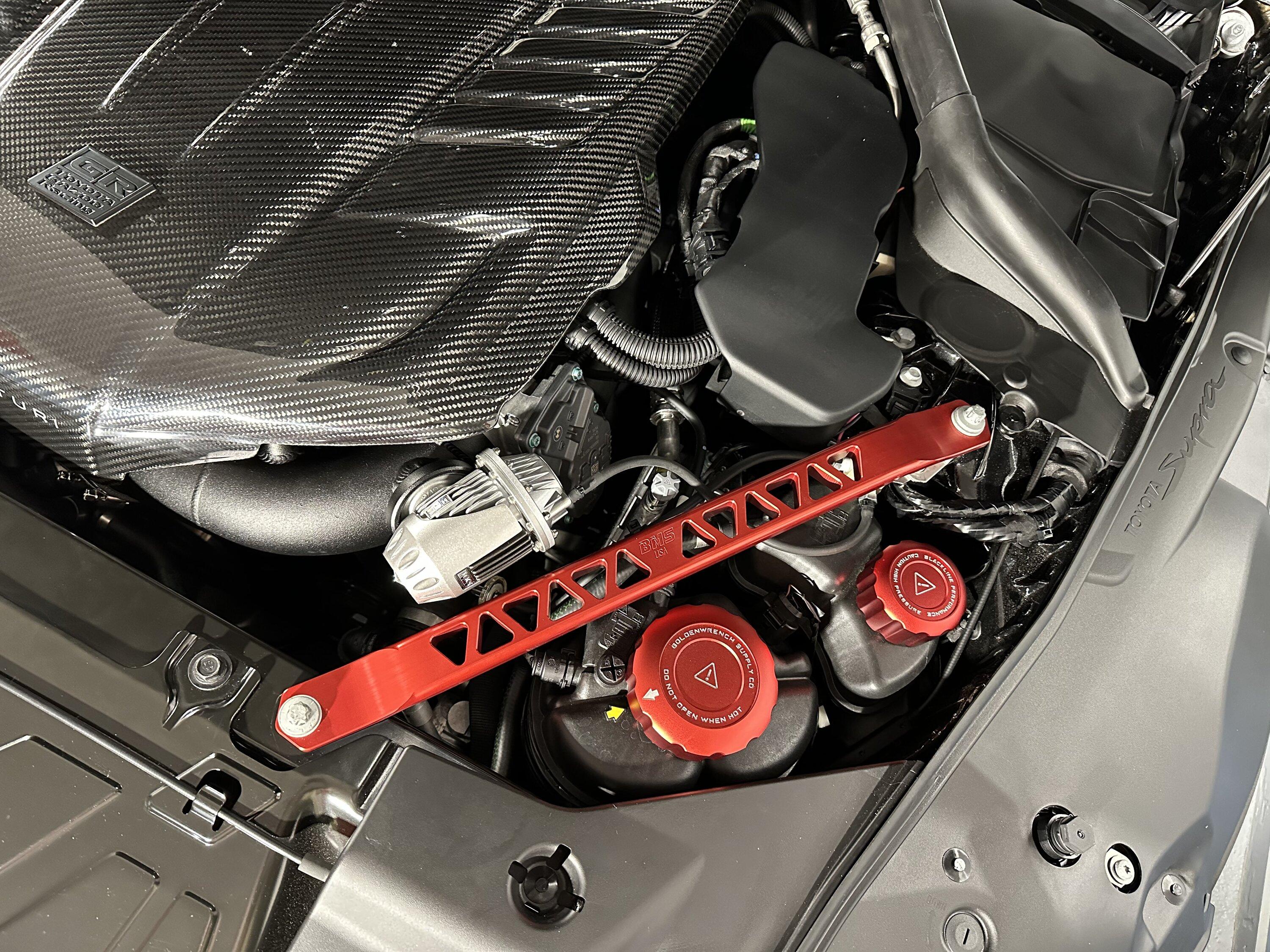

Well the job is done ! And she works great!!
Question, when in P and revving the engine, I don’t hear the blow off valve. Only while driving, is that normal?
Question, when in P and revving the engine, I don’t hear the blow off valve. Only while driving, is that normal?
VeroBlue
Well-Known Member
- First Name
- Ryan
- Joined
- Nov 14, 2021
- Threads
- 0
- Messages
- 75
- Reaction score
- 70
- Location
- So Florida
- Car(s)
- ‘23 Supra Manual Strat Blue
Question for all. Has anyone ran this kit but instead of using the complicated electronics simply running a vacuum line from the nipple on the bov to a vacuum line with a tee? I’ve seen others on this forum have success with this when they did a DIY BOV and had a bung welded to their charge pipe. Is the bov specially designed for the electronic control or would a normal vacuum method work?
Just wondering if I purchased the kit if there is anything preventing just running a vacuum line to a tee off of an existing vacuum line? Does this BOV have an adjustment screw on it to tighten and loosen the spring to adjust release?
Just wondering if I purchased the kit if there is anything preventing just running a vacuum line to a tee off of an existing vacuum line? Does this BOV have an adjustment screw on it to tighten and loosen the spring to adjust release?
zrk
Well-Known Member
- First Name
- Zack
- Joined
- Apr 20, 2021
- Threads
- 79
- Messages
- 8,407
- Reaction score
- 13,726
- Location
- Chicago, IL
- Car(s)
- 2021 Supra - Nocturnal Black
B58 doesn't really produce vacuum. Vacuum is controlled with VVT/Vanos. It'll never pull open.
