Audio build

[Sam B]

This is gonna be a long build because I only work on it when I have a few minutes here and there. Gear purchased. Just waiting on install
Gear
- factory integration
Sdmi25 (helix)
Speakers
Up front Audiofrog GB40 and GB10 in doors
Rear fill. GB 40
Mid bass
8” Stevens audio (2 ohm)
Sub. Audiofrog GB10

Amps
JL VXI amps w DSP fully active
600/6 For GB40s and tweets
600/2 for mid bass
1000/1 for sub

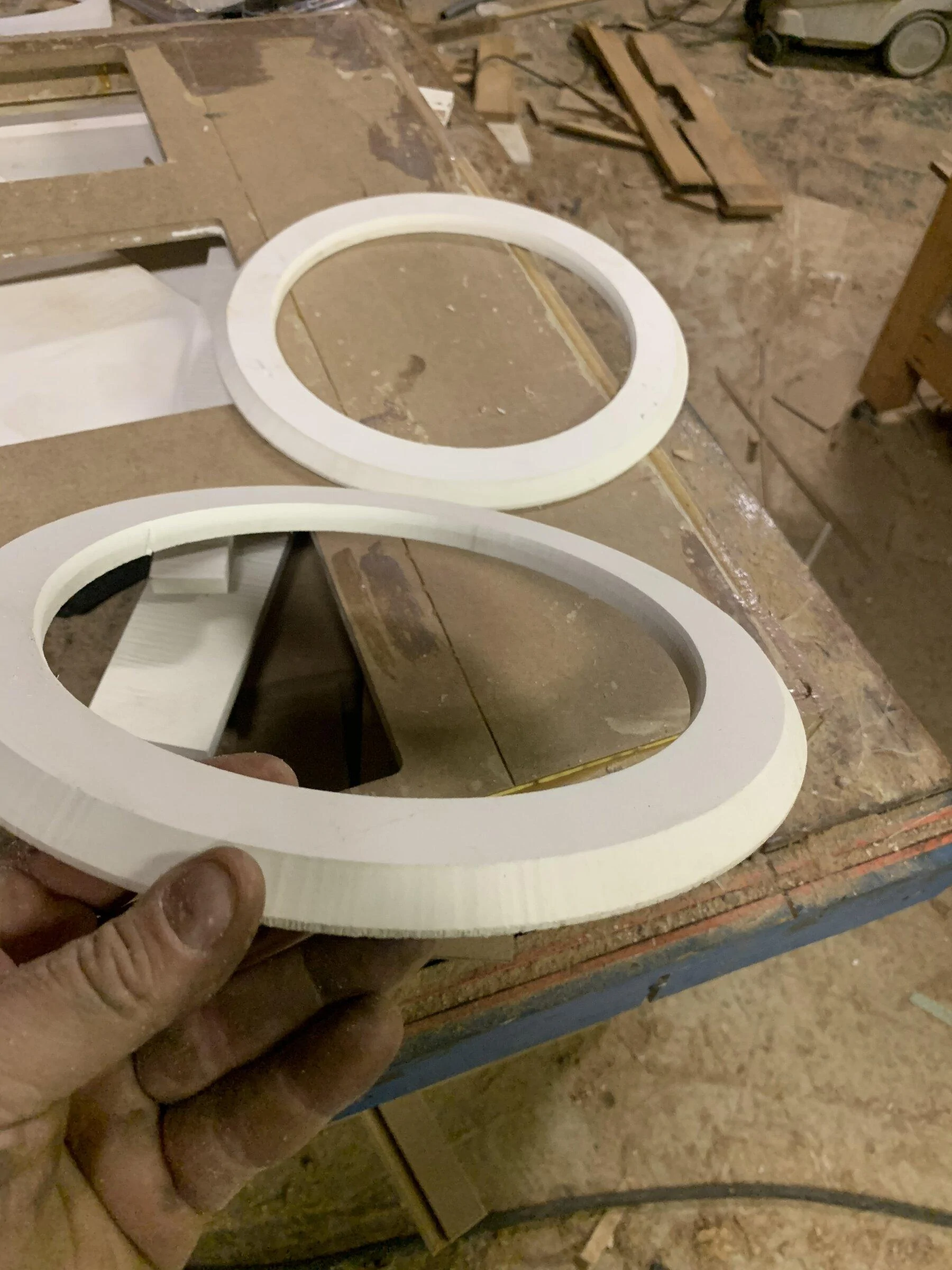

All second skin deadener and secondskin acoustic mat and sound shield door speaker rings

Sponsored



[Thill444]

Very nice build and some great choices. I have Stevens in my last car and was extremely impressed. Excited to hear how it turns out.



[Sam B]

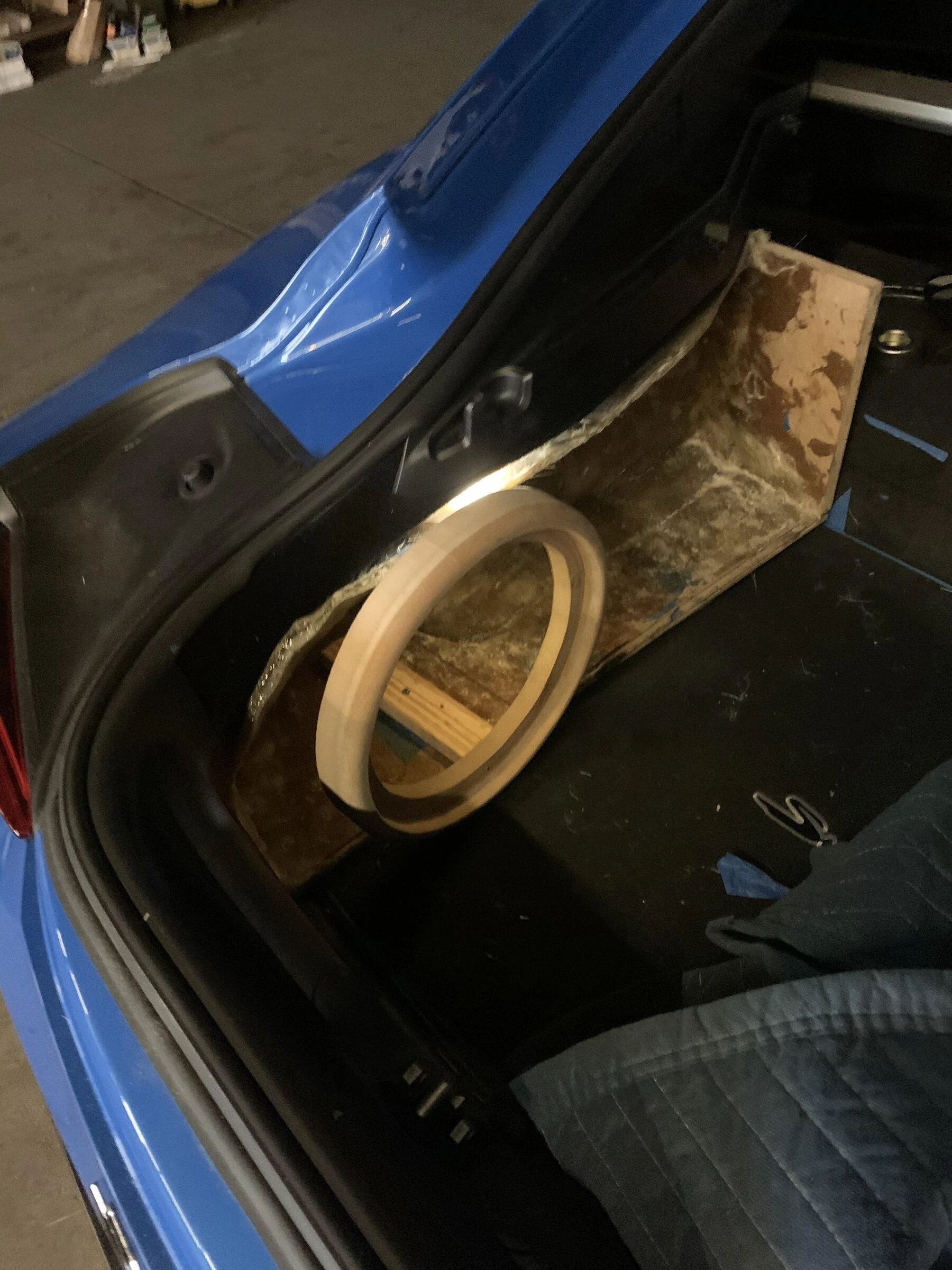

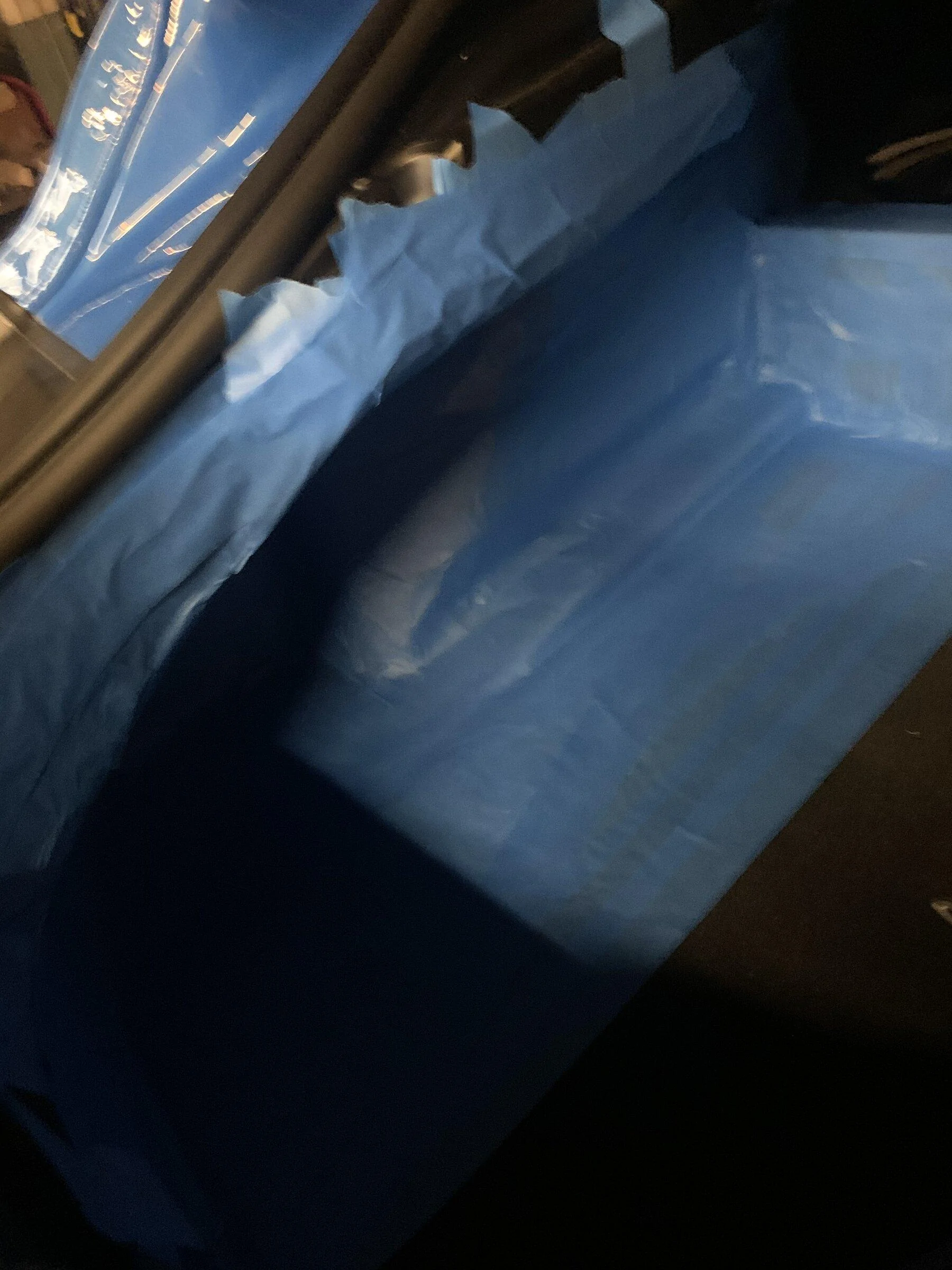

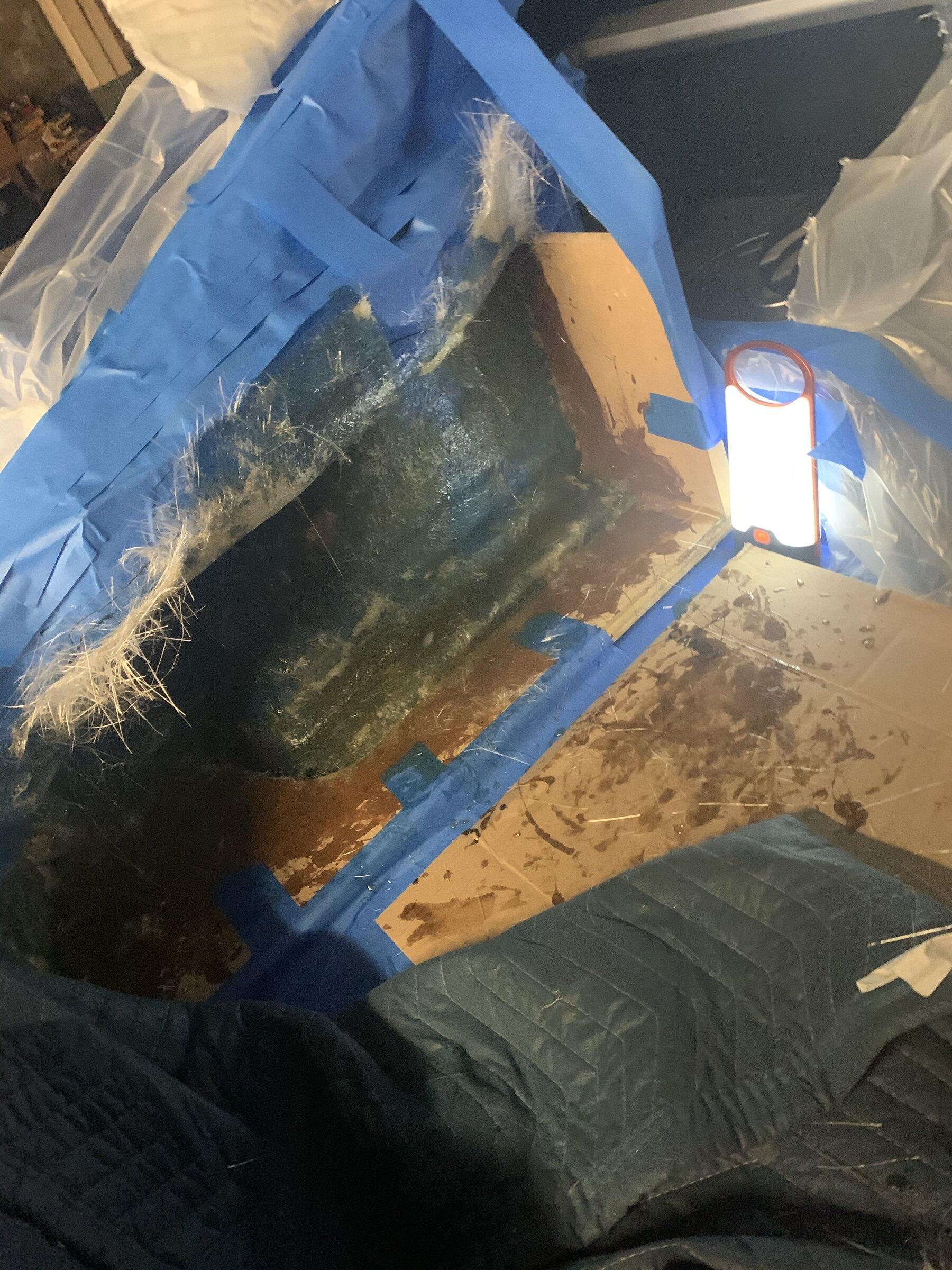

Got the first few layers of fiberglass laid down today. What a messy job that is. Seems to be a decent mold and will remove it this Wknd and start building layers in my shop



[Sam B]



[Sam B]

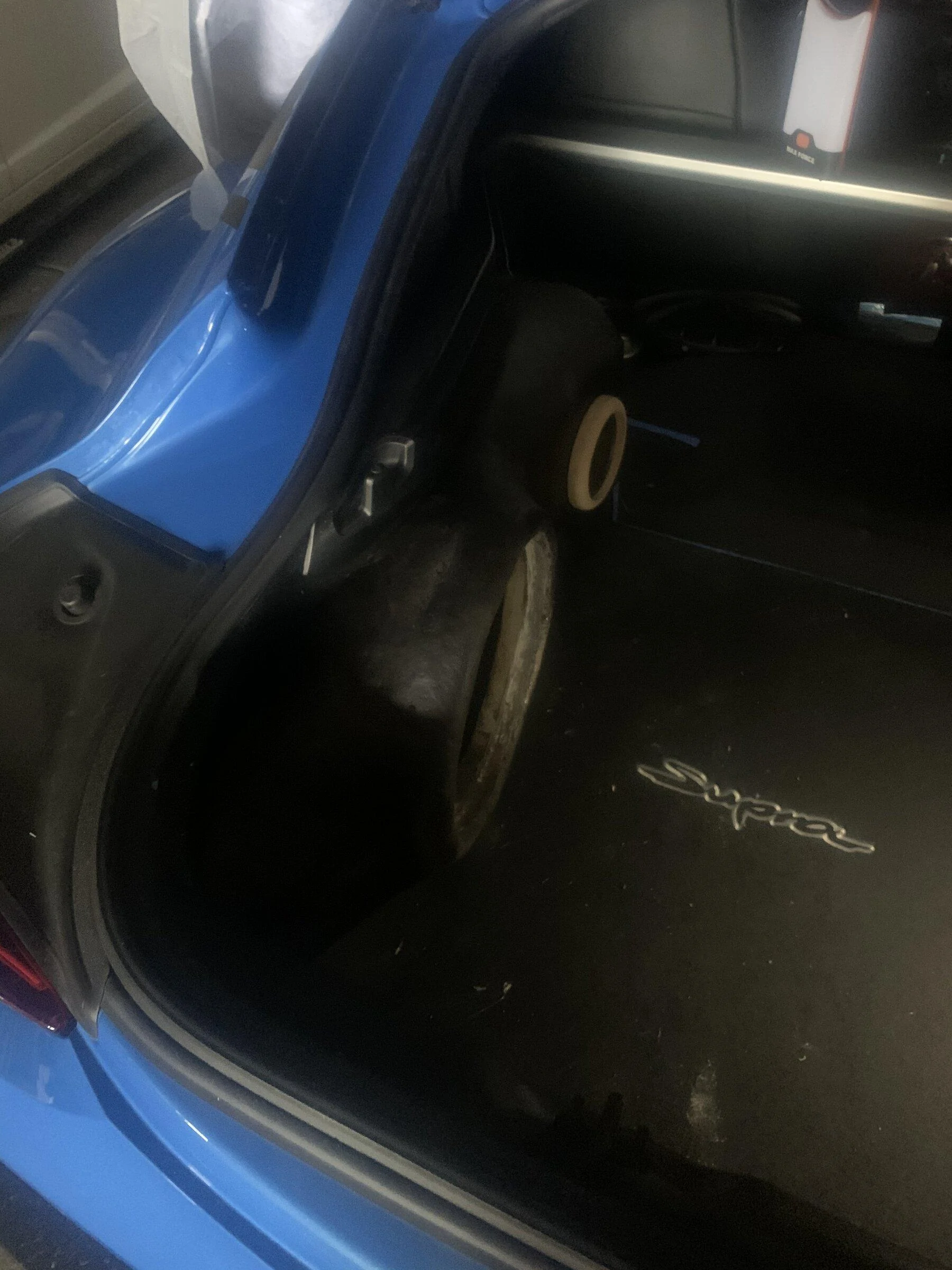

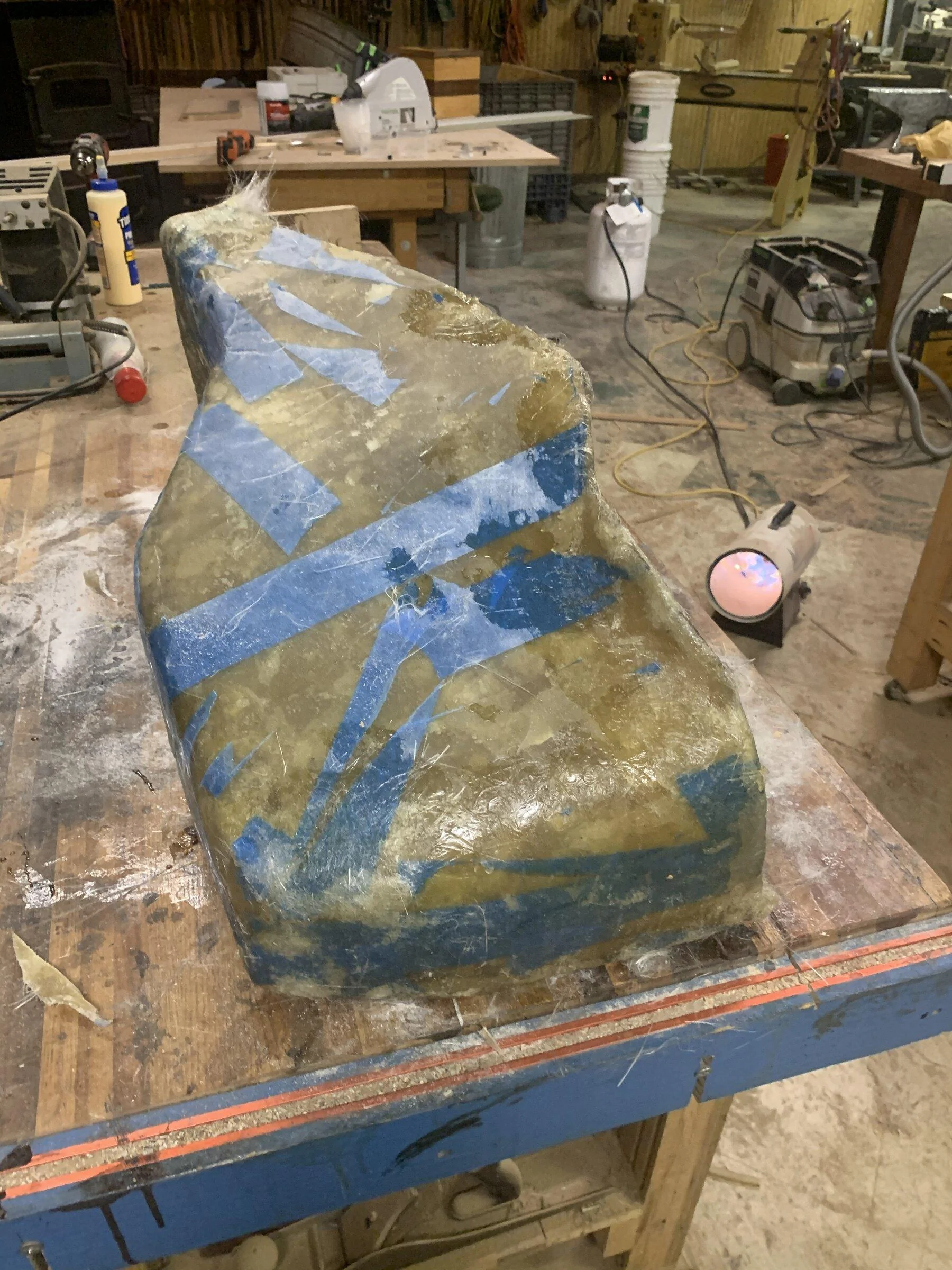

Fiberglass layering almost done. At days end tmrw I should have 7/16-1/2” thick of glass.



[ccuz2844]

This is gonna be a long build because I only work on it when I have a few minutes here and there. Gear purchased. Just waiting on install
Gear
- factory integration
Sdmi25 (helix)
Speakers
Up front Audiofrog GB40 and GB10 in doors
Rear fill. GB 40
Mid bass
8” Stevens audio (2 ohm)
Sub. Audiofrog GB10

Amps
JL VXI amps w DSP fully active
600/6 For GB40s and tweets
600/2 for mid bass
1000/1 for sub

All second skin deadener and secondskin acoustic mat and sound shield door speaker rings

What set of amps from JL Audio you getting
600/6 For GB40s and tweets
600/2 for mid bass
1000/1 for sub

is it 2 of the VX1000/5 & 1 1000watt mono block??
Are you eliminating the center speaker??



[Sam B]

it’s just 3 amps total
All JL VXI. 600/6, 600/2, 1000/1
Yes. Eliminating content channel. I would like to keep it. But will have plenty of speakers and tuning ability



[Sam B]

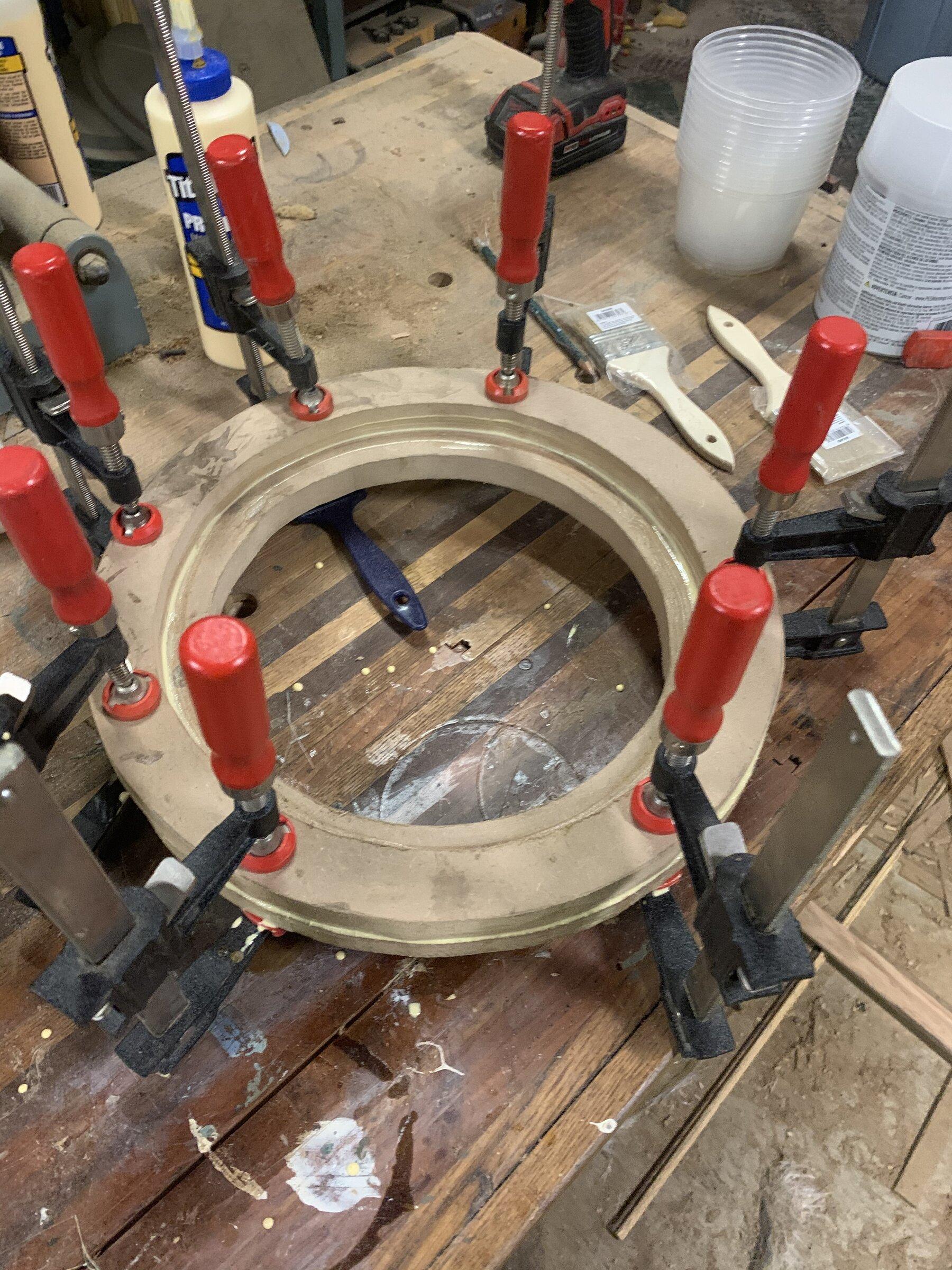

Decided to port the enclosure. So started modeling different subwoofer angles.



[Sam B]

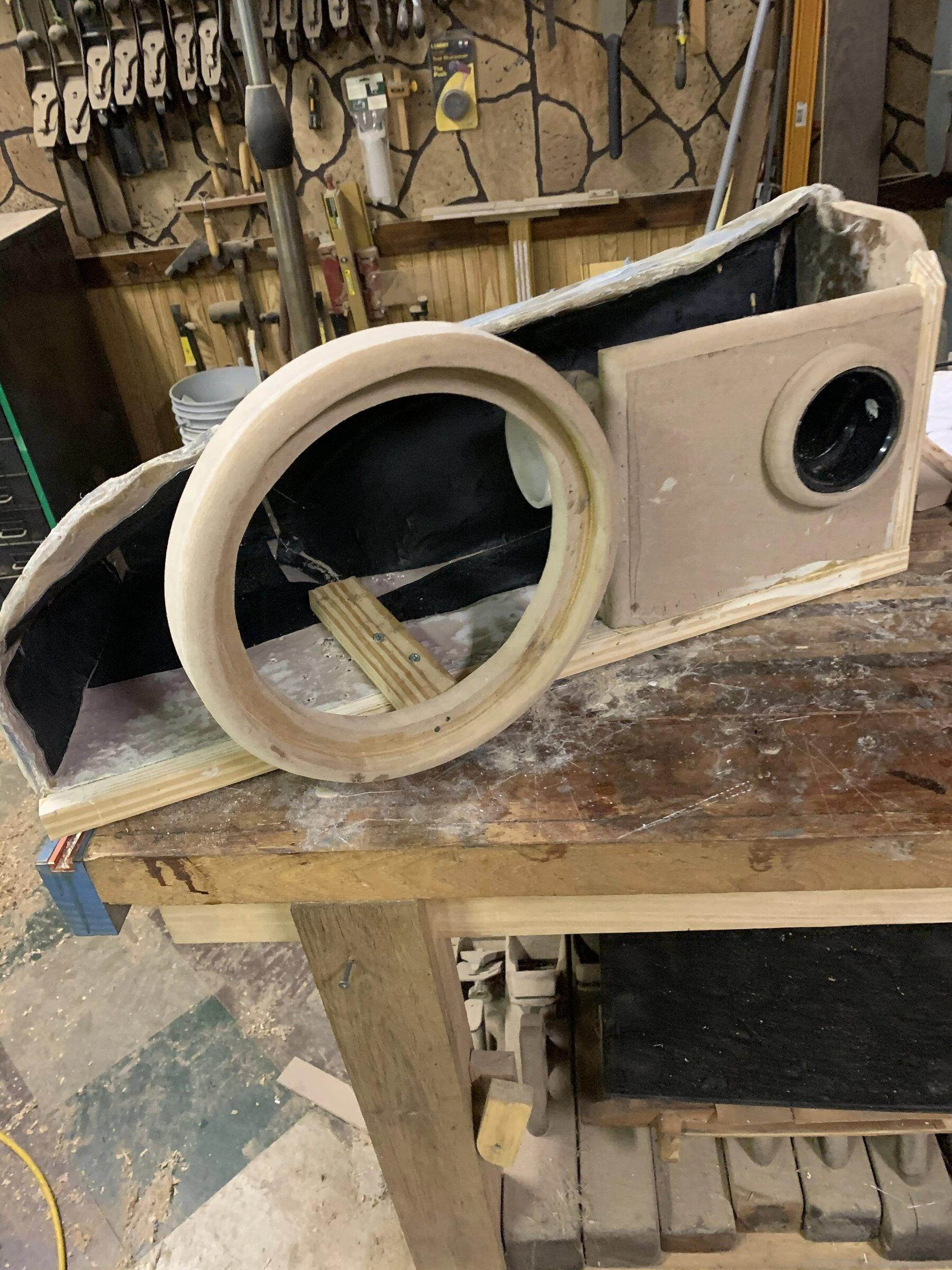

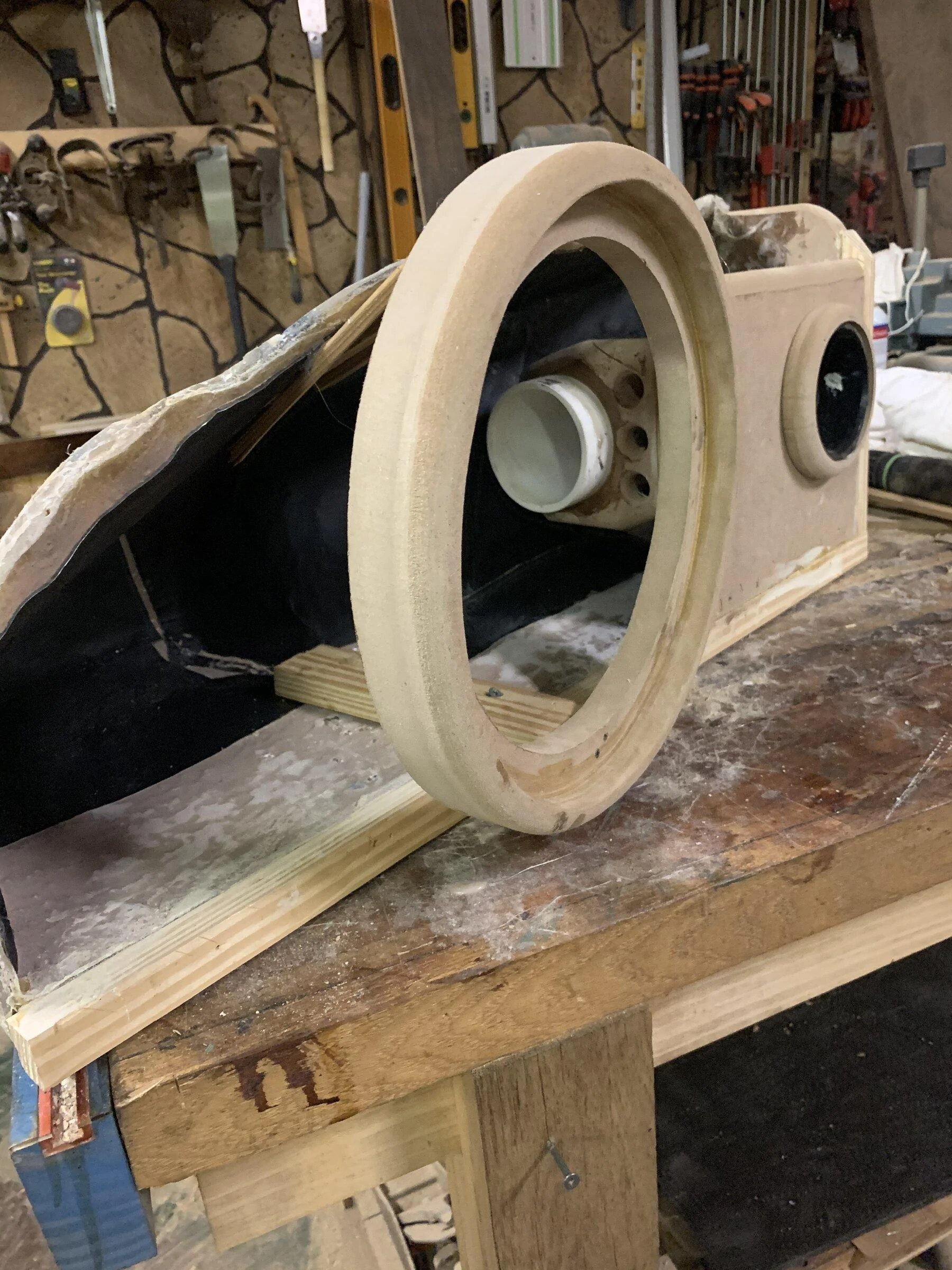

Here you can see I got the box to the correct cubic footage and ported it to be tuned at 32 hertz.
Will start building the front up now.



[Sam B]

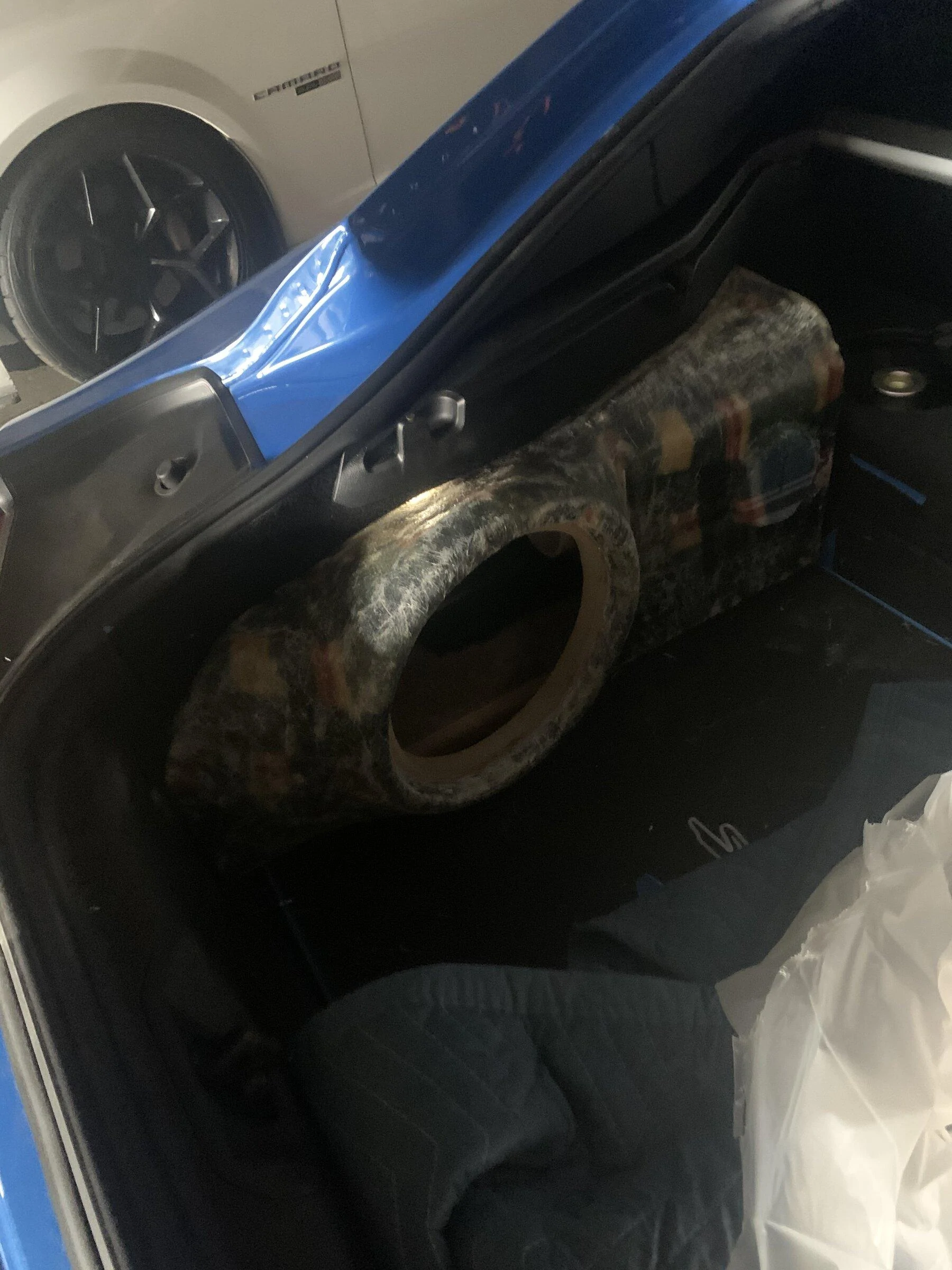

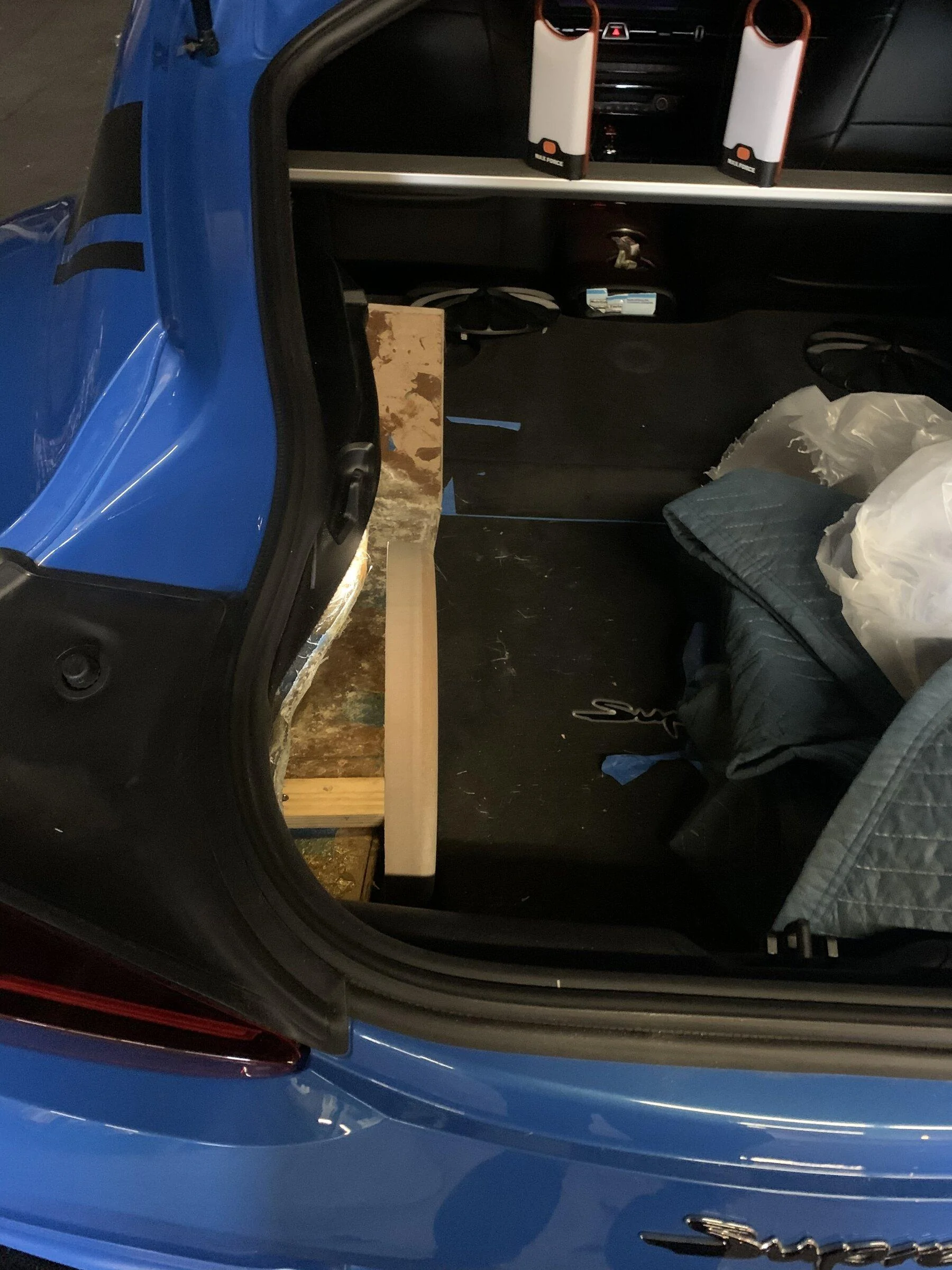

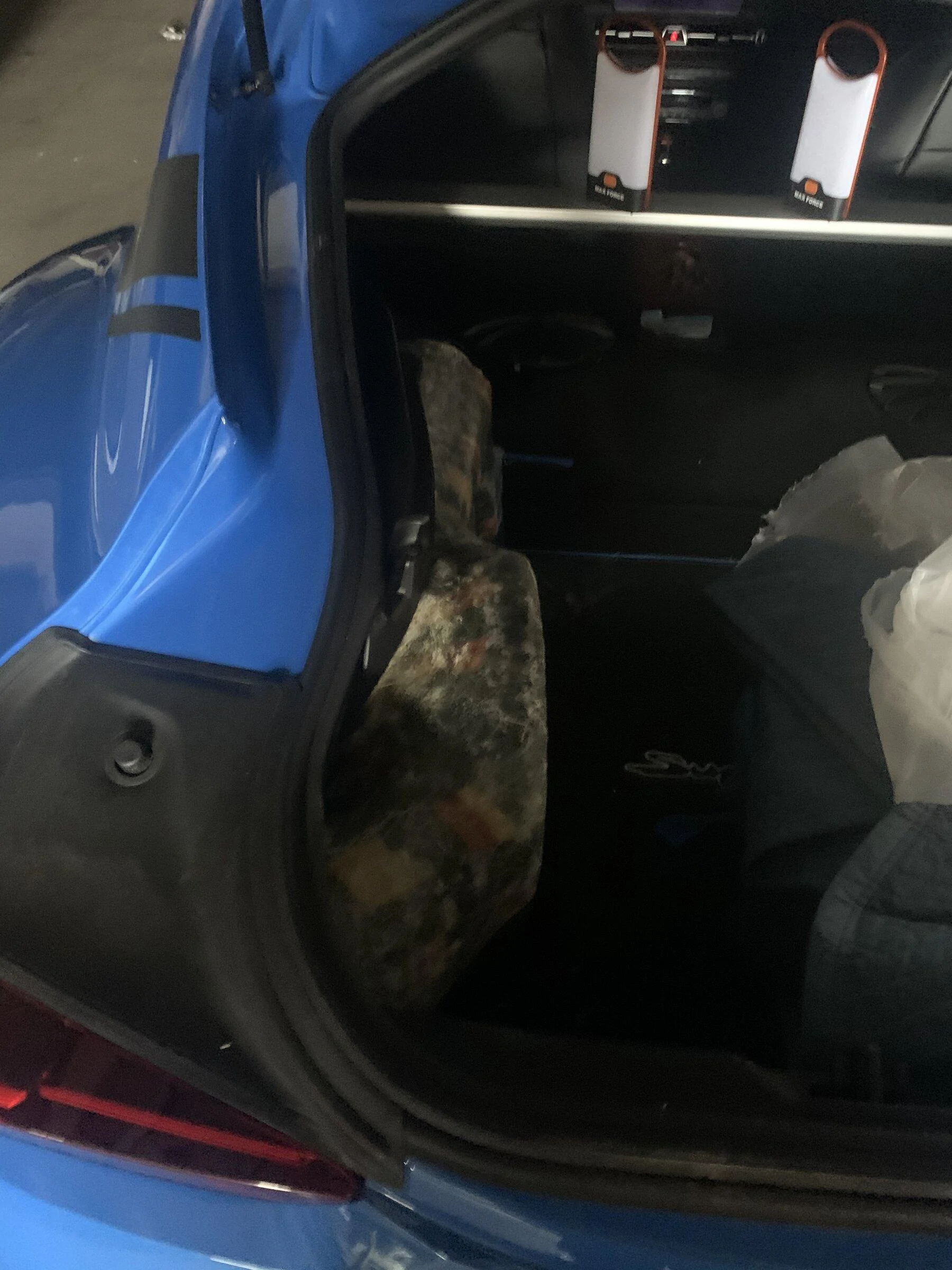

Test fit. Little bigger than I would have liked. But going ported and a large sub made it that way.
Gonna fit up well.



[Sam B]

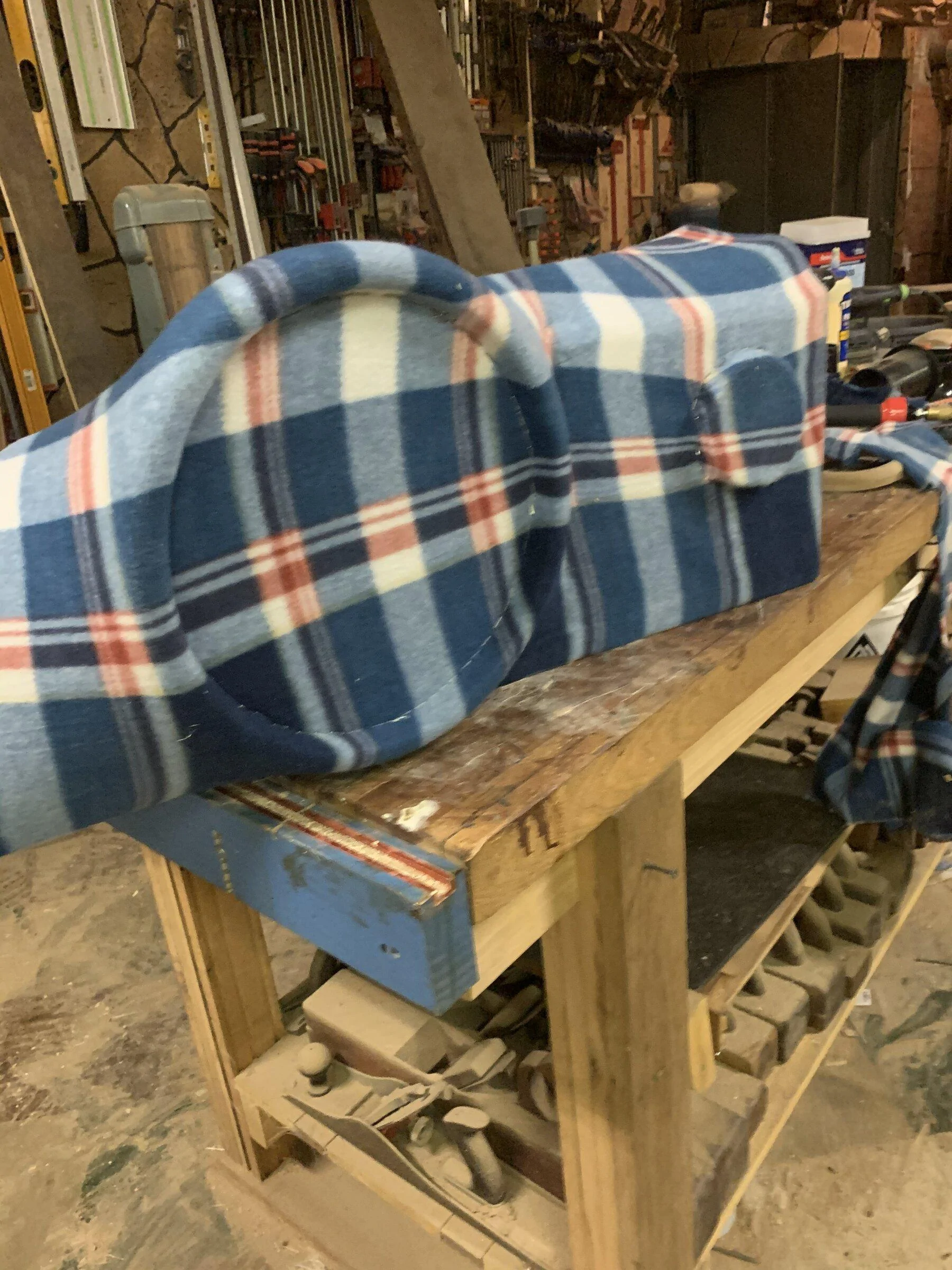

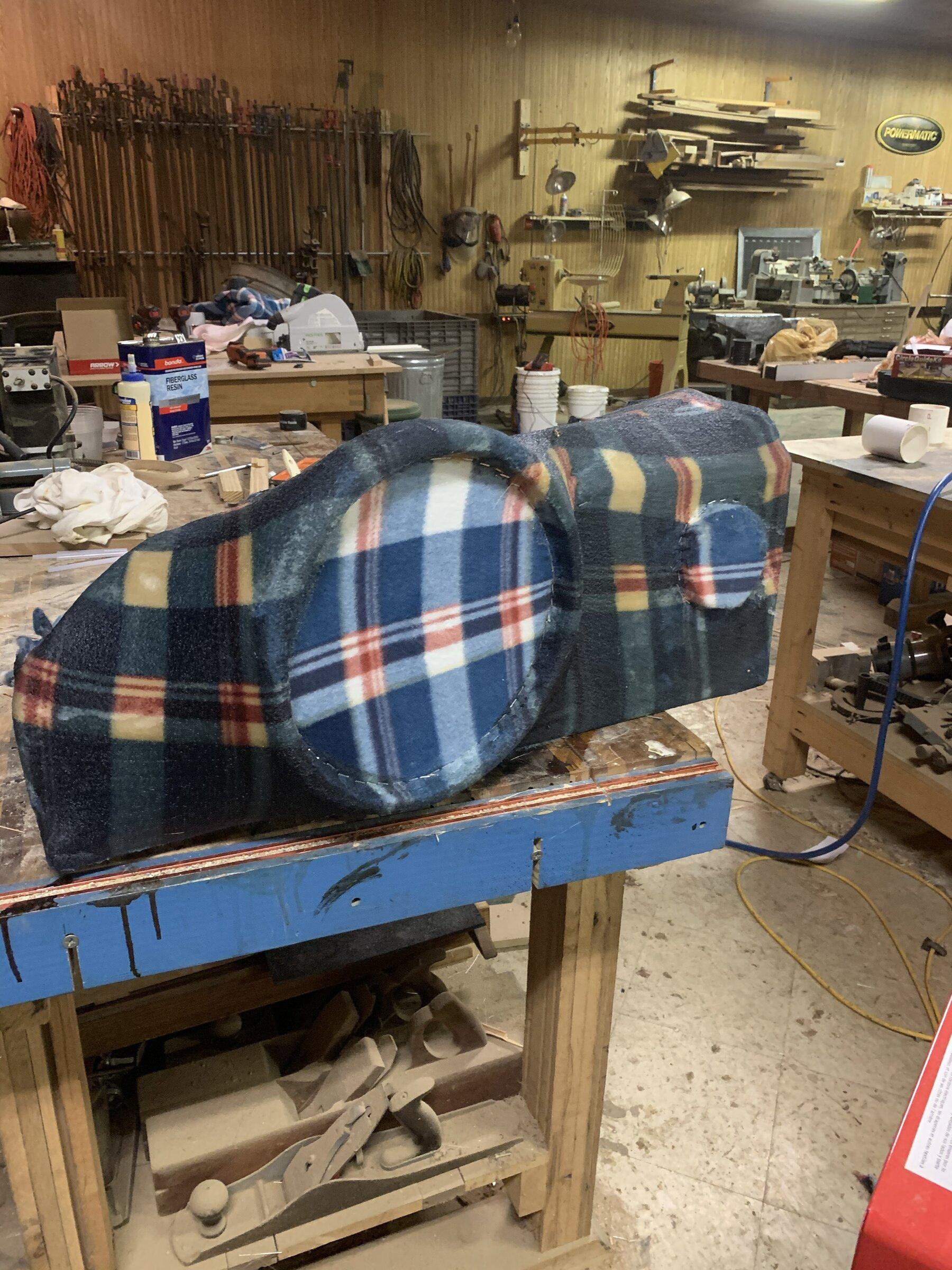

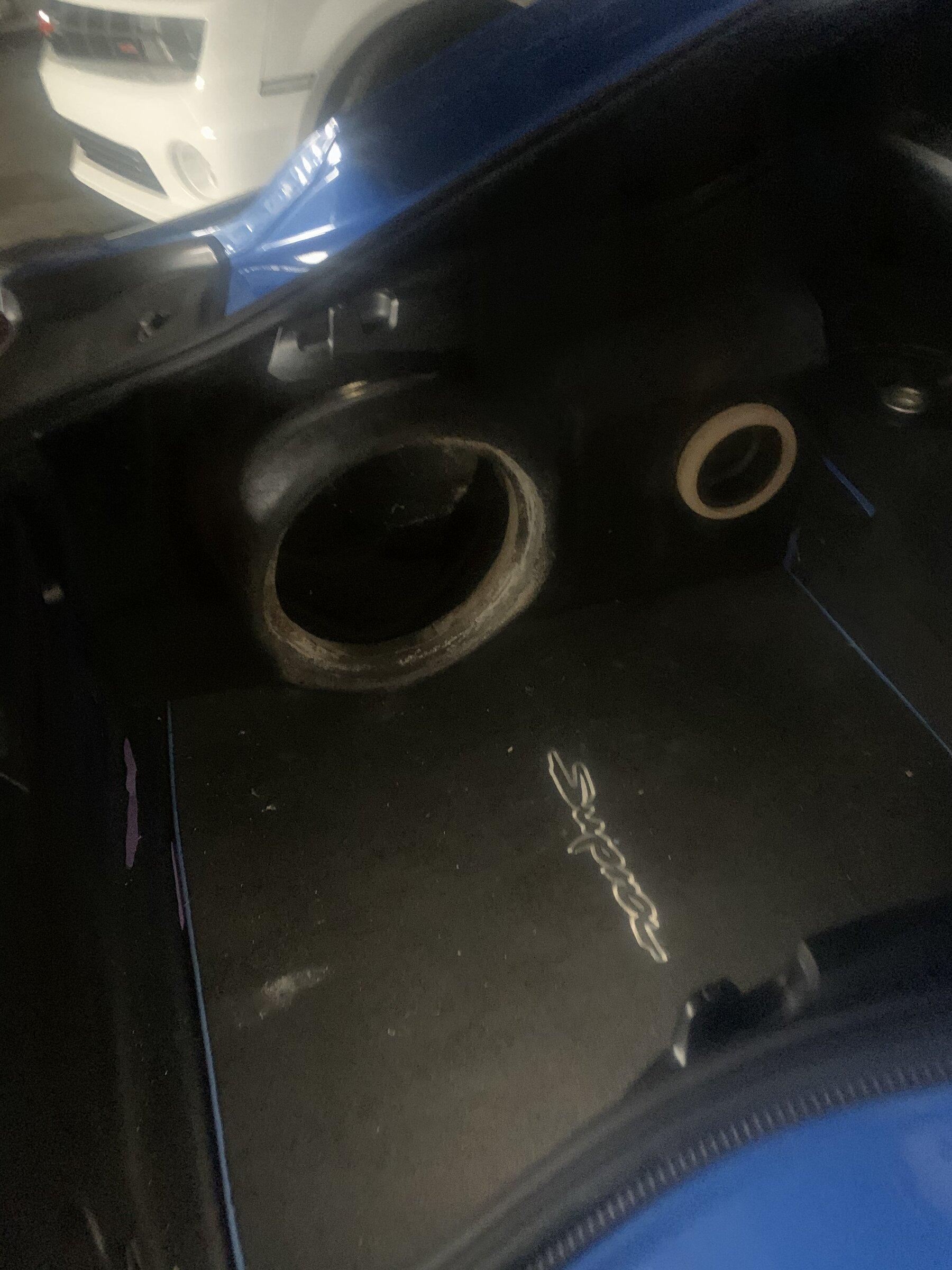

Next stage. Box all done minus carpet. Working on laying out 8” mid drivers on top of existing subs and amp rack construction next.



[Sam B]

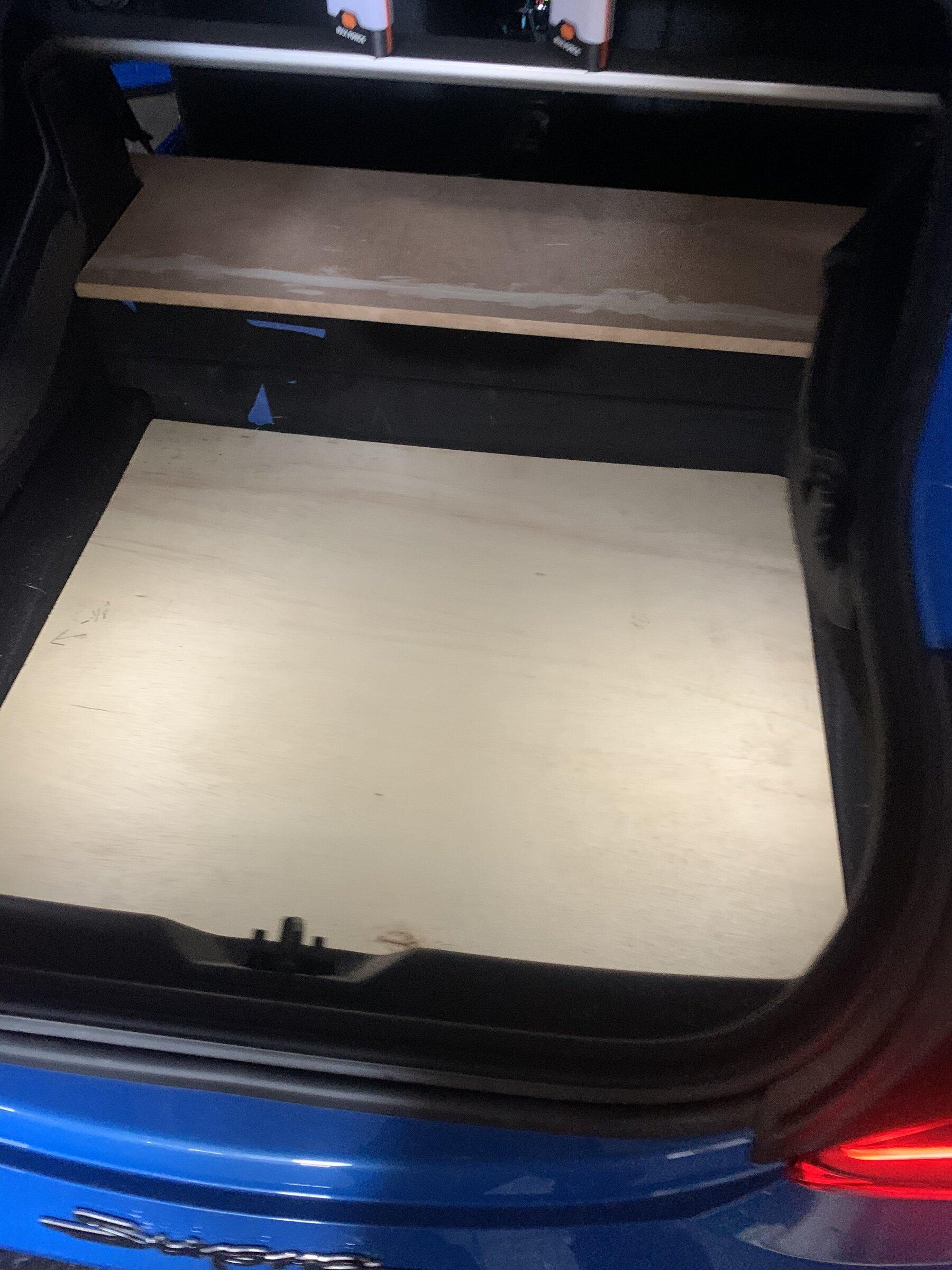

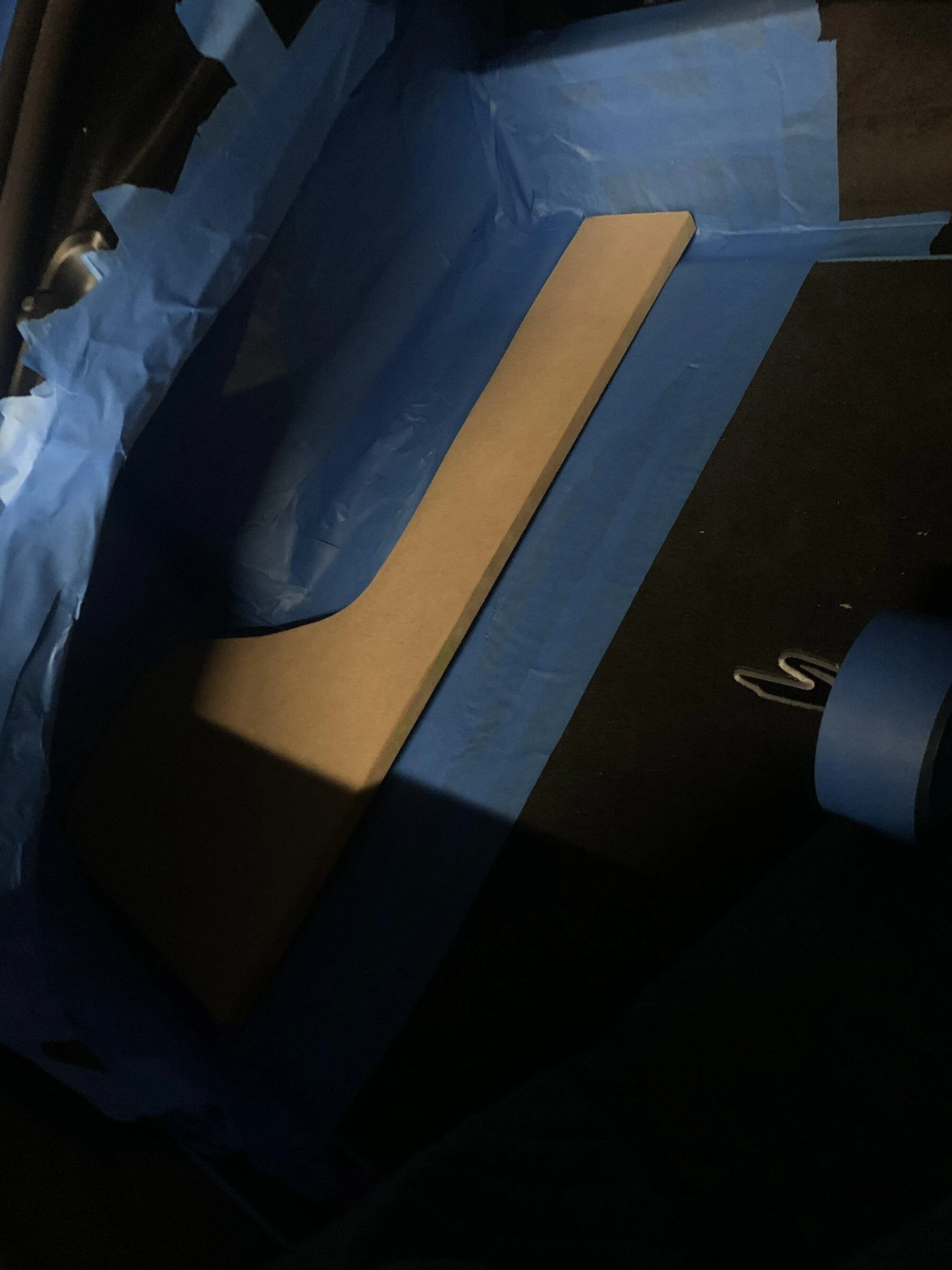

Staring on false floor for amp rack and will tie into mid bass box



[Sam B]

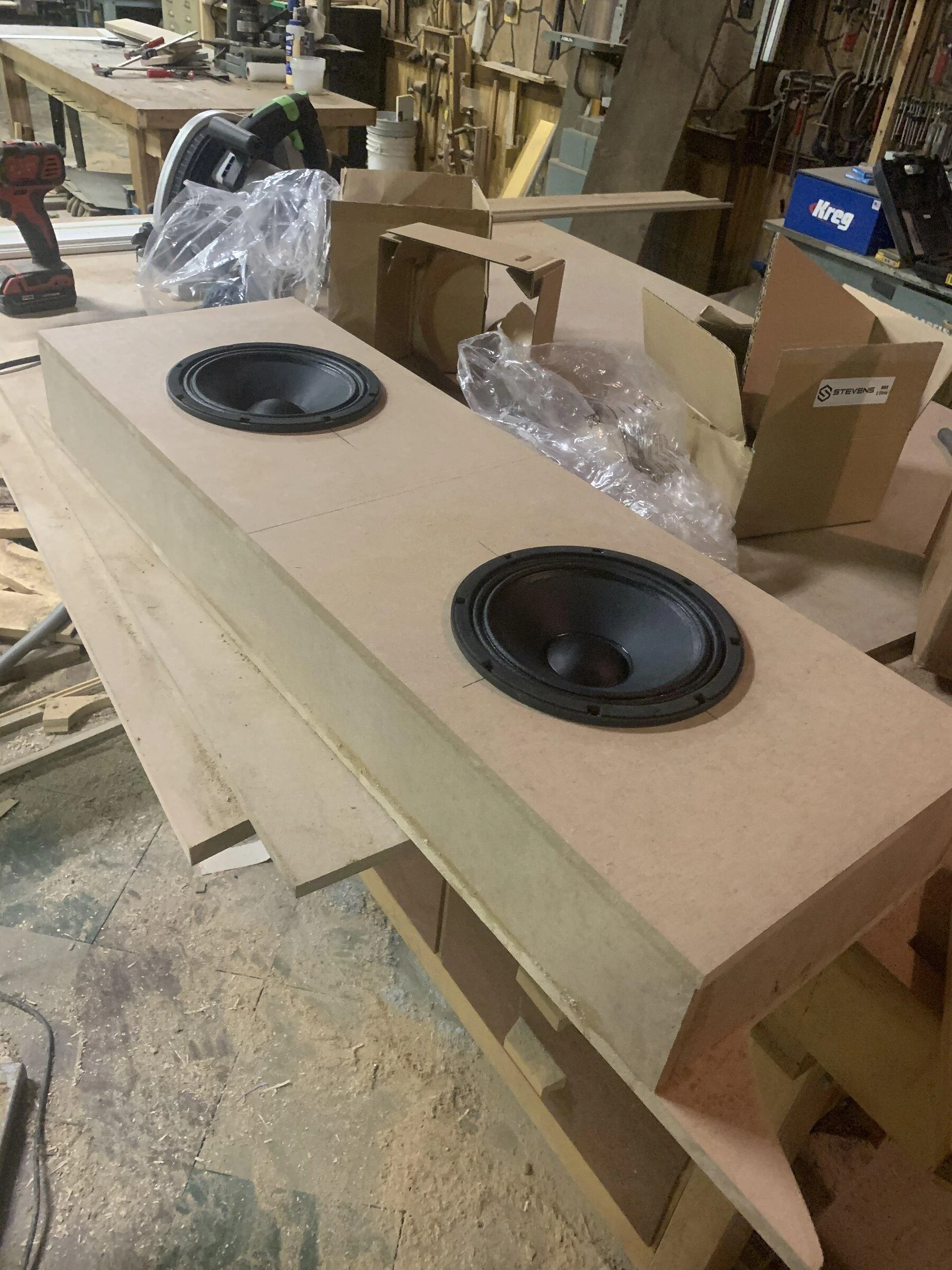

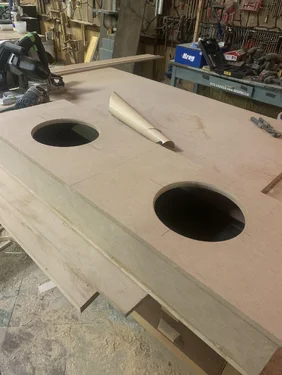

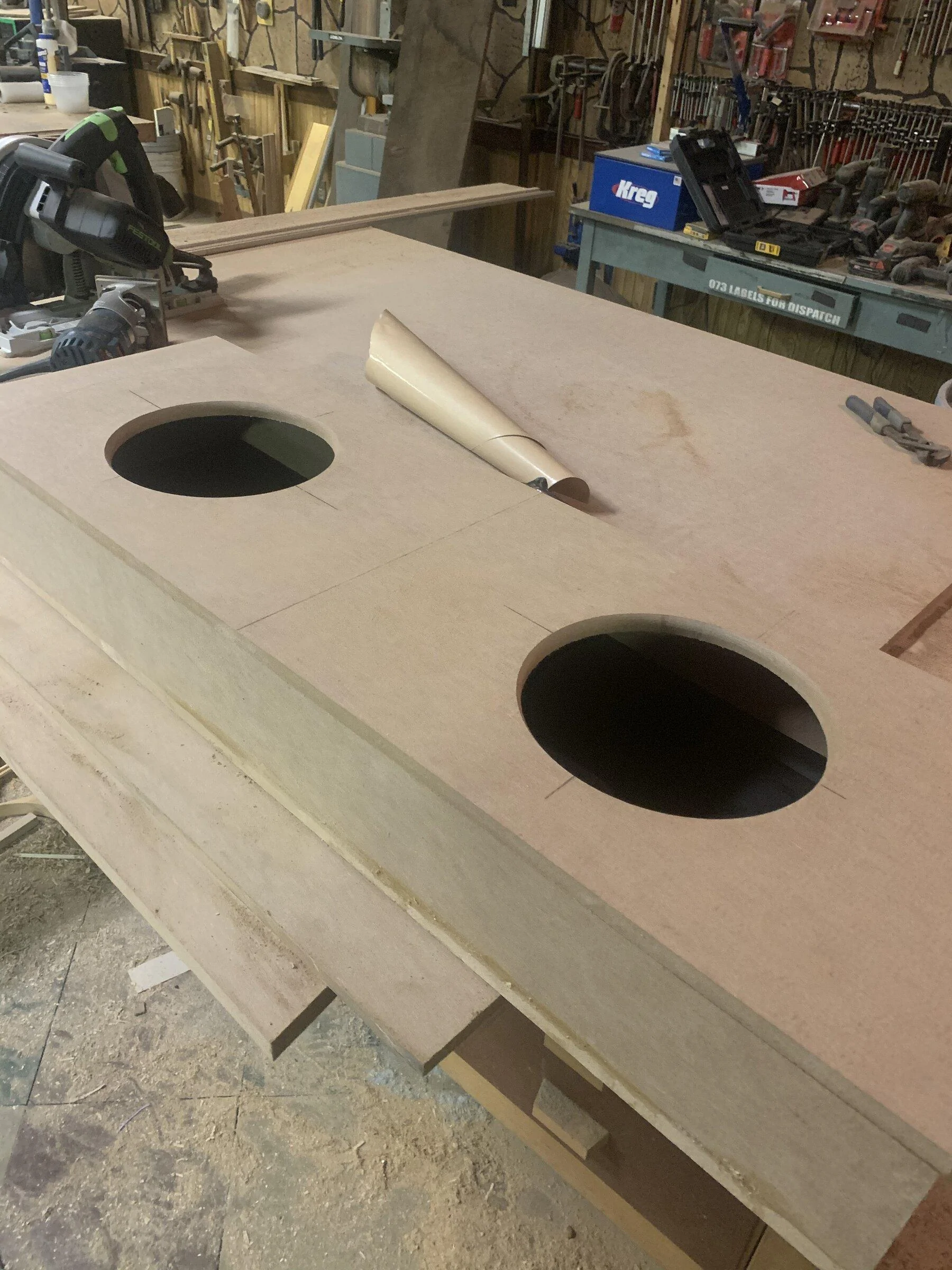

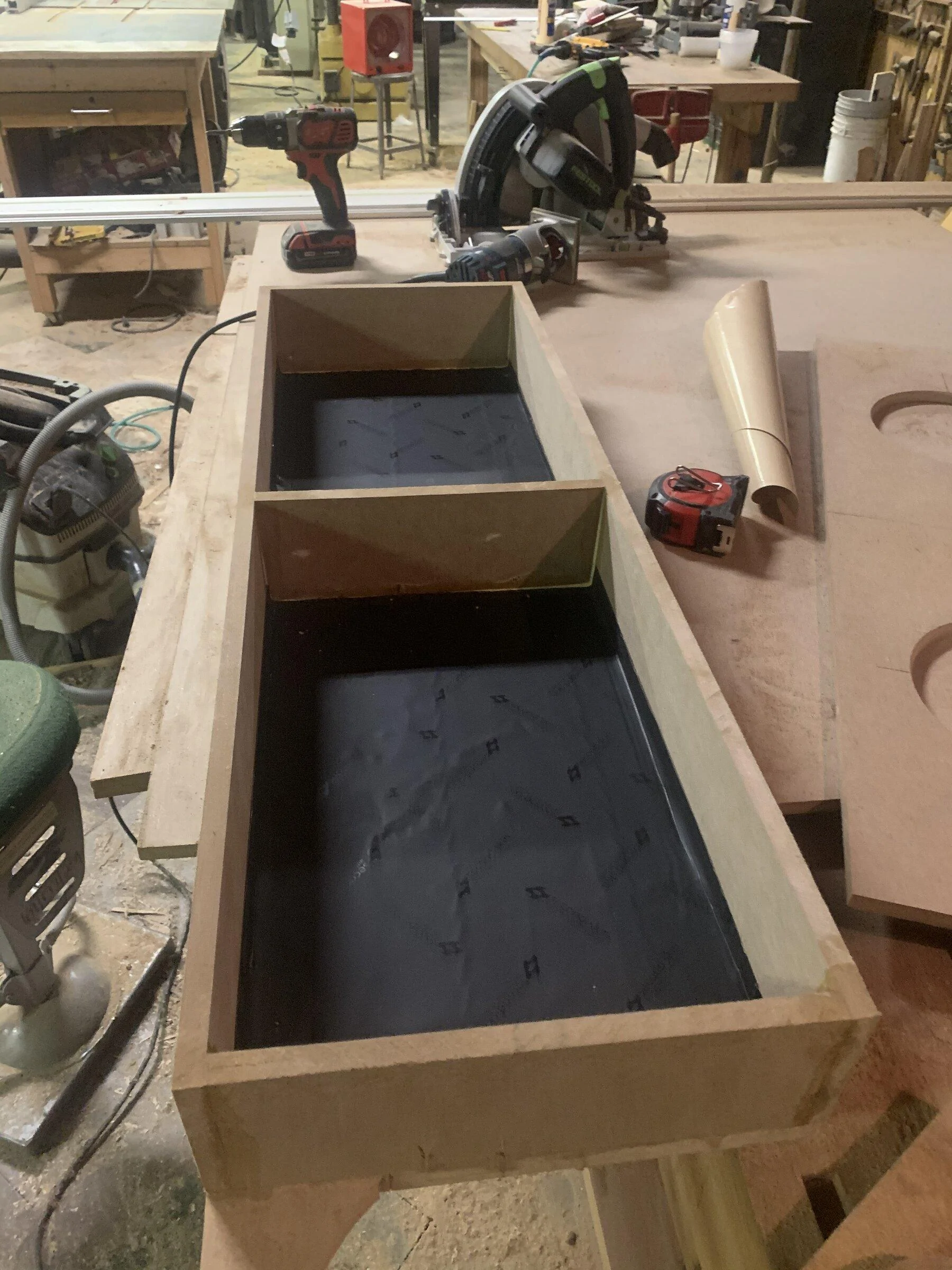

Replacement rear sub box. Will sit directly on top of stick box and be trimmed in.
Running 2- 8” mid bass @ 2ohm giving them 300 watts each in .55 cubic ft each.



[Sam B]

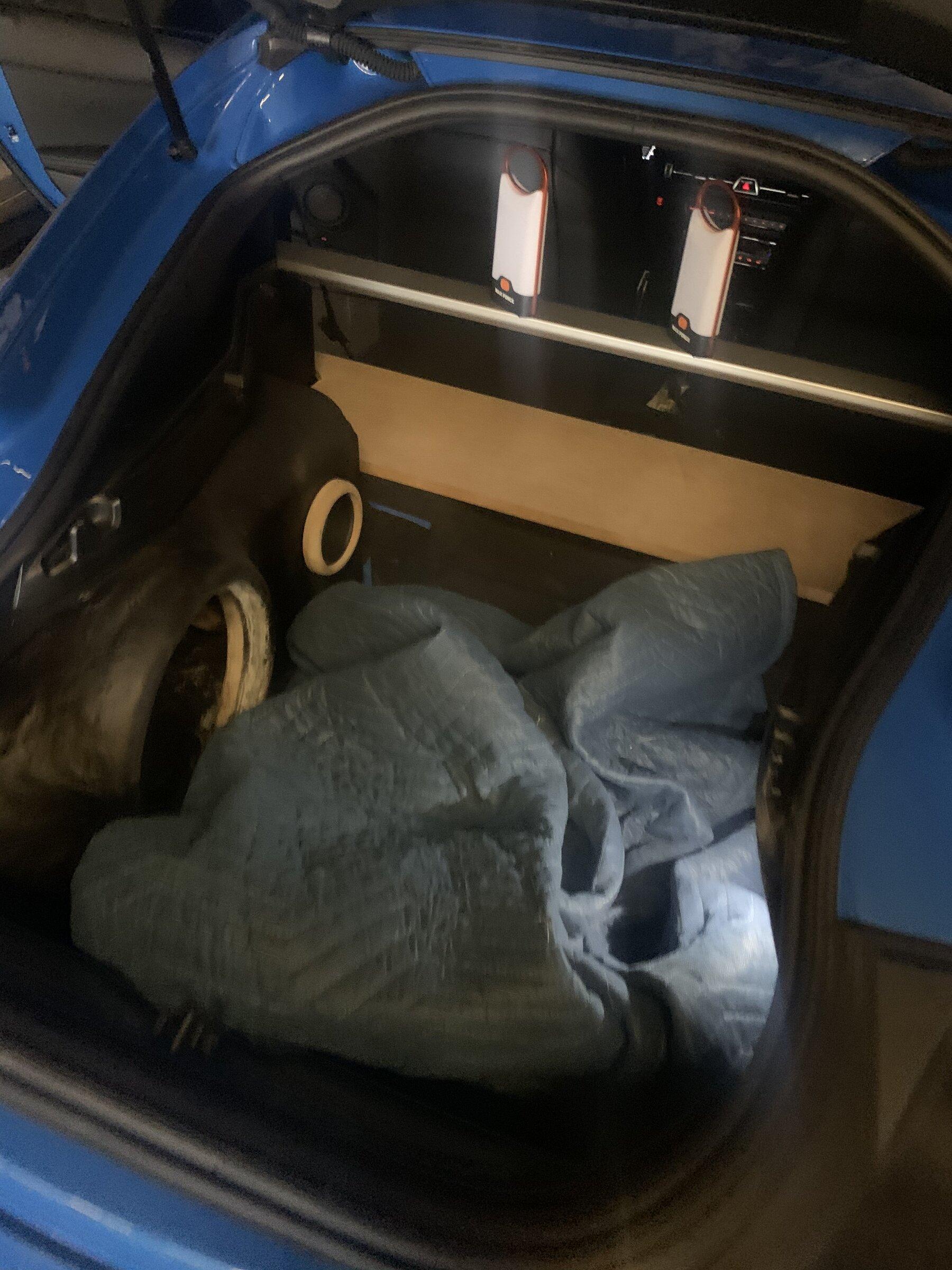

Dry fit



[Sam B]

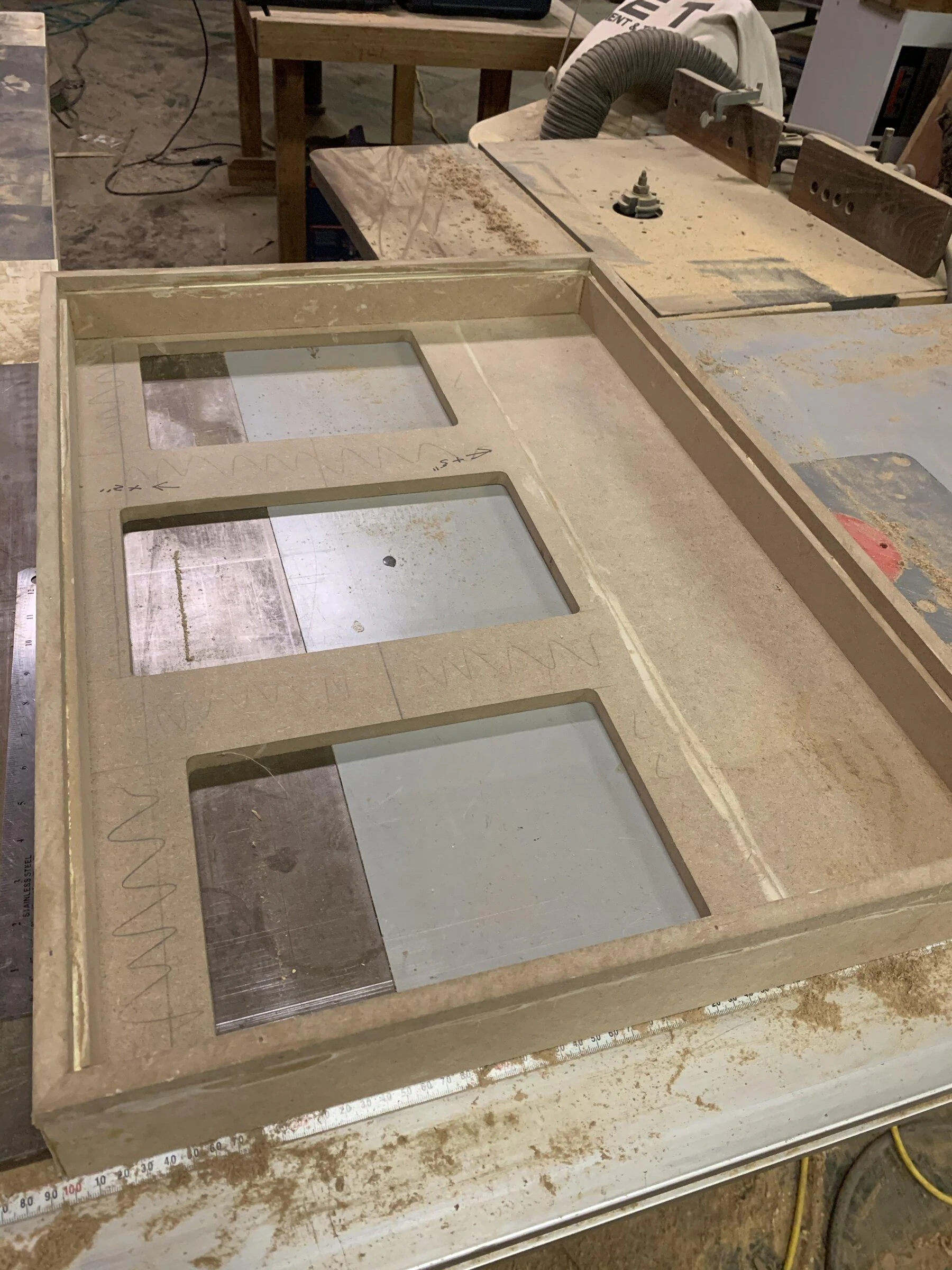

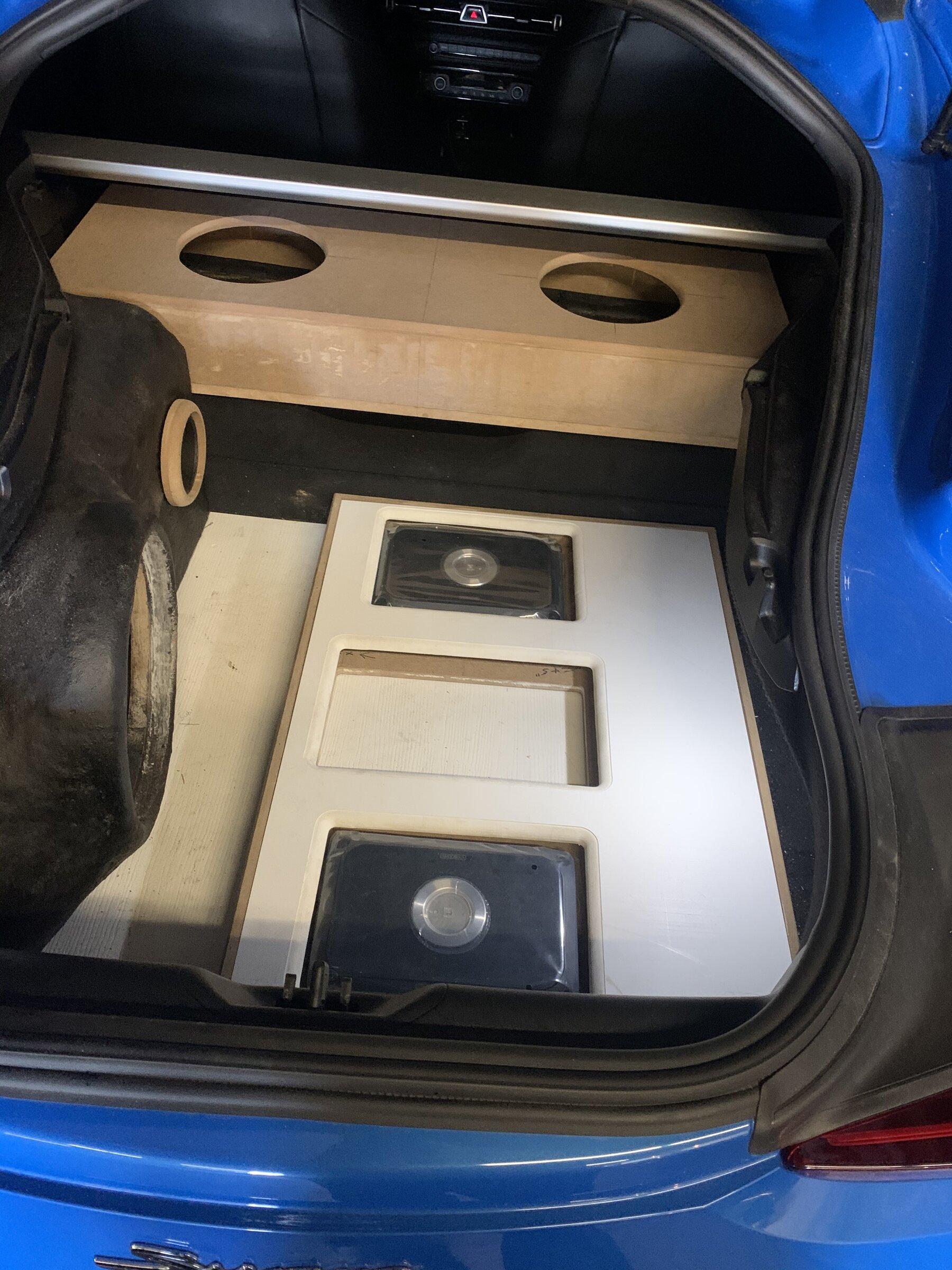

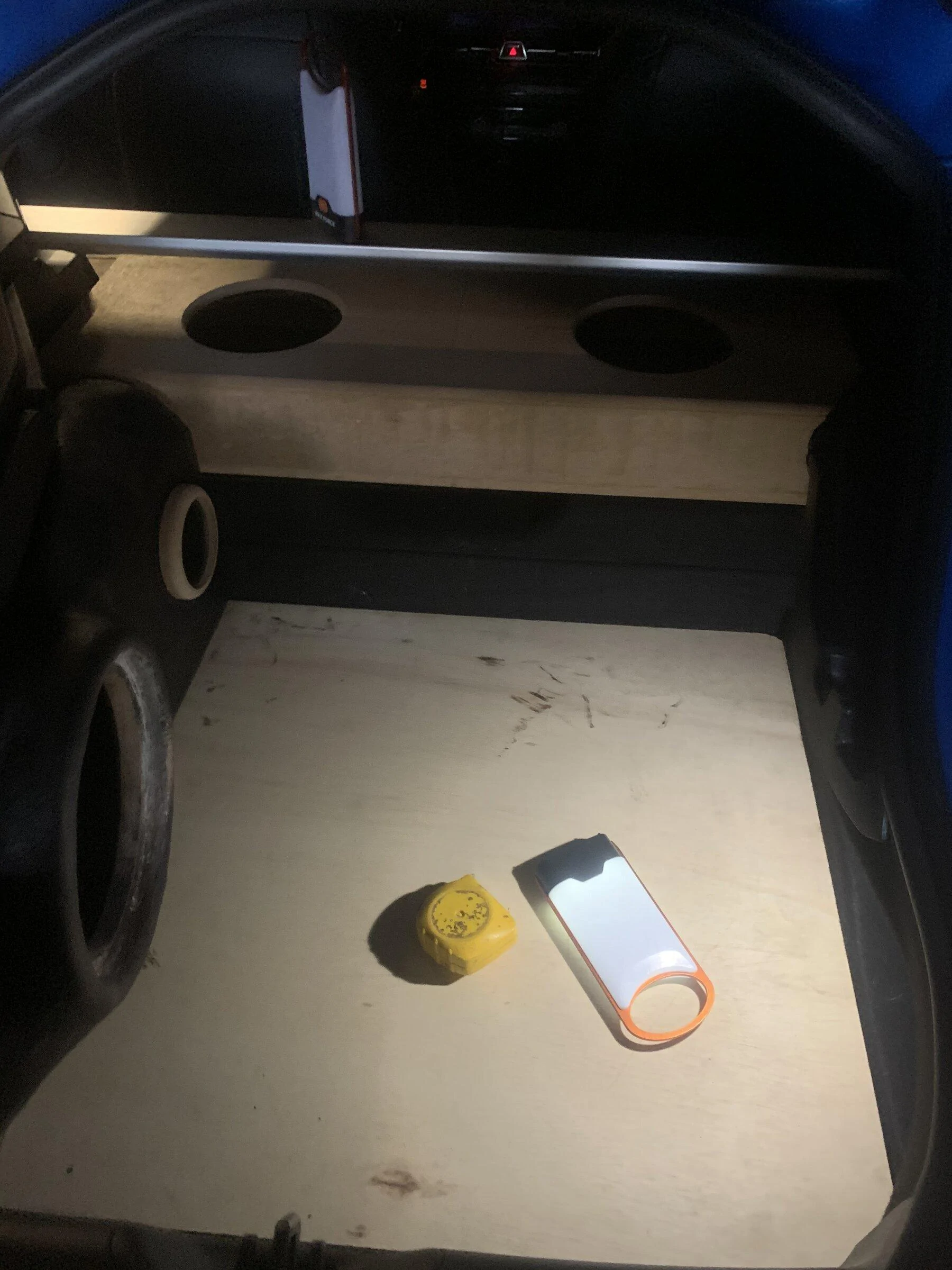

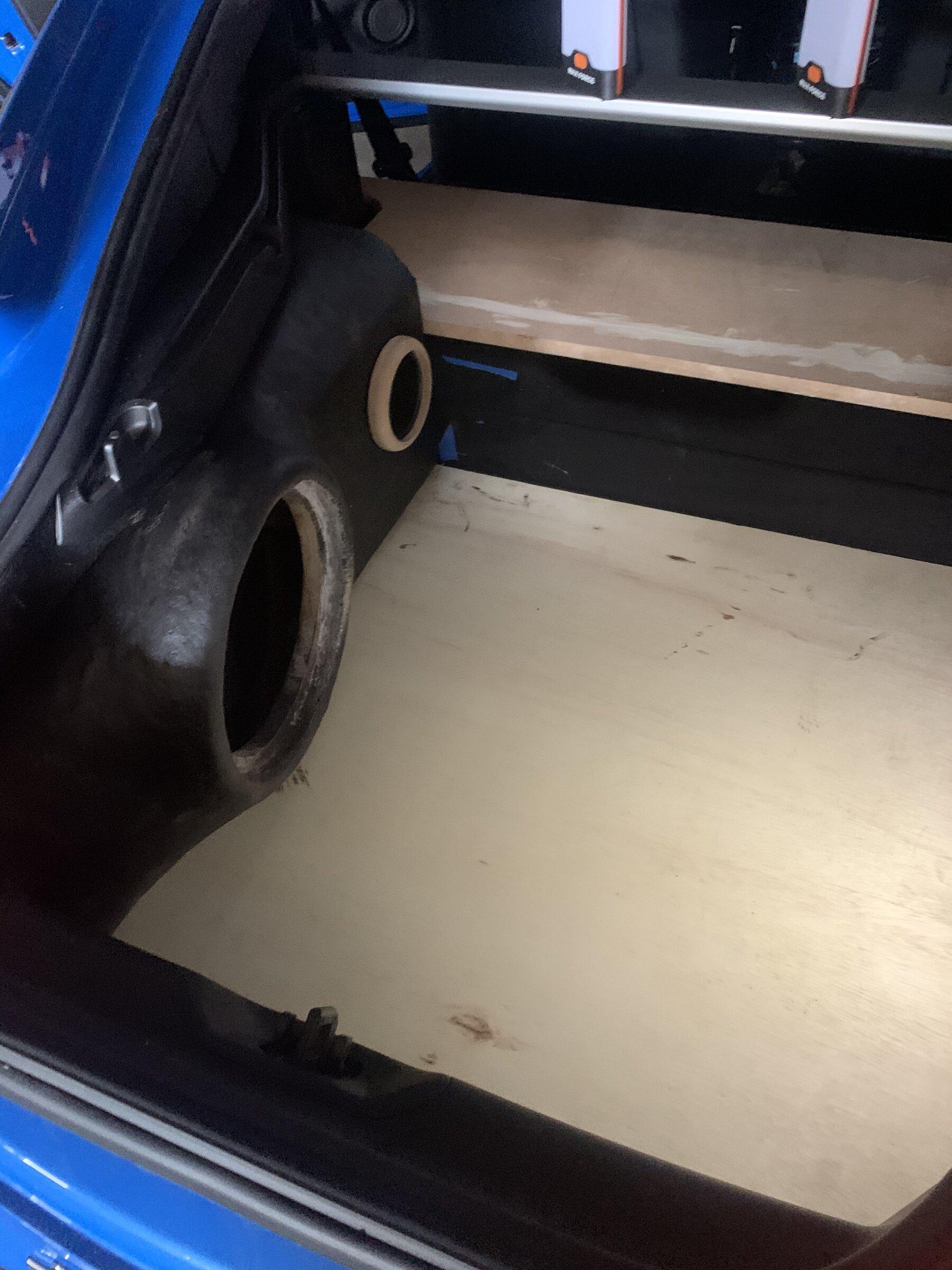

Some updates. Working on false floor and amp rack. Amp rack will hold 3 amps, large distribution block, and DSP hub
