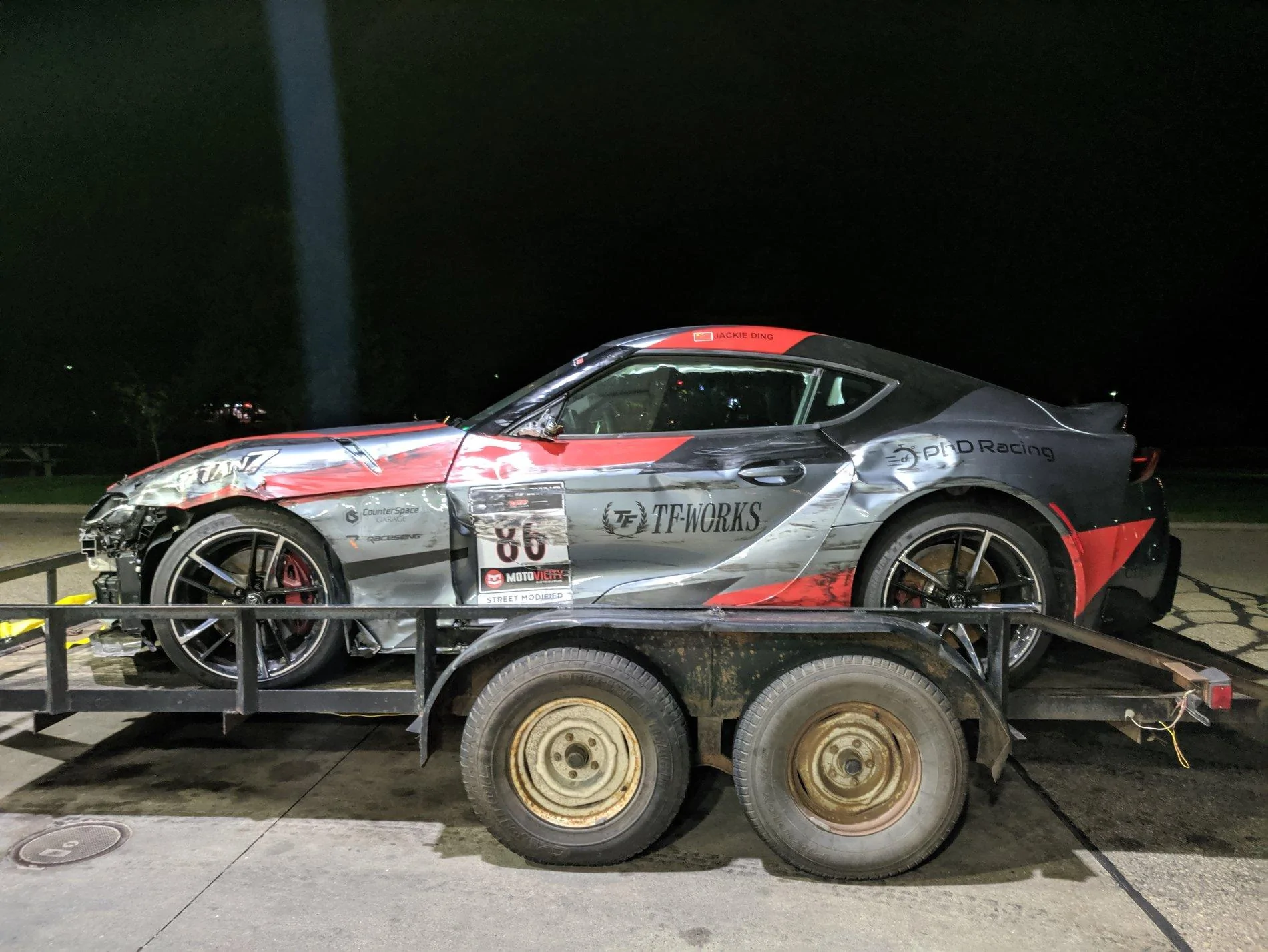

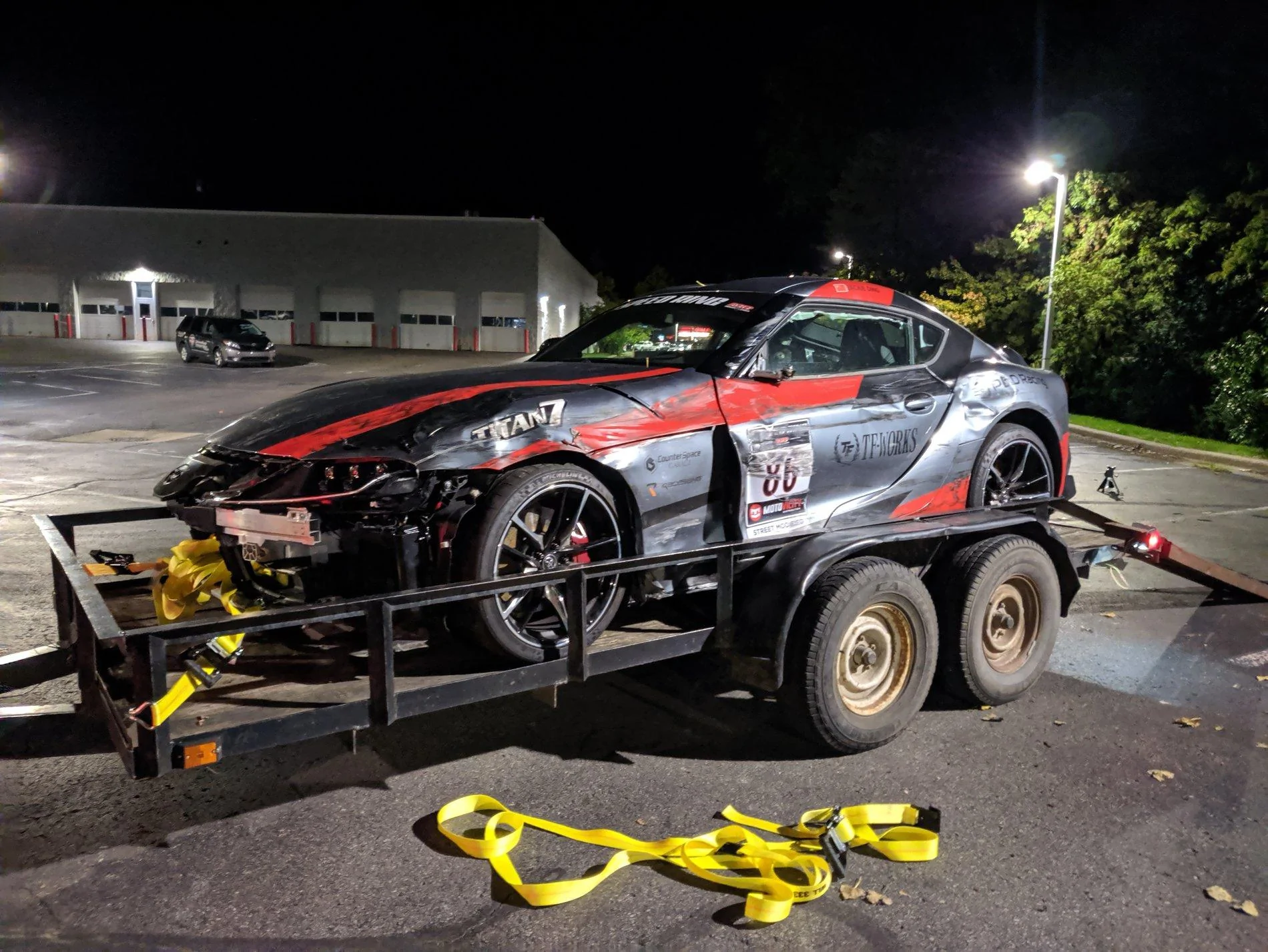

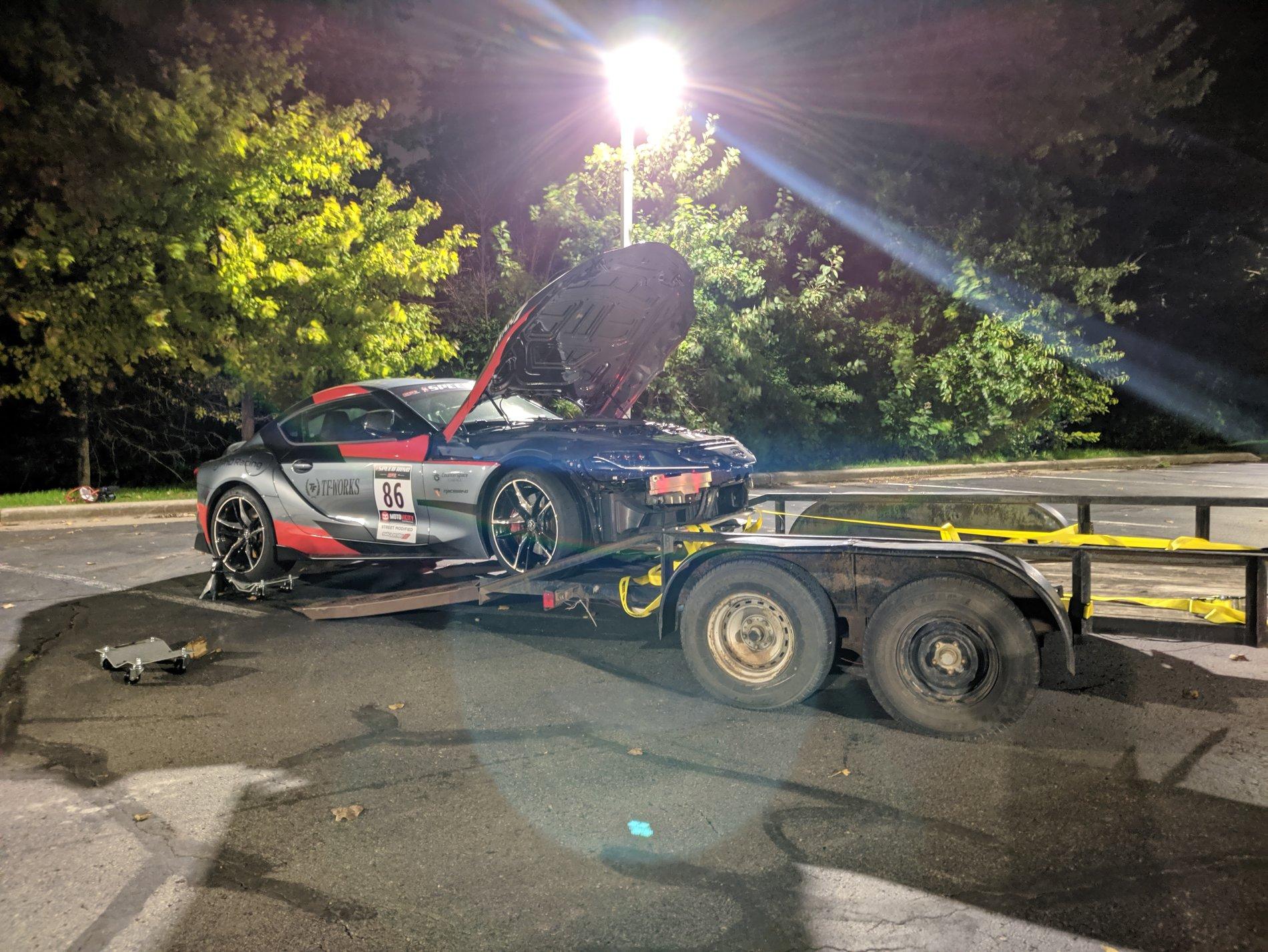

    So as some of you may know, I purchased Jackie's A90 Supra after his on-track incident. I picked it up from Jackie in Michigan and brought it to Chicago where my brother and I are doing some initial work to get it running again before I take it down to Texas where it will live.


    So, as with many BMWs, this car has a Battery Safety Terminal, or BST, that will use an explosive gas charge to disconnect the positive battery terminal from the starter and alternator in the event of a crash.

    This car was stuck in Park and had the e-Brake engaged and the car refused to go into Neutral or release the brake in accessory mode. This is a common BMW theme and generally requires replacing or bridging the BST in order to start the car. I jumped the BST with jumper cables but the battery was too dead and it refused to start (it wouldn't even take a jump). So I went to plan B, manually engaging neutral from the transmission itself. I got underneath and pulled the panels off, but alas, no release screw like other ZF transmissions. So from there was Plan C, putting the rear on dollies and pulling the car up by hand (I didn't have a winch). It was a long and painful process, but we got there...

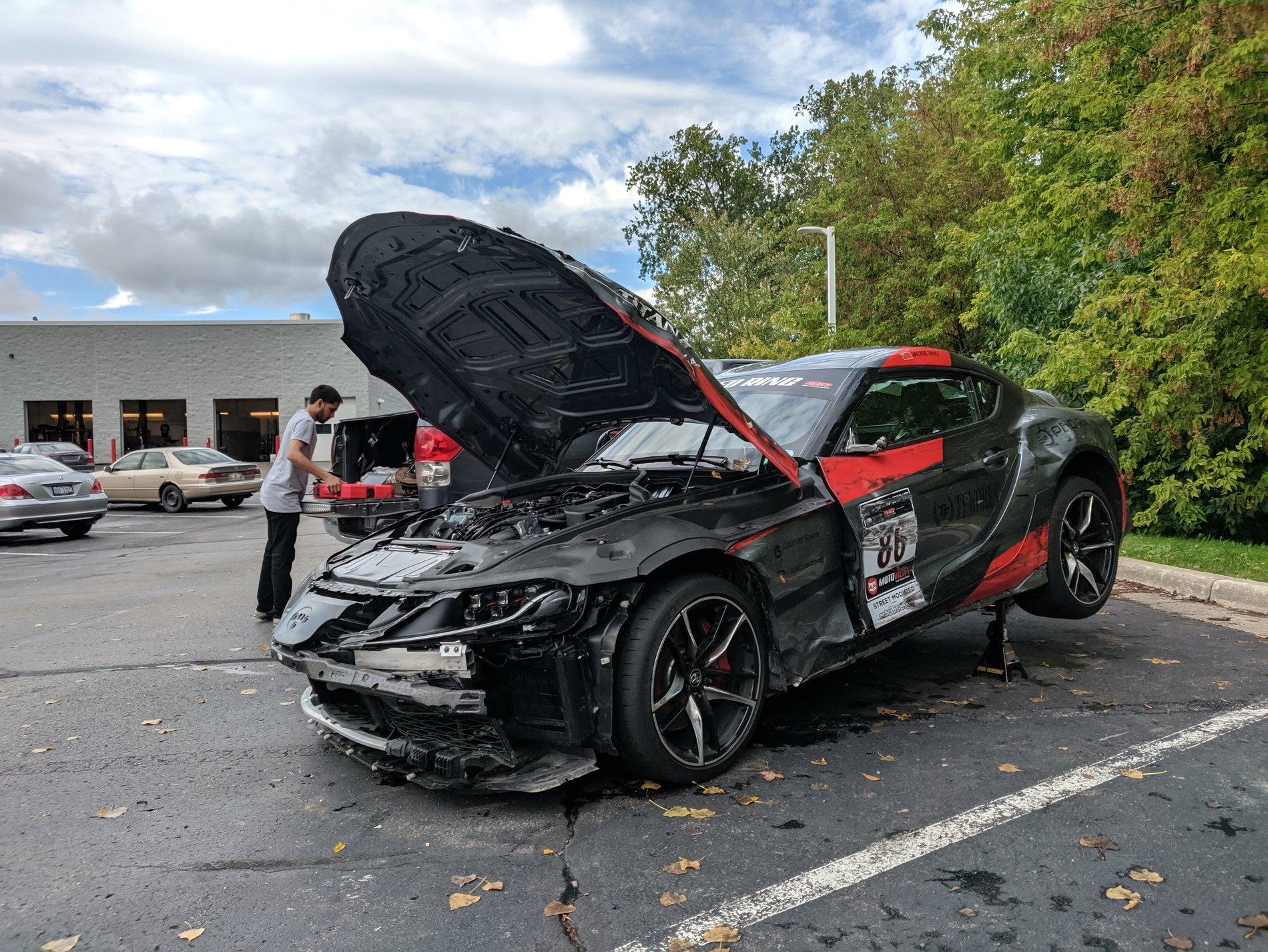

    The assessed damage is as follows:
    -Front Bumper
    -L Headlight
    -Cooler Duct
    -L Front Lower Control Arm
    -Hood/Clamshell
    -L Fender
    -L Door
    -L Rocker
    -L Rear Quarter Panel

    No structural damage, no mechanical damage. The only wiring damage is a little bit of torn insulation on one of the light wires.

    Overall, she looks to be in decent shape!


    Tomorrow I will try to sort out the battery issue and the BST issue and try to get the car started. Maybe even tackle the suspension. Then get the car back to Texas on Sunday.

    I'm be making videos for YouTube on the Albon YT Channel, but those probably won't be for a bit, so I'll keep the build thread updated first.

    jm6k, mas921, DesmoSD and 11 others like this.
  2. Half Vast

    Half Vast Well-Known Member

    Car(s):
    20 Supra, 01 Tundra Limited, 00 4Runner, 95 Corolla
    Joined:
    Jan 22, 2019
    Location:
    Virginia
    Posts:
    168
    Liked:
    259
    Excellent! Can't wait to see you get this thing up and running again.

    F1 Silver Arrows and Supra Dupra like this.
  3. s219

    s219 Well-Known Member

    First Name:
    Doc
    Car(s):
    BMW X3 M40i, BMW M2 Comp, Honda S2000
    Joined:
    Jun 22, 2019
    Location:
    Virginia USA
    Posts:
    390
    Liked:
    404
    Cool! It is kind of annoying how these newer cars disable themselves after an accident. It makes even simple stuff a minor project. It's really frustrating on an AWD car.

  4. MA617M

    MA617M Well-Known Member

    Car(s):
    lots
    Joined:
    Aug 27, 2017
    Location:
    Australia
    Posts:
    1,748
    Liked:
    4,269
    Occupation:
    Engineer
    fantastic. please don't widebody it :p

  5. Supra Dupra

    Supra Dupra Well-Known Member

    Car(s):
    Supra MKV LE (Nocturnal Black)
    Joined:
    Jul 23, 2019
    Location:
    United States
    Posts:
    316
    Liked:
    364
    Garage Profiles:
    1
    But if you do, please at least make sure that it’s the widest body that ever wide bodied so that you can post a YouTube video as evidence that you were the first to do it.

    F1nest11, JackieD86, CJ- and 3 others like this.
  6. OP
    OP
    Guff

    Guff Moderator
    Moderator

    Car(s):
    FR-S, BRZ, Supra, Mini Cooper
    Joined:
    Sep 8, 2016
    Location:
    USA
    Posts:
    1,379
    Liked:
    6,354
    Garage Profiles:
    1
    Haha, no widebody plans. My trailer is hardly big enough for the stock width lol. Plus I think the Pandem kit looks like ass :p

    Thanks man! Let's hope I don't take ten years like all my other projects!

    Dude I can only imagine the difficulties on an AWD car :confused:. I'm hoping as I get more familiar with the Rheingold software and all the BMW nuances, it won't be as much of a hassle. Right now though, I'm just incredibly frustrated because this car seems to share very little with older BMWs in terms of electronics.

  7. Jabba

    Jabba Well-Known Member

    First Name:
    Joel
    Car(s):
    2017 Subaru WRX
    Joined:
    Sep 18, 2018
    Location:
    U.S.
    Posts:
    175
    Liked:
    455
    Exciting news! Are you going to document the rebuild on your channel? Could provide some good stuff for others who probably doing work themselves.

    Guff likes this.
  8. JackieD86

    JackieD86 Active Member

    First Name:
    Jackie
    Car(s):
    Supra A90, AE86, S2K AP2
    Joined:
    Sep 11, 2019
    Location:
    Ann Arbor MI / Chicago IL
    Posts:
    25
    Liked:
    111
    Occupation:
    Pretend Racing Driver
    Home Page:
    As the idiot who put this car into the wall in the first place, thank you Guff for willing to take on this project. I really didn't want the car to end up in the hands of someone who'll slap a widebody on, make it a show car, and then have it stored away for eternity after the hype has died and the internet crowd has moved on, and I'm glad knowing you'll revive her well. Best of luck!

  9. OP
    OP
    Guff

    Guff Moderator
    Moderator

    Car(s):
    FR-S, BRZ, Supra, Mini Cooper
    Joined:
    Sep 8, 2016
    Location:
    USA
    Posts:
    1,379
    Liked:
    6,354
    Garage Profiles:
    1
    #9 Oct 6, 2019
    Last edited: Oct 7, 2019
    :beer:

    Yes, absolutely! The whole idea of this was to help get the Supra DIY scene kickstarted, so I will be documenting the hell out of it! I'll likely use this build thread to post more in depth things though.


    Update: I stopped in Chicago for a day before heading to Texas so my brother and I could take a look at the car. I opened up the BST cable and rebridged the terminal, so now the starter and alternator can get power.

    Screen Shot 2019-10-07 at 7.00.01 PM.png

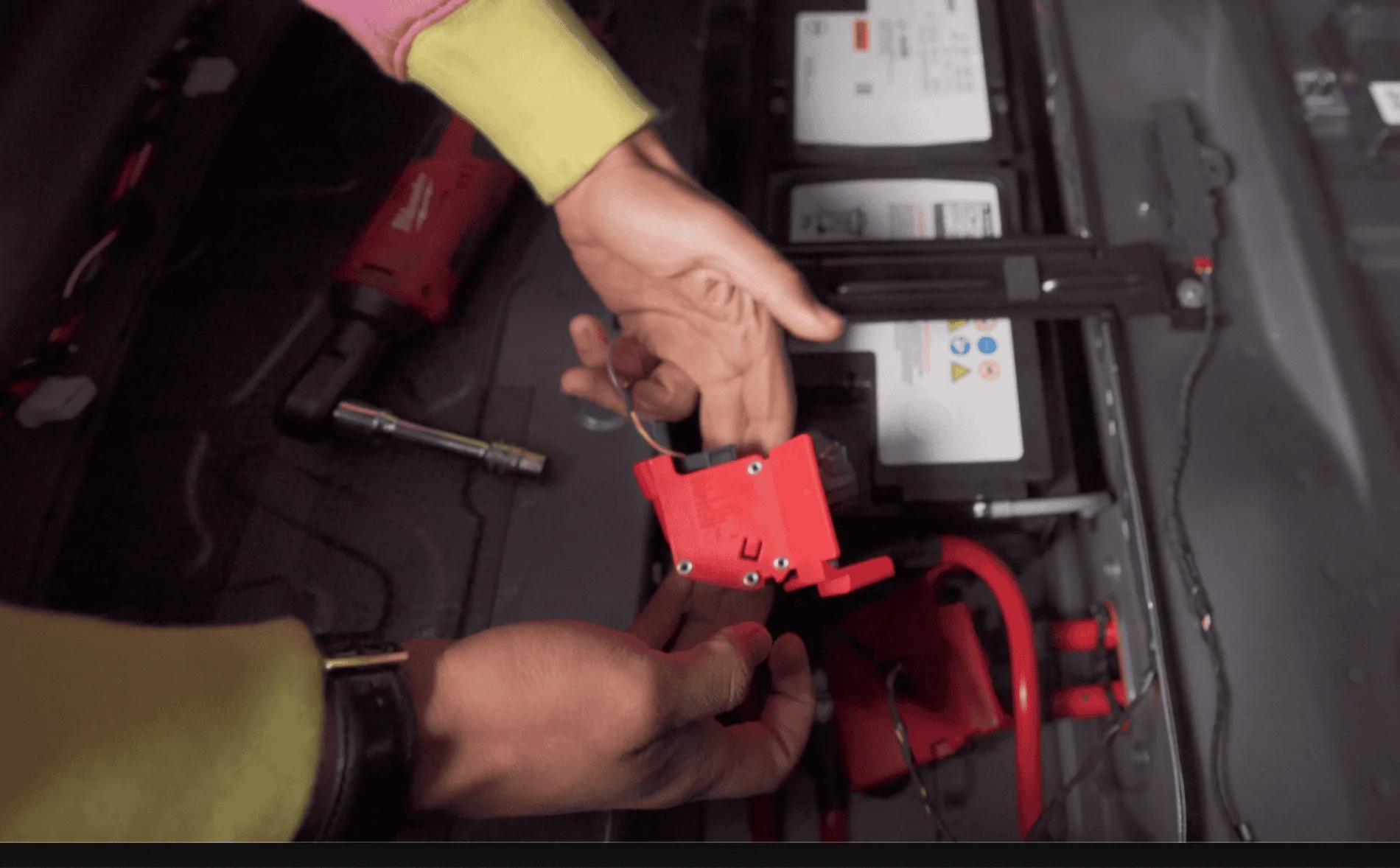

    The Positive Terminal with the integrated BST ^^

    Screen Shot 2019-10-07 at 6.59.15 PM.png

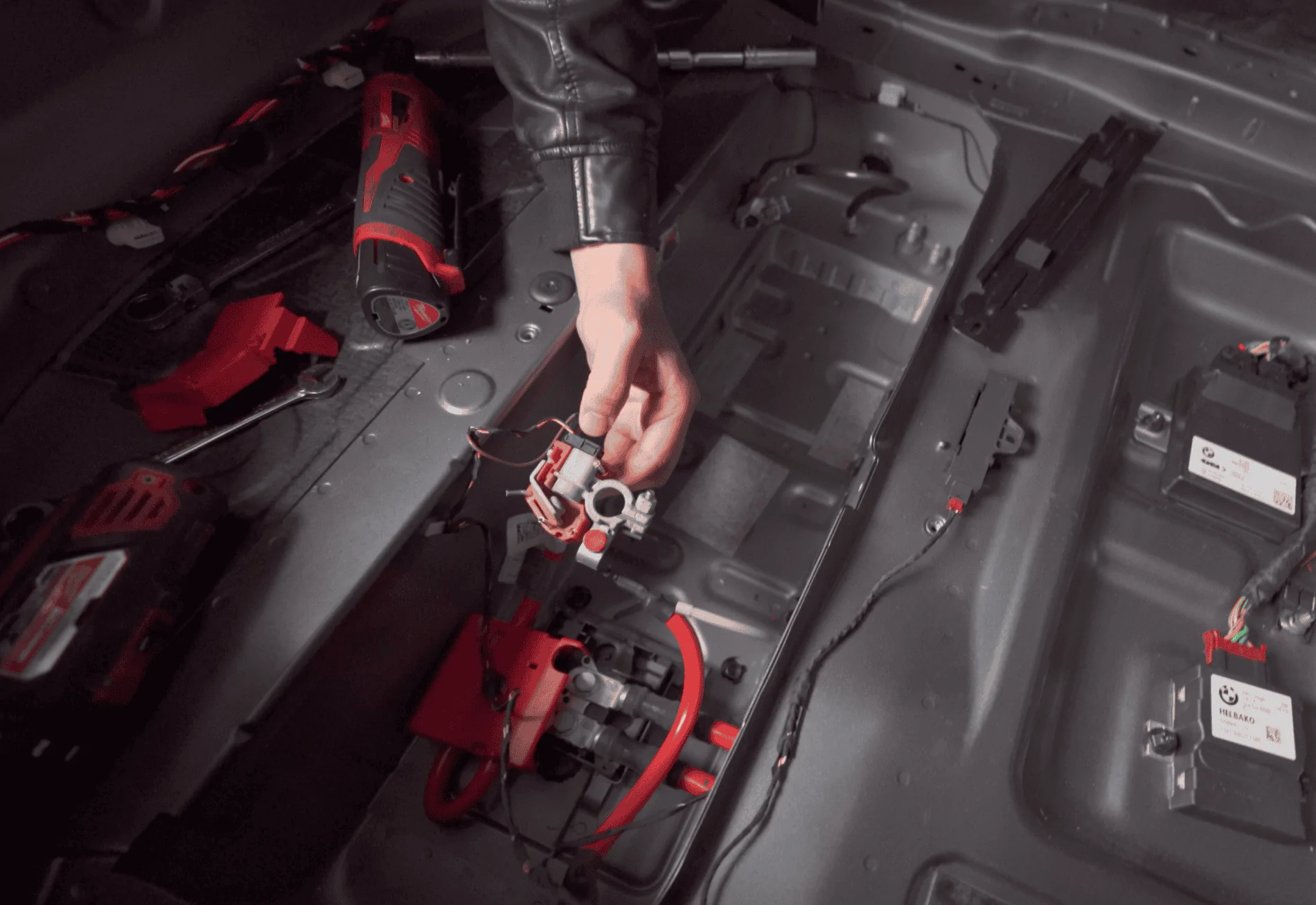

    The BST without the plastic shielding ^^ You can see that L-shaped metal tab that is now disconnected from the body of the terminal, that is what cuts power to the starter and alternator.

    Screen Shot 2019-10-07 at 7.06.05 PM.png

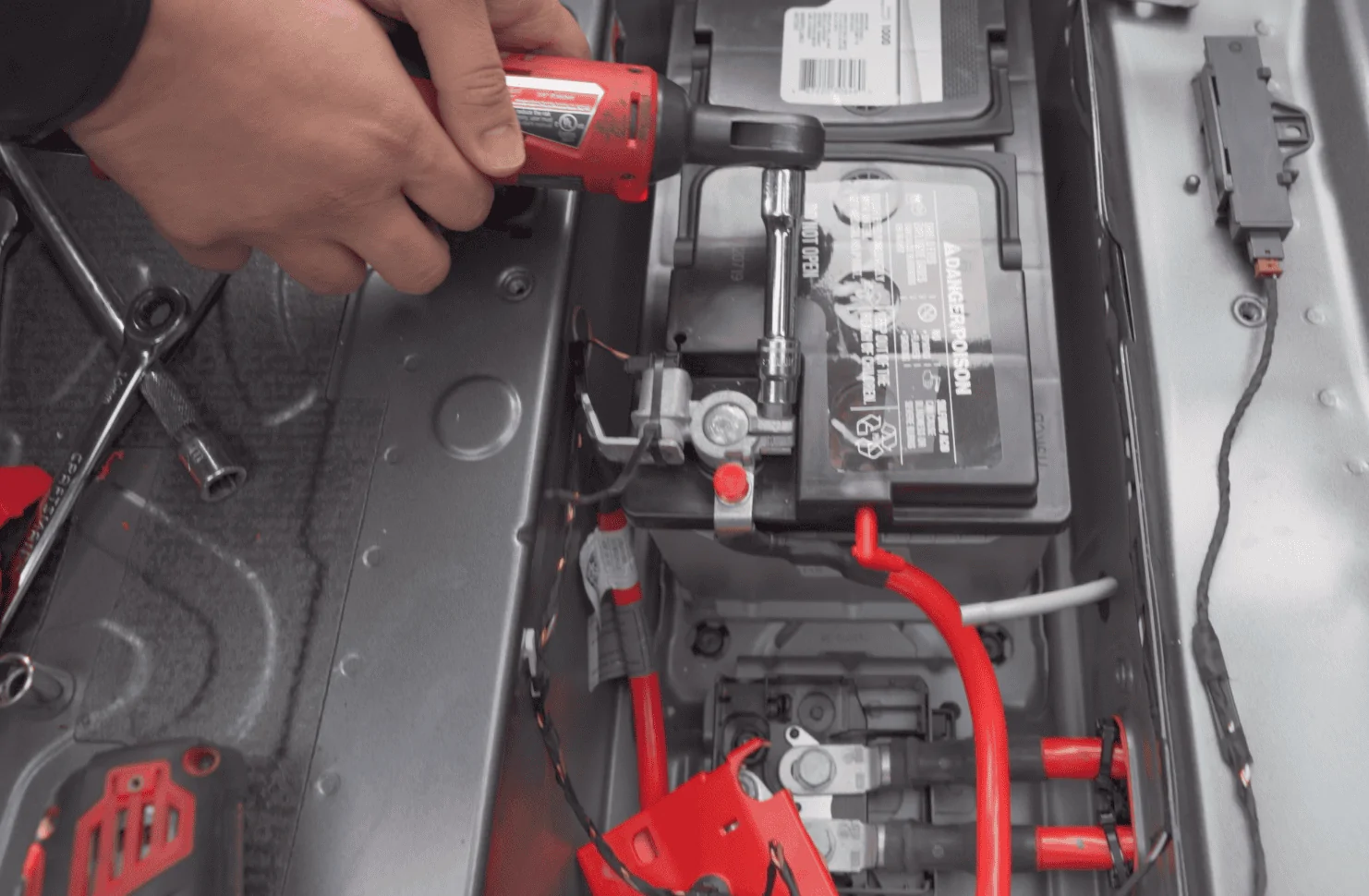

    The solution to all problems is, of course, the venerable ziptie, or cable-tie as it is known the world over.^^

    I'll properly replace the cable once it comes in from BMW Germany. But the battery won't take a charge over 7v so I'm calling it dead. Not sure why it's dead considering it's a new battery, but no matter, a quick trip to the Auto Parts store procured a Group 8H battery that fit right in. We threw the battery in anddddddd....

    The car started right up! Barked into life with complete ferocity (there's no muffler on the car lol) and despite having a dozen errors, it was healthy!

    We pulled it off the trailer with both front tires pointing completely opposite directions and started moving it into the garage slowly under its own power when BANG! A metallic clang echoed out from under the car. My brothers and I stopped and stared at each other worriedly, but then we all had the same idea "That bent control arm!"

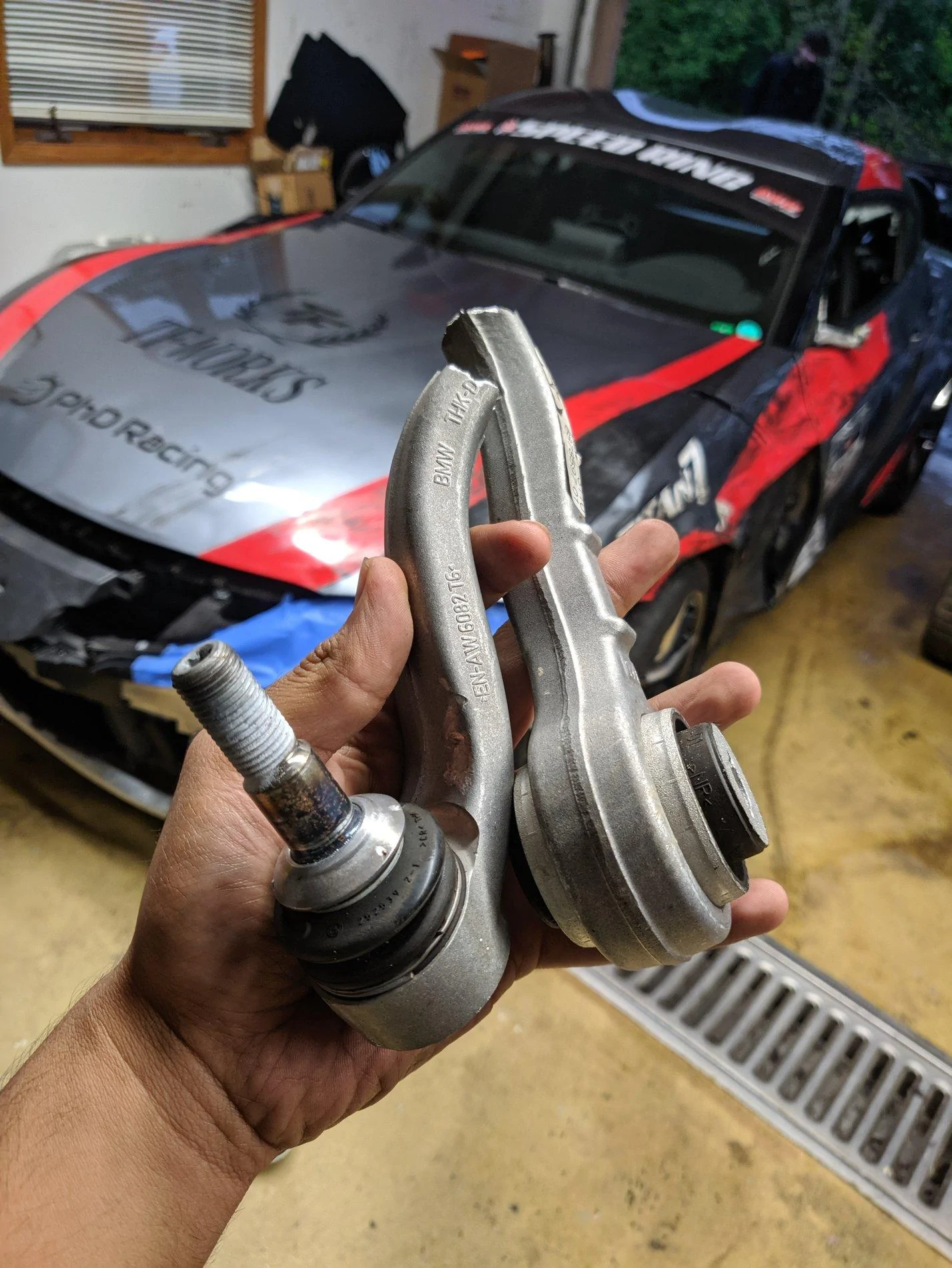

    I took a look underneath and behold, the control arm had snapped clean in half and was lazily dangling on the ground. We managed to get the car into the garage and jacked the car up to take a look. This is what we found:
