HKS HiperMax Touring Spring Kit

Supraboi7

Well-Known Member
First Name
Jonathan
Joined
Jul 31, 2019
Posts
228
Reaction score
253
Location
Charlotte, NC
Car(s)
2020 Toyota Supra
Excited to take care of the wheel gap with a modest drop while still retaining the factory adaptive suspension that the KW V3 kit would delete!!! Looks to be available next month or so, just a heads up.

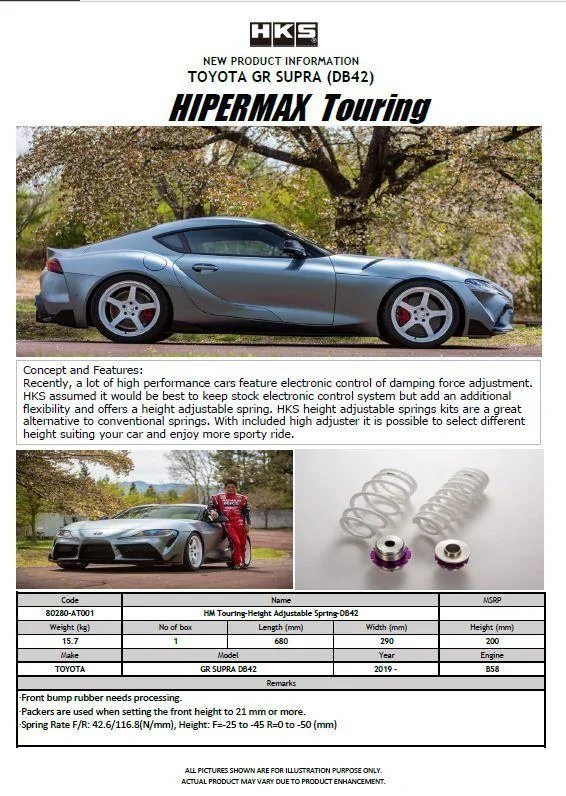

http://www.titanmotorsports.com/hks-80280-at001.html





Advertisement




HATED1

Well-Known Member
First Name
Bernie
Joined
Feb 13, 2019
Posts
86
Reaction score
55
Location
Washington State
Car(s)
86, 370z, 350z, 240sx
Thank you for posting this! Im looking towards getting rid of the wheel gap as well! Im hoping someone puts them on sooner than later and reviews them. Interested in knowing if it rides like factory or stiffer? I prefer stiffer over bouncy. I wonder if rear toe arms and front camber plates will be needed to get the alignment back to stock-ish.


Thatguyw_stat

Well-Known Member
First Name
Bryan
Joined
Aug 18, 2019
Posts
45
Reaction score
14
Location
New Jersey
Car(s)
GR Supra 650whp, GTR 1500whp, BMW X5 F15 Daily
Vehicle Showcase
1
Inflated pricing for the sleeve kit, this set up shouldn’t be more than 600.00 USD. But I’ll have to sit on this see how important this is to me


scoates

Well-Known Member
Joined
Oct 13, 2018
Posts
285
Reaction score
266
Location
UK
Car(s)
2015 GT86, 2020 Supra A90 Edition

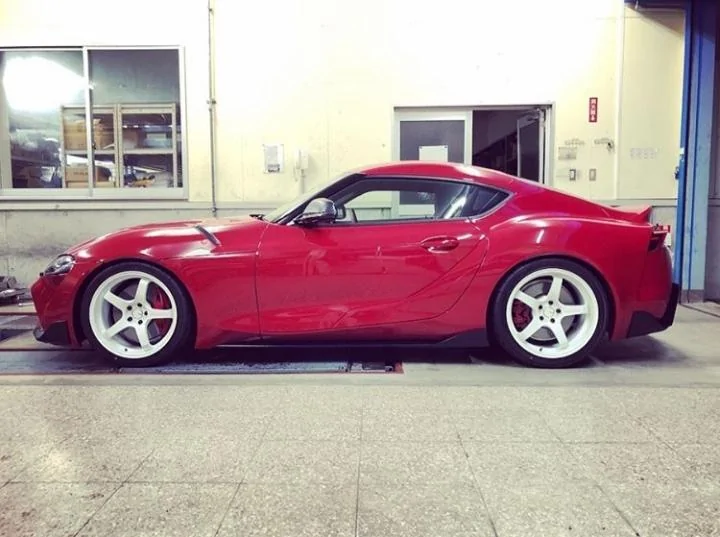

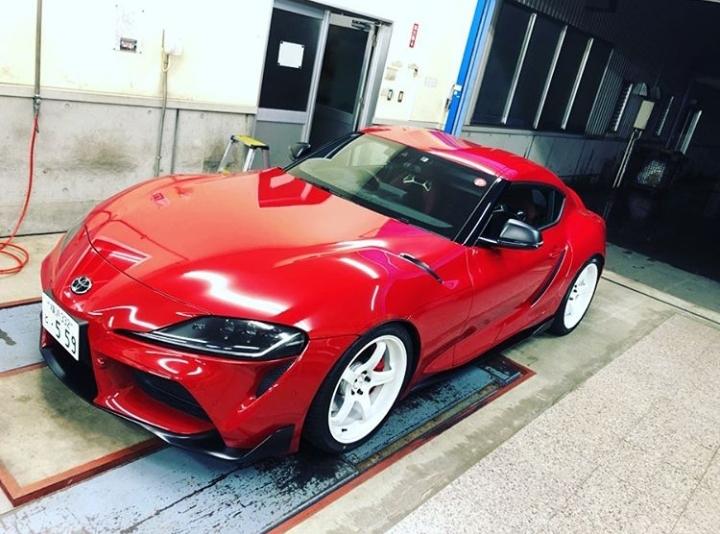

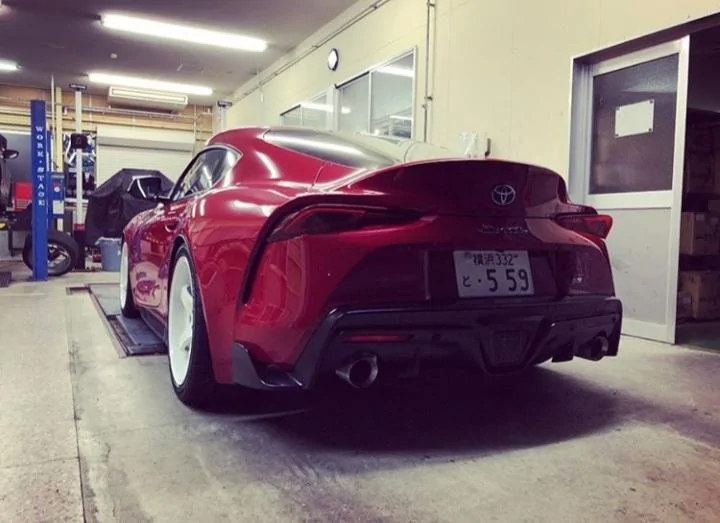

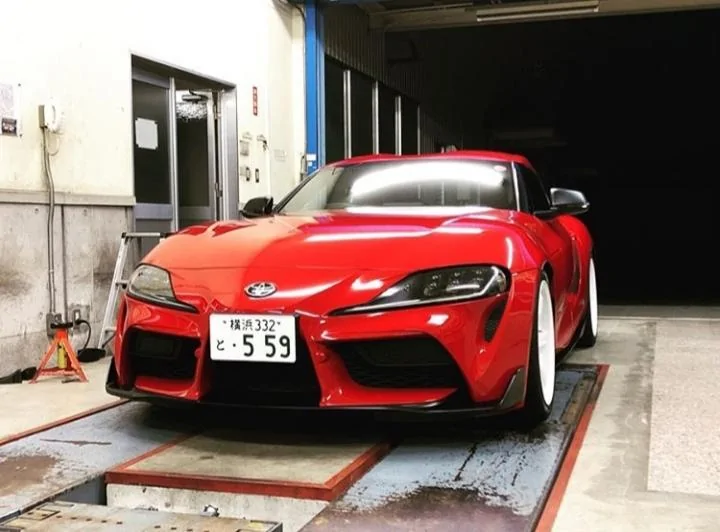

Nice pics! Do you know how much it's lowered by front/rear? I'm considering the HKS springs at some point but don't want to go too low because speed bumps... That height looks pretty good!


Darth

Well-Known Member
Joined
Aug 19, 2019
Posts
138
Reaction score
197
Location
Losail, Qatar
Car(s)
AP1 S2000 Racecar, Westfield Aerorace, Evo 8, C6 ZO6, 370Z, Zupra
Vehicle Showcase
4
Nice pics! Do you know how much it's lowered by front/rear? I'm considering the HKS springs at some point but don't want to go too low because speed bumps... That height looks pretty good!

Its 1-inch drop all around.


oakleyguy

Well-Known Member
First Name
Nate
Joined
Jul 15, 2019
Posts
74
Reaction score
57
Location
Denver, CO
Car(s)
URJ200, UZJ100, FZJ80
Nice pics! Do you know how much it's lowered by front/rear? I'm considering the HKS springs at some point but don't want to go too low because speed bumps... That height looks pretty good!

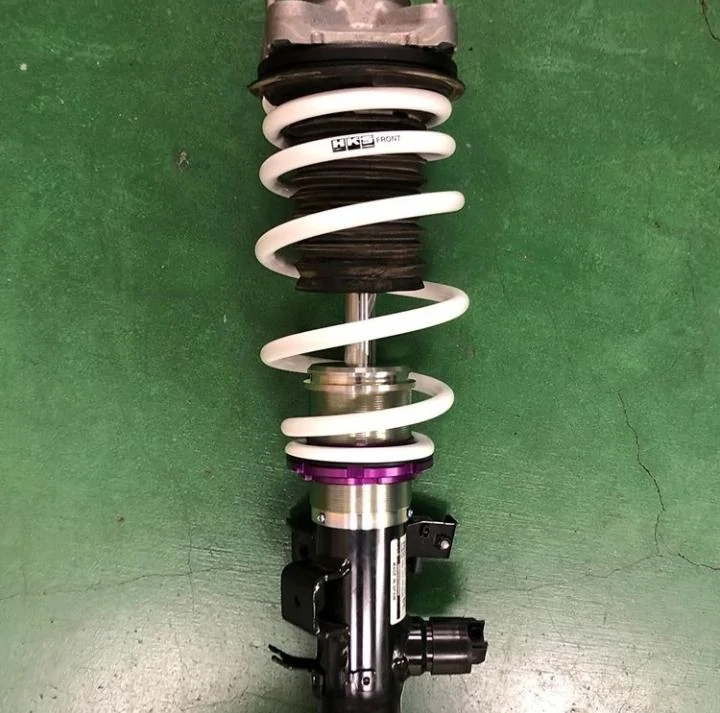

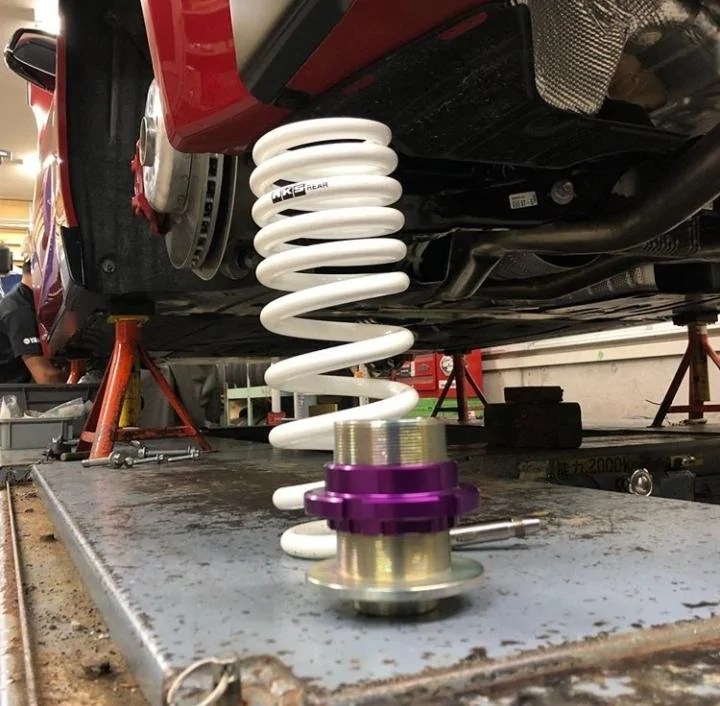

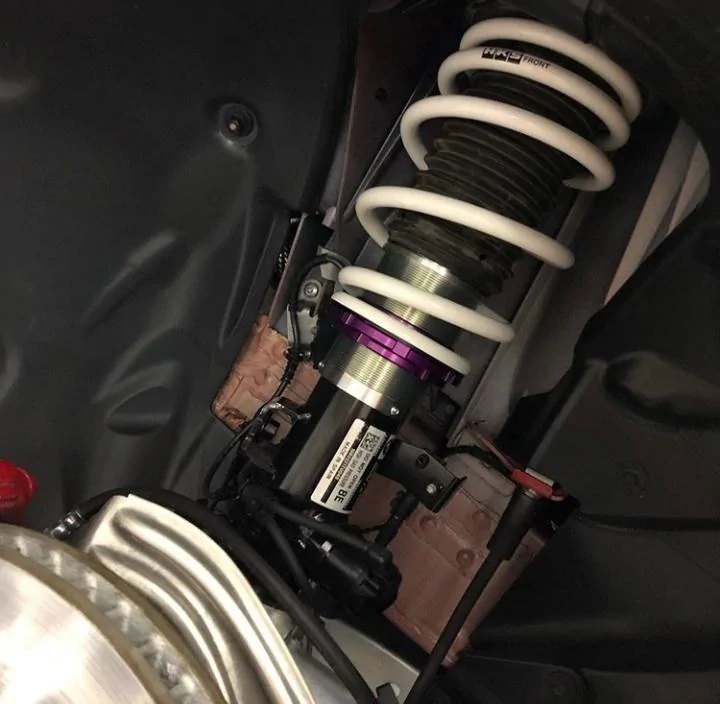

They are adjustable within a range:

  • Front Height Adjustment: -25 to -45mm
  • Rear Height Adjustment: 0 to -50mm
  • Front Spring Rate: 42.6 N/mm
  • Rear Spring Rate: 116.8 N/mm


trakday

Well-Known Member
First Name
Nick
Joined
Sep 5, 2019
Posts
202
Reaction score
183
Location
NY
Website
www.instagram.com
Car(s)
1969 Camaro Z/28 Trans Am race car, 2011 E92 M3 GTS, 1997 E36 M3 race car, 2020 GR SUPRA, 2020 Chevy Silverado 1500 Trail Boss
will these throw any codes? I know they are a sleeve kit but still with todays computer nonsense.


ChrisD

Well-Known Member
First Name
Chris
Joined
Sep 18, 2019
Posts
61
Reaction score
89
Location
UK
Website
youtube.com
Car(s)
A90 Supra, Twin Turbo 350Z, NA 370Z
Installed these on mine the other day. Definitely no codes thrown (as others have explained, you're not touching any electronics).

Note that the instructions do tell you to cut off one of the parts of the factory bump stop though, which is not something I was aware of when buying them. Not the end of the world as its only a bit of foam like material and I'm sure you could buy a replacement stock one pretty easily if for some reason you ever wanted to put it all back to stock.

Bump stop before:



Bump stop after:



Anyway, first impressions:

Very little change to the overall ride quality. Can't really tell any difference from stock when driving it on the road (even on bumpy back roads and drifting it round roundabouts in the rain - felt just like before). I'll be taking it to the track this weekend though so will see how it handles there.

One thing I have noticed is that I'm really struggling to change the ride height now they are on the car. On the front I can't even get the locking collar to undo and on the rear once I got the locking collar undone, the whole threaded assembly just spins as I try to turn the height adjustment perch. This is with it up on a lift and the suspension is at full droop, but I'm thinking the springs are probably still putting a bit of pressure on the perches so will try putting some spring clamps on them soon to relieve the tension then try again.


HATED1

Well-Known Member
First Name
Bernie
Joined
Feb 13, 2019
Posts
86
Reaction score
55
Location
Washington State
Car(s)
86, 370z, 350z, 240sx

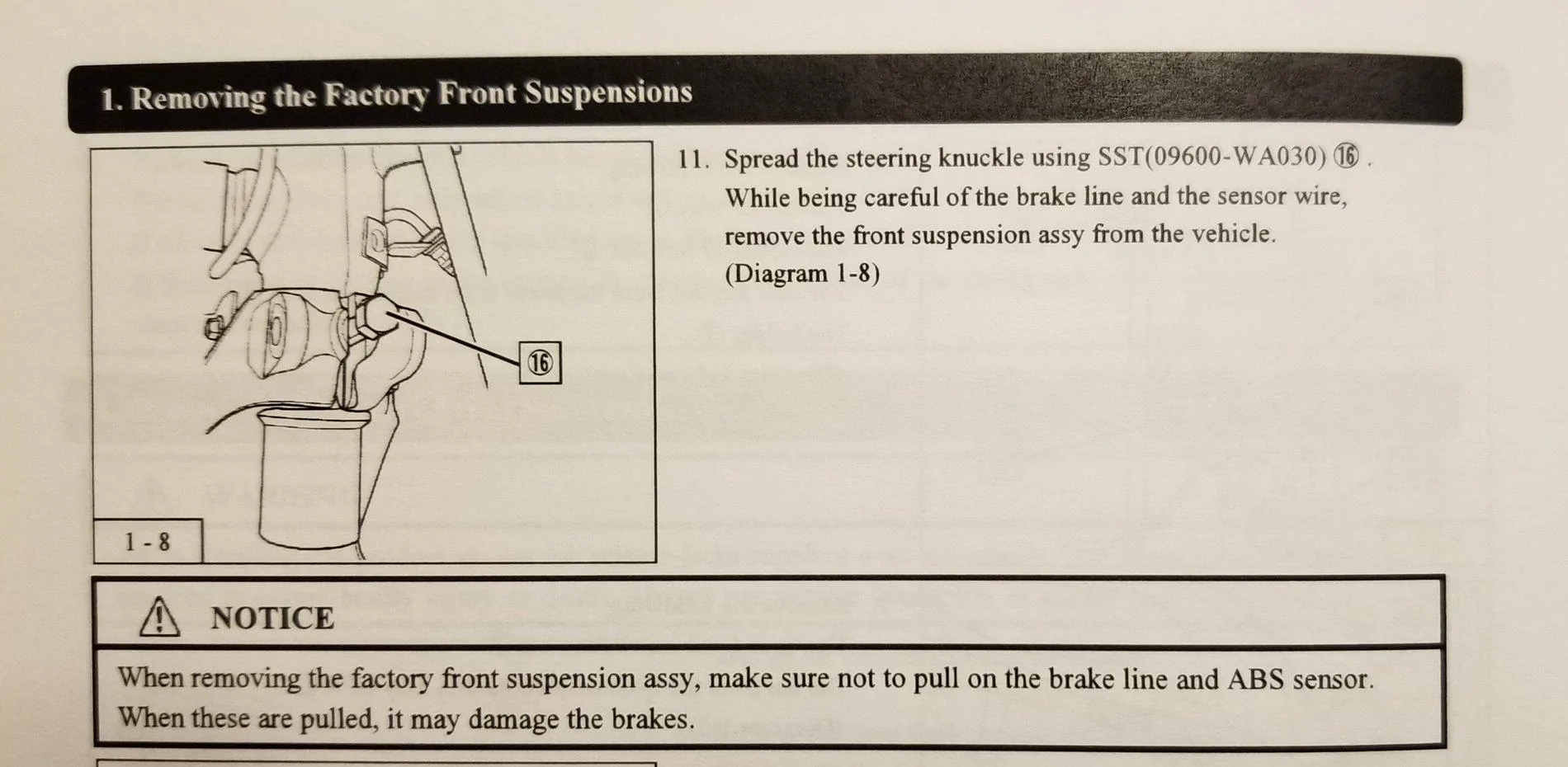

Thank you @ChrisD for the review!! Question for you, what did you do when you reached the step pictured? Did you just take a chisel or pry bar? Did you use a special tool? Thanks again!
