Sold: Kics Leggdura Racing Lug Bolts

[Loco38SUP]

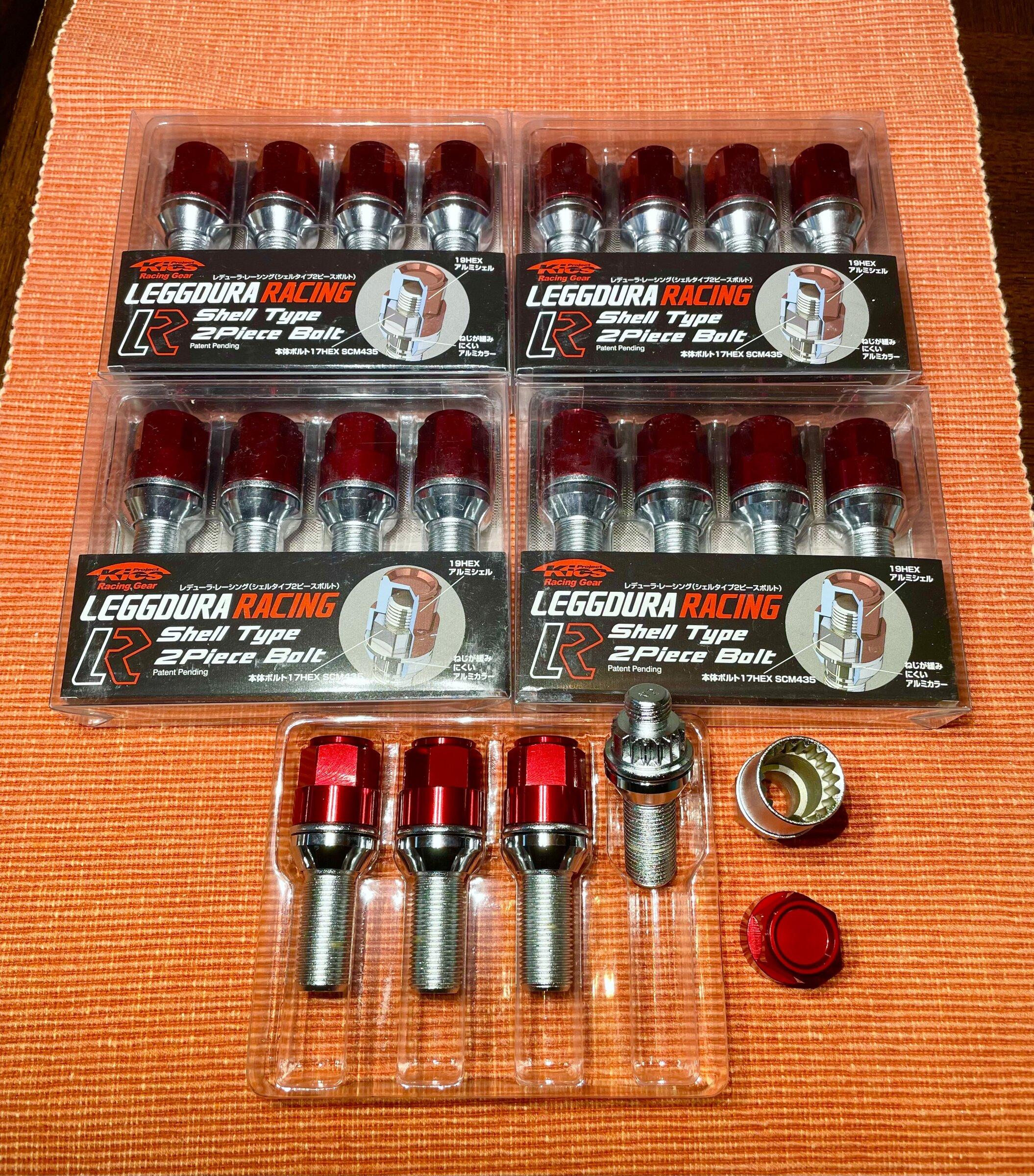

I have a brand-new set of 28mm Kics Leggdura racing lug bolts for sale. These were $375 new.

They come with locks and key tool. I’m asking $280 plus shipping.

-RJM

Sponsored



[JRedMKV]

I have a brand-new set of 28mm Kics Leggdura racing lug bolts for sale. These were $375 new.

They come with locks and key tool. I’m asking $280 plus shipping.

-RJM

Hey there. I know these are sold but can I ask why you sold them? I’m looking to get a set but don’t know what size to get until my wheels arrive I guess. Are they too short for aftermarket wheels? Is this from Speed Industry?

Thanks.



[Loco38SUP]

Hey there. I know these are sold but can I ask why you sold them? I’m looking to get a set but don’t know what size to get until my wheels arrive I guess. Are they too short for aftermarket wheels? Is this from Speed Industry?

Thanks.

I was sent the wrong versions and vendor wouldn’t take them back. They will work with most aftermarket wheels but not with spacers.

If your wheels are deep dish like the ones people run on wide body kits then I would get the 35mm versions.

Also buy them from Vivid Racing they will take care of you. Don’t gamble your money with Las Vegas vendors, trust me on this one.

https://www.vividracing.com/project...8mm-shell-type-bolt-lock-set-p-153292171.html

-RJM



[JRedMKV]

I was sent the wrong versions and vendor wouldn’t take them back. They will work with most aftermarket wheels but not with spacers.

If your wheels are deep dish like the ones people run on wide body kits then I would get the 35mm versions.

Also buy them from Vivid Racing they will take care of you. Don’t gamble your money with Las Vegas vendors, trust me on this one.

https://www.vividracing.com/project...8mm-shell-type-bolt-lock-set-p-153292171.html

-RJM

Thanks man, that’s good to know. I’m getting a set of BC FORGED wheels, so not deep dish. Yeah I don’t like Speed Industry anymore and will do everything possible to avoid buying from them ever again. I’ve had good experience so far with A90Shop though.



[akadic10]

Probably not the best thread to ask this, but is this the right set to get if I wanted TE37SLs on the supra without doing a stud conversion?

Thanks!



[Loco38SUP]

Probably not the best thread to ask this, but is this the right set to get if I wanted TE37SLs on the supra without doing a stud conversion?

Thanks!

Yes, the thread diameter and pitch is M14xP1.25 and the conical seats are 60 degrees. The stock thread length is 28mm.

I would highly recommend the 35mm lengths for aftermarket wheels. Here is why:

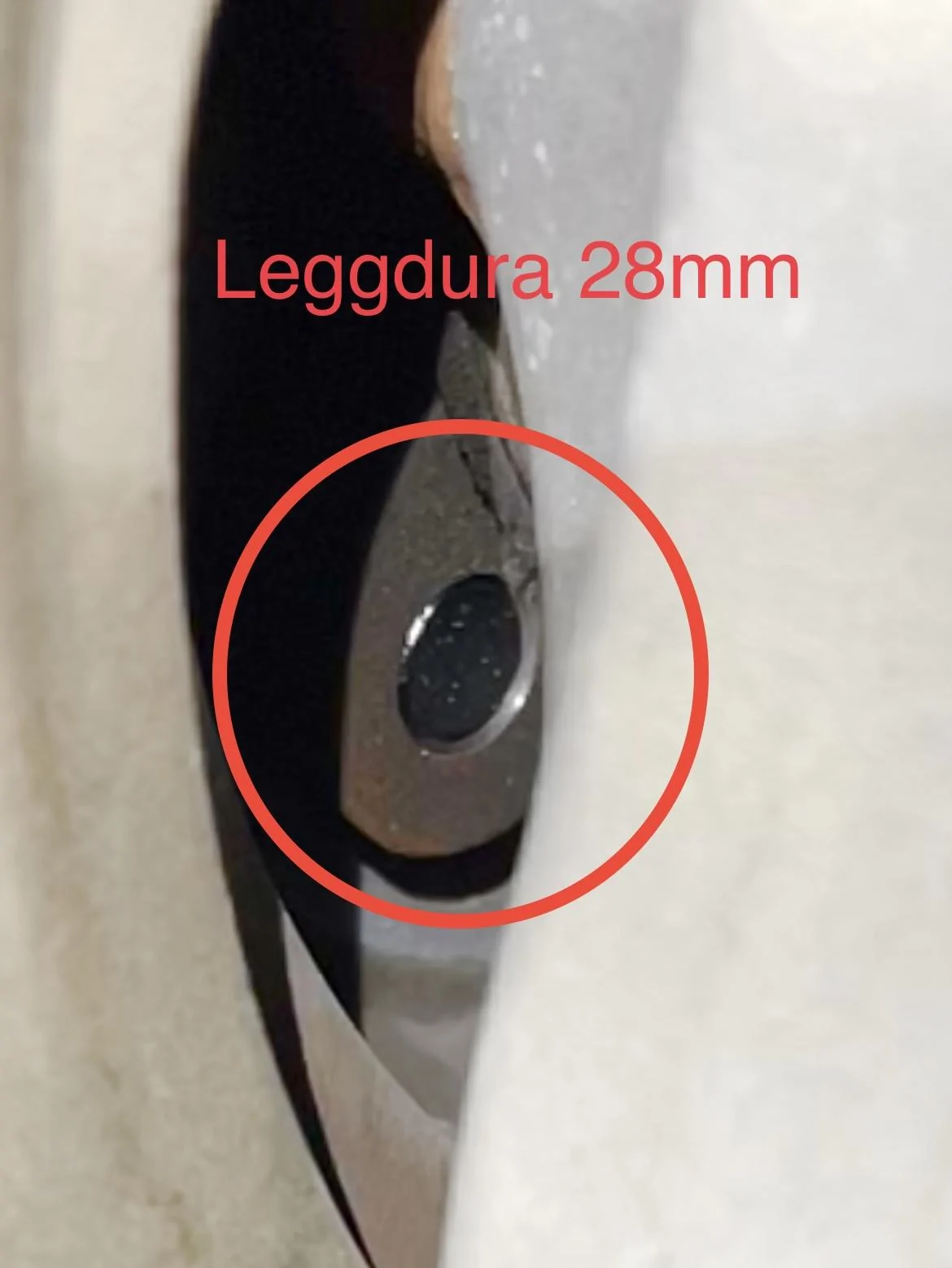

Most aftermarket wheels are thicker than stock. In this picture you see the 28mm Leggdura lug bolts with my HREs.

The 28mm lug bolts don’t reach the last thread in the axle hub. There are only 8 threads on the hubs so every thread counts.

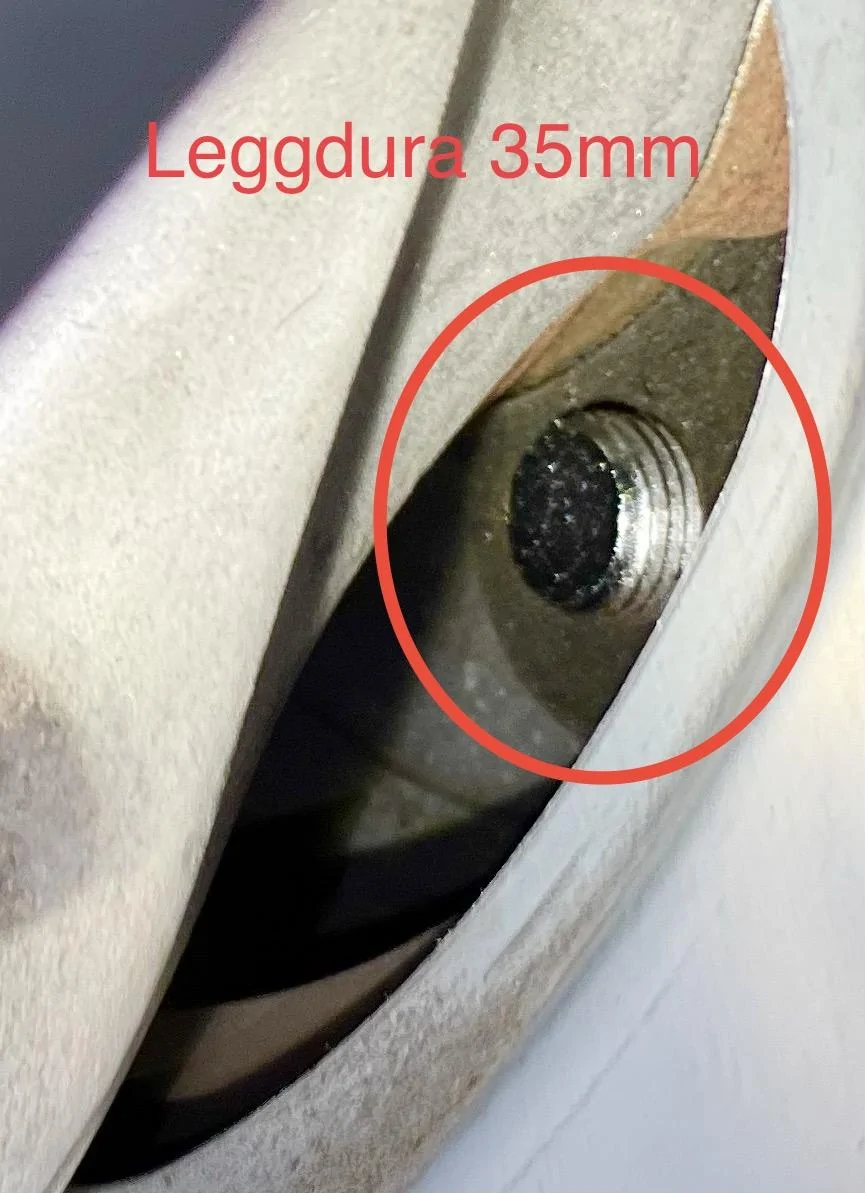

Here is what the 35mm lug bolts look like. There is enough length to engage every thread.

Sorry for the long winded explanation. Here is a write up I did the 35mm Leggdura lug bolts.

https://www.supramkv.com/threads/extended-length-lug-bolts-35mm.12799/

-RJM



[Amfchang]

I can’t find the 35mm anywhere… I wonder if they discontinued it



[Loco38SUP]

I can’t find the 35mm anywhere… I wonder if they discontinued it

They were having supply chain issues. Looks like they stopped making them.

-RJM



[Amfchang]

I have te37 ultra ms so I’m worried this might be an issue for me too… I do t have spacers though and idk about how thick the face is.



[Amfchang]

Yes, the thread diameter and pitch is M14xP1.25 and the conical seats are 60 degrees. The stock thread length is 28mm.

I would highly recommend the 35mm lengths for aftermarket wheels. Here is why:

Most aftermarket wheels are thicker than stock. In this picture you see the 28mm Leggdura lug bolts with my HREs.

The 28mm lug bolts don’t reach the last thread in the axle hub. There are only 8 threads on the hubs so every thread counts.

Here is what the 35mm lug bolts look like. There is enough length to engage every thread.

Sorry for the long winded explanation. Here is a write up I did the 35mm Leggdura lug bolts.

https://www.supramkv.com/threads/extended-length-lug-bolts-35mm.12799/

-RJM

Would this hit anything? Being that the bolt extends past the hub?



[Loco38SUP]

Would this hit anything? Being that the bolt extends past the hub?

No, I’ve measured the clearance. There is 34mm front and 32mm rear spacing from the back of the hub to the tallest contact surface.

The 35mm lug bolts as seen in the pic above extend 19mm front and 18mm rear. There is plenty of clearance available.

-RJM
