    This will be a place for me to document the progression of my build and track experience with the car. As with any new platform, being an early adopter to the aftermarket scene has provided plenty of issues to troubleshoot. Feel free to ask away if you have any questions!

    Car:
    2020 Toyota Supra Launch Edition (#1281)
    Nocturnal Black

    Engine Mods:

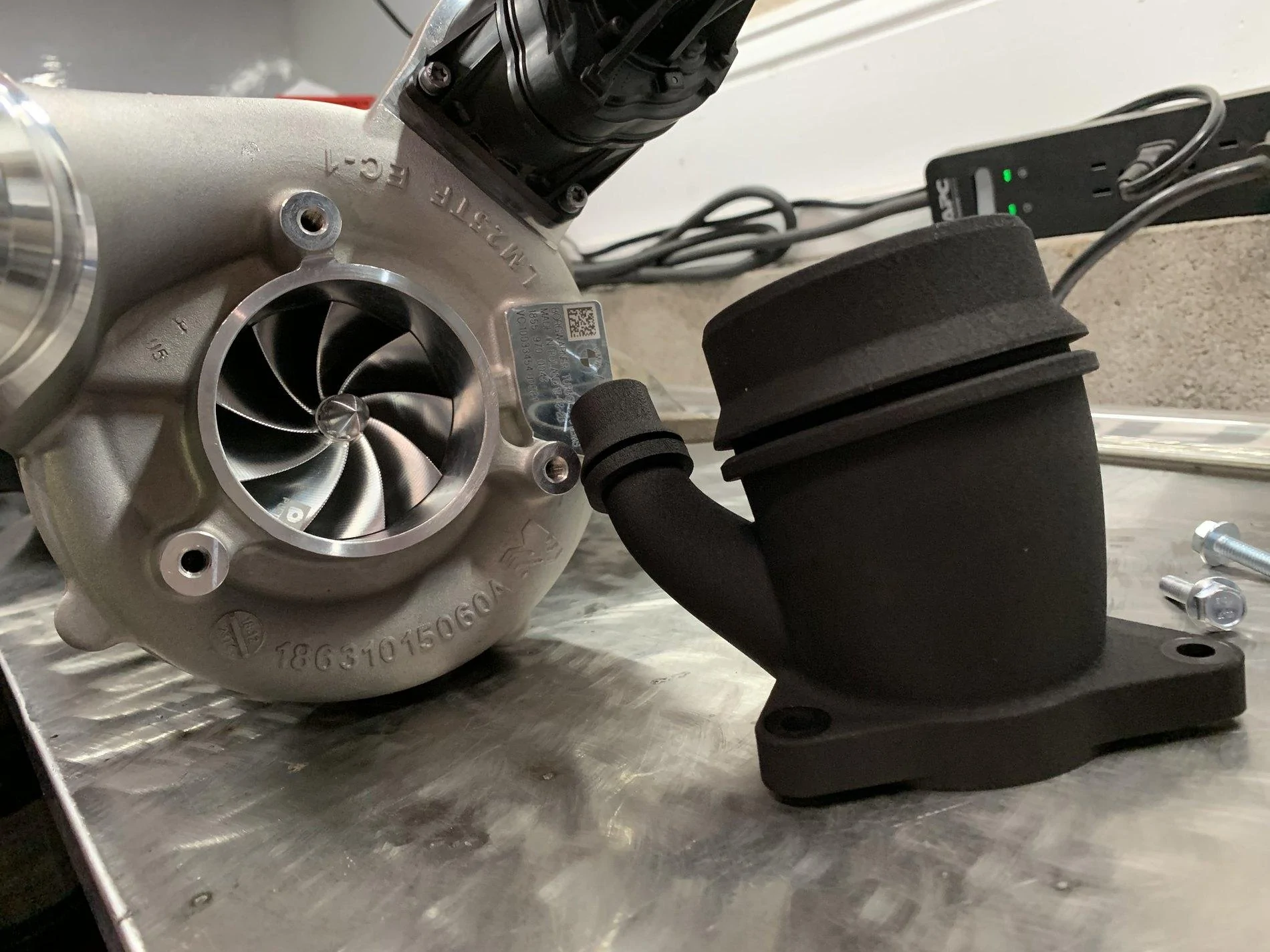

    Pure Stage 2 Turbo
    Euroformance Catless Downpipe

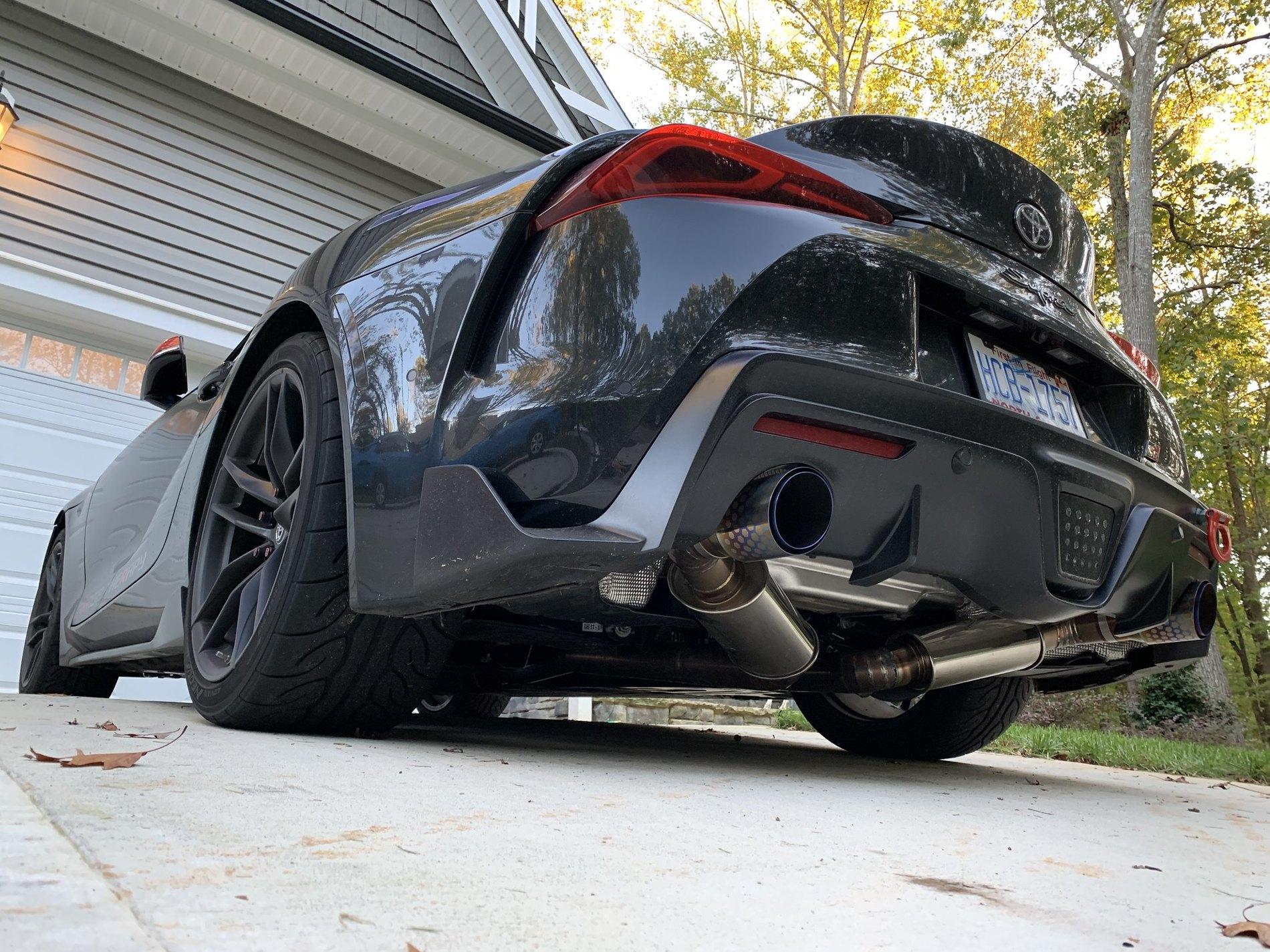

    GTNC 3.5" Catback Exhaust (RFD Ti Tips)
    CSG Spec - MHD Tune


    Suspension Mods:
    KW V3 Coilovers (Not Yet Installed)
    Ground Control Front Camber Plates (In Production)

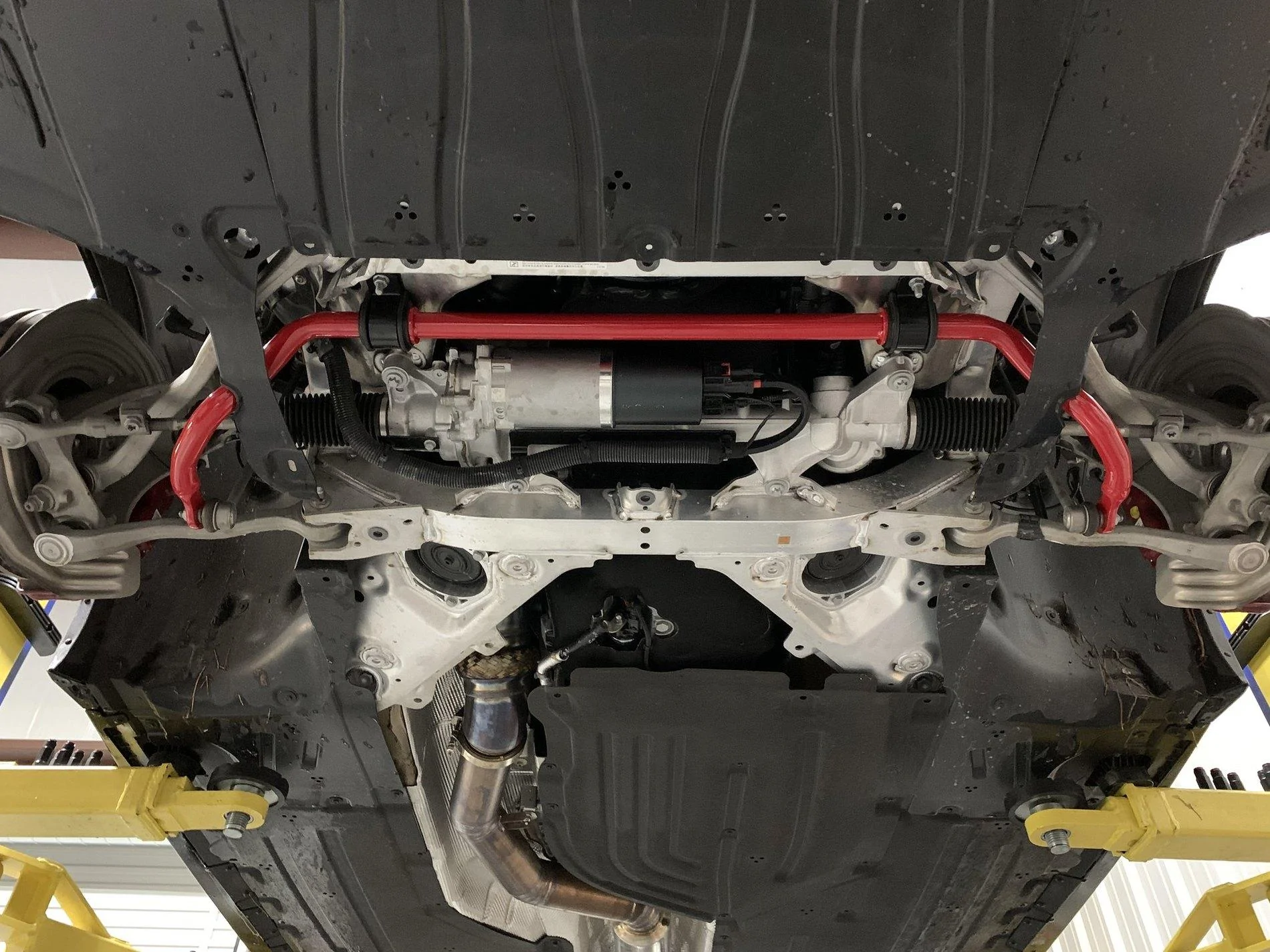

    Cusco Front & Rear Sway Bars

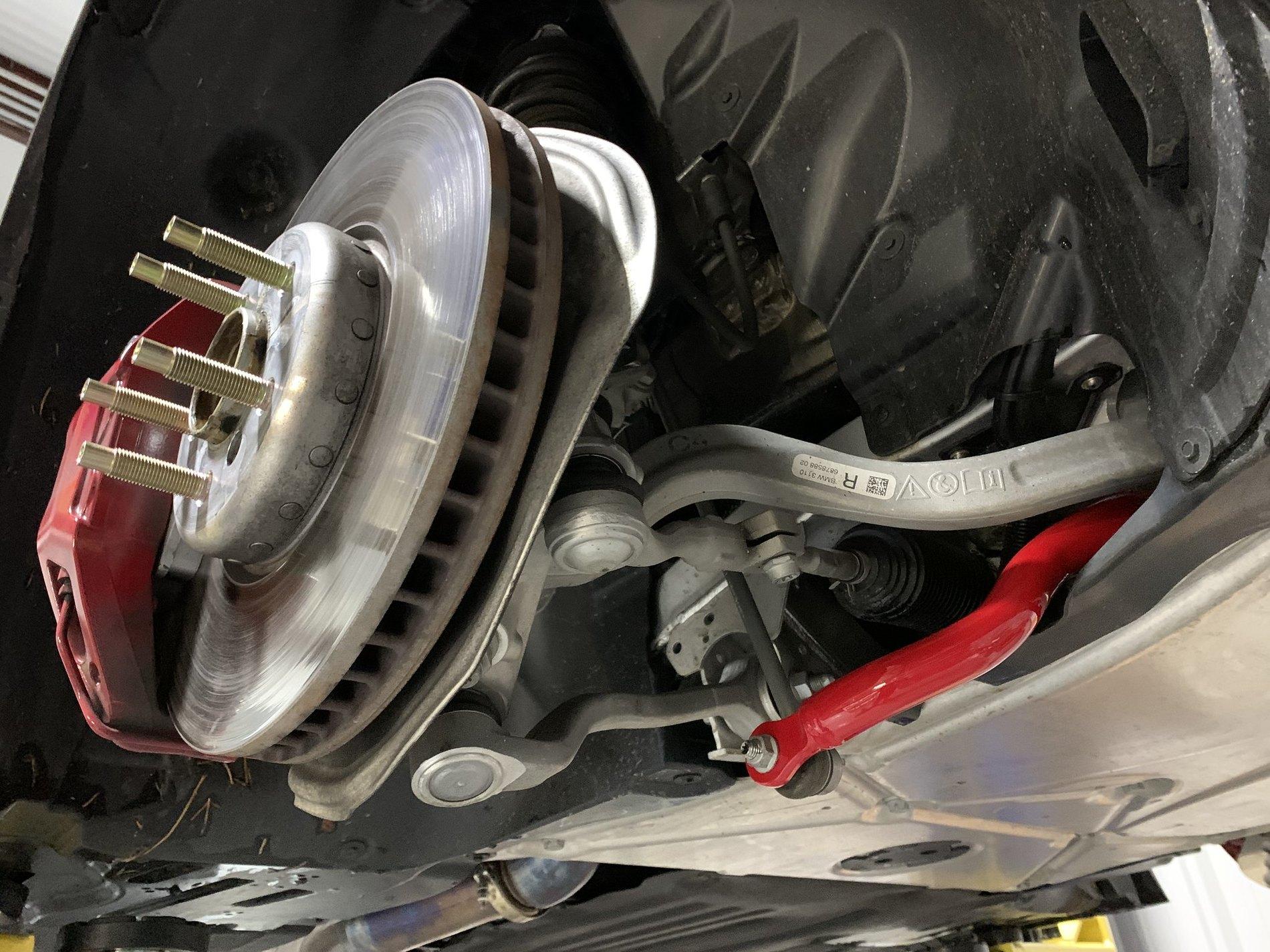

    Wheel Stud Conversion


    Brake Mods:

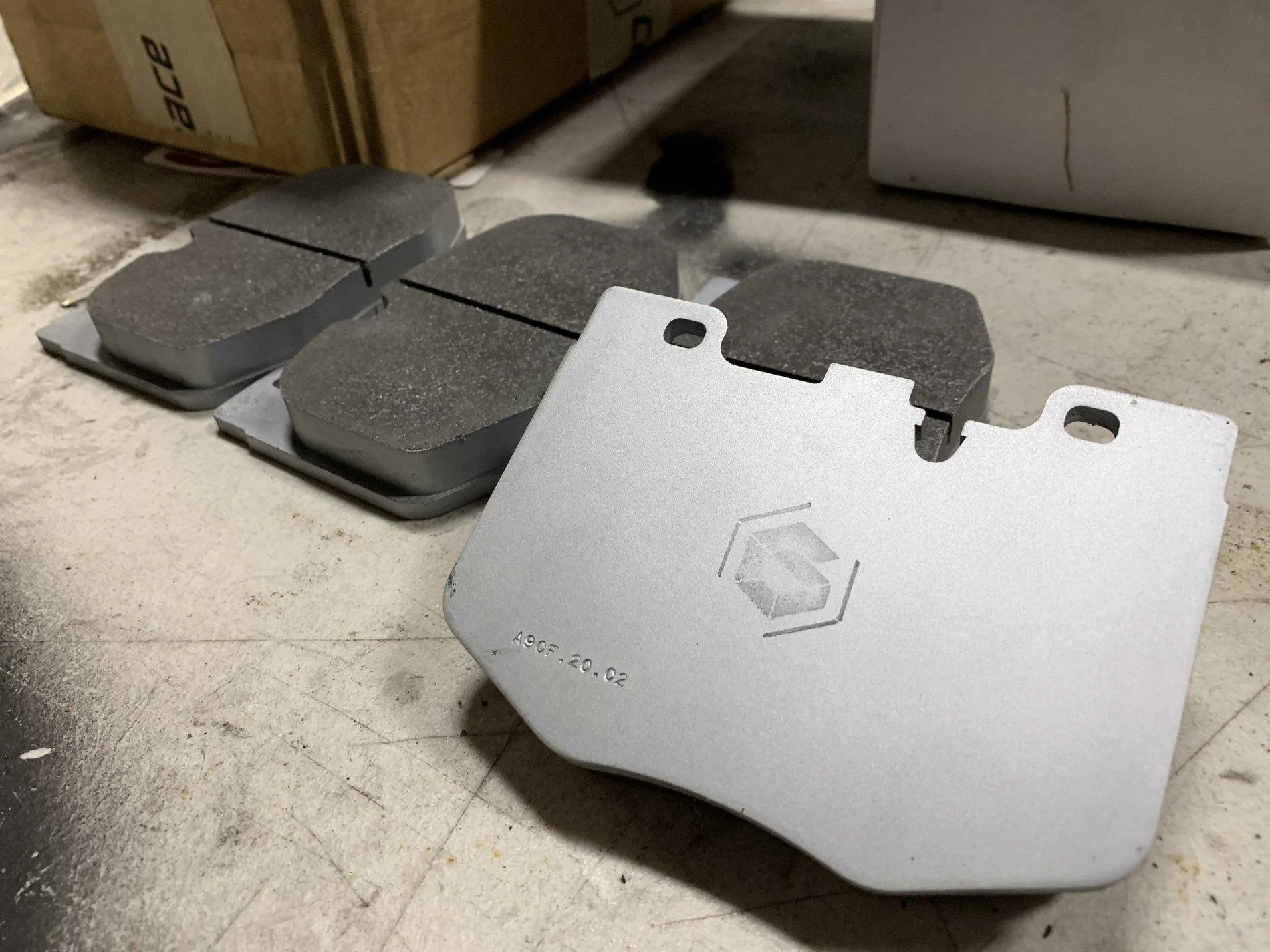

    CSG C2 Front Pads
    Motul RBF660


    Interior Mods:

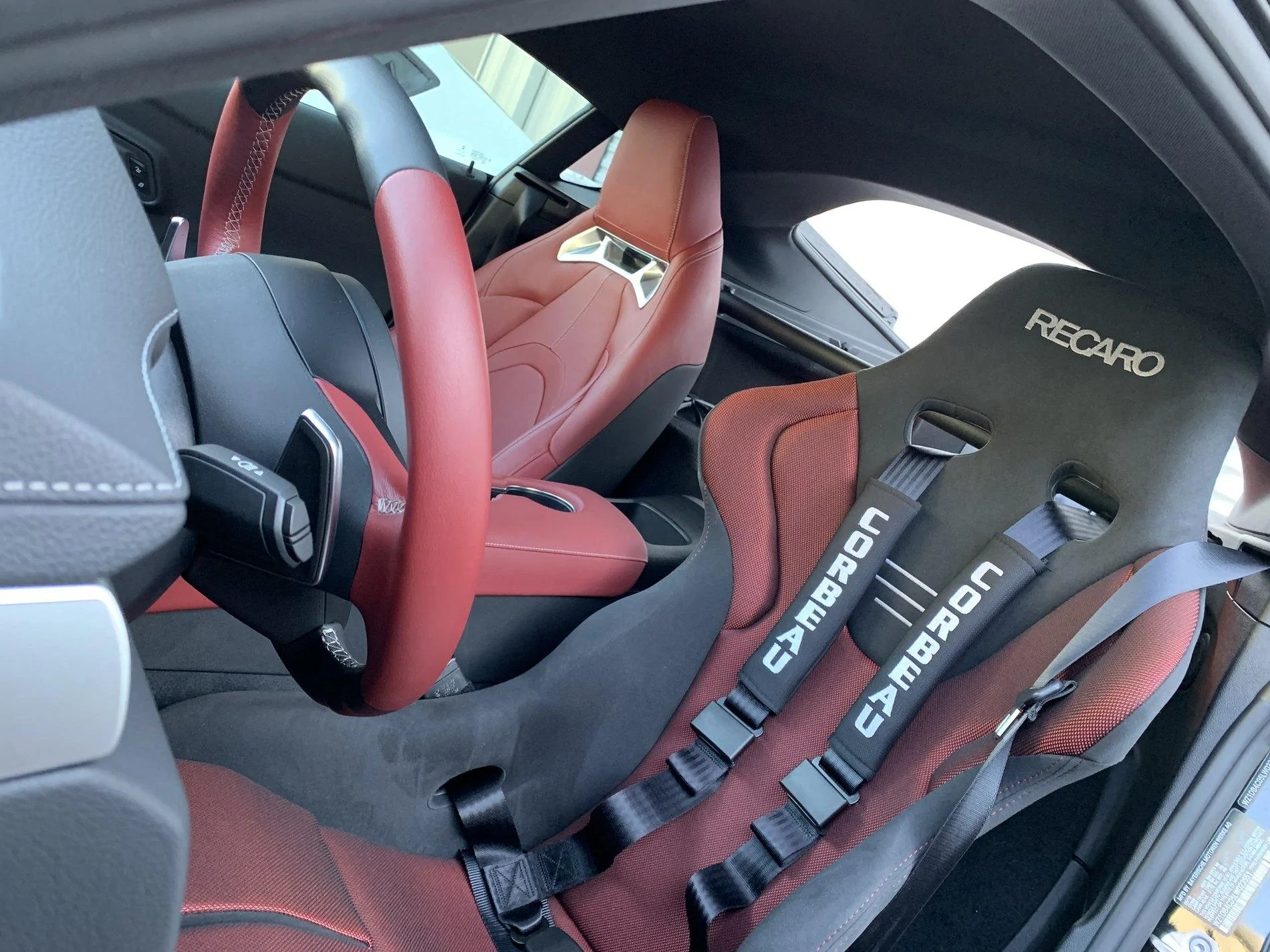

    Recaro RS-GK Fixed Bucket Seats
    GTNC Seat Bases
    Corbeau 4-Pt Harnesses
    Cusco Harness Bar (Powercoated Wrinkle Black)


    Tsar, bobbybiglug, Darth and 3 others like this.
  2. OP
    OP
    NotSoJDM

    NotSoJDM Well-Known Member

    First Name:
    Jordan
    Car(s):
    '04 E55 AMG | '13 BRZ Limited | '18 ZL1 1LE | '20 Supra LE
    Joined:
    Jun 11, 2019
    Location:
    Raleigh, NC
    Posts:
    52
    Liked:
    72
    Occupation:
    Engineer
    Home Page:
    Some track day pics:

  3. OP
    OP
    NotSoJDM

    NotSoJDM Well-Known Member

    First Name:
    Jordan
    Car(s):
    '04 E55 AMG | '13 BRZ Limited | '18 ZL1 1LE | '20 Supra LE
    Joined:
    Jun 11, 2019
    Location:
    Raleigh, NC
    Posts:
    52
    Liked:
    72
    Occupation:
    Engineer
    Home Page:

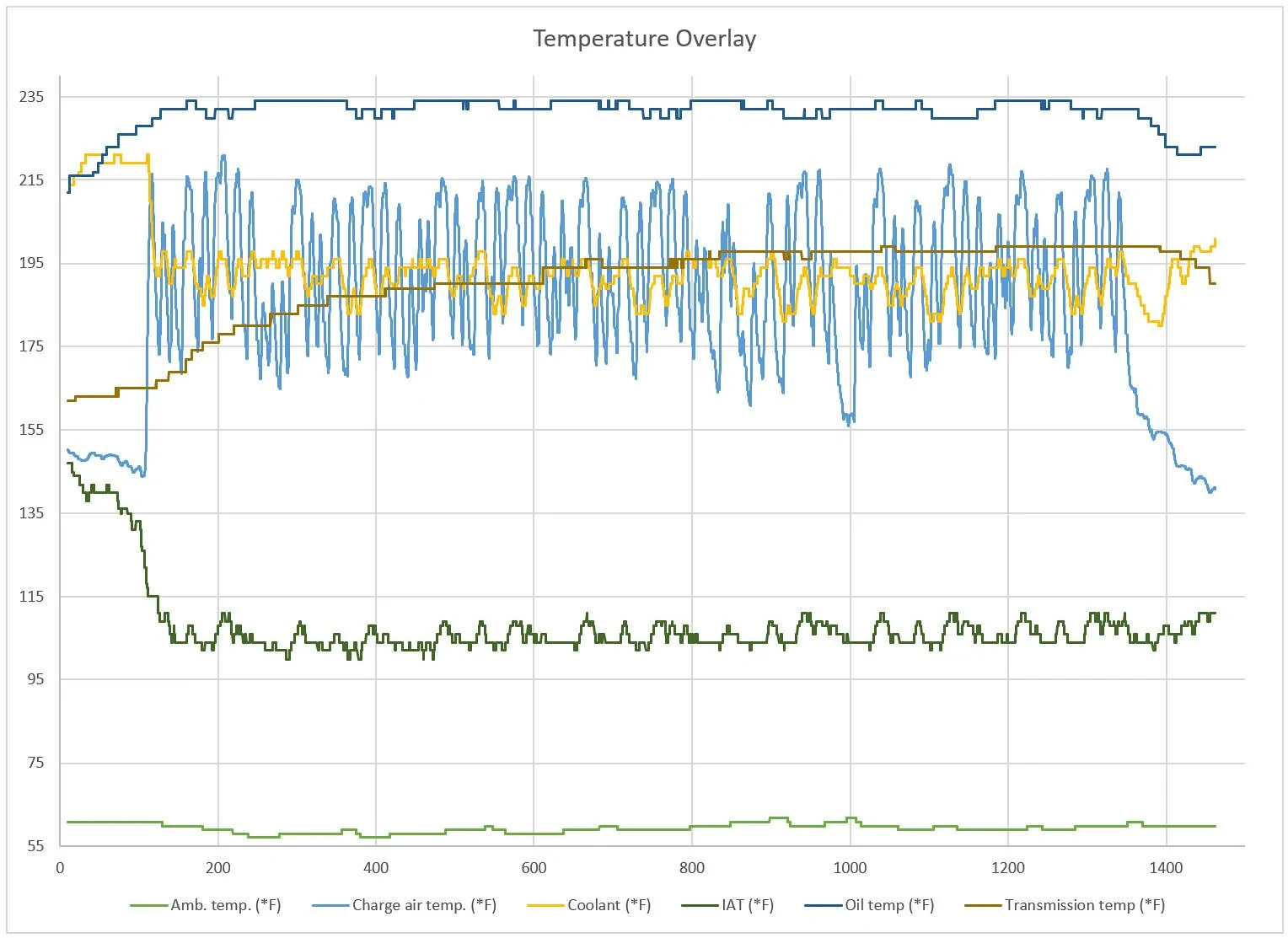

    I had a request to post some data, specifically temp data on track with the mods. So here's a quick overlay of all the pertinent temp data I can gather using the MHD logger.

    This data was taken during a single 20min session on Thursday at VIR in the Grand configuration. As you can see from the data, the ambient temps outside were sitting right around 60F for the majority of this session.

    For those unsure, the X-Axis is just time (s) and Y-Axis is temp (F). Everything looked to stay in check, with every temp recorded reaching an equilibrium state relatively early in the session, with the exception of the transmission (which I find pretty interesting). Peak temps were all very reasonable in my opinion, especially oil and coolant temps.

    After looking at this temp data, I am not super concerned about the need for a cooling solution just yet on the car, so I will continue to focus on suspension and brakes.

    If you guys want to see anything else, let me know!


    Darth, Supra Dupra and XtremeMaC like this.
  4. bobbybiglug

    bobbybiglug Active Member

    First Name:
    Brandon
    Car(s):
    '15 RCF, '20 Supra, '19 Tundra, '14 4Runner, '16 R1
    Joined:
    Jun 5, 2019
    Location:
    Utah
    Posts:
    30
    Liked:
    20
    Awesome build so far!

    Have you noticed any dips in oil pressure in higher G corners?

  5. Darth

    Darth Well-Known Member

    Car(s):
    Y61, Y62, AP1 S2000 Racecar, Westfield Aerorace, Evo 8, C6 ZO6, 370Z, Zupra
    Joined:
    Aug 19, 2019
    Location:
    Losail, Qatar
    Posts:
    45
    Liked:
    60
    Garage Profiles:
    4
    Great build Jordan!!

    Really exited for this thread. What kind of power where you making stock vs now?

    Did you send some logs to the tuner after the new mods on track? Curious to see if the tune had to be modfied further.
