Fuse Panel Layouts?

[akasonny]

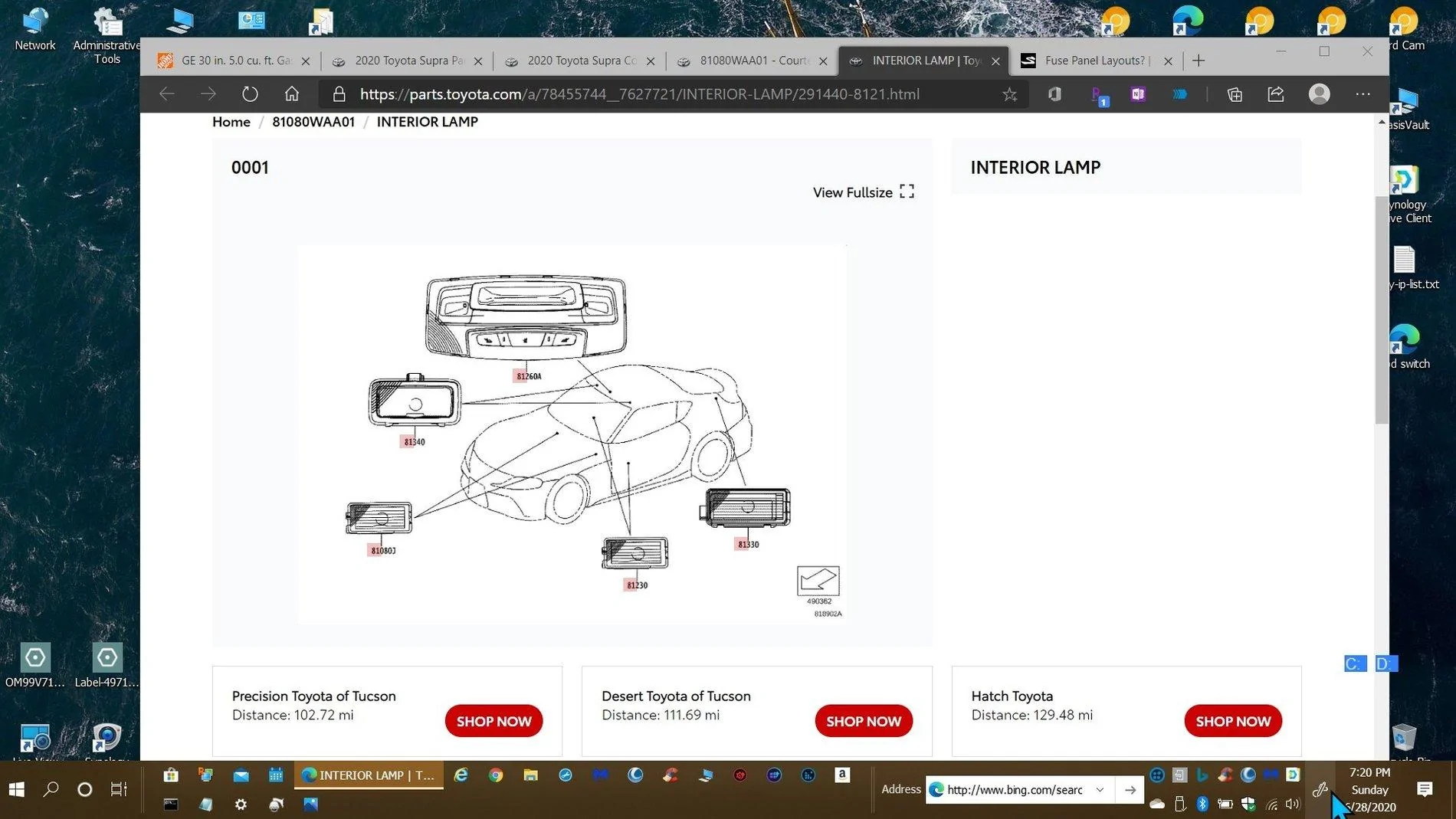

You have the part number by chance for the lights?

81080WAA01 are identical foot lights I believe.

Sponsored



[wolf_kyle]

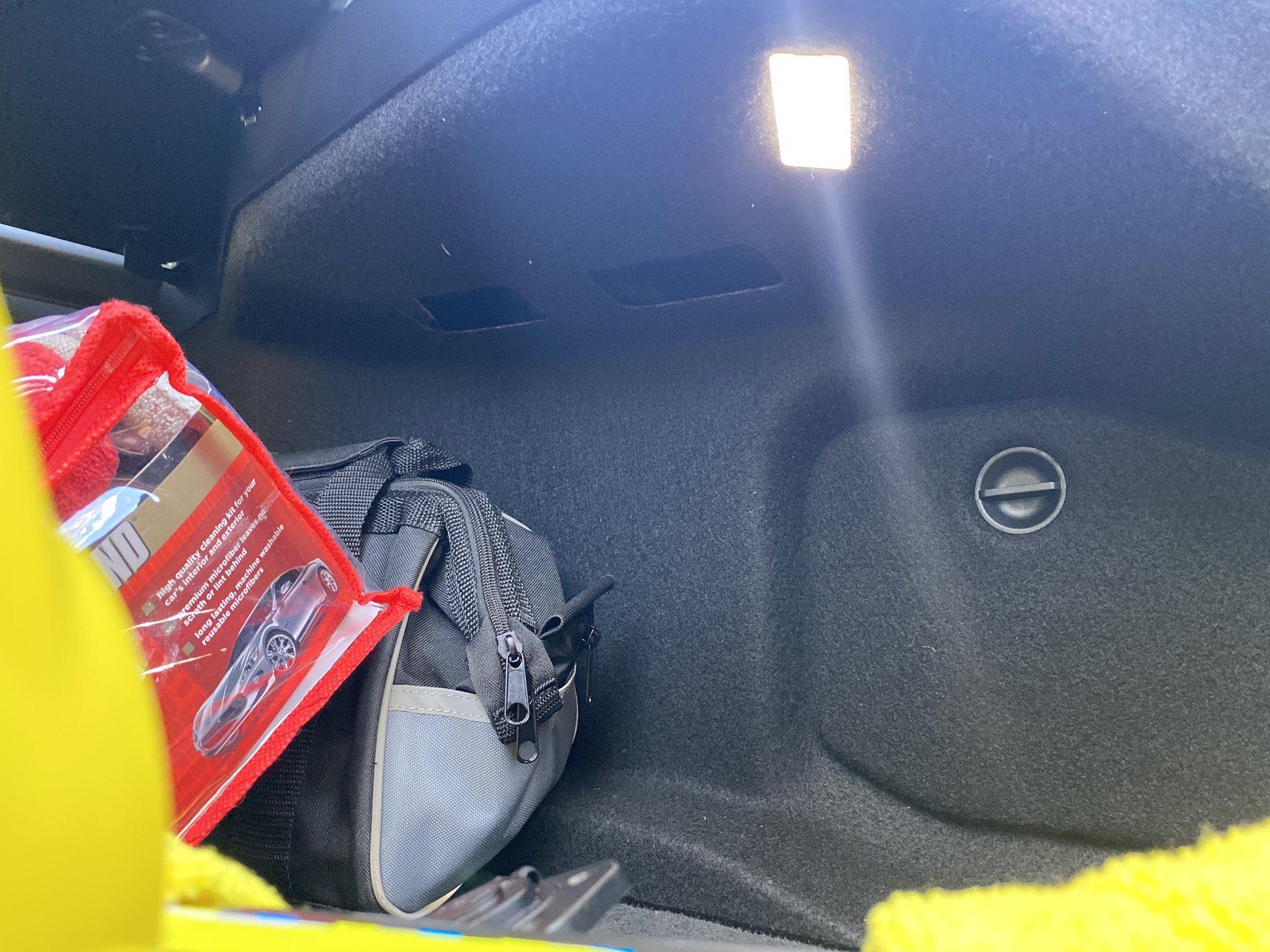

what about F245? the interior light in the trunk? I installed an additional USB and 12v Car charger on the trunk. Since I believe the Euro specs A90 has them. and its much easier to pump the tires and vacuum the trunk space with it. Rather than relying on the single cigarette lighter in the front. I used the F273 which also stays on 6mins after the car is off and turns on as soon as you unlock the car. I have no problem so far



[akasonny]

what about F245? the interior light in the trunk? I installed an additional USB and 12v Car charger on the trunk. Since I believe the Euro specs A90 has them. and its much easier to pump the tires and vacuum the trunk space with it. Rather than relying on the single cigarette lighter in the front. I used the F273 which also stays on 6mins after the car is off and turns on as soon as you unlock the car. I have no problem so far

I want the footwell lights to activate and deactivate with the opening of a door.

I would, to, really like to see your pics of your project as I’ve been thinking of doing that as well.



[wolf_kyle]

I want the footwell lights to activate and deactivate with the opening of a door.

I would, to, really like to see your pics of your project as I’ve been thinking of doing that as well.

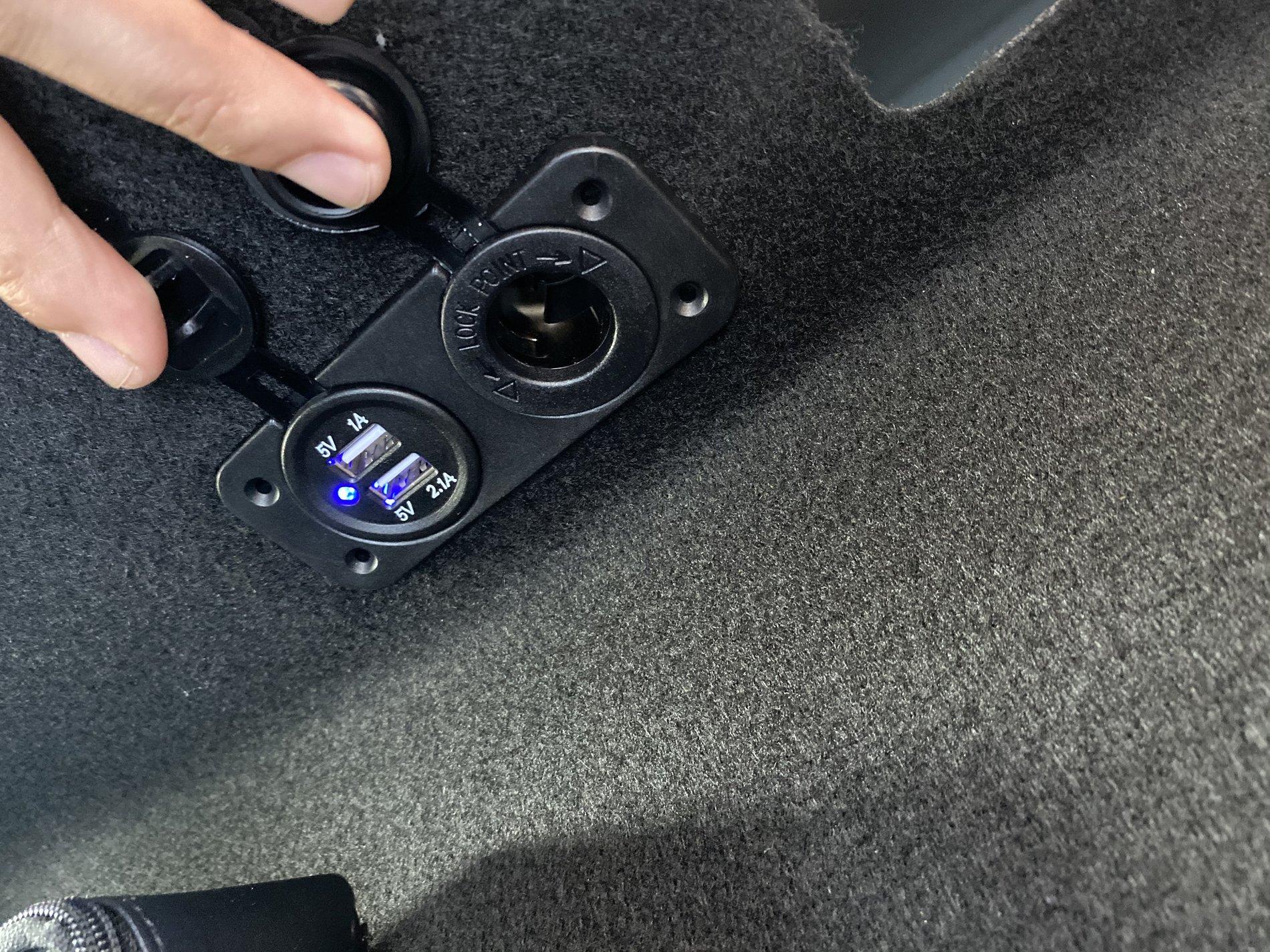

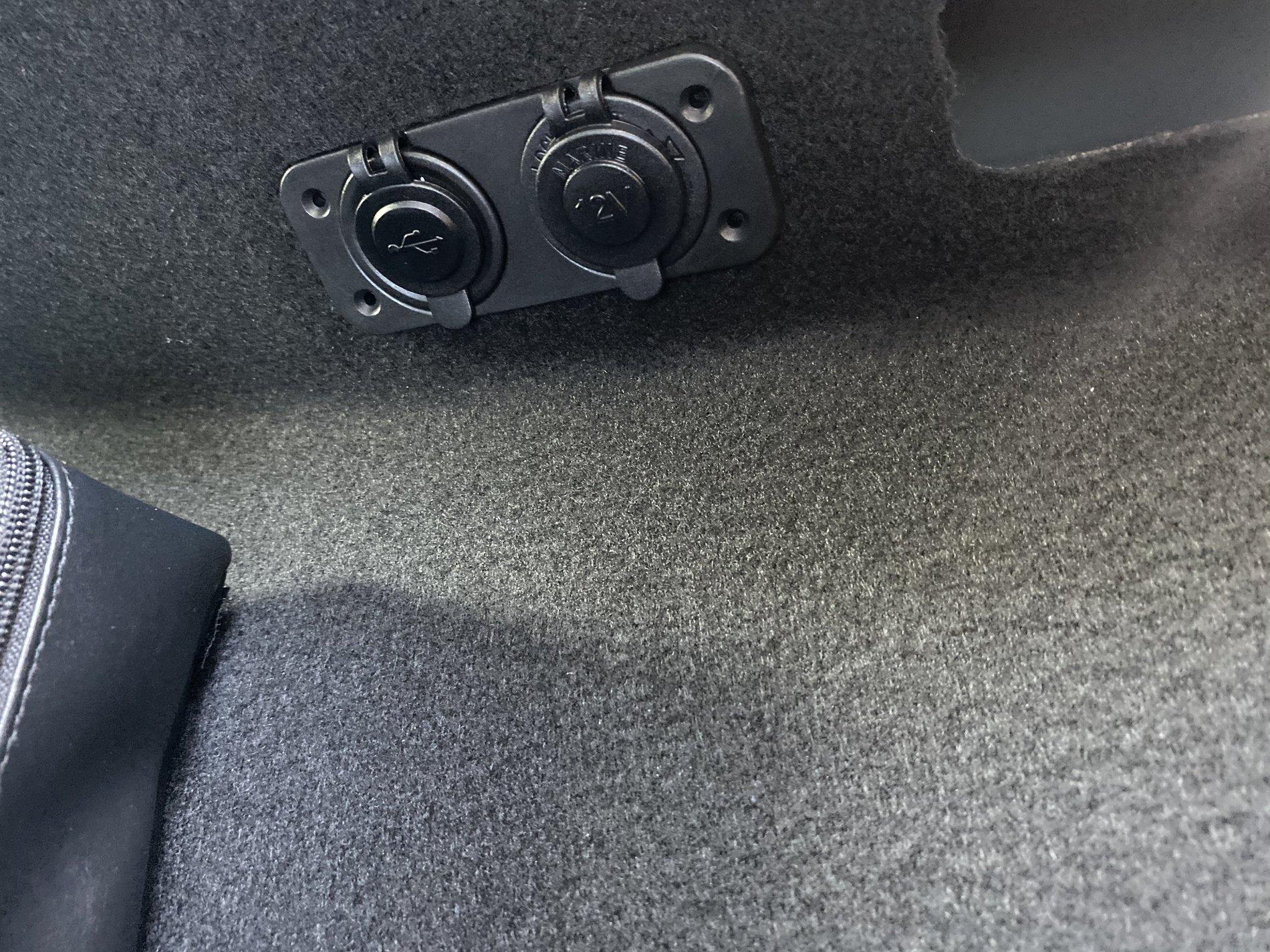

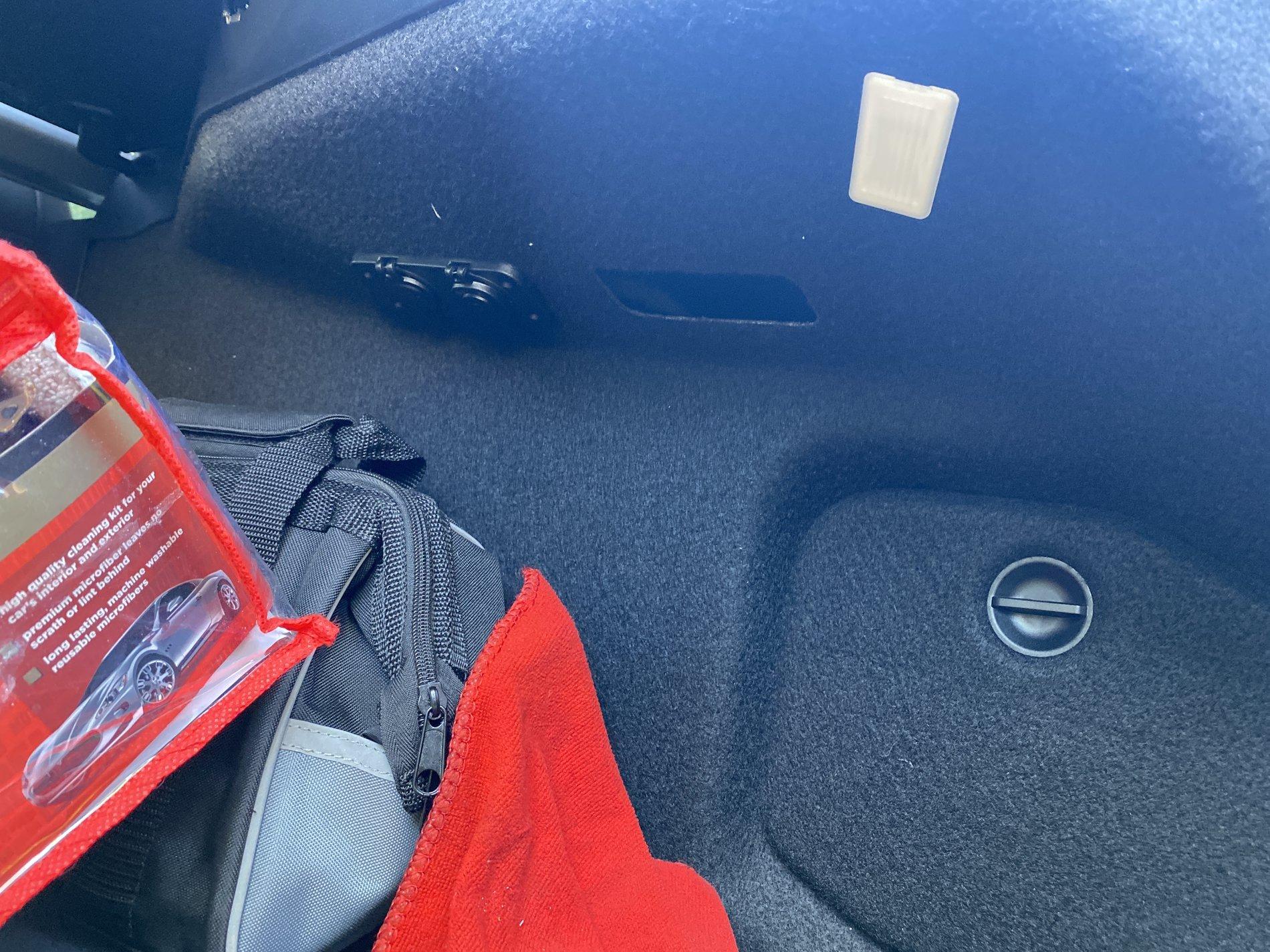

i saw the supra has these holes already in the trunk. And the port i bought fit perfectly in it. I didnt drill or cut into anything at all. Any of the holes wouldve worked. And i also didnt need to disassemble anything.



[akasonny]

Outstanding! I didn't notice the holes but I'm definitely going to check again. May I ask where you got the 12vdc power module?



[wolf_kyle]

Outstanding! I didn't notice the holes but I'm definitely going to check again. May I ask where you got the 12vdc power module?

https://www.ebay.com/itm/12V-24V-Du...e=STRK:MEBIDX:IT&_trksid=p2057872.m2749.l2649

This is exactly what I bought. I wasnt sure if it was going to work but im glad it did.

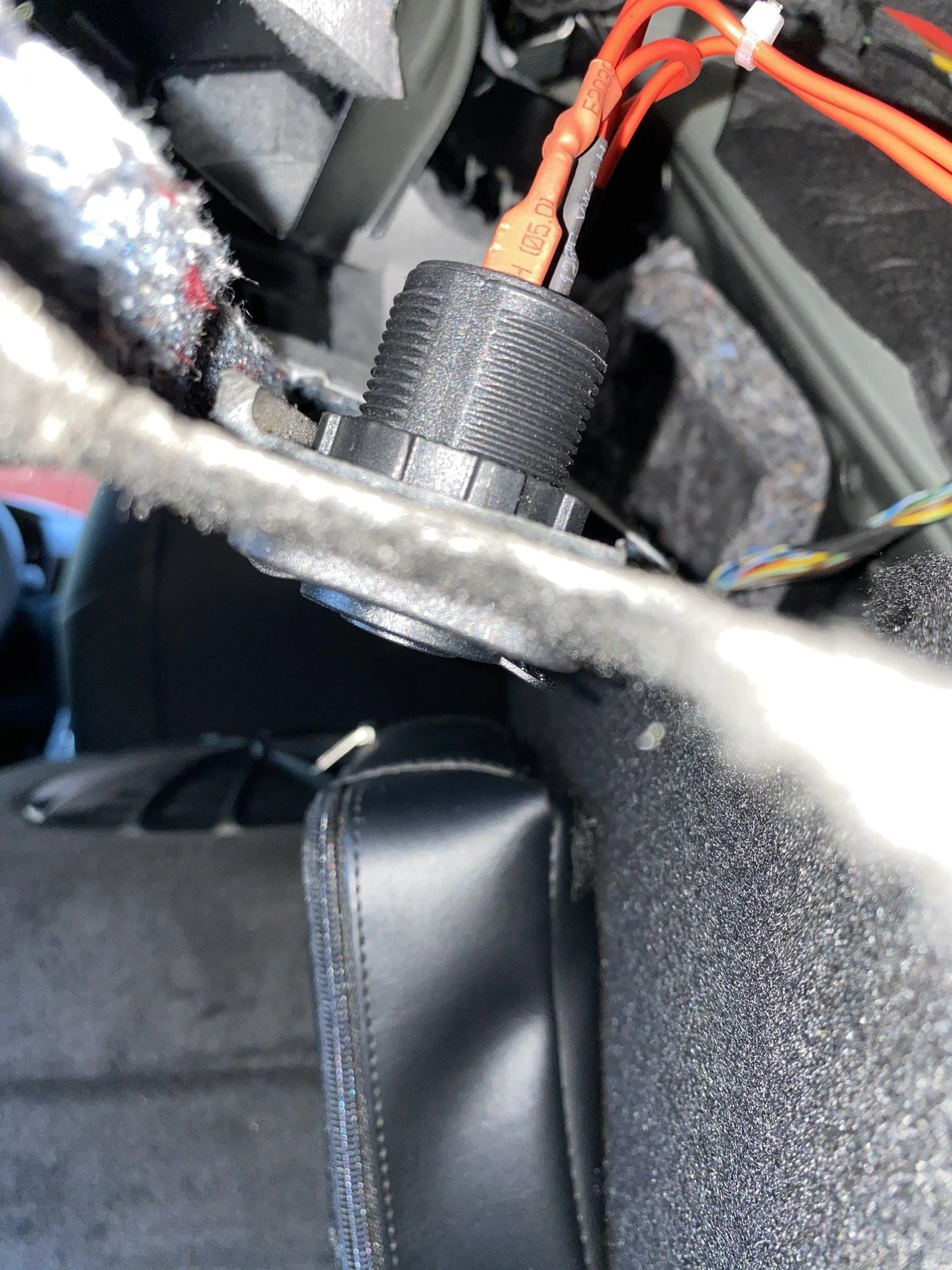

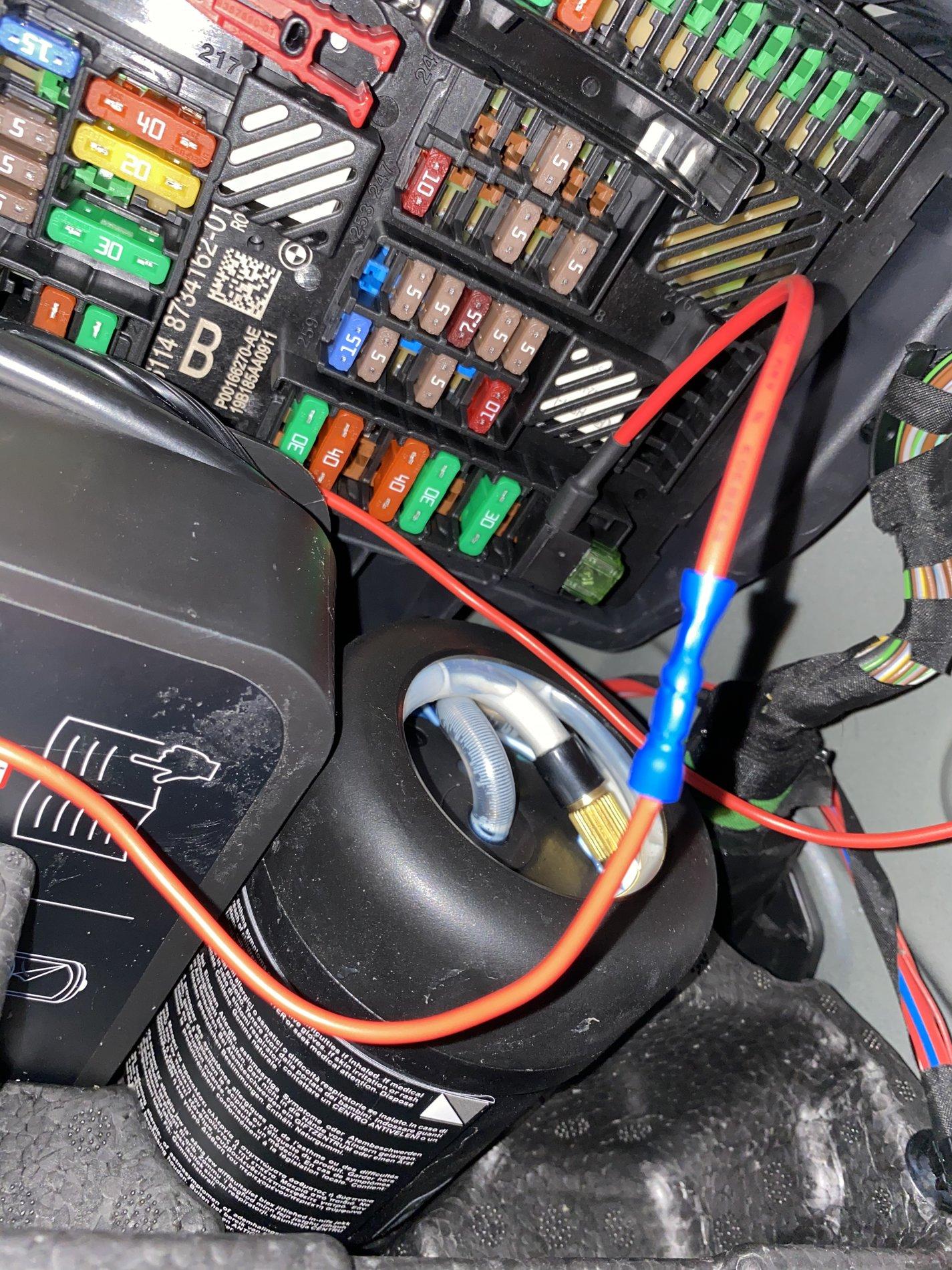

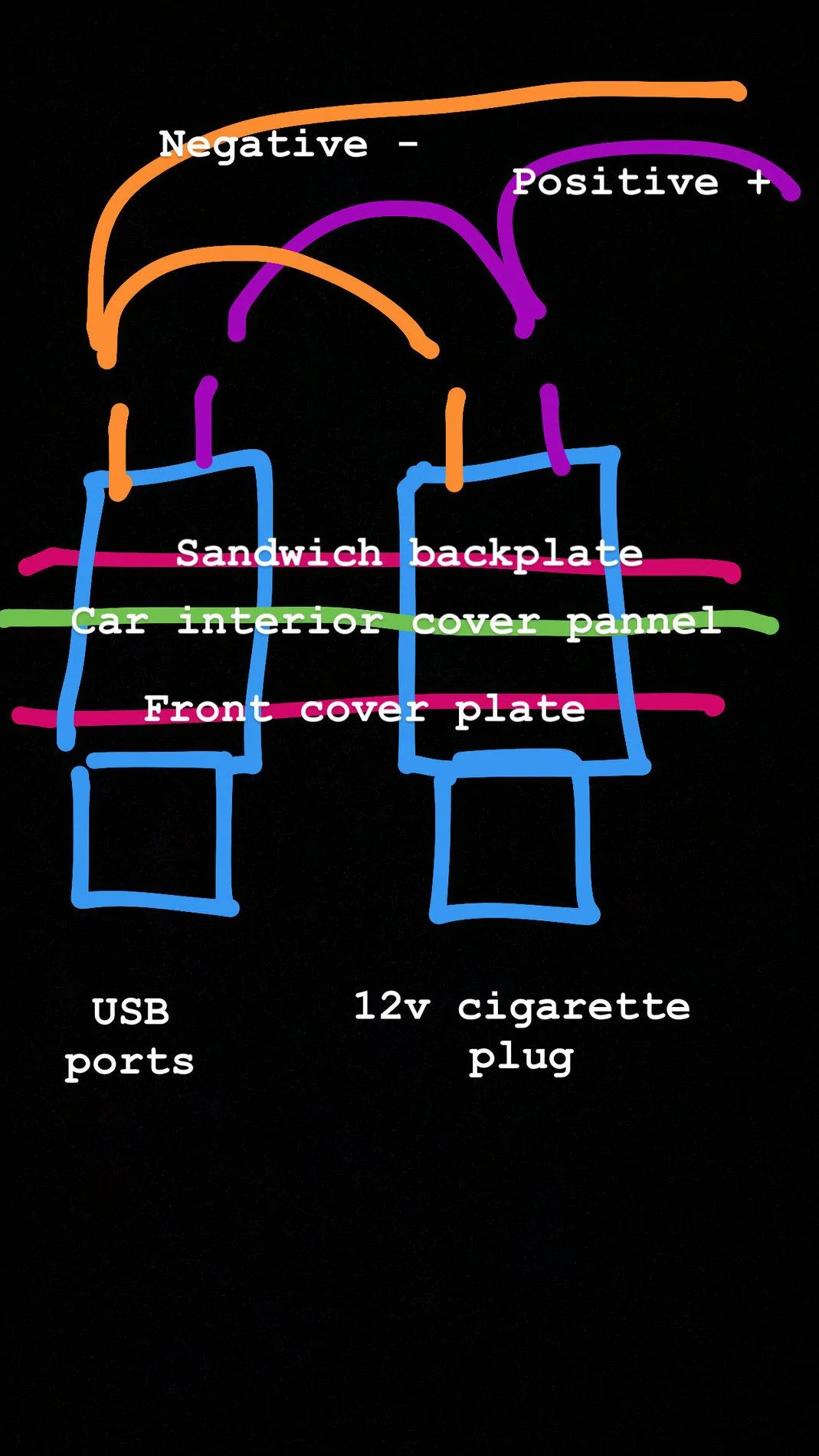

what i did to avoid screwing it on was making a back plate to sandwich it from the inside of the panel. Ill take more pictures when i get home to explain it. And i just tapped into the F273 with like a fuse tap adapter.

I was trying to go for like a "sleek, un noticable, OEM like look"



[akasonny]

https://www.ebay.com/itm/12V-24V-Dual-USB-Port-Car-Charger-Cigarette-Lighter-Outlet-For-ATV-RV-Motorcycle/254303184246?ssPageName=STRK:MEBIDX:IT&_trksid=p2057872.m2749.l2649

This is exactly what I bought. I wasnt sure if it was going to work but im glad it did.
what i did to avoid screwing it on was making a back plate to sandwich it from the inside of the panel. Ill take more pictures when i get home to explain it. And i just tapped into the F273 with like a fuse tap adapter.

I was trying to go for like a "sleek, un noticable, OEM like look"

Alright! I placed my order for that. I like it. What did you use for backplate material? I look forward to your additional pics. I really think this is a great job. Presumably, you wired both the USB & cig ports together in parallel and used just one fuse-tap.



[30MilesOffshore]

Nice setup! I might do the same now.



[wolf_kyle]

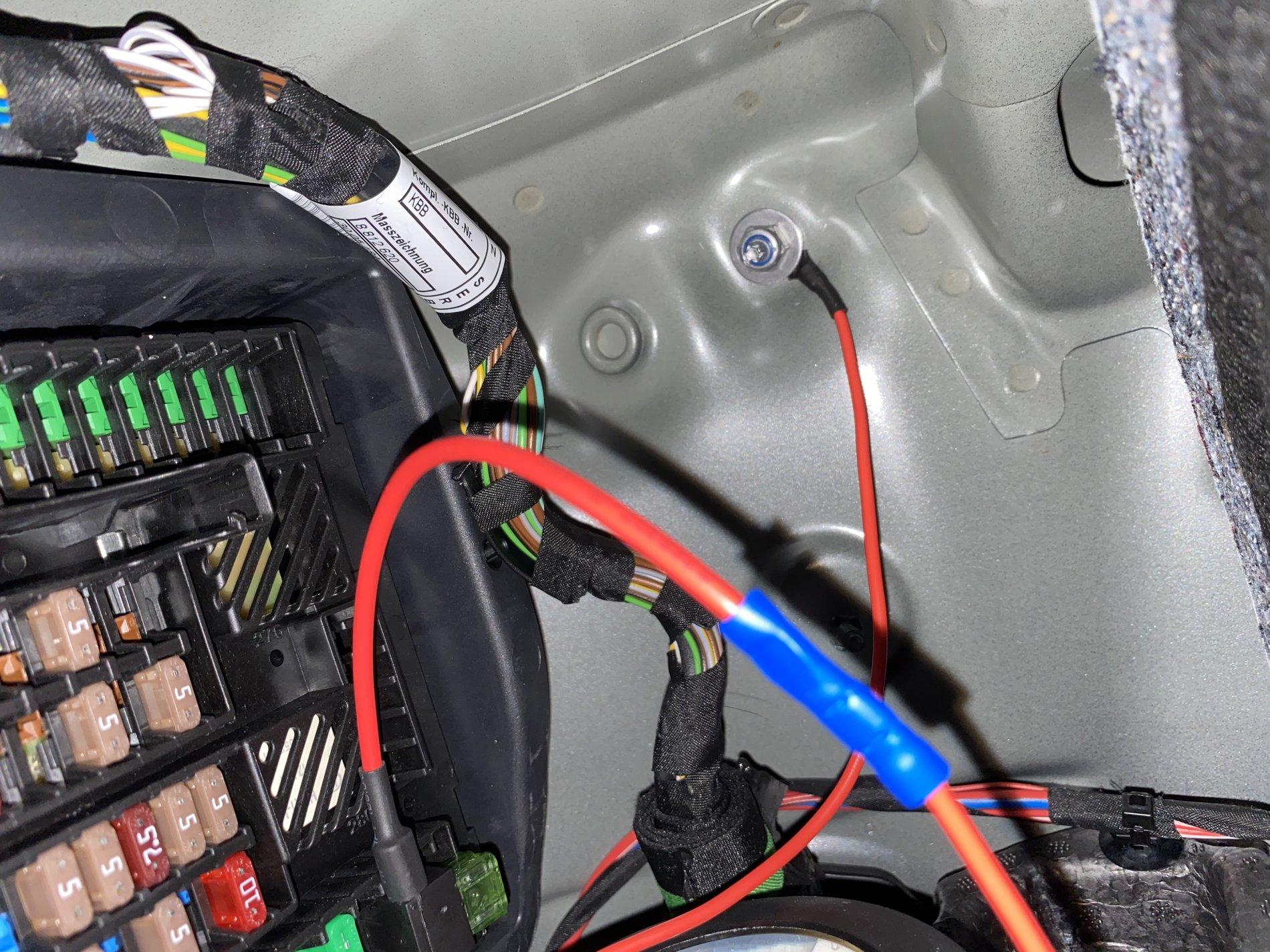

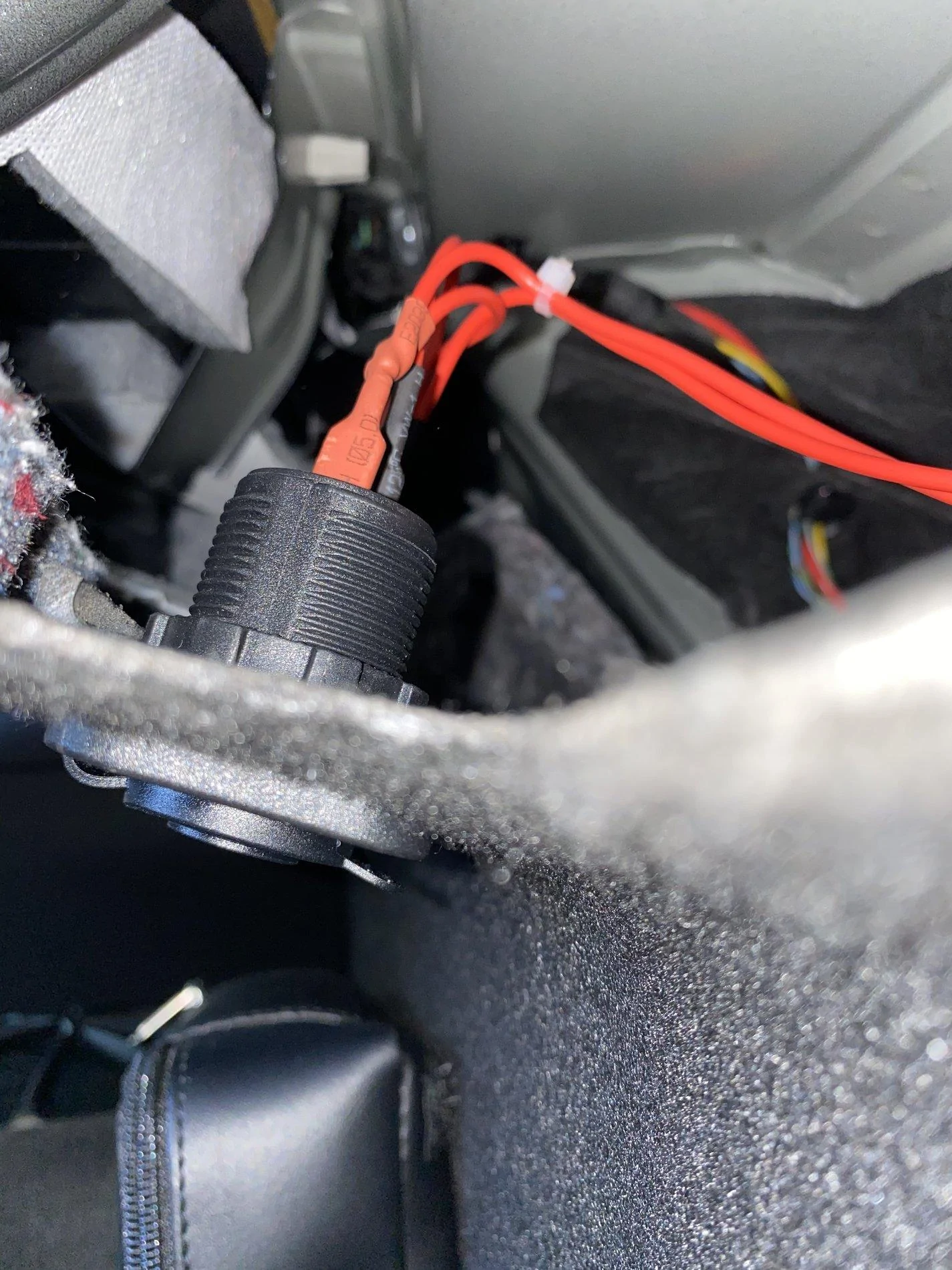

i took more pics, hopefully you guys can understand it. I could’ve cleaned up my wiring but i got too lazy and no one was going to look at it anyways i couldnt finr any other “good ground” so i used that screw. If you guys have any recommendations on how to improve it please let me know. Hope it helps. If you guys want ill post a DIY thread about it for more detailed installation.



[akasonny]

i took more pics, hopefully you guys can understand it. I could’ve cleaned up my wiring but i got too lazy and no one was going to look at it anyways i couldnt finr any other “good ground” so i used that screw. If you guys have any recommendations on how to improve it please let me know. Hope it helps. If you guys want ill post a DIY thread about it for more detailed installation.

Very nice. I wouldn't change a thing. Vehicle grounds are hard to find sometimes but yours is as good as any. Thanks for all the pics and tips. Your install is a good road-map. Appreciate it.

Just one question. What material did you use for the backplate?



[wolf_kyle]

Very nice. I wouldn't change a thing. Vehicle grounds are hard to find sometimes but yours is as good as any. Thanks for all the pics and tips. Your install is a good road-map. Appreciate it.

Just one question. What material did you use for the backplate?

oh for the backplate i used like an ABS plastic. i cut it up from a front lip i broke from my miata. but i mean any material should be fine just make sure it slightly bigger than the front plate.



[wolf_kyle]

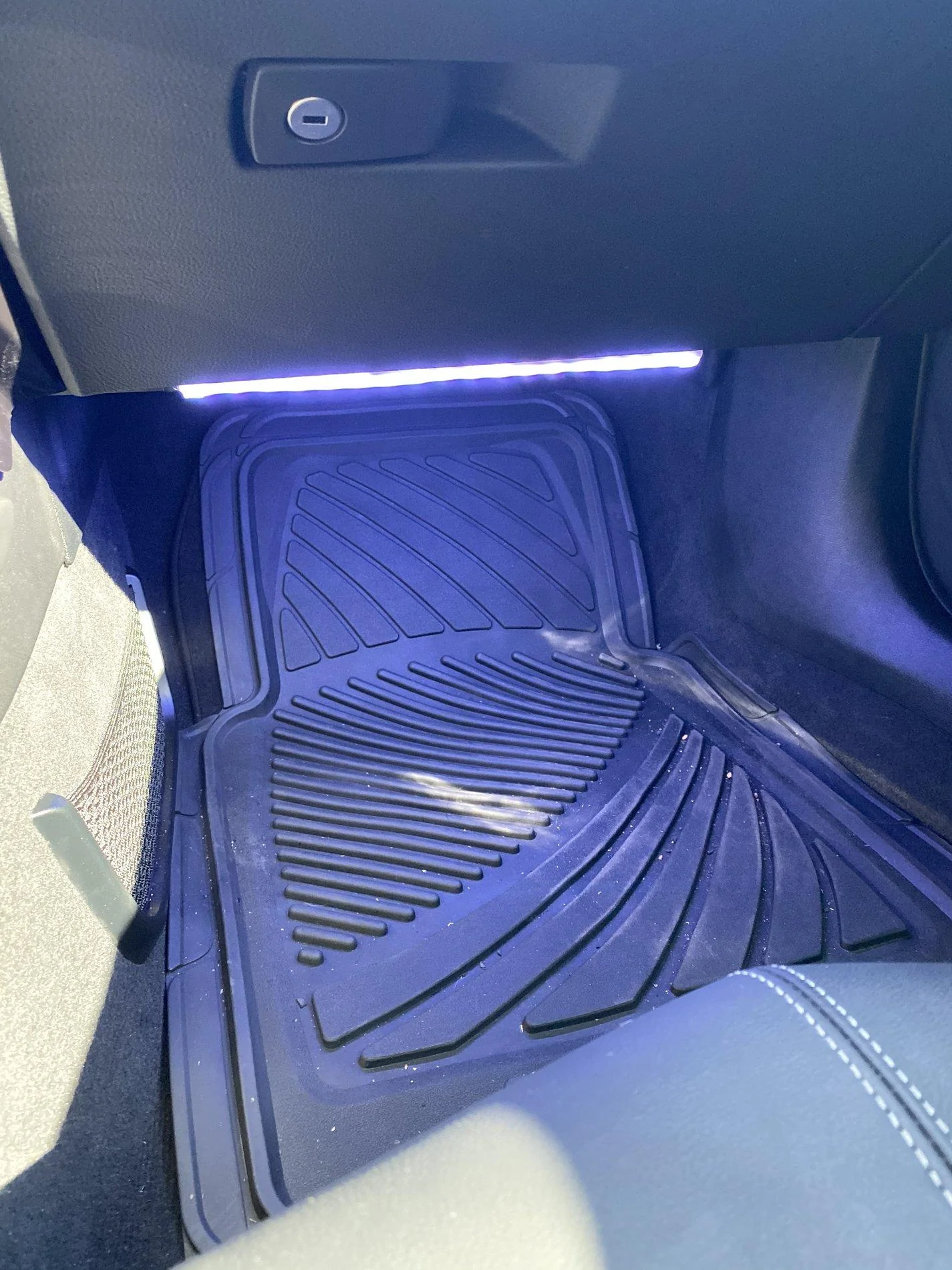

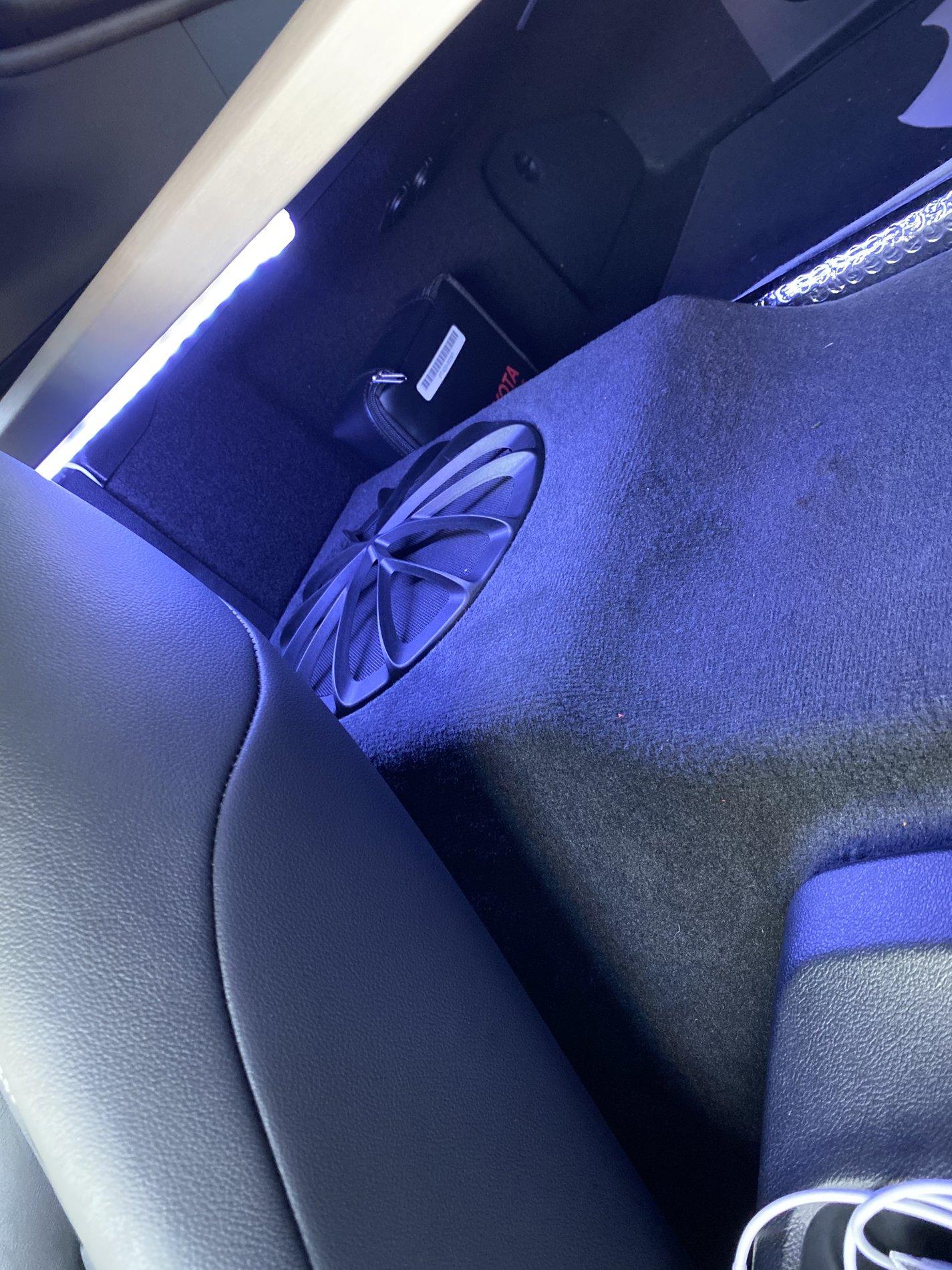

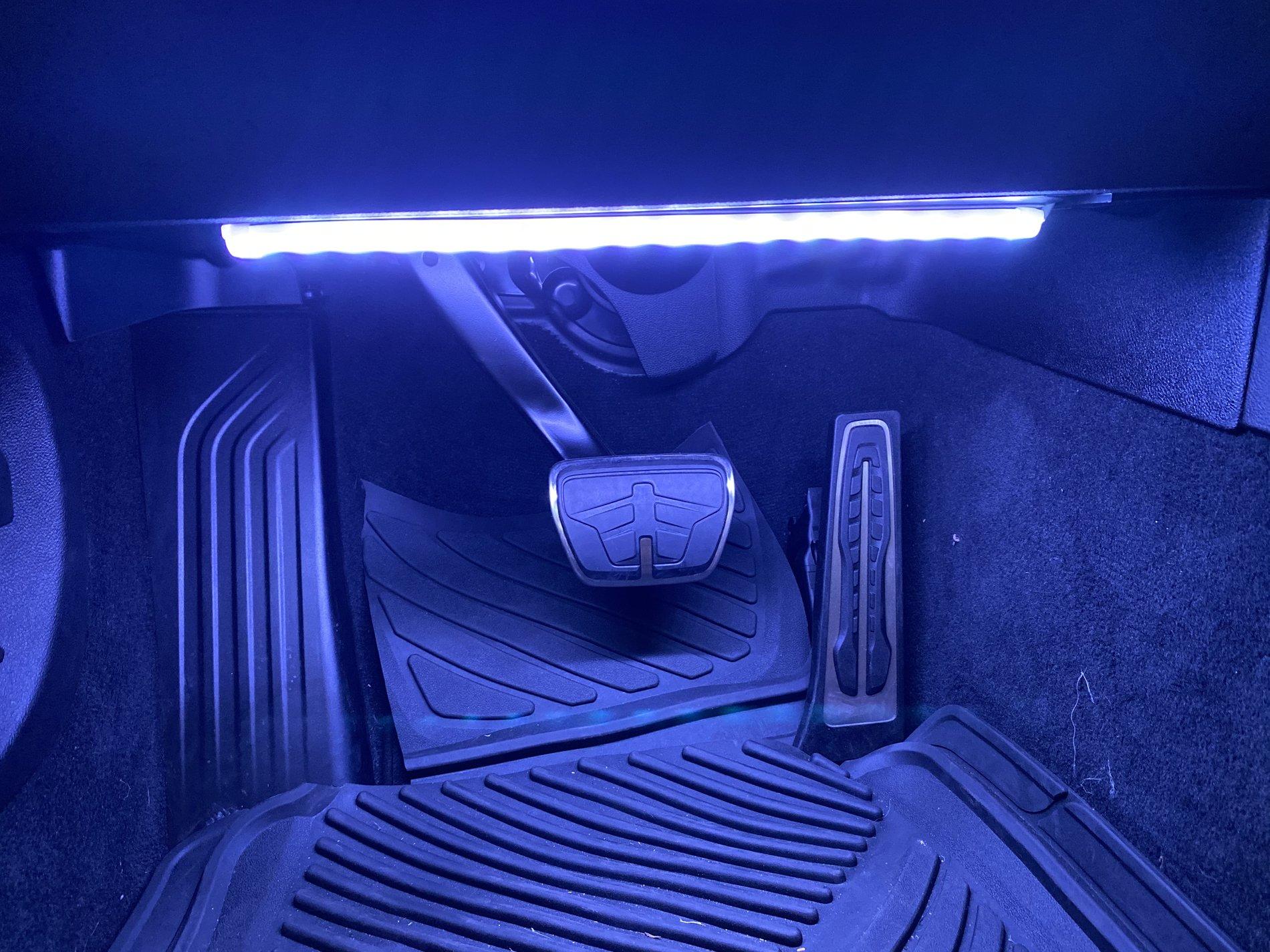

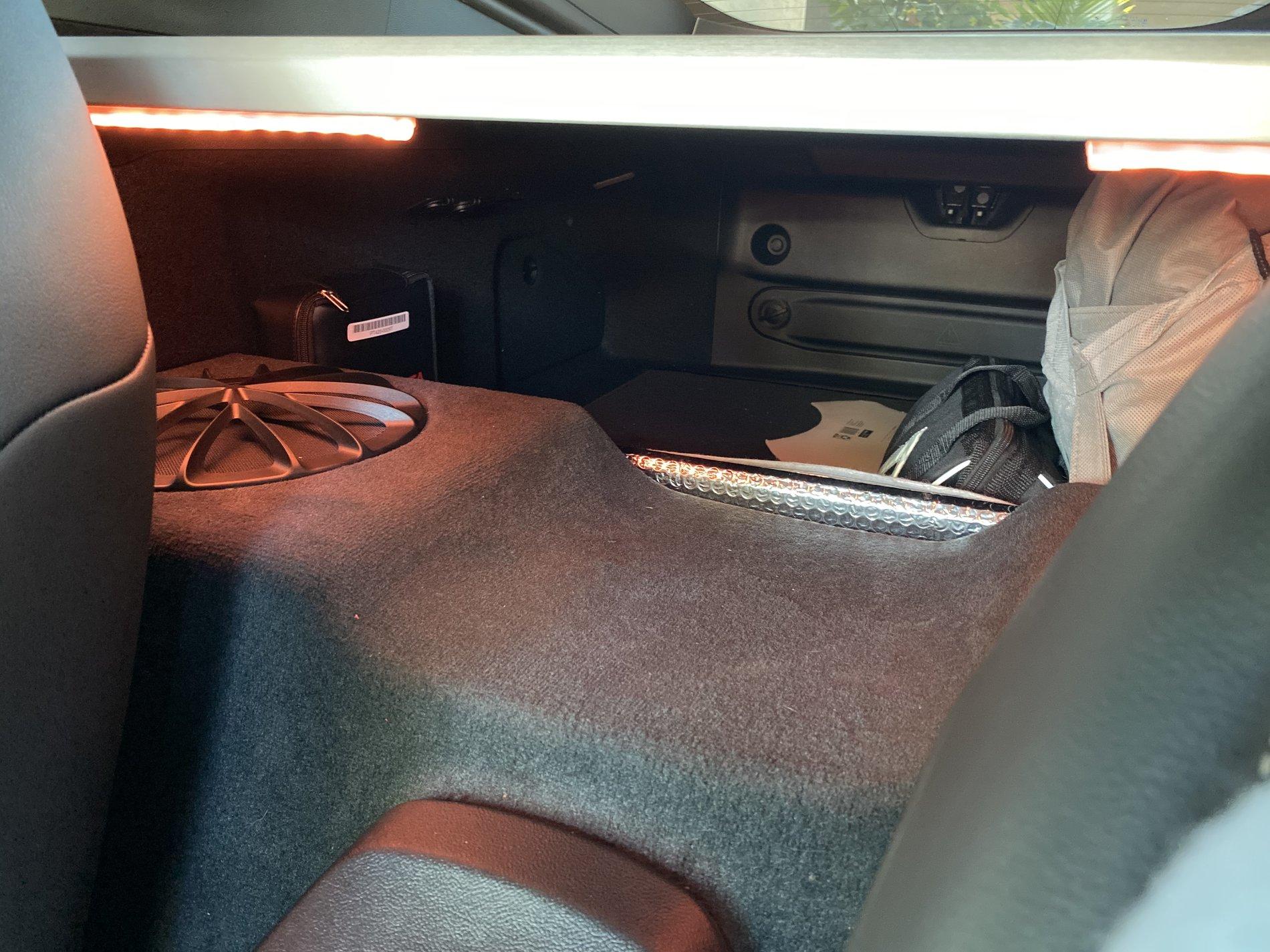

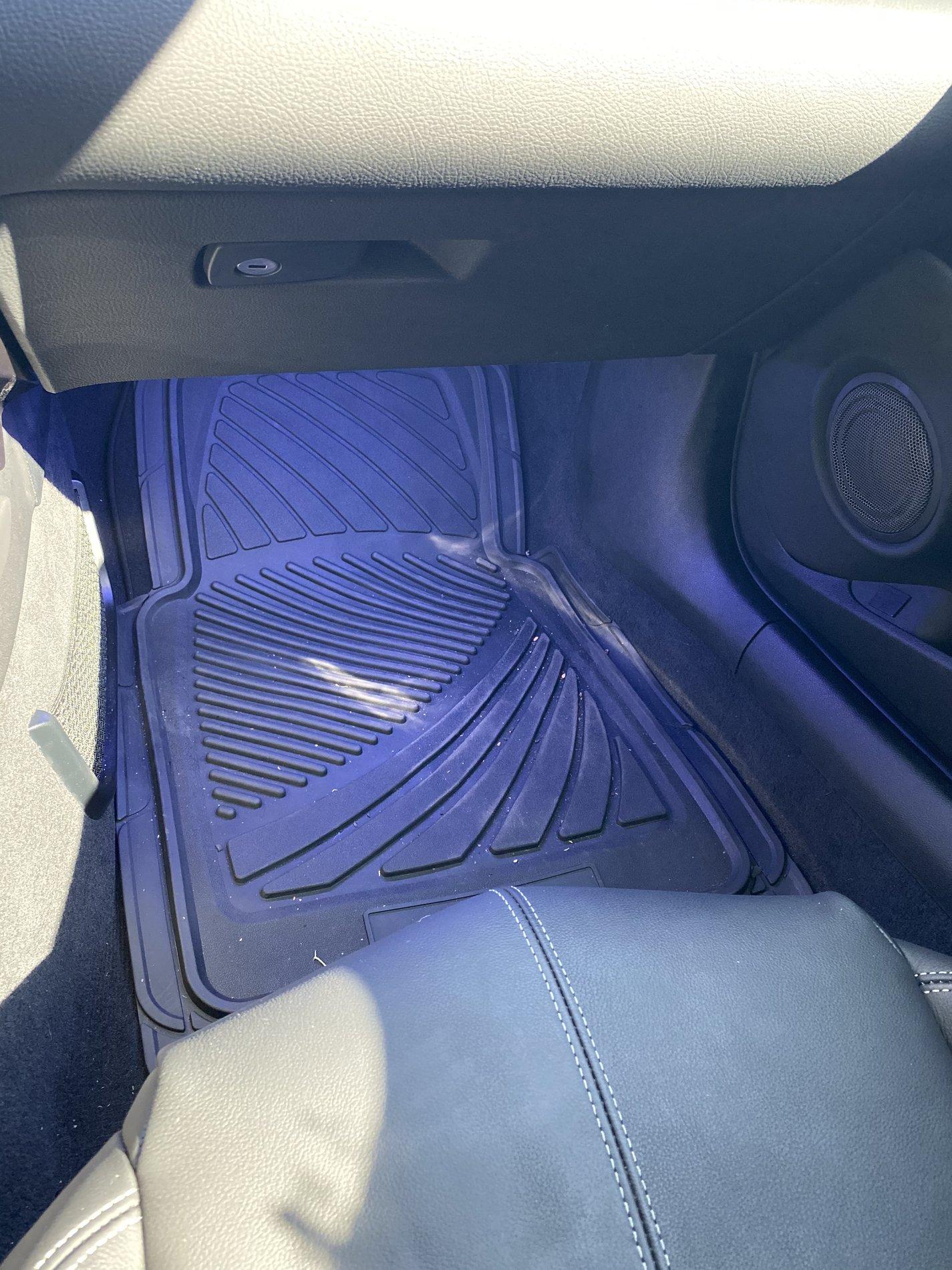

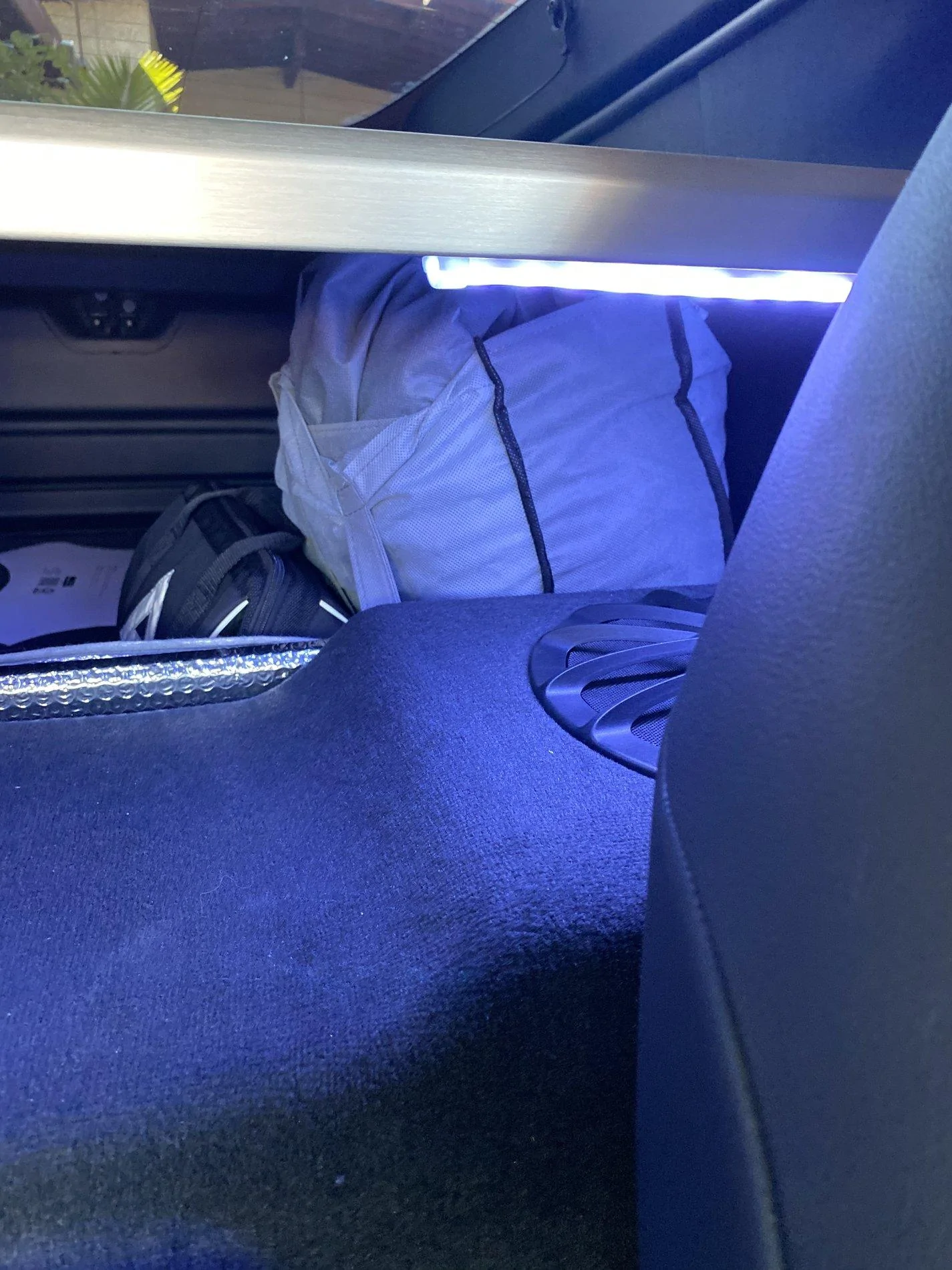

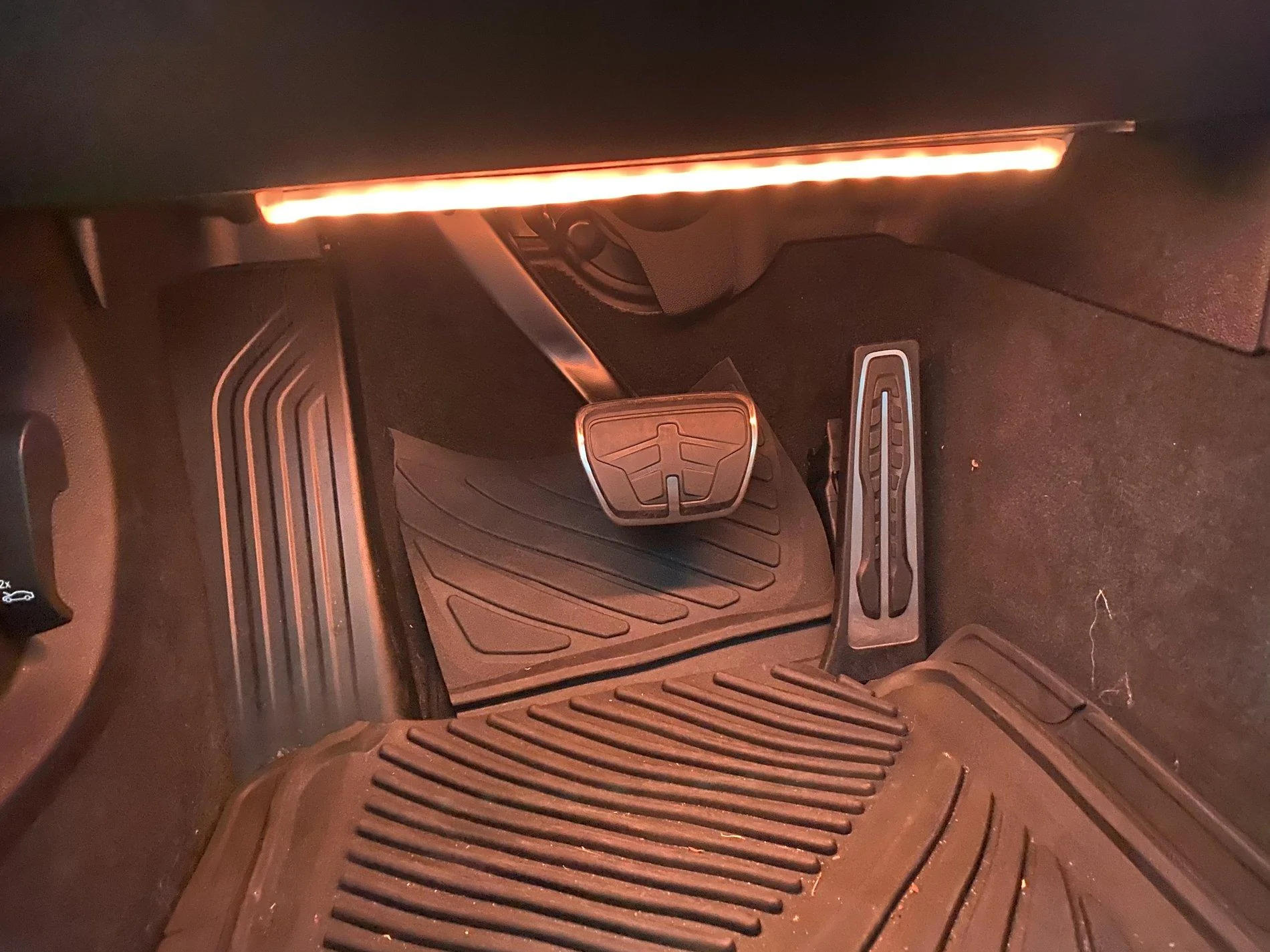

Also, i know you were looking to wire up courtesy lights, but i did wire up some Led RGB strips on mine, theyre also tapped to the 12v cigarette lighter but at the fuse box infront by the passenger footwell. Though they dont turn on and off by the door, they are remote controlled



[akasonny]

Another nice install. Maybe (if you wanted) by moving the fuse-tap over to fuse location 61 they'd operate with the courtesy lamp (as I recall). Just a thought. I'm wondering how you crossed the middle console with the wiring. It looks pretty tight.



[wolf_kyle]

Another nice install. Maybe (if you wanted) by moving the fuse-tap over to fuse location 61 they'd operate with the courtesy lamp (as I recall). Just a thought. I'm wondering how you crossed the middle console with the wiring. It looks pretty tight.

oh thanks for the info! ill keep that in mind. i actually had to run it all the way to the back end of the middle console. thats where all of them meet.



[KingTai]

I've been wanting to do something like this but I've never really did any wiring before.
