Virtual Dyno software with Ecutek datalogs and getting an error message

[Axix23]

Has anybody ever successfully used the virtual dyno software with Ecutek datalogs to generate some numbers?

I keep gettting this error message every time I try to load datalog into the virtual dyno software. I tried to edit the datalog in the excel but still didn’t work.

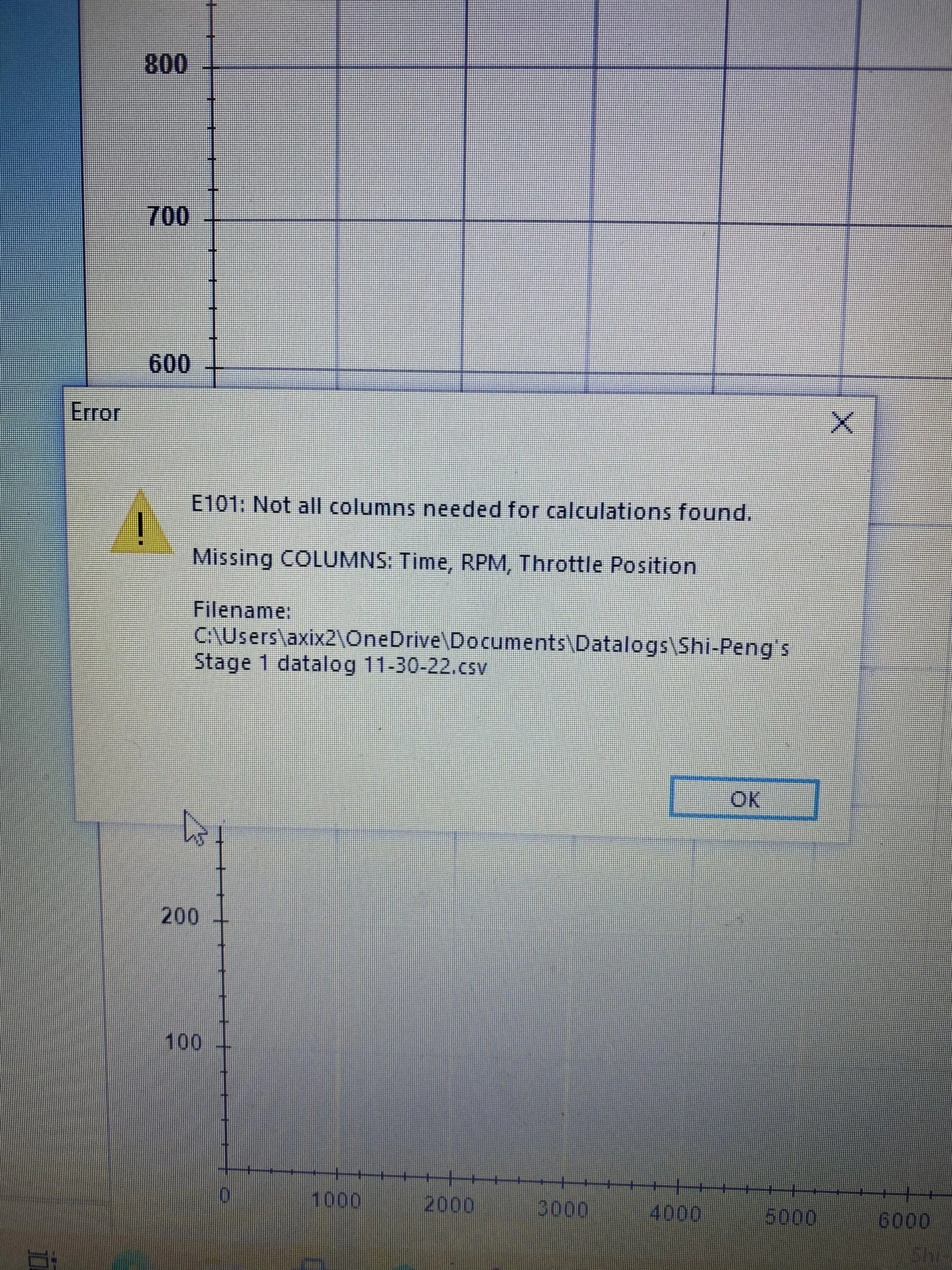

Error message:

E101: Not all columns needed for calculations found.


Missing COLUMNS: Time, RPM, Throttle Position

Sponsored



[MisterSkiz]

Has anybody ever successfully used the virtual dyno software with Ecutek datalogs to generate some numbers?

I keep gettting this error message every time I try to load datalog into the virtual dyno software. I tried to edit the datalog in the excel but still didn’t work.

Error message:

E101: Not all columns needed for calculations found.


Missing COLUMNS: Time, RPM, Throttle Position

Maybe this will help you?

https://forum.miata.net/vb/showthread.php?t=636296



[razorlab]

Rename the column headers to match



[Axix23]

Maybe this will help you?

https://forum.miata.net/vb/showthread.php?t=636296

I changed the names as listed in the Miata form and still the same errors.



[Axix23]

Rename the column headers to match

I did, still not working



[Axix23]

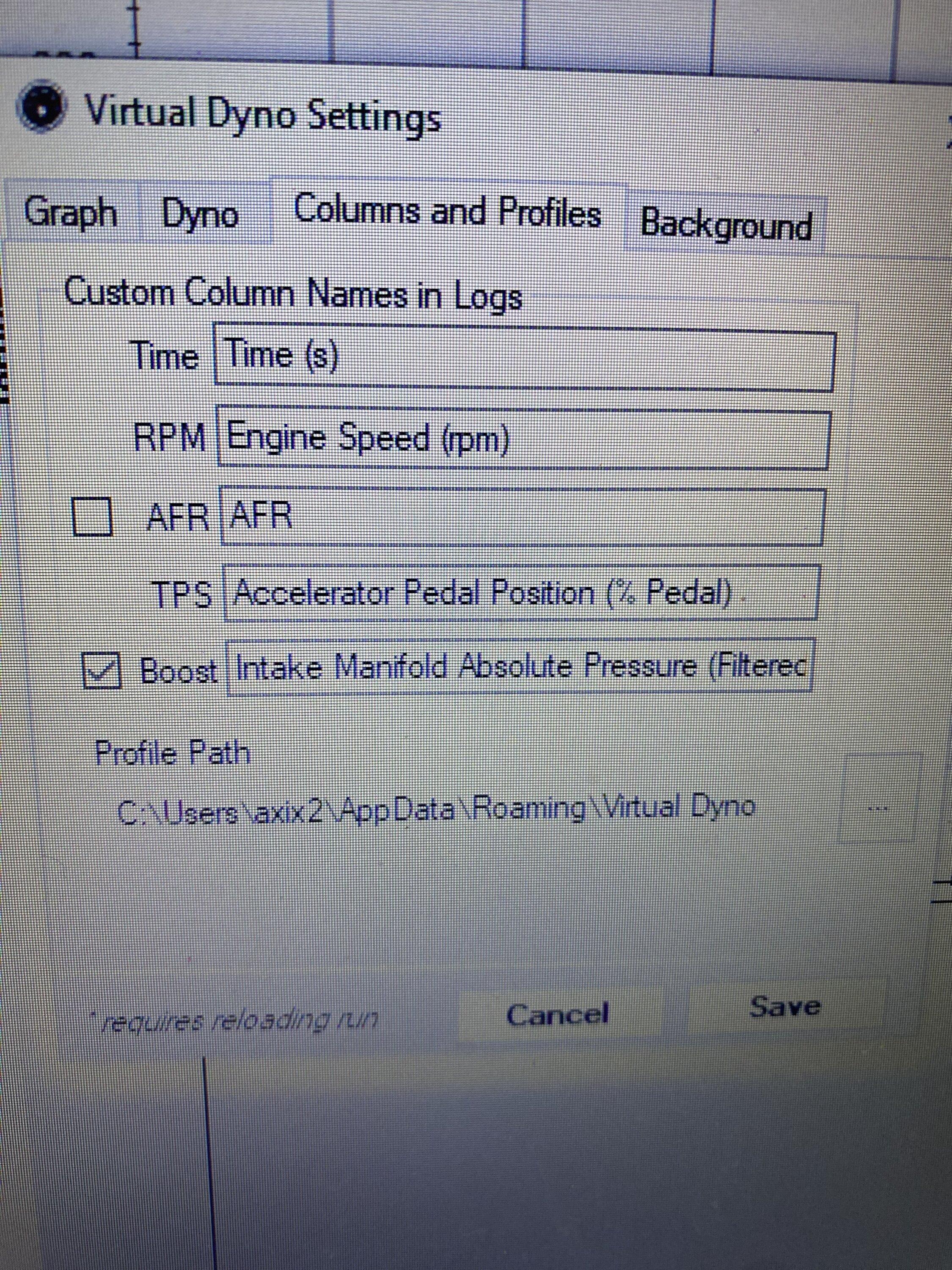

It’s been changed to match the column names in the Ecutek logs



[gixxersixxerman]

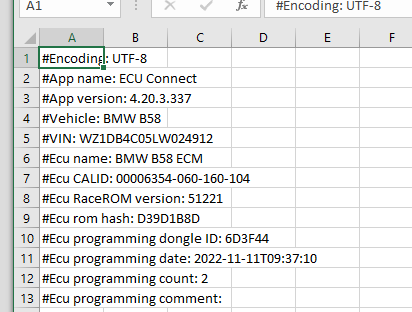

If you have all the info at the top of your log like this

Get rid of that, I get the same thing it will give me the exact same message as you but then once i delete all that info and then save the log, then load it in V-dyno it will then load.

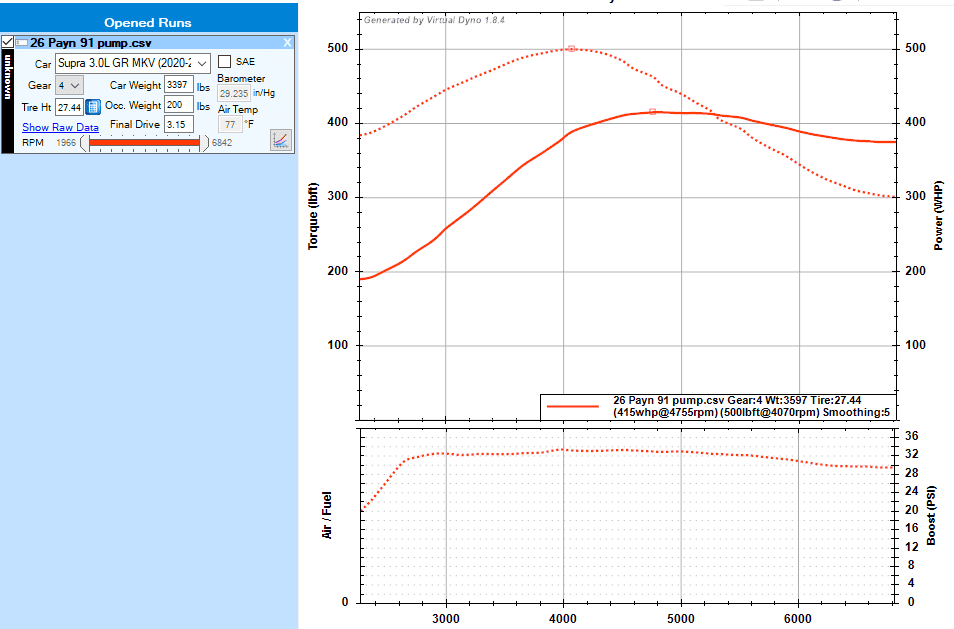

I dont log at the same place i did with my Focus St and Mustang GT but both those were extremely close to the actual dynos, i havent had the Supra dyno'd yet and can check if where i log now will give close results.



[Axix23]

Thanks for evehevodu

If you have all the info at the top of your log like this

Get rid of that, I get the same thing it will give me the exact same message as you but then once i delete all that info and then save the log, then load it in V-dyno it will then load.

I dont log at the same place i did with my Focus St and Mustang GT but both those were extremely close to the actual dynos, i havent had the Supra dyno'd yet and can check if where i log now will give close results.

Thanks for everybody’s help. Deleting the title and veh info did the trick! Thanks!!
