What did you do to your Supra today?

Kiwi Greg

Well-Known Member
First Name
Greg
Joined
Nov 28, 2019
Threads
7
Messages
405
Reaction score
421
Location
New Zealand
Website
terminatorproducts.co.nz
Car(s)
2020 Supra, 2021 GR Yaris, 2022 GR86

tadda

Well-Known Member
First Name
Tom
Joined
Dec 14, 2019
Threads
24
Messages
1,251
Reaction score
2,157
Location
Arizona
Car(s)
2023 C8 Corvette Z51 2LT Coupe
Vehicle Showcase
1
So they have ports put in? I haven't even noticed but I would assume they would be a little tighter bass?
Without ports added, the bass exhaust energy was literally trapped behind the rear panel which created quite of bit of vibrational noise and also muddied bass response...

Adding exhaust ports to the rear panel, along with lining the enclosure walls with wadding, essentially lowered the Q (or damping effects) and resulted in a flatter / clearer bass response... The bass is now deeper, punchier, and far less distorted and eliminated much of the vibrational noise heard....

There are 3 main aspects to this project:
  • The metal walls of the sub enclosures are lined with batting / wadding
  • Foam insulation applied between enclosure and narrow rear panel
  • Exhaust ports added to rear panel
I think what you'll find is that after doing these improvements the OE Harmon Kardon subwoofers are actually quite good...

Side note: The volume of exhaust air released during deep bass sections of music is quite impressive!

How to Improve OE Subwoofer Quality and Eliminate Vibrations

Last edited:

akasonny

Well-Known Member
First Name
Steven
Joined
Mar 25, 2020
Threads
5
Messages
220
Reaction score
81
Location
Sahuarita, AZ
Car(s)
2020 Supra Premium (Downshift Blue)
MST intake and dual-channel Blackvue cams installed. Moving forward...tow hooks....


RRF985

Well-Known Member
Joined
Jul 30, 2019
Threads
1
Messages
261
Reaction score
284
Location
Atlanta, GA
Car(s)
2019 BMW M550i, 2020 Supra Premium, 2015 991.1

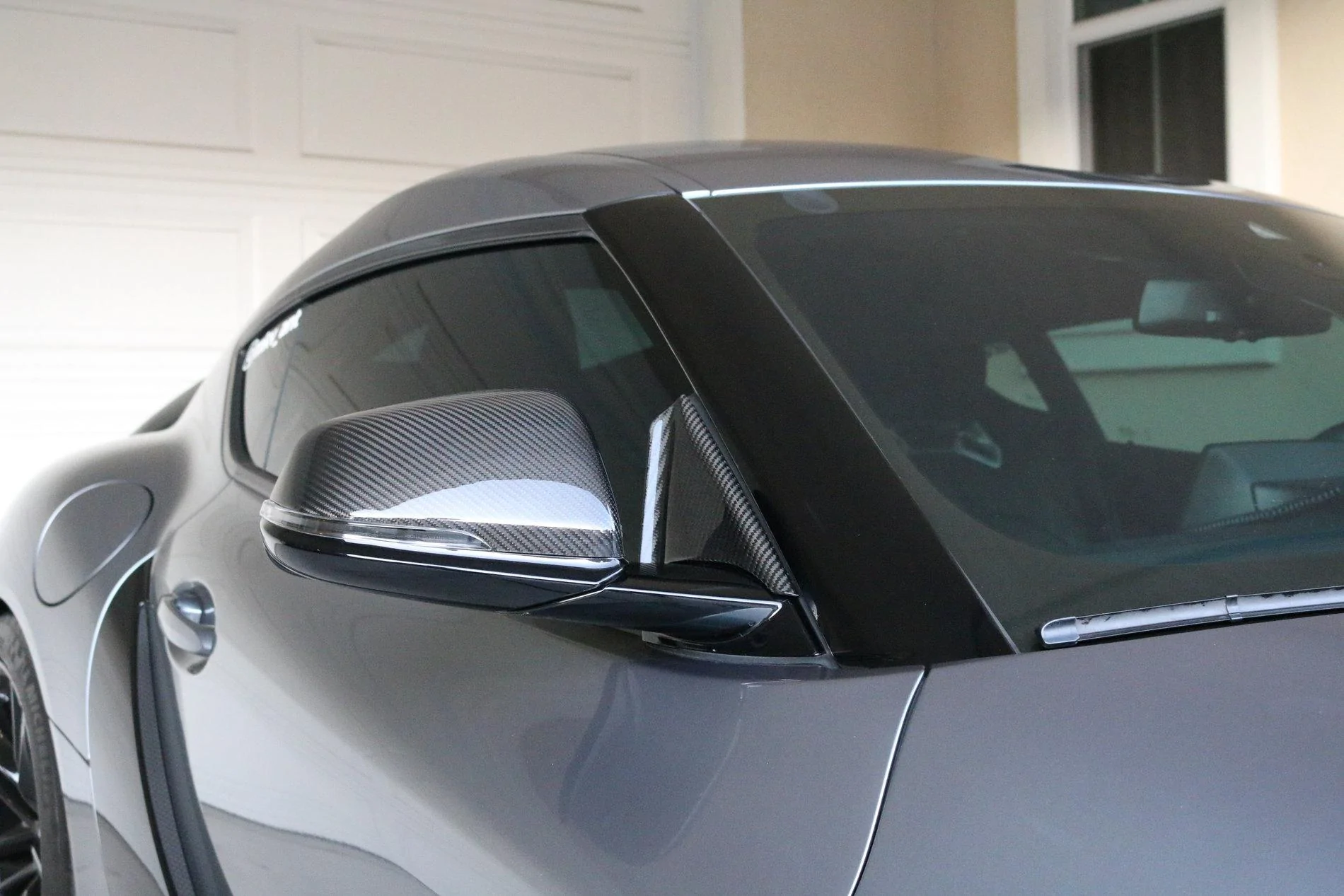

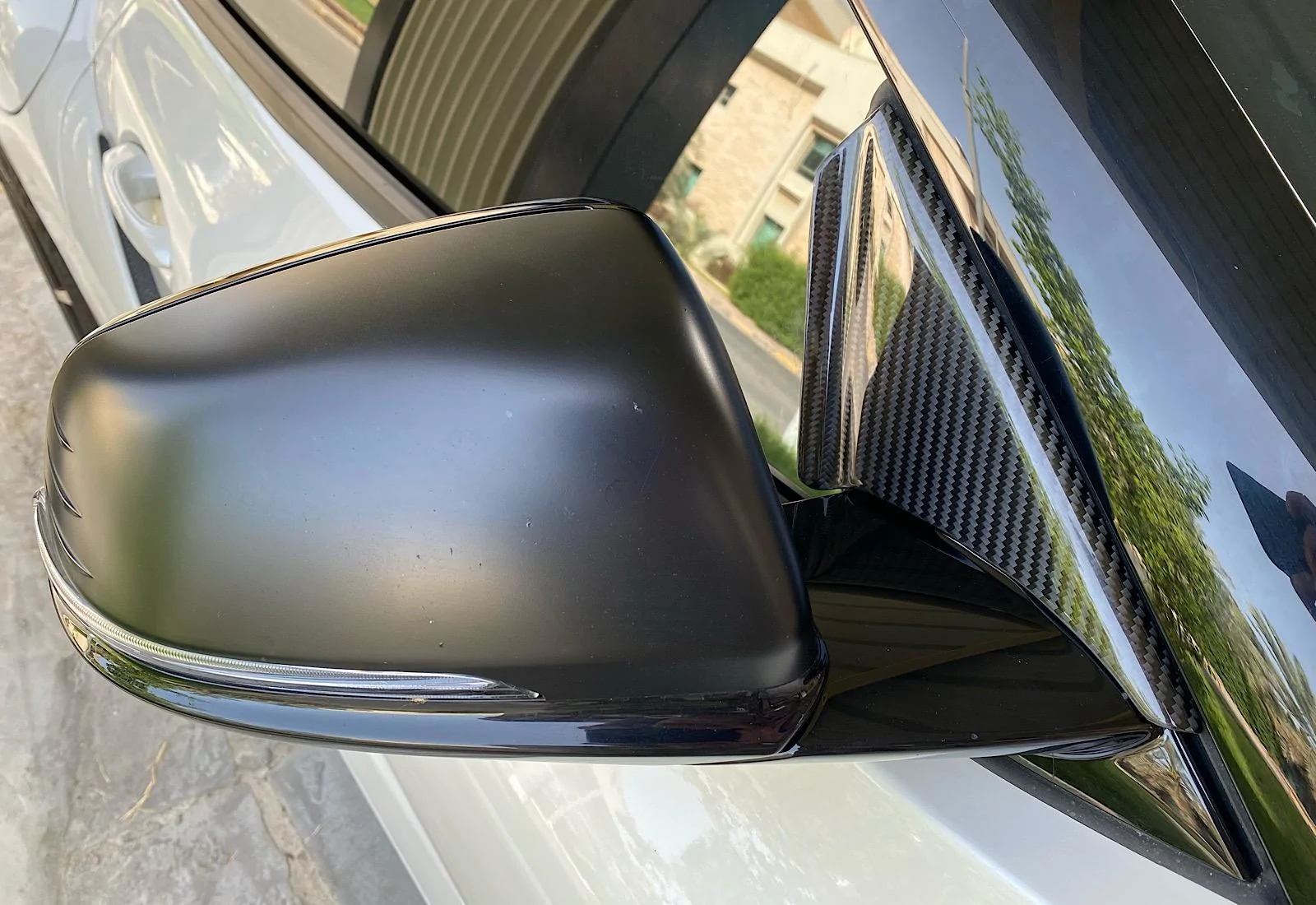

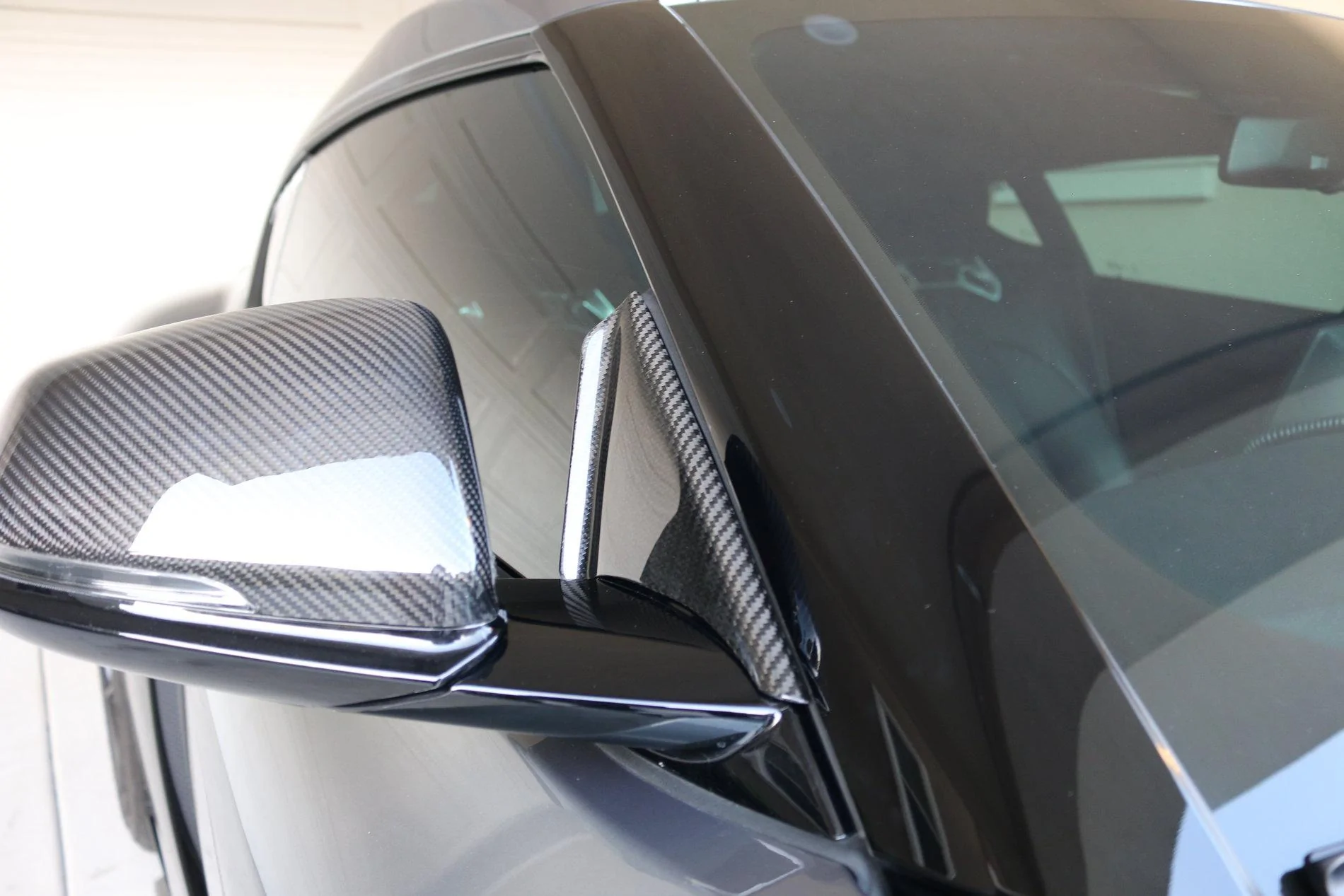

I got the Hyper Sonic door guards installed as wind guards on the mirrors. I love this super cheap solution. I think it looks decent and it blends nicely. I'm super happy with how it turned.







akasonny

Well-Known Member
First Name
Steven
Joined
Mar 25, 2020
Threads
5
Messages
220
Reaction score
81
Location
Sahuarita, AZ
Car(s)
2020 Supra Premium (Downshift Blue)
I got the Hyper Sonic door guards installed as wind guards on the mirrors. I love this super cheap solution. I think it looks decent and it blends nicely. I'm super happy with how it turned.





Best nine bucks I ever spent.
