A90 Supra 1/4 Mile Times

Discussion in 'General Supra Topics' started by kona61, Jul 24, 2019.

  1. AHP

    AHP Well-Known Member

    Car(s):
    '93 Supra TT Hardtop, '09 Corvette ZR1, '07 Corvette, '13 G37x, '10 Escalade ESV
    Joined:
    Nov 28, 2018
    Location:
    CLT, NC
    Posts:
    174
    Liked:
    270
    Garage Profiles:
    1

    There was some weight reduction as well (at least passenger seat) but agreed the significant increase in trap speed raises a lot of questions. Their 60' was also significantly better than everyone else, so they're definitely on the right path, whatever it is. It's very early and everyone is still pretty guarded. Once everyone starts backing up against the same wall then we'll see more transparency.

    Vaevictum likes this.
  2. SupraFiend

    SupraFiend Well-Known Member

    Car(s):
    5 Supras currently
    Joined:
    Nov 2, 2017
    Location:
    Vancouver
    Posts:
    499
    Liked:
    744
    Nah I'm still here lol

    twntrbo03' and Vaevictum like this.
  3. johnny_10196

    johnny_10196 Well-Known Member

    First Name:
    John
    Car(s):
    Ford
    Joined:
    Jul 23, 2017
    Location:
    US
    Posts:
    855
    Liked:
    1,296
  4. AHP

    AHP Well-Known Member

    Car(s):
    '93 Supra TT Hardtop, '09 Corvette ZR1, '07 Corvette, '13 G37x, '10 Escalade ESV
    Joined:
    Nov 28, 2018
    Location:
    CLT, NC
    Posts:
    174
    Liked:
    270
    Garage Profiles:
    1

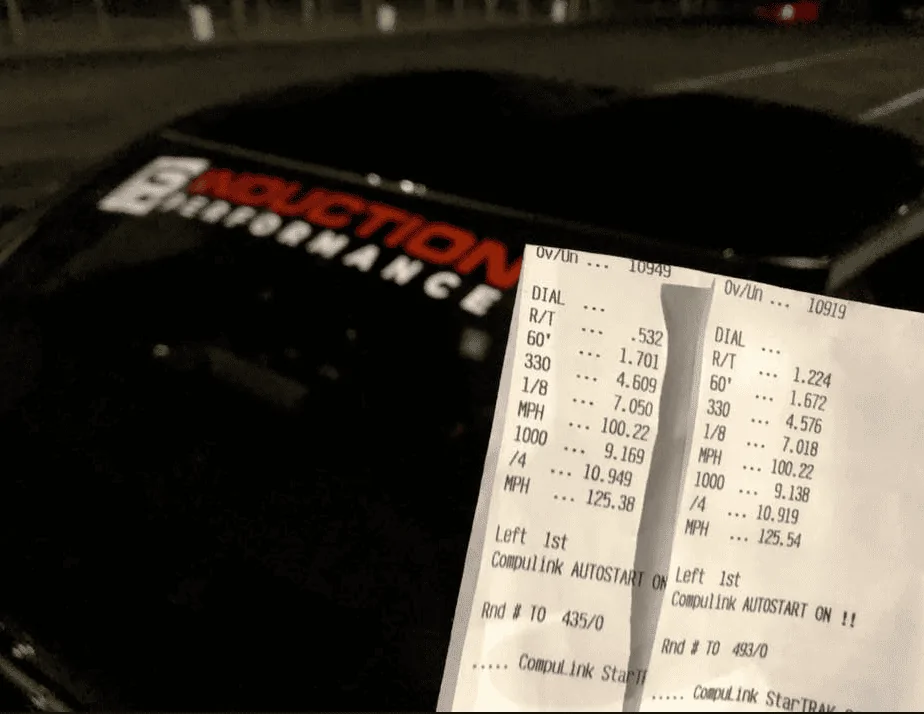

    The gloves are starting to come off and word now is yes -- the 10.7 @ 128 was on spray. :coffee:




    Also, IP is now running 10's -- no nitrous:




  5. johnny_10196

    johnny_10196 Well-Known Member

    First Name:
    John
    Car(s):
    Ford
    Joined:
    Jul 23, 2017
    Location:
    US
    Posts:
    855
    Liked:
    1,296
  6. LS3Twins

    LS3Twins Well-Known Member

    First Name:
    Ryan
    Car(s):
    2020 Supra 1998 E36M3 LS3 Twin Turbo
    Joined:
    Aug 22, 2019
    Location:
    Charlotte
    Posts:
    239
    Liked:
    333
    Actually on the A90 Supra it is complex. This water-to-air system has an intercooler manufactured inside the intake manifold and uses a water-to-air heat exchanger up front. The intercooler "brick" is not removable and the intake manifold was formed around it and sealed. This intercooler will, at some point, be a restriction and upgrading this will require a CNC/fabricated intake manifold and is much more involved than you think.

  7. justbake

    justbake Well-Known Member

    First Name:
    Justin
    Car(s):
    F10 535i, E30 325e
    Joined:
    Apr 19, 2018
    Location:
    Indy
    Posts:
    914
    Liked:
    1,688
    No it is exactly as complicated as I think it is and my comment still stands. S55s have had aftermarket W2A intercoolers for years now and are even affordable with several in the $500-$600 range.

    tisdrew likes this.
  8. LS3Twins

    LS3Twins Well-Known Member

    First Name:
    Ryan
    Car(s):
    2020 Supra 1998 E36M3 LS3 Twin Turbo
    Joined:
    Aug 22, 2019
    Location:
    Charlotte
    Posts:
    239
    Liked:
    333
    I see this going a couple of ways. I work in this industry so my opinion is based on working with OEM's and providing large scale private label thermal management solutions. The first 2 options will be for people wanting to achieve power levels beyond the OEM W2A intercooler's efficiency range.

    1. New CNC intake manifold with integrated larger intercooler (check out Frankenstein's intake manifold). This is obviously not for a German vehicle but the aftermarket will eventually have their version of this. Water in/out ports on the intake manifold.
    https://frankensteined.net/shop/iceman-billet-intake-manifold/

    2. Some will build air-to-air intercoolers as those have also proven to be effective but will still have to design an intake manifold to delete the OEM W2A system. One pro will include eliminating a lot of the hardware associated with the W2A system. Less responsive because of the longer charge piping but much more simple.

    3. Some aftermarket heat exchangers (not intercooler bricks) will be released but the problem with an upgraded turbo/higher horsepower builds is that the intercooler will still be the restriction at a certain power level. They will probably release some ice tanks to try and alleviate some of the IAT's seen with the OEM intercooler. I'd imagine you could still do 650-700 (efficiently) with the right setup but only time will tell.

    Either way I'm excited to see a lot of action on the A90 and the aftermarket is literally in a race to outperform each other. We all win here. Haha

  9. LS3Twins

    LS3Twins Well-Known Member

    First Name:
    Ryan
    Car(s):
    2020 Supra 1998 E36M3 LS3 Twin Turbo
    Joined:
    Aug 22, 2019
    Location:
    Charlotte
    Posts:
    239
    Liked:
    333

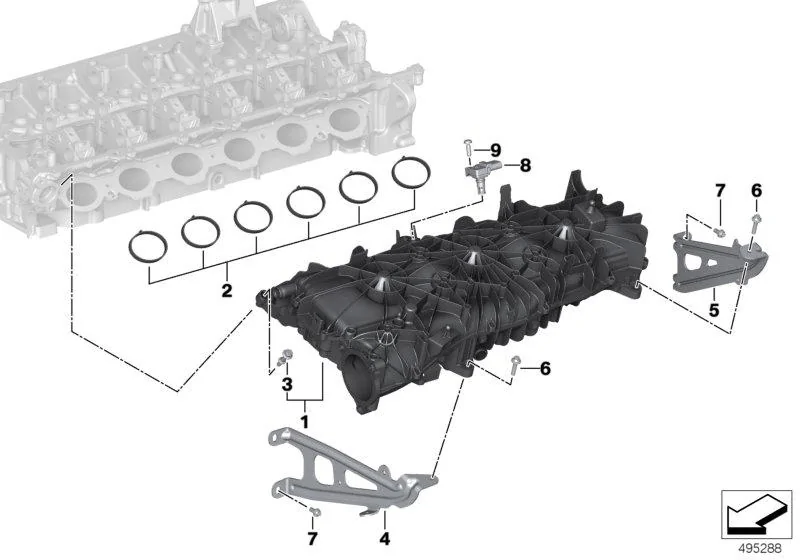

    No reason to get butt hurt here but unfortunately you are wrong. S55's do not have the intercooler manufactured inside the intake manifold, they are a 2-piece design and only have the 2 ports coming out of the W2A leading to the lower half which is your intake manifold. The S55 acts as an EXTERNAL water-to-air intercooler and the A90 has an INTERNAL water-to-air intercooler and is one piece including all of the runners leading to the head, this is not simple and they are very different although they serve the same purpose of removing heat from the incoming charge air. Diagram attached***

    To keep it simple for you the A90 W2A system bolts to the head and the S55 does not. My post was simply to keep incorrect information from getting posted about how easy it was to upgrade the system and it was not an attack against you, so please stop standing by your comment.


  10. justbake

    justbake Well-Known Member

    First Name:
    Justin
    Car(s):
    F10 535i, E30 325e
    Joined:
    Apr 19, 2018
    Location:
    Indy
    Posts:
    914
    Liked:
    1,688
    I did not say they were exactly the same as S55 intercoolers, it is just a frame of reference that these can be done affordably.

    I did not say they were easy, I said there nothing complex to prevent them from being upgraded.

    There is nothing to correct from what I have said as we are both on the same page. You jumped to conclusions on what I said you corrected those false assumptions.

    Thanks, I have been looking at that diagram for 4 years now but it is always good to confirm what I was thinking and I stand by my comment.

  11. johnny_10196

    johnny_10196 Well-Known Member

    First Name:
    John
    Car(s):
    Ford
    Joined:
    Jul 23, 2017
    Location:
    US
    Posts:
    855
    Liked:
    1,296

    LS3Twins likes this.
  12. Gremluc

    Gremluc Active Member

    First Name:
    Lou
    Car(s):
    2018 Jeep Wangler Unlimited Sahara & Chrysler Pacifica 2018
    Joined:
    May 24, 2019
    Location:
    Naples, Florida
    Posts:
    28
    Liked:
    14
    Based on some leaked info from Chevy its looking like the $60K base C8's are in the low 11's. It will be interesting to see what you folks will do w/this platform based on where you are w/the Supra - WOW you young guys are unbelievable - CONGRATS.

    Bryster likes this.
  13. AHP

    AHP Well-Known Member

    Car(s):
    '93 Supra TT Hardtop, '09 Corvette ZR1, '07 Corvette, '13 G37x, '10 Escalade ESV
    Joined:
    Nov 28, 2018
    Location:
    CLT, NC
    Posts:
    174
    Liked:
    270
    Garage Profiles:
    1
    I just noticed the TPG car was also running no exhaust (assume open downpipe) which is probably worth more in weight vs. power gain. So tune, drag radials, meth, nitrous, and weight reduction of at least passenger seat and exhaust.

  14. johnny_10196

    johnny_10196 Well-Known Member

    First Name:
    John
    Car(s):
    Ford
    Joined:
    Jul 23, 2017
    Location:
    US
    Posts:
    855
    Liked:
    1,296
  15. supraboi

    supraboi Well-Known Member

    First Name:
    Vu
    Car(s):
    GS300
    Joined:
    Mar 6, 2018
    Location:
    America
    Posts:
    1,042
    Liked:
    1,576
