A90 Supra GR concept comes down under

A70TTR

Well-Known Member
Joined
Sep 9, 2017
Threads
8
Messages
2,727
Reaction score
10,052
Location
Japan/EU/USA
Car(s)
ST205 GT4, JZA70, JZA70 TT-R, S210 Athlete
I kind of figured they would keep key items underneath away from prying eyes, passively or actively one way or another, but I think this is still valuable information for sure.

Good show, Ryley.


Guff

Moderator
Staff member
Moderator
Joined
Sep 8, 2016
Threads
23
Messages
1,683
Reaction score
7,404
Location
USA
Car(s)
A80, A90, Mk1 Celica
Vehicle Showcase
1
Dopeee!

My main concern is whether or not there is a hole in the firewall for a clutch master. I speculate that there will be one, just covered up.


BRZer86

Well-Known Member
First Name
Mike
Joined
Mar 6, 2018
Threads
1
Messages
79
Reaction score
142
Location
Dallas
Car(s)
2017 Jaguar XJL Portfolio
Cheers guys, I hope to have more info and get invited to more and more things. Stand by for pics!
Thank you for risking your life for us.


A70TTR

Well-Known Member
Joined
Sep 9, 2017
Threads
8
Messages
2,727
Reaction score
10,052
Location
Japan/EU/USA
Car(s)
ST205 GT4, JZA70, JZA70 TT-R, S210 Athlete

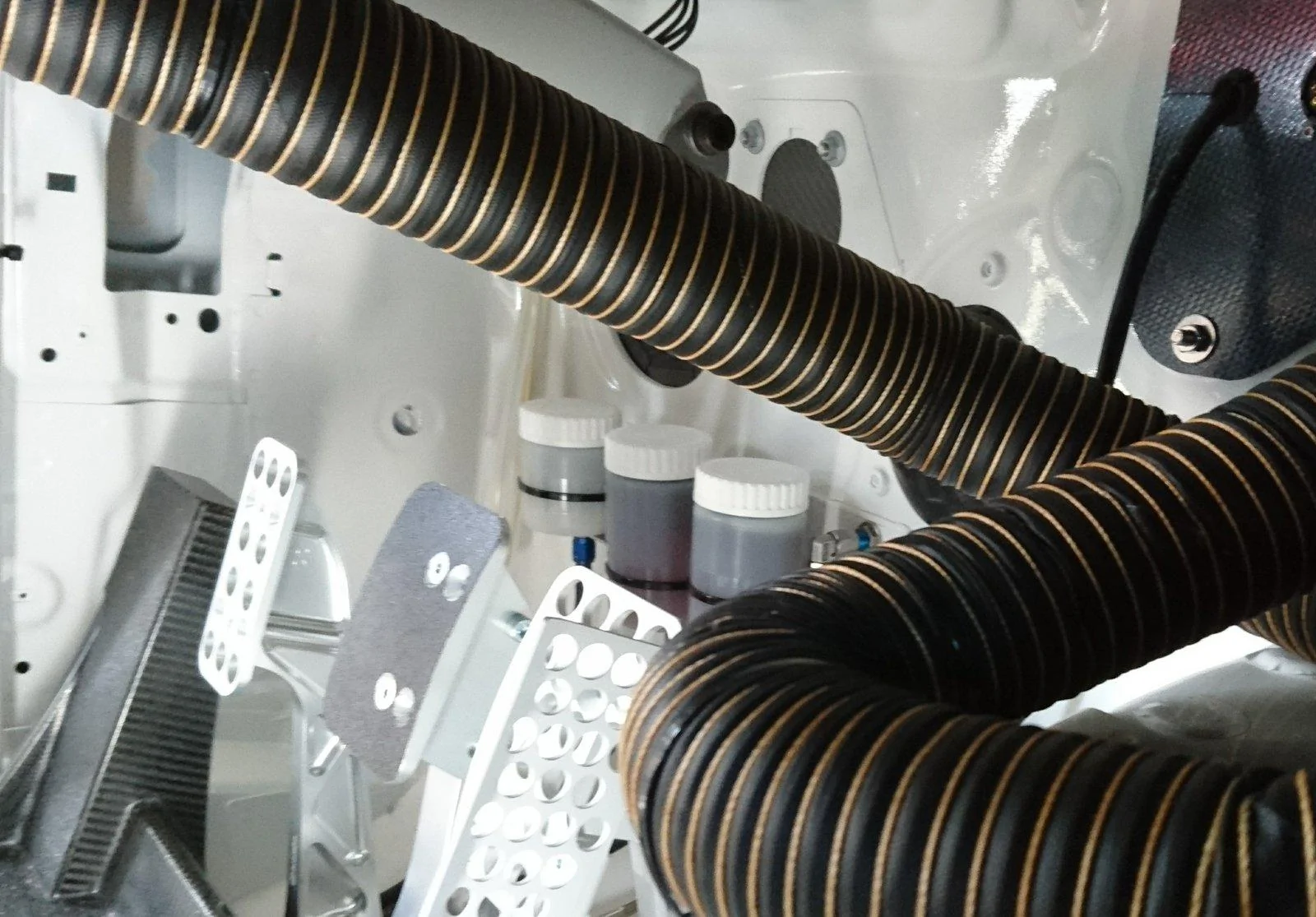

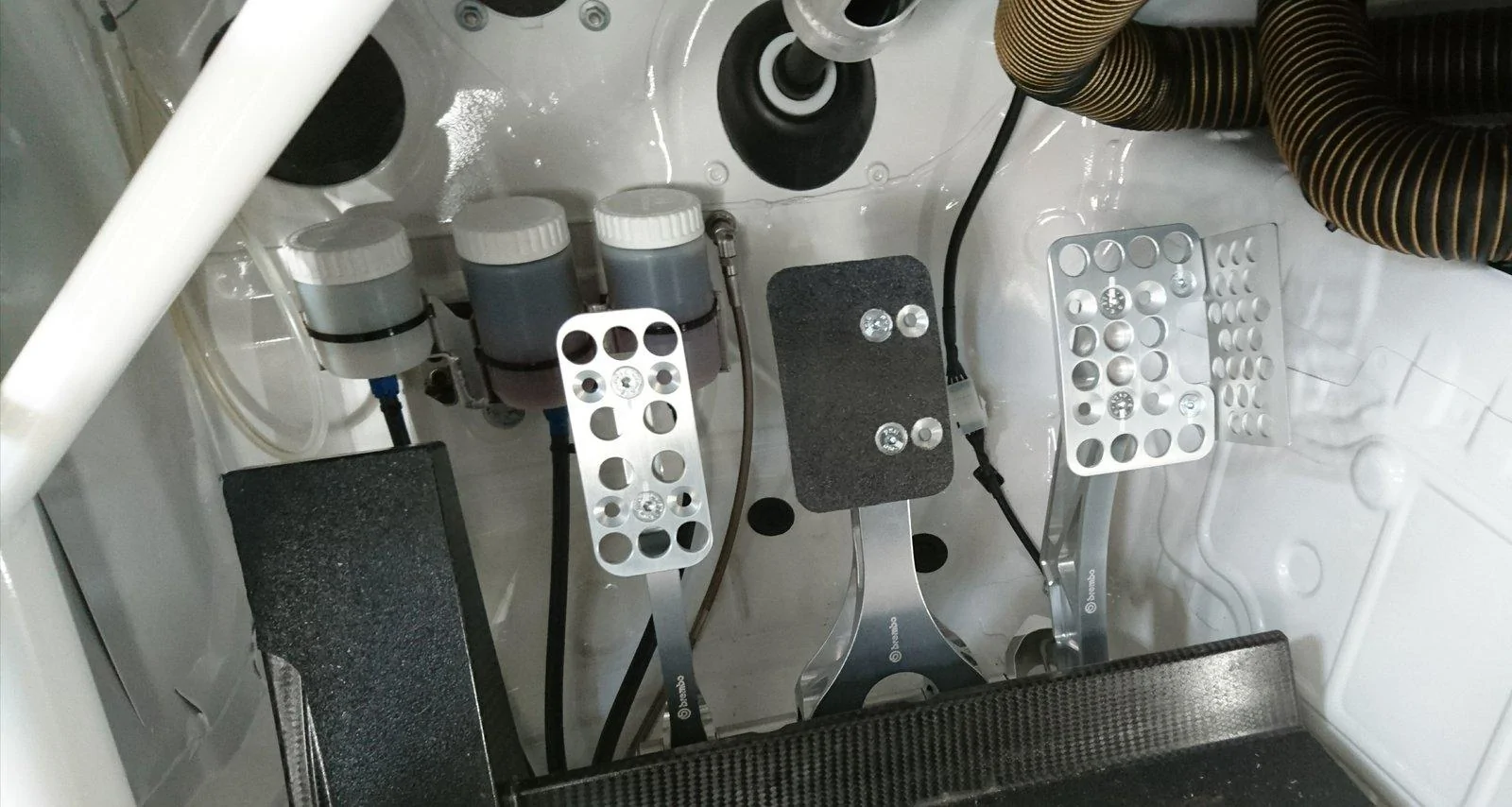

Saw some photos from another individual that attended. Looked as though it had a floor/firewall mounted clutch master right above the pedals, unless it was a junction box...


SPMS

Well-Known Member
First Name
Jeremiah
Joined
May 28, 2018
Threads
1
Messages
189
Reaction score
464
Location
USA
Car(s)
Rc-F, 350z-TT, G2 Raptor
Vehicle Showcase
1
Saw some photos from another individual that attended. Looked as though it had a floor/firewall mounted clutch master right above the pedals, unless it was a junction box...
I honestly think it would be a bad decision to not offer a manual. Reason being is, Tada is saying this is the last petrol only sports car basically right. Why not give us a manual option as well, if you want to give it the right send off before switching to auto/dct only for the A100 or whatever it is coming down the line, after this release.


Guff

Moderator
Staff member
Moderator
Joined
Sep 8, 2016
Threads
23
Messages
1,683
Reaction score
7,404
Location
USA
Car(s)
A80, A90, Mk1 Celica
Vehicle Showcase
1

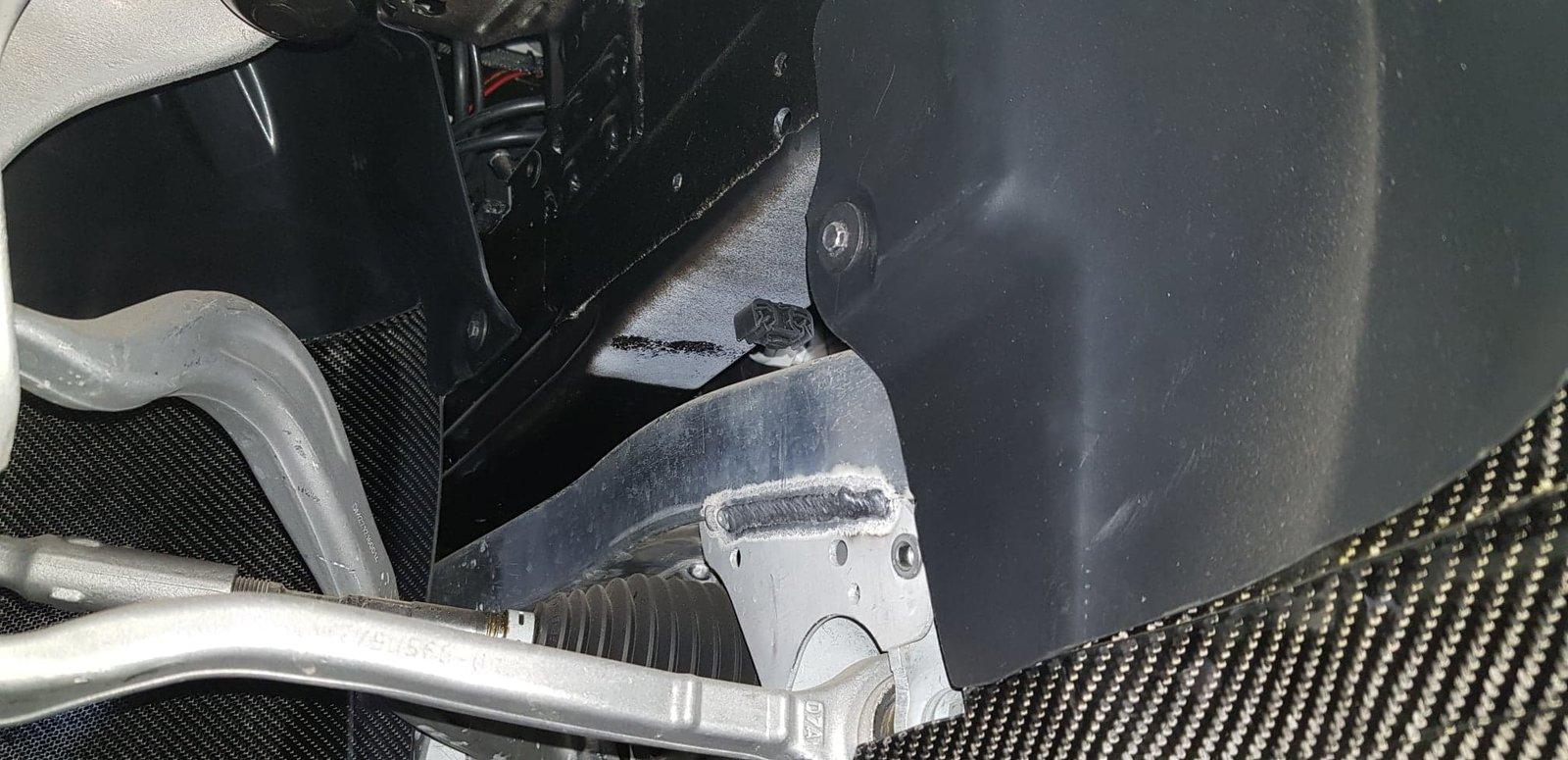

Awesome! I don't wanna jump the gun but I think the firewall is definitely ready to take a clutch pedal. This doesn't necessarily mean we're going to get a manual at launch, but does go along with what Moto San was saying when he mentioned "provisioning for a manual trans"

OP
OP

MA617M

Well-Known Member
Joined
Aug 27, 2017
Threads
23
Messages
2,302
Reaction score
5,149
Location
Australia
Car(s)
lots
Haha sorry guys! I had to delegate some of the pics so waiting on a third party atm!

I noticed that all the airjacks and everything were there for the racing concept too.

I'll upload as many of the less conventional pics now


Guff

Moderator
Staff member
Moderator
Joined
Sep 8, 2016
Threads
23
Messages
1,683
Reaction score
7,404
Location
USA
Car(s)
A80, A90, Mk1 Celica
Vehicle Showcase
1

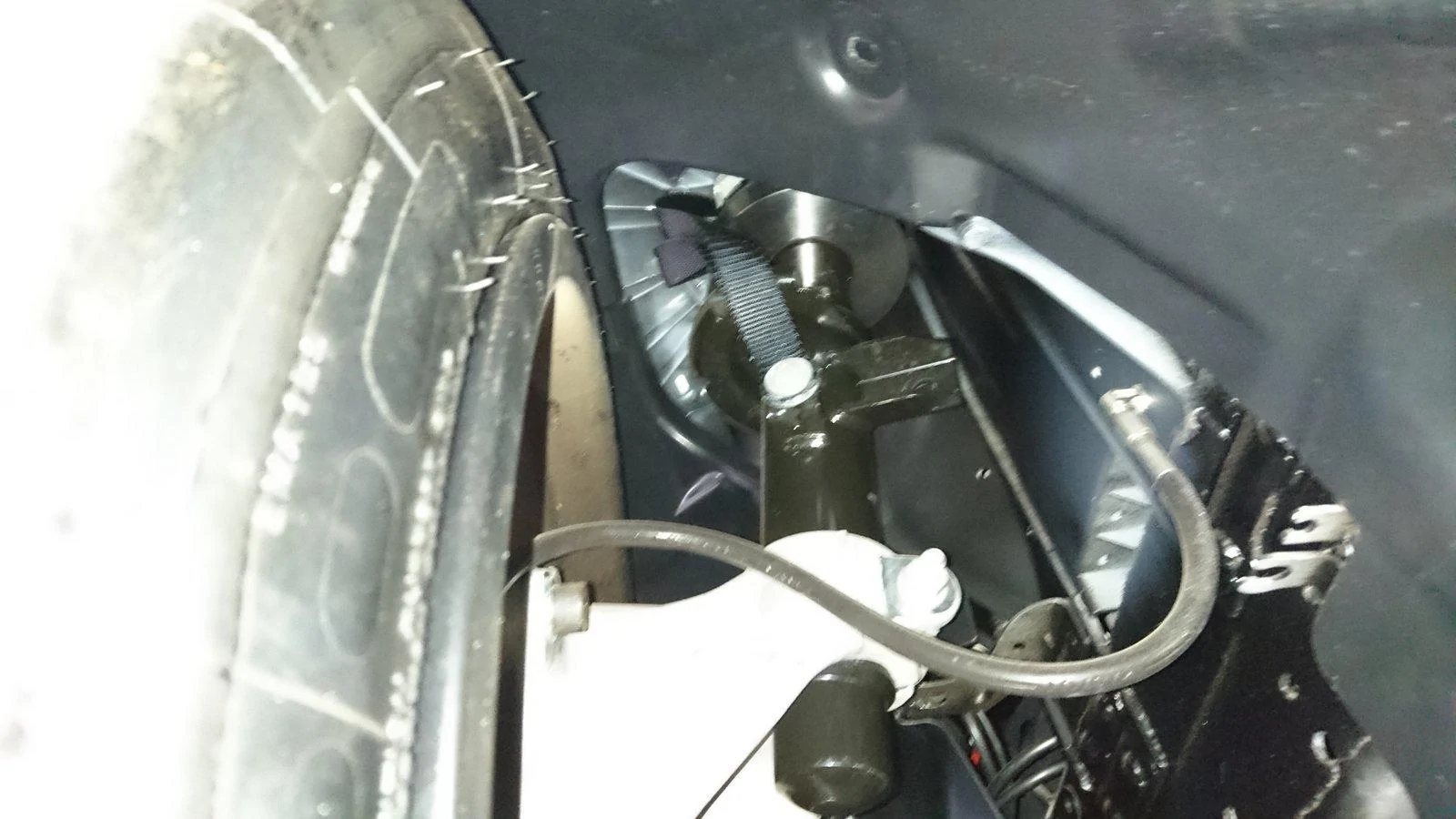

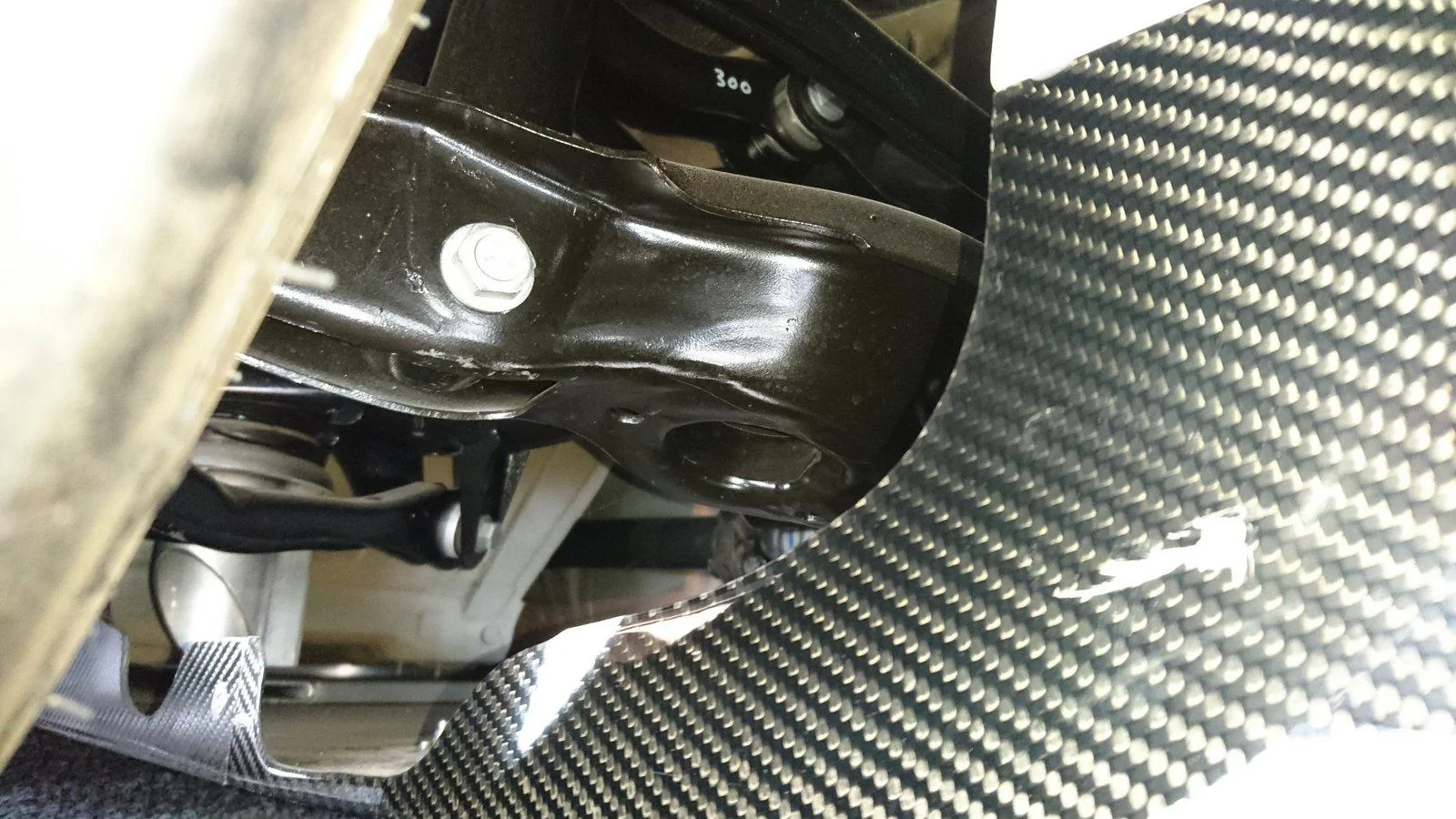

Okay, this is good! Front suspension has split cast aluminum lower arms which look nice, with a clamp style knuckle, which is meh for places with snow/salt, it also means we can't get any camber adjustment out of the knuckle, which you can get (minimally) out of a bolt type shock mount. Rear suspension is a multi link with stamped steel arms. Main lower arm has a separated strut mount and spring perch (I think) which is common BMW practice. There's also a lower track/toe arm. Two upper arms, can't see the lengths or how much adjustment though.

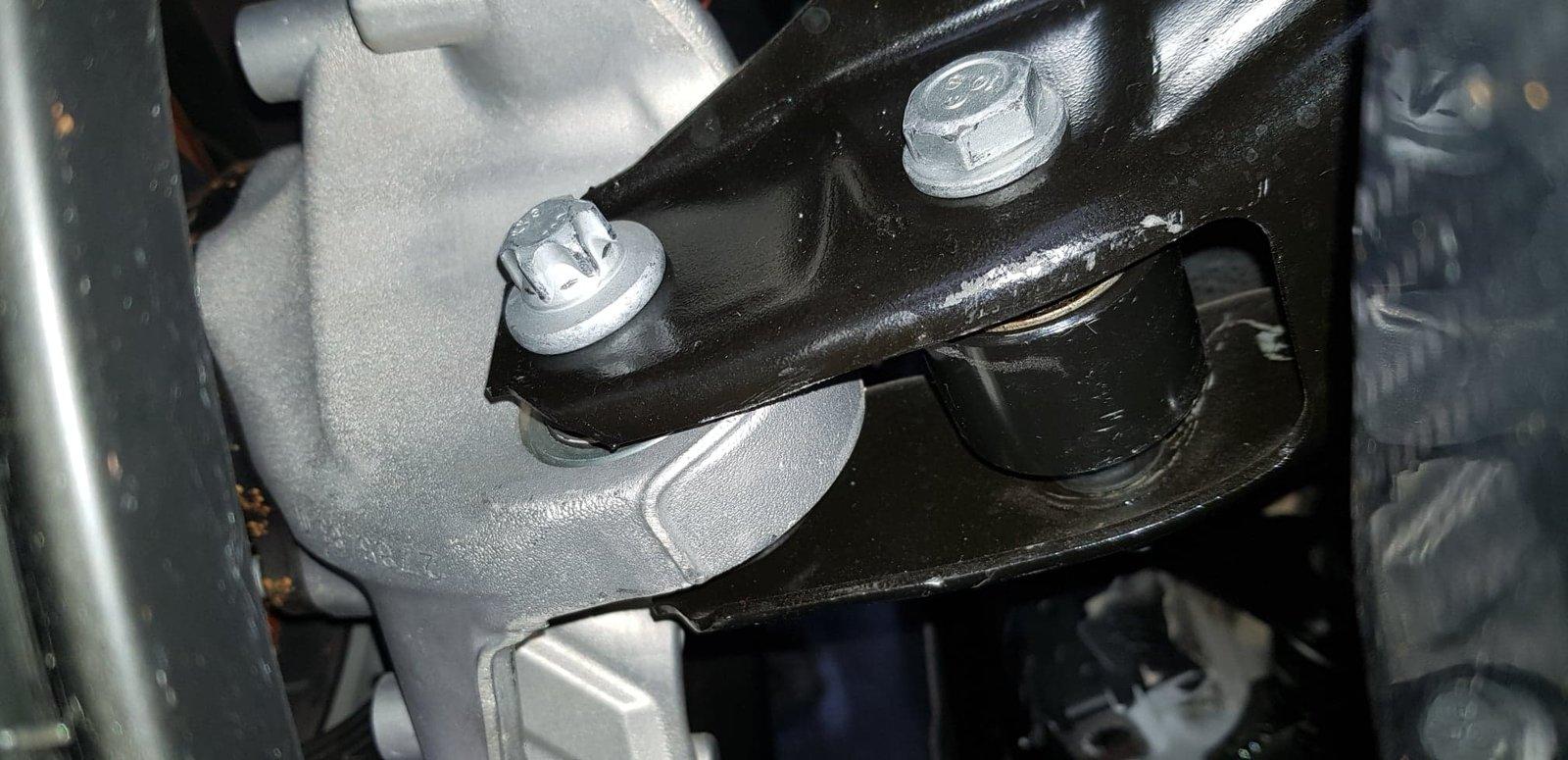

@RyleyMA61 Do you remember where this was in the front suspension? Looks like the stamped steel arm from the rear, since it looks like there's a shock mount there. Also, what-the-fish type of bolt is that?
