Blown motor

Discussion in 'B58 6-Cyl Engine, Exhaust, Drivetrain, Bolt-Ons' started by Ghostop, Oct 6, 2019.

  1. LS3Twins

    LS3Twins Well-Known Member

    First Name:
    Ryan
    Car(s):
    2020 Supra 1998 E36M3 LS3 Twin Turbo
    Joined:
    Aug 22, 2019
    Location:
    Charlotte
    Posts:
    239
    Liked:
    333
    Yeah I'm not going to try and damage something something else with a glory run but I will go for 750whp on stock rods and pistons as long as everything is looking good with the tune.

    After that I'll put some forged goodies in there and headwork and push for more but I think a solid 800whp on this car will keep me happy for a while. At least for a couple of weeks. Haha

    PerformanceSound likes this.
  2. PerformanceSound

    PerformanceSound Well-Known Member

    Car(s):
    2019 Subaru STI; 2000 4Runner Ltd.
    Joined:
    Aug 18, 2017
    Location:
    Chicago, IL.
    Posts:
    1,258
    Liked:
    2,239
    Garage Profiles:
    2
    750whp - 800whp is VERY Impressive for a platform that has been in the market for what....a few months??? Can’t wait until the platform matures :headbang:

  3. LS3Twins

    LS3Twins Well-Known Member

    First Name:
    Ryan
    Car(s):
    2020 Supra 1998 E36M3 LS3 Twin Turbo
    Joined:
    Aug 22, 2019
    Location:
    Charlotte
    Posts:
    239
    Liked:
    333
    Exactly. By the time I need stronger parts or other items I can't make, they will be available. SEMA is going to be like Christmas. I will def take some cash with me for the "we don't want to haul it back" part sales. I got a Plazmaman RB26 CNC intake manifold last year at PRI for like $900 and it was listed wayyy over that retail.

    PerformanceSound likes this.
  4. Twisted Tuning

    Twisted Tuning Well-Known Member
    Gold Sponsor


    First Name:
    Justin
    Car(s):
    Supra MKV, BMW 135i, BMW 335xi, Mazda 6 Twin Turbo,
    Joined:
    Mar 10, 2019
    Location:
    New York
    Posts:
    285
    Liked:
    331
    Occupation:
    calibration specialist
    Home Page:
    its not really a new platform, lol. we've been tuning B58s for a couple years prior.

    DesmoSD and PerformanceSound like this.
  5. PerformanceSound

    PerformanceSound Well-Known Member

    Car(s):
    2019 Subaru STI; 2000 4Runner Ltd.
    Joined:
    Aug 18, 2017
    Location:
    Chicago, IL.
    Posts:
    1,258
    Liked:
    2,239
    Garage Profiles:
    2
    Oh I know....im saying, it’s specific use in the A90. Great results so far.

  6. Dreihundert

    Dreihundert Member

    First Name:
    Andy
    Car(s):
    Supra A90
    Joined:
    Oct 17, 2019
    Location:
    Germany
    Posts:
    8
    Liked:
    37
    Hi,

    unfortunately we have registered here too late. :rolleyes1:

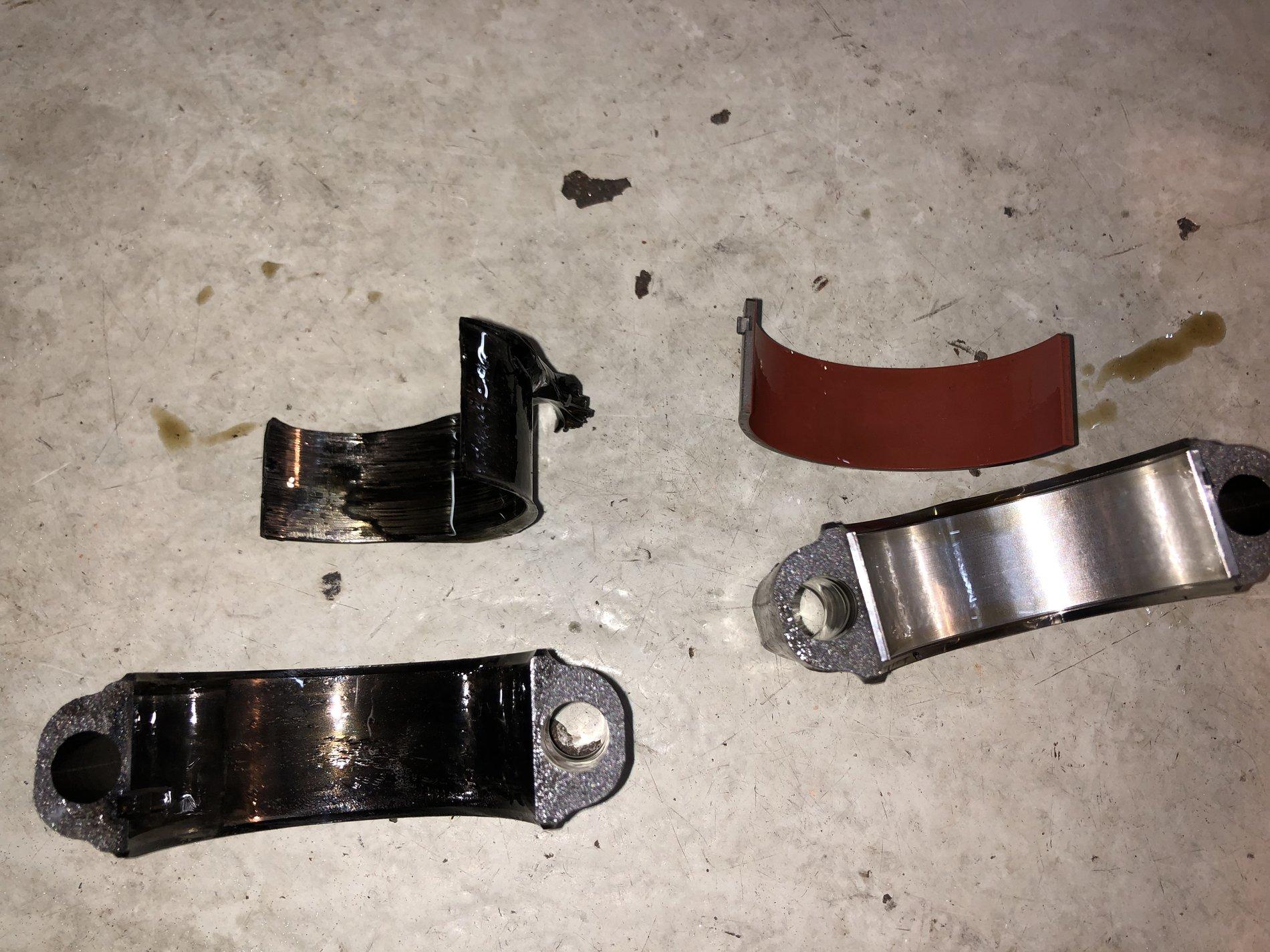

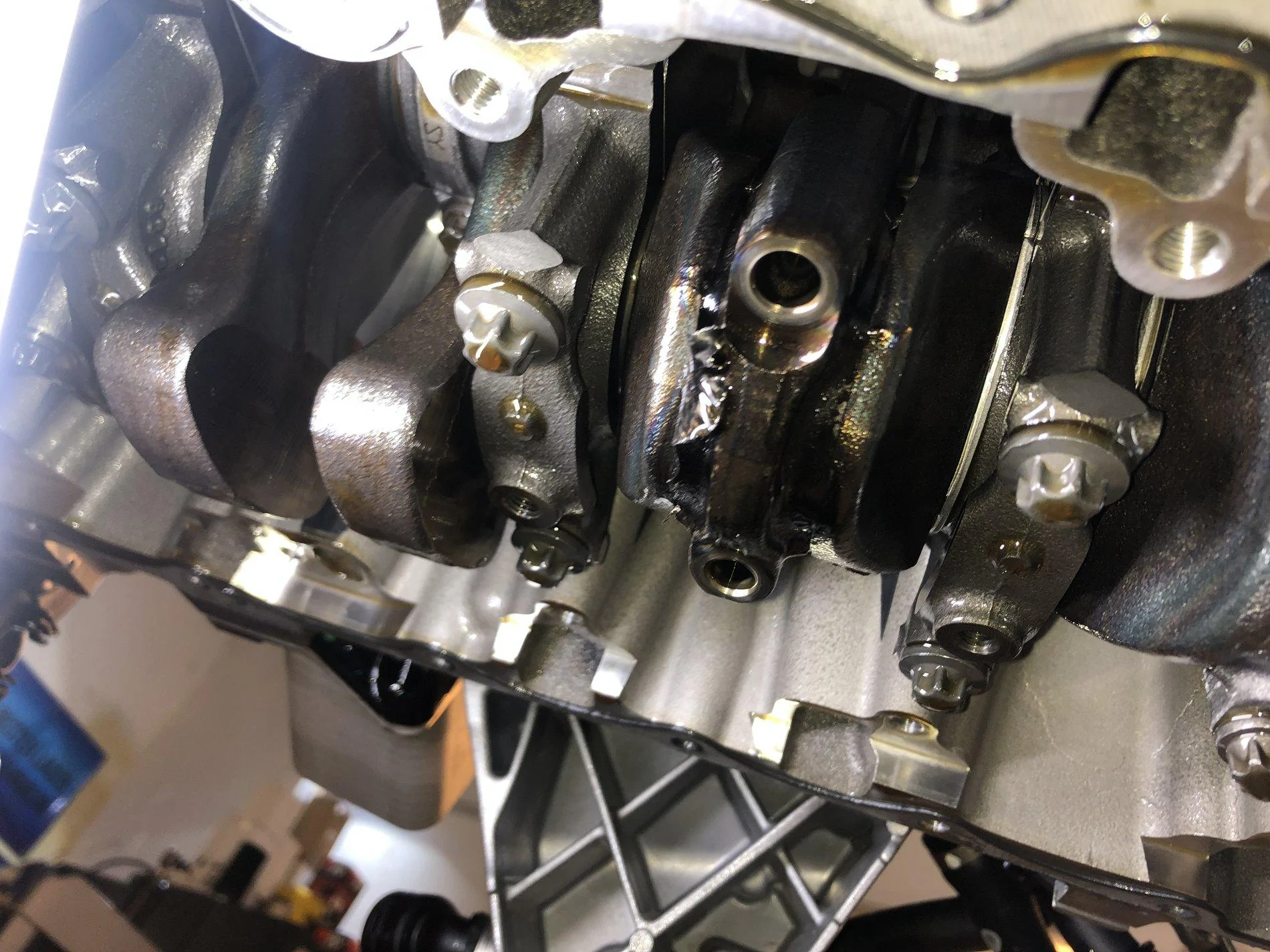

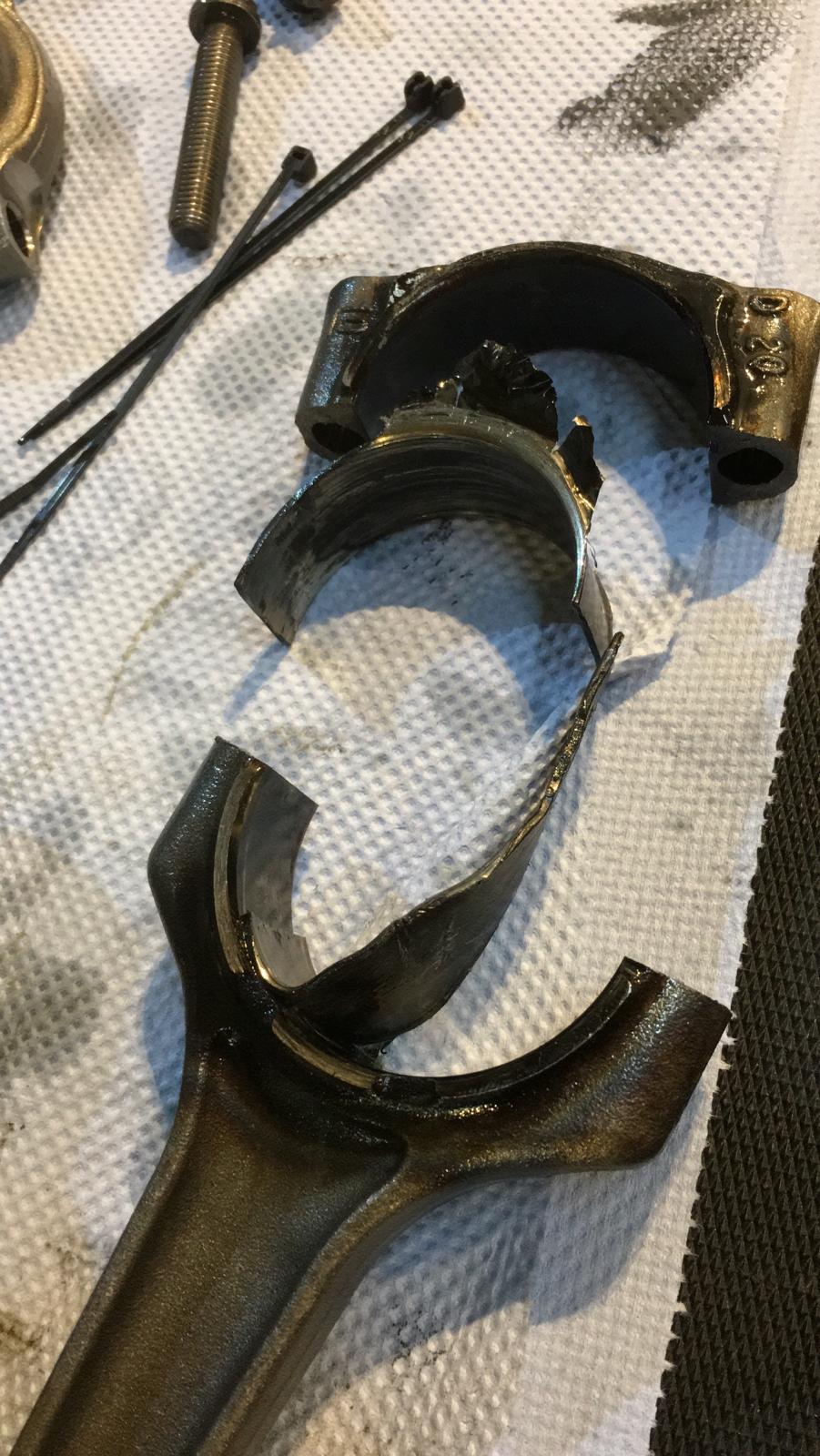

    It was definitely a manufacturer problem. We think a rod bearing mounted incorrectly.

    As you can see it has only damaged a rod bearing. All other rod bearings are like new and all undamaged.




    image0 (2).jpeg
    image2.jpeg image1 (1).jpeg

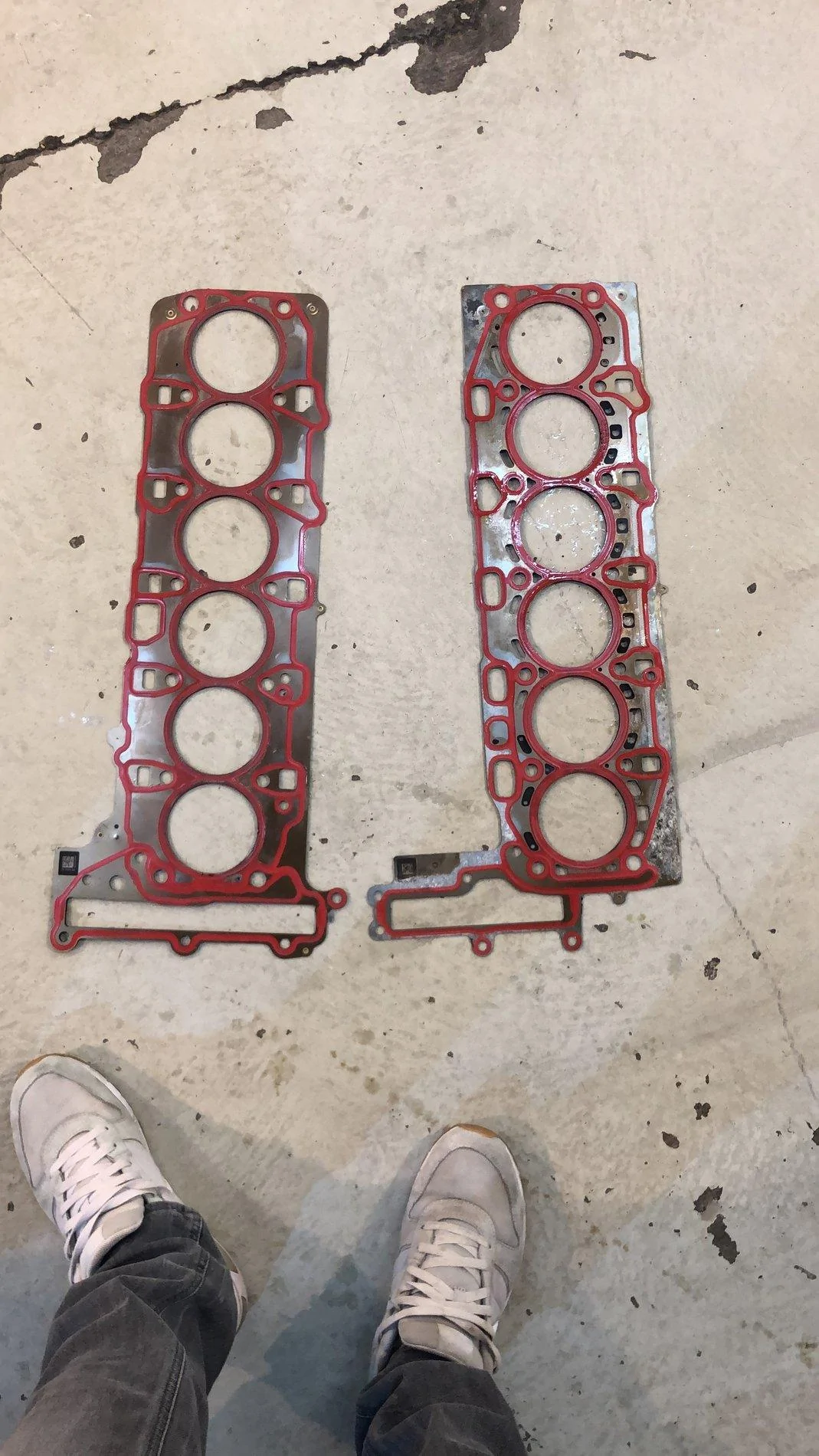

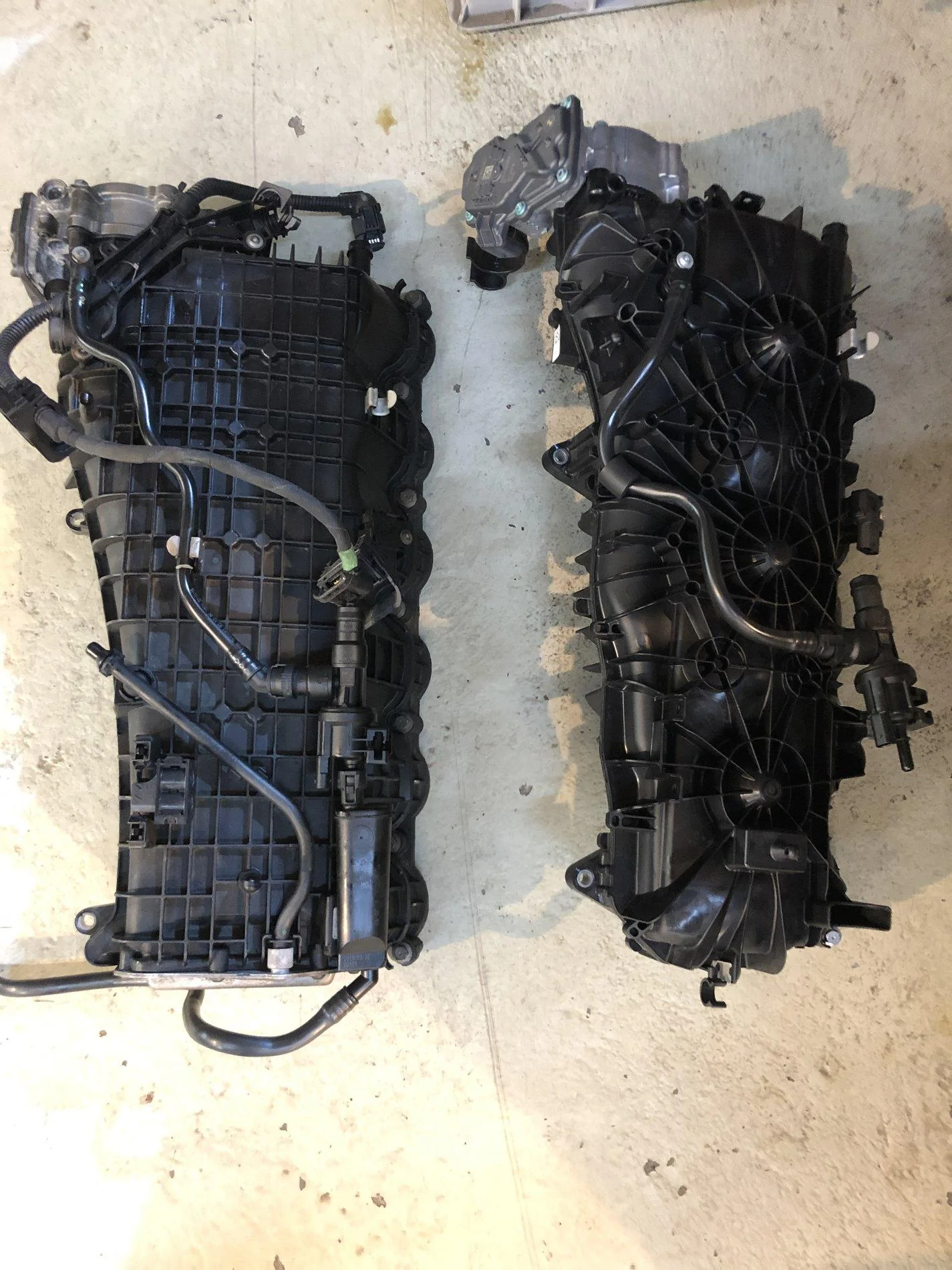

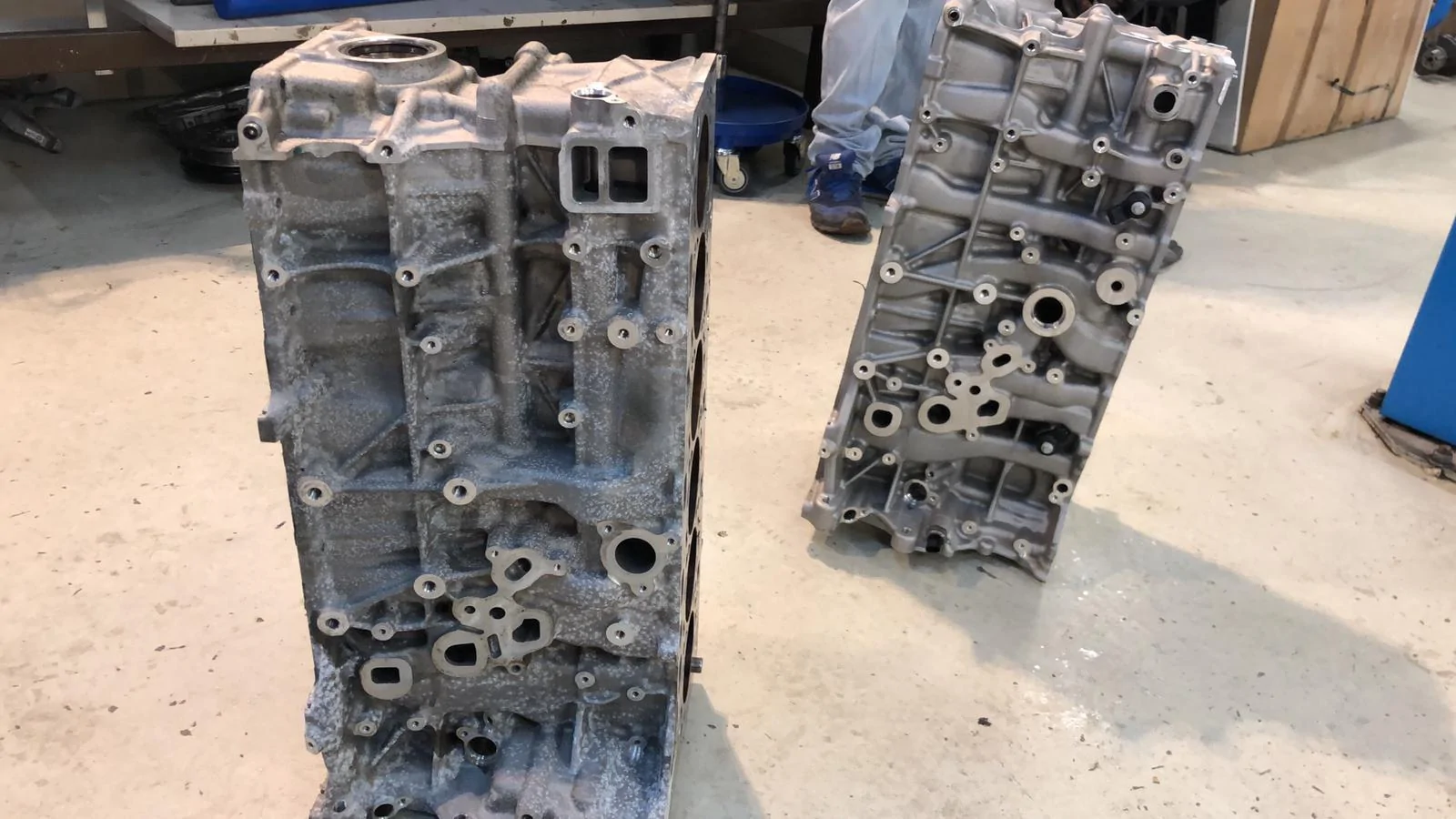

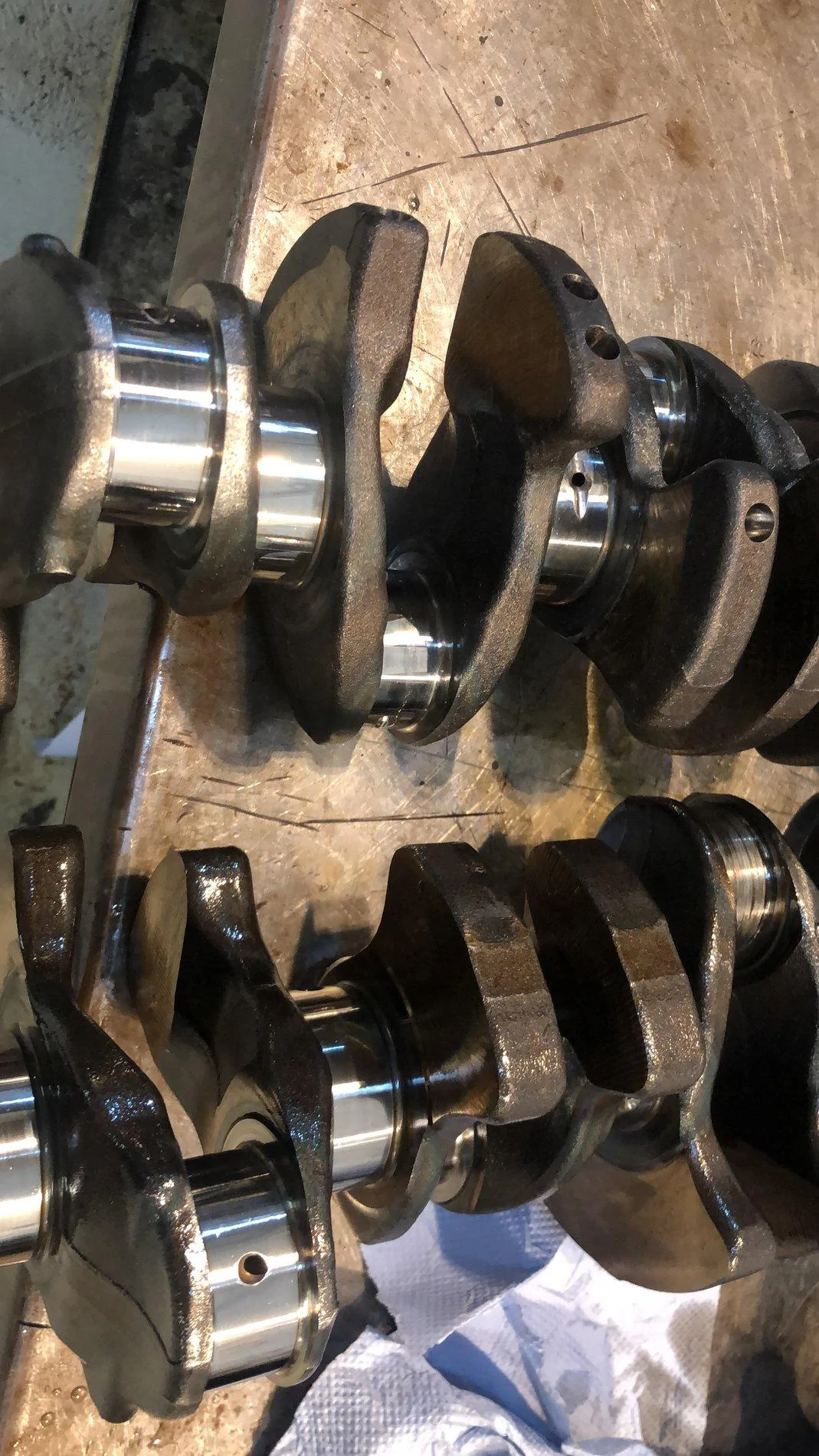

    The B58C has a sturdy construction and very different to the B58A.

    Block, pistons, cylinder head, chain drive, oil pump, intake manifold, etc. has been changed compared to the B58A.

    If anyone has interest, we can make a thread where we talk about the details and differences.



    Here only a small insight:

    image1 (2).jpeg image2 (2).jpeg image3.jpeg image0 (3).jpeg

    XtremeMaC, Dunc, MA617M and 3 others like this.
  7. Mk5nut

    Mk5nut Well-Known Member

    Car(s):
    2012 Hyundai accent 1.6~90k kms
    Joined:
    Aug 19, 2019
    Location:
    Baku, Azerbaijan
    Posts:
    46
    Liked:
    28
    An in-depth difference thread would be appreciated, since most users here ( includung me) thought that headifold would be the only difference between b58a and c

    Zupraman likes this.
  8. Dreihundert

    Dreihundert Member

    First Name:
    Andy
    Car(s):
    Supra A90
    Joined:
    Oct 17, 2019
    Location:
    Germany
    Posts:
    8
    Liked:
    37
    We will gladly do that soon and show you details. :)

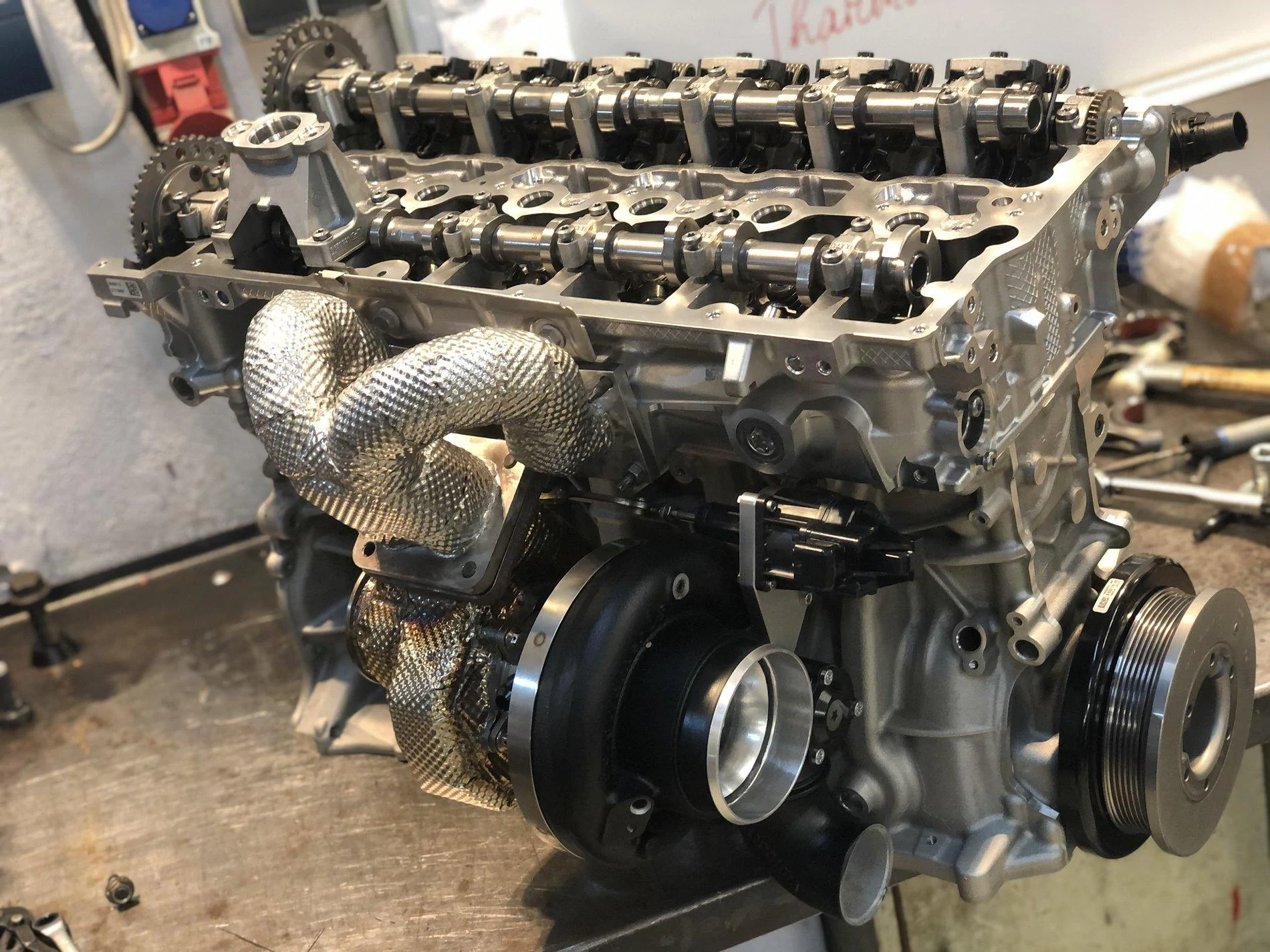

    Currently we are at the finale tune of our turbo kit. The engine now has classic H-Desgin Connecting Rods, reworked pistons, modified cylinder head.

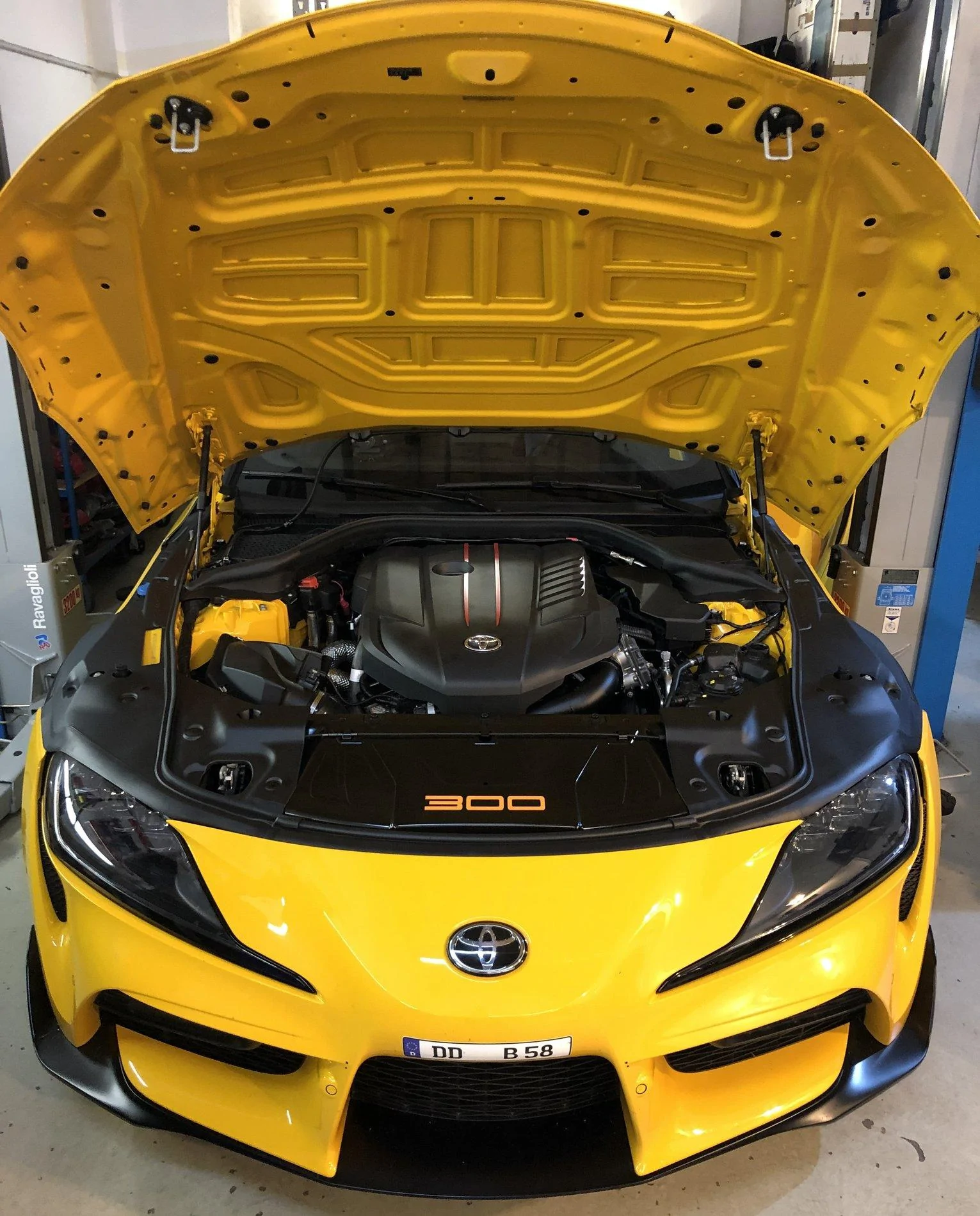

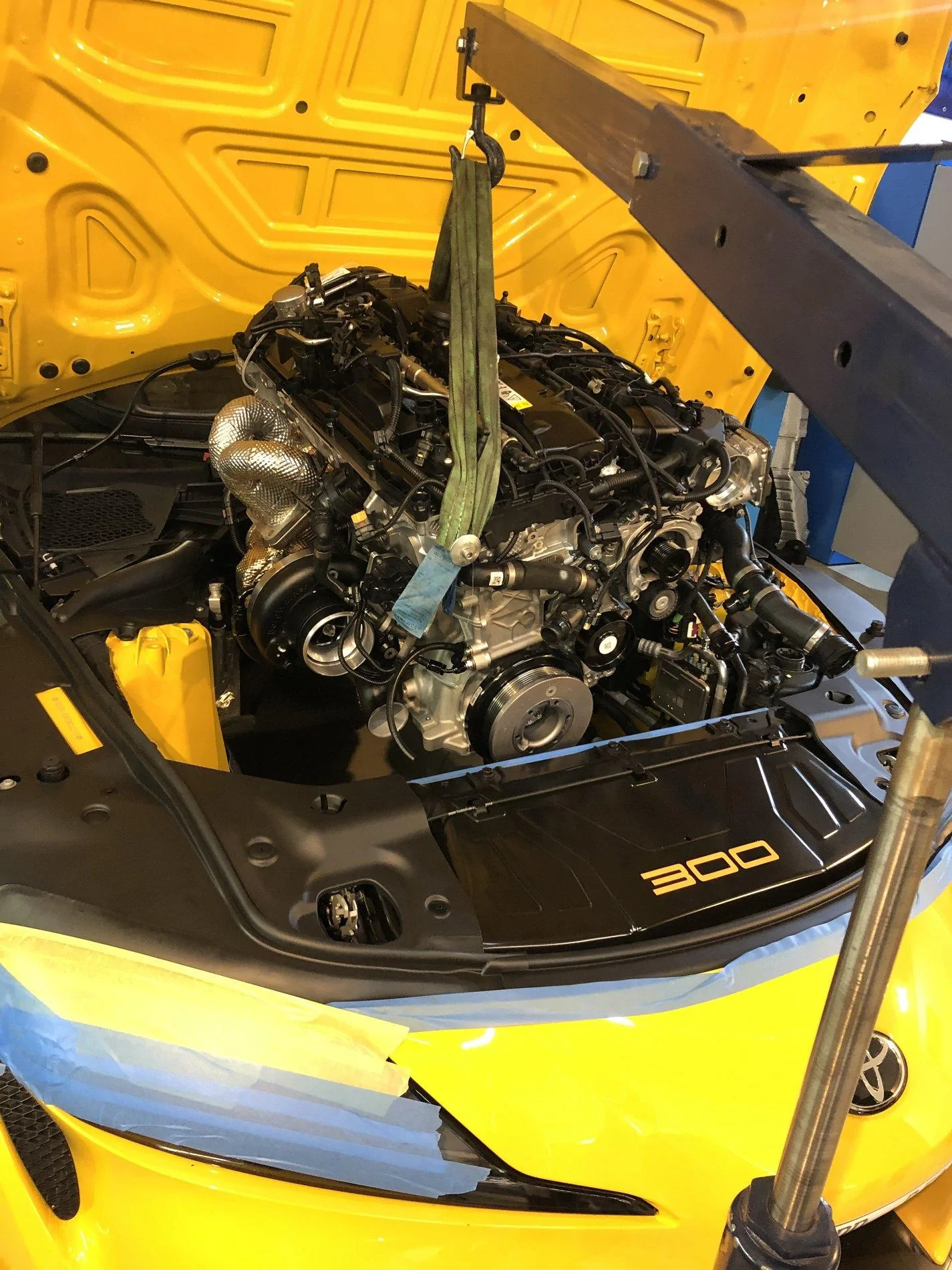

    image1.jpeg image2 (3).jpeg image7.jpeg


    because some guys have asked our A90 Supra EFR8474 Kit - up to 950WHP is available end of October.

    Introductory price is $ 9900 with custom tune via MHD (Pureboost)
    (on request we give special forum discount) upload_2019-10-18_10-10-49.gif


    The kit contains everything you need for installation:

    - modified EFR8474 Turbo (thermo-insulated + turbo Compressor Housing in your desired color upload_2019-10-18_10-10-49.gif )
    - Exhaust manifold (thermo-insulated)
    - chargepipe with meth bung
    - thermo-insulated downpipe (on request with or without 200 cells cat)
    - Oil hoses / pipes
    - Silicone Couplers / Clamps
    - Turbo Gasket
    - exhaust Gaskets / Nuts / Bolts
    - Oil Feed Line Kit
    - CNC bracket for original Wastegate Actor.
    - Coolant Pipe / Hardware
    - custom tune via MHD (Pureboost)

    everything plug and play...

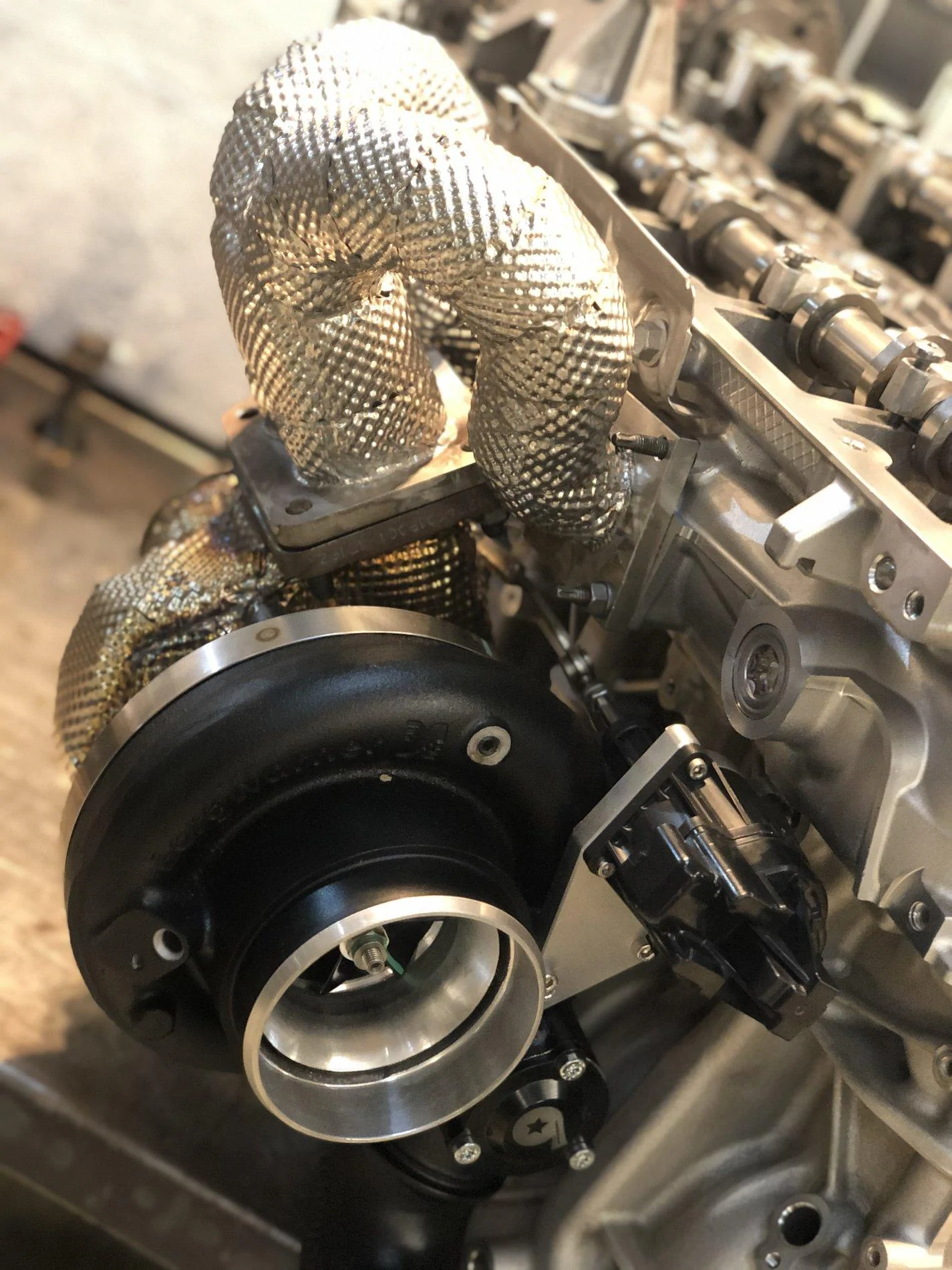

    image0 (1).jpeg

  9. geert.bieseman

    geert.bieseman Well-Known Member

    First Name:
    Geert
    Car(s):
    Nissan GT-R R33 ; Toyota Supra MKV
    Joined:
    Oct 4, 2019
    Location:
    Belgium
    Posts:
    45
    Liked:
    20
    Glad you guys joined the party.
    Yes would be cool to see the differences :)

  10. A70TTR

    A70TTR Well-Known Member

    Car(s):
    LX570, ST205 GT4, JZA70, JZA70 TT-R, Q50-RS
    Joined:
    Sep 9, 2017
    Location:
    Japan/EU/USA
    Posts:
    2,470
    Liked:
    8,974
    Shame about the rod bearing, but pretty exciting stuff with that kit. I'm a big of meticulous packaging and Borg Warner/EFRs.

    BrettS likes this.
  11. Gearbangin

    Gearbangin Well-Known Member

    First Name:
    Larry
    Car(s):
    2020 Supra 175/1500 2007 TRD Edition FJ Cruiser/Lifted/Murdered out 2016 NT 200T F Sport 2019 RCF Anniversary Edition Matte Nebula Gray
    Joined:
    Jan 18, 2019
    Location:
    Pittsburgh
    Posts:
    124
    Liked:
    189
    So stock longblock can support that power level?

  12. MA617M

    MA617M Well-Known Member

    Car(s):
    lots
    Joined:
    Aug 27, 2017
    Location:
    Australia
    Posts:
    1,800
    Liked:
    4,328
    Occupation:
    Engineer
    Fantastic! Any technical details you can provide would be amazing.

  13. LS3Twins

    LS3Twins Well-Known Member

    First Name:
    Ryan
    Car(s):
    2020 Supra 1998 E36M3 LS3 Twin Turbo
    Joined:
    Aug 22, 2019
    Location:
    Charlotte
    Posts:
    239
    Liked:
    333
    My main question is what are ya'll doing about fueling? Or are you just using a ton of meth?
    Which of the three is the weak point:
    HPFP
    LPFP
    Injectors

    I'm working on upgrades for all three but this is not something that will happen fast. If you already have a solution I will buy it just let me know.

    Also what octane and ethanol content are you using?

    Thanks

    Zupraman likes this.
  14. kona61

    kona61 Well-Known Member

    First Name:
    J
    Car(s):
    5G 4Runner, MK7 Golf, AZW LE Supra
    Joined:
    Mar 25, 2018
    Location:
    San Bernardino-ish, CA
    Posts:
    839
    Liked:
    1,219
    Garage Profiles:
    1
    I don’t know too much specifically about tuning this motor, but would it not be more cost effective to just add port injectors?

  15. LS3Twins

    LS3Twins Well-Known Member

    First Name:
    Ryan
    Car(s):
    2020 Supra 1998 E36M3 LS3 Twin Turbo
    Joined:
    Aug 22, 2019
    Location:
    Charlotte
    Posts:
    239
    Liked:
    333
    I'm working on that too but it's also a heavy project and requires:

    1. A completely new intake manifold and deleting the water to air system which also cools the A/C (No condenser on the front) and going to air to air and having to route all of that piping and build a front mount. To keep A/C you'd have to build a condenser and mount it on the radiator in place of the old heat exchanger.
    Or
    2. A completely new intake manifold and designing a bigger water to air intercooler that fits inside of the new intake manifold.

    I want my setup to not rely on meth or any type of injection in the charge piping.

    Mk5nut and kona61 like this.
