Charge pipes before tune

gixxersixxerman

Well-Known Member
First Name
Thomas
Joined
Sep 18, 2021
Threads
3
Messages
680
Reaction score
1,196
Location
Las Vegas
Car(s)
2020 Supra
Tbolts and hairspray.... yeah hairspray ;)

Aquanet on everything from motorcycle grips, to charge pipe couplers to even using it on drag radials when mounting the tires to the wheels with out beadlocks. shit really does work.
Sponsored


  • Like
Reactions: zrk

AHP

Well-Known Member
Joined
Nov 28, 2018
Threads
9
Messages
807
Reaction score
1,218
Location
CLT, NC
Car(s)
2024 3.0 Premium MT, 2019 Z06
Vehicle Showcase
1
Complete and total waste of money unless you need it for meth injection bungs.


A90.C

Well-Known Member
First Name
Chase
Joined
Jun 29, 2022
Threads
8
Messages
160
Reaction score
132
Location
USA
Website
youtube.com
Car(s)
2020 Toyota Supra, 2015 BMW 335i
Thank you, I will most likely order this.
Just want to make sure, the silicon that comes with FTP is 2.5-3 for the diameter correct?
Yep they’re all the same


Axix23

Well-Known Member
Joined
Nov 18, 2019
Threads
27
Messages
3,136
Reaction score
3,343
Location
GA
Car(s)
NA

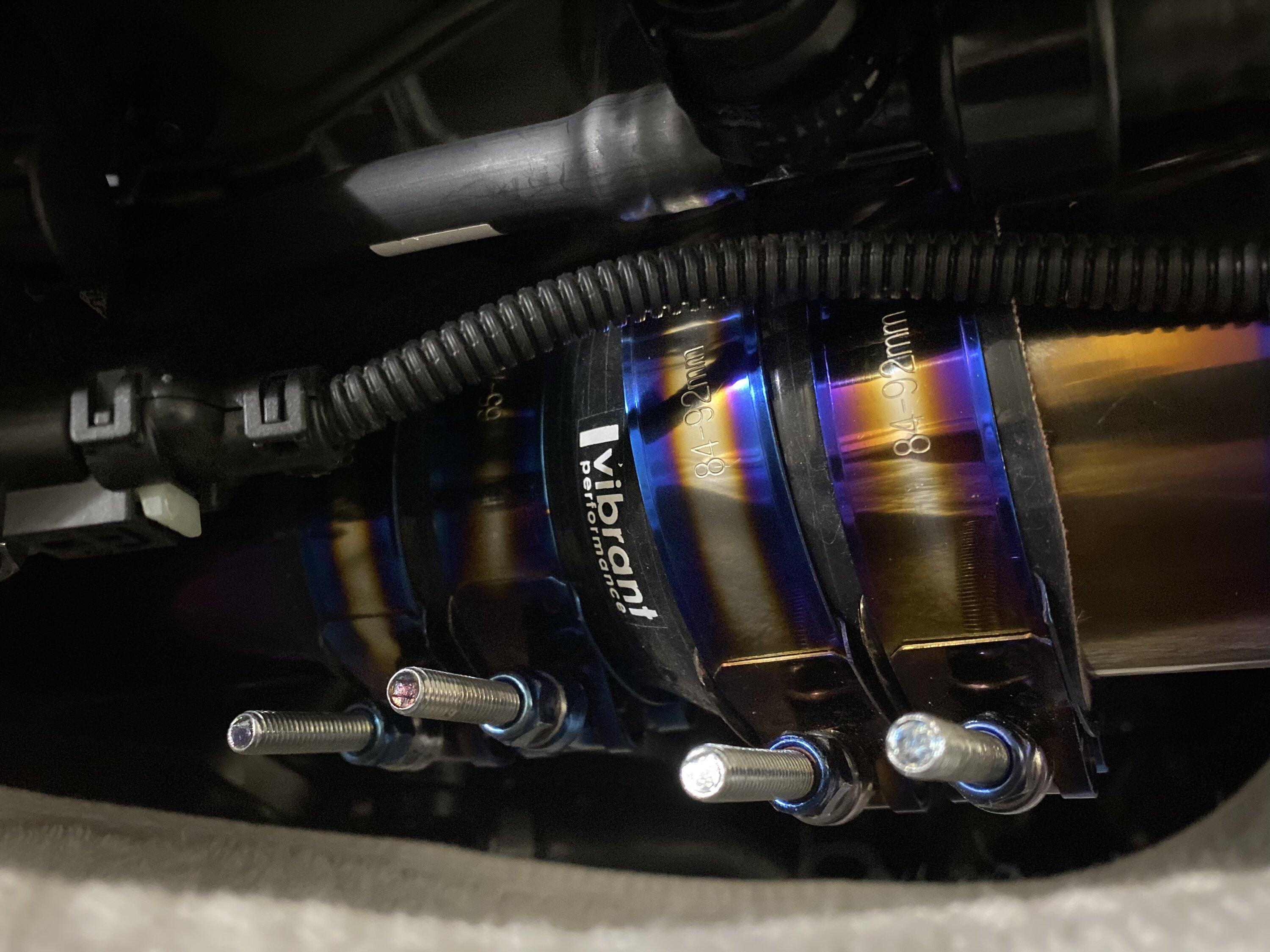

Yes, there's someone here who has posted pictures of their setup with a longer coupler and 2 T-bolts on each side to finally fix their boost leak issues. Honestly I wouldn't bother with a charge pipe unless you're going big turbo or new manifold (which moves the throttle body and requires a new charge pipe to bolt up). If you do decide to get a charge pipe for whatever reason, swap out the garbage worm clamps for T-bolts, and if you still have boost leak issues, get a longer coupler and double up on T-bolts.

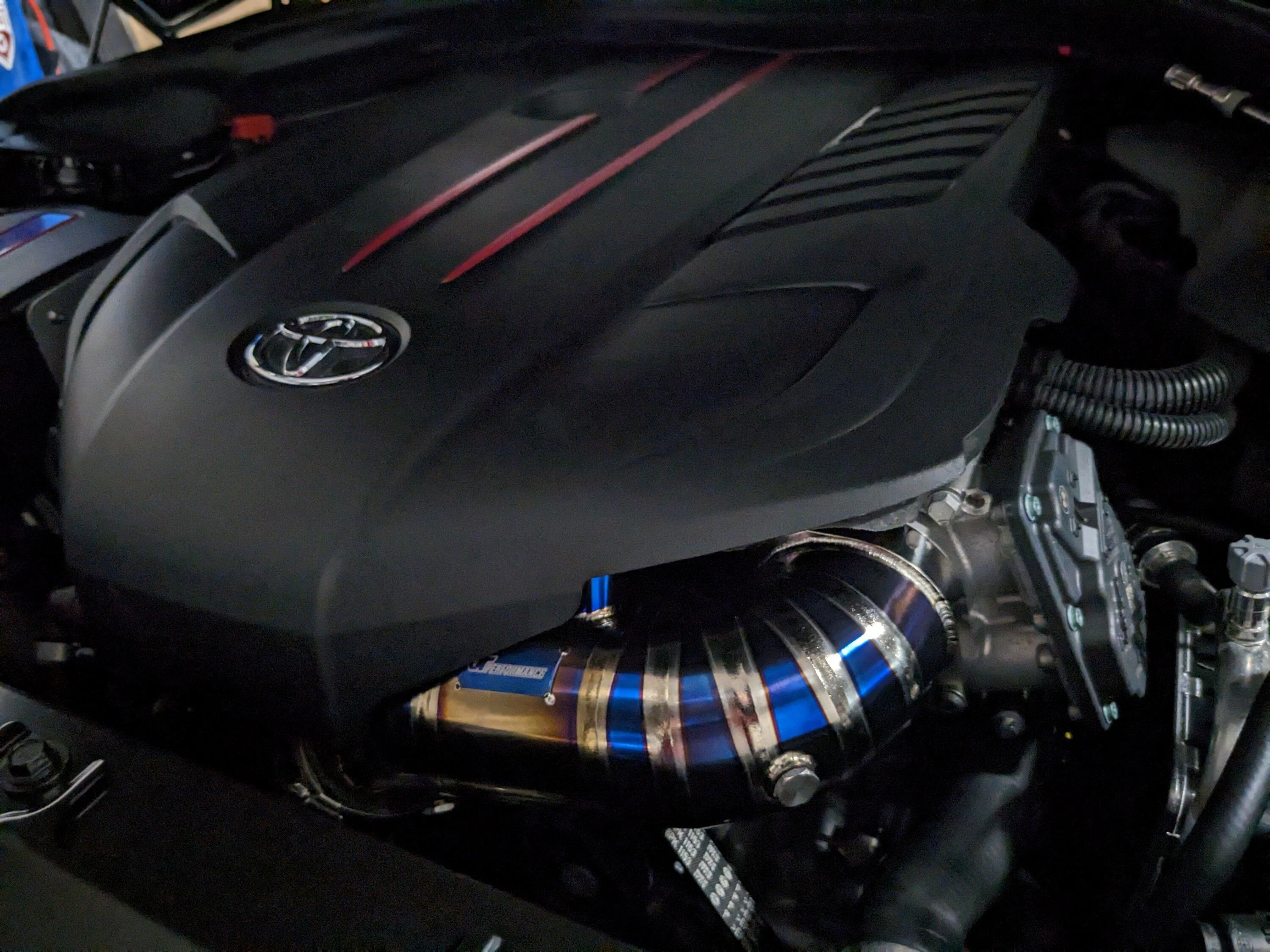

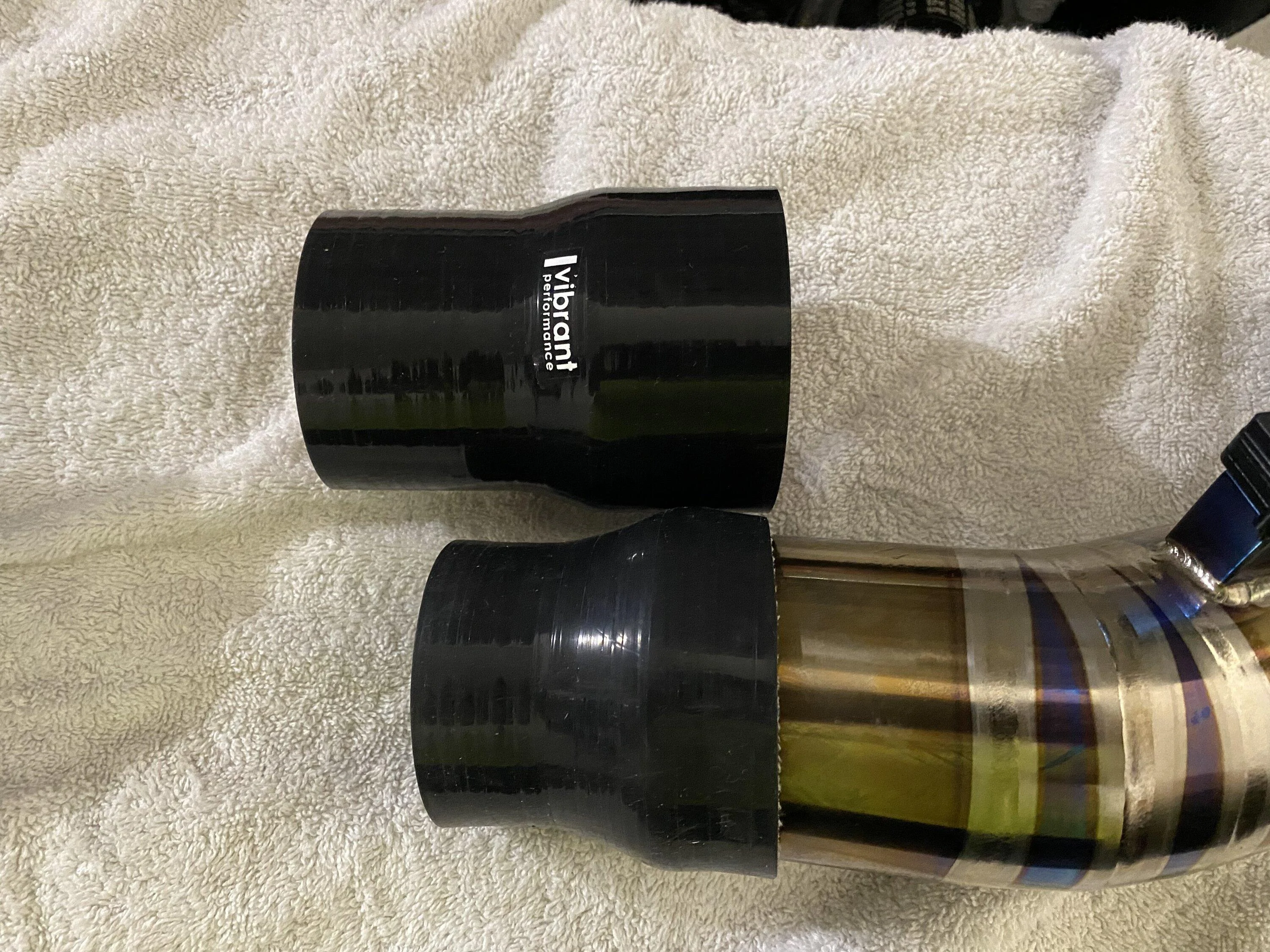

That would be me. It’s fool proof now. The couplers and clamps were crap that came with my pipes… longer Vibrant couplers for the win!! I posted a comparison of the old one vs Vibrant. The ones that come with the charge pipes are just way too short…. Mine blew off after the first WOT…. And yes, charge pipes are waste of money. I did it for the shiny finish…. Lol ?







Joel

New Member
Joined
Aug 22, 2023
Threads
1
Messages
3
Reaction score
1
Location
United States
Car(s)
'20 Supra 3.0
That would be me. It’s fool proof now. The couplers and clamps were crap that came with my pipes… longer Vibrant couplers for the win!! I posted a comparison of the old one vs Vibrant. The ones that come with the charge pipes are just way too short…. Mine blew off after the first WOT…. And yes, charge pipes are waste of money. I did it for the shiny finish…. Lol ?





Reviving a bit of an old thread here... I think we may have the same chargepipe. Just did my install today and to my disappointment there seems to be an intermittent fairly untraceable boost leak somewhere. It's been building boost no problem and holding it, but for some runs I had a pretty audible squeak/wheeeeeee noise. Later in the day now it's gone (self-clearanced? lol), and I only get a short squeak now on blow-off when there's a sharp drop in pressure. I'm chasing ghosts trying to find out where it might be coming from, and I found a bunch of threads on these couplers being a common issue.

At the risk of blowing more money for a part I didn't even really need in the first place, would you mind telling me what coupler you got from Vibrant and what T clamps you got? Also, which charge pipe do you have?


Axix23

Well-Known Member
Joined
Nov 18, 2019
Threads
27
Messages
3,136
Reaction score
3,343
Location
GA
Car(s)
NA
Reviving a bit of an old thread here... I think we may have the same chargepipe. Just did my install today and to my disappointment there seems to be an intermittent fairly untraceable boost leak somewhere. It's been building boost no problem and holding it, but for some runs I had a pretty audible squeak/wheeeeeee noise. Later in the day now it's gone (self-clearanced? lol), and I only get a short squeak now on blow-off when there's a sharp drop in pressure. I'm chasing ghosts trying to find out where it might be coming from, and I found a bunch of threads on these couplers being a common issue.

At the risk of blowing more money for a part I didn't even really need in the first place, would you mind telling me what coupler you got from Vibrant and what T clamps you got? Also, which charge pipe do you have?

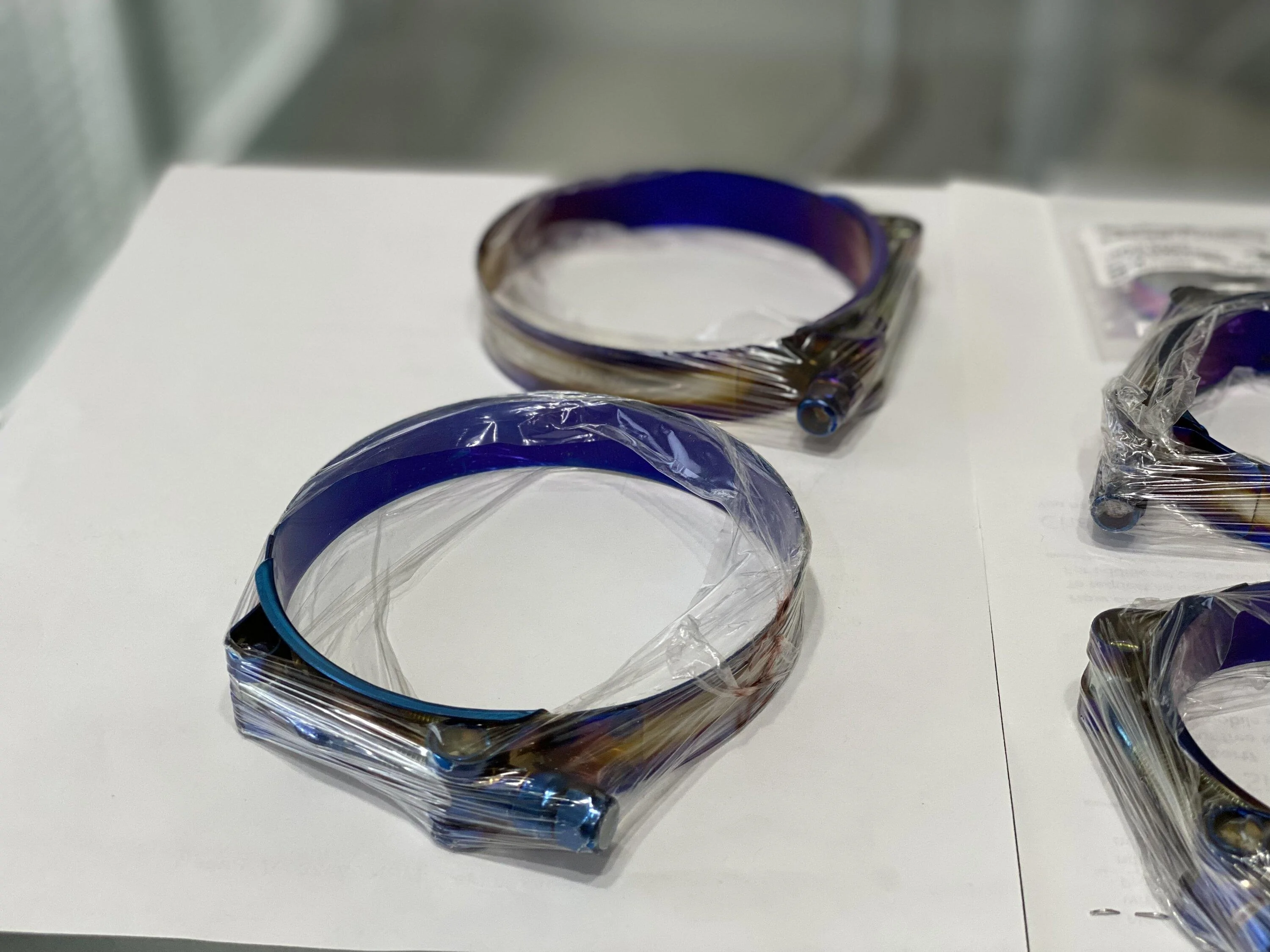

I basically got some generic ones. You need to measure your diameter on your charge pipe to make sure they will fit the couplers. I believe 2.5-3.0 couplers will work. Somewhere in that range. As far as t bolt clamps, you gotta find one that is in the clamp range for your diameter of piping. I would say 2.5” to 2.75” range

Charge pipes were from China (Alibaba) from back in 2020. They are now rebranded to many different companies in the USA. One is VR racing.


razorlab

Well-Known Member
First Name
Bryan
Joined
Oct 2, 2021
Threads
29
Messages
8,568
Reaction score
16,796
Location
Hudson Valley, NY
Car(s)
Not a Corvette.
I might be getting lucky or this "issue" is overblown, no pun intended.

I have 1732 laps and 41.7 hours of track time on my OEM charge pipe. Car has a Pure 700 and has seen 30psi out the top of the rev range.


Loco38SUP

Well-Known Member
Joined
Feb 17, 2021
Threads
55
Messages
2,348
Reaction score
3,402
Location
Seattle
Car(s)
2021 GR Supra 3.0 (Renaissance Red)

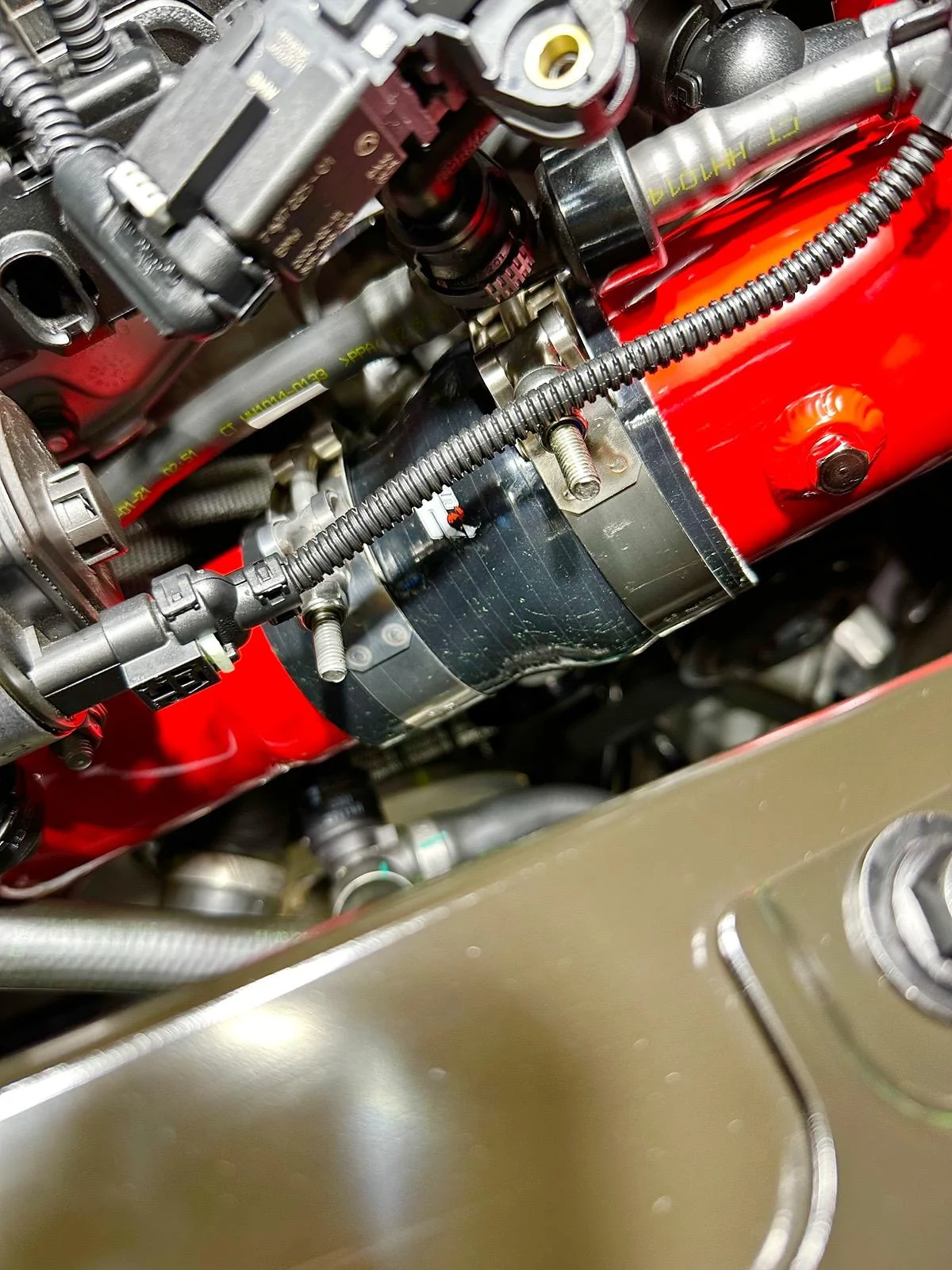

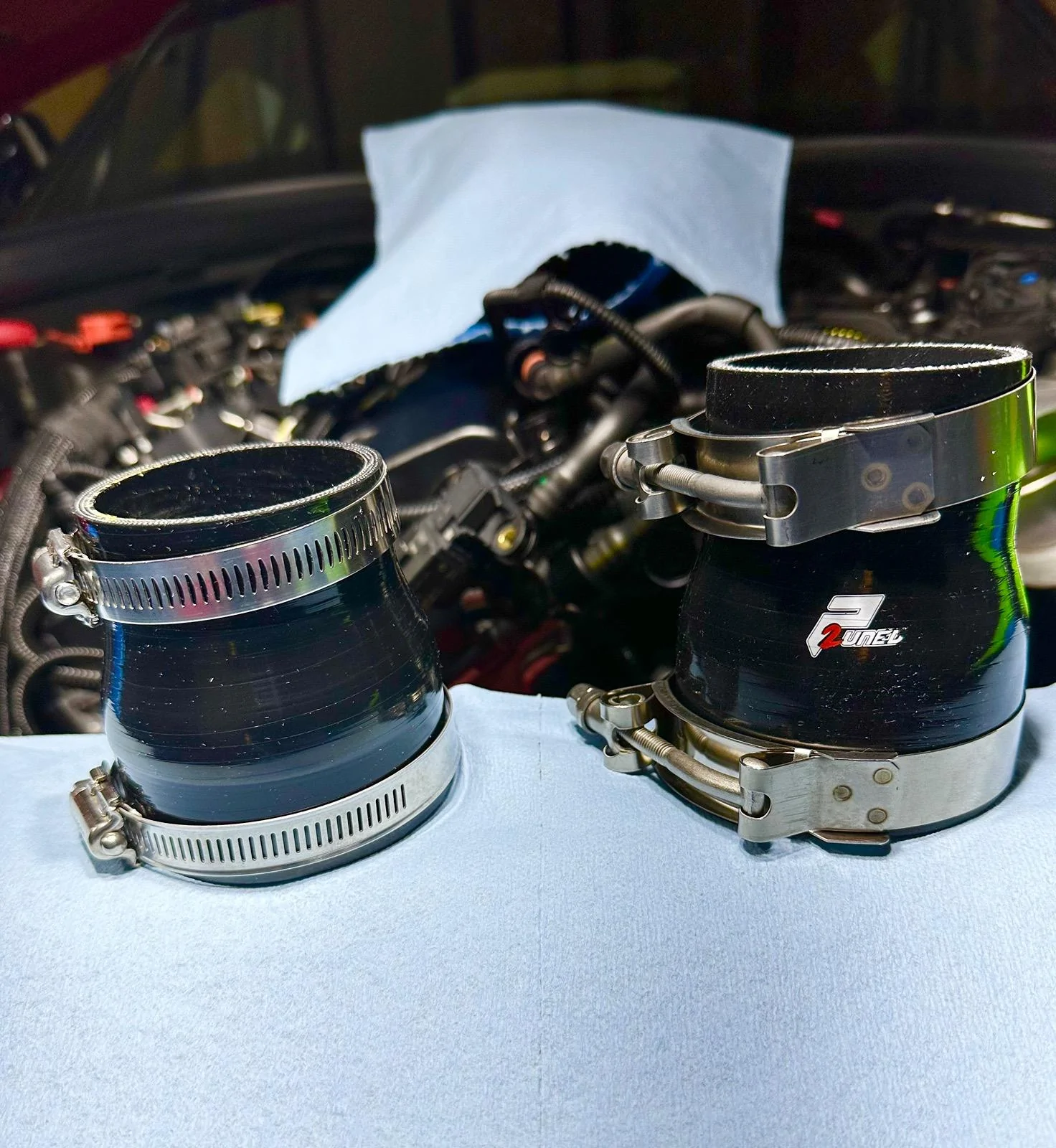

The P2uned version is a solid choice for a coupler.

The stock charge pipe is just fine for most tuned applications. But we don’t buy these cars to leave them stock.




-RJM


zrk

Well-Known Member
First Name
Zack
Joined
Apr 20, 2021
Threads
80
Messages
8,473
Reaction score
14,119
Location
Chicago, IL
Car(s)
2021 Supra - Nocturnal Black
I might be getting lucky or this "issue" is overblown, no pun intended.

I have 1732 laps and 41.7 hours of track time on my OEM charge pipe. Car has a Pure 700 and has seen 30psi out the top of the rev range.
Absolutely. Not doing it for power but more so for the factory charge pipe not breaking
It's only an issue on gen 1s. We don't suffer this problem.

There is absolutely no reason to change the chargepipe until you need to change the chargepipe, i.e. meth, nitrous, intake manifold, change turbo placement.

The factory location turbos aren't going to break this thing.
