ECU location

Discussion in 'DME / ECU Software Tuning' started by Apliiqq, Sep 4, 2019.

  1. Apliiqq

    Apliiqq Active Member

    Car(s):
    Bagged E30, Supra MKV, Drift BRZ, Daily E30
    Joined:
    Aug 20, 2019
    Location:
    montreal
    Posts:
    43
    Liked:
    44
    Home Page:
    Where is the ecu location?

    What type of ECU are the Supra's on?

  2. Q8_TwinTurbo

    Q8_TwinTurbo Active Member

    First Name:
    Athbi
    Car(s):
    1994 Porsche 965 Turbo 3.6, 2001 Porsche 996 Turbo, 2008 Mitsubishi Evo X
    Joined:
    Sep 15, 2019
    Location:
    Kuwait
    Posts:
    31
    Liked:
    13
    +1
    Can someone be helpful and inform us where the A90 Supra ECU/DME is located.

  3. Twisted Tuning

    Twisted Tuning Well-Known Member
    Gold Sponsor


    First Name:
    Justin
    Car(s):
    Supra MKV, BMW 135i, BMW 335xi, Mazda 6 Twin Turbo,
    Joined:
    Mar 10, 2019
    Location:
    New York
    Posts:
    418
    Liked:
    469
    Occupation:
    calibration specialist
    Home Page:

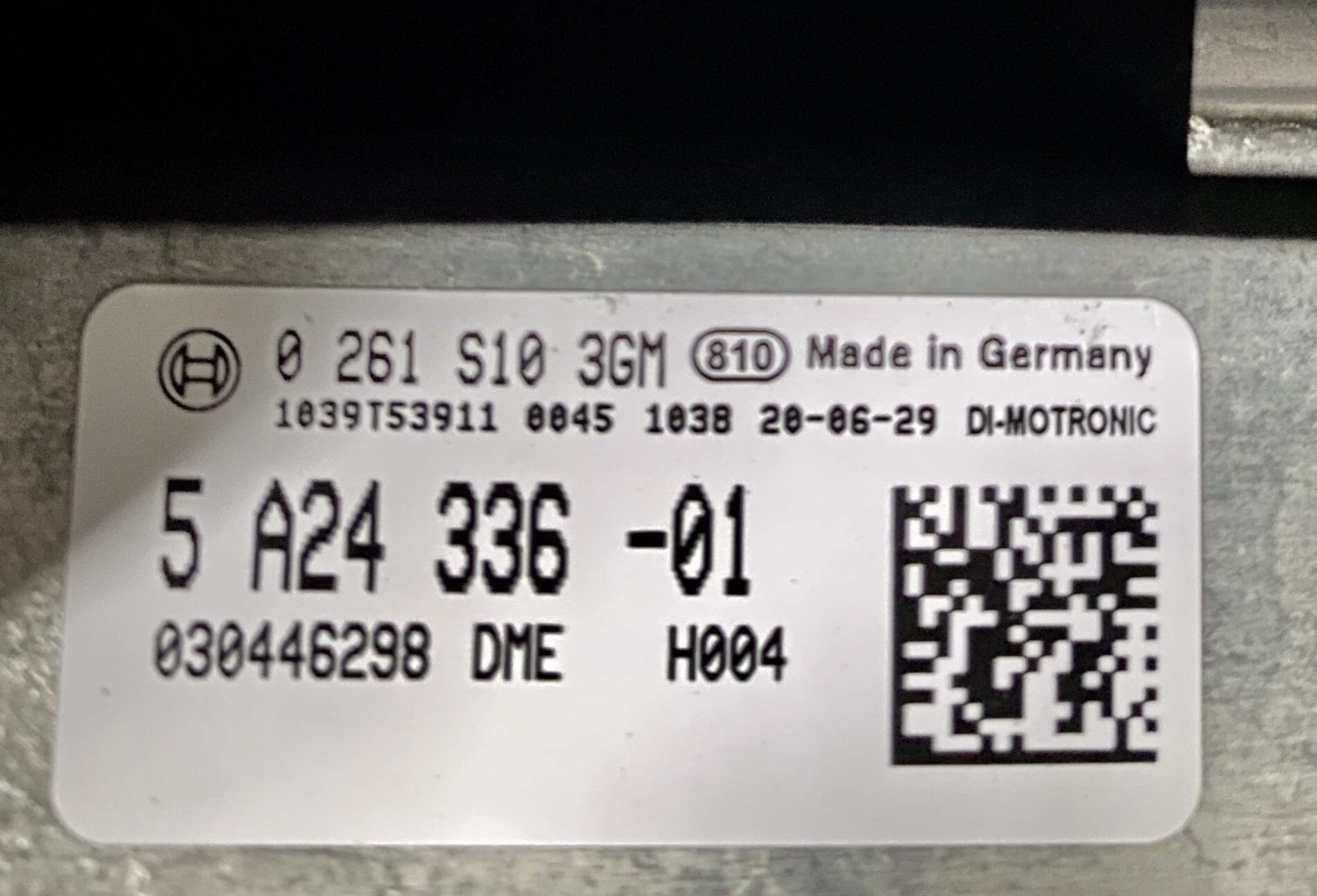

    driverside shock tower under rectangular cover. its an MG1 ecu

  4. Q8_TwinTurbo

    Q8_TwinTurbo Active Member

    First Name:
    Athbi
    Car(s):
    1994 Porsche 965 Turbo 3.6, 2001 Porsche 996 Turbo, 2008 Mitsubishi Evo X
    Joined:
    Sep 15, 2019
    Location:
    Kuwait
    Posts:
    31
    Liked:
    13
    Thank you Justin.

  5. Twisted Tuning

    Twisted Tuning Well-Known Member
    Gold Sponsor


    First Name:
    Justin
    Car(s):
    Supra MKV, BMW 135i, BMW 335xi, Mazda 6 Twin Turbo,
    Joined:
    Mar 10, 2019
    Location:
    New York
    Posts:
    418
    Liked:
    469
    Occupation:
    calibration specialist
    Home Page:
    No problem

  6. Q8_TwinTurbo

    Q8_TwinTurbo Active Member

    First Name:
    Athbi
    Car(s):
    1994 Porsche 965 Turbo 3.6, 2001 Porsche 996 Turbo, 2008 Mitsubishi Evo X
    Joined:
    Sep 15, 2019
    Location:
    Kuwait
    Posts:
    31
    Liked:
    13
    I also managed to find these diagrams under ECM in the workshop manual PDF.

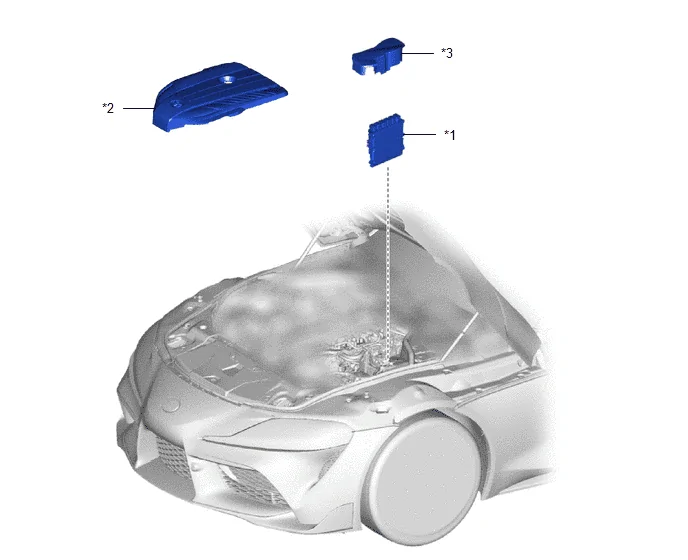

    REMOVAL
    CAUTION / NOTICE / HINT

    CAUTION:
    Working on 12 V vehicle electrical system.
    Risk of short circuits! Risk of fire!
    Detach battery earth lead from battery.
    PROCEDURE


    1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    2. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    3. REMOVE ECM

    NOTICE:
    Electrostatic discharge.
    Damage to or destruction of electrical components.
    Only touch the housings of electrical components. Do not touch pins or multi-pin connectors directly.








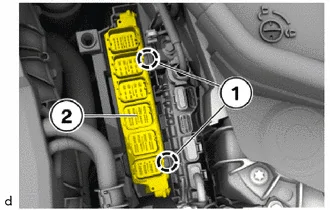

    (a) Release snap-lock couplings (1).

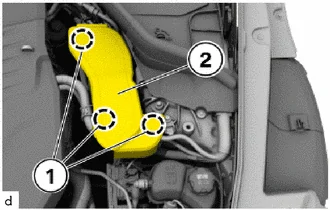

    (b) Feed the cover (2) out toward the top and remove.

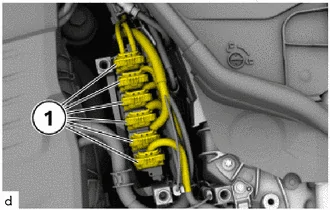

    (c) Unlock and disconnect all plug connections (1).


    (d) Unlock the locks (1).
