Remove mirrorshroud 4 Mirrortap

[Matthewstorm]

Anyone have a video or instructions on how exactly to remove the mirrorshroud so I can do a mirror tap. I saw a video but the person didn't how how to remove it. And if you have a photo of exactly where to place the mirror tap pins that would be awesome!

Sponsored



[BA9092]

I used these two videos for my R3 mirror tap:



[zrk]

I used these two videos for my R3 mirror tap:

Yup, same.



[Matthewstorm]

I used these two videos for my R3 mirror tap:

This is great! Thanks! Both these guys show tapping into the small connector. The original video I saw showed the exact opposite.



[Matthewstorm]

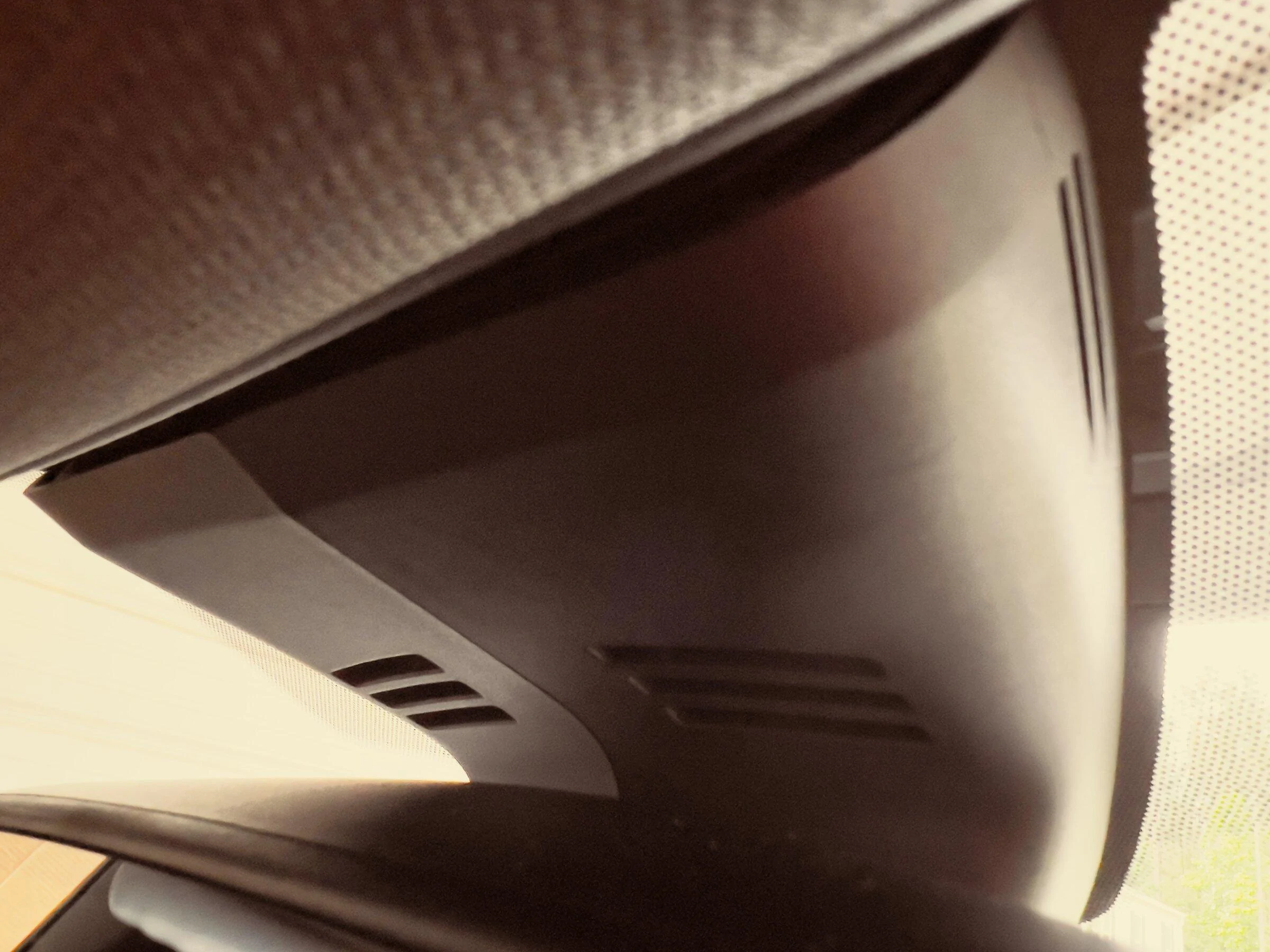

Sooo... Need a little more help. This is what I'm faced with with the rainshroud. I pressed and pressed until my face was blue. It won't come apart. Need some suggestions please. I tried to pry it apart but didn't want to break anything.



[xkenx1995]

Sooo... Need a little more help. This is what I'm faced with with the rainshroud. I pressed and pressed until my face was blue. It won't come apart. Need some suggestions please. I tried to pry it apart but didn't want to break anything.

If i recall correctly, I used a trim removal tool on the bottom side of that cover. Once you get a good gap in between them, you gotta use a good amount of force



[Matthewstorm]

If i recall correctly, I used a trim removal tool on the bottom side of that cover. Once you get a good gap in between them, you gotta use a good amount of force

Thanks. Didn't happen to make a video, did ya?



[Matthewstorm]

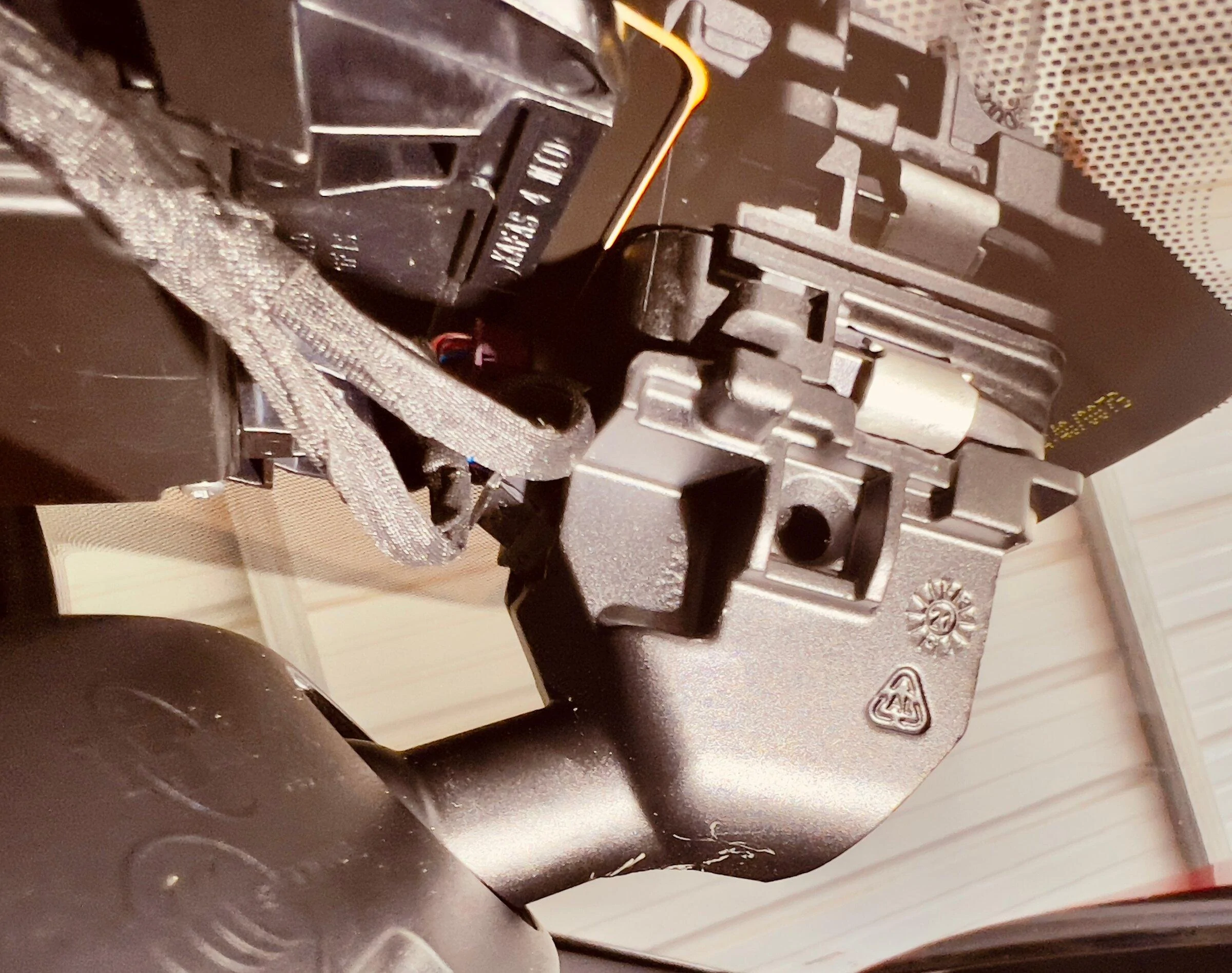

OK, got the shroud off but I can't get the connector out. Can't remove mirror that is solid. What's the trick in removing the connector? Thanks. I've had to go thru this with every new car and it's such a pain in the ass.

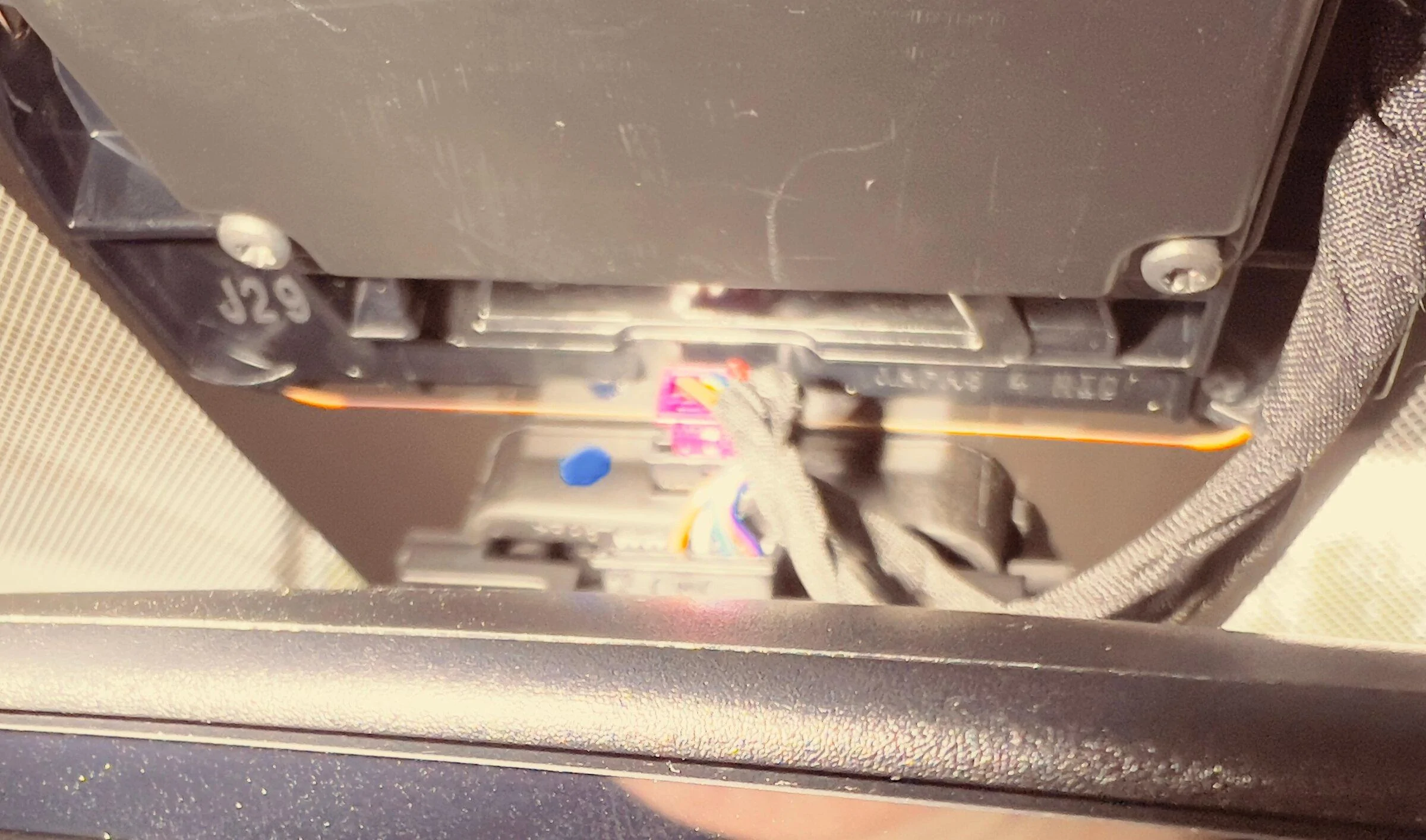

Man, this is so frustrating. The video doesn't show how to remove the pink connector.



[BA9092]

I just stuck my mirror tap prongs into the pink harness. I didn't bother unplugging it.



[Matthewstorm]

I just stuck my mirror tap prongs into the pink harness. I didn't bother unplugging it.

How the heck did you get back in there!?



[Matthewstorm]

OK, jeez Louise. Finally got it. I have a Valentine connected. This is supposed to auto shut off, right? So far it's still on. Thanks for all the help.

Instead of starting another thread I'll ask here. I picked up my car yesterday and set most everything up. First thing I set up with my memory seat 1 and 2. Today when I went out to the car none of the memory settings worked. I had to redo everything. Wondering what happened.



[Matthewstorm]

My detector does not turn off. In fact, nothing plugged into the cigarette lighter or USB port ever turns off.



[consultadrone]

My detector does not turn off. In fact, nothing plugged into the cigarette lighter or USB port ever turns off.

Even after 7 minutes when the car fully shuts down? I have my Valentine tapped into fuse 47 in the front panel and my dash cam tapped into the rear DC fuse and everything shuts down after the standard 7 minute post shut down delay. IIRC, there is a constant hot connection in the mirror but the usb and DC/Cig plug should all shut down after 7 minutes



[Matthewstorm]

The Valentine is mirror tapped. The other plugs never shut off.



[zrk]

The Valentine is mirror tapped. The other plugs never shut off.

Should be 7 minutes after doors lock.
