3D printed JB4 mount

[SooopraSD]

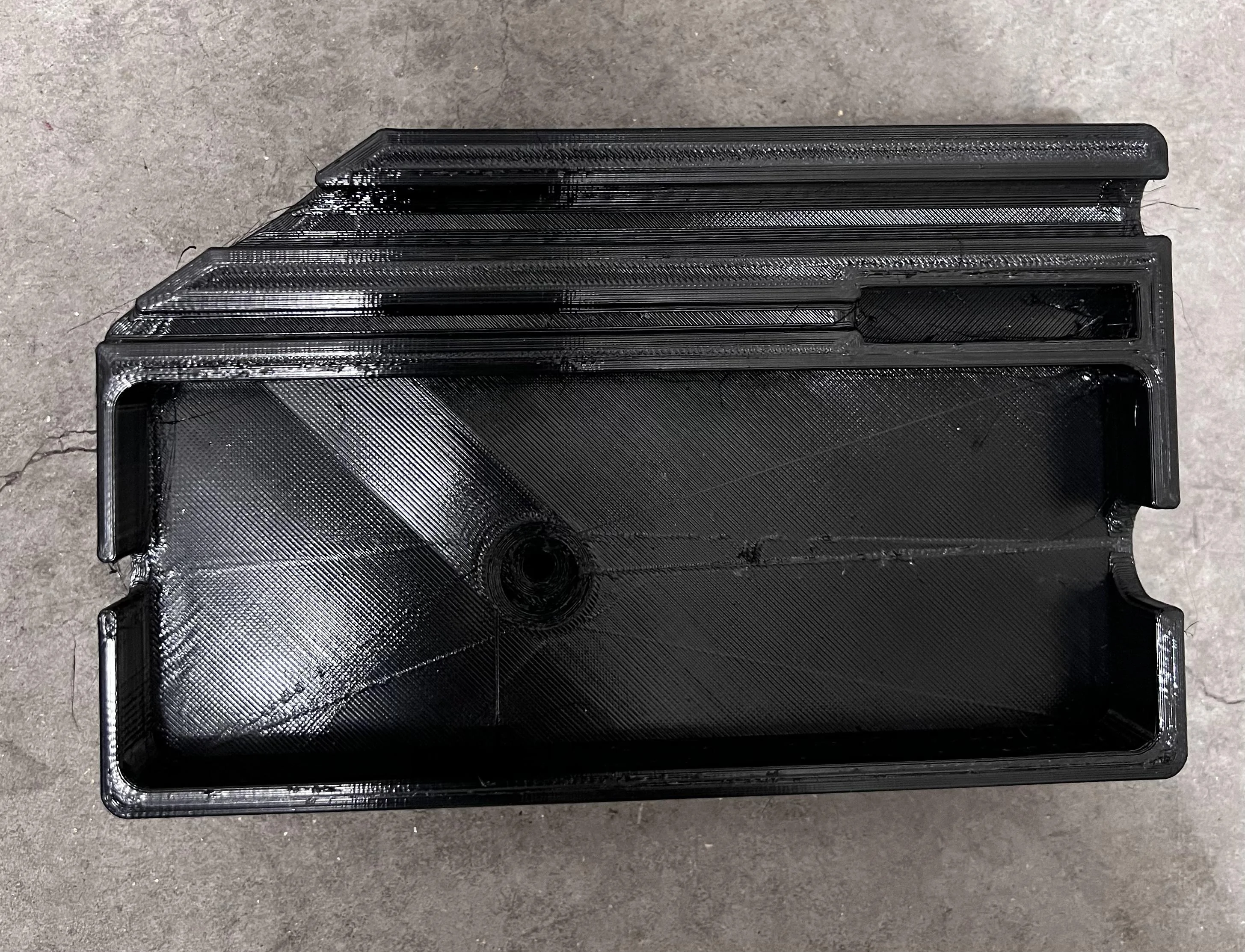

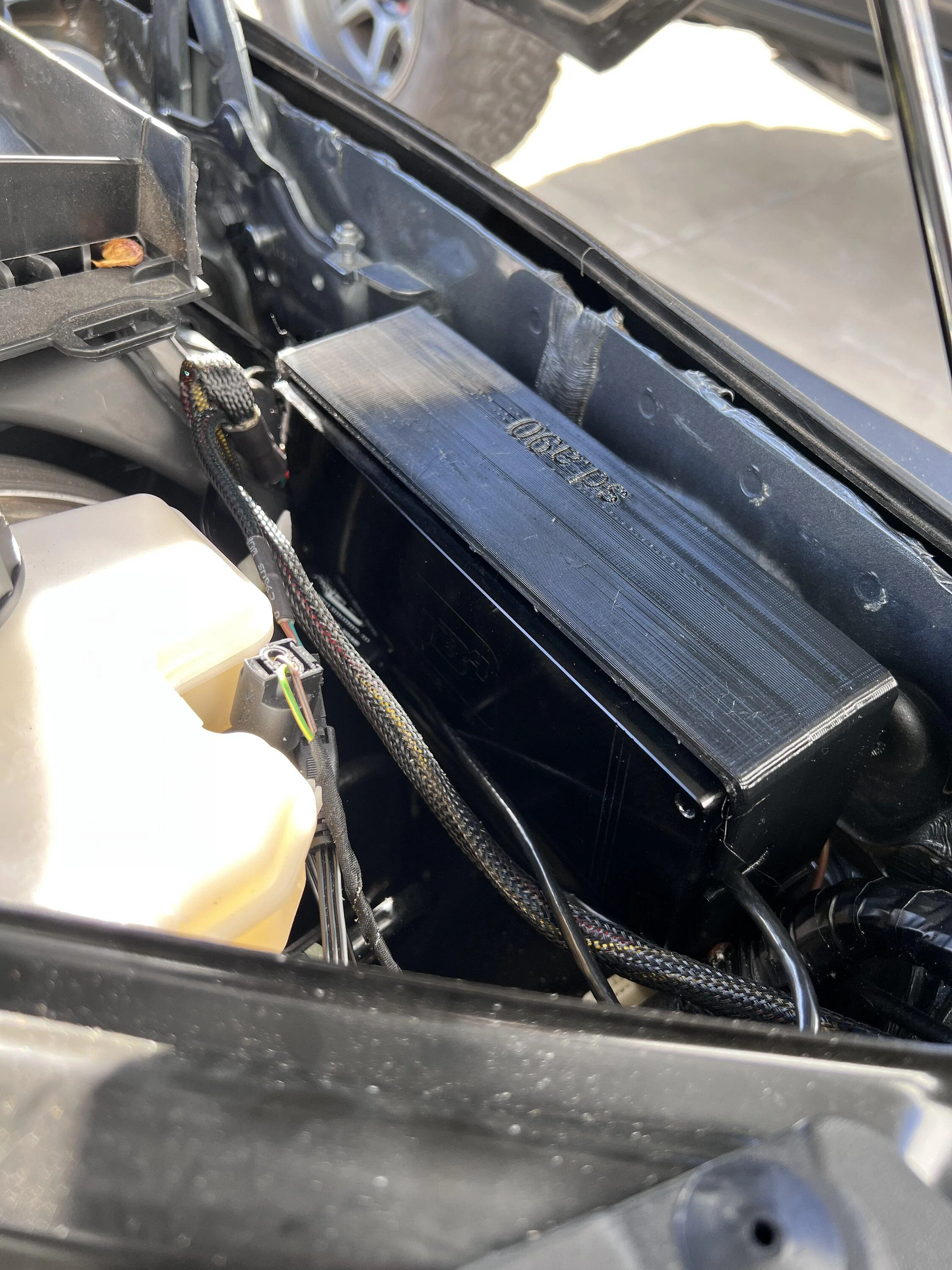

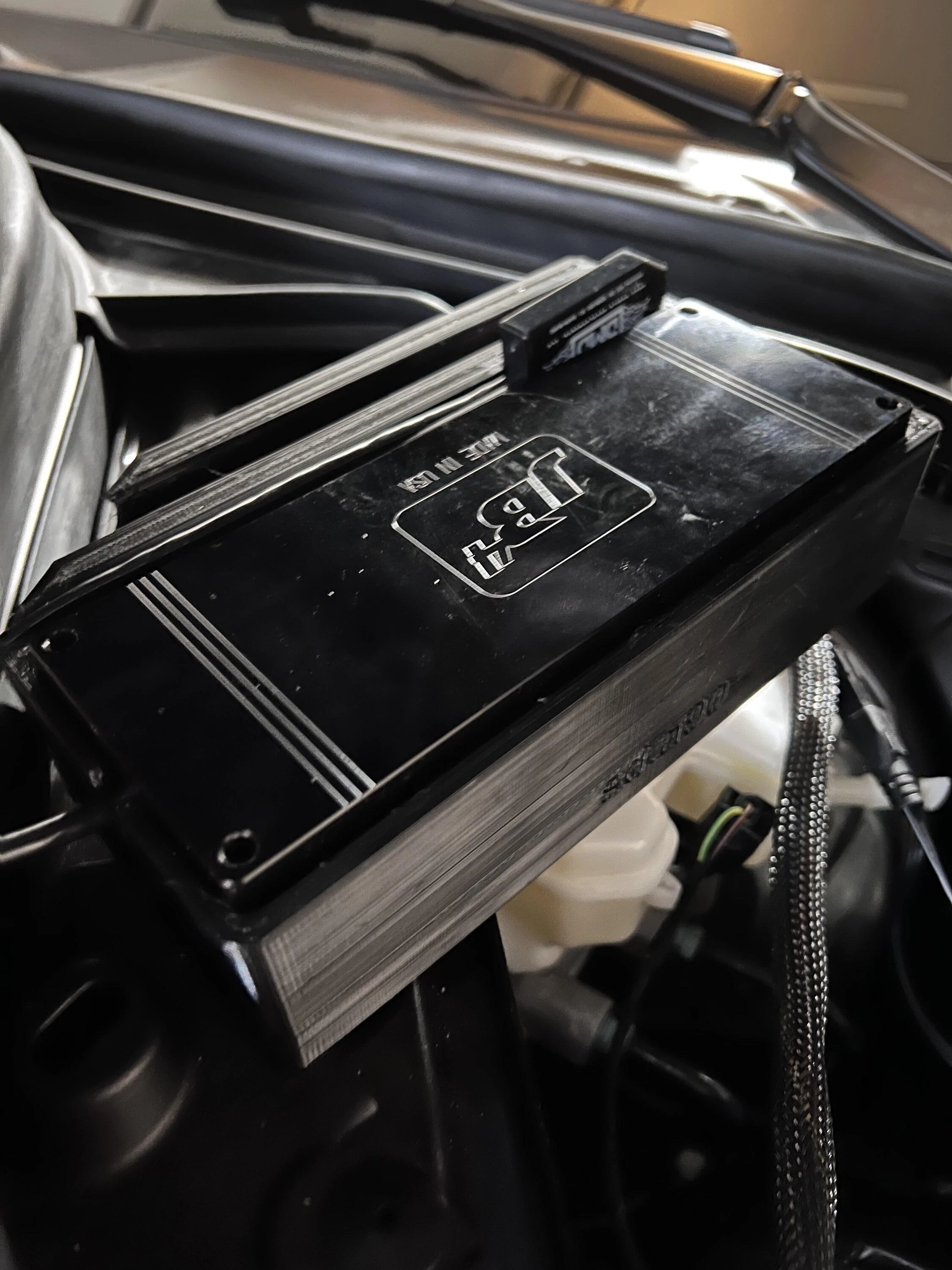

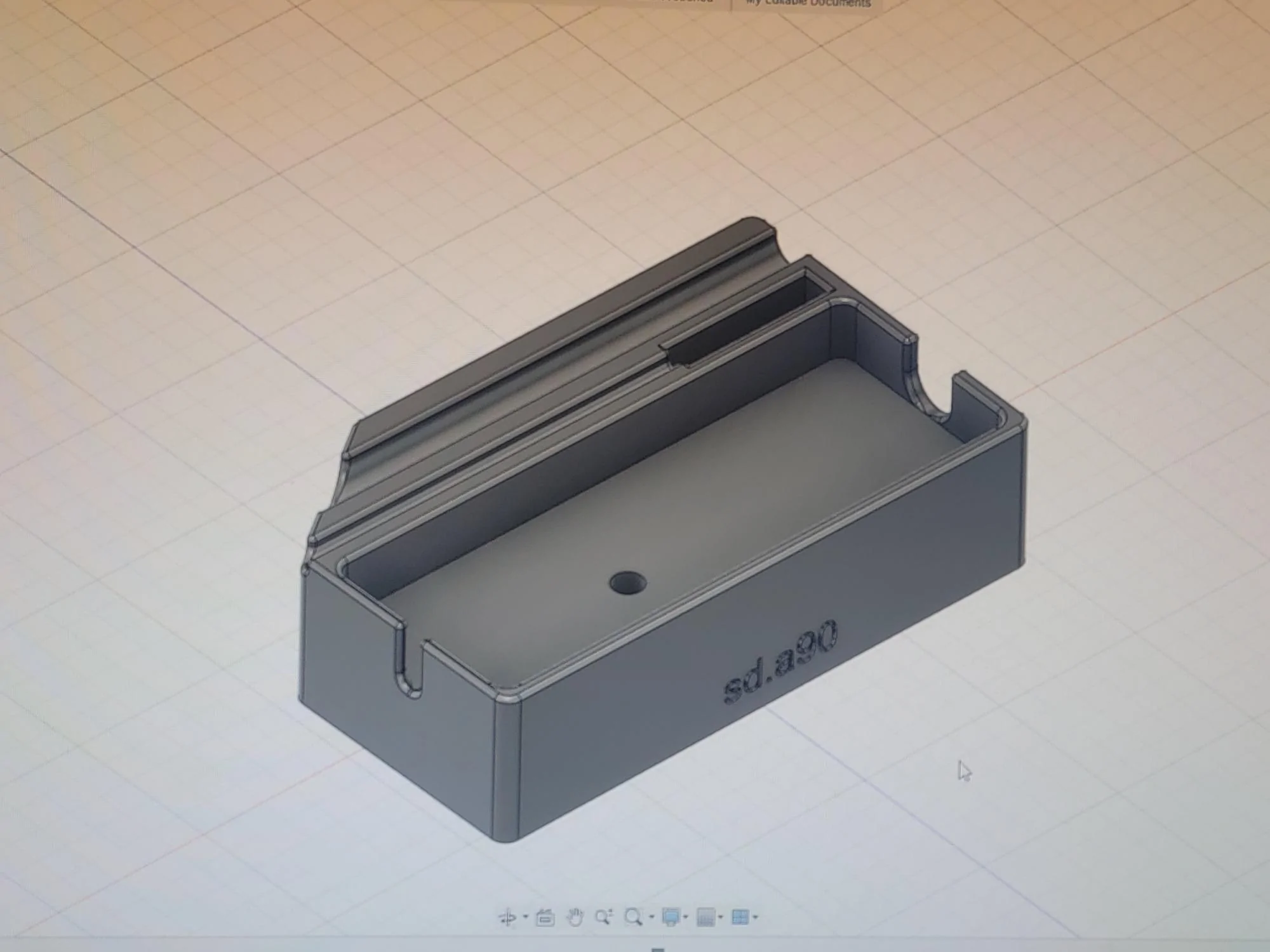

My bro took some measurements and printed up a mount for the JB4. Still needs a couple little tweaks but mounts up pretty nicely.

Sponsored



[calmeda1]

What material did he use? Some particular materials like to warp and/or shrink in heated environments, so I'm not sure how it'll react in the bay



[SooopraSD]

Not sure what he used but only time will tell. I’ll ask him though.



[calmeda1]

Not sure what he used but only time will tell. I’ll ask him though.

Sound good, a recommendation I would give is to print at 100% infill, since that'll help against thermal deformation, and maybe anneal it for better performance (will shrink a bit if annealed, so the model might have to be scaled up a tiny bit)

Otherwise, that looks like a pretty cool project and definitely want to see the progress of it



[32bitsofGil]

That’s awesome! Mind grabbing a few more wide angle pics of the installation? Kinda hard to make out how it’s done.

looking forward to the file drop!



[puzzled]

What material did he use?

I think balsawood..



[Extreme Power House]

Nice! keep us updated please



[SooopraSD]

Sound good, a recommendation I would give is to print at 100% infill, since that'll help against thermal deformation, and maybe anneal it for better performance (will shrink a bit if annealed, so the model might have to be scaled up a tiny bit)

Otherwise, that looks like a pretty cool project and definitely want to see the progress of it

Nice! keep us updated please

For sure!



[SD_MK]

@SD_a90 meet @sd.a90



[underdonk]

If you're willing to share the file, I'm willing to print and help test. I'll gladly pay for it in the future if you decide to monetize.



[SooopraSD]

@SD_a90 meet @sd.a90



[SD_MK]

More like this lol.
@SD_MK meets @sd.a90 meets @SD_a90



[SD_a90]

More like this lol.
@SD_MK meets @sd.a90 meets @SD_a90

LOL



[underdonk]

Any update on this @SooopraSD? Again, I'd gladly pay you for access to the CAD file and would agree not to share it in any capacity (with the minor exception of the following). I have a friend with a CNC machine and several large chunks of aluminium. He said he'd be happy to carve some of it up as long as the component is CNC-able, which from the pictures it appears to be. If you don't want to that's all good, just let me know so I can work on something more permanent for myself. Don't want to reinvent the wheel.



[Cptnslo]

Any update on this @SooopraSD? Again, I'd gladly pay you for access to the CAD file and would agree not to share it in any capacity (with the minor exception of the following). I have a friend with a CNC machine and several large chunks of aluminium. He said he'd be happy to carve some of it up as long as the component is CNC-able, which from the pictures it appears to be. If you don't want to that's all good, just let me know so I can work on something more permanent for myself. Don't want to reinvent the wheel.

That’s very nice of him to do for essentially free with the cost of metal and running a cnc lol
