The pricing in Japan is a bit weird.

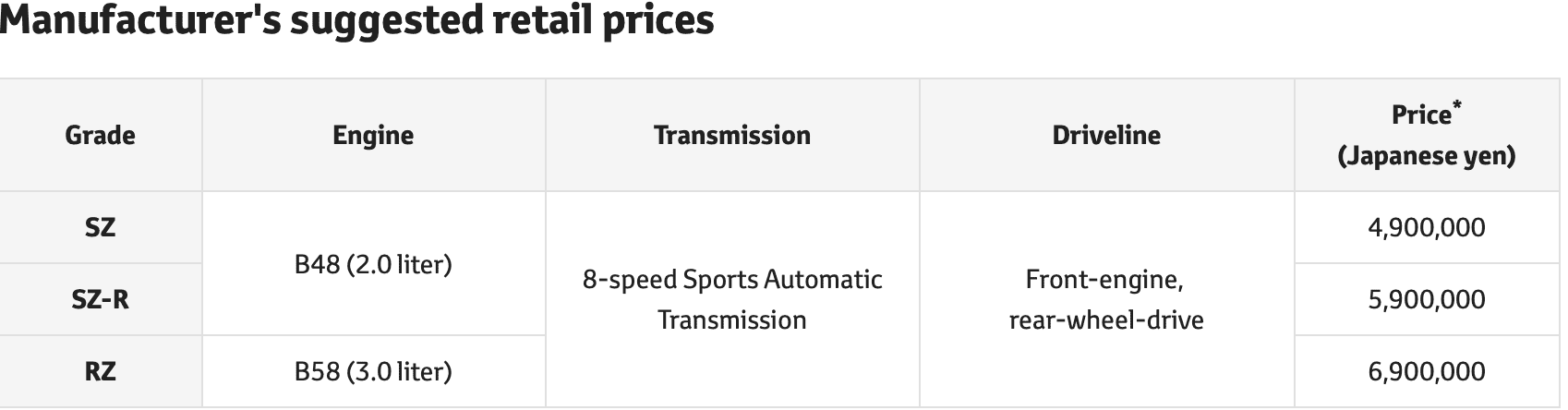

Screenshot 2019-05-19 at 14.43.20.png


Around 62600 usd for the B58

53600 usd for the B48 255 hp (185kw) version

44500 usd for the 197 hp (145kw) version

The higher spec 2 liter is same price as 3 liter car in U.S

Hmmm.:(

With this pricing strategy i don't see people cross shopping between the 'lower spec' Supra and GT 86.


scoates

Well-Known Member
Joined
Oct 13, 2018
Posts
283
Reaction score
264
Location
UK
Car(s)
2015 GT86, 2020 Supra A90 Edition
The pricing in Japan is a bit weird.

The higher spec 2 liter is same price as 3 liter car in U.S

Hmmm.:(

With this pricing strategy i don't see people cross shopping between the 'lower spec' Supra and GT 86.
The pricing is more like this I think in most markets from what I've seen. The US pricing is the anomaly with it being 50k.

The UK price comes out to 66k USD and German price comes to 70k USD with direct currency conversion.

The US market definitely seems to have it best with prices, but bear in mind that the UK price at least is inclusive of all registration fees and taxes as far as I'm aware. Not sure about other markets.


TheFalls

Active Member
Joined
Jul 21, 2018
Posts
42
Reaction score
94
Location
Ocean
Car(s)
Toyota
We need a translation of this video.
Please
@ichitaka05

Just some brief highlights will do.:thumbsup:

Last edited:

Saeedali78

Well-Known Member
First Name
Saeed
Joined
May 24, 2019
Posts
53
Reaction score
117
Location
Oman
Car(s)
2jzgte IS300
Fuel consumption

 Fuel consumption rate (Ministry of Land, Infrastructure, Transport and Tourism examination value)

grade Fuel consumption rate City mode Suburb mode Highway mode
SZ
13.1 km / L 9.5 km / L 13.6 km / L 15.1 km / L
SZ-R 12.7 km / L 9.2 km / L 13.1 km / L 14.7 km / L
RZ 12.2 km / L 8.3 km / L 12.9 km / L 14.7 km / L

engine
  • carlineup_supra_performance_01_01_2.jpg
  • carlineup_supra_performance_01_01_1.jpg


Inherit the tradition of Supra.

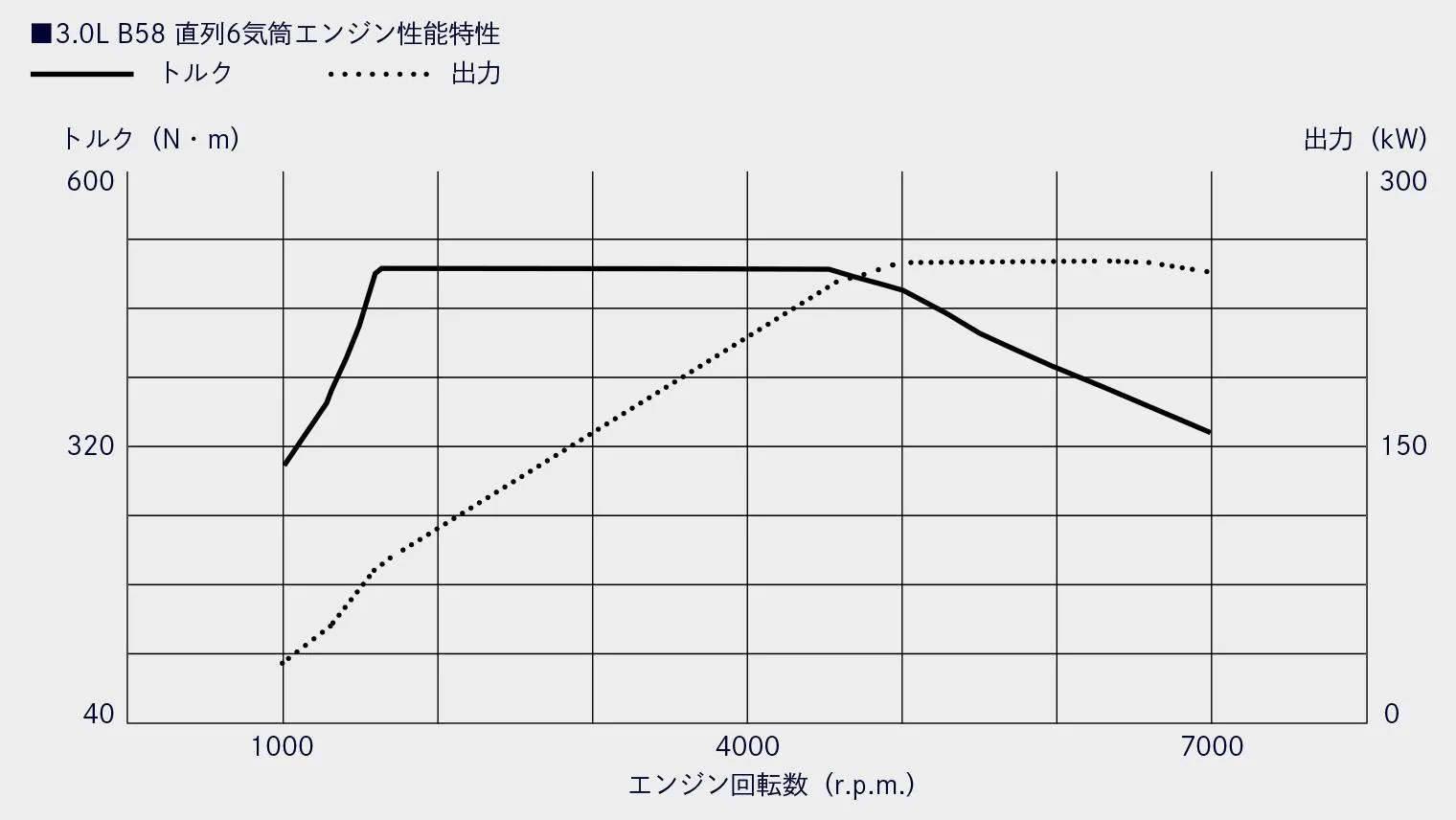

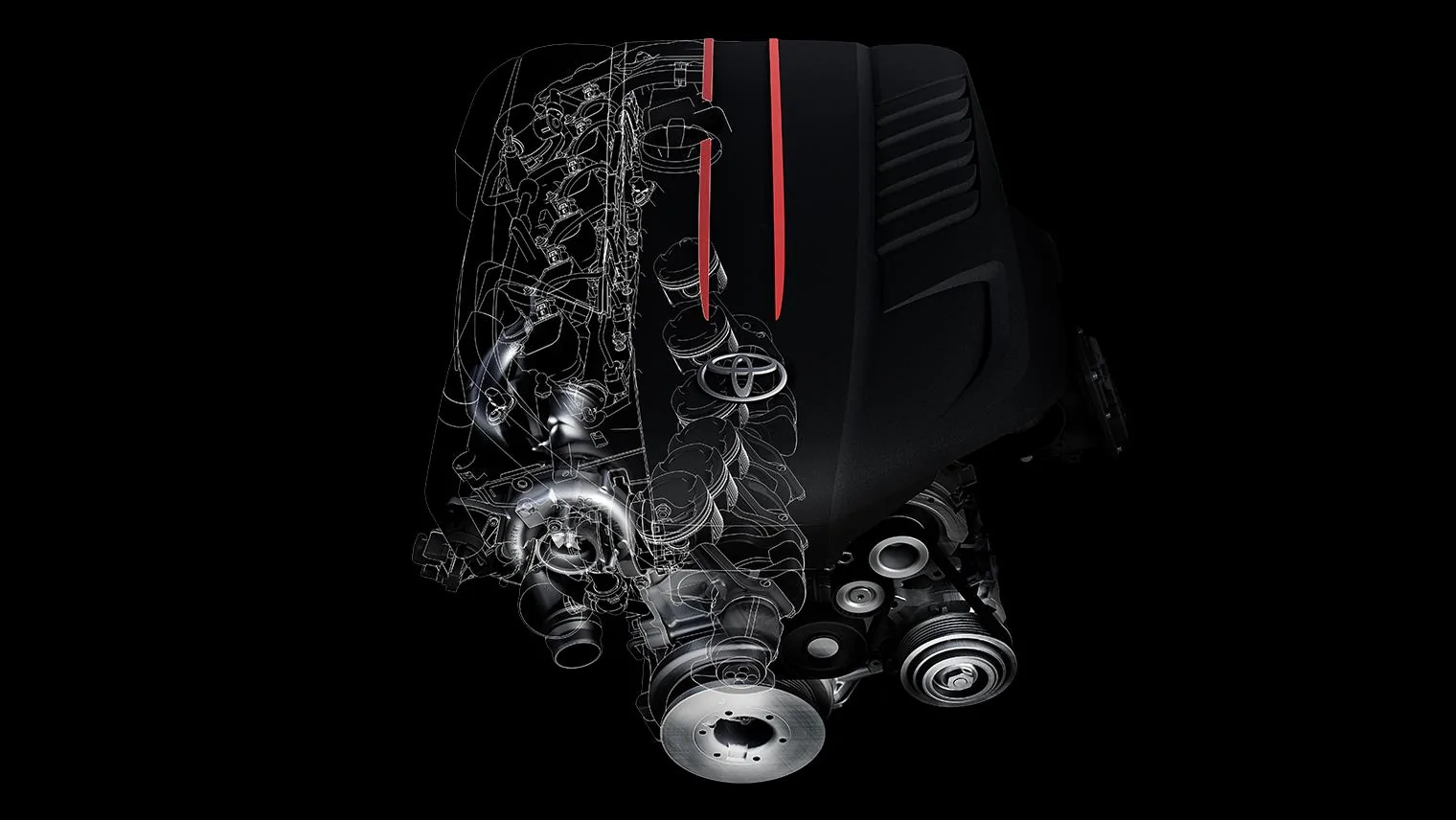

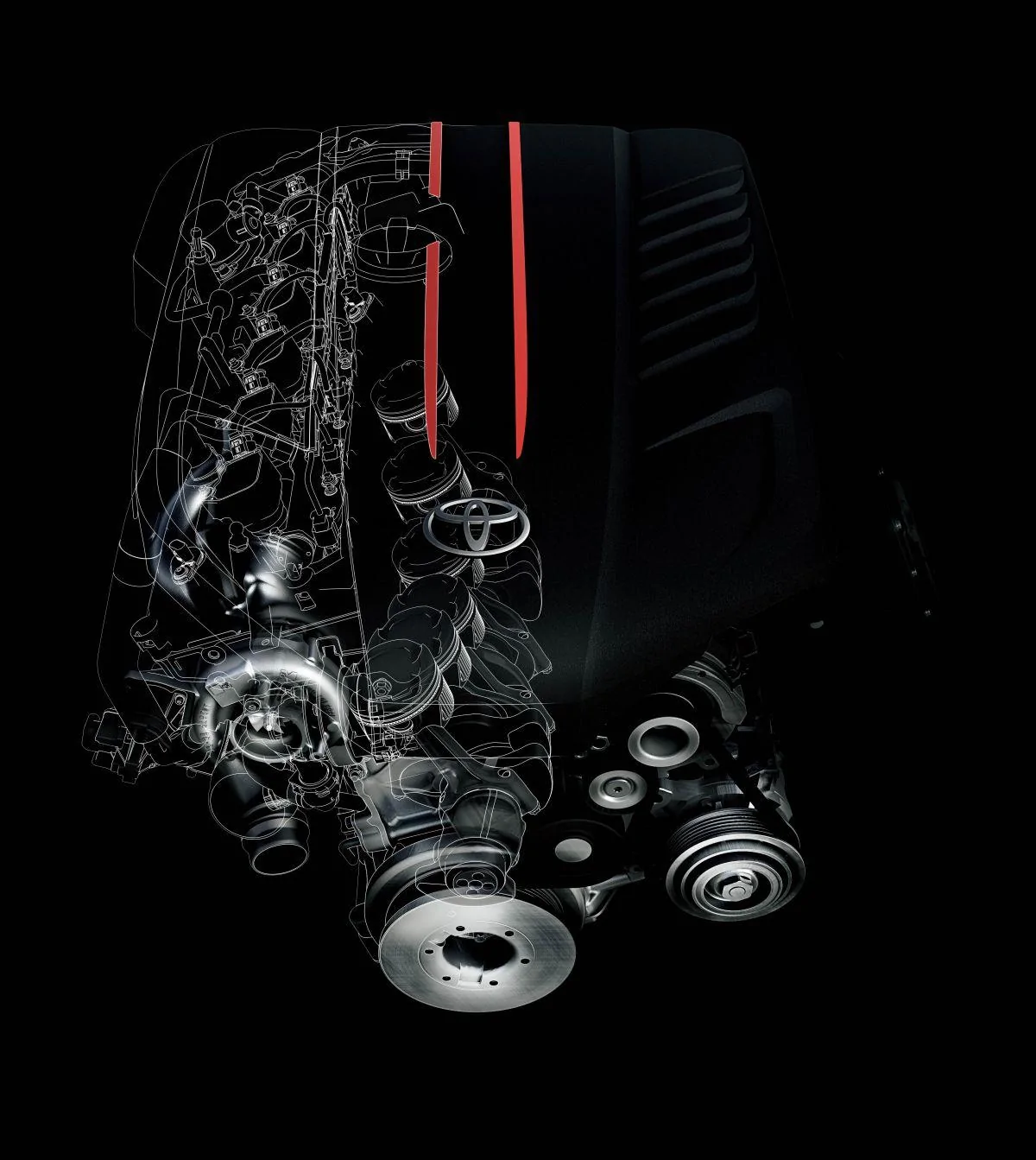

3.0L B58 in-line 6-cylinder engine
A 3.0L in-line 6-cylinder turbo engine that combines outstanding performance, powerful acceleration, and superior efficiency in a high level. The twin scroll turbocharger prevents exhaust interference between cylinders, and provides a direct response that instantly responds to overwhelming power and driver's will over the entire range from low speed range to high speed range. Furthermore, high efficiency and excellent fuel consumption performance is achieved by combining a stepless variable valve lift, an intake and exhaust stepless variable valve timing mechanism, and an idling stop function with a high precision direct injection system that directly injects high pressure fuel into the combustion chamber. It has been realized.

[RZ]
Total displacement: 2.997 L
Maximum output: 250 kW [340 PS] / 5,000 rpm
Maximum torque: 500 N · m [51.0 kgf · m] / 1,600-4, 500 rpm
0-100 km / h Acceleration: 4.3 seconds


Feel free to enjoy sporty drive.

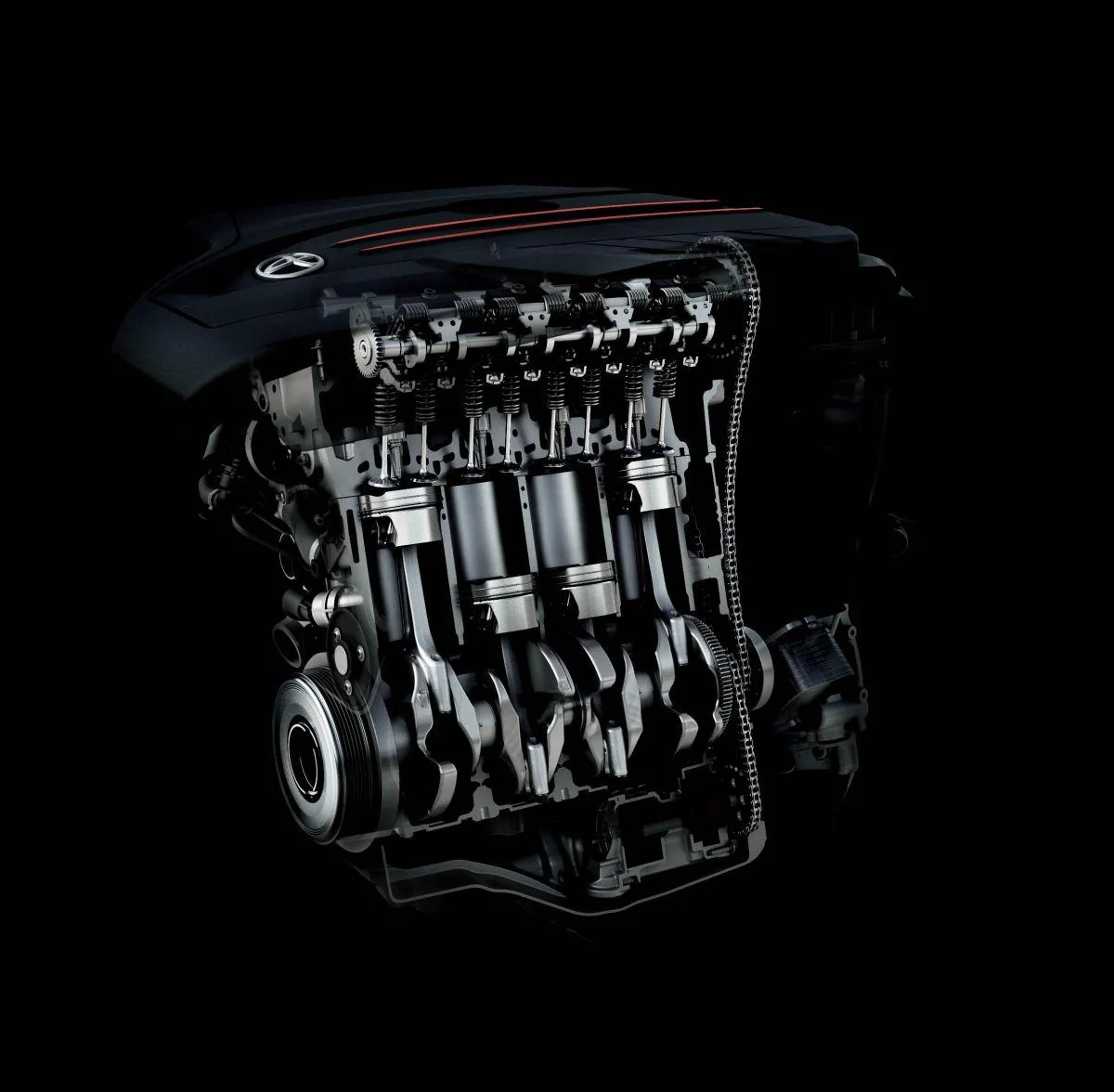

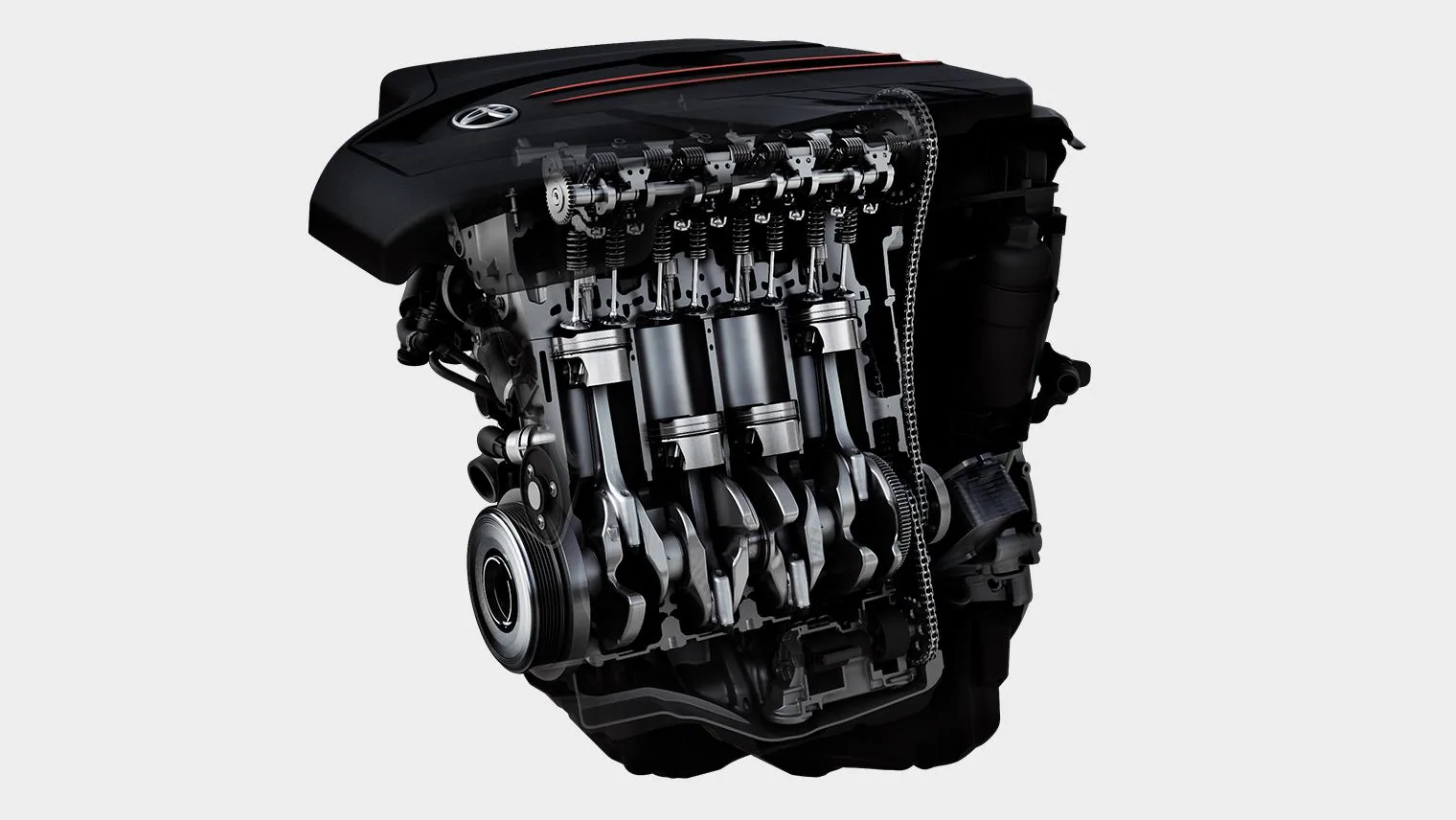

2.0L B48 in-line 4-cylinder engine
Set 2 straight 4 engines with different tuning. The SZ-R engine delivers high performance with a maximum output of 190 kW (258 PS). We realize further optimization of weight distribution back and forth by lightweight engine which made use of compactness only in straight 4 and can enjoy light sports driving. The SZ has a maximum output of 145kW (197PS) and uses an engine that allows you to freely feel the refreshing driving from the city to the highway.

[SZ-R]
Total displacement:
1.9898 L Maximum output: 190 kW [258 PS] / 5,000 rpm
Maximum torque: 400 N · m [40.8 kgf · m] / 1, 550-4, 400 rpm
0-100 km / h Acceleration: 5.2 seconds

[SZ]
Total displacement:
1.9898 L Maximum output: 145 kW [197 PS] / 4, 500 rpm
Maximum torque: 320 N · m [32.7 kgf · m] / 1,450-4, 200 rpm
0-100 km / h Acceleration: 6.5 seconds

For details, feel free to your local dealer
Estimated simulation
Dealer search
Driving performance

シ ョ ー ト A
short wheelbase born out of two-seater


Wide tread to pursue the golden ratio


Low center of gravity that challenges the limit

  • ■ The picture is RZ.

We firmly support the pleasure of running.

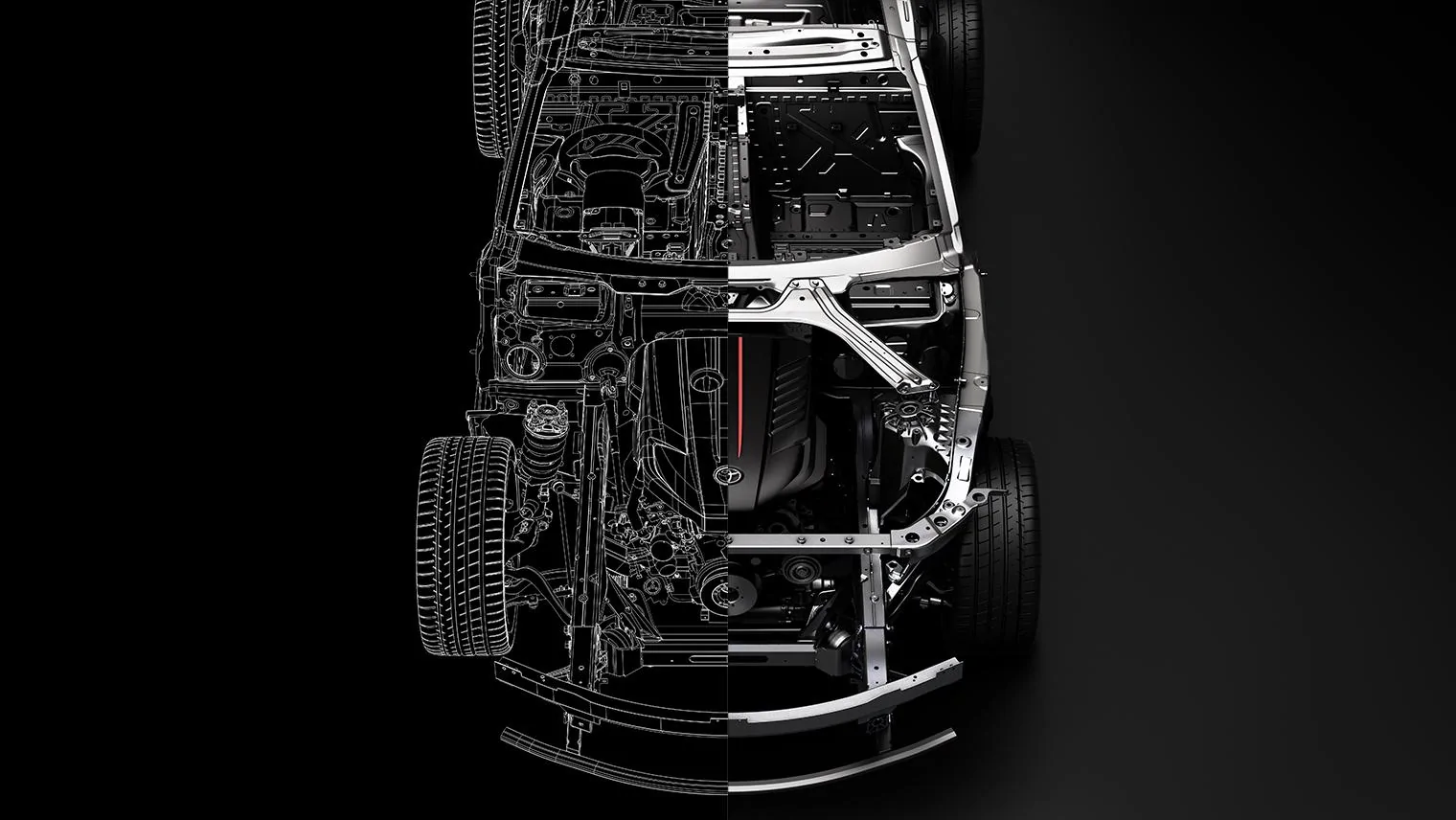

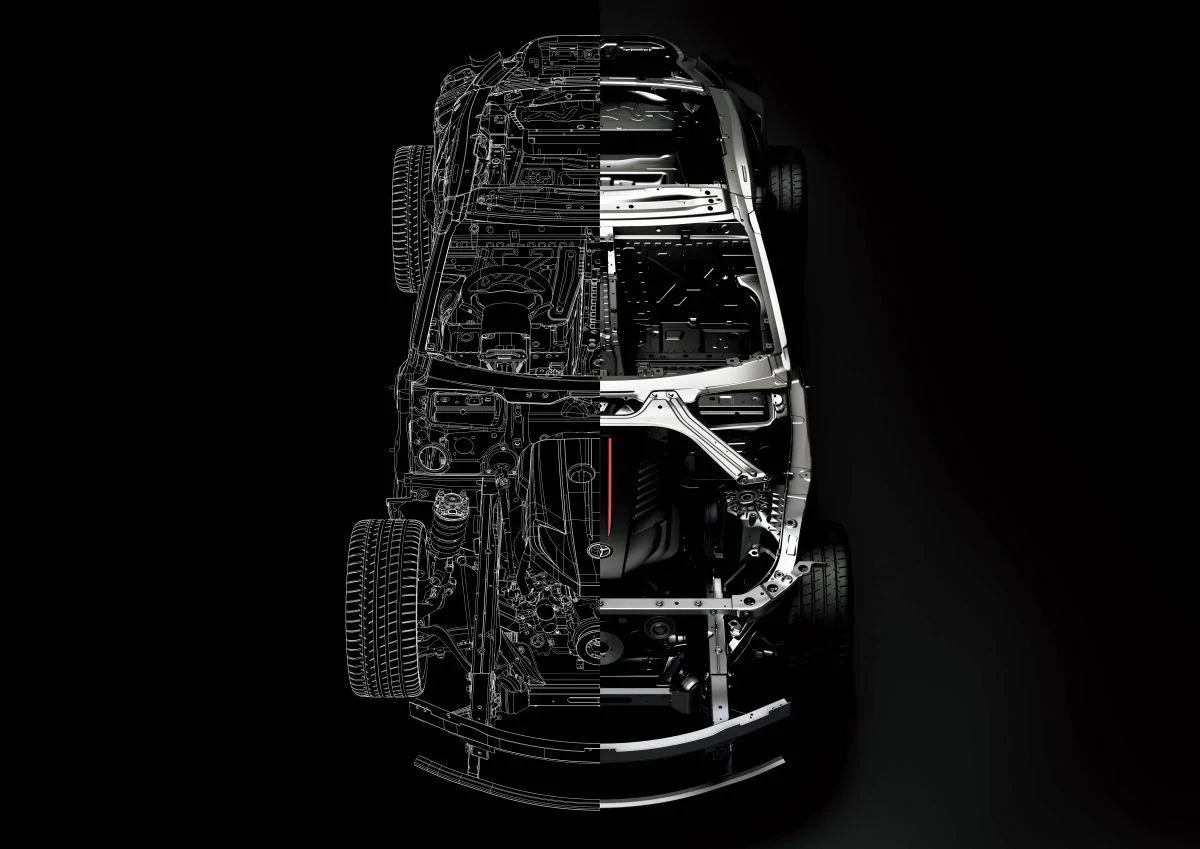

Lightweight, high rigidity body
At the same time, weight reduction and strengthening of the body rigidity are achieved by pursuing a framework structure using aluminum and steel and bonding strength between different materials. We suppress distortion and minute change of the body that becomes the foundation of driving performance, and maximize the performance of suspension and drive train such as an undercarriage which always catches the road surface with accurate movement, power feeling with a direct feeling.

  • ■ The picture is RZ.

Control the wind and control the way.

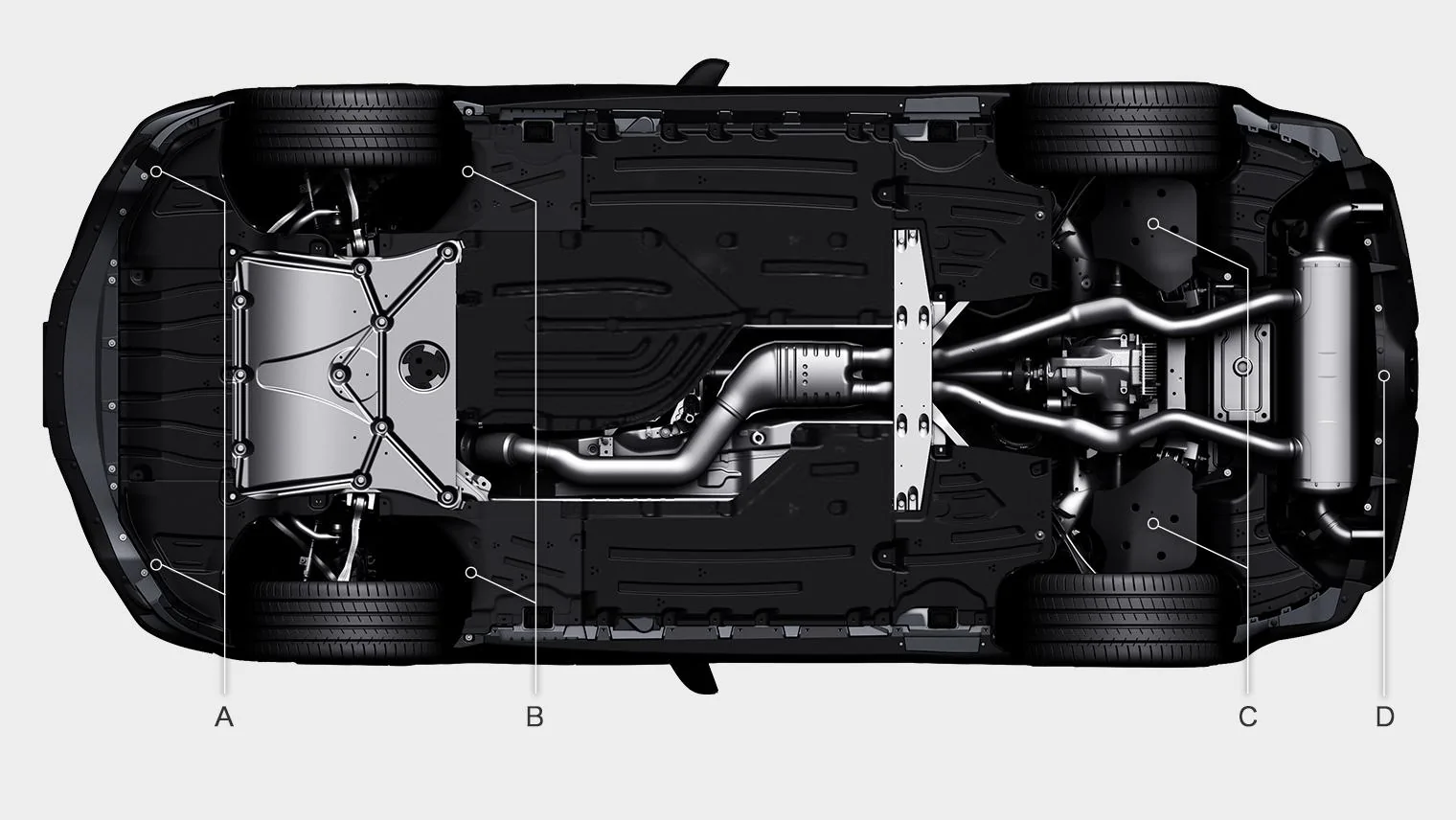

Aerodynamic performance
We have developed a design specializing in suppressing the occurrence of lifts (lifting of vehicles) from the body shape itself. Optimize the flow of air under the floor, especially with an under panel designed based on aerodynamics. As well as reducing air resistance, it reduces the occurrence of lifts near the front and rear tires and improves the ground contact, resulting in a run that sticks to the road surface.

  • ■ The picture is RZ.

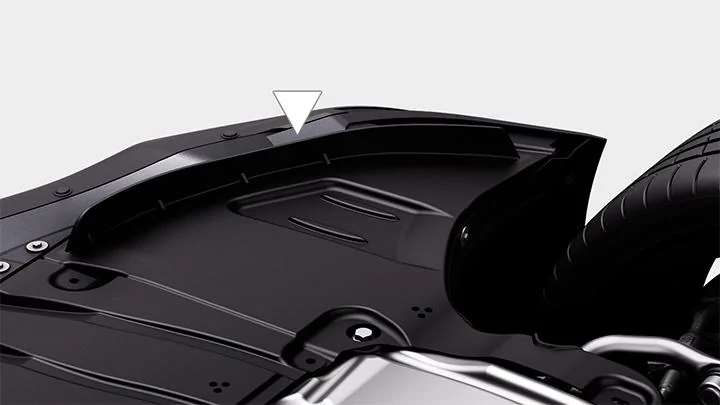

A: Front Front Spats and Aerostabilizing Fins

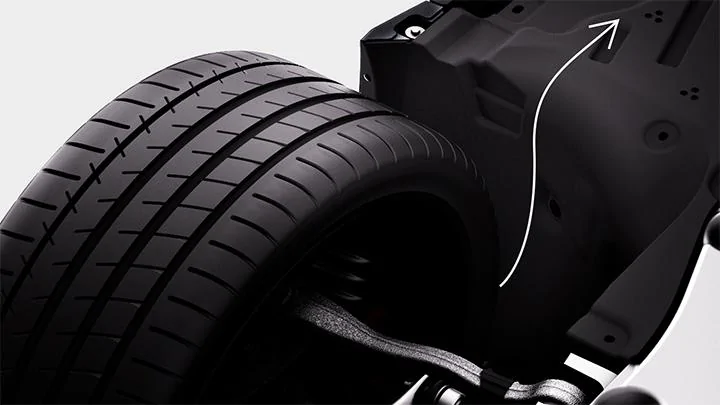

B: Integrated shape from wheel arch to under floor

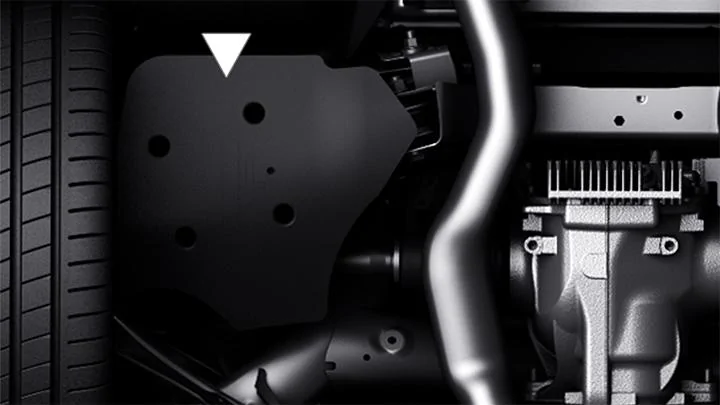

C: Rear axle under cover

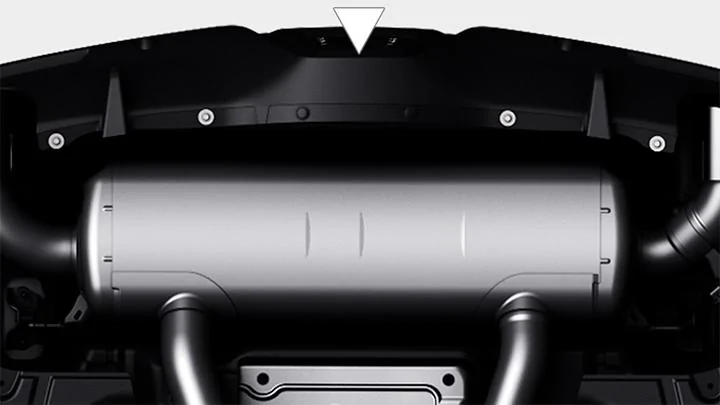

D: Diffuser


It turns as intended and can run stably and fast.

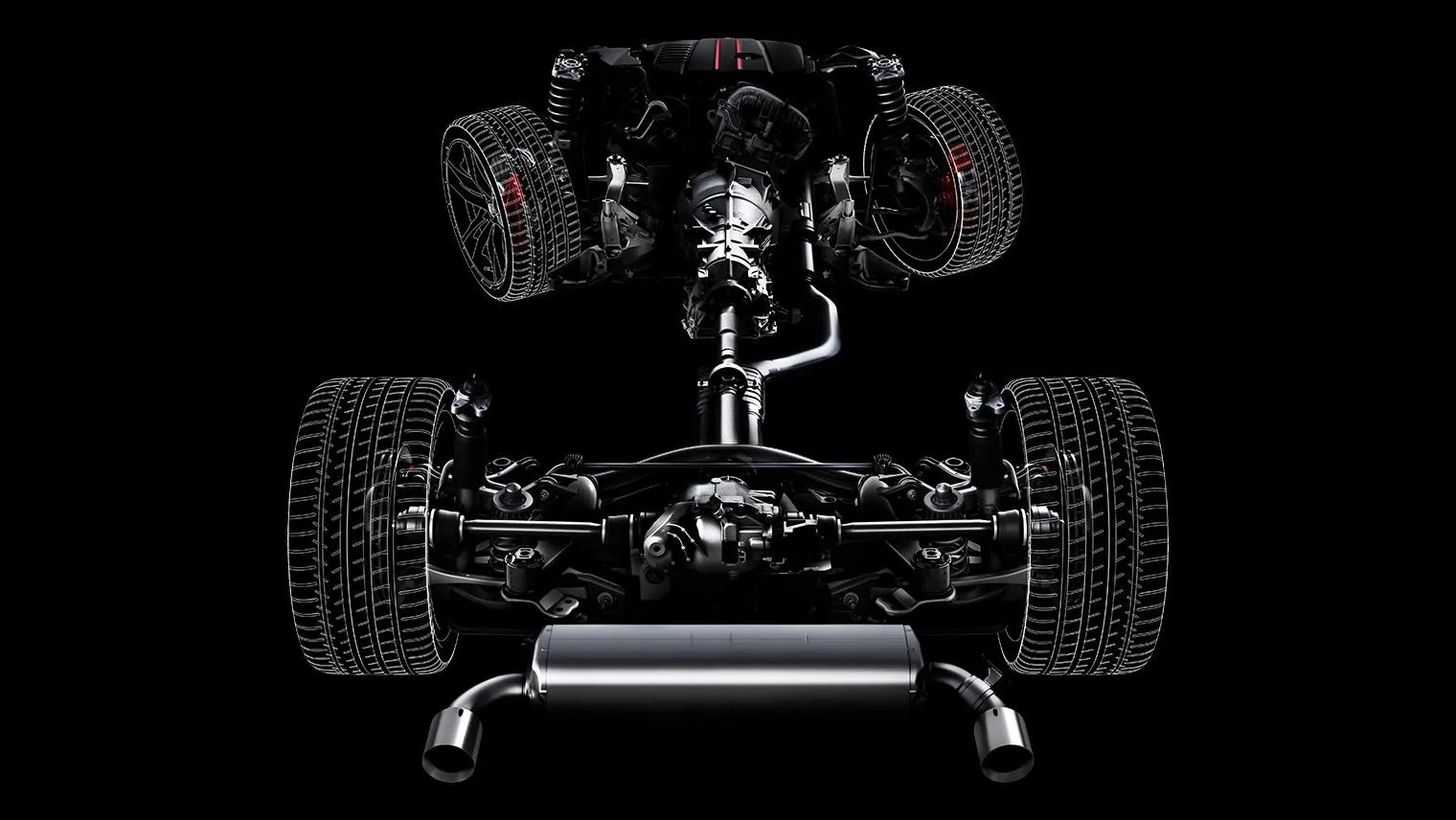

Active differential
When entering a corner, select a lock rate that has a high balance of turning and stability, and when you step out of the corner by stepping on the accelerator, the lock rate is increased and the traction performance is maximized. In addition, when there is a slight difference in torque between the left and right drive wheels, such as acceleration on slippery road surfaces or at the exit of a high-speed corner, rocking operation is performed immediately to eliminate the difference in torque. Ensure traction and stability.

  • [Standard on RZ and SZ-R]
  • ■ The picture is RZ.

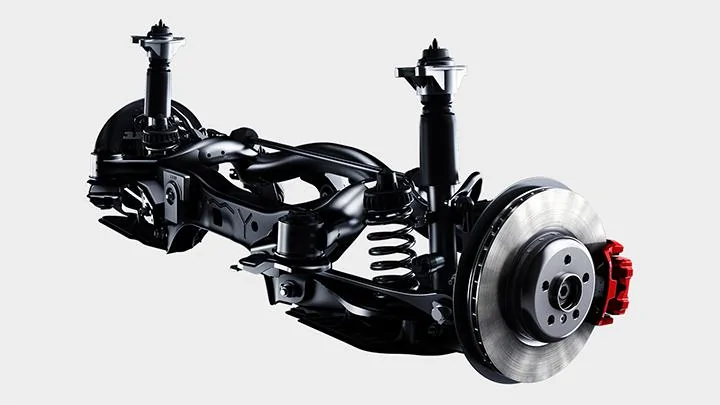

Rear suspension

Control even fine movements.

suspension
FRONT The McPherson Strut type front suspension
lower arm is divided into two to pursue excellent steering feeling and nose dive suppression during braking. The highly rigid aluminum suspension member achieves excellent steering response with 50:50 front / rear weight distribution. It also contributes to reducing the unsprung weight.

REAR multi-link type
multi-link structure with 5 arms of the rear suspension . By precisely controlling the movement of the rear wheels, we achieved excellent road following and stable vehicle behavior. A highly rigid suspension member that draws out the precise movement of each arm and also supports powerful driving forces

AVS * 1 The adaptive variable suspension systems
RZ and SZ-R use an AVS that optimally controls the shock absorber damping force of the four wheels according to the drive mode and the road conditions being selected. We combine operability and running stability in a high level.

  1. * 1. AVS: Adaptive Variable Suspension System
  • ■ The picture is RZ.

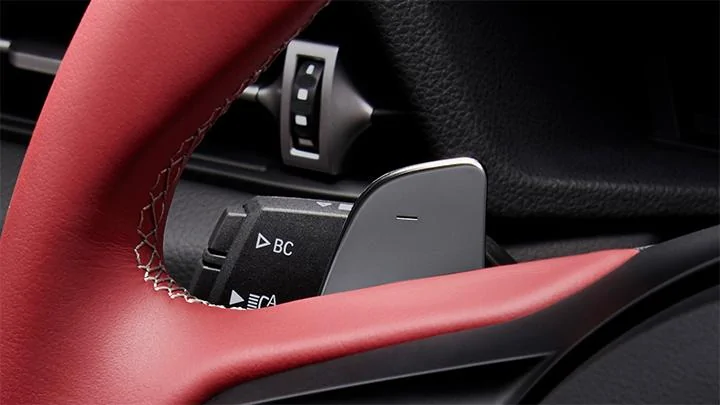

Paddle shift

Pursue direct feeling and responsiveness.

8-speed sport sequential shiftmatic
We have overshadowed the image of the conventional AT, and we have polished the performance for direct, responsive, and overwhelmingly comfortable driving. In contrast to the smooth shift that does not make the joint feel in the normal mode, the sports mode turns into a sporty shift program. The shift down control according to the braking G in front of the corner is also actively performed. In addition, you can operate the paddle shift or shift lever to enjoy a responsive shift operation.

  • ■ The picture is RZ.
  • carlineup_supra_performance_09_01_2.jpg
  • carlineup_supra_performance_09_01_1.jpg

Achieves both weight reduction and braking force in high dimensions.

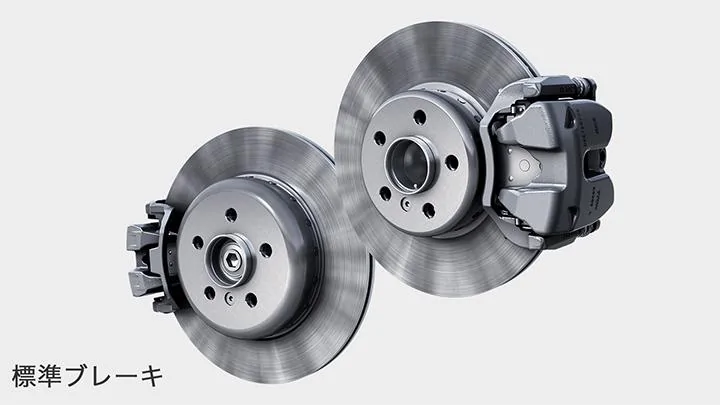

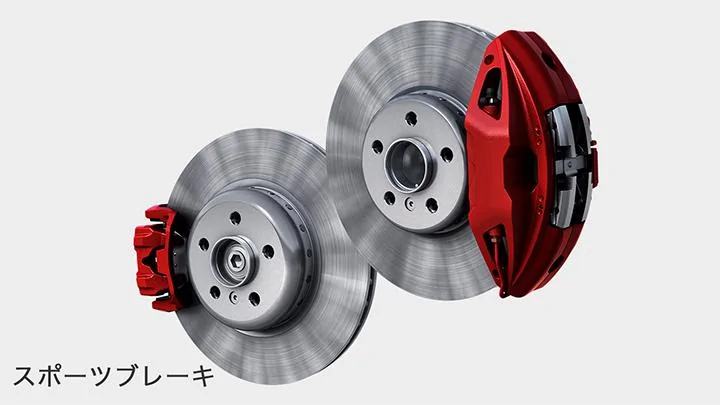

Brake system
Lightweight brake disc and lightweight aluminum caliper to reduce unsprung weight and pursue high performance. The RZ uses a Brembo 4-pod facing brake caliper (front) painted in red, a large diameter ventilated brake disc, and a large capacity brake pad. Ensuring sufficient braking power and high heat resistance for sports driving.

  • [Sports Brake: Standard on RZ]
  • [Standard brake: SZ-R, standard on SZ]

Maximize your performance.

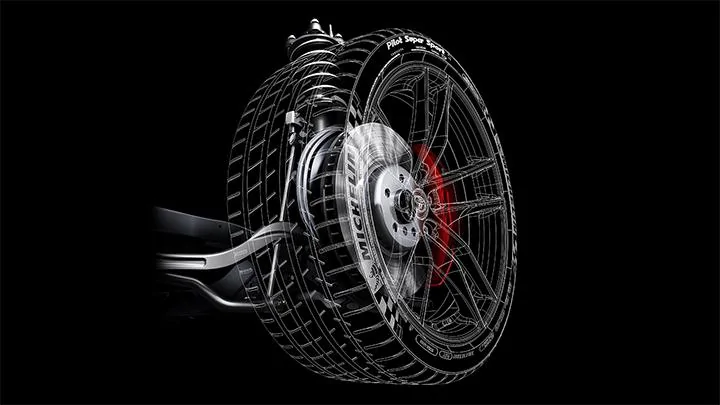

High performance tire
The 19-inch and 18-inch tires use the MICHELIN PILOT SUPER SPORT, which is used by high-performance cars famous in the world. The combination of suppleness and excellent grip performance maximizes the cornering characteristics of Supra.

  • [Standard on RZ and SZ-R]
  • ■ The picture is RZ.
  • ■ “PILOT SPORT” is a registered trademark of Compagnie générale des établissements Michelin SCA.
  • carlineup_supra_performance_11_01_3.jpg
  • carlineup_supra_performance_11_01_1.jpg
  • carlineup_supra_performance_11_01_2.jpg

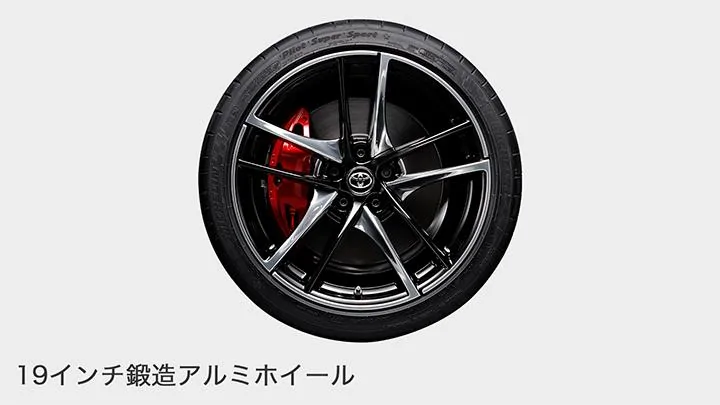

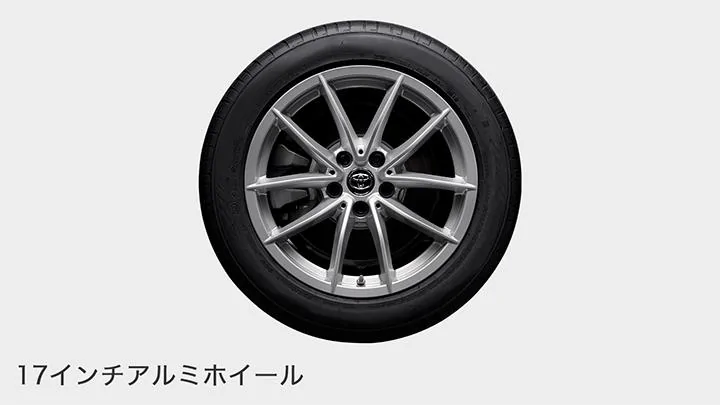

Three different personalities of attraction.

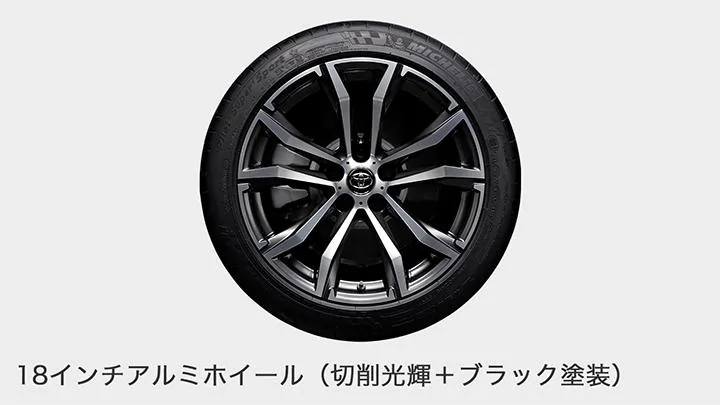

aluminum foil
The 19-inch combines weight reduction and rigidity by forging, and polishes its sensual beauty through polishing, masking and black coating processes. We set 3 types with different attractiveness and 18 inches that dynamicness and large-diameter feeling are attractive, 17 inches that feel depth and depth of engraving.

Driving assist

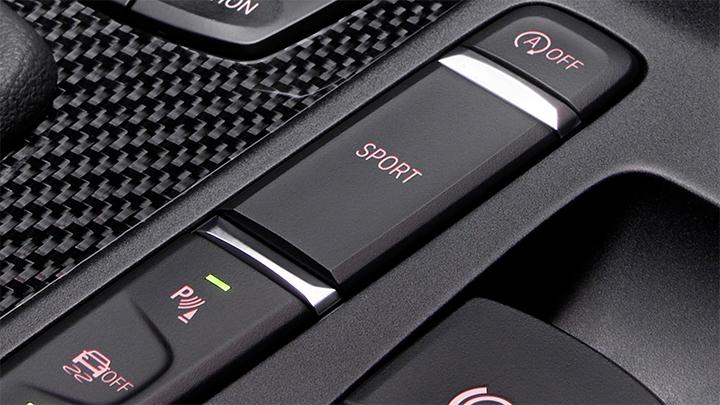

Drive mode switch

Enjoy pure sports.

Sports mode
Set "Sports mode" to enjoy more aggressive running. The responsiveness of the engine, transmission, steering etc. to the driver's operation is enhanced to create a sporty run. With RZ and SZ-R, AVS * 1 and the control characteristics of the active differential also change, achieving a more dynamic run. You can change the settings to your preferred combination. In addition, it has a "traction mode" to enjoy the driving that can attack the corner to the limit, and a "launch control" function that enables maximum start acceleration at the start.

SPORT MODE
engine
・ The response at the time of accelerator operation increases, and the feeling of deceleration at the time of accelerator off also improves
・ Change to powerful exhaust sound
Steering
・ The response to the steering is increased and the sense of unity with the car is improved
transmission
・ Shift timing changes, maintaining higher rotation speed
・ Improves response and produces comfortable shift shock at gear shift
AVS * 2
・ Attenuation increases and changes to suspension characteristics optimized for sports driving
Active differential * 2
・ Change to control characteristics in pursuit of cornering performance in circuit driving
TRACTION MODE By suppressing the control intervention of TRC * 3 and VSC * 4 and combining it with the sport mode, it makes it easy to realize the driver's desired running while maintaining a sense of security on the circuit.
  1. * 1. AVS: Adaptive Variable Suspension System
  2. * 2. Used for RZ and SZ-R.
  3. * 3. TRC: Traction Control
  4. * 4. VSC: Vehicle Stability Control
  • ■ The picture is RZ.
  • ■ For launch control, there are items you need to be aware of when using it. Be sure to read the instruction manual.
It resonates with the driver's heart and raises it.

Sound tuning
The high-tone frequency, which is also a symbol of the straight six engine, is thoroughly analyzed to emphasize the frequency range around 600 Hz, which leads to the driver's feeling of excitement. Especially when the sport mode is selected, the engine sound changes, and you can experience the sensual sound like riding a racing car, such as the clear high-pitched exhaust note unique to the straight 6 engine, and the dry afterfire sound that resonates when the accelerator is off. .

For details, feel free to your local dealer

Last edited:

XtremeMaC

Well-Known Member
First Name
MaC
Joined
Aug 8, 2018
Posts
865
Reaction score
771
Location
_________ SE Michigan, USA
Car(s)
2013 GT86 _____2020 Supra
that is some great info right there. Thanks for the find!

Following the provided links, I found the following excerpt about signing up for "lottery" for 24x Matte Gray versions :)

https://toyotagazooracing.com/jp/form/supramattestormgraymetallic_agreement.html
Matt Storm Gray Metallic has limited production and will be limited to 24 lottery products. Lottery applications will be accepted from May 17-June 14, 2019 at the lottery sales exclusive site. For details, click here . (The next sale date is undecided)

interesting though it's 340PS and 0-60 is at 4.3s, but I suppose it could be because actually 0-62.13mph = 100 kph...

For Japan it also says:



Goose

Well-Known Member
First Name
Michael
Joined
Feb 1, 2019
Posts
455
Reaction score
714
Location
NC
Car(s)
2013 FRS

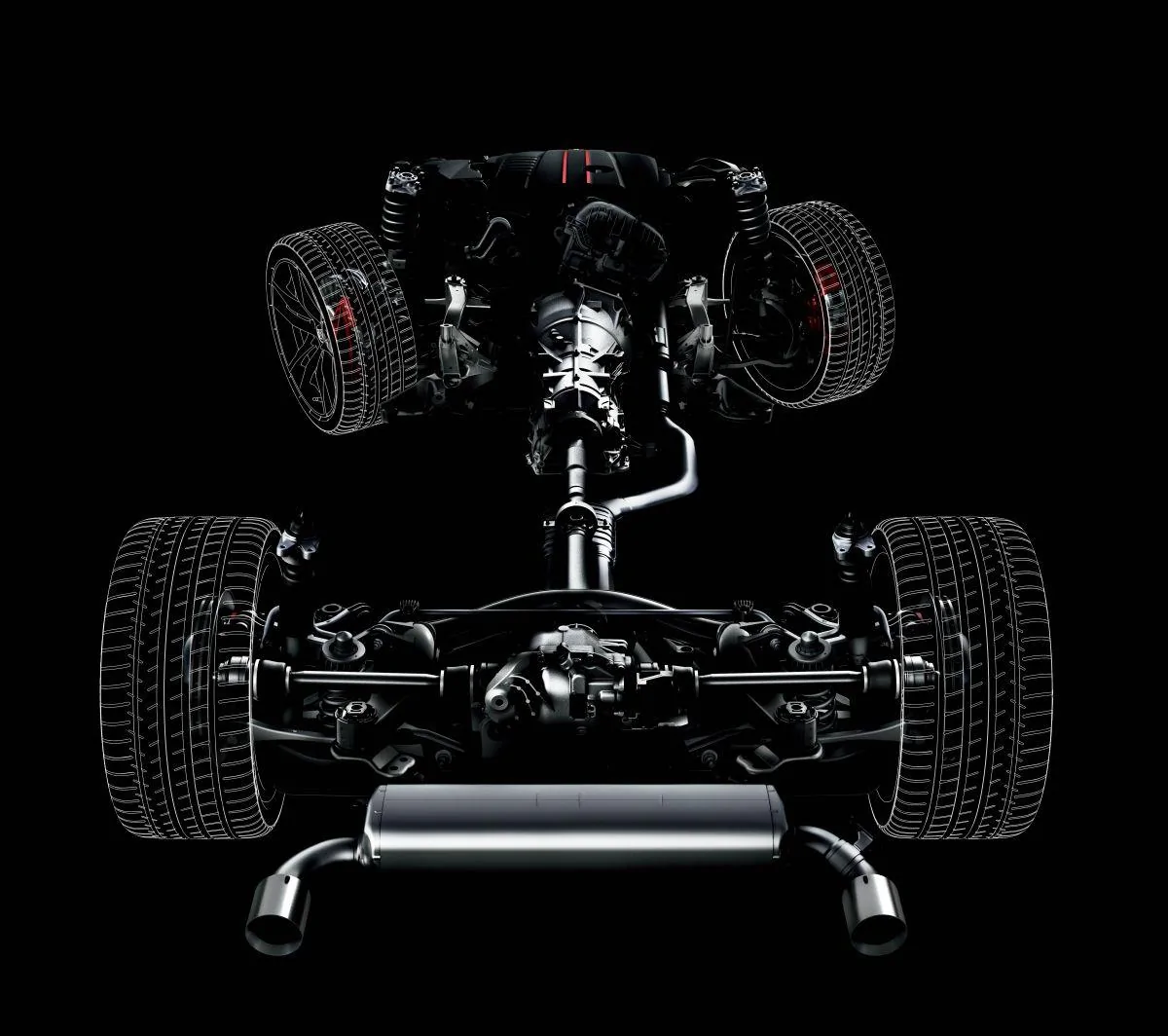

First picture I've seen of the underside. I was wondering it was going to be functional or super busy. Looks more functional. I like it.

May need to find a lighter single exit exhaust, though. So long as I can keep it quieter for comfort, or loud for sport mode.


imoj1

Well-Known Member
First Name
Omran
Joined
Jan 20, 2019
Posts
121
Reaction score
136
Location
dubai
Car(s)
95' Supra, '15 Maserati, '98 Skyline, '15 Mustang, M5
Been tod also in Dubai that they are getting both 6 and 4 cylinders versions


dgh

Well-Known Member
First Name
Darren
Joined
Feb 15, 2018
Posts
164
Reaction score
317
Location
Alberta, Canada
Car(s)
1993 RX7; 2011 Toyota RAV 4
that is some great info right there. Thanks for the find!

Following the provided links, I found the following excerpt about signing up for "lottery" for 24x Matte Gray versions :)

https://toyotagazooracing.com/jp/form/supramattestormgraymetallic_agreement.html
Matt Storm Gray Metallic has limited production and will be limited to 24 lottery products. Lottery applications will be accepted from May 17-June 14, 2019 at the lottery sales exclusive site. For details, click here . (The next sale date is undecided)

interesting though it's 340PS and 0-60 is at 4.3s, but I suppose it could be because actually 0-62.13mph = 100 kph...

For Japan it also says:

The Japanese info says 0-100 km/h is 4.3 seconds, not 0-60mph. And some European journals tested 0-100 km/h in 4.0 secs.
