Pics & Vids of Supra with aftermarket wheels

[JRedMKV]

No rubbing but then again I don’t have her dumped to the ground. I’m on HKS coil overs so can’t really say exactly how much I lowered her.

That’s good to know. Yeah I don’t have mine that low either. I’m too old LOL. Looking at your pics we have a similar drop. Mine is only dropped 0.8” on Eibach springs.

When you bought yours did you pay for the extra diamond cutting for the finish? I’m not sure if that’s necessary so hopefully you can shed some light on how your finish looks and how happy you are with those wheels. Sorry for all the questions but it’s a huge chunk of change to drop and I want to be totally happy with the wheels I buy. Thanks for the info. I appreciate it.



[Apex Wheels]

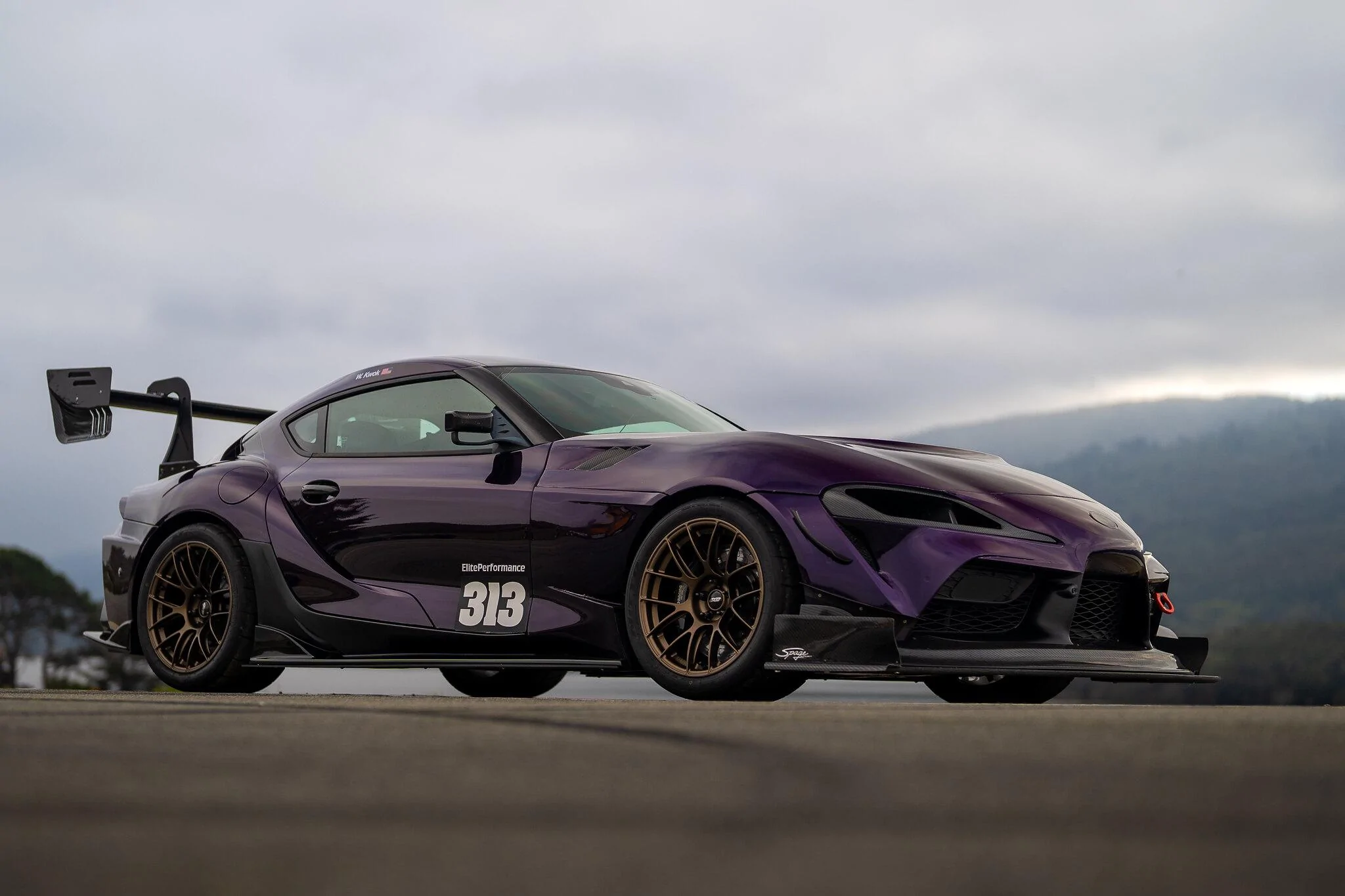

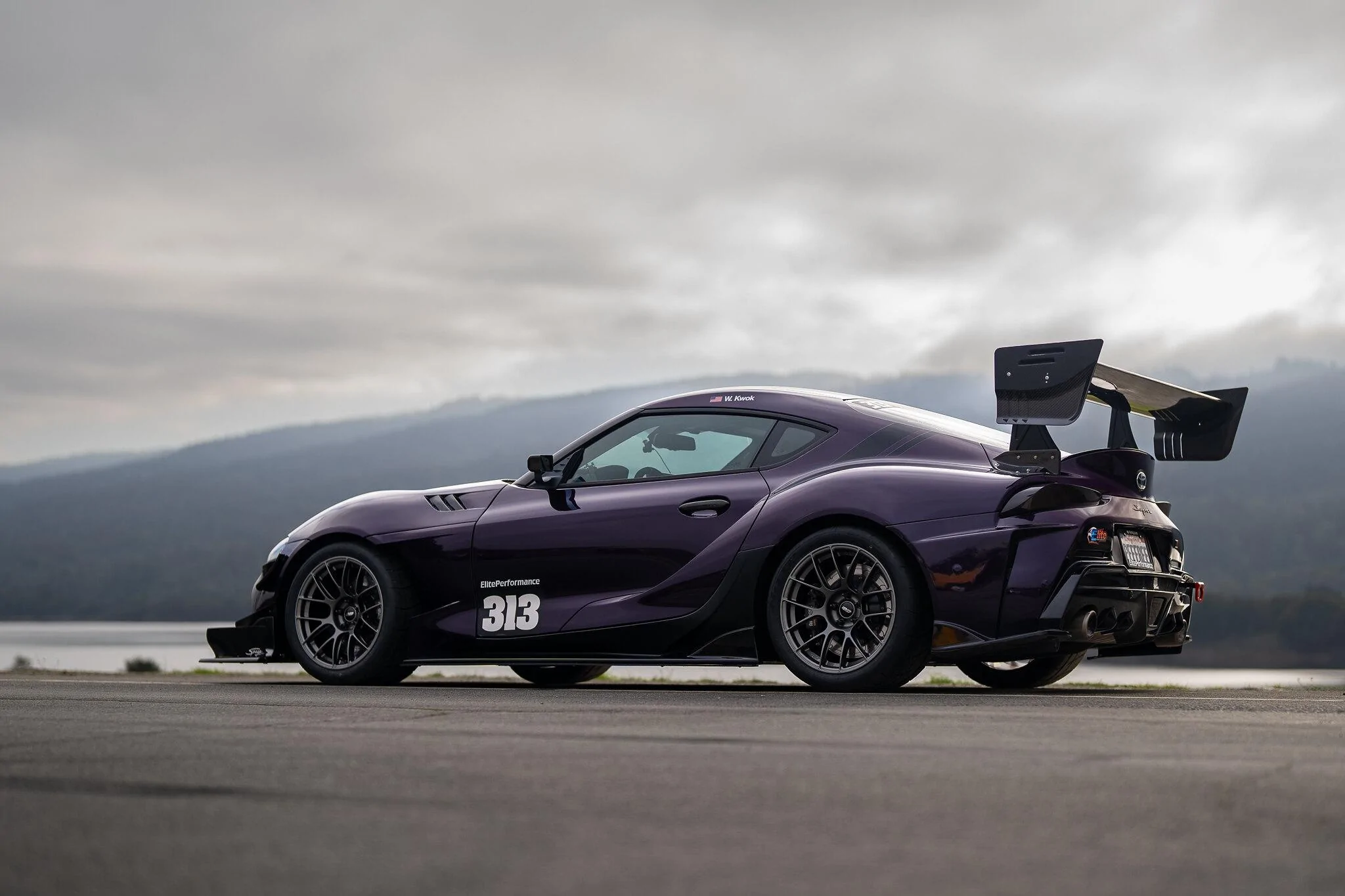

@ipeefreely's Inozotek Midnight Purple Supra on 18" EC-7RS wheels

Wheels & Tires:

Wheels:
Front & Rear: 18x11 ET40

Tires: Nitto NT01
Front & Rear: 315/30-18

Alignment:
Front: -3.5° Camber
Rear: -2.2° Camber

A full Feature Thread is live in our sponsored section, but we figured we'd drop in the video taken during our photoshoot as a teaser. Head over to the full thread to view more photos and a full mod list! Will's build thread can be found here: https://www.supramkv.com/threads/peefrees-a90-supra-build.6528/

​



[Stvee]

Forgestar CF5V in Bronze Burst

Those look really good.

Got any more shots of those? Is that stock height or lowered?



[FlynnZero]

Those look really good.

Got any more shots of those? Is that stock height or lowered?

stock height. PM a number and I will text photos.



[Mason]

What are the cheapest rear wheels thatll hold a 305/45 17 tire? trying to get some cheap drag wheels



[Mk5Frank]

Anyone have 305/30/19 on 10.5” width whe with traction control issues ?



[black_sedan]

What are the cheapest rear wheels thatll hold a 305/45 17 tire? trying to get some cheap drag wheels

Motegi if someone still has a used pair left. Weld Ventura or Laguna would be the next cheapest.

these are the Weld Venturas



[DarkZupra]



[Mason]

Motegi if someone still has a used pair left. Weld Ventura or Laguna would be the next cheapest.

these are the Weld Venturas

The widest welds I could find is 10”. What size tire can I fit?



[Mimosa]

Done with fitment on this car: Final Specs

Suspension

• RSR Best I Active Coilvers
  • Rear springs are sitting on an a pair of Allstar Performance 1" Perch Spacers. We were maxing out the threading just to keep the wheels from tucking, so this was the fix.
  • I left just enough gap to where my knuckles would not fit.
  • Remember. You'll have to do at least one drive cycle for the struts to settle in to get the actual ride height.
• SPL Front Lower Control Arms (to adjust Camber)
  • The bracket needs to have an extra hole drill on the bracket for the ride height sensor.
  • I ended just removing it completely and mounting it directly to the FLCA. I'll try to provide a picture this weekend.
• Front Camber
  • Left: -2.0
  • Right: -2.0
• Rear Camber
  • Left: -1.9
  • Right: -2.1
• Wheels
  • SSR Professor SP1s
    • Front 20x9.5 +22
      • Uses a 3mm spacer. Final offset is +19
    • Rear 20x10.5 +30
• Tires
  • Michelin Pilot Sport 4S
    • Front 275/30 20
    • Rear 305/30 20

Hope this helps someone looking to obtain similar fitment.



[miccon]

gram light 57FXZ overseas 19x9.5+25 (front 275x35x19)19x10.5+34 (rear 305x30x19)PS4 Michelin tire

Any Rubbing issues on the front?



[Supra 9]

Any Rubbing issues on the front?

Not at all



[Coupish]

This is a bit of a double-up, but figured I'd post these here as well:

Wheels: Anthracite APEX SM-10s
Front: 19x9.5 ET25
Rear: 19x11 ET40

Tires:
Front: 255/35-19 Michelin Super Sports
Rear: 305/30-19 Toyo R888Rs

Additional notes:
Lowered on coilovers

Owner's IG: @SUPRAJHAY

- Tom -​

Any plans to make these in Satin Black for the 19?



[Apex Wheels]

Any plans to make these in Satin Black for the 19?

Yep, Satin Black SM-10s are in the works but their production has been delayed a few times. It's looking like March or April of next year before we'll have them in hand but I'm shooting to have them in both 18 and 19" diameters, square and staggered.

-Tom



[sp33djunkee]

Volk ZE40 Gloss Black w/ Diamond Dark center caps
19x9.5 +22 on 265/35/19
19x10.5 +35 on 295/35/19
Tires are Continental Extreme Contact
