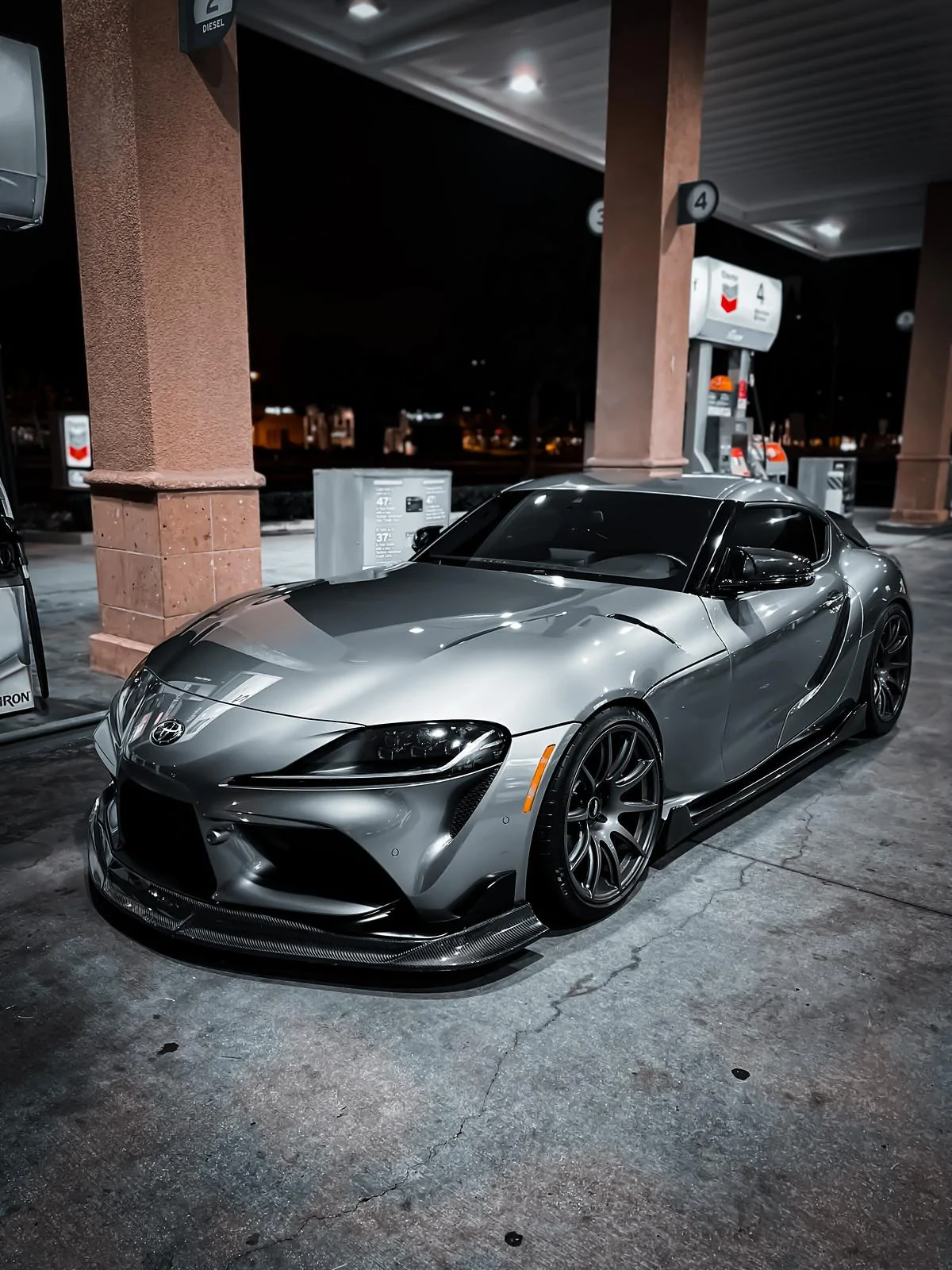

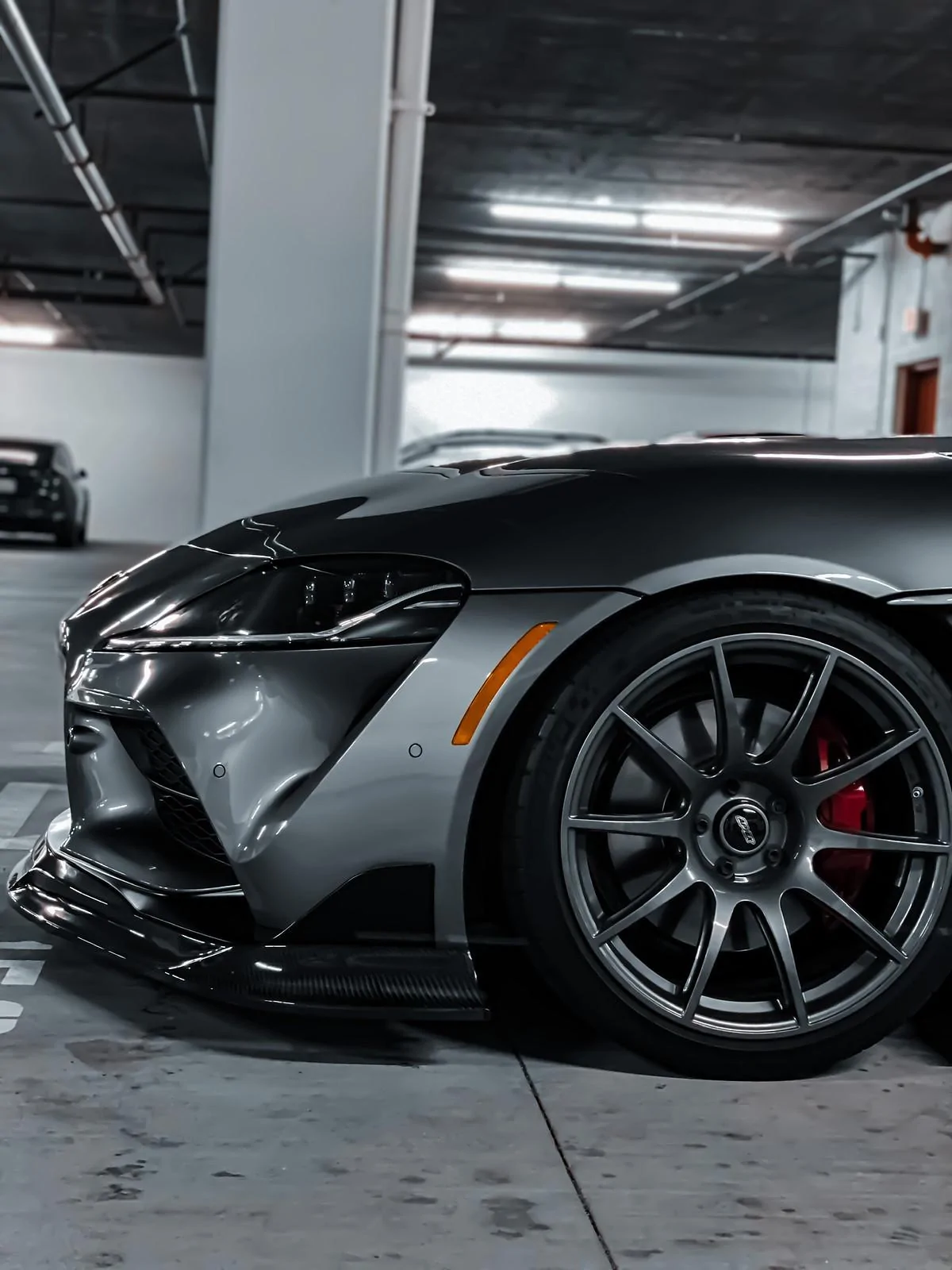

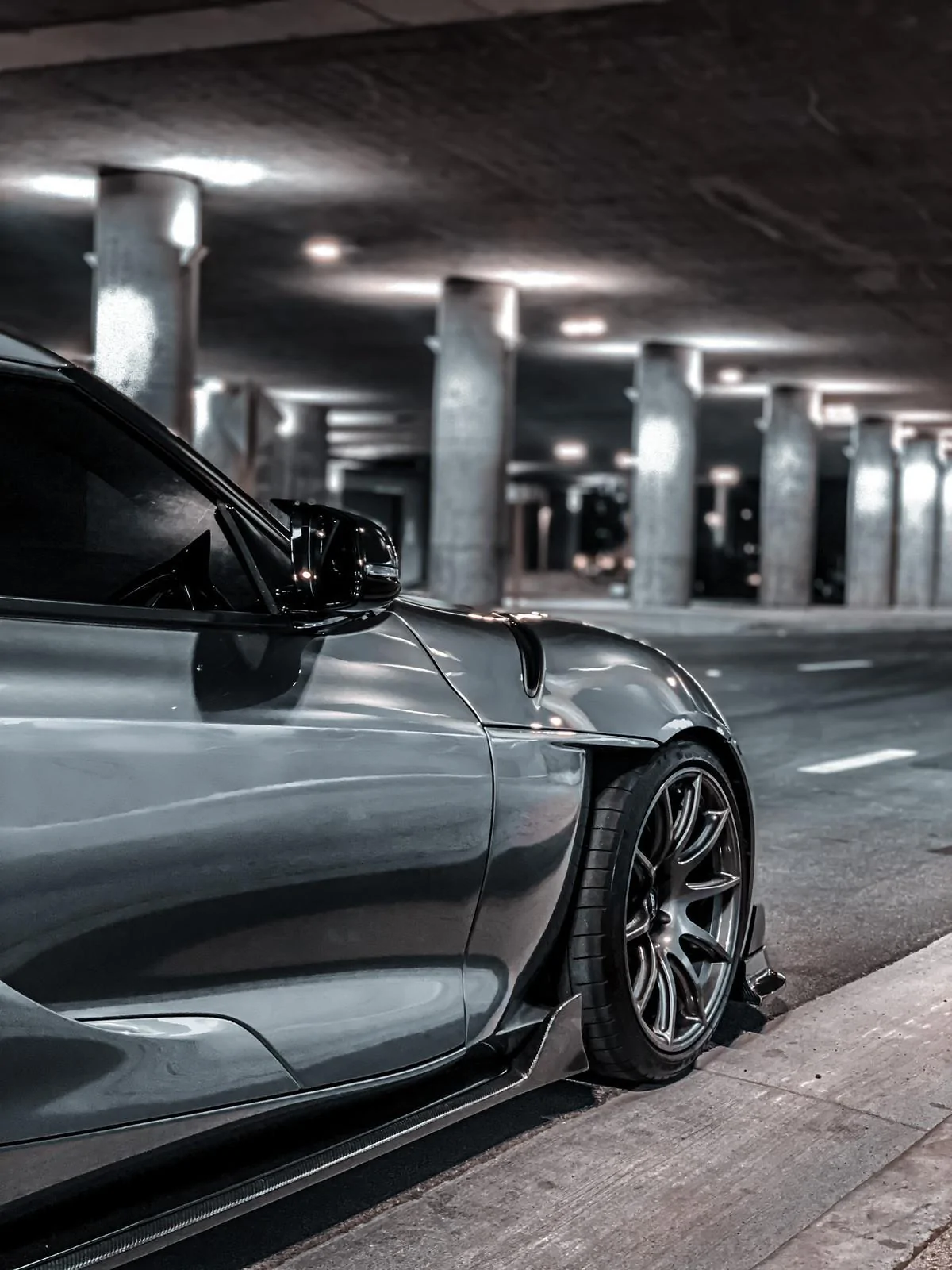

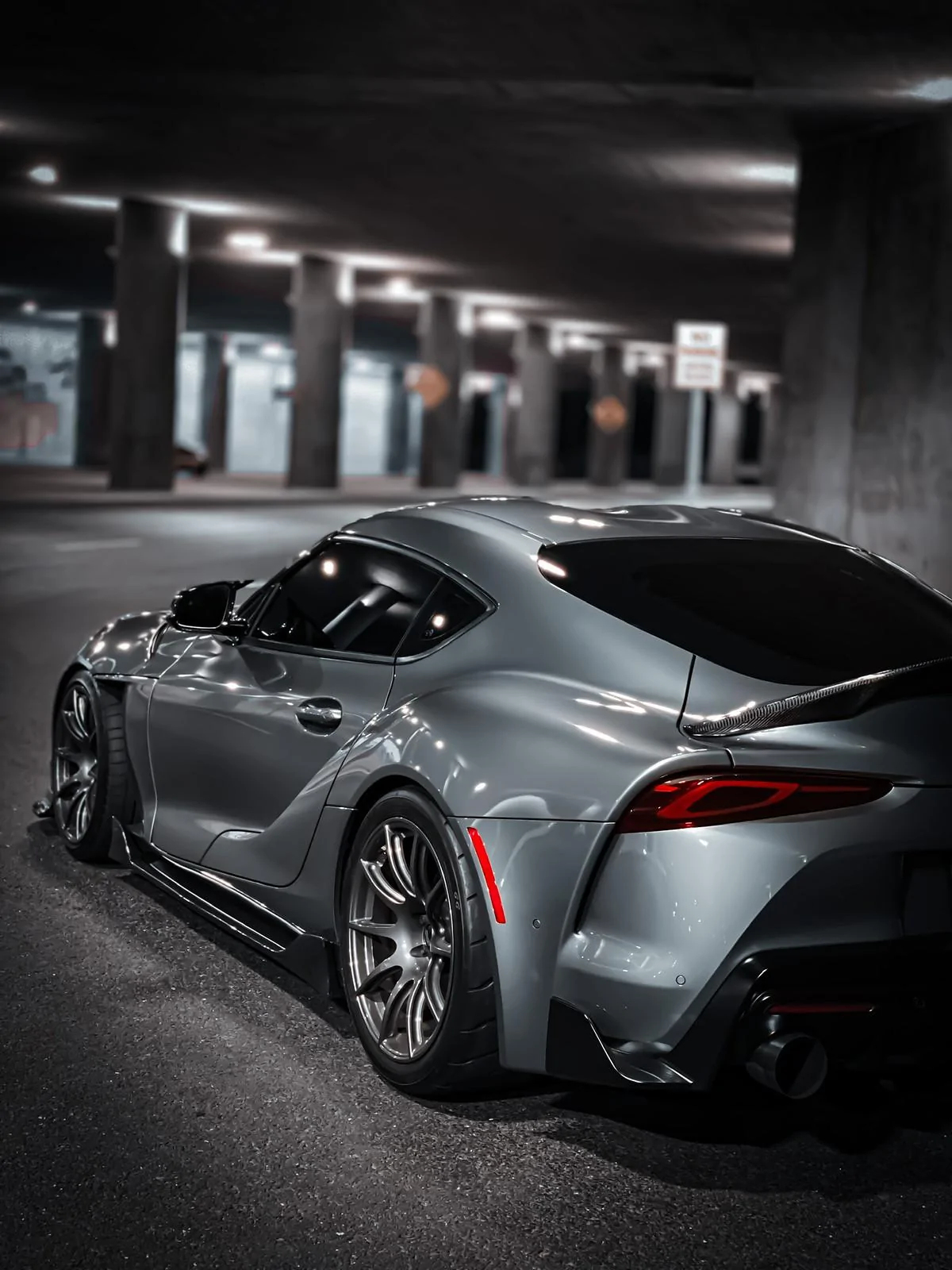

This is a bit of a double-up, but figured I'd post these here as well:

Wheels: Anthracite APEX SM-10s
Front: 19x9.5 ET25
Rear: 19x11 ET40

Tires:
Front:
255/35-19 Michelin Super Sports
Rear: 305/30-19 Toyo R888Rs

Additional notes:
Lowered on coilovers

Owner's IG: @SUPRAJHAY









- Tom -​
Any plans to make these in Satin Black for the 19?


APEXRaceParts

Well-Known Member
Gold Sponsor
Joined
Oct 15, 2020
Threads
29
Messages
347
Reaction score
295
Location
California
Car(s)
GR Supra Sponsor
Any plans to make these in Satin Black for the 19?
Yep, Satin Black SM-10s are in the works but their production has been delayed a few times. It's looking like March or April of next year before we'll have them in hand but I'm shooting to have them in both 18 and 19" diameters, square and staggered.

-Tom


JRedMKV

Well-Known Member
Joined
Jul 1, 2020
Threads
36
Messages
619
Reaction score
592
Location
Reno, Nevada
Car(s)
2020 Supra 3.0 Premium
Vehicle Showcase
1

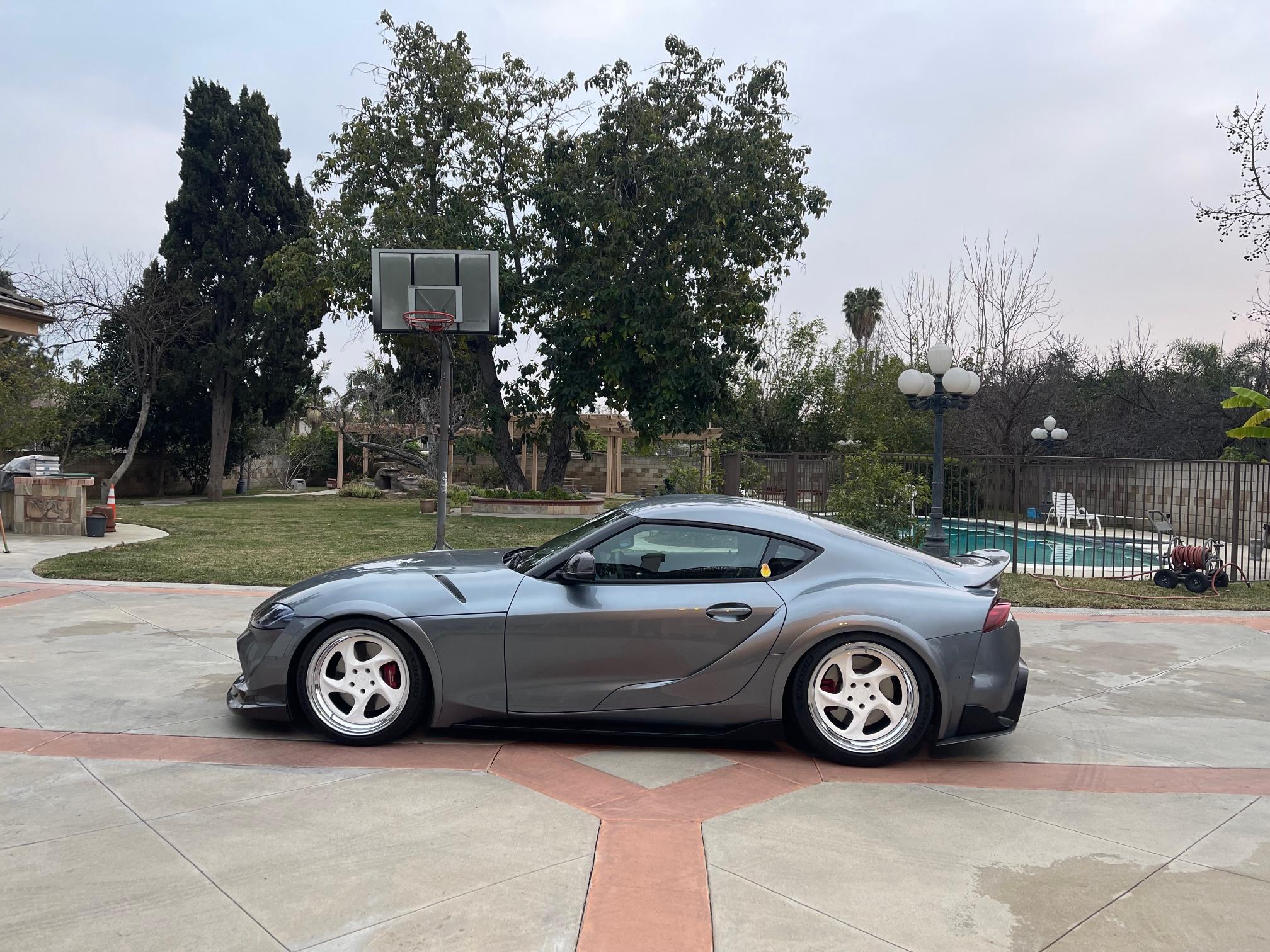

Done with fitment on this car: Final Specs

Suspension
  • RSR Best I Active Coilvers
    • Rear springs are sitting on an a pair of Allstar Performance 1" Perch Spacers. We were maxing out the threading just to keep the wheels from tucking, so this was the fix.
    • I left just enough gap to where my knuckles would not fit.
    • Remember. You'll have to do at least one drive cycle for the struts to settle in to get the actual ride height.
  • SPL Front Lower Control Arms(to adjust Camber)
    • The bracket needs to have an extra hole drill on the bracket for the ride height sensor.
    • I ended just removing it completely and mounting it directly to the FLCA. I'll try to provide a picture this weekend.
  • Front Camber
    • Left: -2.0
    • Right: -2.0
  • Rear Camber
    • Left: -1.9
    • Right: -2.1
  • Wheels
    • SSR Professor SP1s
      • Front 20x9.5 +22
        • Uses a 3mm spacer. Final offset is +19
      • Rear 20x10.5 +30
  • Tires
    • Michelin Pilot Sport 4S
      • Front 275/30 20
      • Rear 305/30 20
Hope this helps someone looking to obtain similar fitment.


Makes me wish I had ordered 20’s. ?


mikl99

Member
Joined
Jan 6, 2022
Threads
3
Messages
7
Reaction score
4
Location
San Diego
Car(s)
21 A90

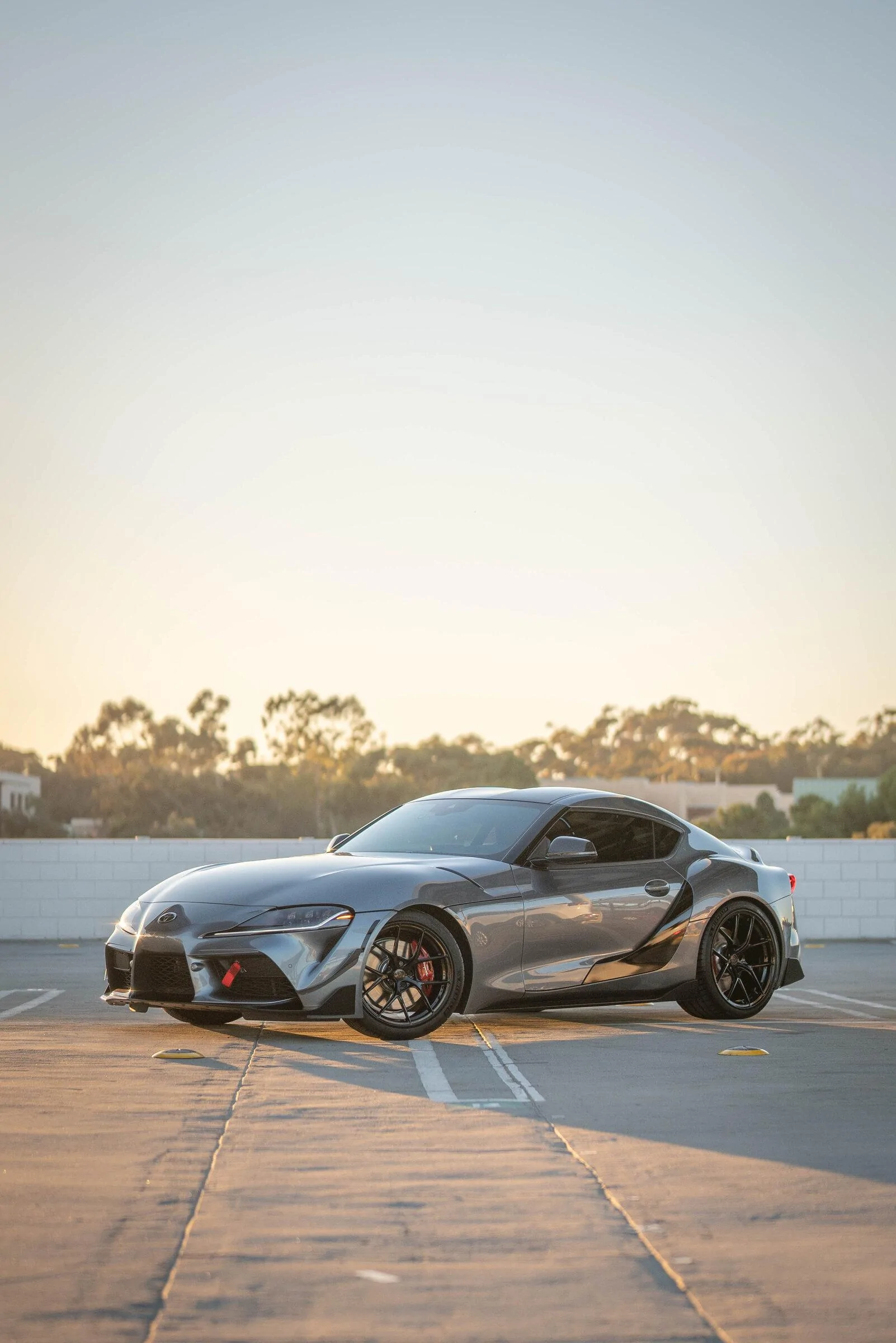

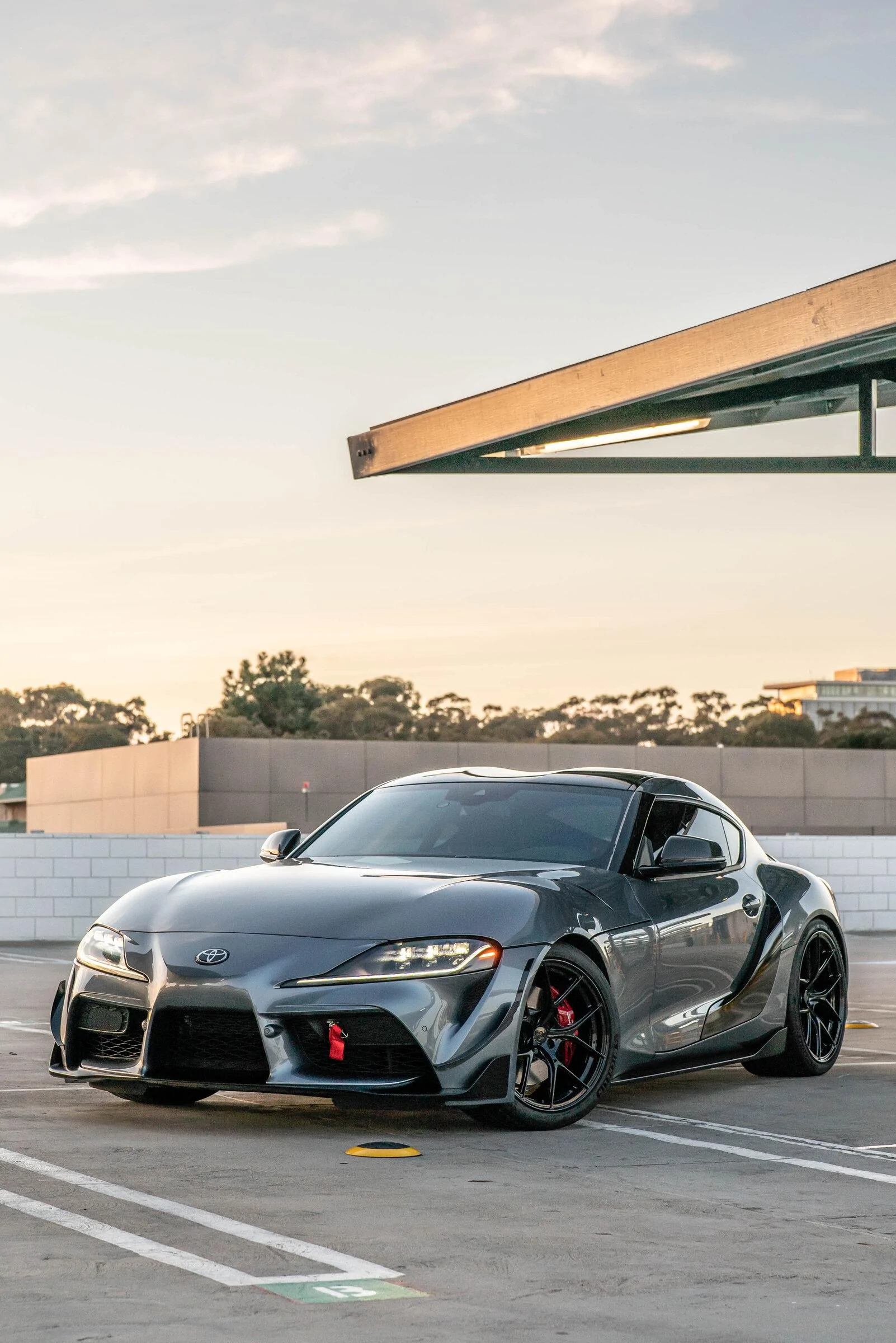

Titan 7 TS-5
Front 19X9.5 +34
Rear 20X11 +43
Powdercoated to gloss black

Loved how 20s look on the rear but 20 in the front feels a bit weird for me, so I tried combining the two. To minimize the influence of the wheel size I put 265 35/19 PS4s in the front and 295 30/20 in the rear, the wheel diameter ratio stayed roughly the same as the stock ones, if anyone wants to try out 19/20 combination I would recommend this setup.

Stock Wheel sizes:
255/35/19 Front = 660mm
275/35/19 Rear = 676mm
Difference = 16mm

Mine:
265/35/19 Front = 668mm
295/30/20 Rear = 686mm
Difference = 14mm

Not sure if this is the right way for the calculation but everything feels awesome to me : )
Also these wheels are open for sale if anyone is interested





Blaque Diamond Wheels

Well-Known Member
Joined
Dec 14, 2020
Threads
5
Messages
506
Reaction score
374
Location
Chatsworth, CA
Car(s)
Supra MkV
Titan 7 TS-5
Front 19X9.5 +34
Rear 20X11 +43
Powdercoated to gloss black

Loved how 20s look on the rear but 20 in the front feels a bit weird for me, so I tried combining the two. To minimize the influence of the wheel size I put 265 35/19 PS4s in the front and 295 30/20 in the rear, the wheel diameter ratio stayed roughly the same as the stock ones, if anyone wants to try out 19/20 combination I would recommend this setup.

Stock Wheel sizes:
255/35/19 Front = 660mm
275/35/19 Rear = 676mm
Difference = 16mm

Mine:
265/35/19 Front = 668mm
295/30/20 Rear = 686mm
Difference = 14mm

Not sure if this is the right way for the calculation but everything feels awesome to me : )
Also these wheels are open for sale if anyone is interested



Not bad at all. The tires still look meaty enough


Emmanuel23191

Well-Known Member
First Name
Emmanuel
Joined
Jan 3, 2021
Threads
5
Messages
48
Reaction score
14
Location
Texas
Car(s)
A90
Motegi if someone still has a used pair left. Weld Ventura or Laguna would be the next cheapest.

these are the Weld Venturas
Do you need to buy different longer bolts or change to lug nuts and bolts? I’ve seen online that you do and don’t. I just ordered a set of weld beadlocks and was curious about that


black_sedan

Well-Known Member
First Name
BR
Joined
Sep 15, 2019
Threads
14
Messages
639
Reaction score
540
Location
Northeast Florida
Car(s)
a90 Supra, Ford Raptor
Do you need to buy different longer bolts or change to lug nuts and bolts? I’ve seen online that you do and don’t. I just ordered a set of weld beadlocks and was curious about that
I checked with Titan and stock bolts work. But I swapped to lug studs because its easier to swap on and off after every trip to the track.

  • Like
Reactions: zrk

Cptnslo

Well-Known Member
First Name
Colton
Joined
Aug 29, 2021
Threads
43
Messages
1,310
Reaction score
1,358
Location
42103
Car(s)
2020 MKV 3.0 Supra
Here’s mine. Weld venturas 17x10 with a 305/45/17


obito

Well-Known Member
Joined
Jul 24, 2021
Threads
19
Messages
370
Reaction score
532
Location
Seattle
Car(s)
3.0
I want to ask about it here because no one looks at the nitro thread— any nitro owners with Variant wheels on?
