Found them. They look a bit different than what's in the installation video. One is a 3 and one is a 5. I'm assuming you only use one of them?

3 - 175 ML/MIN
5 - 375 ML/MIN


whostorm05

Well-Known Member
First Name
Ryan
Joined
May 18, 2019
Threads
15
Messages
254
Reaction score
115
Location
Indianapolis, IN
Car(s)
2016 Subaru Outback 3.6R Limited, 1991 Pontiac TransAm

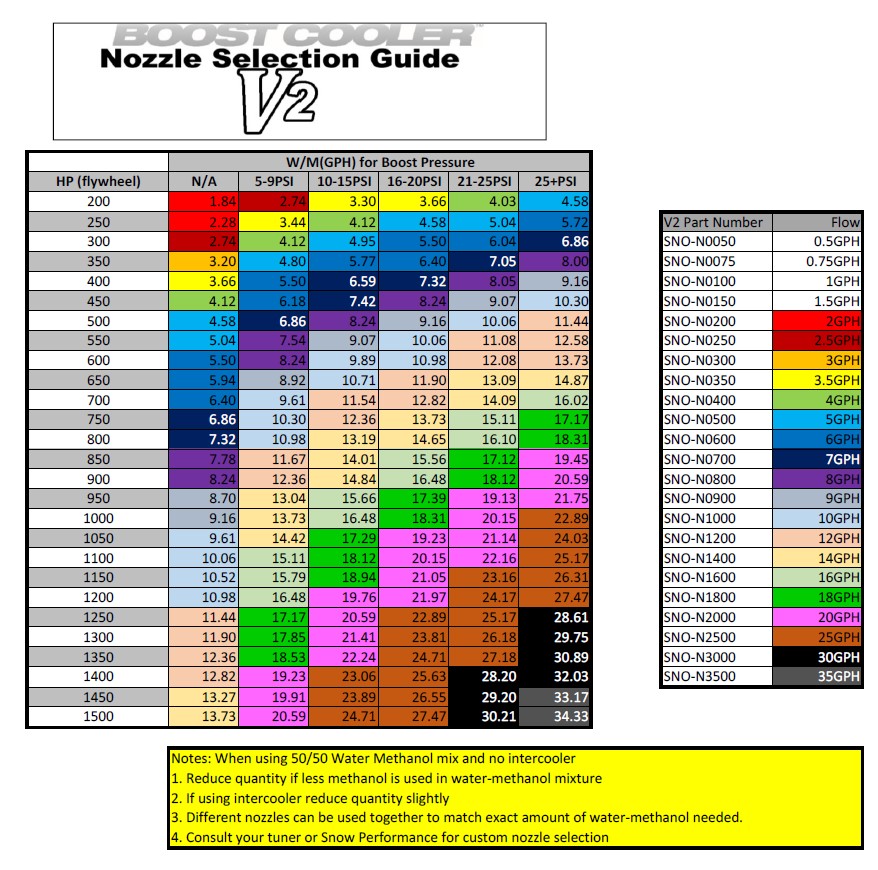

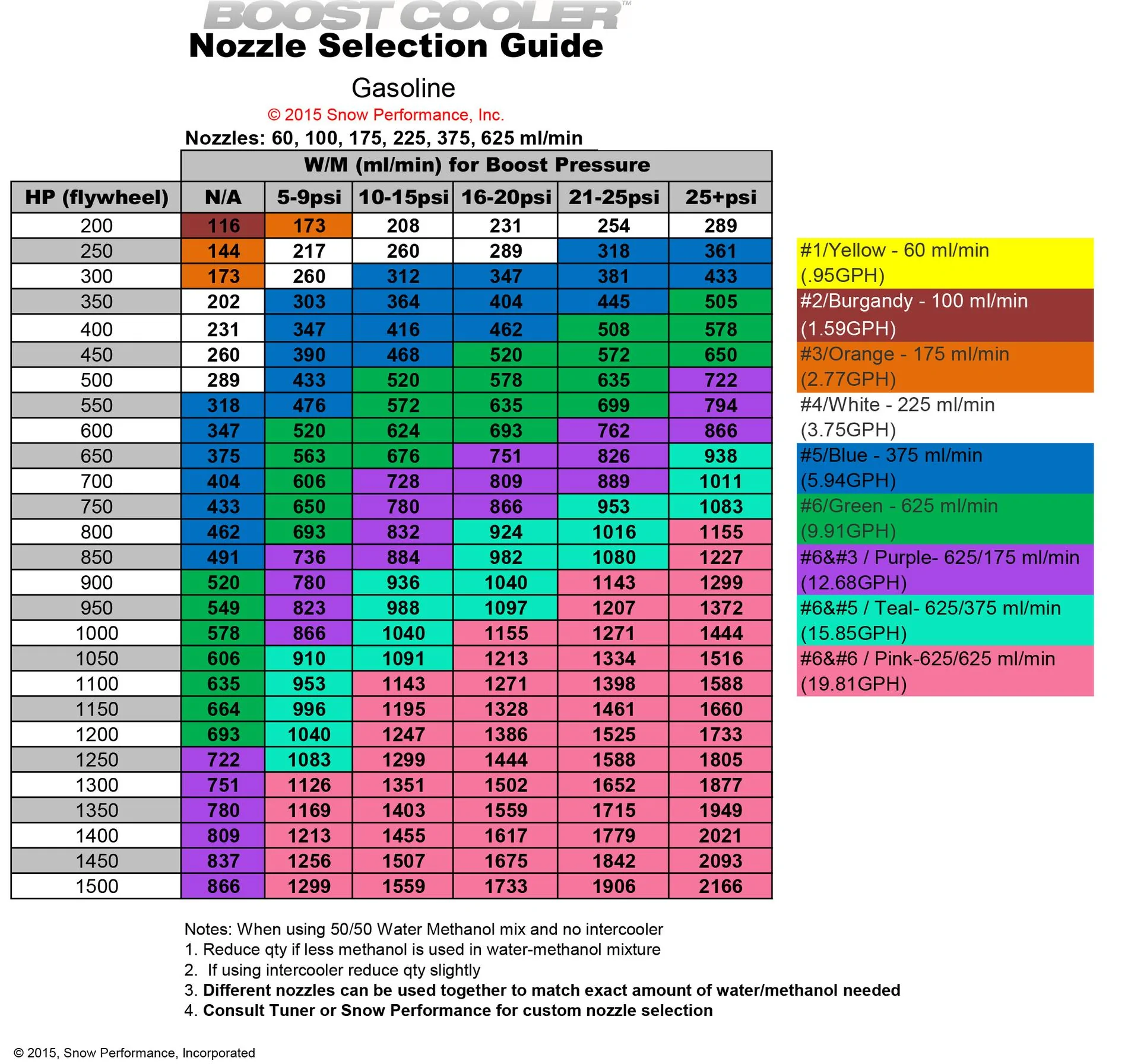

Per the chart in the instructions, 3 is for between 200-400HP and 5 is 400-600. It does not come with a 6 nozzle which is for 600-800HP.


Ryco

Well-Known Member
First Name
Darsiah
Joined
Feb 18, 2020
Threads
12
Messages
136
Reaction score
44
Location
North Carolina, Fayetteville
Car(s)
2020 Supra MKV Premium & 2014 Scion FRS
Found them. They look a bit different than what's in the installation video. One is a 3 and one is a 5. I'm assuming you only use one of them?

3 - 175 ML/MIN
5 - 375 ML/MIN
awesome now i wonder if the 5 is big enough to not have the fuel limit issue.


whostorm05

Well-Known Member
First Name
Ryan
Joined
May 18, 2019
Threads
15
Messages
254
Reaction score
115
Location
Indianapolis, IN
Car(s)
2016 Subaru Outback 3.6R Limited, 1991 Pontiac TransAm
@Titan Motorsports Any thoughts on if a #5 nozzle is good enough to prevent fuel limit issues? Any harm in using a #6, just draining meth quicker?


Twisted Tuning

Well-Known Member
Gold Sponsor
First Name
Justin
Joined
Mar 10, 2019
Threads
26
Messages
1,236
Reaction score
1,548
Location
New York
Website
www.twistedtuning.com
Car(s)
2020 Supra, 335xi, 135i, TwinTurbo Mazda6
if that setup has two ports, use two smaller nozzoles to equal the one big nozzle. Better atomization. And atomization helps with distribution in a manifold that has restrictions in it that will affect distribution (the A2W intercooler).

What fuel limit issue are you talking about?


whostorm05

Well-Known Member
First Name
Ryan
Joined
May 18, 2019
Threads
15
Messages
254
Reaction score
115
Location
Indianapolis, IN
Car(s)
2016 Subaru Outback 3.6R Limited, 1991 Pontiac TransAm
"The plate incorporates 2 NPT ports, one for the included methanol injector and a second which can be used for boost reference or additional sensors." - wondering if you could use two nozzles? I also wonder if you could run two nozzles off 1 pump?


Twisted Tuning

Well-Known Member
Gold Sponsor
First Name
Justin
Joined
Mar 10, 2019
Threads
26
Messages
1,236
Reaction score
1,548
Location
New York
Website
www.twistedtuning.com
Car(s)
2020 Supra, 335xi, 135i, TwinTurbo Mazda6
"The plate incorporates 2 NPT ports, one for the included methanol injector and a second which can be used for boost reference or additional sensors." - wondering if you could use two nozzles? I also wonder if you could run two nozzles off 1 pump?
Most pumps can flow like 2000-3000cc so your not really touching the pump capacity.


jopfer

Well-Known Member
First Name
Jacob
Joined
Oct 22, 2019
Threads
18
Messages
138
Reaction score
101
Location
Bozeman, MT
Car(s)
2020 Supra GR
Quick question, is it possible to have the engine running temperature that are too cool or for IATs to be too low? For instance if you go with the upgraded heat exchanger and methanol injection kit (pure 800 turbo) and are generally not doing multiple pulls at a drag strip will this have any Ill effect? I know that the methanol only starts to inject at a certain boost PSI, but was just wondering before I add these to my ride.


Twisted Tuning

Well-Known Member
Gold Sponsor
First Name
Justin
Joined
Mar 10, 2019
Threads
26
Messages
1,236
Reaction score
1,548
Location
New York
Website
www.twistedtuning.com
Car(s)
2020 Supra, 335xi, 135i, TwinTurbo Mazda6
Quick question, is it possible to have the engine running temperature that are too cool or for IATs to be too low? For instance if you go with the upgraded heat exchanger and methanol injection kit (pure 800 turbo) and are generally not doing multiple pulls at a drag strip will this have any Ill effect? I know that the methanol only starts to inject at a certain boost PSI, but was just wondering before I add these to my ride.
having IATs that are actually too cool is not a thing. Im talking real IATS not spraying the IAT sensor lying to the ECU IATS. However, Coolant temps should remain between 190-215deg F. colder than that you lose efficiency, and hotter than that you do as well.


jopfer

Well-Known Member
First Name
Jacob
Joined
Oct 22, 2019
Threads
18
Messages
138
Reaction score
101
Location
Bozeman, MT
Car(s)
2020 Supra GR
having IATs that are actually too cool is not a thing. Im talking real IATS not spraying the IAT sensor lying to the ECU IATS. However, Coolant temps should remain between 190-215deg F. colder than that you lose efficiency, and hotter than that you do as well.
So no problems running the above. The thermostat will continue to regulate coolant flow as needed to maintain those normal temps?


jtsang25

Well-Known Member
Joined
May 28, 2019
Threads
70
Messages
2,471
Reaction score
2,366
Location
Canada
Car(s)
2009 BMW 135i, 2020 Toyota GR Supra
Newest video just uploaded to YouTube! Lots of raw unedited sound clips so everyone can enjoy plenty of audio while they are stuck at home. The car performed flawlessly and the EFR9280 spooled so quick it made the tight technical roads enjoyable. Mine is a daily driver and I want it to be able to do a little of everything or a lot. Haha

Anyways enjoy!


Is it just me or the video isnt working.
