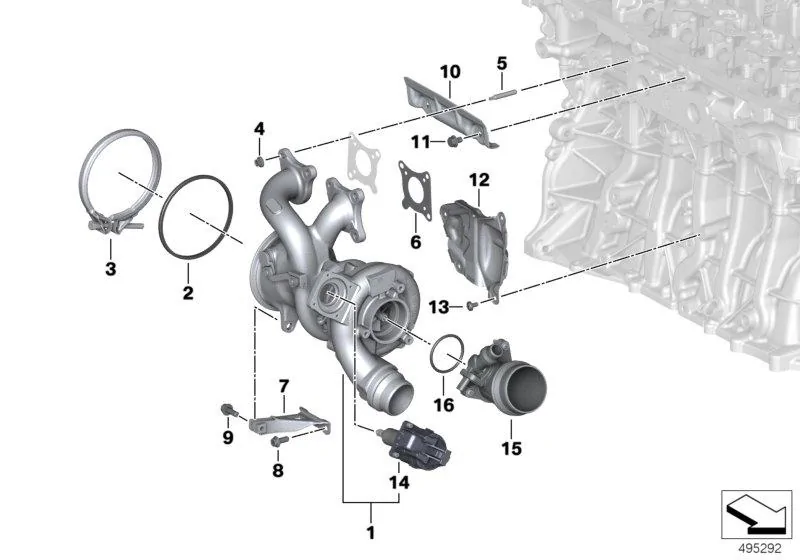

    Wow so that turbo manifold has only 2 primaries? I though it would be 6 seeing how it's an I6? Never seen a manifold like that before.

  4. Pheonix

    Pheonix Well-Known Member

    Car(s):
    2016 Porsche Cayman GT4 6MT (track car), 2011 BMW 128i 6MT (daily), patiently waiting for 2020 Supra 6MT
    Joined:
    Jan 18, 2019
    Location:
    Southern California
    Posts:
    147
    Liked:
    185
    #19 Jun 9, 2019
    Last edited: Jun 15, 2019
    2800lbs and you aren't a "street" car any more. We are talking fully stripped interior, fully gutted, passenger seat missing, no AC, no radio, all airbags removed and fully caged up. I think the most common weight reduction mods for a street driven car would be seats, steering wheel, wheels, suspension, full titanium exhaust, and maybe some dry carbon body parts (read very much $$$$), and removal of sound deadening materials. Hopefully we can get close to 3100-3000lbs like that.

  5. Nurburgring

    Nurburgring Well-Known Member

    Car(s):
    911 Turbo, M3 E46, Turbocharged NA Miata, S2000, Mazda FC3S & FD3S, EP91 Starlet, EK9 Type R, EG6 Sir2, AE86, 3SGE AE86, Evo7RS, F3 race car
    Joined:
    May 3, 2018
    Location:
    Chile
    Posts:
    198
    Liked:
    817

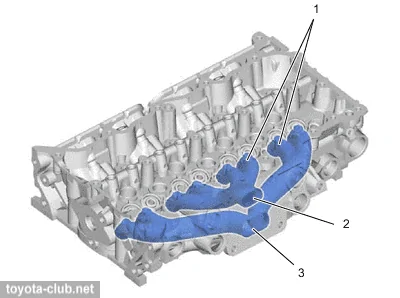

    Manifold is partially integrated in the head itself. Pretty common in latest generation turbo engines from many manufacturers (civic type r, vw gti, toyota ar-series)


  6. Pheonix

    Pheonix Well-Known Member

    Car(s):
    2016 Porsche Cayman GT4 6MT (track car), 2011 BMW 128i 6MT (daily), patiently waiting for 2020 Supra 6MT
    Joined:
    Jan 18, 2019
    Location:
    Southern California
    Posts:
    147
    Liked:
    185
    So what if we wanna do a full single turbo build and improve exhaust scavenging? We have to swap out the head for that?

  7. Nurburgring

    Nurburgring Well-Known Member

    Car(s):
    911 Turbo, M3 E46, Turbocharged NA Miata, S2000, Mazda FC3S & FD3S, EP91 Starlet, EK9 Type R, EG6 Sir2, AE86, 3SGE AE86, Evo7RS, F3 race car
    Joined:
    May 3, 2018
    Location:
    Chile
    Posts:
    198
    Liked:
    817
    For most realistic power goals it probably won’t be necessary. People are doing >600whp on the 1.5 liter Honda engine with integrated manifold (L15B7). We´ll have to see.

    XtremeMaC likes this.
  8. kona61

    kona61 Well-Known Member

    First Name:
    J
    Car(s):
    5G 4Runner, Mk7 Golf, AZW Supra
    Joined:
    Mar 25, 2018
    Location:
    Redlands, CA
    Posts:
    687
    Liked:
    1,055
    Garage Profiles:
    1
    US B58B30O1 head or last gen B58 head. Although, I believe the last gen B58 has different components so the head won't fit without modification.

  9. Matador

    Matador Well-Known Member

    Car(s):
    '87 E30, '95 Mk4 Supra, '03 Legacy GT
    Joined:
    Jun 6, 2018
    Location:
    W.I.
    Posts:
    210
    Liked:
    561
    Absolutely not.

  10. elpadrino

    elpadrino Well-Known Member

    First Name:
    eL
    Car(s):
    Lexus RC350F, bmw E92, ducati monster
    Joined:
    Mar 5, 2018
    Location:
    n/a
    Posts:
    121
    Liked:
    187
    Hopefully this kills that side intake talk once and for all.

  11. justbake

    justbake Well-Known Member

    First Name:
    Justin
    Car(s):
    F10 535i, E30 325e
    Joined:
    Apr 19, 2018
    Location:
    Indy
    Posts:
    866
    Liked:
    1,621

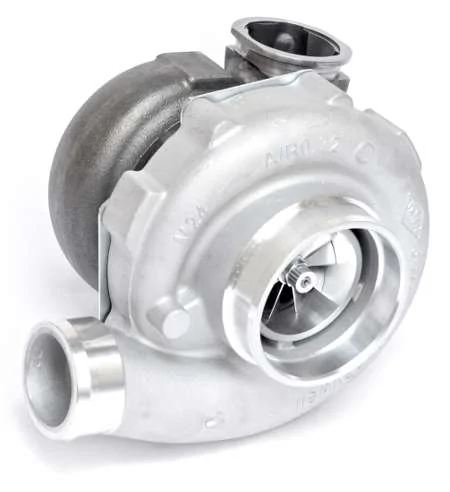

    I believe it will be even easier to upgrade to a bigger single with this head. Instead of a full manifold being made, you just need to create a T4/Vband 'adapter' that bolts to head similarly to how the turbine housing connects to the head now

    Mk5nut, Pheonix, mas921 and 2 others like this.
  12. AHP

    AHP Well-Known Member

    Car(s):
    '93 Supra TT Hardtop, '09 Corvette ZR1, '07 Corvette, '13 G37x, '10 Escalade ESV
    Joined:
    Nov 28, 2018
    Location:
    CLT, NC
    Posts:
    142
    Liked:
    232
    Garage Profiles:
    1


    Huh..? That V-band is only to mate the downpipe/cat to the exhaust housing outlet. Considering the manifold, CHRA, internal WG, etc.. is all one cast component, the path of least resistance for a turbo upgrade will be to machine the OEM housings for bigger compressor and exhaust wheels. Also considering the convoluted wastegate/BOV contraption is all integrated, the aftermarket has several problems to solve for outside of re-wheeling the OEM unit.

    DesmoSD likes this.
  13. justbake

    justbake Well-Known Member

    First Name:
    Justin
    Car(s):
    F10 535i, E30 325e
    Joined:
    Apr 19, 2018
    Location:
    Indy
    Posts:
    866
    Liked:
    1,621
    Huh? There are many turbos that use Vband inlets for their turbine housings and is becoming more and more popular.





    Yeah its a single cast unit but instead of going from head -> turbo, you would go from head -> manifold (I loosely used the term adapter since the manifold is inside the head) -> aftermarket turbo.

    As for the wastegate, this is where flashing the DME comes into play as it has already been done with the current b58.

    Obviously upgrading the turbo's internals is the easiest but that isn't what we are talking about.

    Mk5nut, Pheonix, Matador and 2 others like this.
  14. AHP

    AHP Well-Known Member

    Car(s):
    '93 Supra TT Hardtop, '09 Corvette ZR1, '07 Corvette, '13 G37x, '10 Escalade ESV
    Joined:
    Nov 28, 2018
    Location:
    CLT, NC
    Posts:
    142
    Liked:
    232
    Garage Profiles:
    1
    I see what you're saying now; I misunderstood your previous post. In that case whether it's V-band or bolted flange doesn't really matter unless space is a big constraint (which could be the case). Then the question is can you cast or fab a head-to-turbo adapter and still have the inlet/outlet land in the same location, for bolt-on simplicity.

  15. kona61

    kona61 Well-Known Member

    First Name:
    J
    Car(s):
    5G 4Runner, Mk7 Golf, AZW Supra
    Joined:
    Mar 25, 2018
    Location:
    Redlands, CA
    Posts:
    687
    Liked:
    1,055
    Garage Profiles:
    1
    I am certain it’s possible. The length of the turbo inlet with the adapter thing is quite long which gives plenty of space to create an adjustment.
