New Remnant Turbo Kit. Worked Fine for a Week, Now Acting as if I Have a Massive Boost Leak
- First Name
- Alec
- Joined
- Feb 24, 2022
- Threads
- 0
- Messages
- 82
- Reaction score
- 307
- Location
- Holly Springs, NC
- Car(s)
- 2020 Toyota Supra GR 3.0 | 2013 Genesis Coupe 3.8T

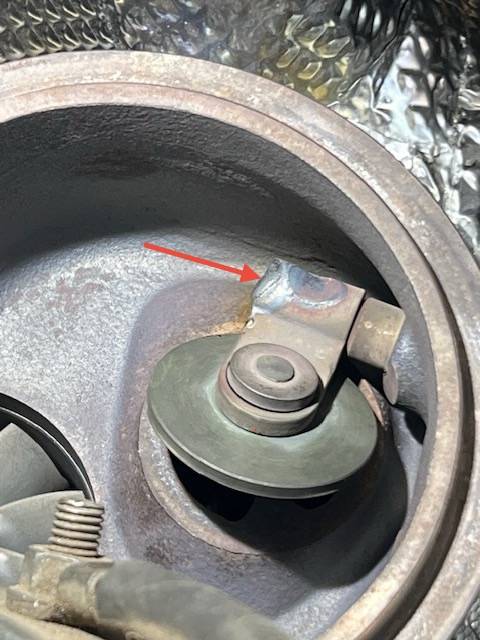

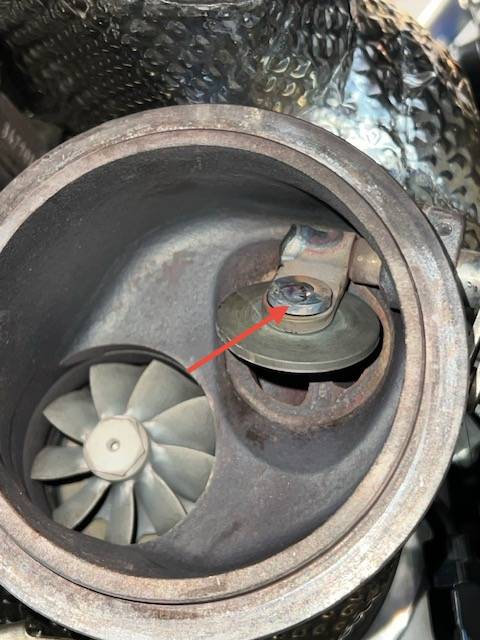

if you are referring to the wastegate connecting arm that we include in the turbo kit, we designed it with a Heim joint built in. We did this to make sure that it is impossible for it to bind
Last edited:
AZ Zupra
Member
- First Name
- Dev
- Joined
- Mar 18, 2024
- Threads
- 0
- Messages
- 16
- Reaction score
- 9
- Location
- phoenix AZ
- Car(s)
- 2020 GR Supra, 2009 GX470
Any update after replacement turbo? I've finally gotten my turbo/PI order from Remnant and wondering if there's anything I should be looking out for.
OP
OP
Jazee
Member
- First Name
- Jake
- Joined
- Feb 15, 2022
- Threads
- 2
- Messages
- 24
- Reaction score
- 12
- Location
- Middle Tennessee
- Car(s)
- 2020 Supra LE, 2007 STI, 1991 Miata, 2012 5.0
- Thread starter
- #34

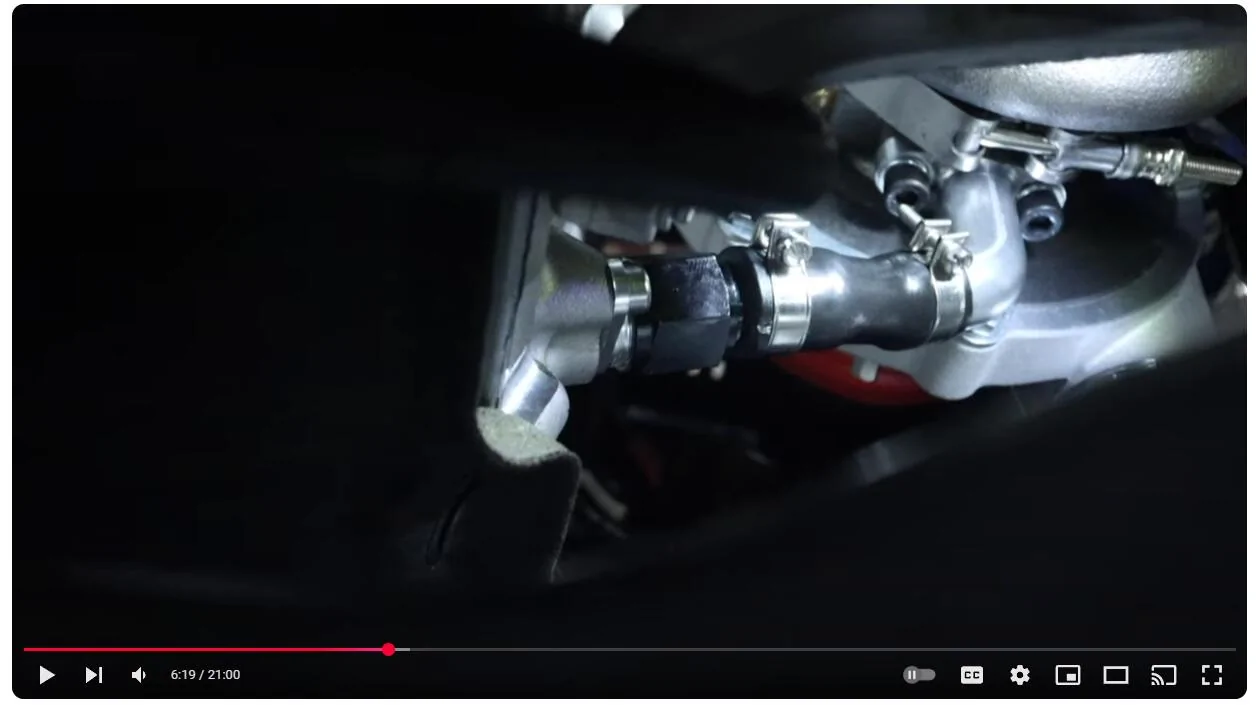

I had another issue with white smoke starting to bellow out of the exhaust. Turns out turbo oil drain line was kinked and causing oil to pressurize within the turbo. It can be difficult to clock everything properly so make sure that the oil drain is threaded first while someone holds the turbo off the studs. It will have a bend in it, which is normal, just make sure it is not kinked after everything is tight. You might have to loosen the CHRA vband and rotate to give it some more clearance.
GMsuperfan
Well-Known Member

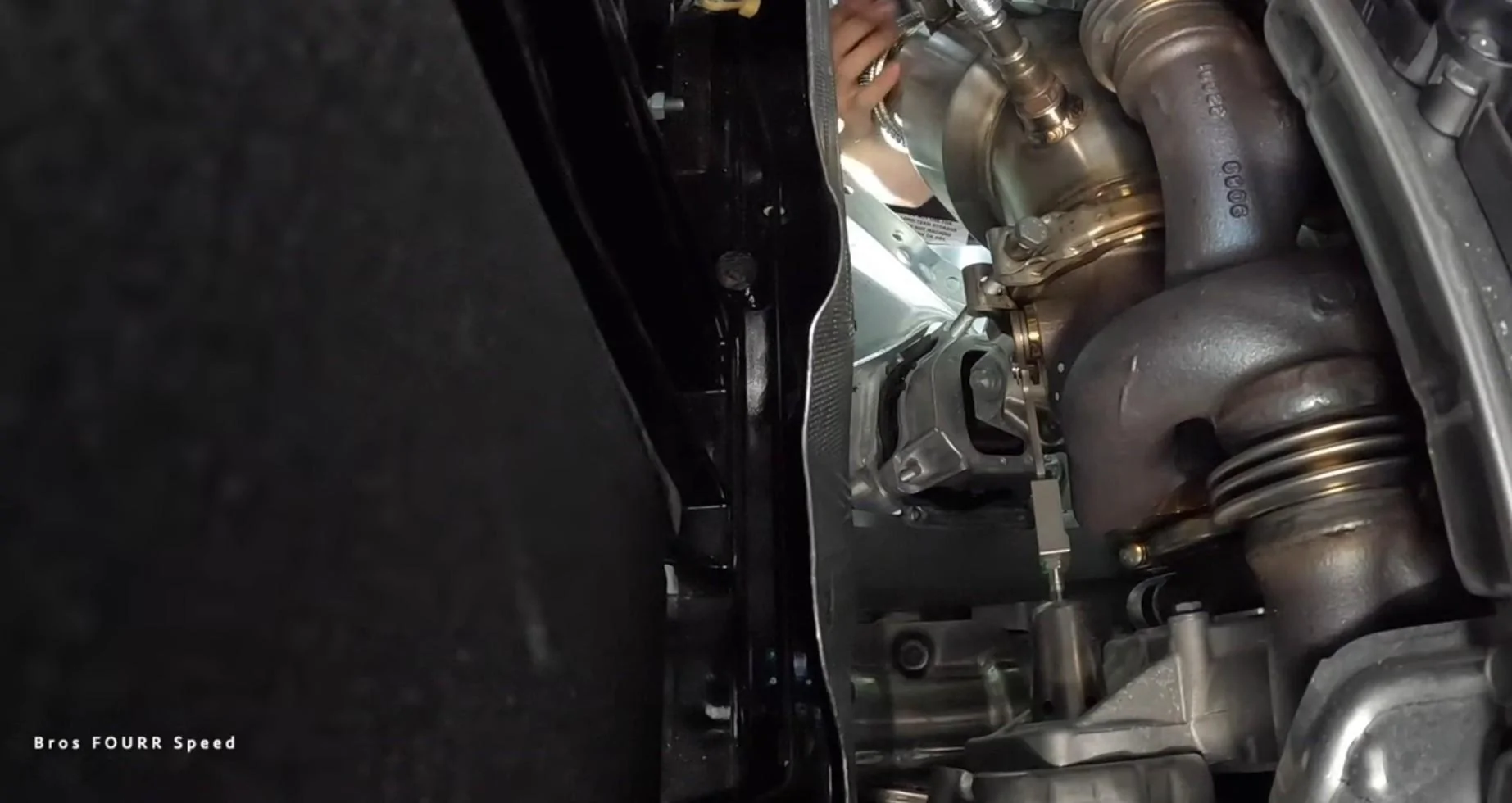

I'd reach out to Alec for some tips/advice if you plan to install this on your own. There are a bunch of suggestions in this thread but I had a shop do mine and they've provided some feedback to him as well. He's likely a wealth of knowledge and should be able to point out some potential gotchas. Biggest issue the shop had w/ the kit on mine was getting the WG mounted so that it would clear everything. They also installed some heat wrap around the WG itself since it's like 3-5mm from the manifold and super hot parts (the top of the EWG is plastic).
